How do I connect the Taiss incremental rotary encoder for Arduino projects?

Connect the red wire to your DC 5-24V power source (+), the black wire to ground (V0), the white wire to an Arduino digital input for Phase A, and the green wire to another Arduino digital input for Phase B. For direct oscilloscope use, external pull-up resistors are needed for the AB phase outputs.

What is the resolution of this Taiss rotary encoder?

This Taiss incremental rotary encoder has a resolution of 360 pulses per revolution (360P/R). This means it generates 360 distinct signals for each full rotation, allowing for precise measurement of angle and speed in your projects.

Can I use this encoder with a 5V Arduino board?

Yes, this encoder supports a wide DC 5-24V power supply, making it fully compatible with 5V Arduino boards. Ensure you connect the power and ground wires correctly and use appropriate pull-up resistors if needed for your specific circuit configuration.

What does 'NPN open collector output' mean for this encoder?

NPN open collector output means the encoder's output pins (A and B phases) can sink current to ground but cannot source voltage. This requires external pull-up resistors connected to your power supply (e.g., 5V) to create a high signal when the output is not actively pulling low.

What is the difference between this encoder and an absolute encoder?

Incremental encoders like this one measure movement relative to a starting point, providing pulses for each step of rotation. Absolute encoders, however, provide a unique digital code for each specific position, retaining position information even after power loss. This Taiss unit is incremental.

How to ensure reliable operation of this encoder in Indian conditions?

While not explicitly rated for environmental extremes, this encoder's robust construction and wide voltage range support reliable operation. For sensitive applications, ensure proper wiring and consider adding pull-up resistors. Its compact size allows for integration into well-ventilated enclosures, protecting it from excessive dust or heat.

Taiss Incremental Rotary Encoder 360P/R | AB Two-Phase Quadrature Output, 6mm Shaft, DC 5-24V

Name: Taiss Incremental Rotary Encoder 360P/R DC 5-24V Wide Voltage 6mm Shaft | AB Two-Phase Quadrature Output
Brand: Taiss
SKU: uuf4698
Price: 3503.00 INR
Availability: InStock

About this item

The Taiss incremental rotary encoder (360P/R, AB two-phase) offers precise measurement of rotational speed, angle, and acceleration. With a wide DC 5-24V power supply and a 6mm shaft, it's suitable for various intelligent control applications, including robotics and automated machinery. This USA-sourced component ensures quality for your DIY electronics projects. All customs duties and GST are included in the price.

Featuring an NPN open collector output, this encoder requires pull-up resistors for direct oscilloscope connection (not included). The package includes one encoder, weighing 130g. Its compact size (38 x 35.5mm body, 6 x 15mm shaft) makes it versatile for integration into existing setups. Ensure correct wiring: white=A phase, green=B phase, red=power +, black=V0. Avoid connecting AB phases directly to VCC to prevent transistor damage.

For Indian makers and engineers, this imported encoder provides a reliable alternative for precision control. While local options exist, this unit offers specific performance metrics and quality assurance. Your order is shipped via ExpressBox with tracking, ensuring clear delivery expectations. The price you see is the final landed cost, with all import charges pre-paid.

Key Features

This incremental rotary encoders Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .
Product Name: incremental rotary encoders 360P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .
Encoder size ： Encoder size: 38 x 35.5mm/1.49" x 1.39" ；Shaft: 6 x 15mm/0.23" x 0.59"；Axis stopper platform: High 5mm, 20mm；Power source: DC 5-24V；Maximum mechanical speed: 6300 R / min.

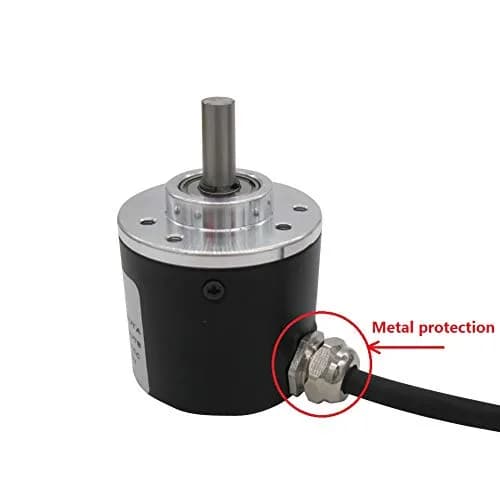

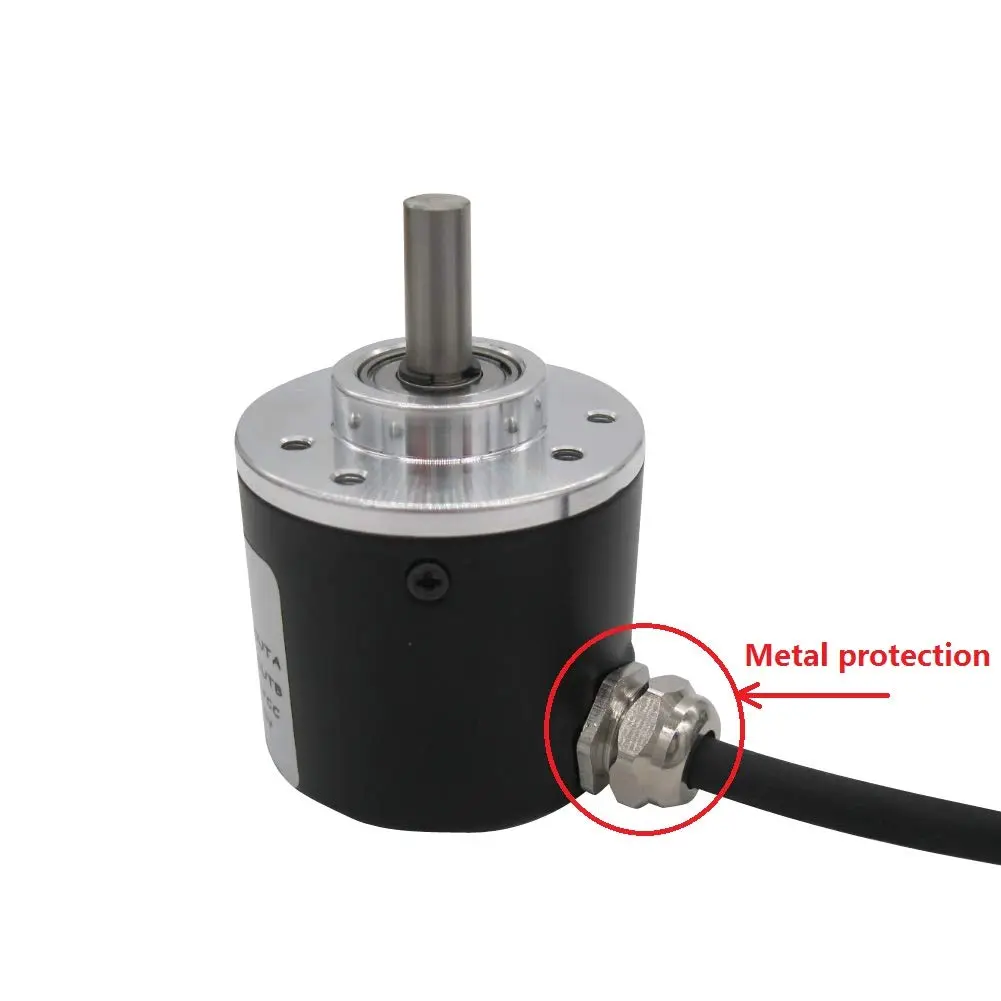

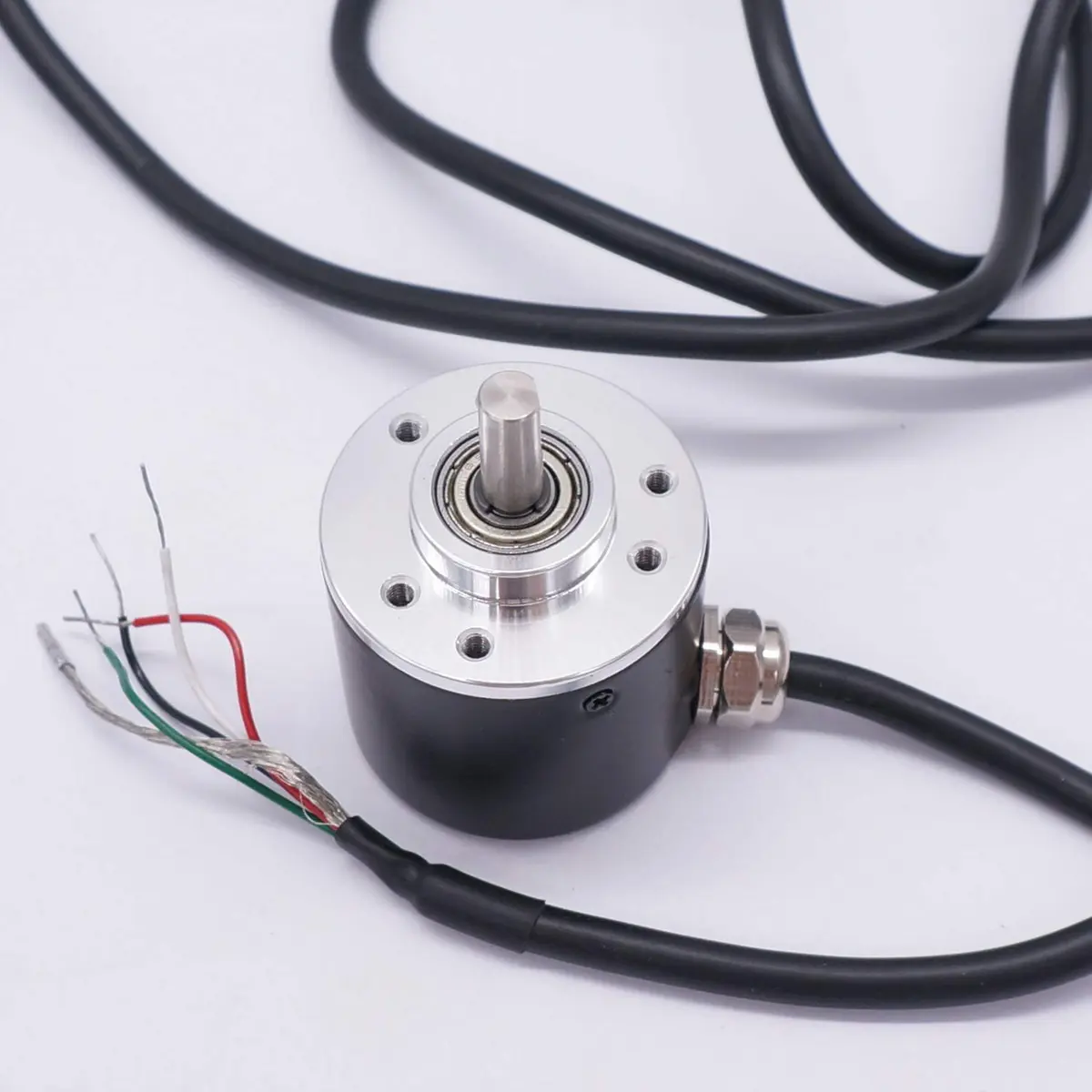

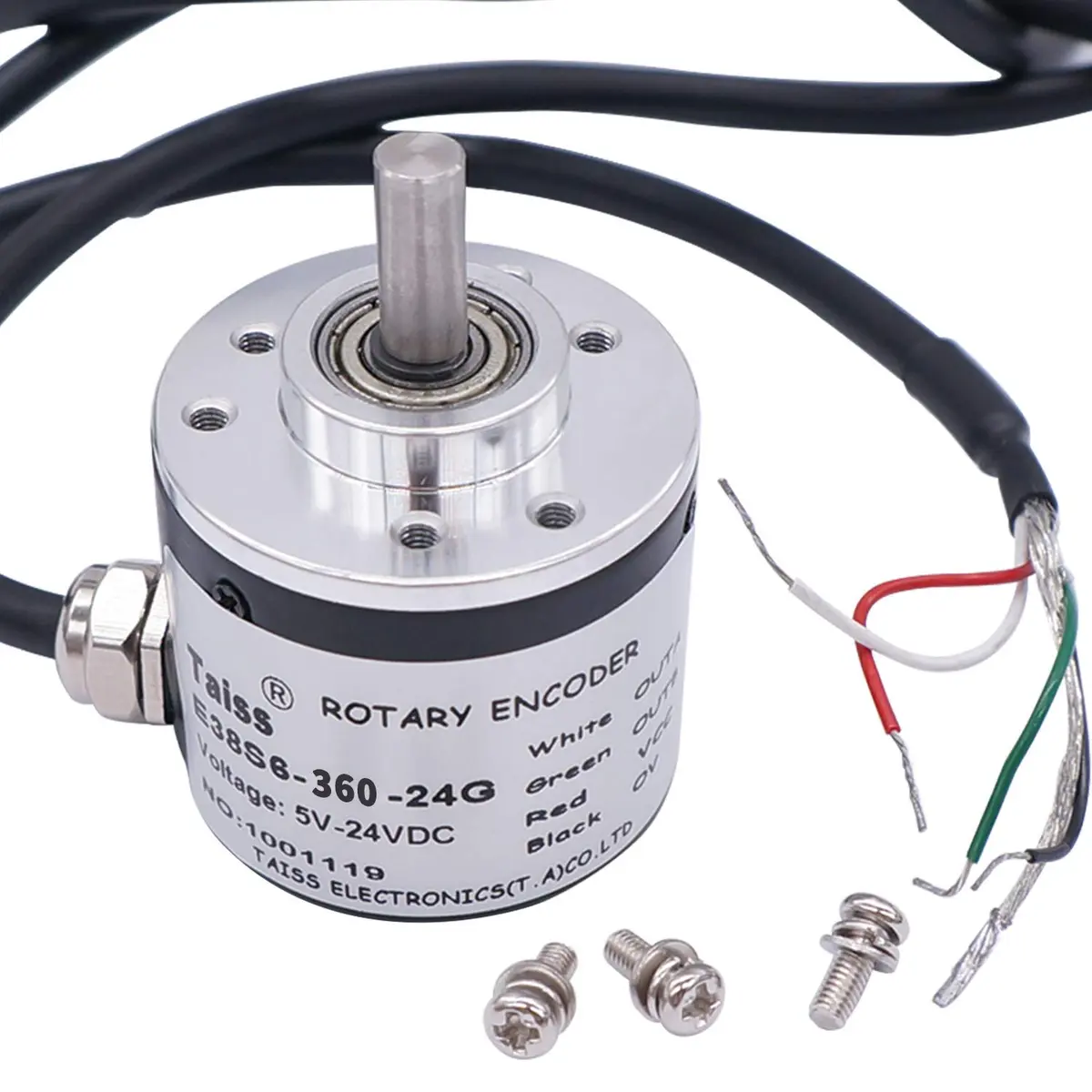

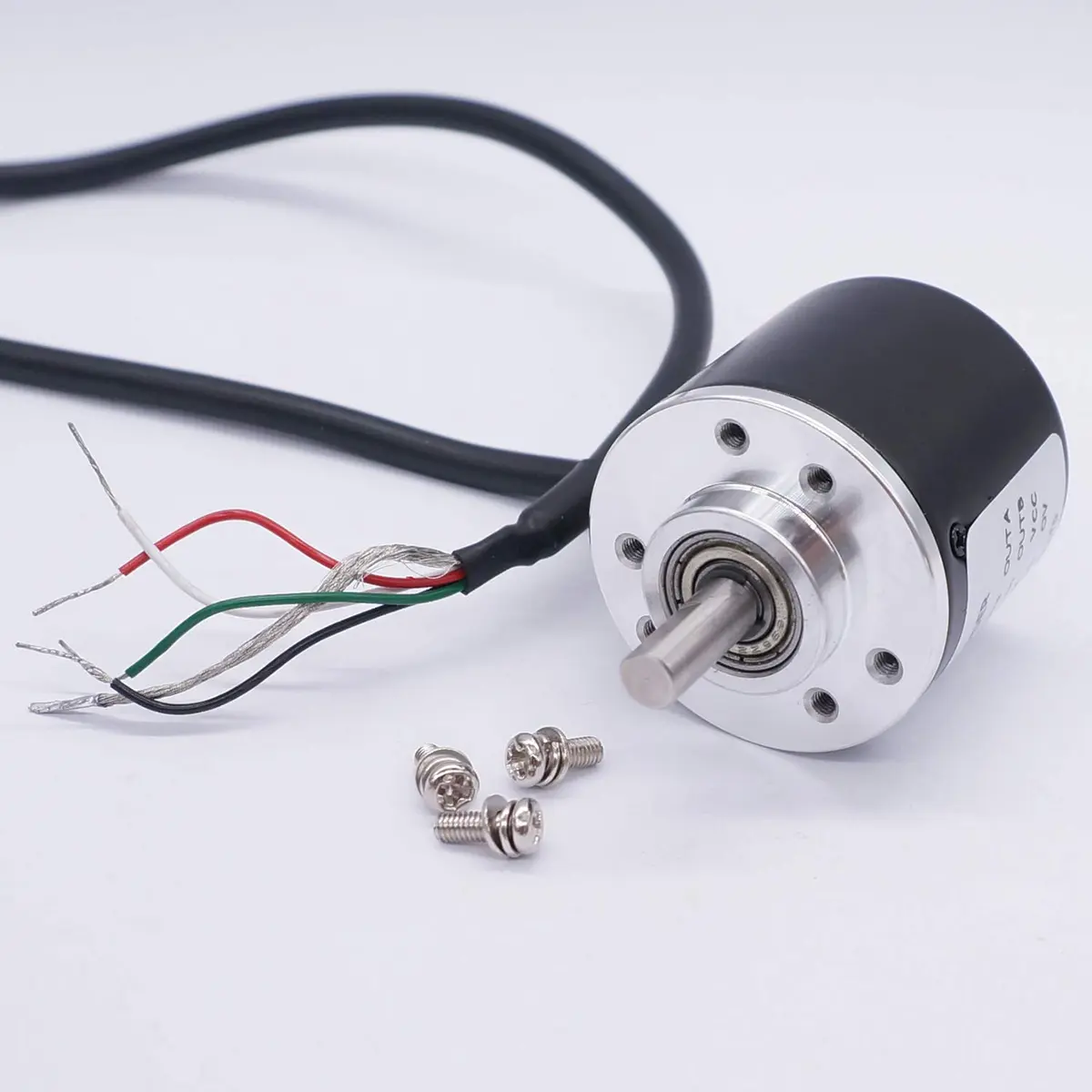

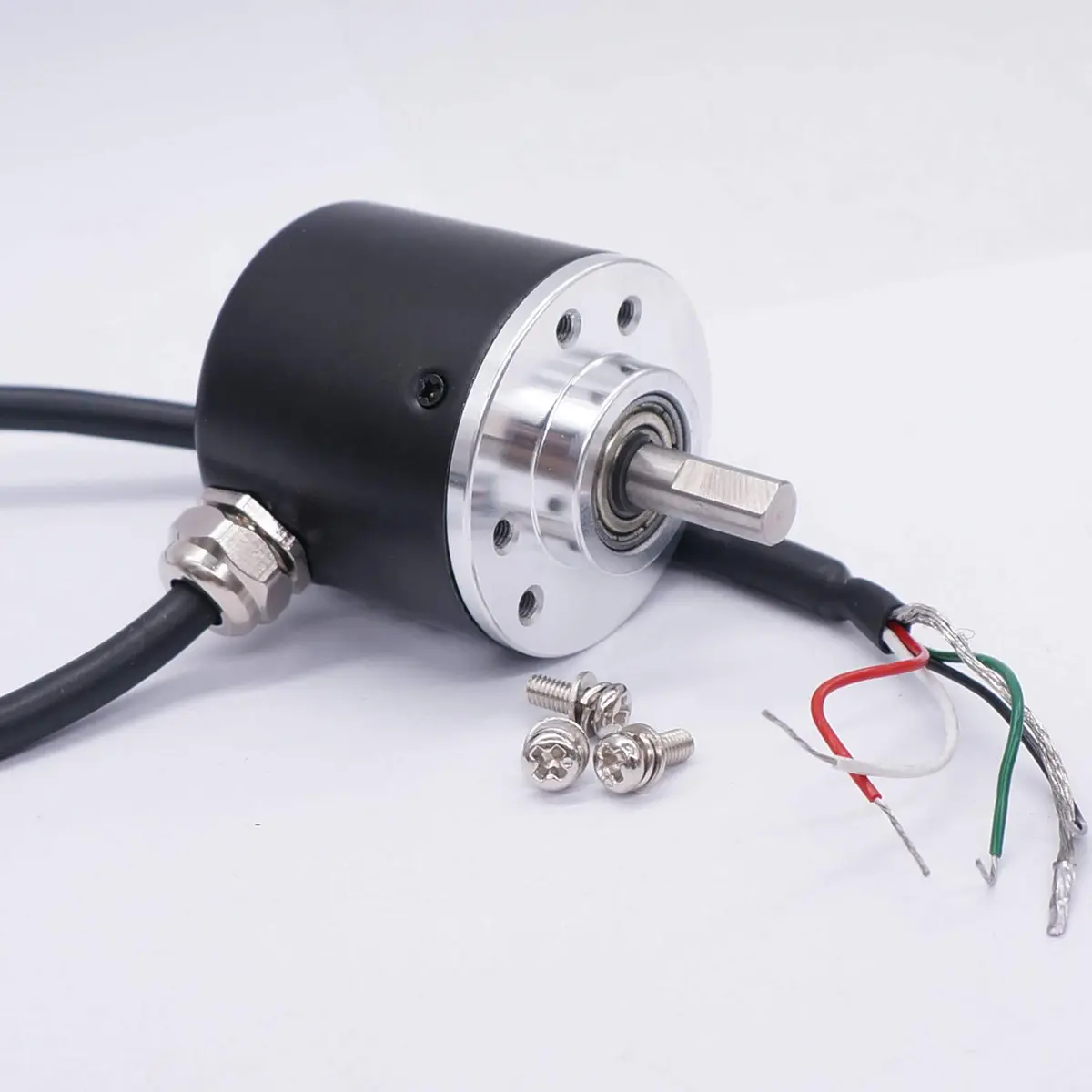

Connection: white = A phase, Green = B phase, red = power +, black = V0 ； Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.
Package content：1 x Incremental Rotary Encoder ；Net Weight : 130g;

Why choose this product

Precision Control for Indian Makers

This Taiss incremental rotary encoder delivers the accuracy needed for sophisticated DIY electronics and automation projects in India. Its 360P/R resolution and AB two-phase quadrature output allow for precise control of speed and angle, crucial for robotics, CNC machines, and custom control panels. Unlike generic components, this USA-sourced unit is built for reliable performance, ensuring your projects function as intended. We ensure all customs duties and GST are pre-paid, so you receive your component without unexpected charges upon delivery via ExpressBox tracked shipping.

Ideal for Arduino & DIY, But Not for High-Frequency Signal Analysis

This encoder is excellent for hobbyists and engineers using platforms like Arduino or for general-purpose speed and position sensing in automated systems. Its NPN open collector output is standard for microcontroller integration. However, if your application requires direct, high-fidelity signal analysis on an oscilloscope without external components, this encoder's output type necessitates adding pull-up resistors. For applications demanding extreme precision or specific signal integrity without modification, consider specialized industrial-grade encoders.

How to use

Identify Connections — Locate the wires: Red for power (+), Black for ground (V0), White for Phase A, and Green for Phase B. Ensure your power supply is within the DC 5-24V range.
Wire to Microcontroller — Connect Red to your power source positive, Black to ground. Connect White and Green to separate digital input pins on your microcontroller (e.g., Arduino). If using an oscilloscope, add pull-up resistors to the A and B phase lines.
Implement Code — Write code to read the digital inputs for Phase A and B. Use interrupt routines to count pulses and determine rotation direction based on the phase sequence. Libraries are often available for common platforms like Arduino.
Test and Calibrate — Manually rotate the encoder shaft and observe the output signals or readings in your software. Calibrate the pulse count to your specific application's needs, such as measuring distance or speed, ensuring the shaft operates smoothly.

Example scenarios

Typical situations where Taiss Incremental Rotary Encoder 360P/R DC 5-24V Wide Voltage 6mm Shaft | AB Two-Phase Quadrature Output helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A hobbyist in Delhi building a custom Arduino robot needs precise control over motor speed and direction.

How this product helps

This Taiss encoder provides 360P/R resolution and AB phase output, allowing the Arduino to accurately track motor rotation for speed control and directional feedback, crucial for robot navigation and movement.

Scenario 2

Illustrative example

Where it helps

A maker in Bangalore is designing a CNC machine and requires an encoder for accurate axis positioning.

How this product helps

The 6mm shaft and wide voltage compatibility of this encoder make it suitable for integration into CNC control systems. Its quadrature output enables precise step counting for accurate linear or rotational axis movement.

Specifications

Usage

Connection (White)	A Phase
Connection (Green)	B Phase
Connection (Red)	Power +
Connection (Black)	V0 (Ground/Common)
Pull-up Resistors	Required for oscilloscope use (not included)
Direct VCC Connection Warning	AB phases must not be connected directly to VCC
Package Content	1 x Incremental Rotary Encoder

How we compare

Feature	Taiss Incremental Rotary	Others
Resolution	360 P/R	Varies by brand; common resolutions include 100-600 P/R for hobbyist models.
Output Type	NPN Open Collector	Often push-pull or NPN open collector; check specifications.
Voltage Range	DC 5-24V	Typically 5V or 12V for hobbyist models; industrial may vary.
Shaft Size	6mm	Commonly 6mm or 8mm shafts available.
Price per Unit	₹3,503 per unit	₹300 - ₹1500+ depending on brand, resolution, and features.

SKU	uuf4698
GTIN	0760412050429
Brand	Taiss
Model Number	360P/R
Product Type	Incremental Rotary Encoder
Resolution	360 Pulses Per Revolution (P/R)
Phases	AB Two-Phase Quadrature
Output Type	NPN Open Collector
Power Supply	DC 5-24V Wide Voltage
Shaft Diameter	6mm (0.23")
Shaft Length	15mm (0.59")
Encoder Body Dimensions	38 x 35.5mm (1.49" x 1.39")
Axis Stopper Platform Height	5mm (0.20")
Maximum Mechanical Speed	6300 R/min
Material	Not specified (likely metal/plastic)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
Package Weight	130g (0.29 lb)
