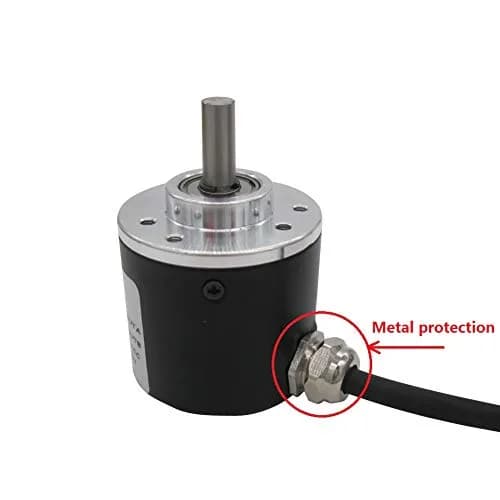

Taiss AB 2 Phase Incremental Rotary Encoder 100P/R DC 5-24V 6mm Shaft | Electronic Component for Control Systems

• This incremental rotary encoders Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .
• Product Name: incremental rotary encoders 100P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .
• Encoder size ： Encoder size: 38 x 35.5mm/1.49" x 1.39" ；Shaft: 6 x 15mm/0.23" x 0.59"；Axis stopper platform: High 5mm, 20mm；Power source: DC 5-24V；Maximum mechanical speed: 6300 R / min.

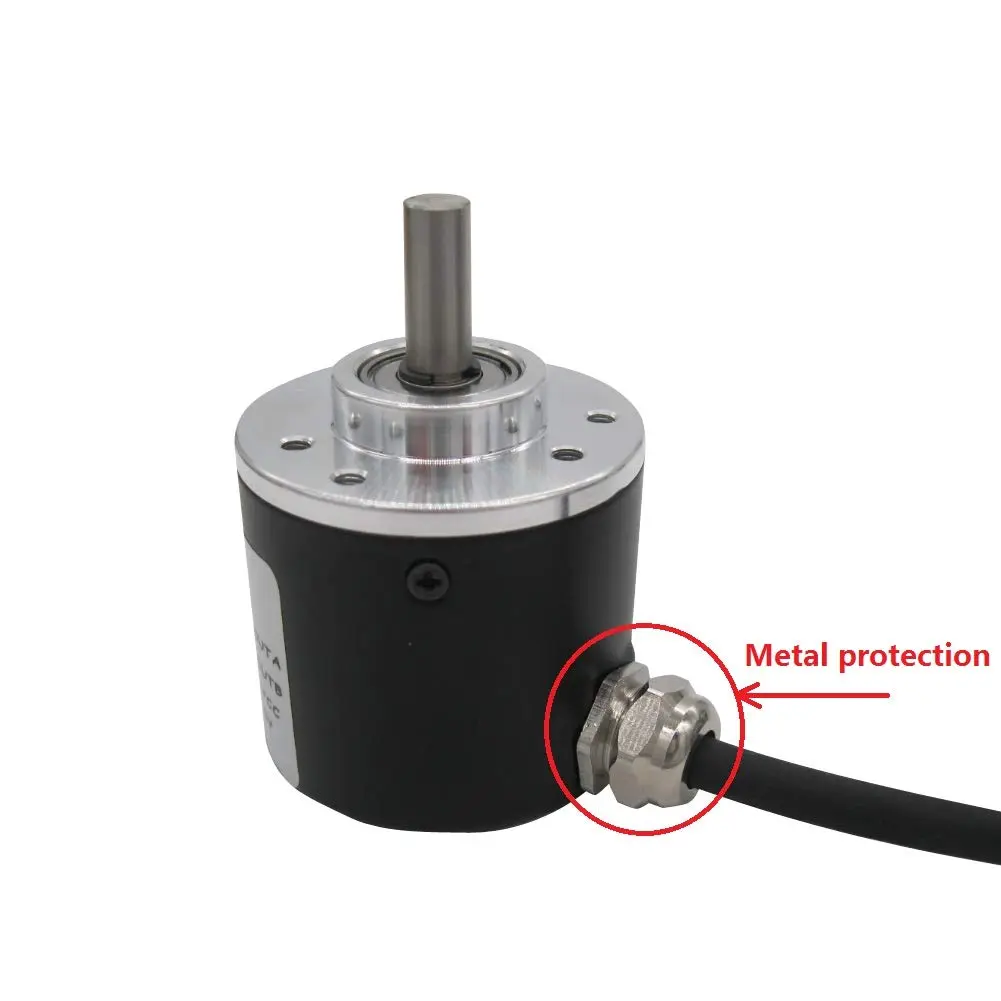

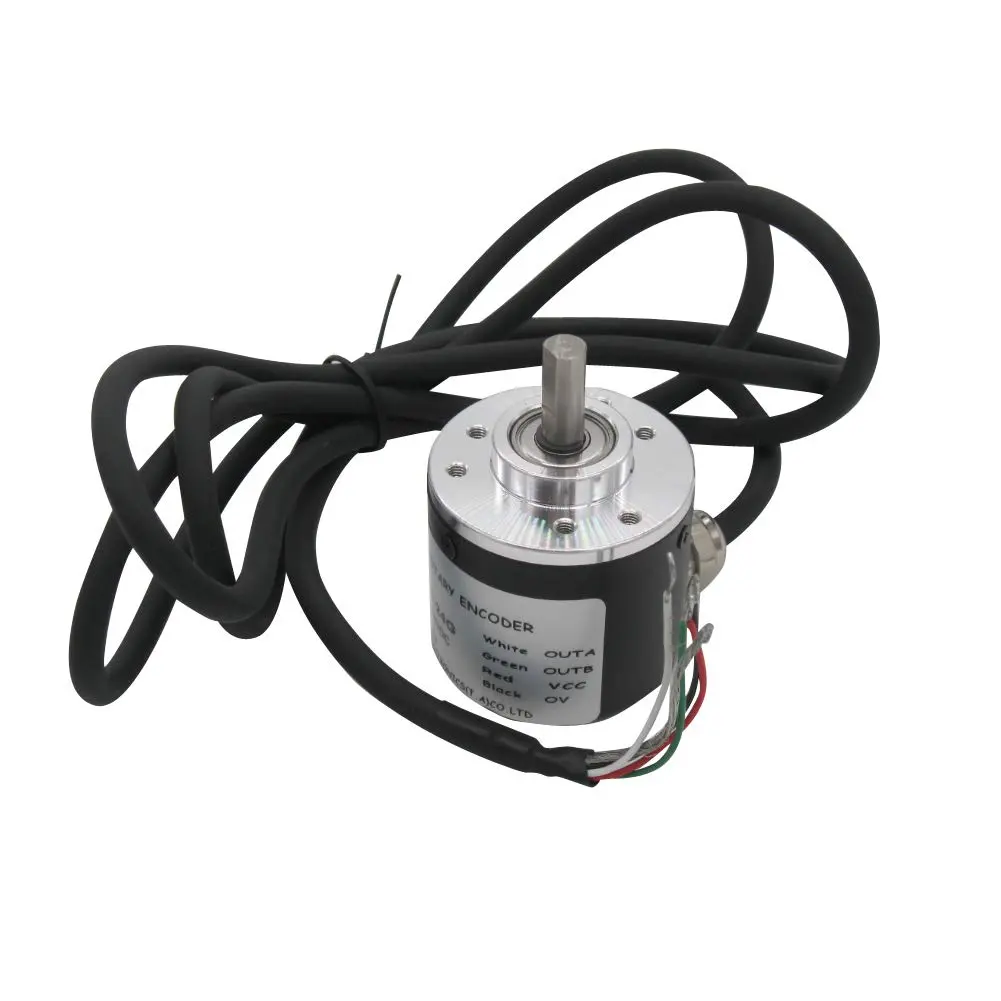

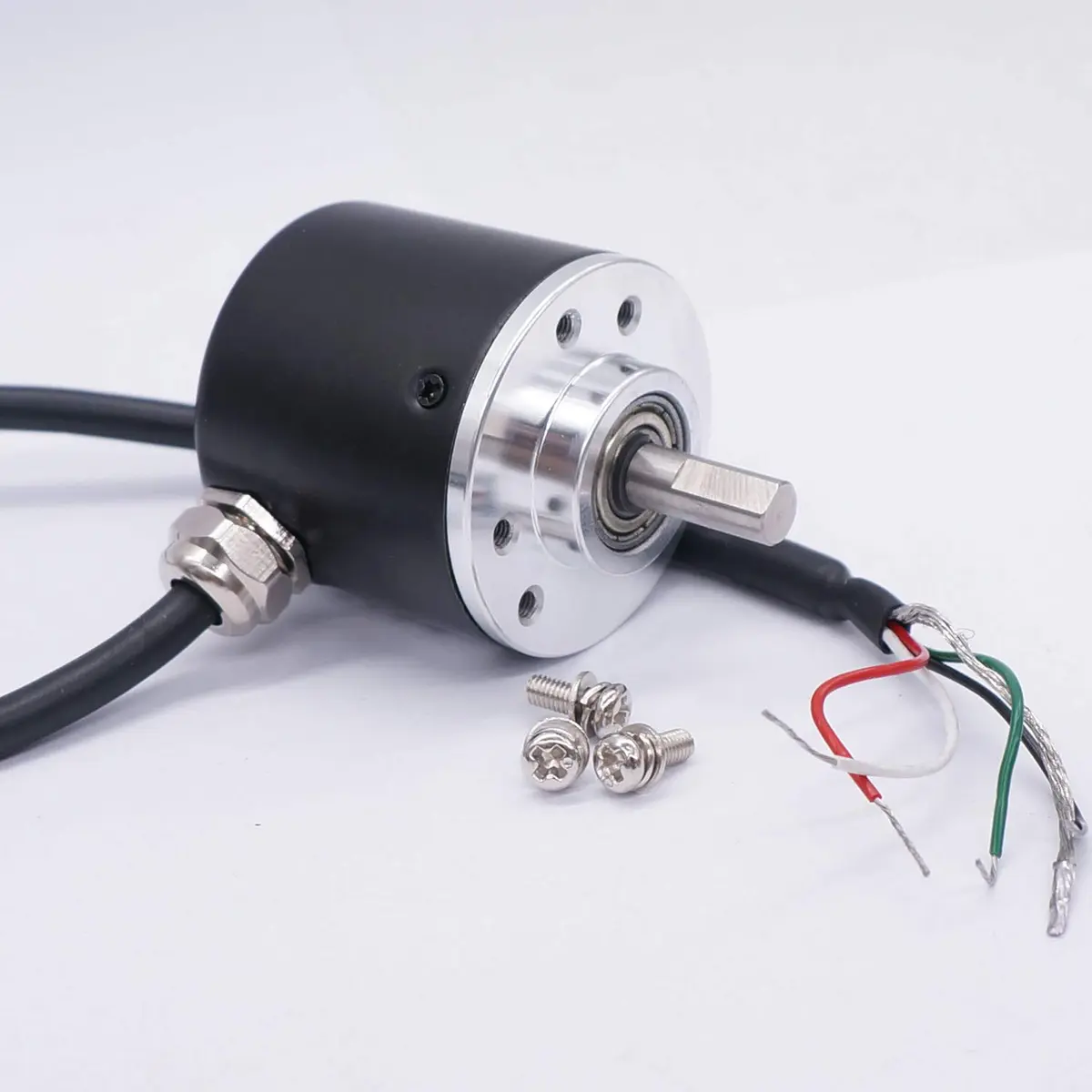

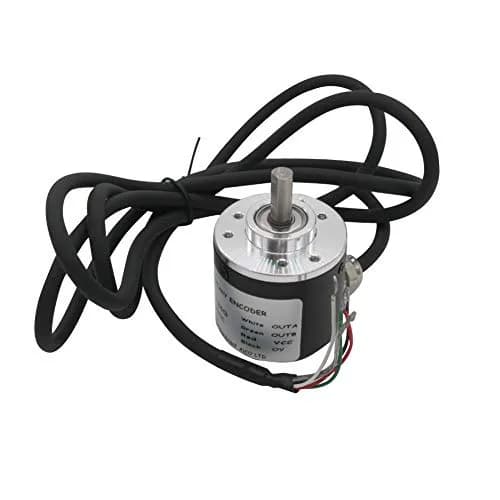

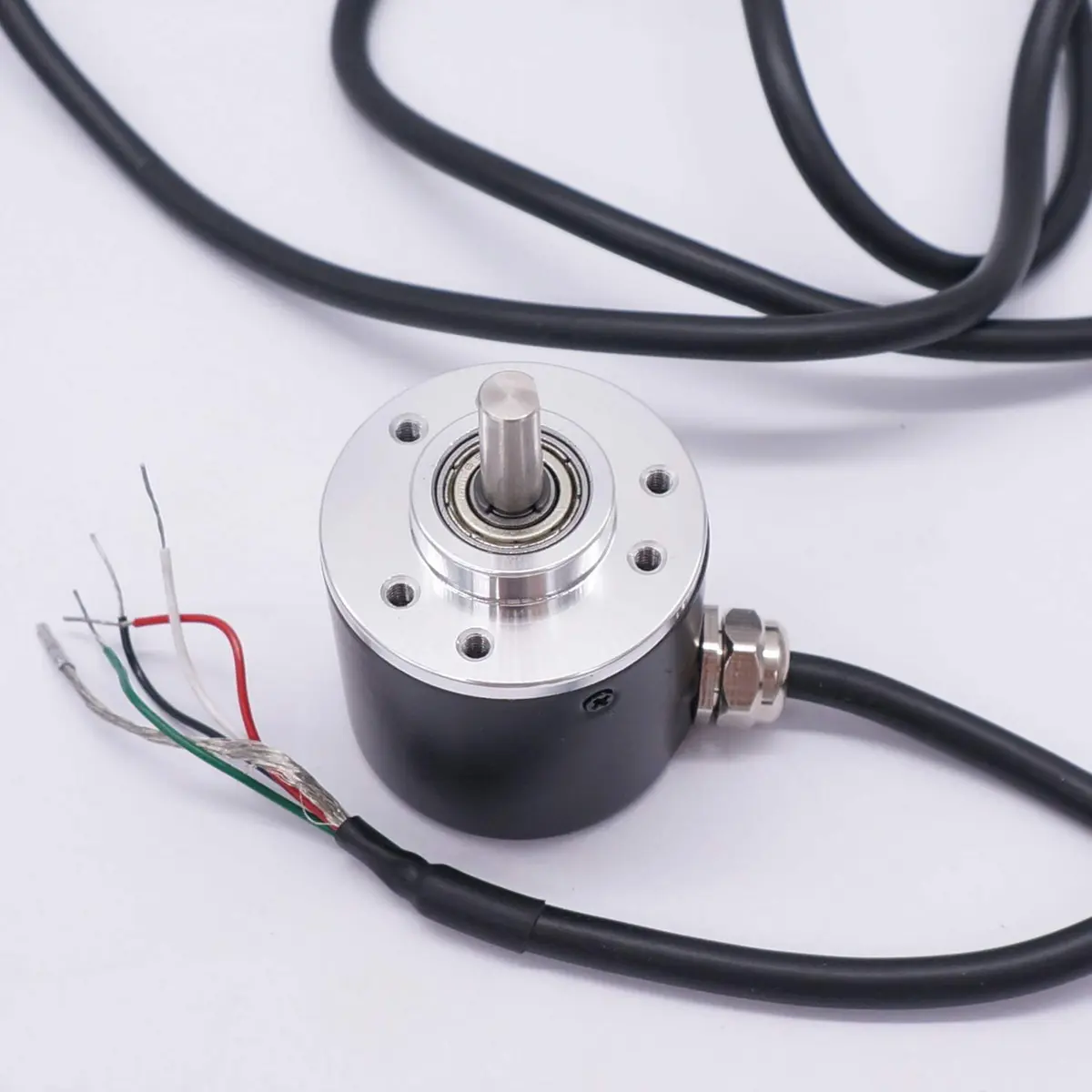

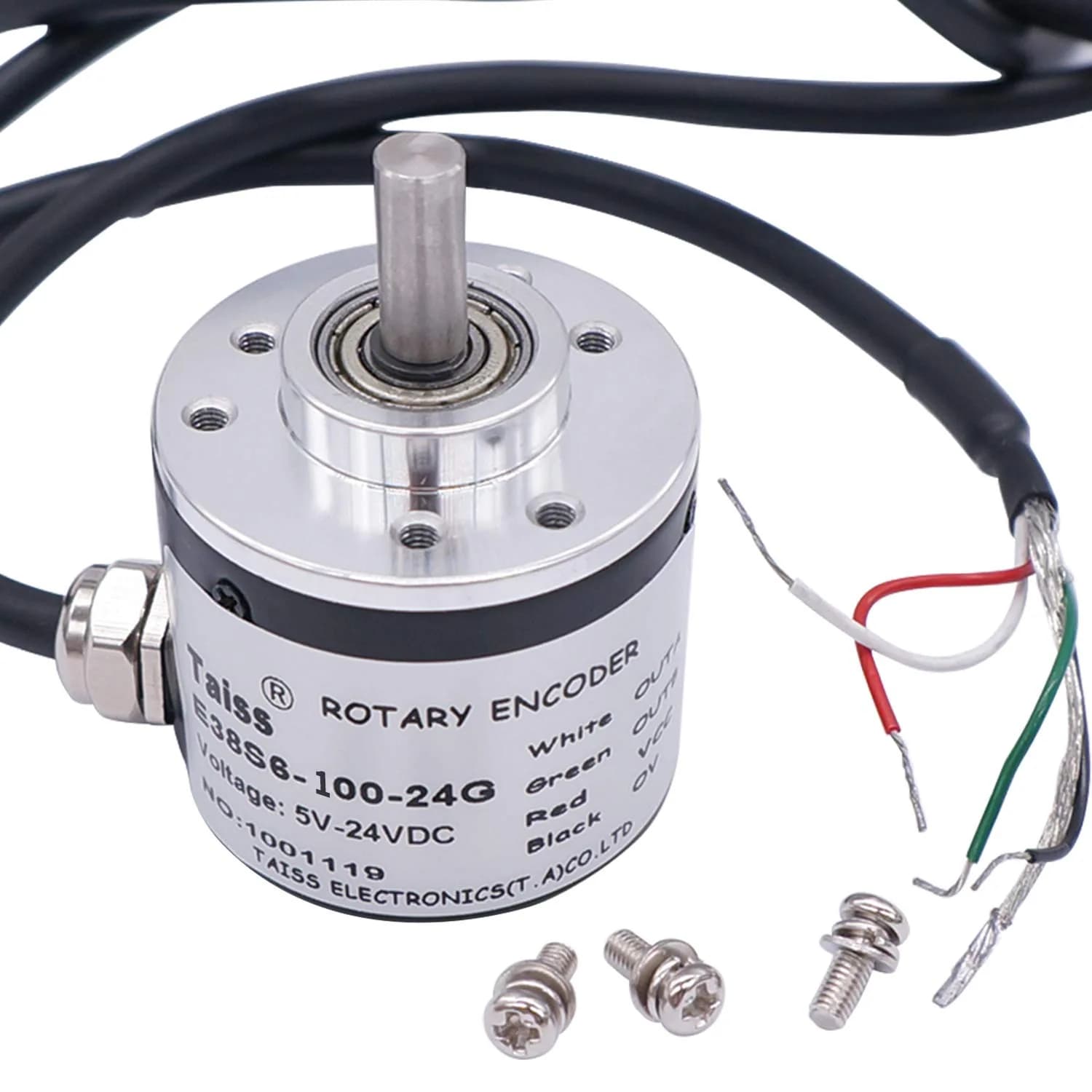

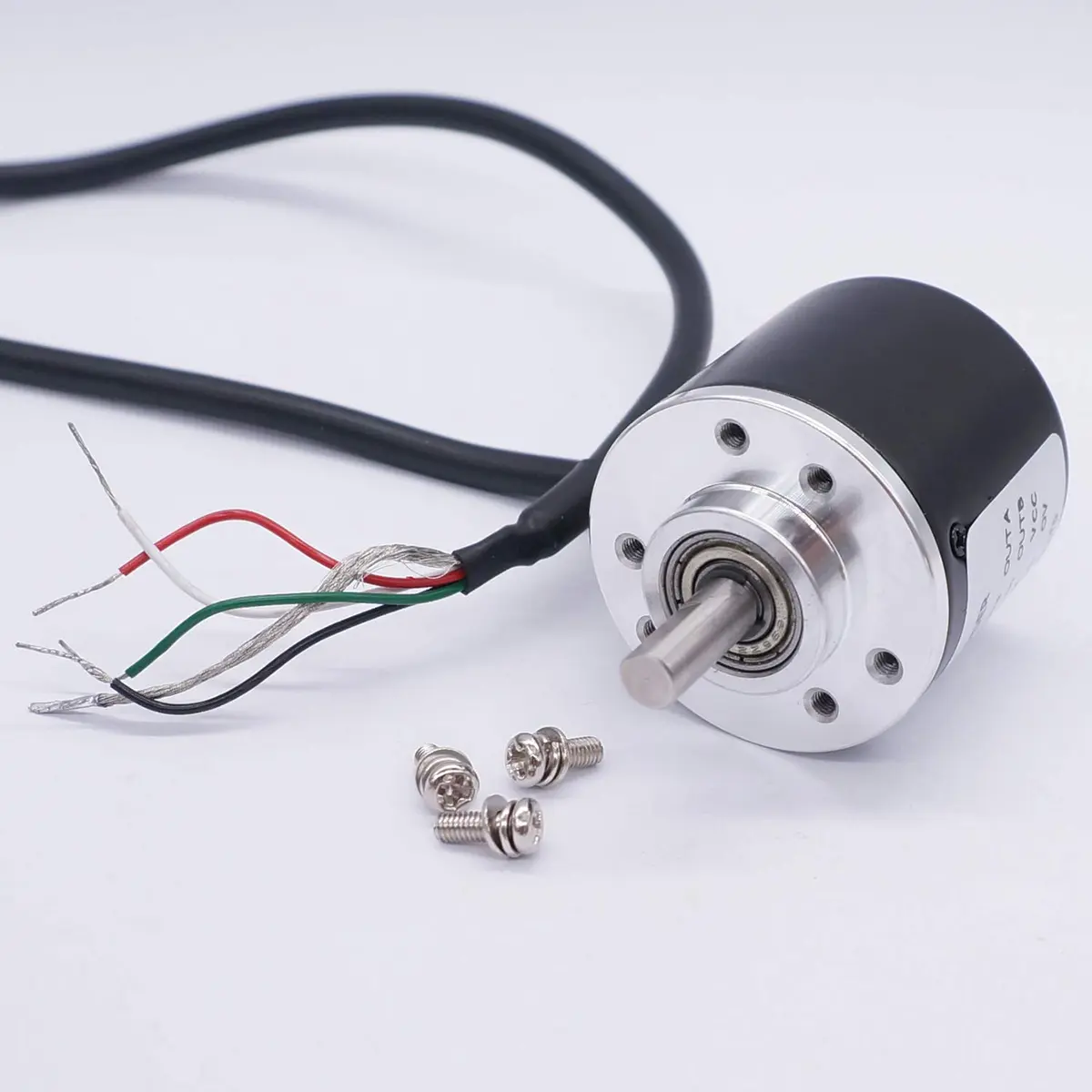

• Connection: white = A phase, Green = B phase, red = power +, black = V0 ； Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.
• Package content：1 x Incremental Rotary Encoder ；Net Weight : 130g;

• Wire the Encoder Correctly — Connect the Red wire to your DC power supply (+), Black wire to Ground (V0). Connect the White wire to your microcontroller's digital input for Phase A, and the Green wire to the input for Phase B. Ensure AB outputs are not directly connected to VCC.
• Add Pull-up Resistors (if needed) — If connecting directly to an oscilloscope or if your microcontroller requires them, add two pull-up resistors (typically 4.7kΩ to 10kΩ) between the A and B phase output lines and your DC power supply (+).
• Integrate with Microcontroller — Program your microcontroller (e.g., Arduino) to read the pulses from the A and B phase outputs. Use interrupt routines to count pulses and determine rotation direction and speed based on the quadrature signals.
