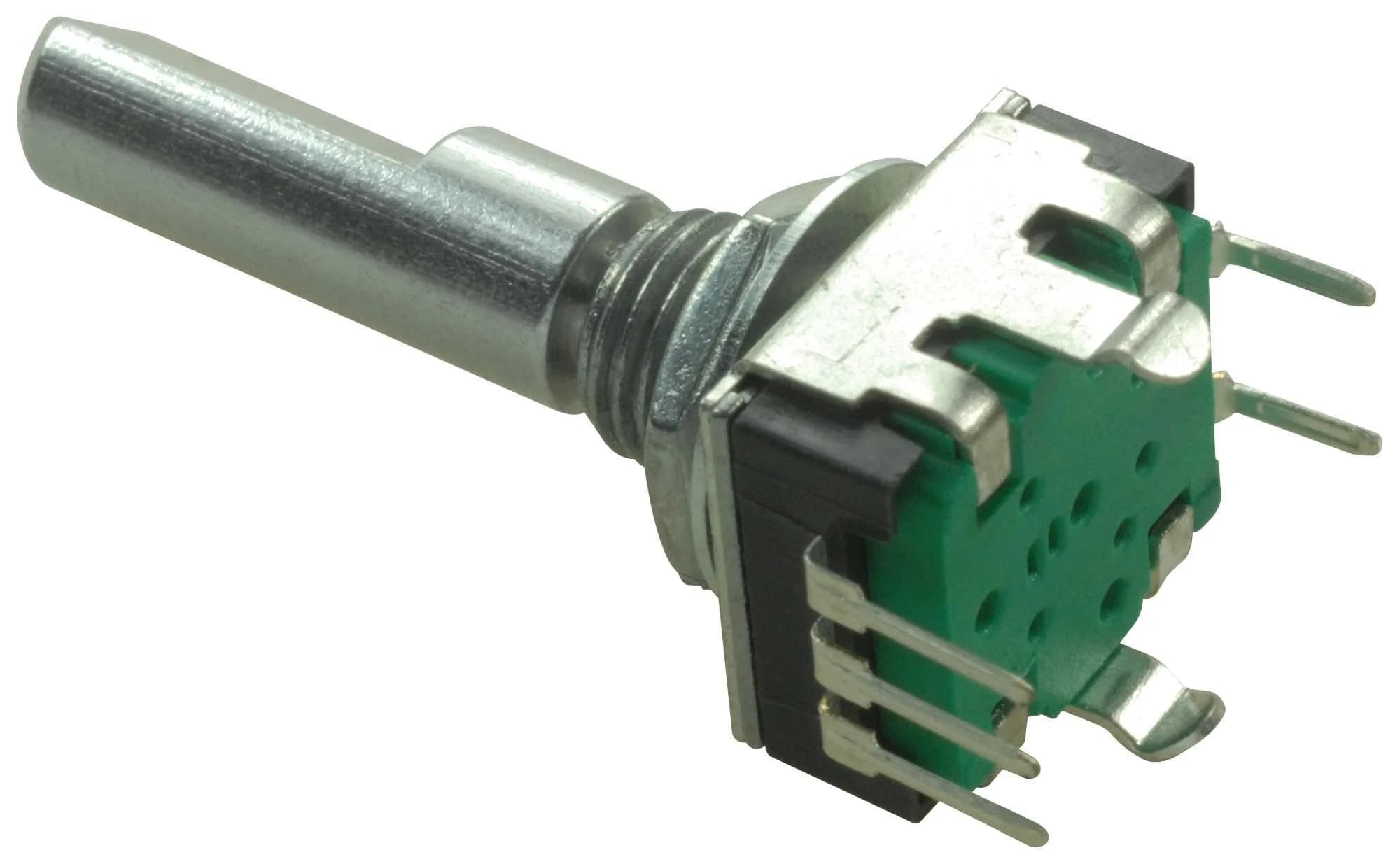

Bourns PEC11R-4220K-S0024 Incremental Rotary Encoder 24PPR Through Hole PC Pins | Mechanical Digital Square Wave

• Precise 24 PPR Resolution — Delivers 24 pulses per revolution for accurate digital control, essential for fine-tuning settings in custom electronics projects and automation.
• Secure Through-Hole Mounting — Features PC pins for robust and reliable soldering onto circuit boards, ensuring a stable connection that withstands mechanical stress.
• Digital Square Wave Output — Provides a clean digital square wave signal, simplifying integration with microcontrollers and digital logic circuits for straightforward implementation.
• Durable Mechanical Design — Built with a knurled shaft and 2.7 oz.in torque for tactile feedback and precise manual control, ensuring longevity in frequent use applications.

• Identify Mounting Points — Locate the through-hole PC pins on the Bourns PEC11R-4220K-S0024 encoder. Align these pins with the corresponding holes on your printed circuit board (PCB) according to your circuit design.
• Solder Connections — Carefully solder each PC pin to its respective pad on the PCB. Ensure a strong, clean connection for reliable signal transmission and mechanical stability. Avoid excessive heat to protect the component.
• Connect to Microcontroller — Wire the encoder's output pins (typically A, B, and Common) to the appropriate digital input pins on your microcontroller. Consult your microcontroller's datasheet for correct pin configuration and interrupt handling.
• Implement Control Logic — Write firmware code to read the digital signals from the encoder. Implement logic to interpret the pulses and quadrature signals for desired functions like menu navigation, value adjustment, or rotational counting.
