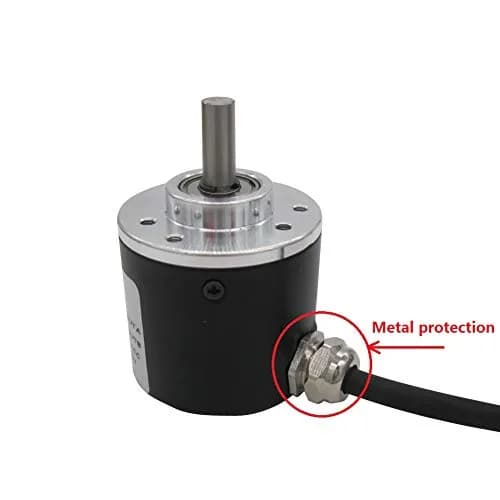

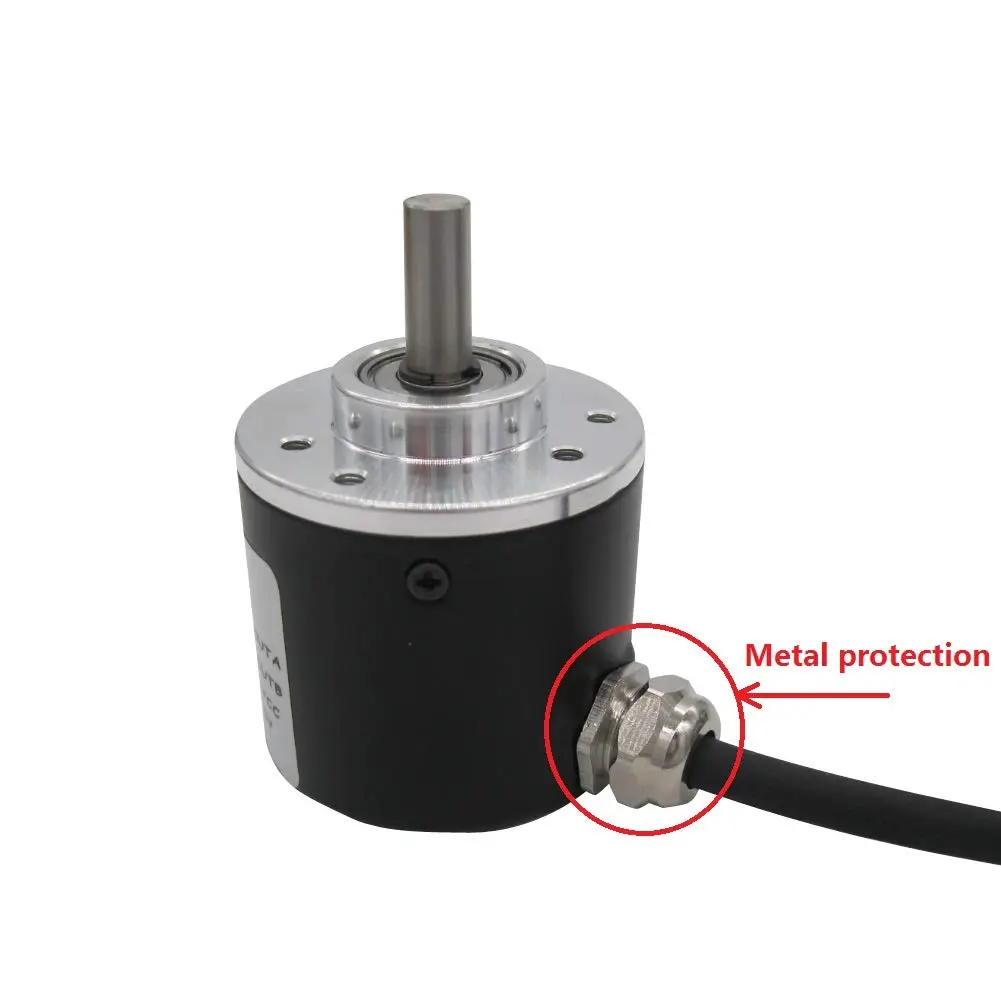

Taiss Incremental Rotary Encoder 600P/R DC 5-24V | Optical AB 2-Phase Quadrature Encoder with 6mm Shaft

• This incremental rotary encoders Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .
• Product Name: incremental rotary encoders 600P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .

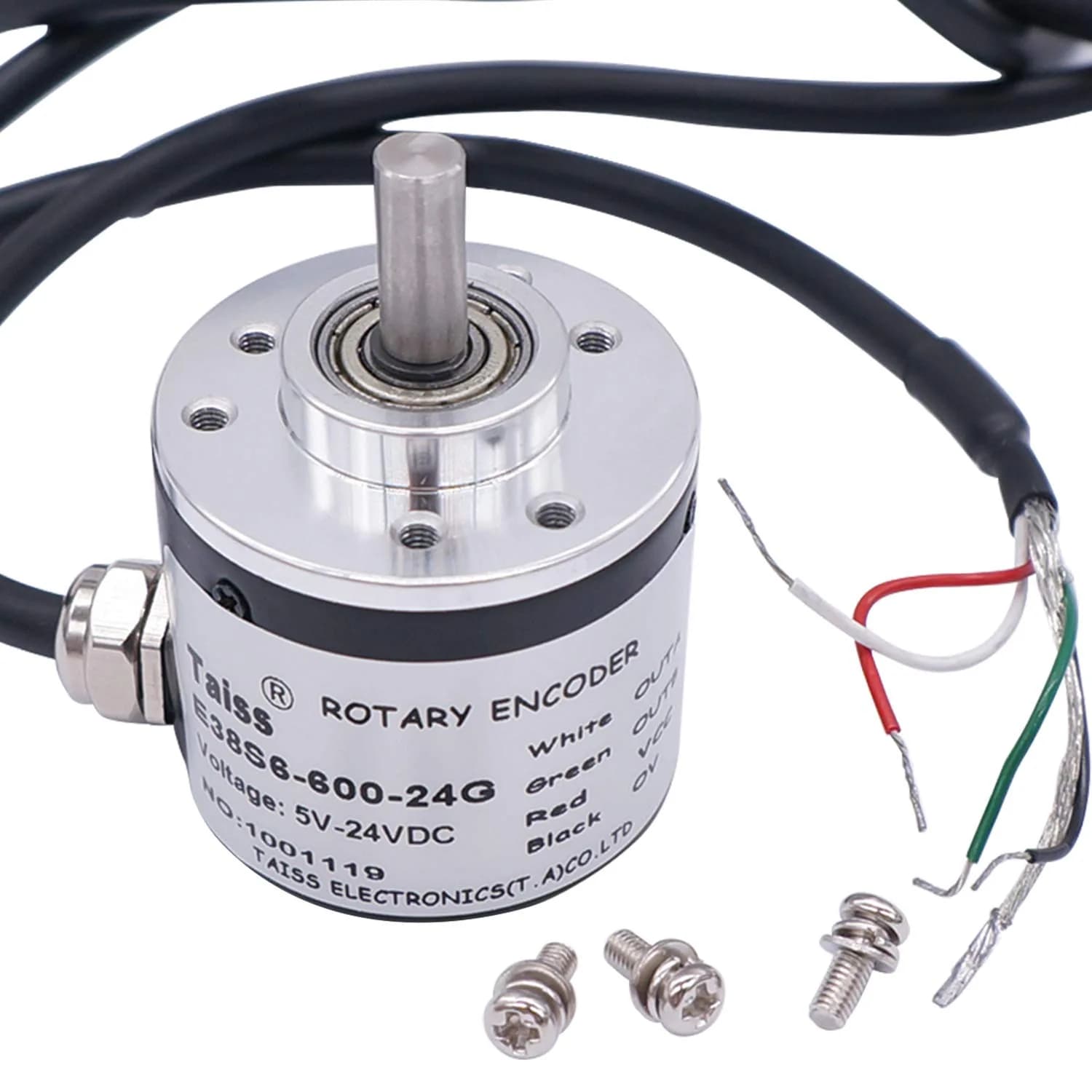

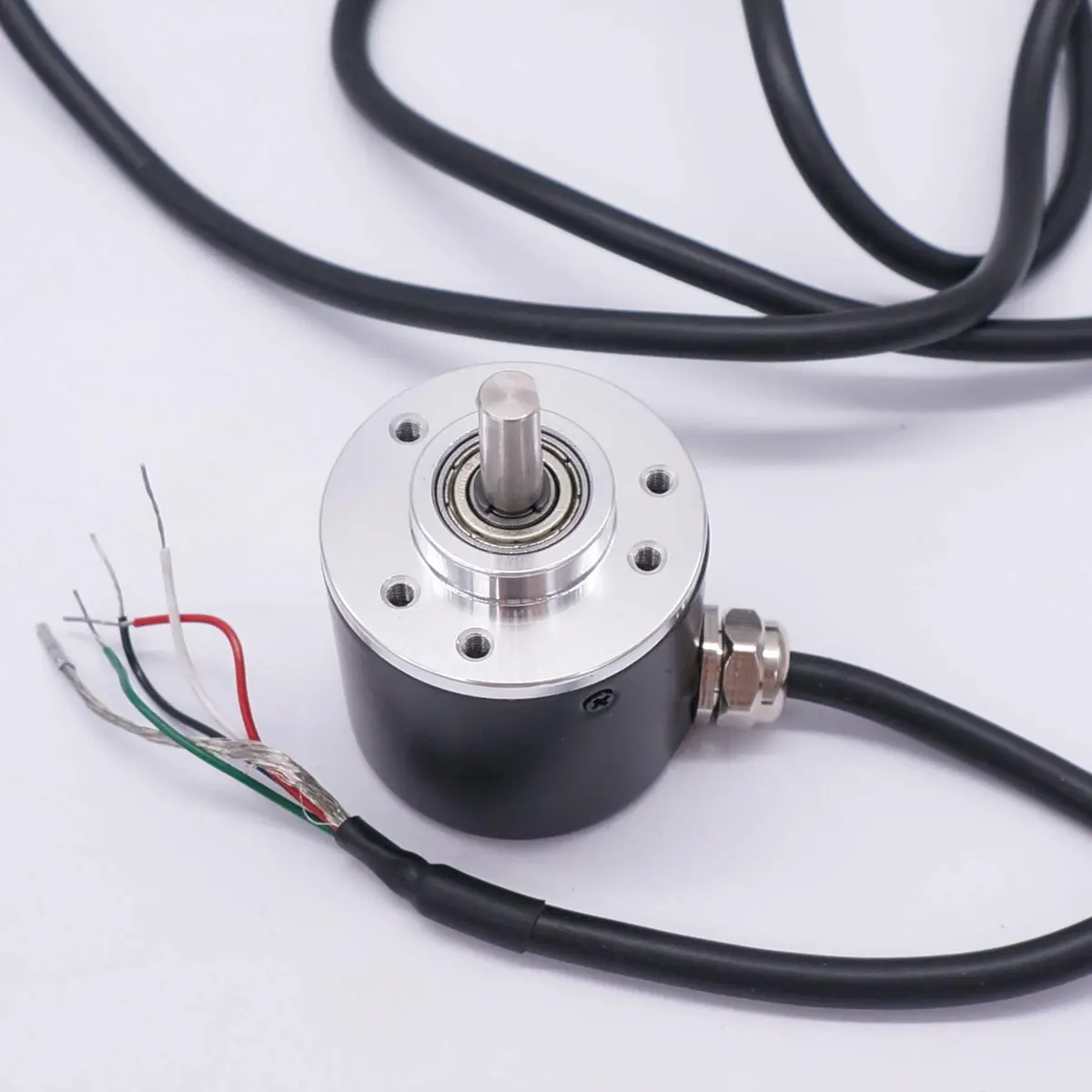

• Encoder size ： Encoder size: 38 x 35.5mm/1.49" x 1.39" ；Shaft: 6 x 15mm/0.23" x 0.59"；Axis stopper platform: High 5mm, 20mm；Power source: DC 5-24V；Maximum mechanical speed: 6300 R / min.

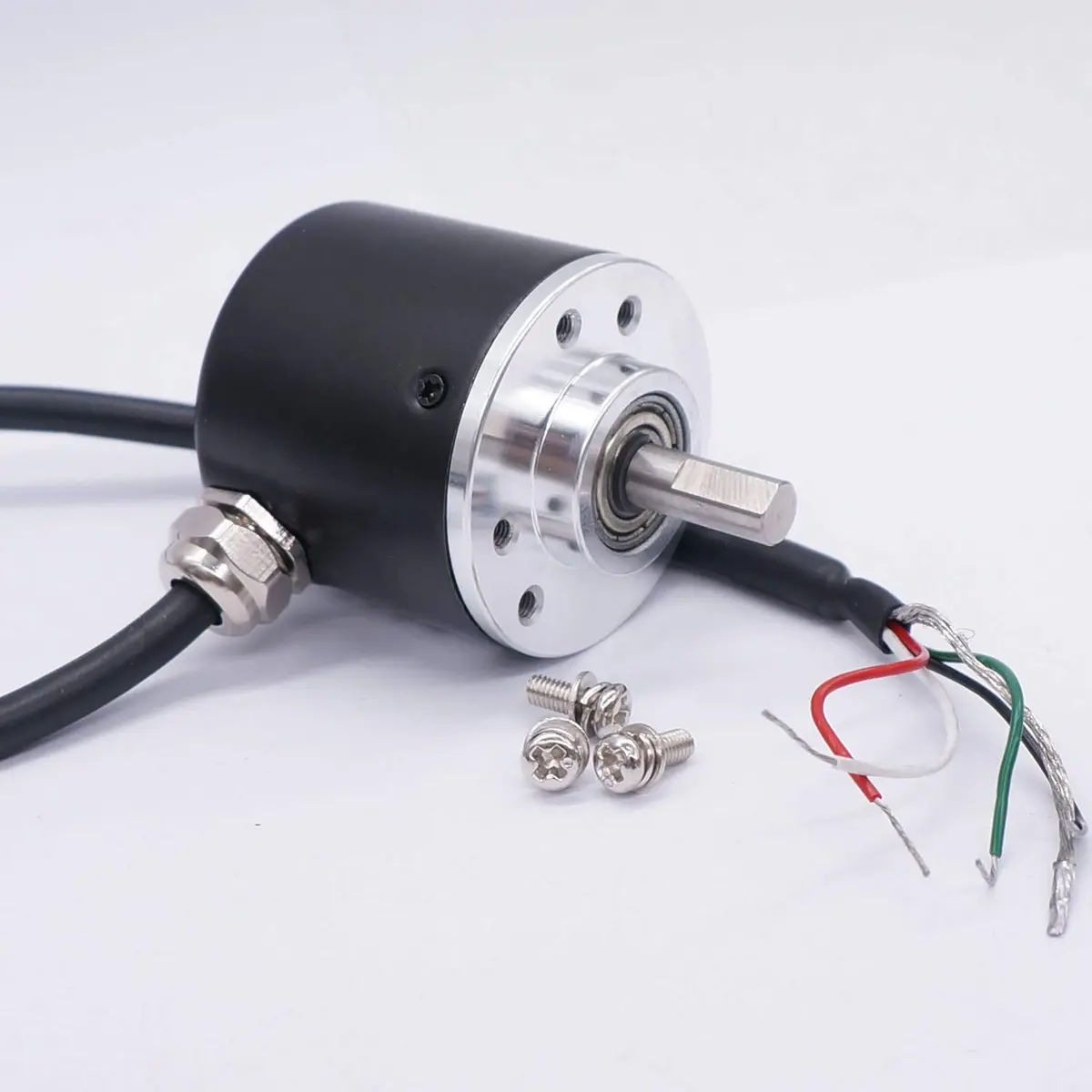

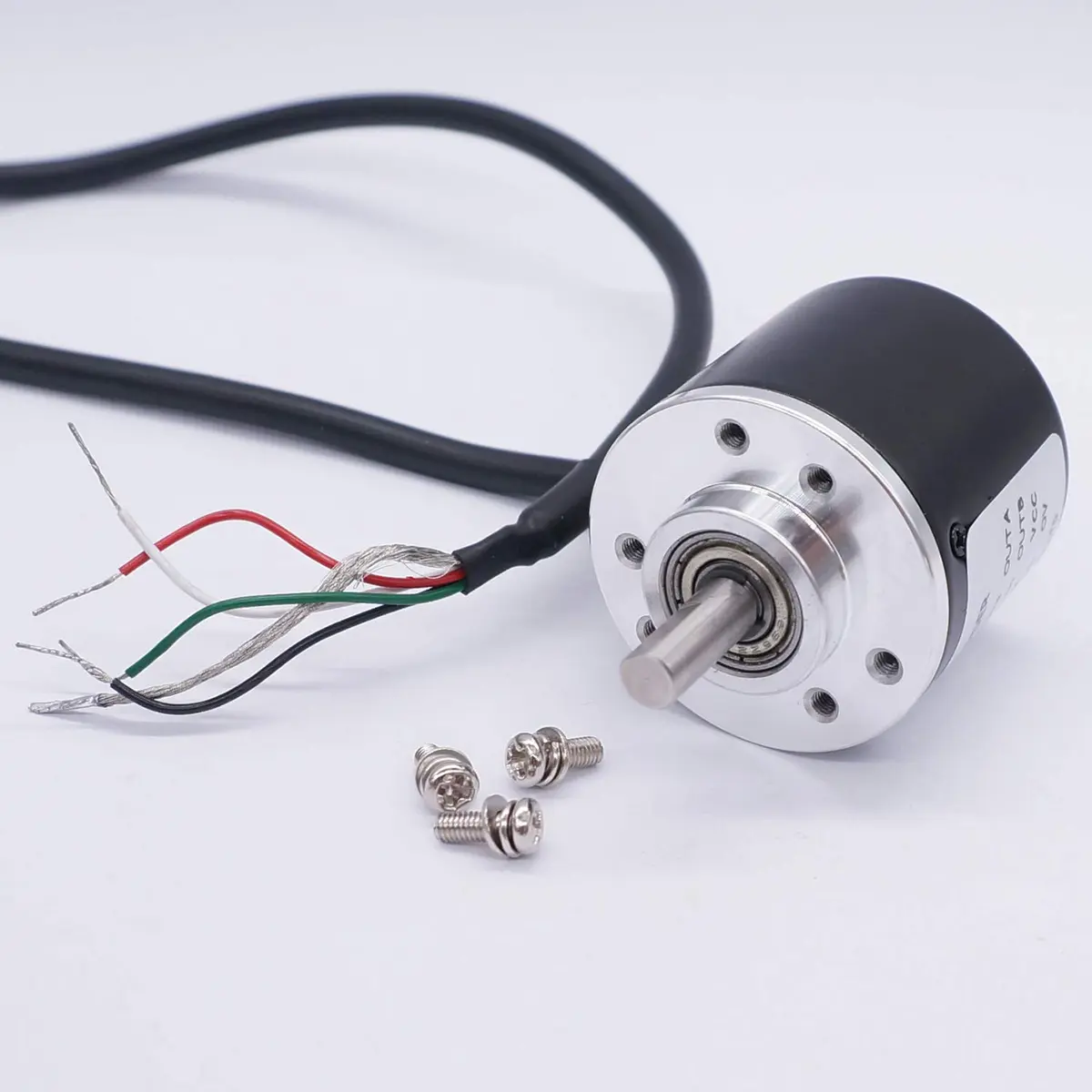

• Connection: white = A phase, Green = B phase, red = power +, black = V0 ； Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.
• Package content：1 x Incremental Rotary Encoder ；Net Weight : 130g;

• Identify Connections — Locate the wires: Red for Power (+), Black for V0 (Ground), White for A phase, and Green for B phase. Ensure your power supply is within the DC 5-24V range.
• Connect Power and Ground — Connect the Red wire to your positive DC power source (5-24V) and the Black wire to the ground (V0) of your system. Double-check polarity to prevent damage.
• Connect A and B Phase Outputs — Connect the White wire (A phase) and Green wire (B phase) to your microcontroller's digital input pins. For oscilloscope use, connect these phases through external pull-up resistors to your power supply.
• Integrate and Test — Program your microcontroller to read the pulse signals from the A and B phases to determine rotation speed and direction. Test the encoder's functionality by rotating the shaft and observing the output.
