mxuteuk DPDT Electromagnetic Power Relay JQX-13FL DC 12V Coil 8 Pin 10A with Base and DIN Rail Mount (2-Pack, Black)

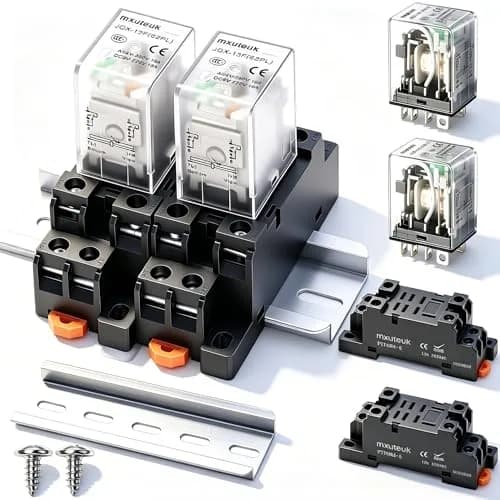

• Product Name:Electromagnetic Power Relay; Relay Model : JQX-13FL; Type : DPDT(2NO 2NC); Number of Terminals : 8 ; Socket Model : PTF08A-E
• Mount Rail Type : 35mm DIN Rail; DIN Rail length : 100mm/4"(L)
• Coil Voltage:DC 12V; Contact Capacity: 10A 250VAC/10A 28VDC;
• Overall size(approx. ): 79 x 28 x 64mm/3.1" x 1.1" x 2. 5"(L*w*h)

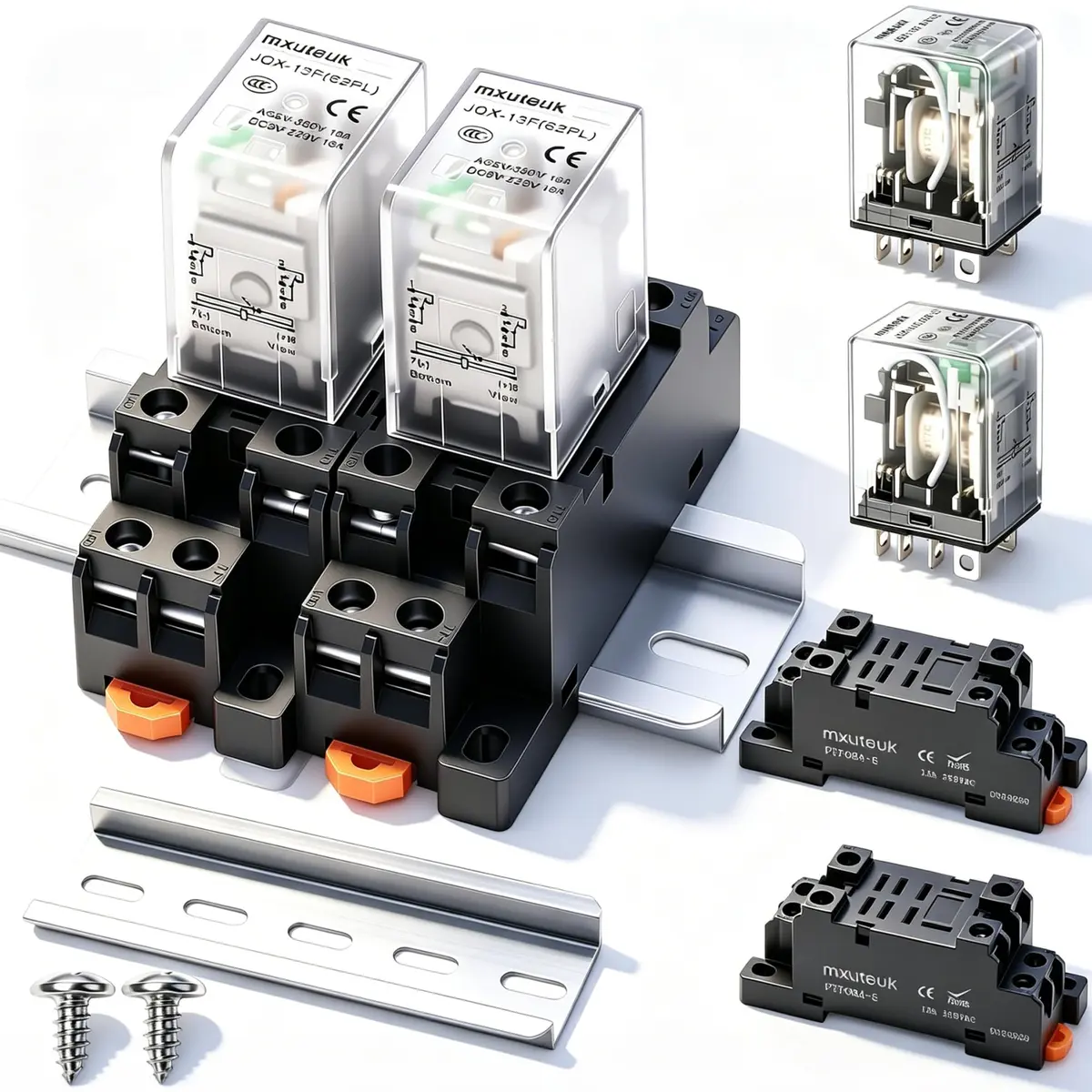

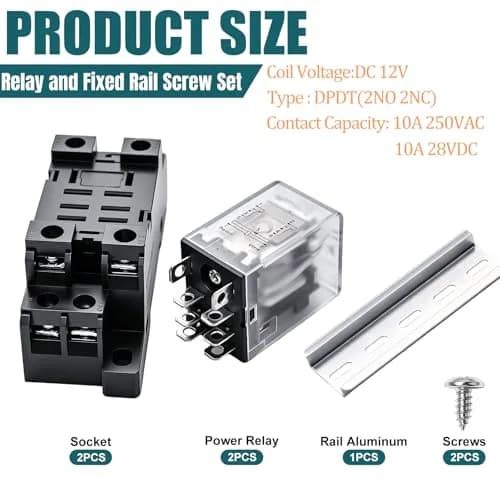

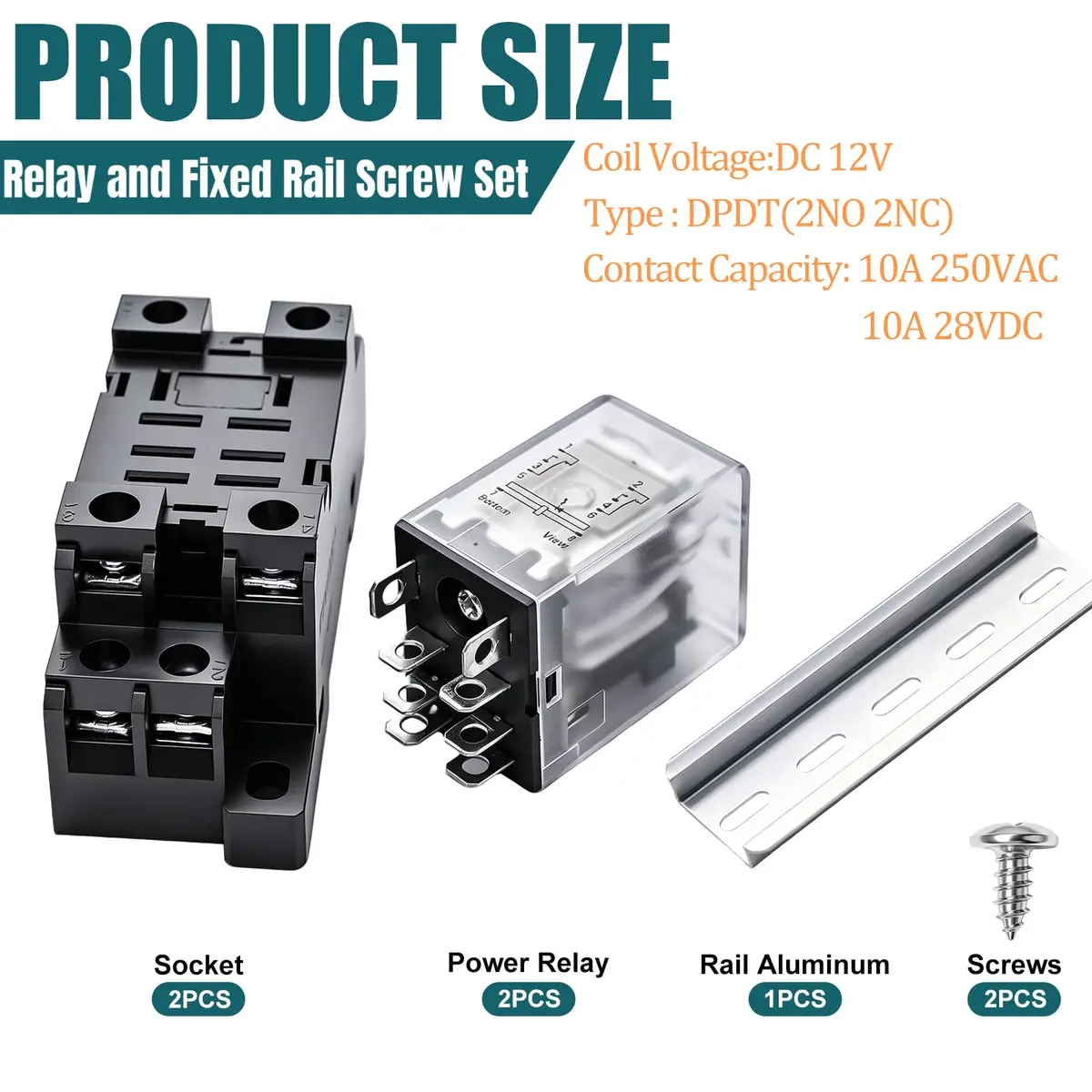

• Package Content : 2 x Power Relay + 2 x Socket + 1 x Rail Slotted Aluminum + 2 x Screw

• Mount the Relay Socket — Slide the included PTF08A-E socket onto the 35mm DIN rail until it clicks securely. Ensure the rail is properly installed in your control panel or enclosure.

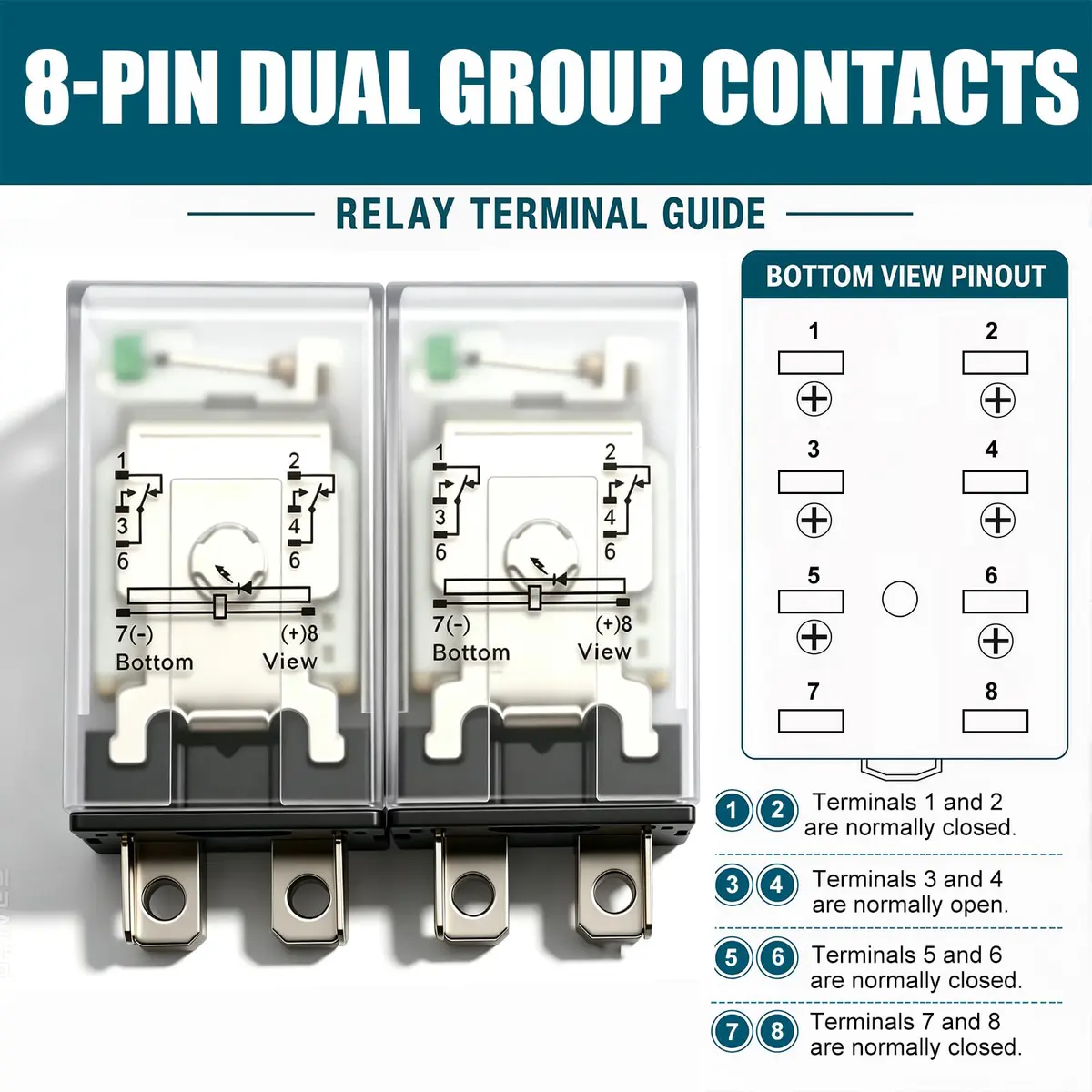

• Wire the Control Circuit — Connect the DC 12V power supply to the coil terminals (typically pins 1 & 2 or 13 & 14 on the socket, check diagram). Ensure correct polarity for DC voltage.
• Wire the Load Circuits — Connect your load circuits to the contact terminals (common, NO, NC pins) on the socket according to your switching requirements. Ensure the total current does not exceed 10A.
• Insert and Test Relay — Plug the mxuteuk JQX-13FL relay firmly into the wired socket. Apply DC 12V to the coil and verify that the contacts switch as expected for your circuits.
