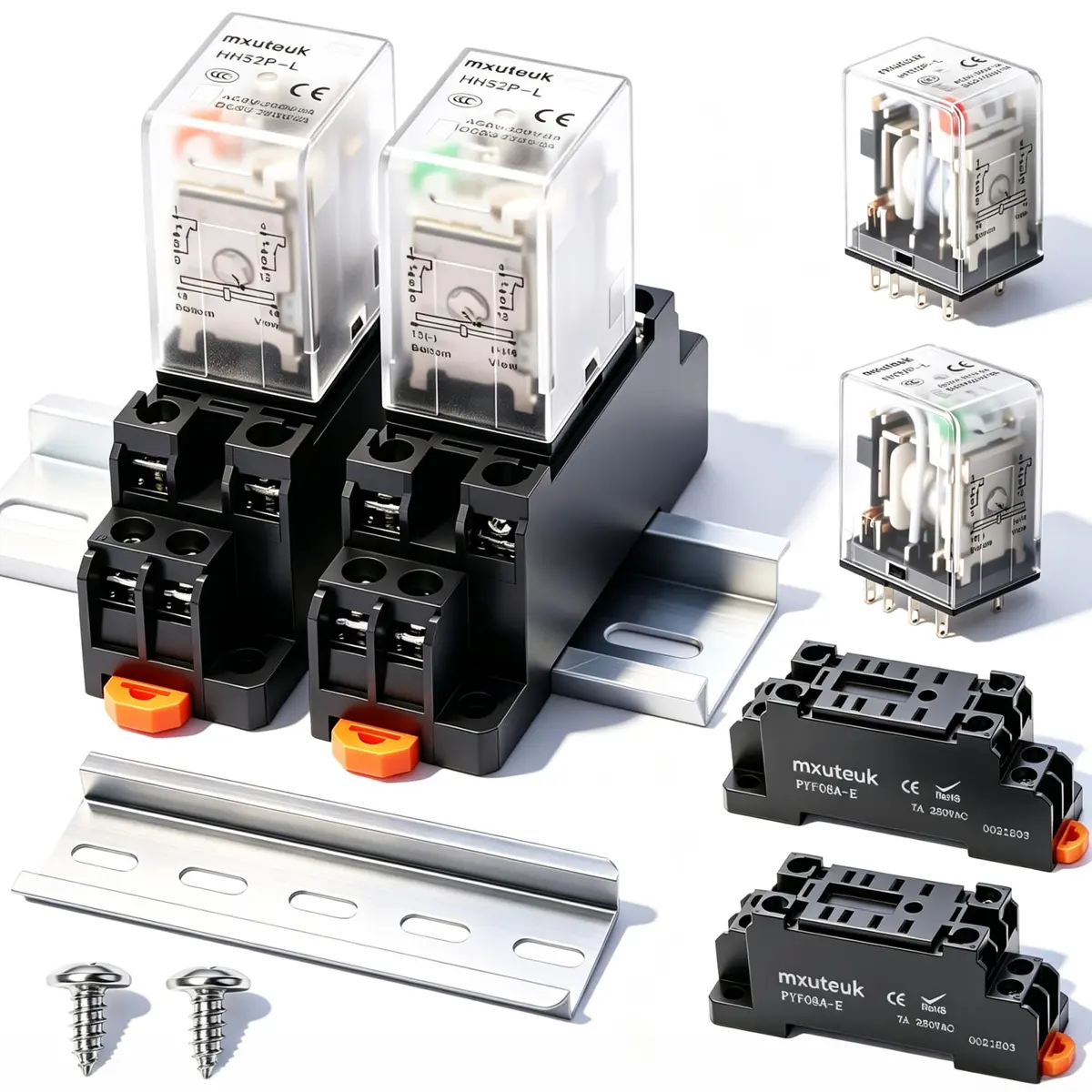

mxuteuk HH52P DC 24V Coil 8 Pin 5A DPDT LED Indicator Electromagnetic Power Relay with Base and DIN Rail Mount (2-Pack, Black)

• Reliable 5A Switching — Each relay handles up to 5A, suitable for controlling various industrial loads. The DPDT configuration allows for switching two independent circuits simultaneously, offering flexibility in circuit design.

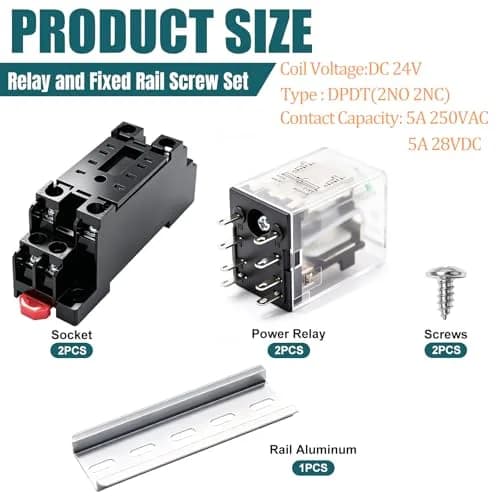

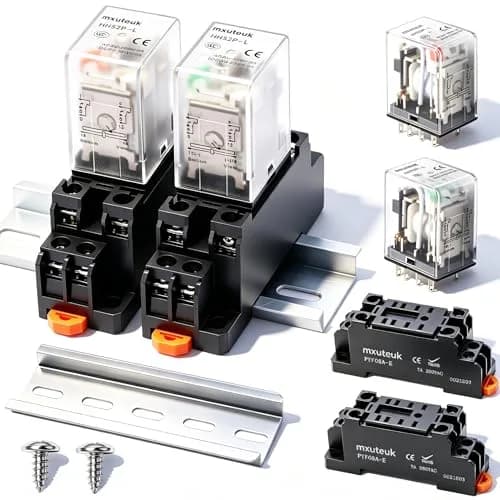

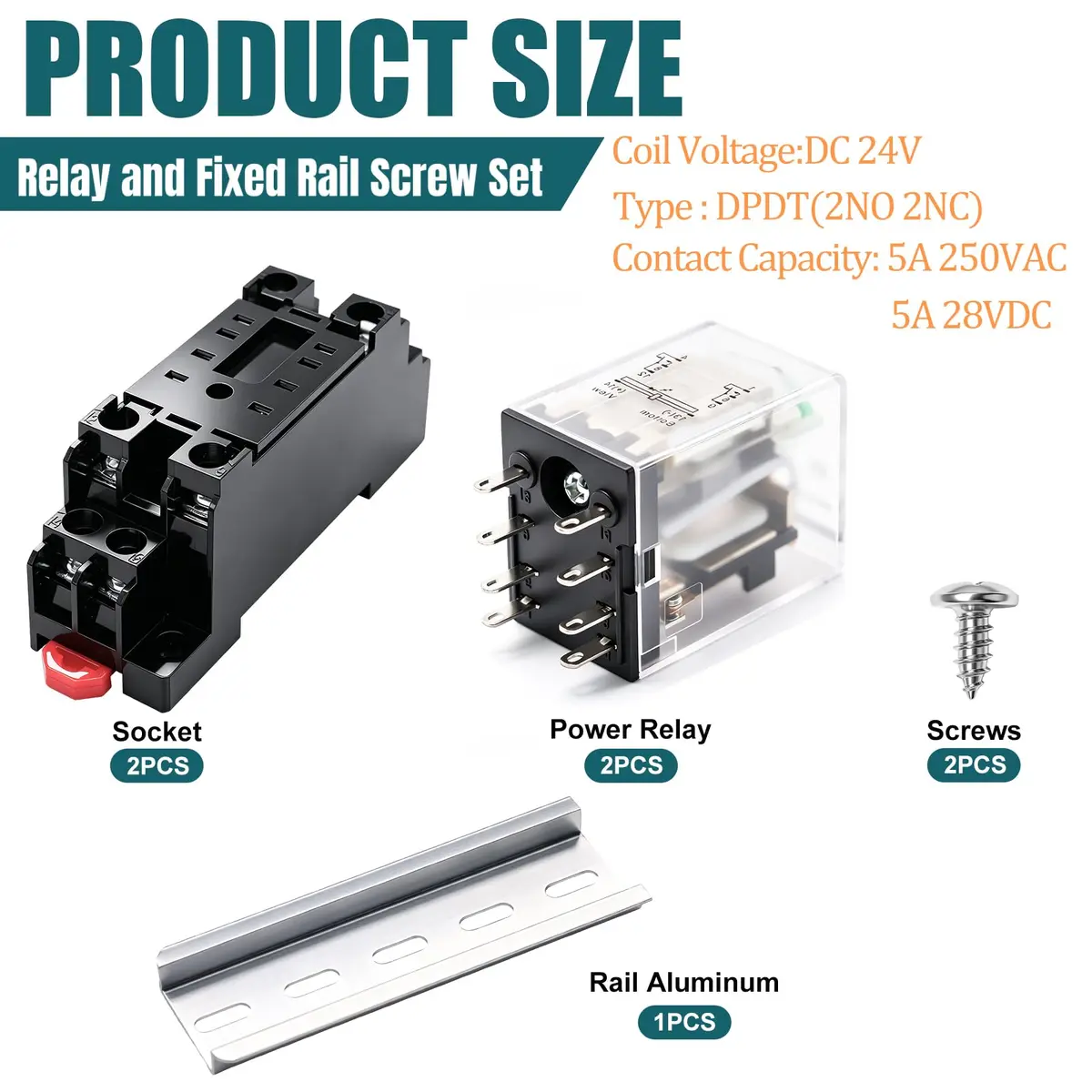

• DIN Rail & Base Mount — Includes a base for easy plug-in installation and secure mounting on standard 35mm DIN rails, common in Indian electrical panels. Simplifies wiring and maintenance.

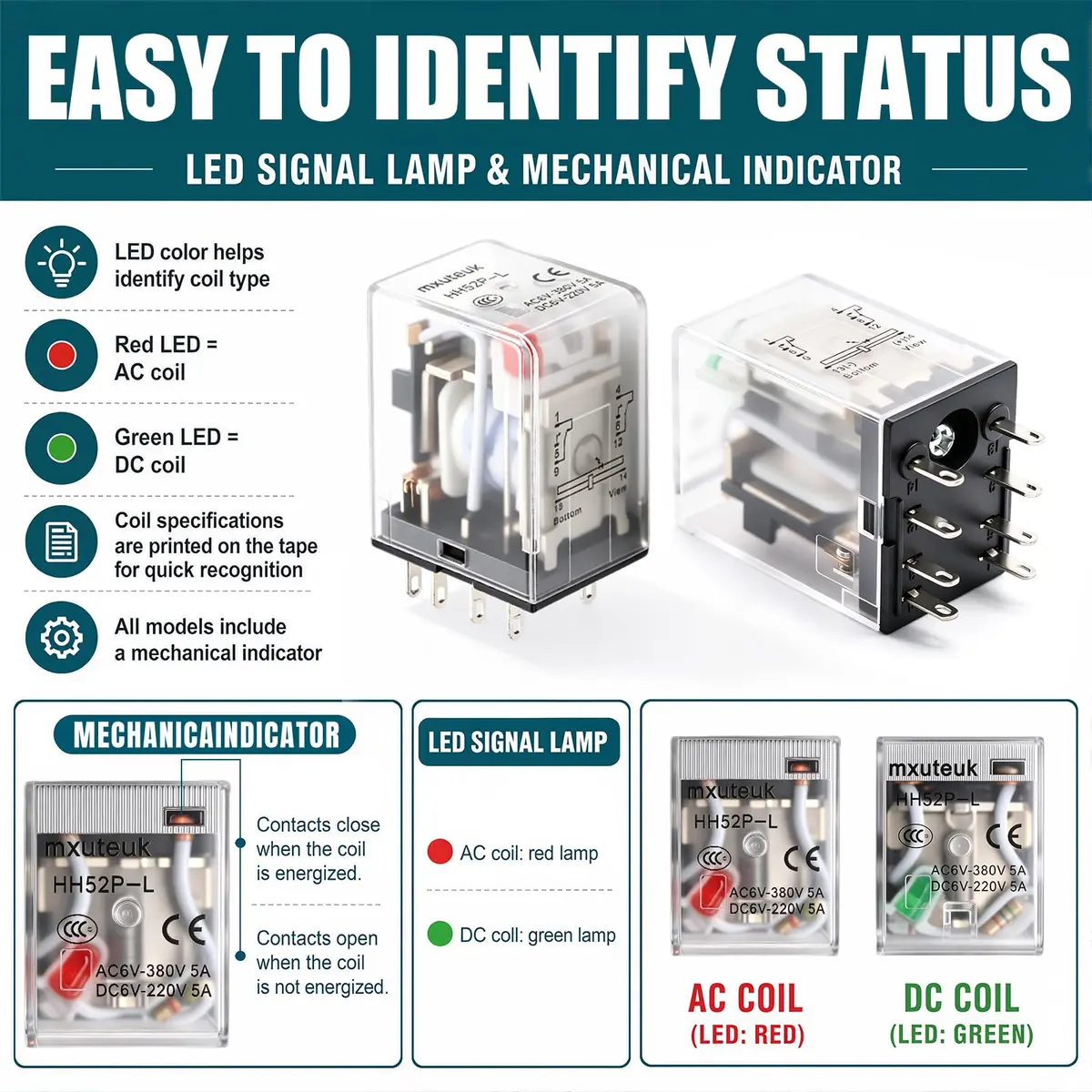

• DC 24V Coil Operation — Operates on a standard DC 24V coil voltage, compatible with most industrial control power supplies. The integrated LED indicator confirms when the coil is energized.
• Durable Silver Alloy Contacts — Features Silver Alloy contacts, known for excellent conductivity and resistance to wear, ensuring a long operational life and consistent contact performance in demanding environments.

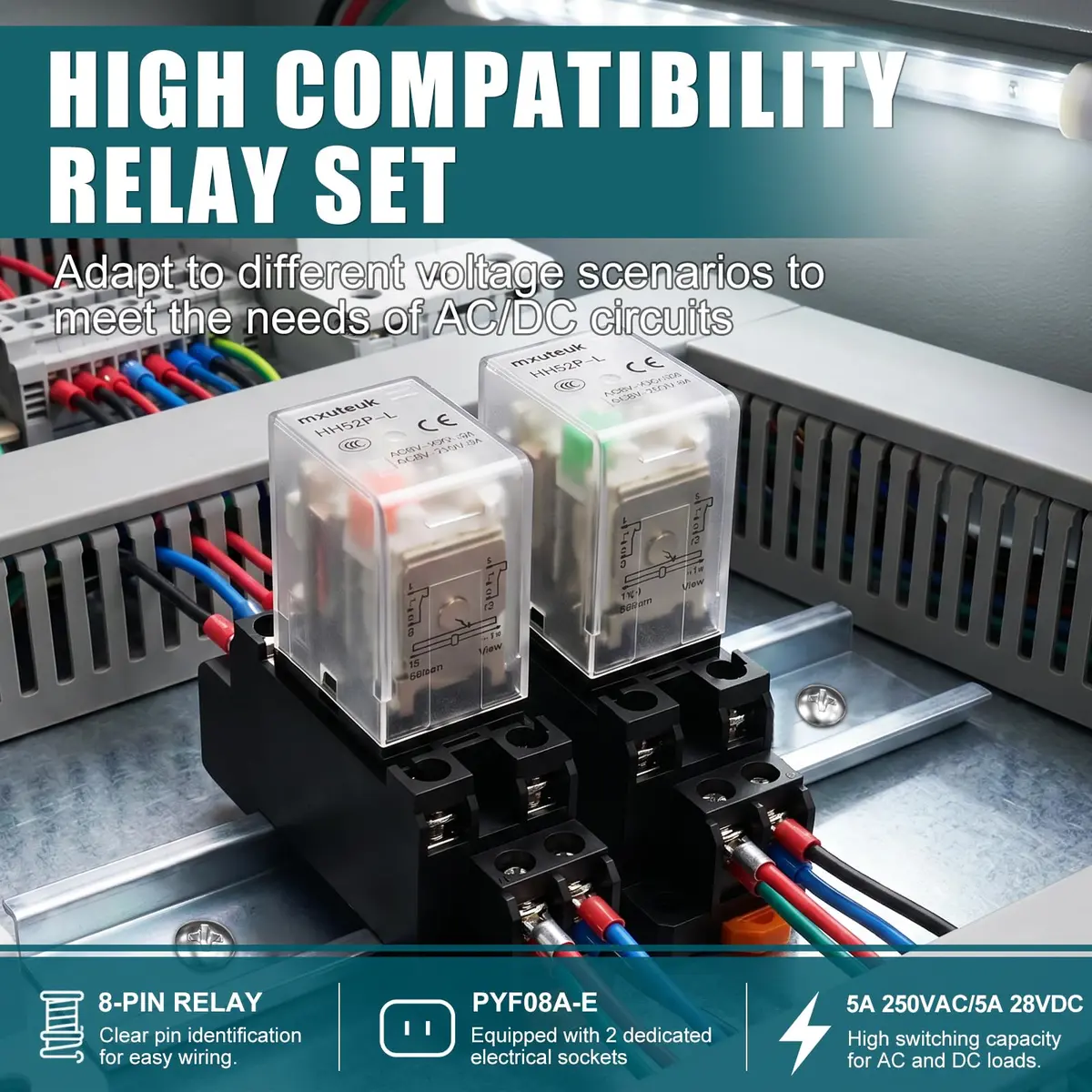

• Mount the Relay — Secure the included base onto a standard 35mm DIN rail. Slide the relay onto the base until it clicks into place, ensuring a firm connection for stability and electrical contact.
• Wire the Coil — Connect the control circuit wires to the designated 8-pin base terminals for the 24V DC coil. Ensure correct polarity if your system requires it. The LED indicator will illuminate when the coil is energized.

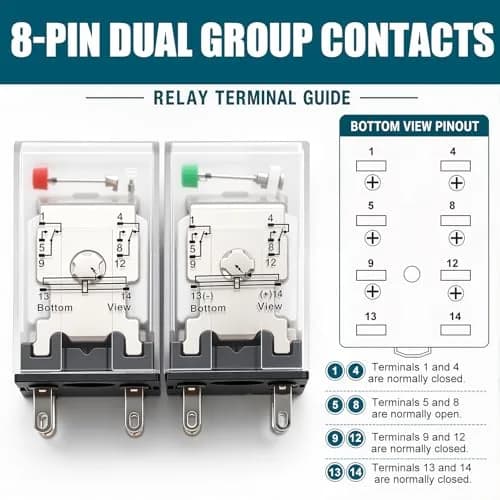

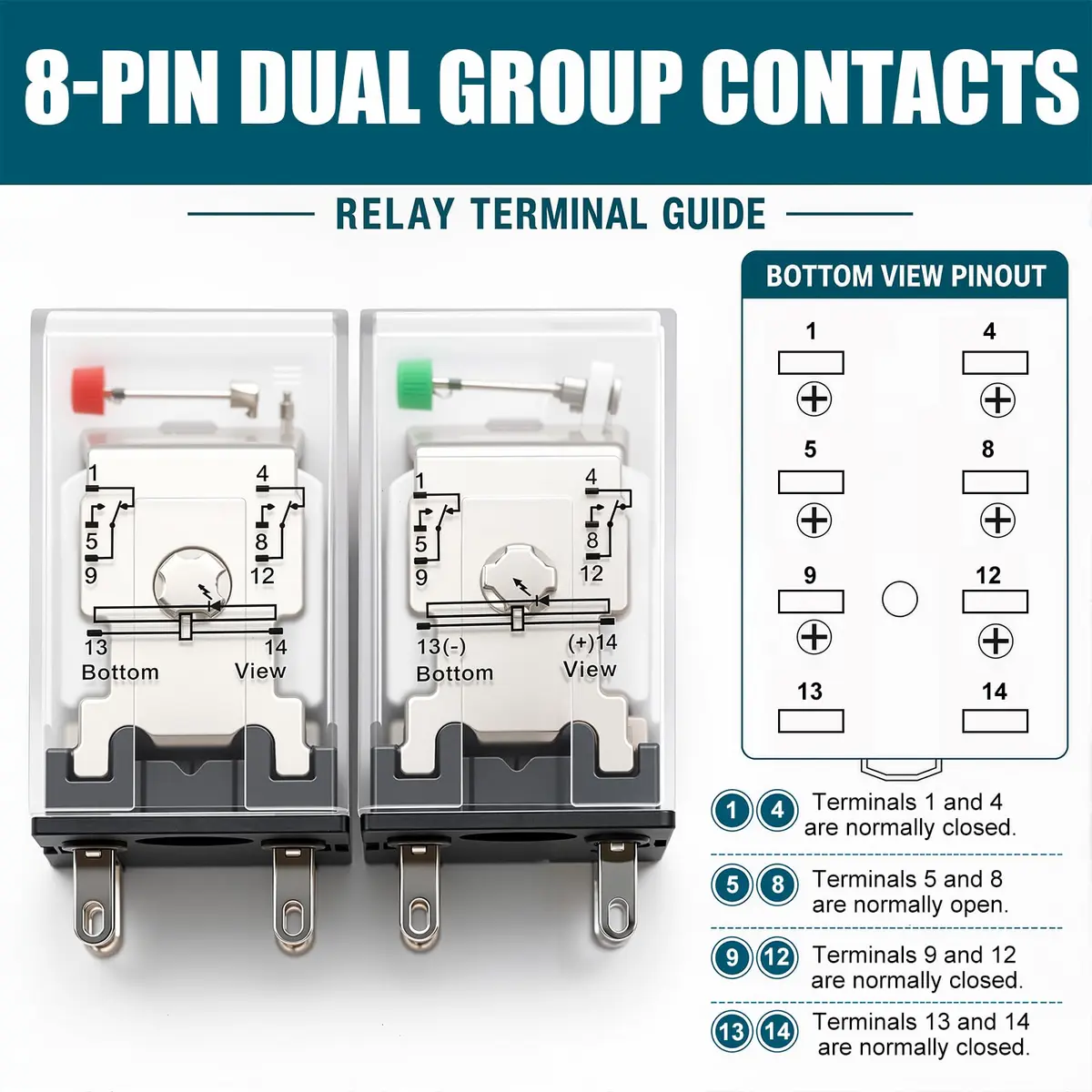

• Wire the Load Contacts — Connect your load circuits to the DPDT (Double Pole Double Throw) terminals. Each pole has a common terminal, a normally open (NO) terminal, and a normally closed (NC) terminal for flexible switching.

Typical situations where mxuteuk HH52P DC 24V Coil 8 Pin 5A DPDT LED Indicator Electromagnetic Power Relay with Base and DIN Rail Mount (2-Pack helps — illustrative scenarios, not customer reviews.
