mxuteuk HH52P DPDT Electromagnetic Power Relay AC 24V Coil, 5A, 8-Pin, 2-Pack with DIN Rail Mount | Industrial Automation Control

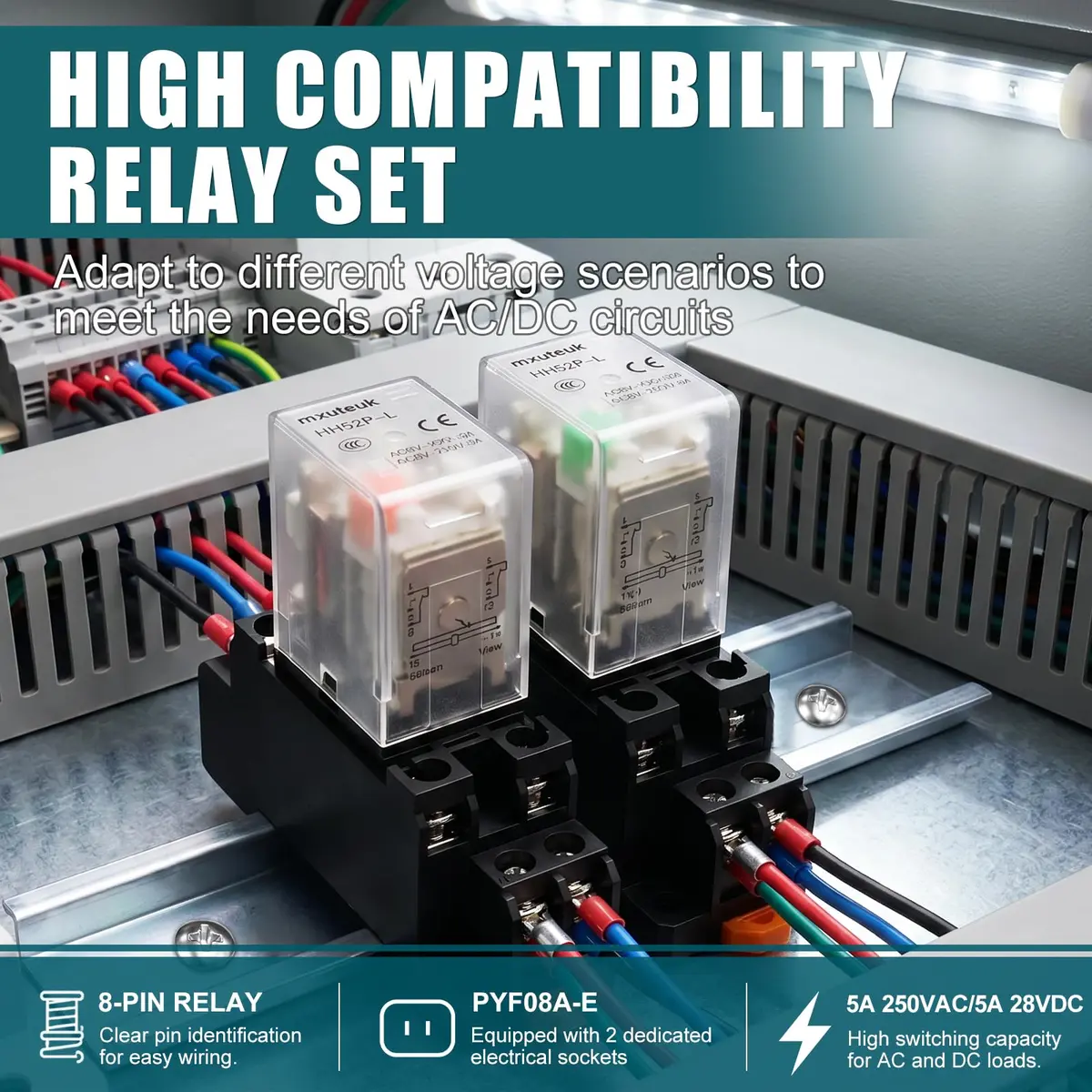

• Product Name:Electromagnetic Power Relay; Relay Model : HH52P; Type : DPDT(2NO 2NC); Number of Terminals : 8 ; Socket Model : PYF08A-E
• Mount Rail Type : 35mm DIN Rail; DIN Rail length : 100mm/4"(L)
• Coil Voltage:AC 24V; Contact Capacity: 5A 250VAC/5A 28VDC;
• Overall size(approx. ): 75 x 22 x 66mm/3" x 0. 8" x 2. 6"(L*w*h)

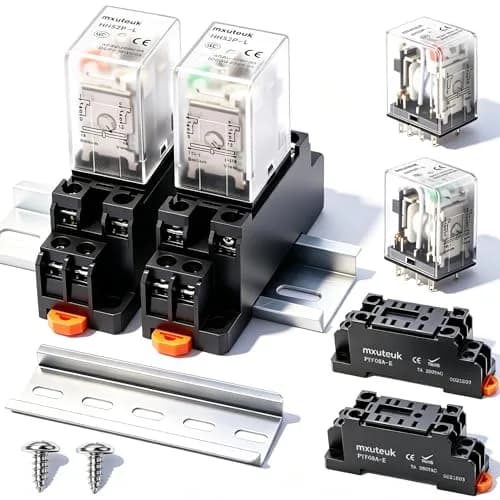

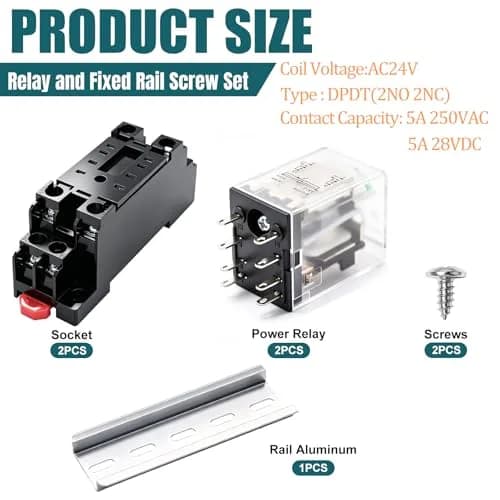

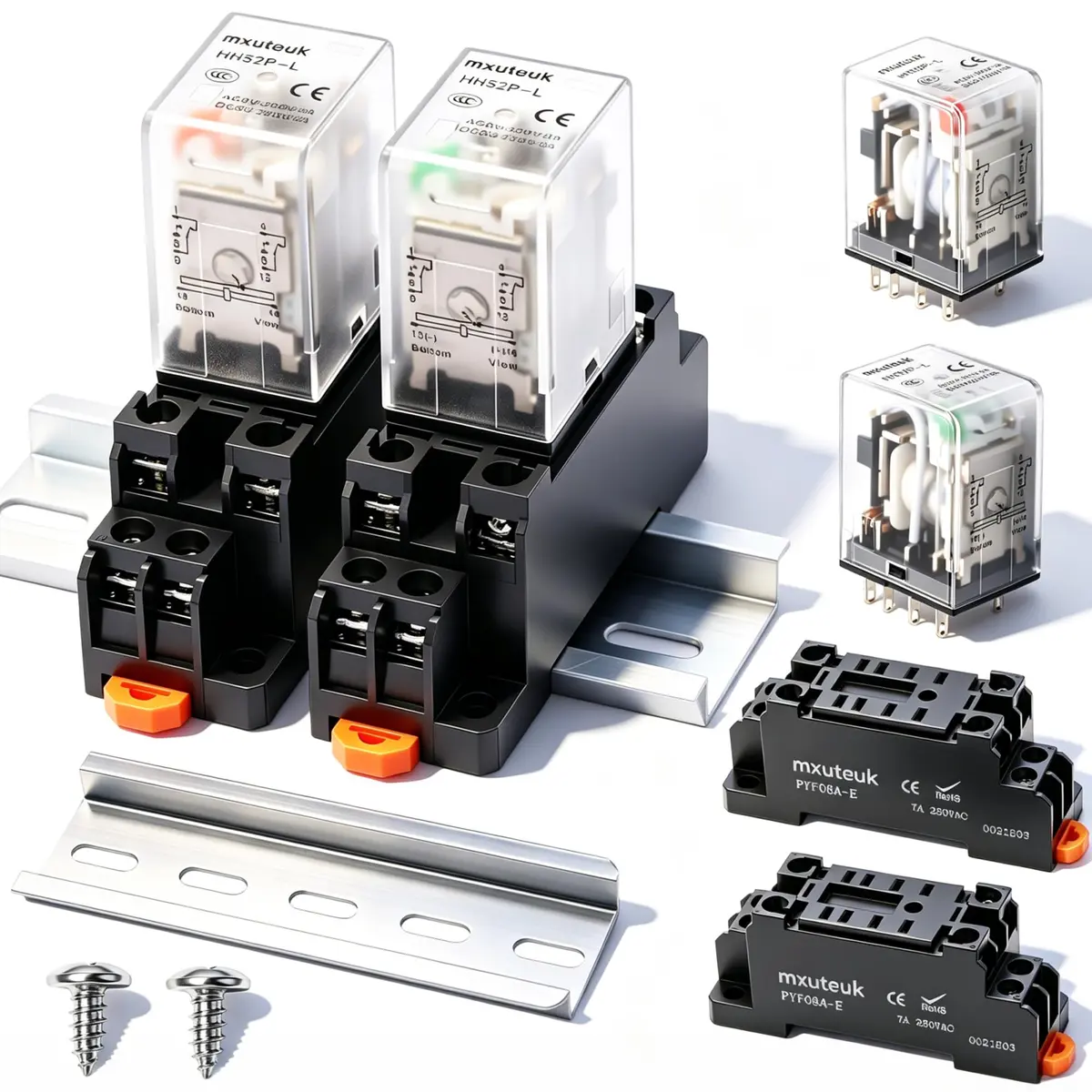

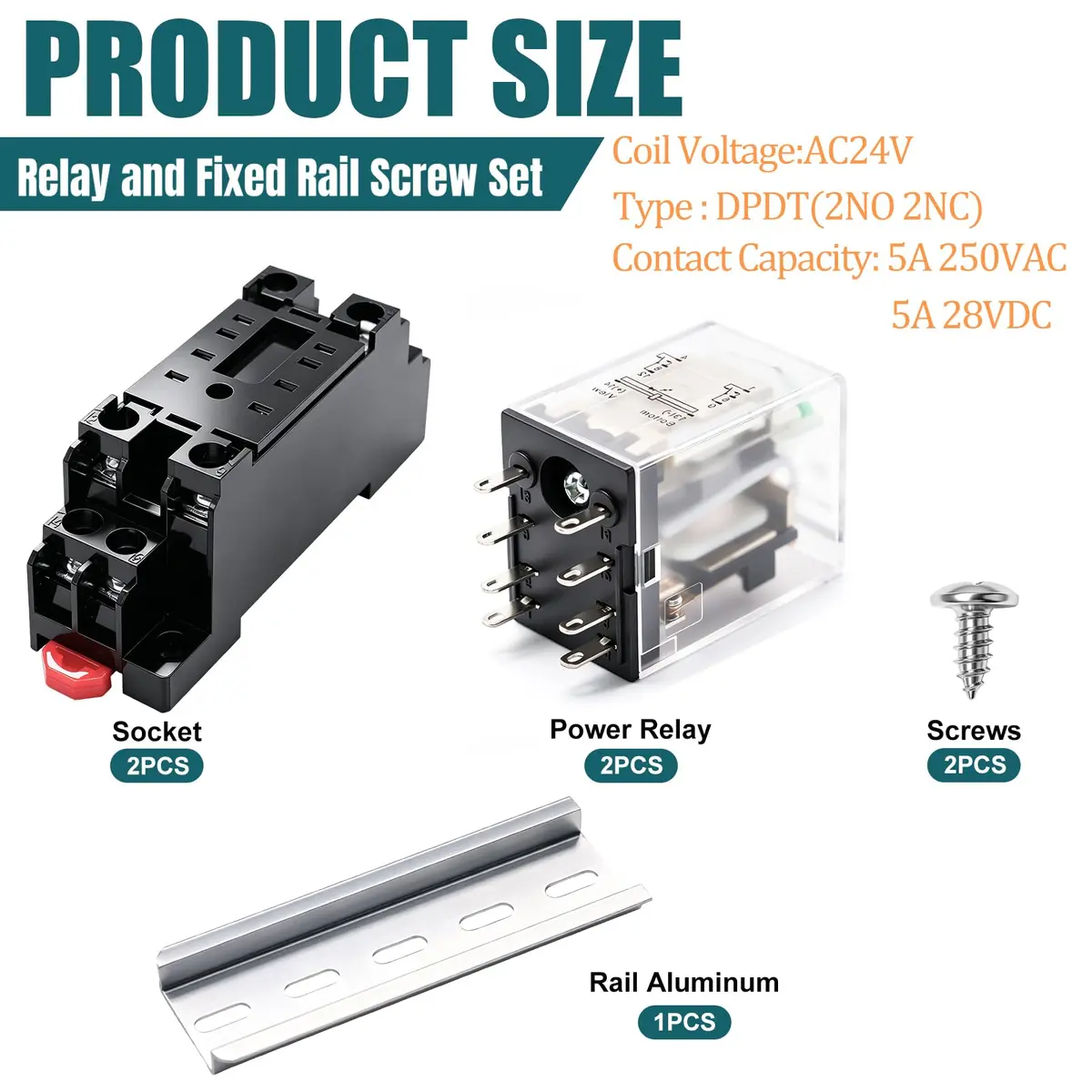

• Package Content : 2 x Power Relay + 2 x Socket + 1 x Rail Slotted Aluminum + 2 x Screw

• Prepare Mounting — Secure the included slotted aluminum 35mm DIN rail to your electrical panel's mounting surface using the provided screws. Ensure the rail is level and firmly attached.
• Install Relay Socket — Slide the PYF08A-E socket onto the mounted DIN rail. It should click into place securely. Ensure it is firmly seated before proceeding to prevent accidental dislodgement.

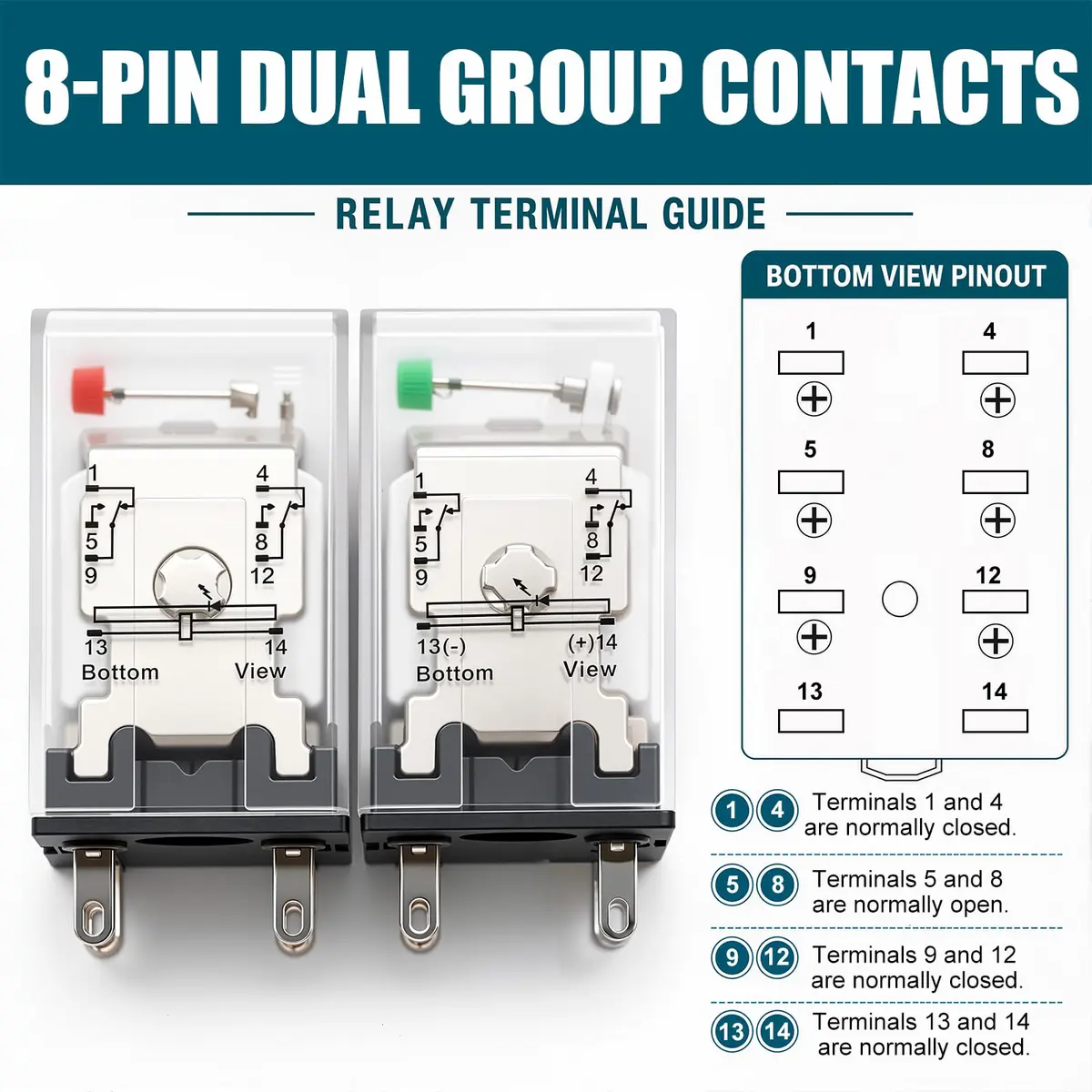

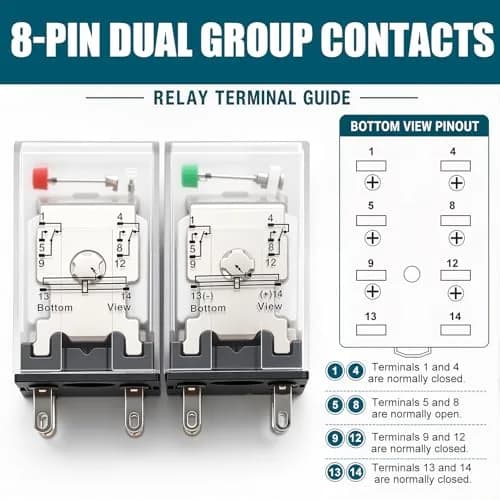

• Wire the Relay — Connect your control circuit wires to the appropriate terminals on the relay socket. Ensure the AC 24V coil input is correctly wired to a compatible AC 24V power source. Wire the load circuits to the 5A contact terminals (NO/NC).
• Insert Relay and Test — Carefully insert the HH52P relay into the socket, aligning the pins with the socket holes. Apply power to the AC 24V coil and test the switching action of the contacts with your load circuits.
