mxuteuk 8 Pin DPDT Electromagnetic Power Relay HH52P DC 12V Coil 5A with Socket & DIN Rail Mount (2-Pack)

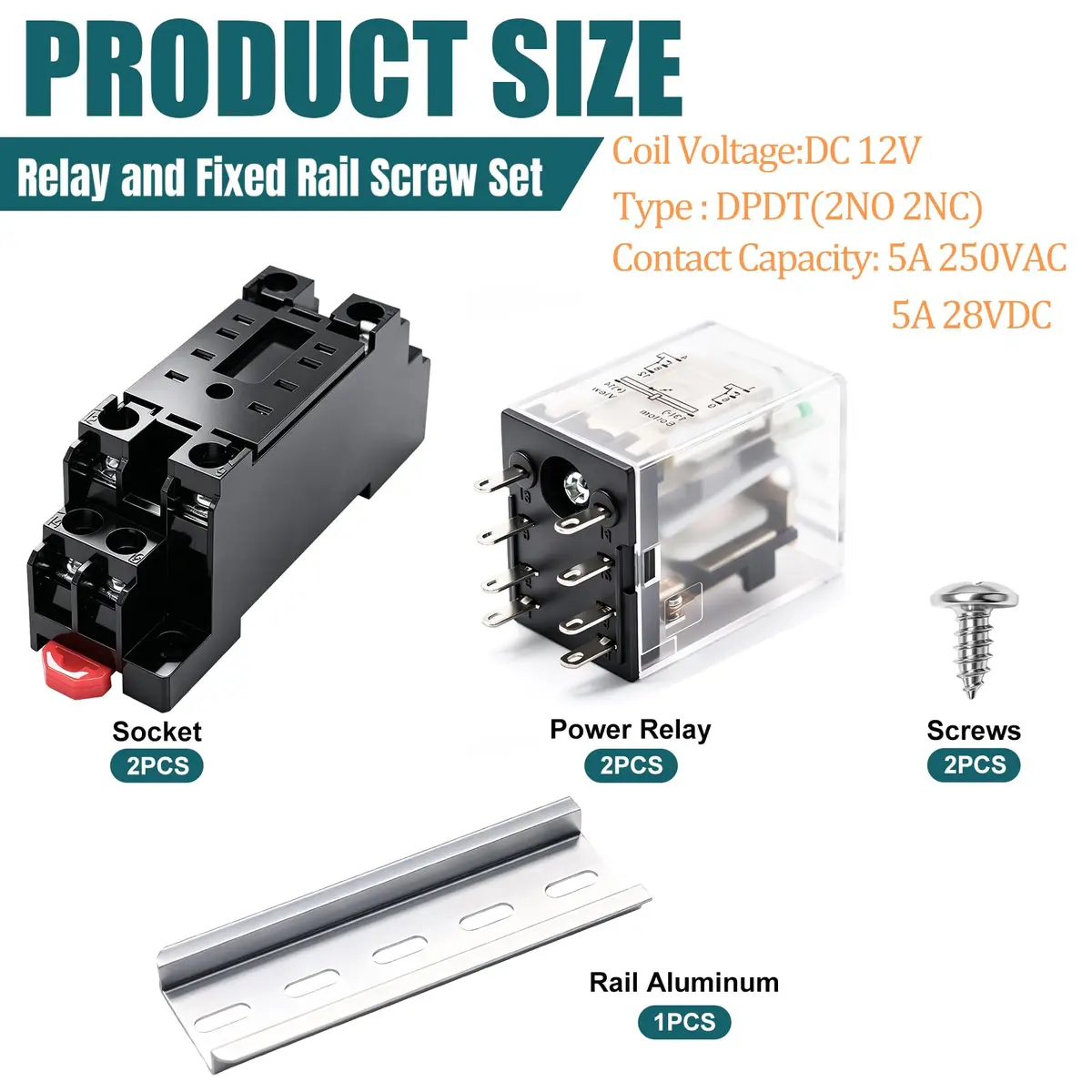

• Product Name:Electromagnetic Power Relay; Relay Model : HH52P; Type : DPDT(2NO 2NC); Number of Terminals : 8 ; Socket Model : PYF08A-E
• Mount Rail Type : 35mm DIN Rail; DIN Rail length : 100mm/4"(L)
• Coil Voltage:DC 12V; Contact Capacity: 5A 250VAC/5A 28VDC;
• Overall size(approx. ): 75 x 22 x 66mm/3" x 0. 8" x 2. 6"(L*w*h)

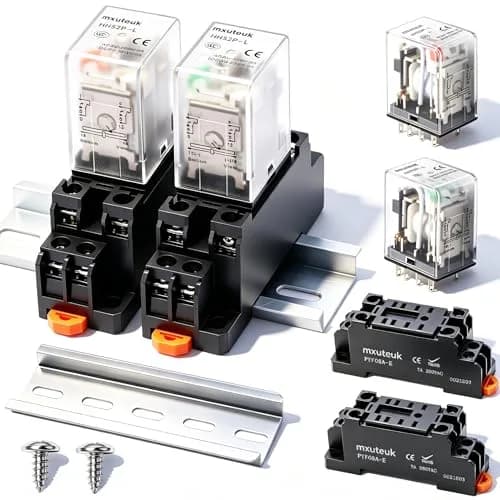

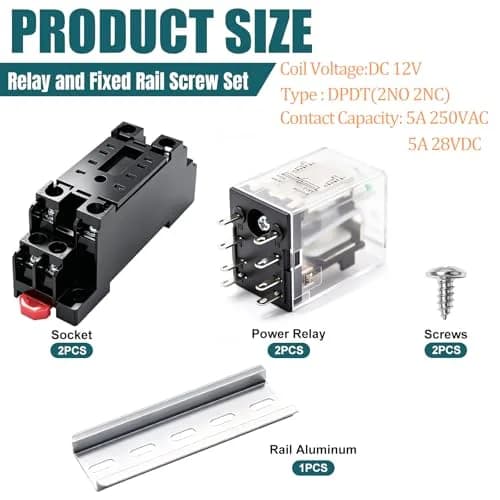

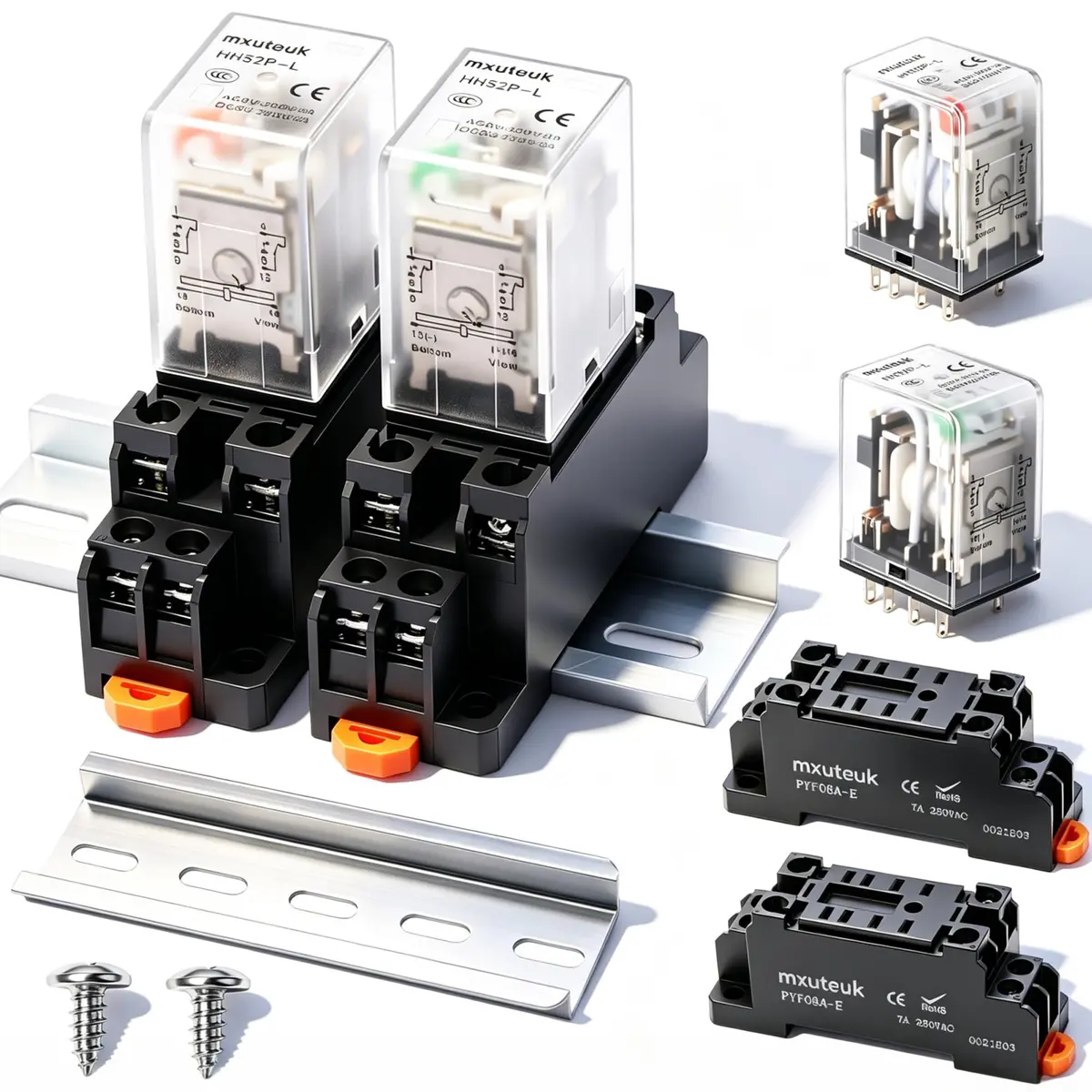

• Package Content : 2 x Power Relay + 2 x Socket + 1 x Rail Slotted Aluminum + 2 x Screw

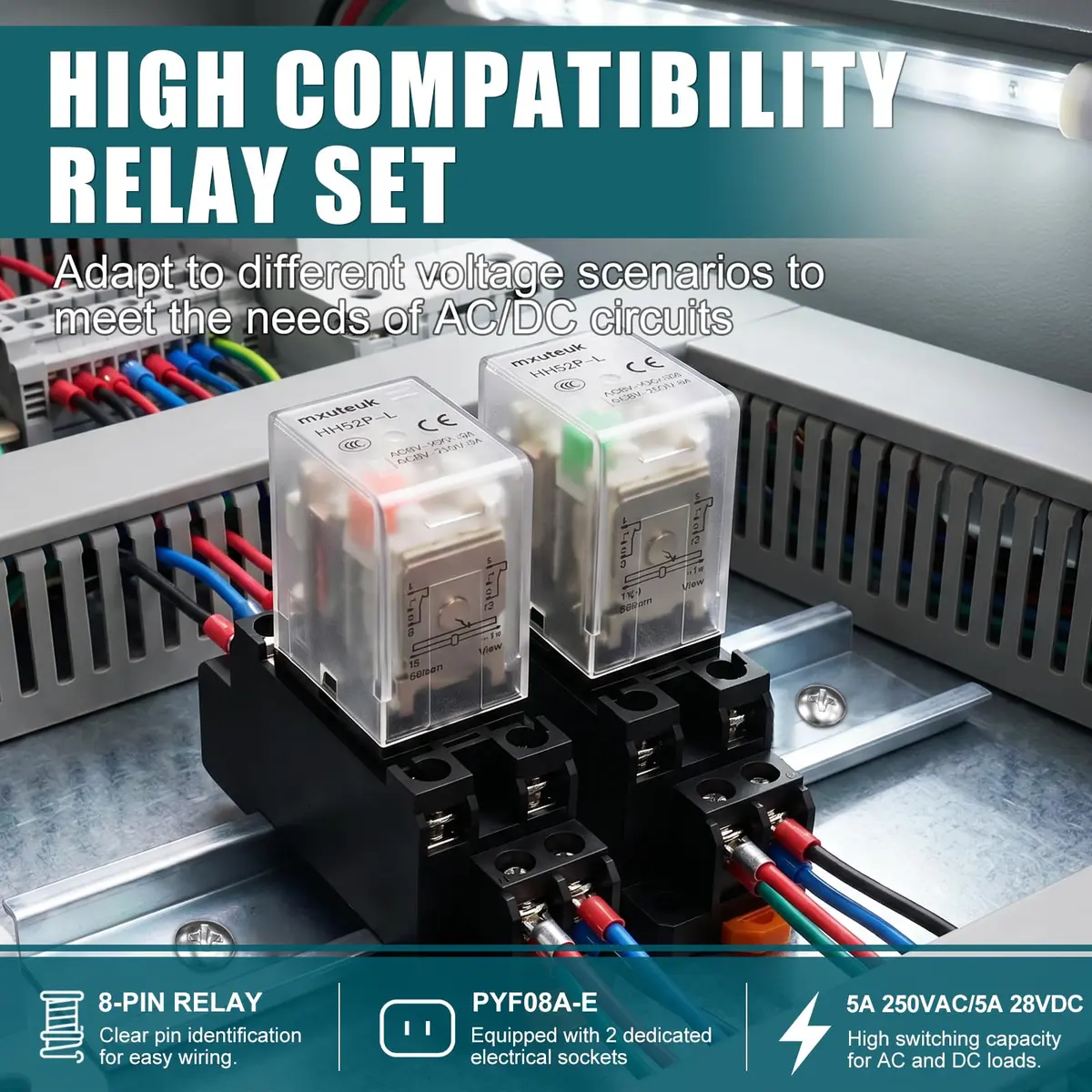

• Mount the Relay and Socket — Securely attach the 35mm DIN rail to your control panel. Slide the PYF08A-E socket onto the rail until it clicks. Then, attach the HH52P relay onto the socket, ensuring it snaps firmly into place.

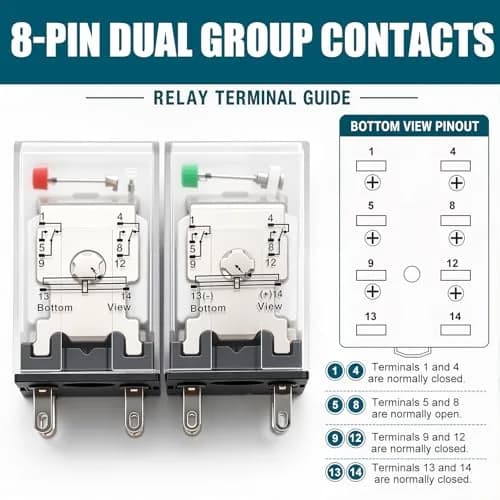

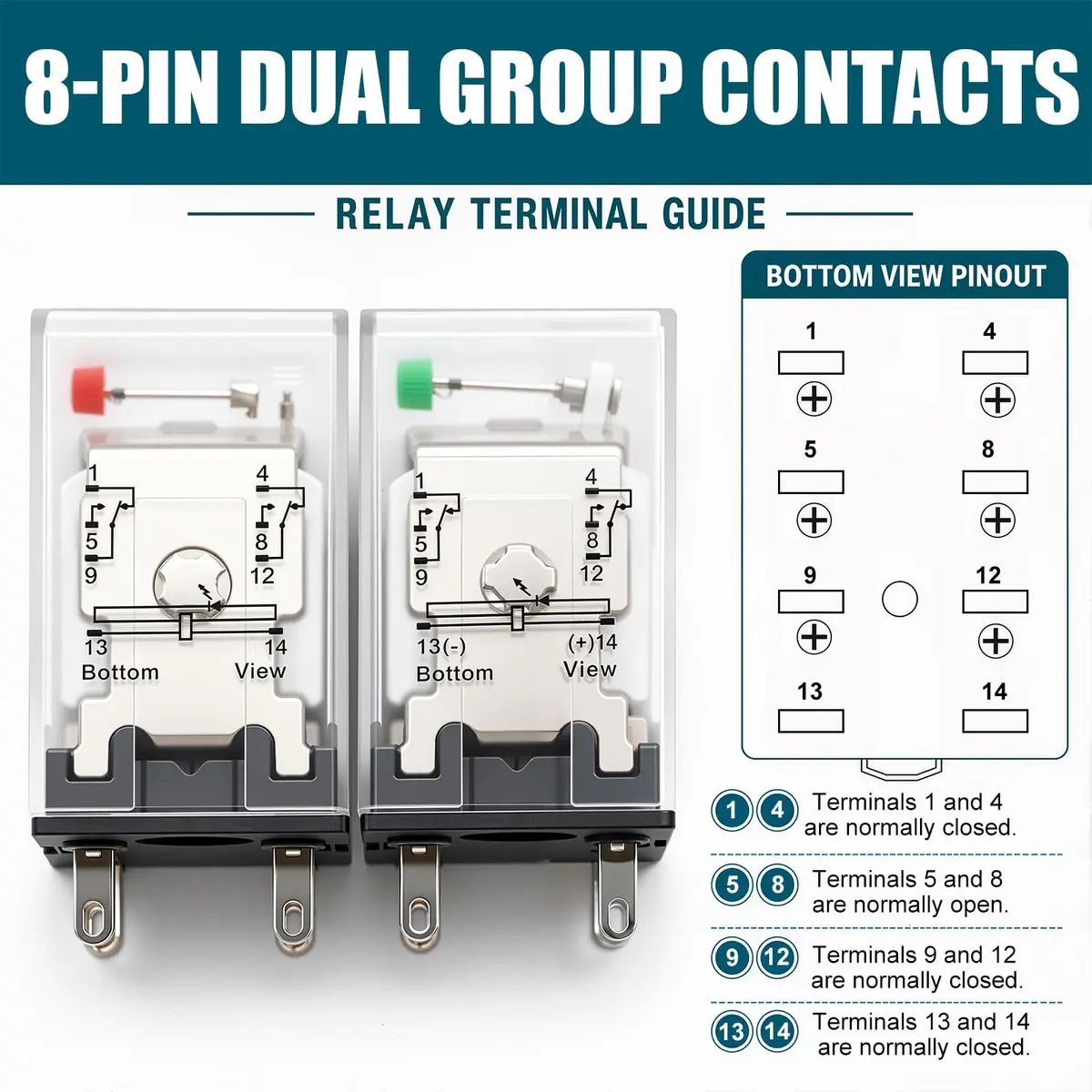

• Wire the Control Circuit — Connect your DC 12V control source to the coil terminals (typically pins 1 & 2 or 1 & 7 on the socket). Ensure correct polarity for DC voltage. Verify the coil voltage matches your power supply exactly.
• Wire the Load Circuit — Connect the device or circuit you wish to control to the load terminals (e.g., pins 3, 4, 5, 6 on the socket). Pins 3 & 4 are normally closed (NC), while pins 5 & 6 are normally open (NO) when the coil is de-energized.

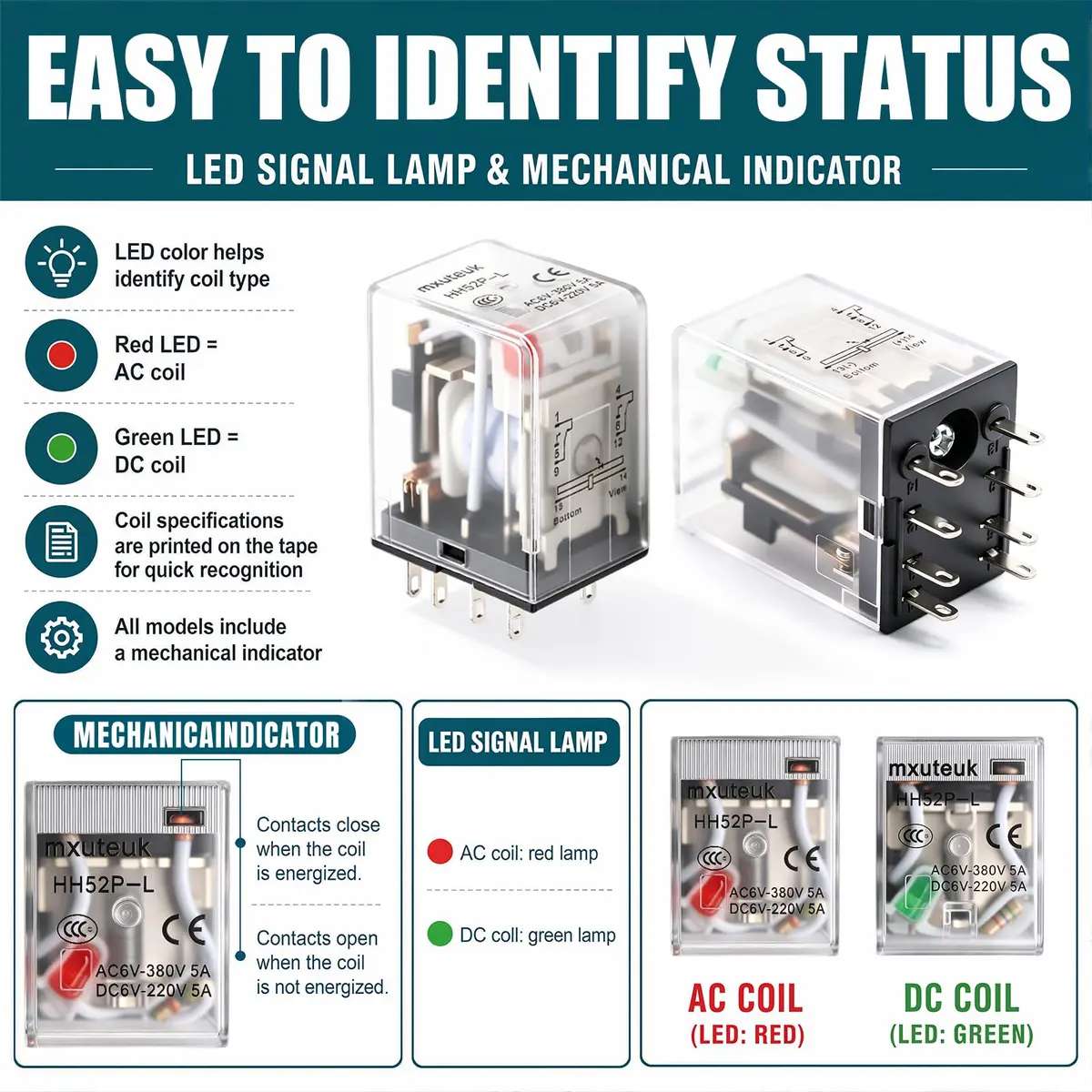

• Test Operation — Apply DC 12V power to the coil. The relay should energize, and the LED indicator should light up. Test the continuity of the load contacts to confirm they switch as expected (NO contacts close, NC contacts open).
