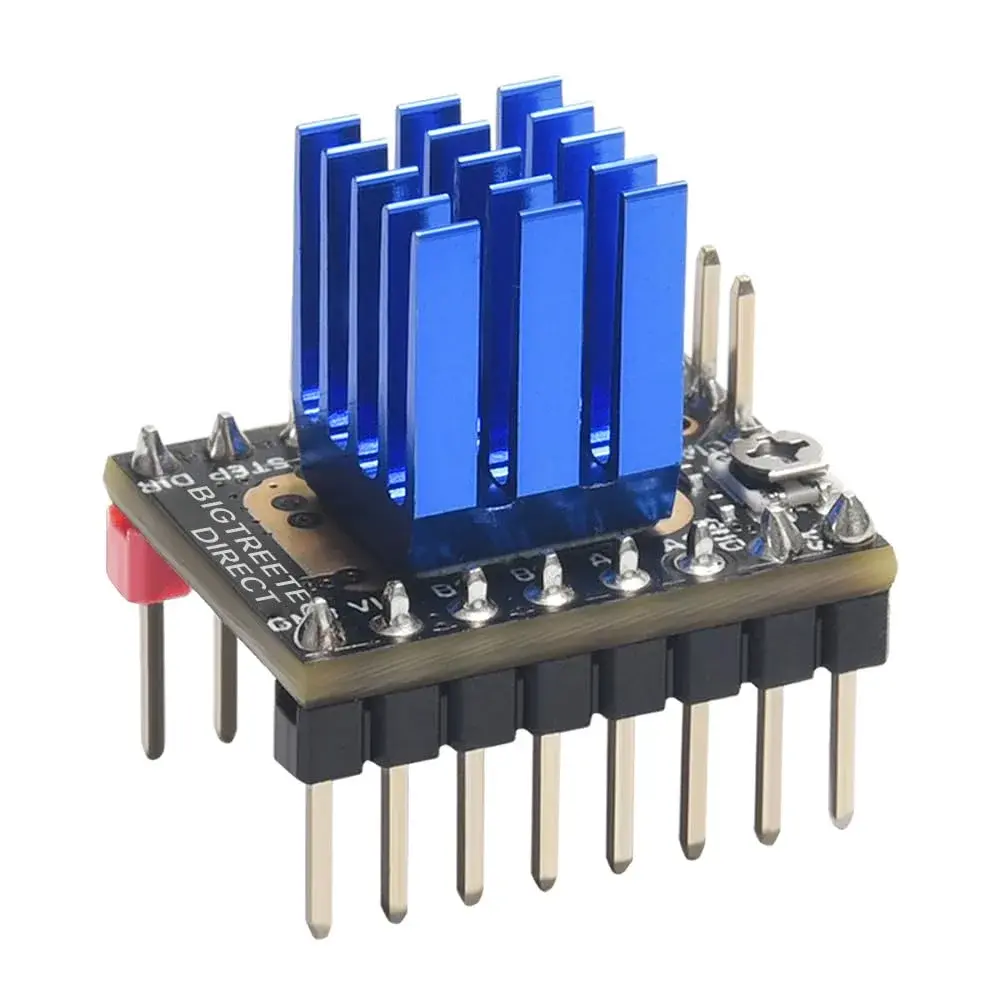

# BIGTREETECH TMC2209 V1.3 UART Stepper Motor Driver Module | 256 Microsteps, Sensorless Homing **Brand:** BIGTREETECH **SKU:** vpb0625 **ASIN:** B07ZPV4HFP **Canonical URL:** https://crowcrowcrow.com/p/bigtreetech-tmc2209-v1-3-uart-stepper-motor-driver-modulevs-tmc2100-tmc2130/vpb0625 **Category:** electronics **Subcategory:** Categories **Availability:** in_stock **Price (INR, all-inclusive):** ₹1,672 **Discount:** 2% **Customer rating:** 4.60/5 from 514 ratings ## Description BIGTREETECH TMC2209 V1.3 stepper motor drivers offer ultra-quiet operation and precise control for 3D printers. Featuring sensorless homing and energy-saving CoolStep, they enhance print quality. Compatible with most motherboards, these drivers are imported from authorized US retailers and arrive via {{ccc_delivery_eta}}. ## Highlights - Ultra-Quiet StealthChop2 Operation — Achieve near-silent 3D printing with StealthChop2 technology, reducing motor noise significantly. Continuous current up to 2.0A (2.8A peak) ensures smooth, quiet motion for detailed prints. - Sensorless Homing Capability — StallGuard4 technology detects motor load changes, enabling sensorless homing without physical limit switches. This simplifies printer setup and reduces wiring complexity. - Energy-Saving CoolStep Technology — CoolStep dynamically regulates motor current, saving up to 75% energy and reducing heat generation. This extends component life and lowers cooling requirements for your printer. - Wide Compatibility & UART Support — Supports UART and STEP/DIR modes, compatible with major 3D printer boards like BTT Octopus, SKR, and Manta series. Requires firmware modification for chosen mode. ## Key features - Ultra-quiet Stepper Driver: Thanks to StealthChop2 ultra-quiet technology, BIGTREETECH TMC2209 V1.3 stepper motor driver allows for silent motor operation. The TMC2209 drivers work with a continuous current up to 2.0A, peaks of 2.8A. The voltage range from 4.75V to 28V. - Sensorless Homing: The BTT TMC2209 stepper motor driver incorporated Stallguard4 locked motor technology to detect alterations in the motor current and use this measurement to detect the end of an axis' stroke and produce 3D printers without limit switches. - Excellent Heat Dissipation: BIGTREETEHC TMC2209 stepper motor driver adopts CoolStep current dynamic control, which can save 75% energy. The sinusoidal control can be perfectly realized even in the system with limited pulse frequency. Reduce the heat generated by the stepper motor, thereby reducing cooling requirements. - Supports UART, STEP/DIR Modes: BIGTREETECH 4PCS TMC2209 V1.3 UART stepper motors support UART, STEP/ DIR Mode, except that you need to modify the firmware for the mode you use. BTT TMC2209 v1.3 compatible with most 3D printer motherboards on the market, such as BTT Octopus v1.1/Octopus pro, SKR V1.4 turbo/SKR 3, Manta M4P/M5P/M8P, MKS Gen L...etc 3d printer board. - Satisfying Customer Services: If you have any problems regarding our BTT TMC2209 V1.3 drivers stepsticks, please feel free to tell us via Amazon message, or search BIGTREETECH at GitHub. ## Why choose this product - BIGTREETECH TMC2209 V1.3 drivers are engineered for superior performance. StealthChop2 technology minimizes noise, making your printing environment more pleasant. StallGuard4 enables advanced sensorless homing, simplifying your printer's mechanics. CoolStep optimizes energy use and heat management, ensuring consistent operation. These modules are built for reliability, offering a significant upgrade over standard drivers and providing a quieter, more efficient printing experience. — Precision Engineering for Silent Prints - This driver is perfect for 3D printing enthusiasts seeking quieter operation, improved print quality, and advanced features like sensorless homing. It's ideal for users upgrading existing printers or building new ones. Skip if you require plug-and-play compatibility without any firmware adjustments, as UART mode requires configuration. — Ideal for Enthusiasts, Skip if... ## How to use 1. Confirm your 3D printer motherboard supports TMC2209 drivers and has compatible slots. Check if your firmware supports UART or STEP/DIR modes and prepare to modify it accordingly. — Verify Compatibility and Firmware 2. Carefully insert the TMC2209 V1.3 module into the designated stepper motor driver slot on your motherboard, ensuring correct orientation. Refer to your motherboard's pinout diagram. — Install the Driver Module 3. Update your printer's firmware to enable the chosen mode (UART or STEP/DIR) and configure motor settings. Test motor movement and sensorless homing functionality to ensure proper operation. — Configure Firmware and Test ## Product details | Field | Value | |---|---| | Primary Chip | Trinamic TMC2209 | | Key Technologies | StealthChop2, SpreadCycle, CoolStep, StallGuard4 | | Interface Modes | UART, STEP/DIR | | Compatibility | Most 3D printer motherboards (e.g., BTT Octopus, SKR, Manta series) | | Firmware Modification | Required for selected mode (UART/STEP/DIR) | | Cost per unit | {{ccc_price_per_unit:1:module}} | | Brand | BIGTREETECH | | Model | TMC2209 V1.3 | | Style | 1*TMC2209 | | Material | PCB | | Voltage Range | 4.75V - 28V | | Continuous Current | 2.0A | | Peak Current | 2.8A | | Microstepping | Up to 256 | | Item Weight | 8.99 g (0.009 kg) | | Package Dimensions | 10.16 cm x 10.414 cm x 3.048 cm | | Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers | ## Frequently asked questions ### How do I ensure this BIGTREETECH TMC2209 V1.3 driver fits my 3D printer? This driver is hardware compatible with StepStick and Pololu A4988 pinouts and supports STEP/DIR modes. It's designed for most 3D printer motherboards like BTT Octopus, SKR, and Manta series. Verify your printer's motherboard specifications and ensure it has compatible driver slots and firmware support for UART or STEP/DIR modes before purchasing. ### What is the main advantage of TMC2209 over TMC2208 drivers? The TMC2209 offers lower power dissipation and higher current capability than the TMC2208. It also features optimized StallGuard4 for stealthChop and CoolStep for advanced energy savings, providing more dynamic motor control and quieter operation. ### Can I use sensorless homing with the TMC2209 V1.3 driver? Yes, the BIGTREETECH TMC2209 V1.3 driver incorporates StallGuard4 technology, which allows for sensorless homing. This feature detects motor load changes to identify the end of an axis' stroke, eliminating the need for physical limit switches. ### How does CoolStep technology save energy and reduce heat? CoolStep technology dynamically adjusts the motor's current based on the load. By reducing current when full torque is not needed, it significantly saves electrical energy (up to 75%) and minimizes heat generation, leading to cooler motor operation and reduced cooling requirements. ### What is the voltage and current rating for the TMC2209 V1.3 driver? The BIGTREETECH TMC2209 V1.3 driver operates within a voltage range of 4.75V to 28V. It can handle a continuous current of up to 2.0A and peak currents of up to 2.8A, ensuring robust performance for various stepper motors. ### How to buy an original BIGTREETECH TMC2209 V1.3 stepper motor driver in India? To buy an original BIGTREETECH TMC2209 V1.3 stepper motor driver in India, source from authorized US retailers via crowcrowcrow. We import directly, ensuring factory-sealed products with all customs duties and GST included. Delivery is via ExpressBox tracked shipping. ## Compliance No product-specific compliance warnings identified. Standard imported-goods terms apply: customs duties & GST paid; for personal use in India; follow the manufacturer's usage instructions on the packaging. ## Images 1. https://images.crowcrowcrow.com/B07ZPV4HFP-0.webp 2. https://images.crowcrowcrow.com/B07ZPV4HFP-3.webp 3. https://images.crowcrowcrow.com/B07ZPV4HFP-6.webp 4. https://images.crowcrowcrow.com/B07ZPV4HFP-9.webp 5. https://images.crowcrowcrow.com/B07ZPV4HFP-12.webp 6. https://images.crowcrowcrow.com/B07ZPV4HFP-15.webp --- Source: https://crowcrowcrow.com/p/bigtreetech-tmc2209-v1-3-uart-stepper-motor-driver-modulevs-tmc2100-tmc2130/vpb0625 Returns: 30 days, free, by mail. Shipping: Free across India, 7–13 business days. Prices are all-inclusive (duties + GST).
