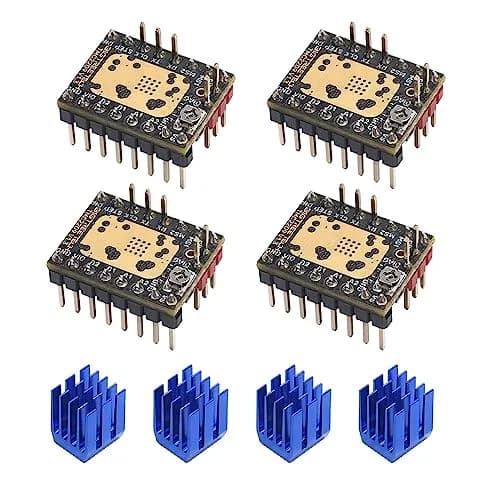

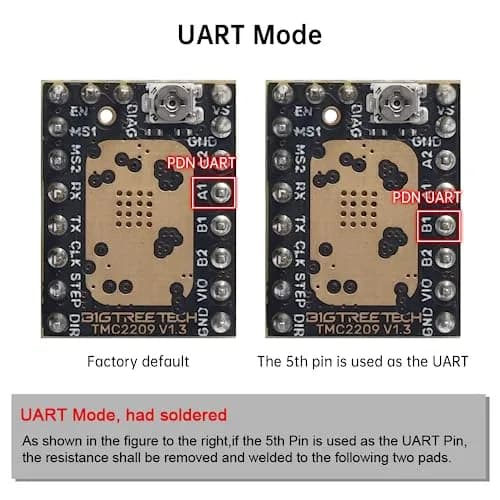

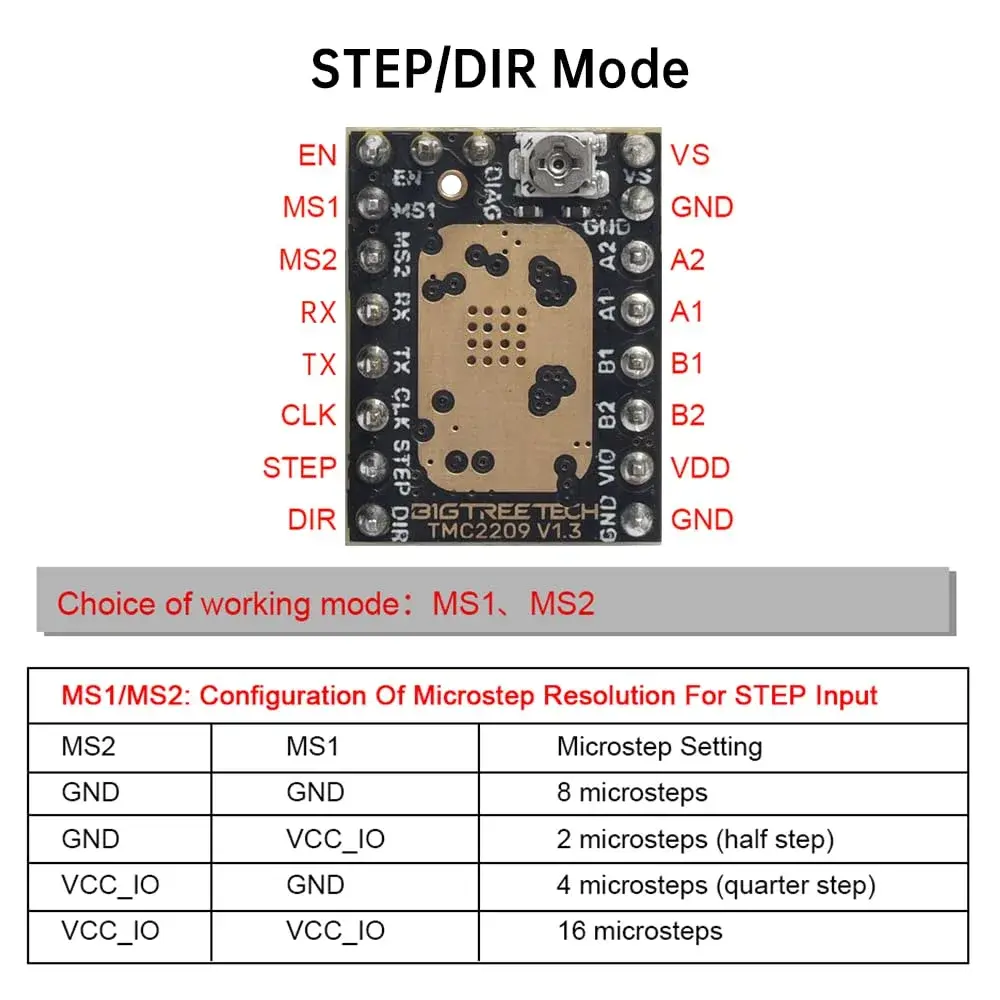

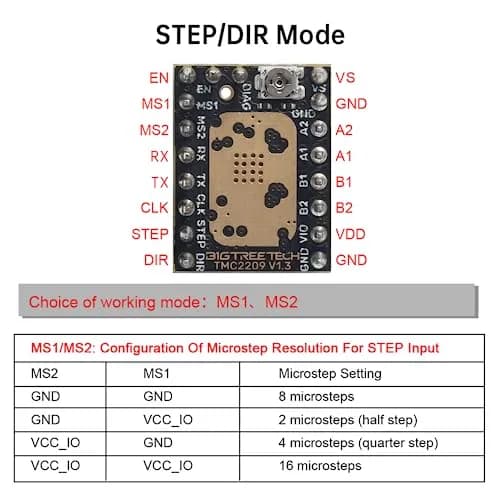

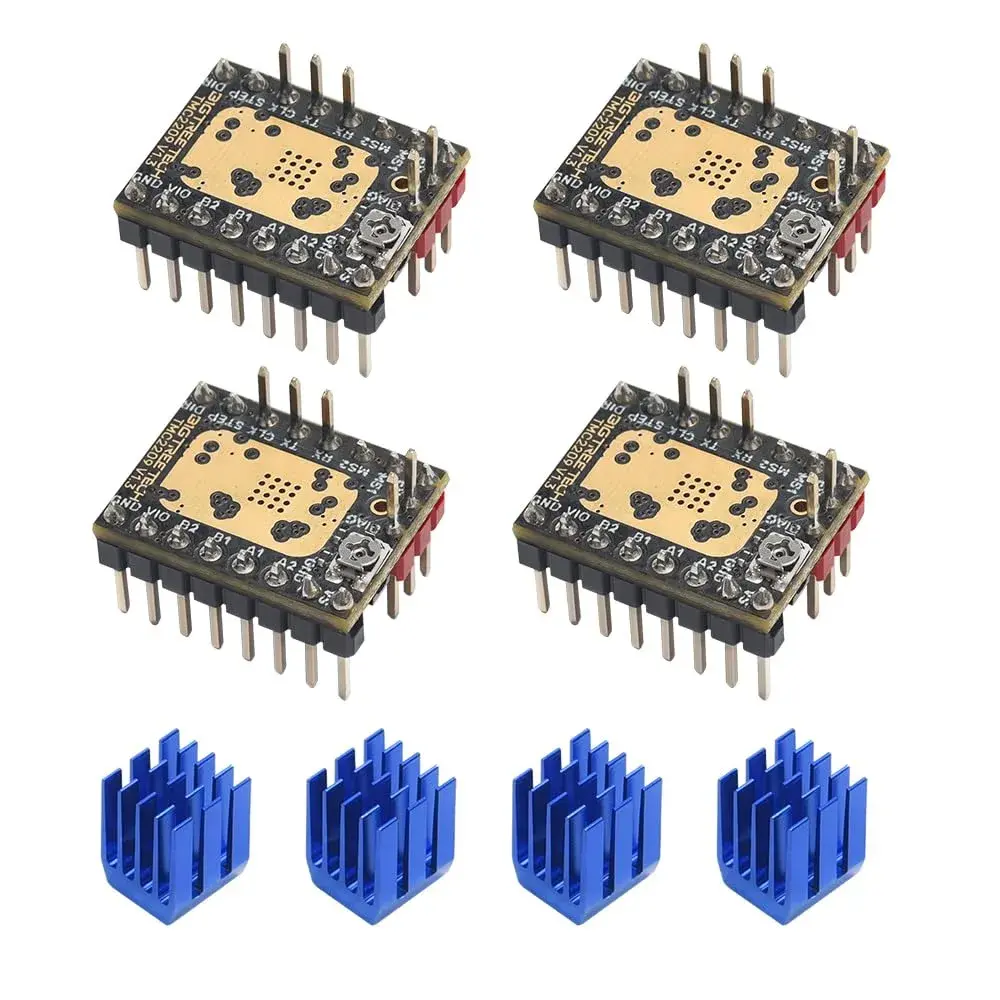

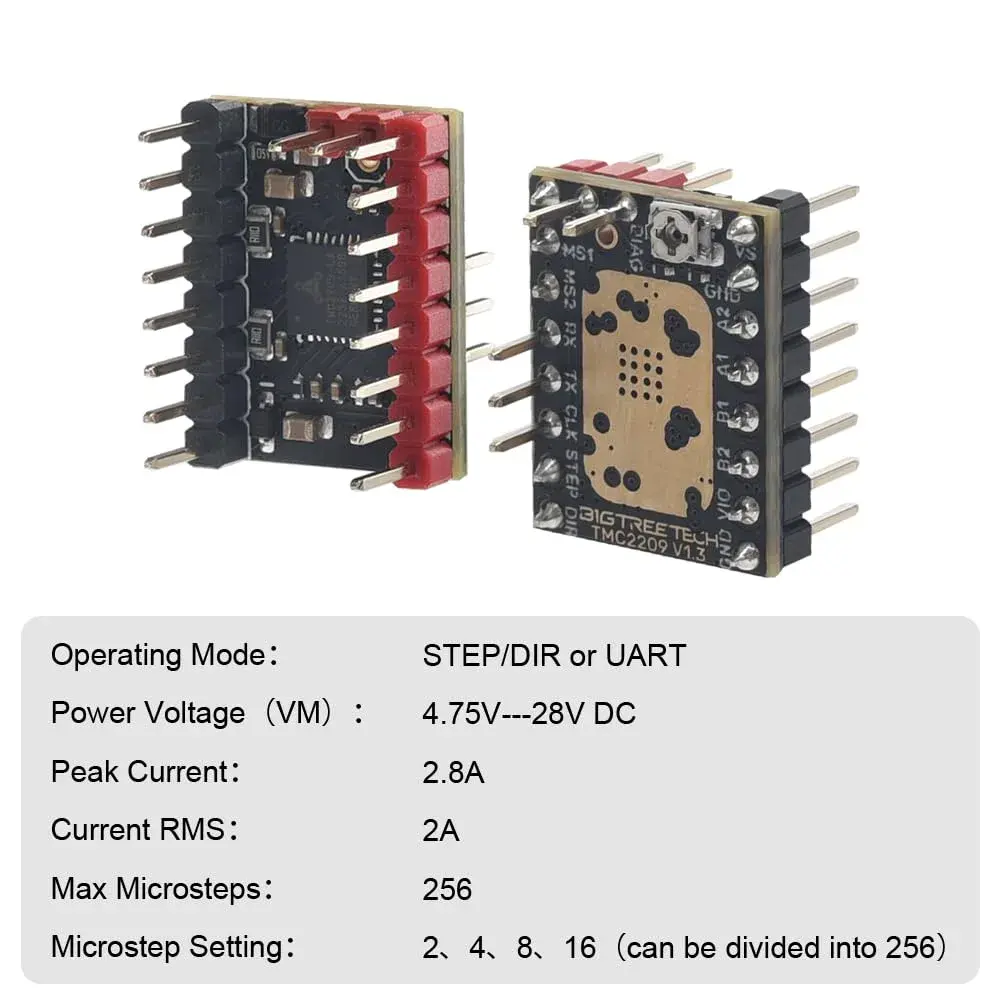

# BIGTREETECH TMC2209 V1.3 Stepper Motor Driver | Ultra-Silent, 2.8A UART/DIR/Step Mode, 4-Pack **Brand:** BIGTREETECH **SKU:** rbj3767 **ASIN:** B07ZPYKL46 **Canonical URL:** https://crowcrowcrow.com/p/bigtreetech-tmc2209-v1-3-stepper-motor-driver-2-8a-uart-dir-step-mode/rbj3767 **Category:** electronics **Subcategory:** Categories **Availability:** in_stock **Price (INR, all-inclusive):** ₹3,576 **Discount:** 1% **Customer rating:** 4.38/5 from 8 ratings ## Description BIGTREETECH TMC2209 V1.3 stepper motor drivers upgrade your 3D printer with ultra-quiet operation and precise control. Features 2.8A peak current, StallGuard4 sensorless homing, and CoolStep energy saving. Compatible with STEP/DIR and UART modes. Imported from USA, duties included, arrives in {{ccc_delivery_eta}}. ## Highlights - Ultra-Quiet StealthChop2 Operation — Experience near-silent 3D printing with StealthChop2 technology, significantly reducing motor noise for a quieter workspace. Ideal for home or shared environments. - Sensorless Homing with StallGuard4 — Eliminate physical limit switches using StallGuard4 technology to detect motor stall, enabling precise sensorless homing and simplifying printer setup. - Energy Saving with CoolStep — CoolStep dynamically adjusts motor current, saving up to 75% energy and reducing heat generated by the motor, leading to longer component life and lower cooling needs. - Wide Compatibility & Precision Control — Supports STEP/DIR and UART modes, compatible with most 3D printer motherboards. MicroPlyer provides up to 256 microsteps for smoother motion and enhanced print accuracy. ## Key features - Ultra-quiet Stepper Motor Driver: BIGTREETECH TMC2209 V1.3 stepper motor driver adopts StealthChop2 ultra-quiet technology, it is an ultra-silent motor driver IC for two-phase stepper motors. Its continuous drive current is 2A and peak current is 2.8A. The voltage range from 4.75V to 28V. The flexible microPlyer interpolation unit provides up to 256 microsteps. - Sensorless Homing: BTT TMC2209 V1.3 stepper motor driver uses Stallguard4 locked motor technology to detect changes in motor current, providing an abnormal signal when the motor rotates abnormally. And use this measurement to detect the end of axis' stroke and produce 3D printers without limit switches. - Excellent Heat Dissipation: BIGTREETECH TMC2209 stepper motor driver adopts CoolStep current dynamic control, which can save 75% energy. The sinusoidal control can be perfectly realized even in the system with limited pulse frequency. Reduce the heat generated by the stepper motor, thereby reducing cooling requirements. - Widely Compatible: As stealthChop2 ultra-quiet technology is widely used in 3D printers, BTT TMC2209 stepper driver compatible with most 3D printer motherboards on the market, such as BTT Octopus V1.1/Octopus Pro, SKR V1.4 Turbo/SKR 3, Manta M4P/M5P/M8P, SKR Pro V.2, MKS Gen L etc. Supprt STEP/DIR, UART mode. - Avoid Losing Steps and Jittering: The motor controlled by the PWM chopper mode operated more smoothly and without jitter. It can effectively avoid problemsuch as running deviation losing step and fault caused by the overlode of the chip. - Satisfying Customer Services: If you have any problems regarding our btt TMC 2209 stepper driver stepsticks, please feel free to tell us via Amazon message, or search BIGTREETECH at GitHub. ## Why choose this product - BIGTREETECH TMC2209 V1.3 drivers bring advanced motor control to your 3D printer. StealthChop2 technology ensures whisper-quiet operation, transforming your printing experience. StallGuard4 enables reliable sensorless homing, simplifying your printer's mechanics. CoolStep optimizes power consumption, reducing heat and saving energy. The drivers prevent lost steps and jitter, leading to smoother movements and higher quality prints. This imported upgrade offers superior performance compared to standard drivers, ensuring your prints are more accurate and your workspace quieter. — Precision Engineering for Quieter, Smoother Prints - This driver is ideal for 3D printer enthusiasts seeking to reduce noise, improve print quality, and gain advanced features like sensorless homing. If you're experiencing noisy motors, inconsistent extrusion, or want to simplify your printer's wiring, these drivers are a strong choice. Skip if your printer already uses advanced silent drivers or if you require drivers for extremely high-voltage or high-current applications beyond the 28V/2.8A specification. For basic printers, ensure compatibility with your motherboard's STEP/DIR or UART interface. — Who Should Upgrade vs. Who Should Skip ## How to use 1. Before installation, ensure your 3D printer is completely powered off and disconnected from the mains supply to prevent electrical damage to the drivers or motherboard. — Power Down and Disconnect 2. Carefully check the orientation of the TMC2209 driver and confirm the wiring sequence for STEP/DIR or UART mode against your motherboard's pinout diagram to avoid incorrect connections. — Verify Drive Direction and Wiring 3. Gently attach the provided heat sink to the TMC2209 chip, ensuring it does not touch any pins. Then, carefully insert the driver into the designated slot on your 3D printer's motherboard. — Install Heat Sink and Mount Driver 4. Update your printer's firmware to enable UART mode if desired, or ensure correct STEP/DIR configuration. Power on the printer and test motor movement and sensorless homing functionality. — Configure Firmware and Test ## Product details | Field | Value | |---|---| | Application | Stepper Motor Driver for 3D Printers | | Installation | Disconnect power before installing. Confirm drive direction. Do not plug/unplug when device is working. Ensure heat sink does not short pins. Pay attention to wiring sequence. | | Cost per unit | 4 drivers at {{ccc_offer_price}} — {{ccc_price_per_unit:4:driver}} | | Shelf life after opening | N/A (Durable component) | | Reapplication math | N/A (Durable component) | | Contraindications | High voltage (>28V) or high current (>2.8A peak) applications. Incorrect wiring or power connection. | | Allergens / common irritants | N/A (Electronic component) | | Brand | BIGTREETECH | | Model | TMC2209 V1.3 | | Style | 4-Pack | | Material | PCB | | Voltage Range | 4.75V - 28V | | Continuous Current | 2A | | Peak Current | 2.8A | | Microsteps | Up to 256 | | Motor Control Modes | STEP/DIR, UART | | Weight | 0.024 kg (approx. 24g) | | Dimensions | 10.3cm x 12.5cm x 1.8cm (package) | ## Frequently asked questions ### How to buy an original BIGTREETECH TMC2209 V1.3 stepper motor driver in India? Ensure you are purchasing from an authorized importer like CrowCrowCrow. Our products are sourced directly from authorized US retailers, factory-sealed, and imported per-order. All customs duties and GST are included in the listed price, and delivery is via ExpressBox tracked shipping for peace of mind. ### Will these BIGTREETECH TMC2209 V1.3 drivers fit my 3D printer? These drivers are widely compatible with most 3D printer motherboards supporting STEP/DIR or UART modes, such as BTT Octopus, SKR series, and Manta boards. Verify your motherboard's specifications and driver interface before purchasing to ensure seamless integration. ### What are the benefits of using TMC2209 drivers over standard drivers? TMC2209 drivers offer significant advantages including ultra-quiet operation via StealthChop2, sensorless homing with StallGuard4, energy savings with CoolStep, and up to 256 microsteps for smoother, more precise movements. This leads to reduced noise, improved print quality, and simplified printer mechanics. ### How does StallGuard4 enable sensorless homing? StallGuard4 technology detects motor current changes. When the motor hits an endstop, the current changes, triggering an abnormal signal. This allows the printer to detect the end of axis travel without needing physical limit switches, simplifying wiring and setup. ### Can I use these drivers with abrasive filaments? While the TMC2209 drivers offer excellent control, for abrasive filaments like carbon fiber blends, it is recommended to use hardened steel nozzles and potentially hardened steel drivers if available. These drivers are primarily designed for standard filament types to ensure optimal performance and longevity. ### What is the difference between UART and STEP/DIR modes? STEP/DIR is a basic mode where each step pulse moves the motor one microstep. UART mode allows for more advanced configuration and control via a serial interface, enabling features like sensorless homing and dynamic current control directly from your printer's firmware. Both are supported by these drivers. ### How do I install the TMC2209 drivers and heat sinks? Always disconnect power before installation. Confirm the drive direction to prevent damage. Do not plug or unplug modules when the device is working. When installing the heat sink, ensure it does not short the pins. Carefully follow the wiring sequence and I/O port connections as shown in the product documentation. ## Compliance No product-specific compliance warnings identified. Standard imported-goods terms apply: customs duties & GST paid; for personal use in India; follow the manufacturer's usage instructions on the packaging. ## Images 1. https://images.crowcrowcrow.com/B07ZPYKL46-0.webp 2. https://images.crowcrowcrow.com/B07ZPYKL46-3.webp 3. https://images.crowcrowcrow.com/B07ZPYKL46-6.webp 4. https://images.crowcrowcrow.com/B07ZPYKL46-9.webp 5. https://images.crowcrowcrow.com/B07ZPYKL46-12.webp 6. https://images.crowcrowcrow.com/B07ZPYKL46-15.webp --- Source: https://crowcrowcrow.com/p/bigtreetech-tmc2209-v1-3-stepper-motor-driver-2-8a-uart-dir-step-mode/rbj3767 Returns: 30 days, free, by mail. Shipping: Free across India, 7–13 business days. Prices are all-inclusive (duties + GST).
