Will these BIGTREETECH TMC2209 V1.3 stepper motor drivers fit my 3D printer?

These drivers are designed for compatibility with most 3D printer motherboards supporting DIR/STEP or UART modes, replacing older drivers like A4988 and DRV8825. Check your printer's control board specifications and ensure it supports the voltage (5.5-28V) and connection type before installation.

How do I ensure these drivers are installed correctly to avoid damage?

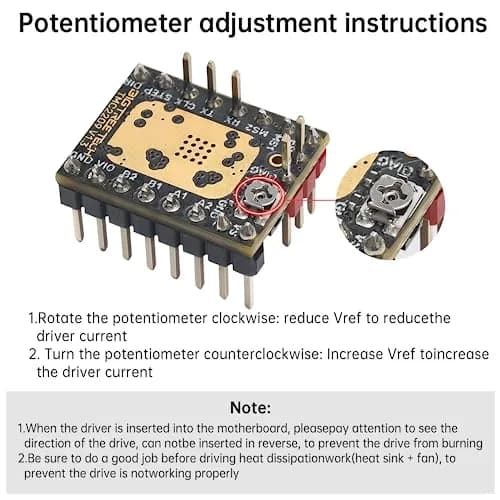

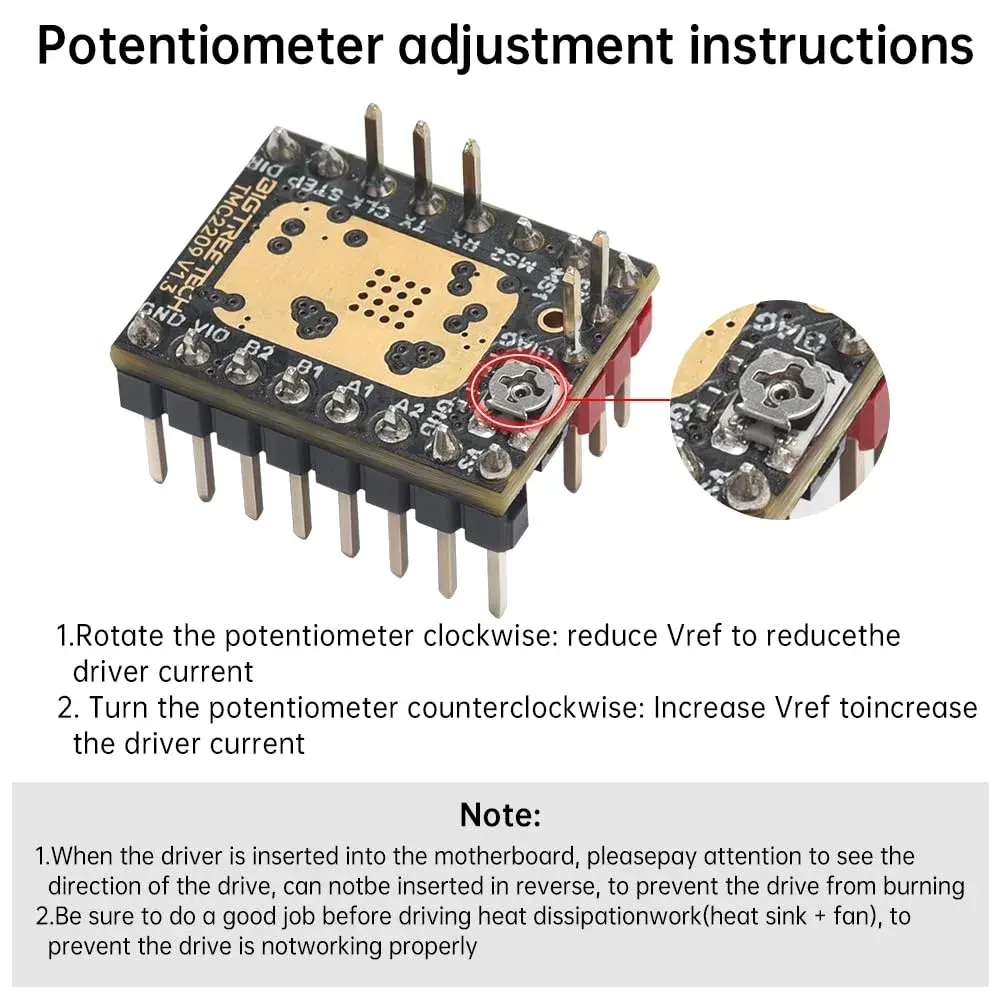

Crucially, pay close attention to the drive direction when inserting the TMC2209 into your motherboard. Inserting it in reverse can burn out the driver. Also, ensure proper heat dissipation by attaching the included heatsink and consider adding a fan for optimal performance and longevity.

What makes the TMC2209 drivers 'ultra-silent' compared to others?

The TMC2209 utilizes advanced StealthChop2 technology and a high-precision chopping algorithm. This combination significantly reduces motor noise to a near-silent state, ensuring smoother operation and minimizing vibrations during printing, which is a major advantage over noisier drivers.

Can I use these drivers with abrasive filaments like carbon fiber PLA?

While the TMC2209 drivers offer excellent precision, they are primarily designed for standard stepper motors. For highly abrasive filaments, it is recommended to use hardened steel nozzles and potentially consider drivers specifically rated for higher wear resistance or different motor control characteristics.

What is the benefit of 256 microstep subdivision?

The 256 microstep subdivision allows for extremely fine control over motor movements, resulting in perfect sinusoidal wave control. This leads to smoother operation, reduced vibration, and significantly improved print quality and accuracy compared to drivers with lower subdivision capabilities.

How does the SpreadCycle technology improve motor performance?

SpreadCycle provides high-precision, cycle-by-cycle current control. This technology ensures the motor operates smoothly and efficiently during dynamic movements, preventing jitter and maintaining optimal torque, which contributes to more consistent and reliable 3D printing.

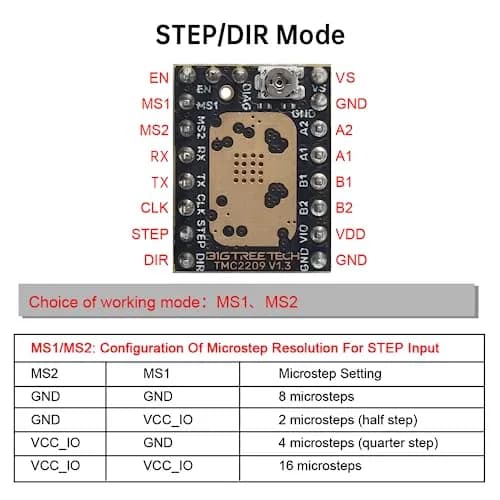

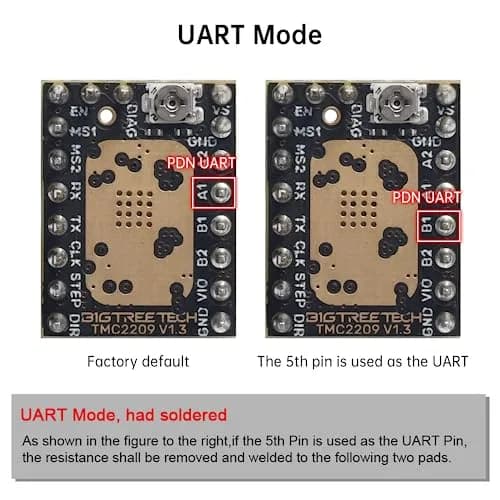

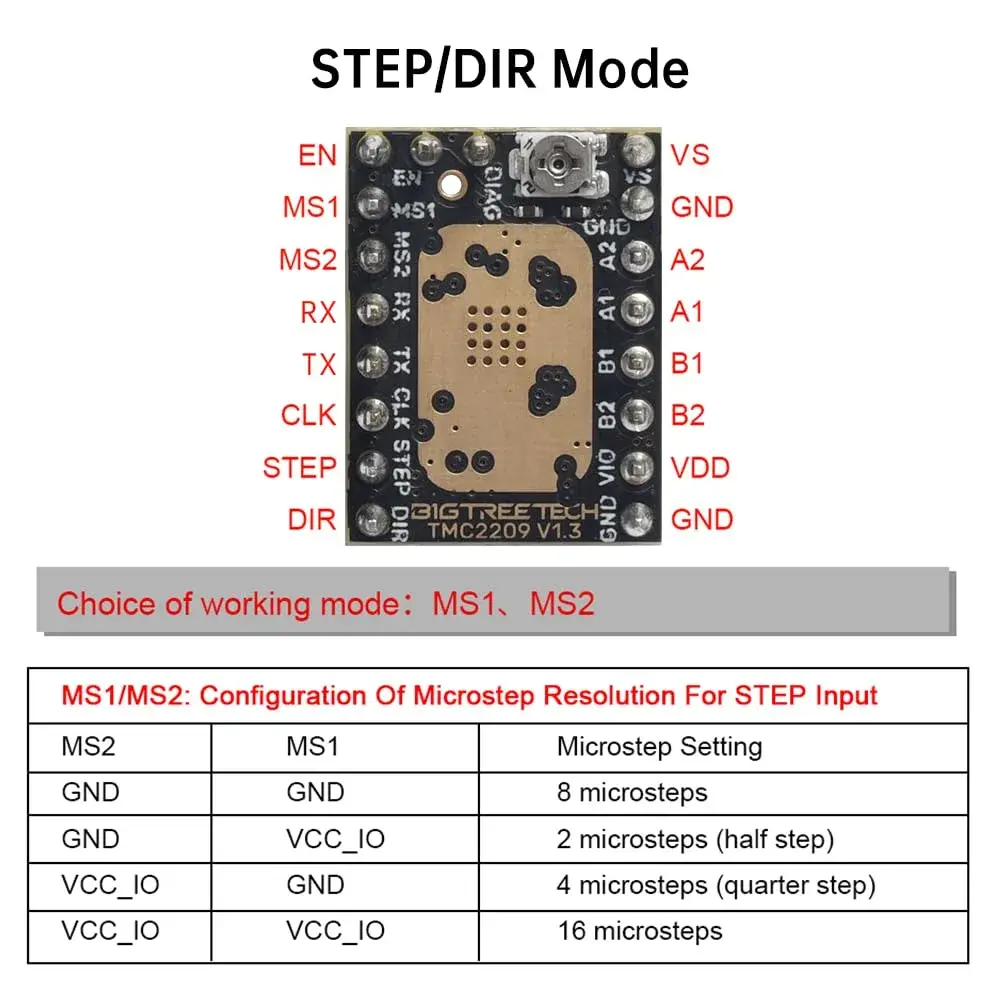

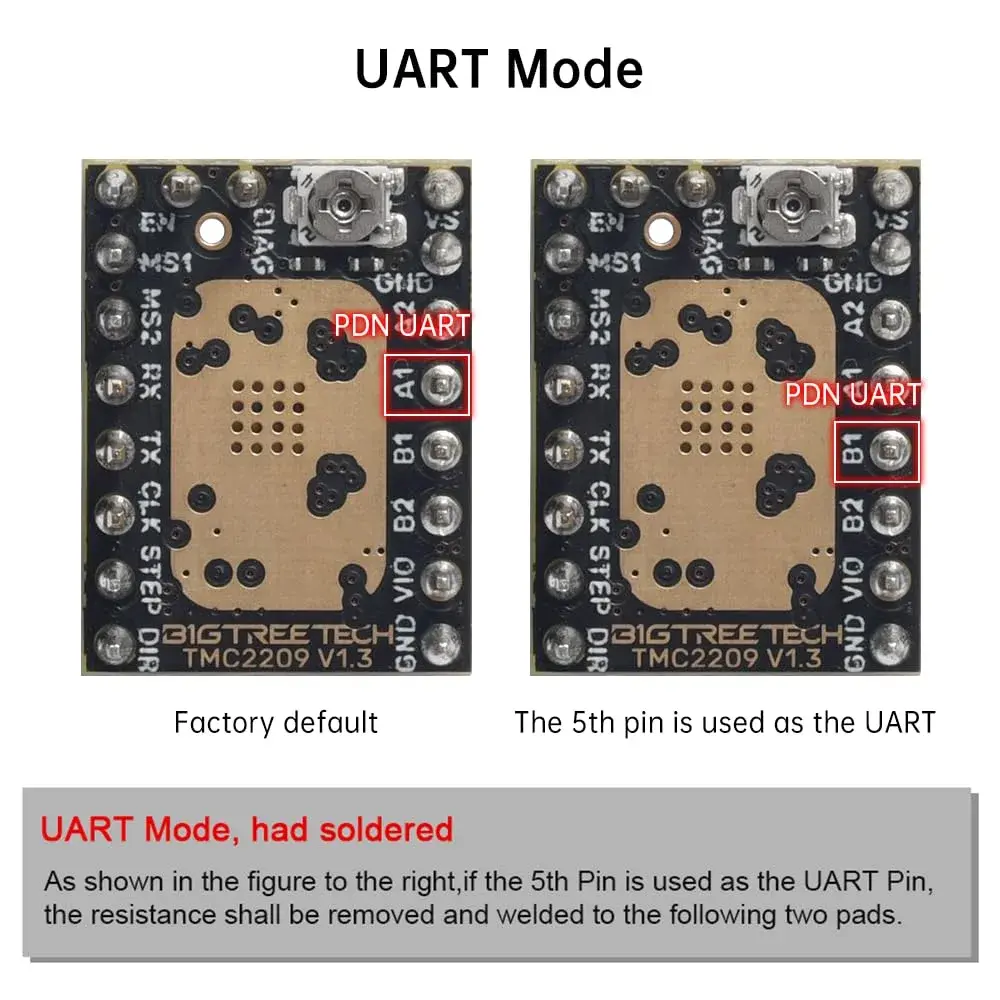

Are these drivers compatible with UART mode for advanced control?

Yes, the BIGTREETECH TMC2209 V1.3 drivers support both DIR/STEP and UART modes. UART mode allows for more advanced configuration and control via software, offering greater flexibility for users with compatible 3D printer control boards.

What is the advantage of the immersion gold process on the PCB?

The immersion gold process provides superior antioxidant properties compared to standard finishes. This enhances the durability and reliability of the PCB, ensuring better electrical conductivity and a longer lifespan for the stepper motor drivers, especially in varying environmental conditions.

How does the TMC2209 compare to older drivers like A4988 or DRV8825?

The TMC2209 offers significant advantages over older drivers such as A4988 and DRV8825, including ultra-silent operation, higher microstep resolution (256 vs typically 16 or 32), better heat management, and advanced control modes like UART, leading to improved print quality and reduced noise.

What is the typical lifespan of these stepper motor drivers?

With proper installation, adequate heat dissipation (using the included heatsink and potentially a fan), and correct voltage/current settings, these drivers are designed for long-term reliability. The immersion gold process also contributes to their durability.

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver 6-Pack | Ultra-Silent Stepsticks for 3D Printers

Name: BIGTREETECH TMC2209 V1.3 Stepper Motor Driver 6-Pack | Ultra-Silent Stepsticks for 3D Printers
Brand: BIGTREETECH
SKU: vyv8917
Price: 6048.00 INR
Availability: InStock

About this item

BIGTREETECH TMC2209 V1.3 Stepper Motor Drivers offer a significant upgrade for your FDM 3D printer, ensuring smoother, quieter, and more precise motor movements. This 6-pack provides excellent value, replacing older drivers like A4988 and DRV8825 with advanced technology. The drivers utilize StealthChop2 for near-silent operation, crucial for home or shared workspace printing environments in India. With a continuous current of 2.0A (peak 2.8A) and motor voltage support from 5.5V to 28V, they are compatible with a wide range of 3D printer motherboards and motors.

The TMC2209 drivers feature advanced technologies like SpreadCycle for smooth PWM chopper control, minimizing motor jitter and preventing lost steps. The UART and DIR/STEP modes offer flexible integration with popular 3D printer control boards such as SKR V1.4 Turbo, Octopus, and Manta series. With 256 microstep subdivision, these drivers achieve perfect sinusoidal motor control, leading to higher print quality and accuracy. The immersion gold process on the PCB enhances durability and antioxidant properties, ensuring long-term reliability.

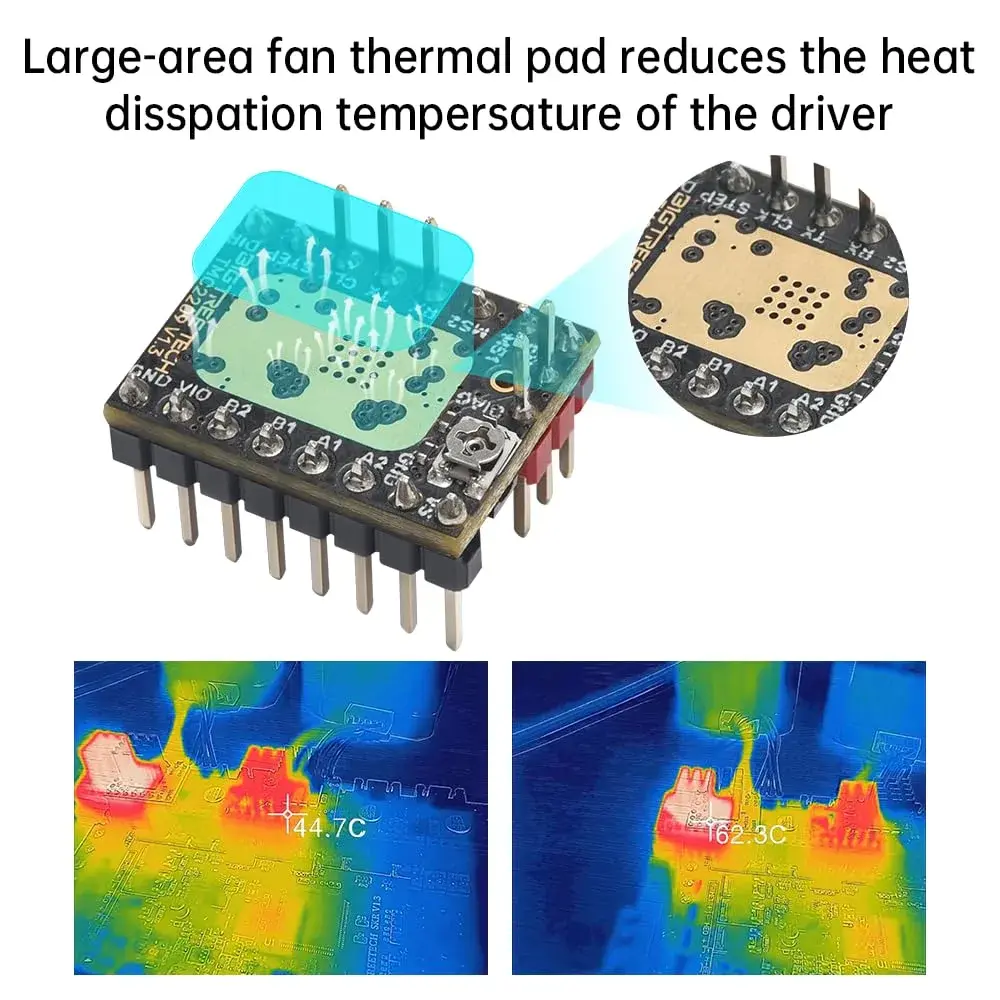

For Indian makers, upgrading to TMC2209 drivers means achieving professional-grade print quality and a significantly quieter printing experience. Each driver comes with a heatsink for effective heat dissipation, preventing overheating and ensuring consistent performance even during long print jobs. Ensure proper installation by checking the drive direction and providing adequate heat dissipation with a fan for optimal results. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping.

Key Features

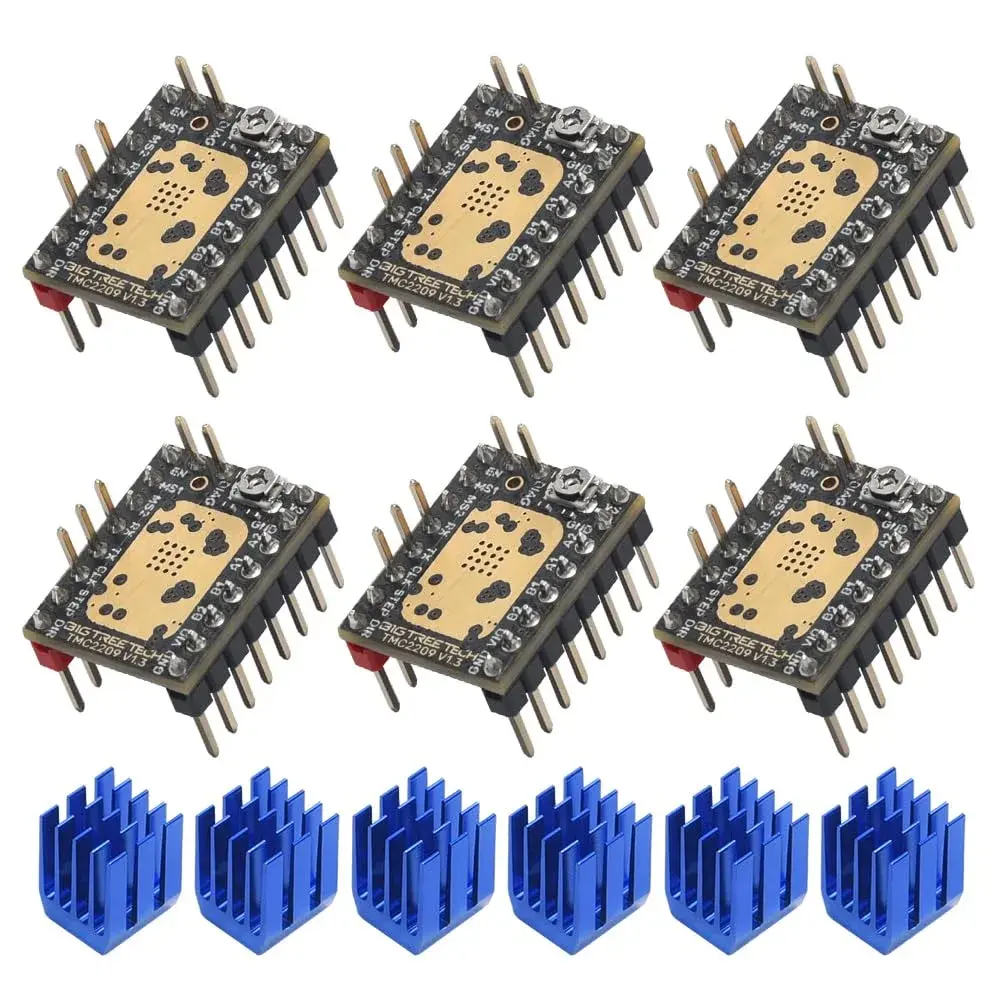

Pack of 6 : Comes in 6PCS BTT TMC2209 stepper motor drivers and heatsink. Thanks to the StealthChop2, TMC2209 driver serves as ultra-quiet stepper motor driver with with a continuous current of up to 2.0A (with peaks of 2.8A). Voltage ranges from 4.75V to the maximun output of 28V.

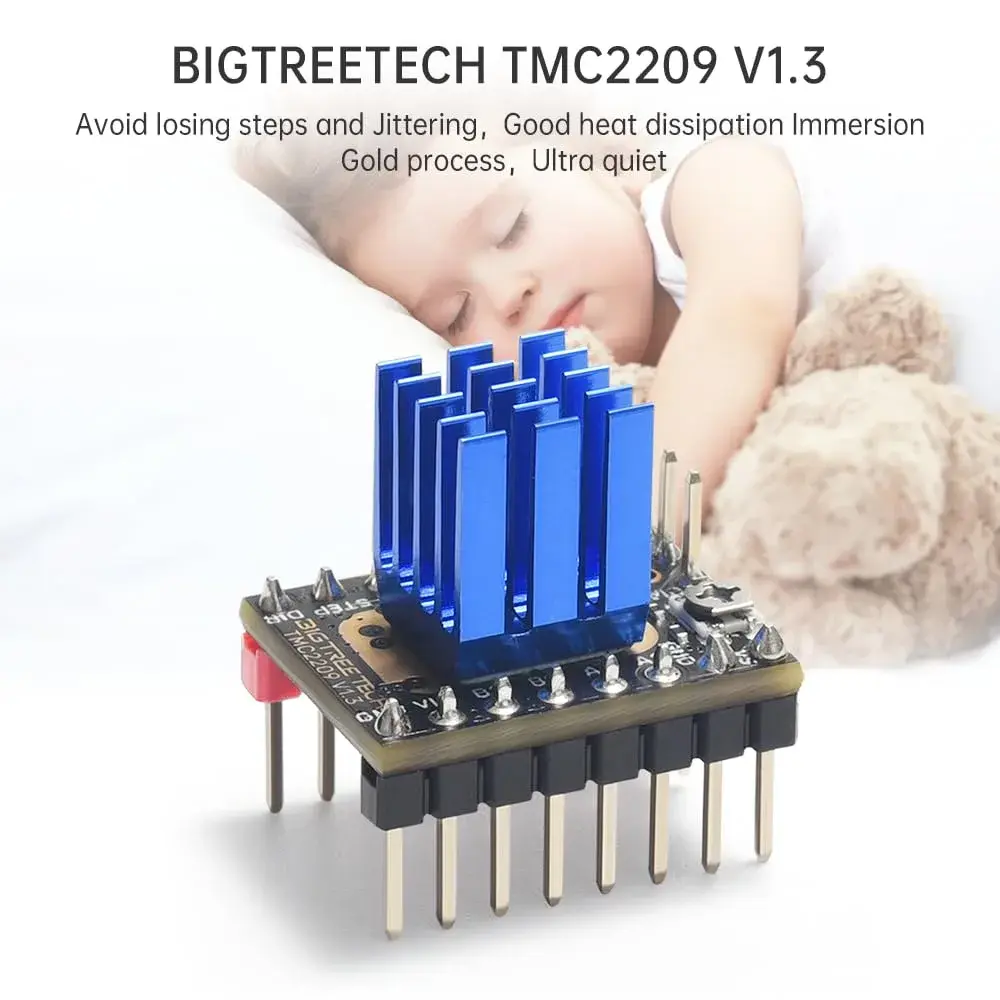

Ultra-Silent: BIGTREETECH TMC2209 stepper motor driver adopts stealthChop2 silent technology, high-precision chopping algorithm, which reduces the motor noise to a silent state, ensuring ultra-quiet, highest efficiency and best motor torque during printing.. And the flexible microPlyer interpolation unit provides up to 256 subdivisions, which can achieve perfect sinusoidal control even in systems with limited pulse frequency.
More Cost-effective: BIGTREETECH TMC2209 V1.3 stepper motor driver is compatible with existing 3D printer electronics on the market, eliminating the expensive cost of redesigning. It can perfectly replace the original TMC2100 A4988 DRV8825 LV8729, with lower calorific value.
Terrific Performances: Featured with RDSon value of 0.2A, BTT TMC2209 uart stepper drivers have lower resistance conducting output drivers, which provides them with less power dissipation and higher current. The Spreadcycle provides high-precision cycle-by-cycle current control for highest dynamic movements.
After-sales Service: If you have any questions about this 6PCS TMC2209 V1.3 stepper driver, you can tell us at any time through Amazon, and we will provide you with a satisfactory solution.

Why choose this product

Advanced Silent Motor Control

BIGTREETECH TMC2209 V1.3 drivers bring ultra-quiet operation to your 3D printer. Unlike basic drivers that can be noisy, these use StealthChop2 technology for smooth PWM control, eliminating motor jitter. This means higher quality prints without the distracting noise, making your printing setup more pleasant, especially in shared living or working spaces in India.

Who It's For vs. Who Should Skip

Ideal for 3D printer enthusiasts and makers in India seeking quieter operation, improved print precision, and compatibility with popular control boards. Perfect for replacing older, noisier drivers like A4988 or DRV8825. Skip if your printer uses a direct drive system that requires specific stepper motor configurations not supported by these drivers, or if you are not comfortable with electronics installation and heat dissipation setup.

How to use

Verify Compatibility and Direction — Before installation, confirm your 3D printer's control board supports DIR/STEP or UART mode and the voltage range (5.5-28V). Crucially, identify the correct orientation for the driver to prevent damage; check pinouts against your motherboard's documentation.
Install Heatsink and Driver — Attach the included heatsink firmly onto the TMC2209 driver chip. Carefully insert the driver into the designated socket on your 3D printer's motherboard, ensuring all pins align correctly with the socket's orientation.
Connect Motor and Configure — Connect the stepper motor to the driver's motor pins. If using UART mode, configure your printer's firmware to enable it. For DIR/STEP mode, ensure the wiring is correct for your motor and board setup.
Test and Monitor Heat — Power on your printer and test motor movement. Monitor the driver temperature; if it becomes excessively hot, consider adding a small fan for active cooling to ensure optimal performance and longevity.

Example scenarios

Typical situations where BIGTREETECH TMC2209 V1.3 Stepper Motor Driver 6-Pack | Ultra-Silent Stepsticks for 3D Printers helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A maker in a shared apartment in Bangalore needs to print overnight without disturbing roommates.

How this product helps

The BIGTREETECH TMC2209 V1.3 drivers' StealthChop2 technology drastically reduces motor noise, enabling silent printing. This 6-pack ensures all axes are upgraded for consistent quiet operation, allowing for uninterrupted overnight prints.

Scenario 2

Illustrative example

Where it helps

A hobbyist in Delhi wants to improve print quality and reduce visible layer lines on detailed models.

How this product helps

With 256 microstep subdivision, these drivers provide exceptionally smooth motor control and precise movements. This minimizes vibration and jitter, leading to finer layer resolution and more accurate, detailed prints compared to standard drivers.

Technical specifications

Setup & usage

Quantity per Pack	6 drivers + 6 heatsinks
Installation	Ensure correct drive direction and adequate heat dissipation (heatsink + fan recommended).
Compatibility	Replaces TMC2100, A4988, DRV8825, LV8729. Compatible with most 3D printer electronics.

How we compare

Feature	BIGTREETECH TMC2209 V1.3	Others
Noise Level	Ultra-silent operation with StealthChop2 technology.	Standard drivers often produce noticeable motor noise; silent drivers may be available but vary in quality and price.
Microstep Resolution	Up to 256 microsteps for smooth, precise control.	Commonly 16 or 32 microsteps; higher resolutions may be found but are less standard.
Control Modes	Supports DIR/STEP and advanced UART mode.	Primarily DIR/STEP; UART support is less common in basic local drivers.
Heat Dissipation	Includes heatsink; fan recommended for optimal performance.	Heatsinks may be included; fan integration varies by product and price point.
Cost per Driver (approx.)	6 drivers for ₹1,008 per driver — excellent value for advanced features.	Basic drivers can range from ₹200-₹500; silent/advanced drivers may cost ₹400-₹1000+ per unit.

SKU	vyv8917
GTIN	0779605800109
Brand	BIGTREETECH
Model	TMC2209 V1.3
Style	6*TMC2209 with Heatsinks
Material	PCB
Motor Voltage	5.5-28V
Logic Voltage	3.3-5V
Continuous Current	2.0A
Peak Current	2.8A
RSense Value	0.11 Ohm
Microsteps	256 Subdivision
Mode	DIR/STEP, UART
Item Weight	0.02 kg (20 g)
Package Weight	0.041 kg (41 g)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners

Attributes	Current BIGTREETECH TMC2209 V1.3 Stepper Motor Driver 6-Pack \| Ultra-Silent Stepsticks for 3D PrintersBuy Now	BIGTREETECH TMC2209 V1.3 UART Stepper Motor Driver Module \| 256 Microsteps, Sensorless HomingBuy Now	BIGTREETECH TMC2209 V1.3 Stepper Motor Driver \| Ultra-Silent, 2.8A UART/DIR/Step Mode, 4-PackBuy Now	BIGTREETECH TMC2209 V1.3 Stepper Motor Driver, UART/Step/DIR Mode, 5-28V Motor Voltage \| Ultra-Silent Operation for 3D PrintersBuy Now	Quartet Clear Round Rare Earth Magnets 1/2" Diameter, 6 Pack \| Strong Hold for Glass WhiteboardsBuy Now	uxcell MR126-2RS Deep Groove Ball Bearings 6mm x 12mm x 4mm \| Double Sealed Chrome Steel (10 Pcs)Buy Now	ALKOO Sky Blue Stethoscope Carrying Case with Internal Mesh Pockets & Elastic Slots \| Professional Healthcare OrganizerBuy Now
