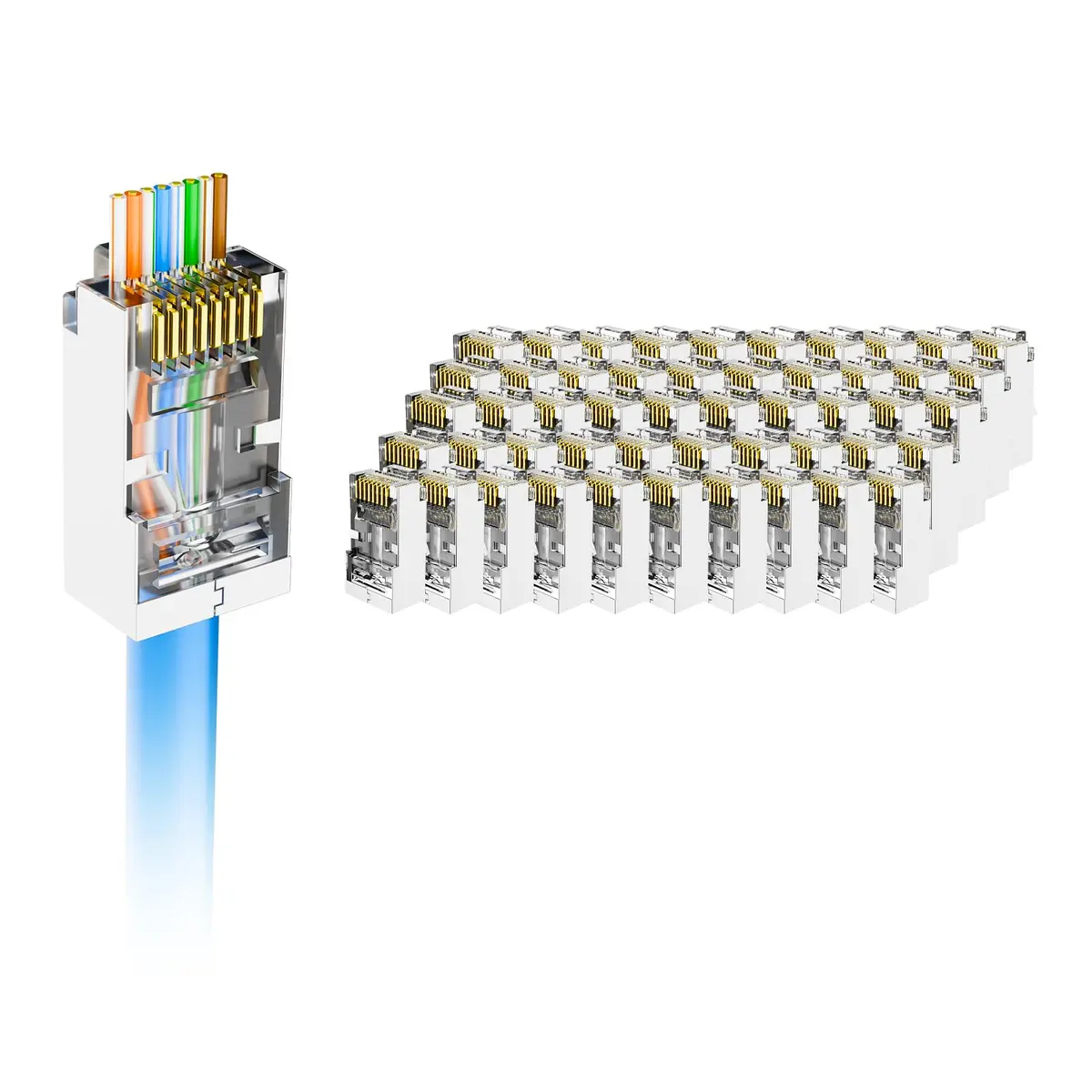

VCE Cat6 Shielded RJ45 Connectors (50-Pack) | 10 Gbps Speed, UL Listed, Pass-Through Design

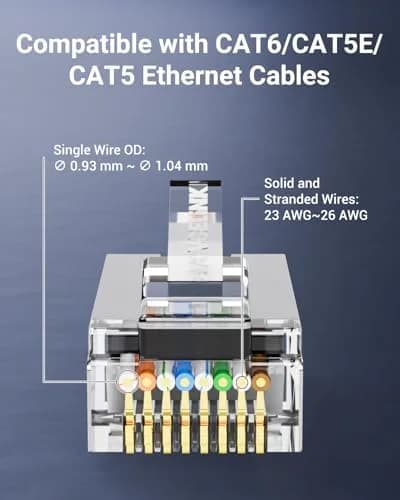

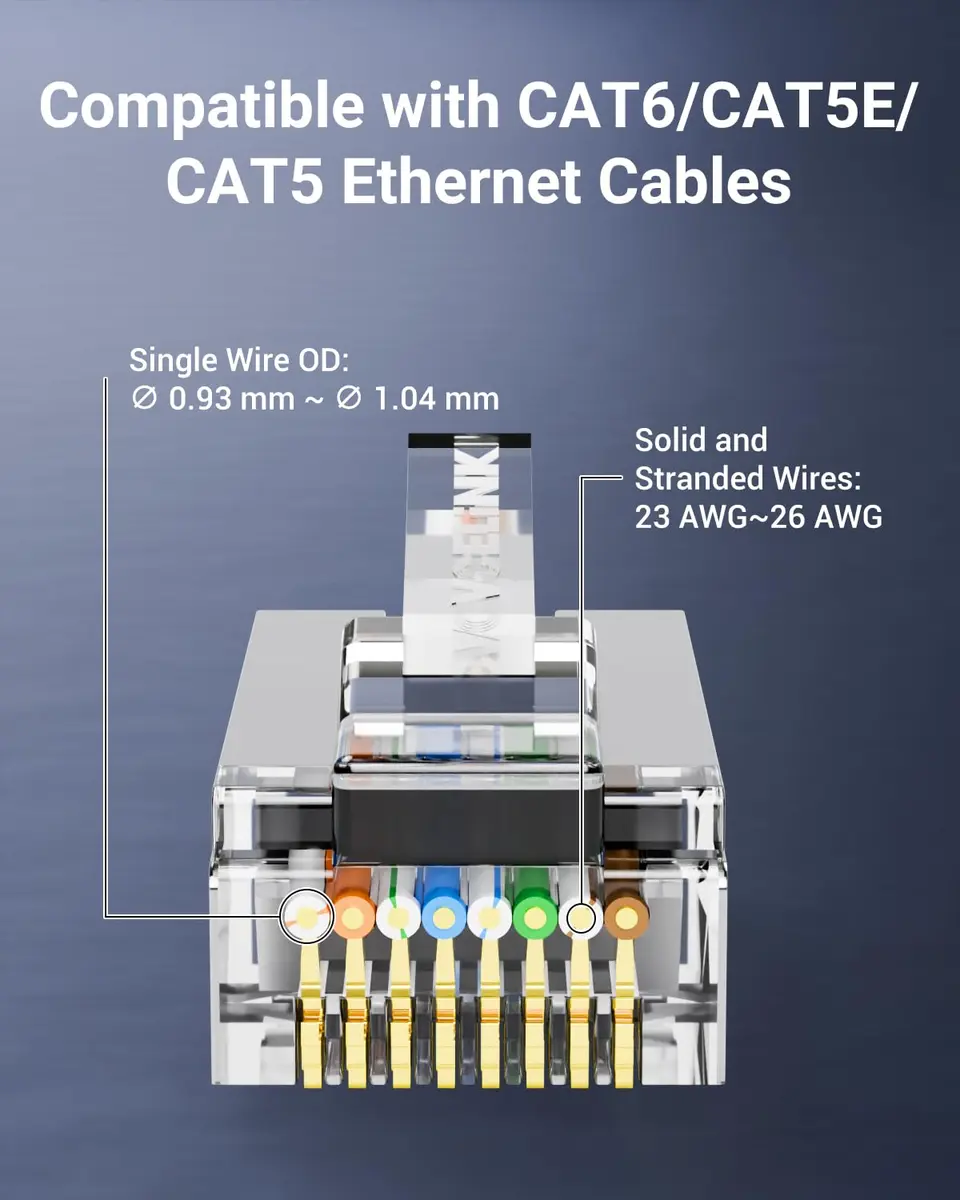

• Precision Compatibility: VCE Shielded RJ45 pass through connectors support 24 to 26 AWG solid or stranded cables with outer diameter 0.93 mm to 1.04 mm, CAT6 23awg is supported for solid cable only. The wire OD of network cables with the same AWG specifications may vary depending on the manufacturer. Please ensure AWG and OD MUST BOTH meet the requirements.
• Gigabit Performance: Cat 6 RJ45 pass-through connectors has better metal material，gold plated contacts deliver 10 Gbps speeds compatible with Cat6/5E cables and devices like Personal Computer, Security Cameras, Routers, Switches, Printers, and Servers. Operates in -20℃~75℃ extremes with ≥1,250 mating cycles, ensuring your usage long-term stability.

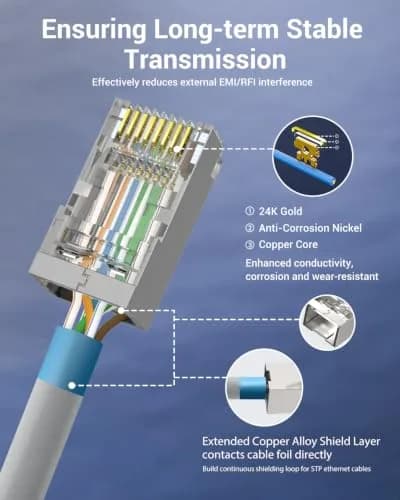

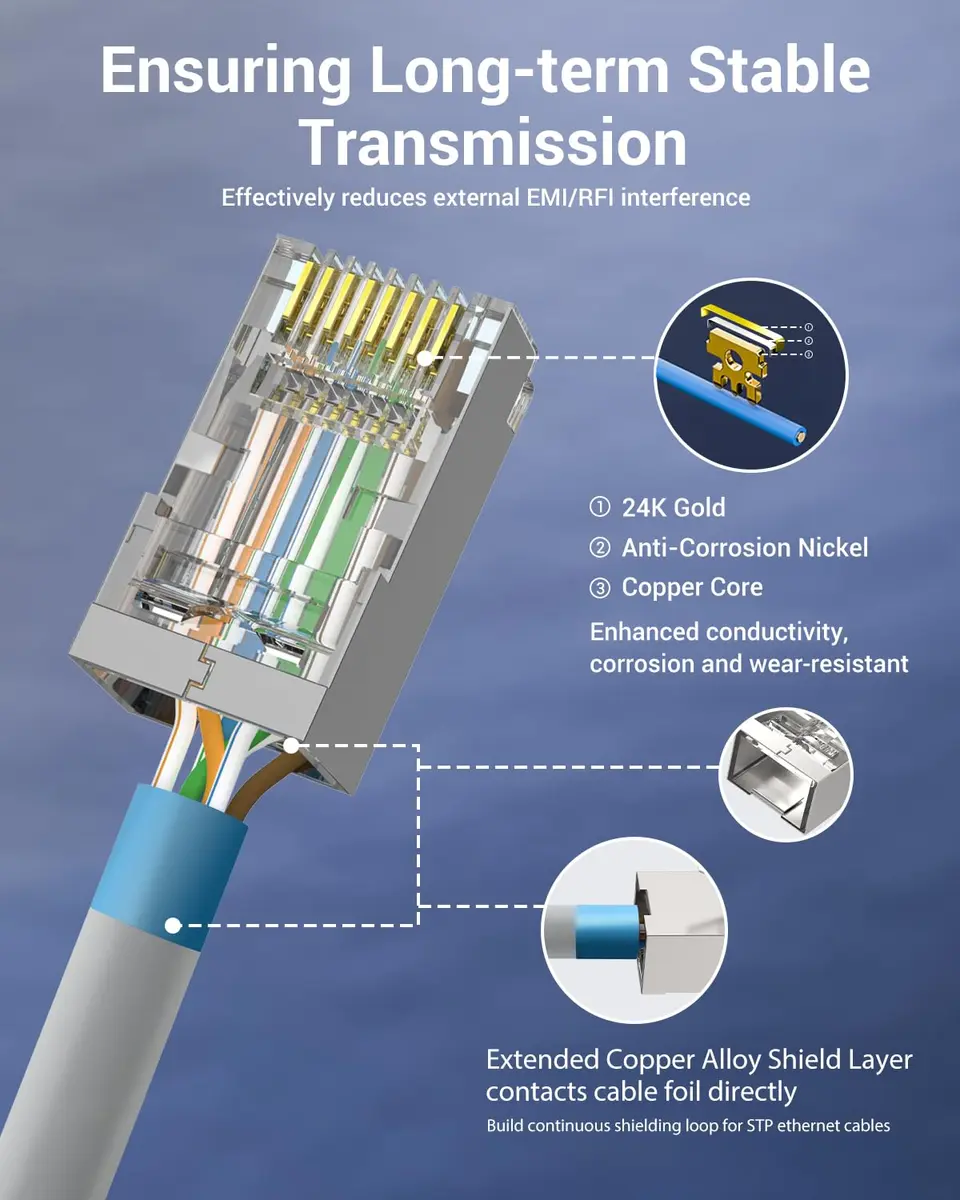

• Signal Protection: Triple layer metal shell EMI RFI Shielding blocks interference to prevent data loss and maintain ground connectivity ideal for high noise environments like factories, hospitals, server rooms, etc
• Easy Installation: Wires feed completely through the connector enabling fast crimps with any pass through tool no manual wire alignment needed saving time on network setups.These Category 6 connectors work effectively with all standard pass-through crimping tools

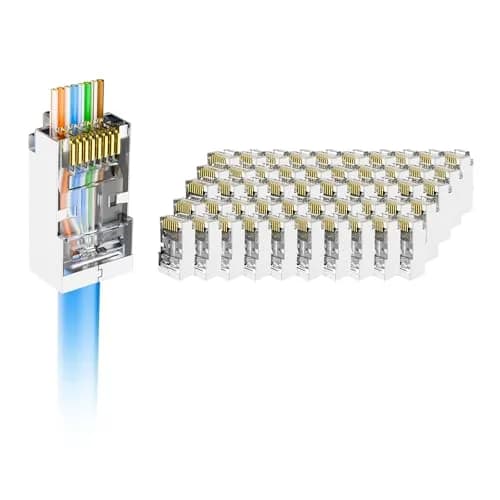

• CUSTOMER FIRST: You will get 50 x Cat6 pass-through shielded connectors + 1 x operating instruction. We always prioritize our customer experience. If you have any problems or advice about our products, please don't hesitate to contact us. We will do our best to resolve your issue within 24 hours

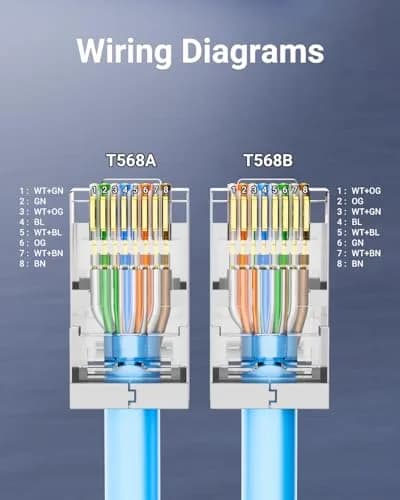

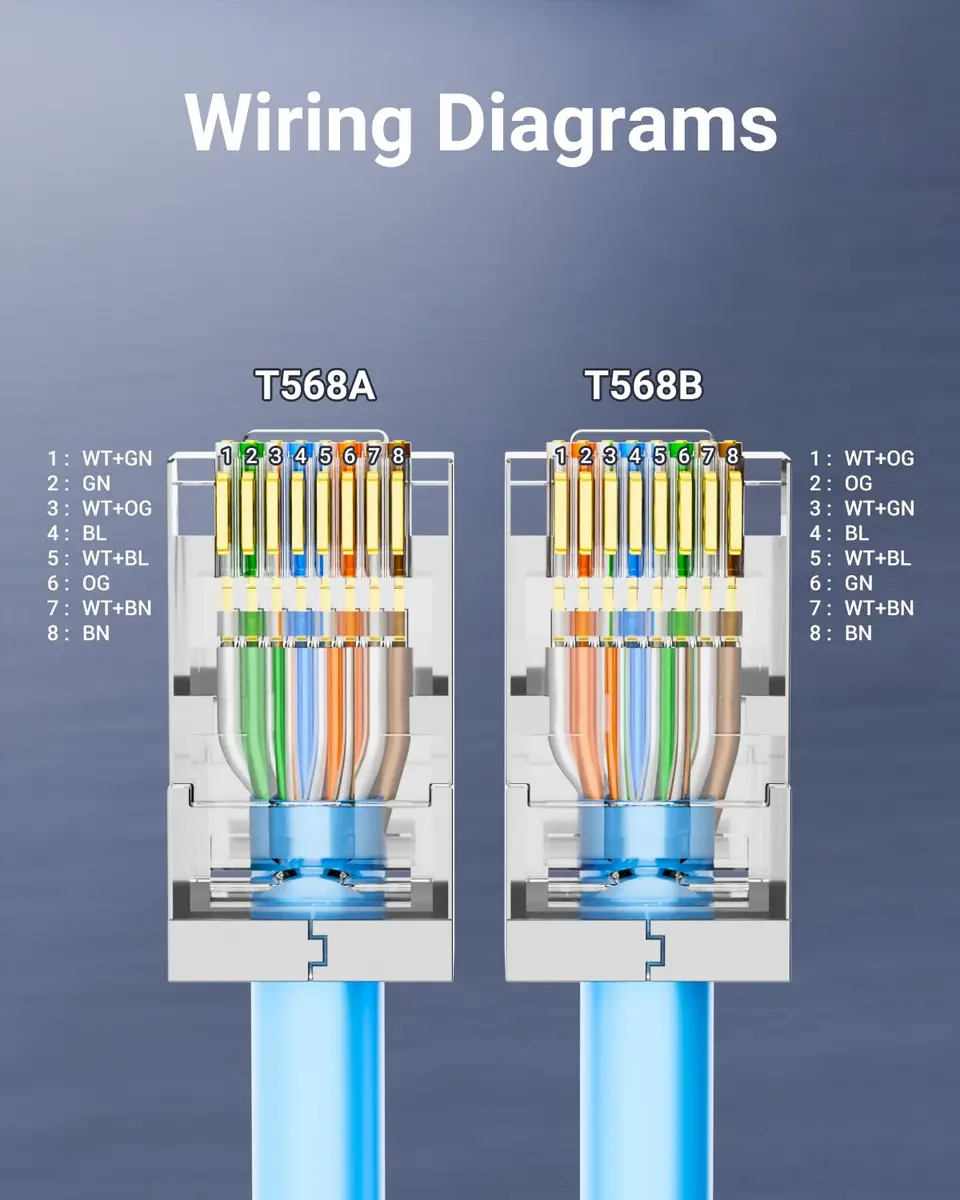

• Prepare the Cable — Strip approximately 1 inch of the outer jacket from your Cat6 cable. Untwist the pairs to expose the individual wires, then arrange them in the correct order according to the T568A or T568B standard.
• Feed Wires Through Connector — Carefully insert the arranged wires through the VCE pass-through connector. Ensure each wire passes through its designated channel and exits the front of the connector, maintaining the correct color order.

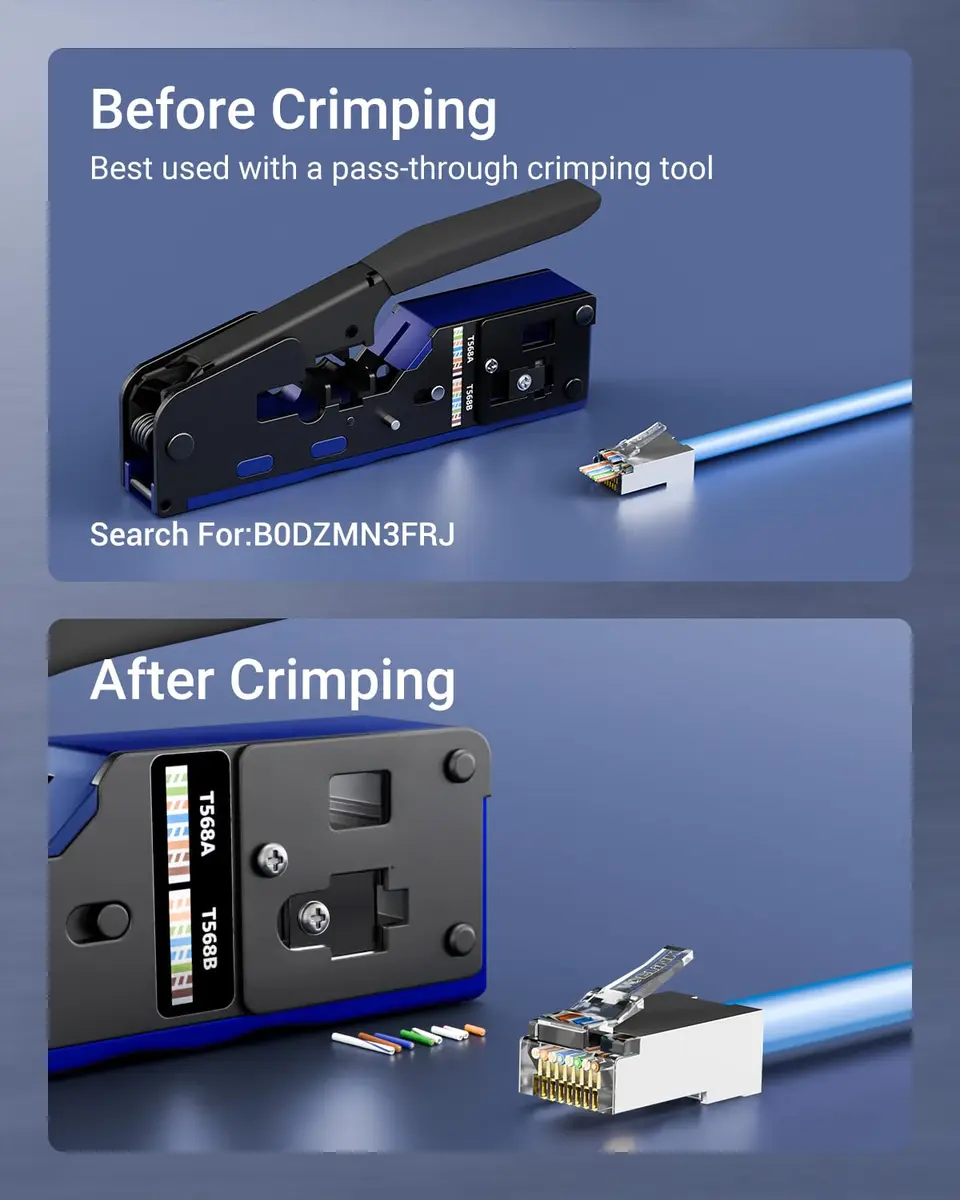

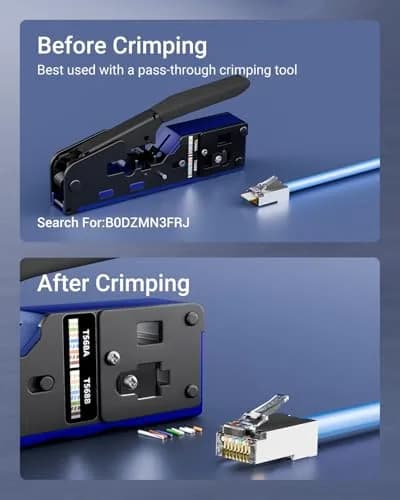

• Crimp and Trim — Using a compatible pass-through crimping tool, insert the connector and crimp firmly. The tool will simultaneously seat the contacts and trim the excess wires flush with the connector front, ensuring a clean termination.

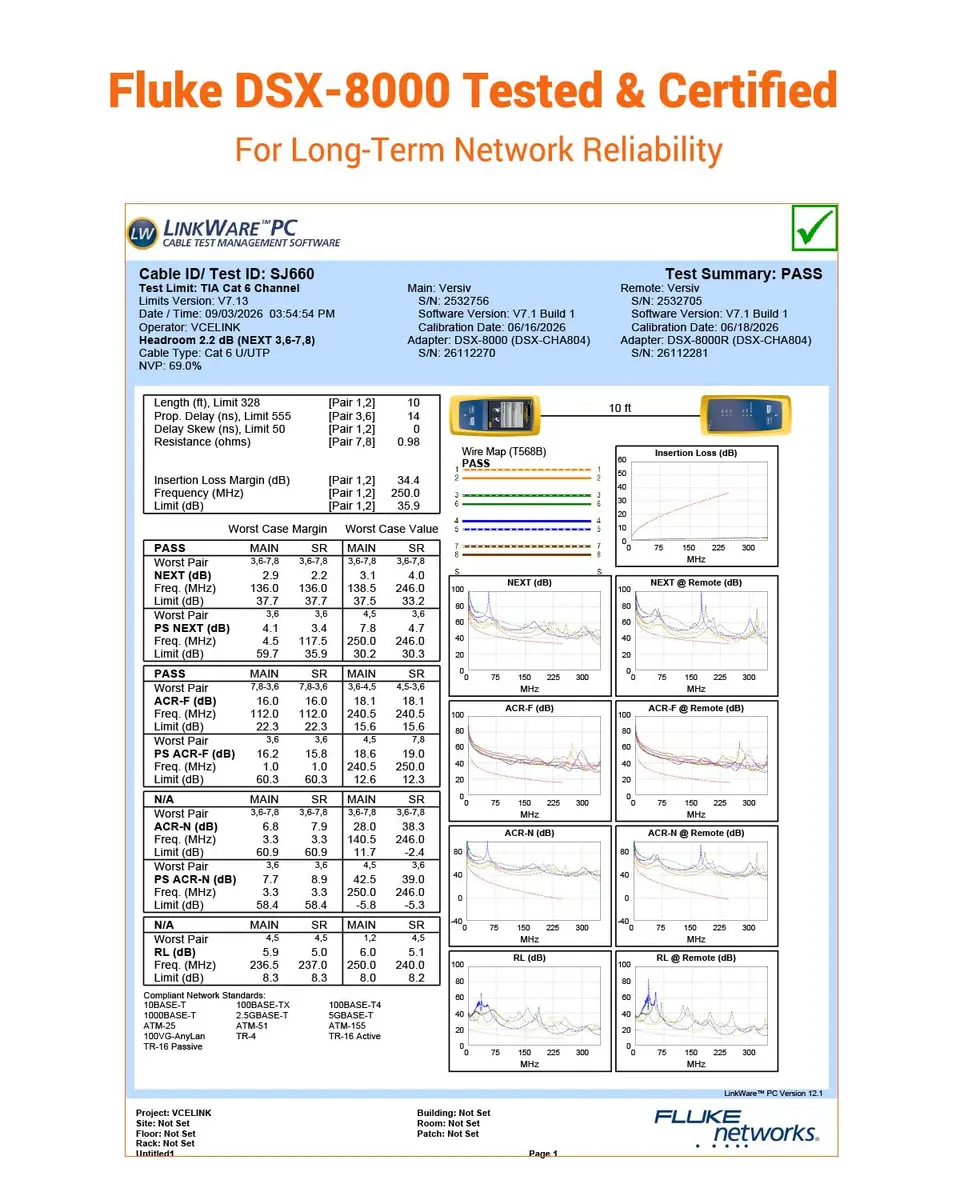

• Test the Connection — After crimping, inspect the termination for proper wire seating and trimming. Use a network cable tester to verify continuity and check for shorts or incorrect wiring before connecting to your network devices.
