VCE Cat6 RJ45 Pass Through Connectors Gold Plated 8P8C 10 Gbps 50-Pack | UL Listed 250V AC Max

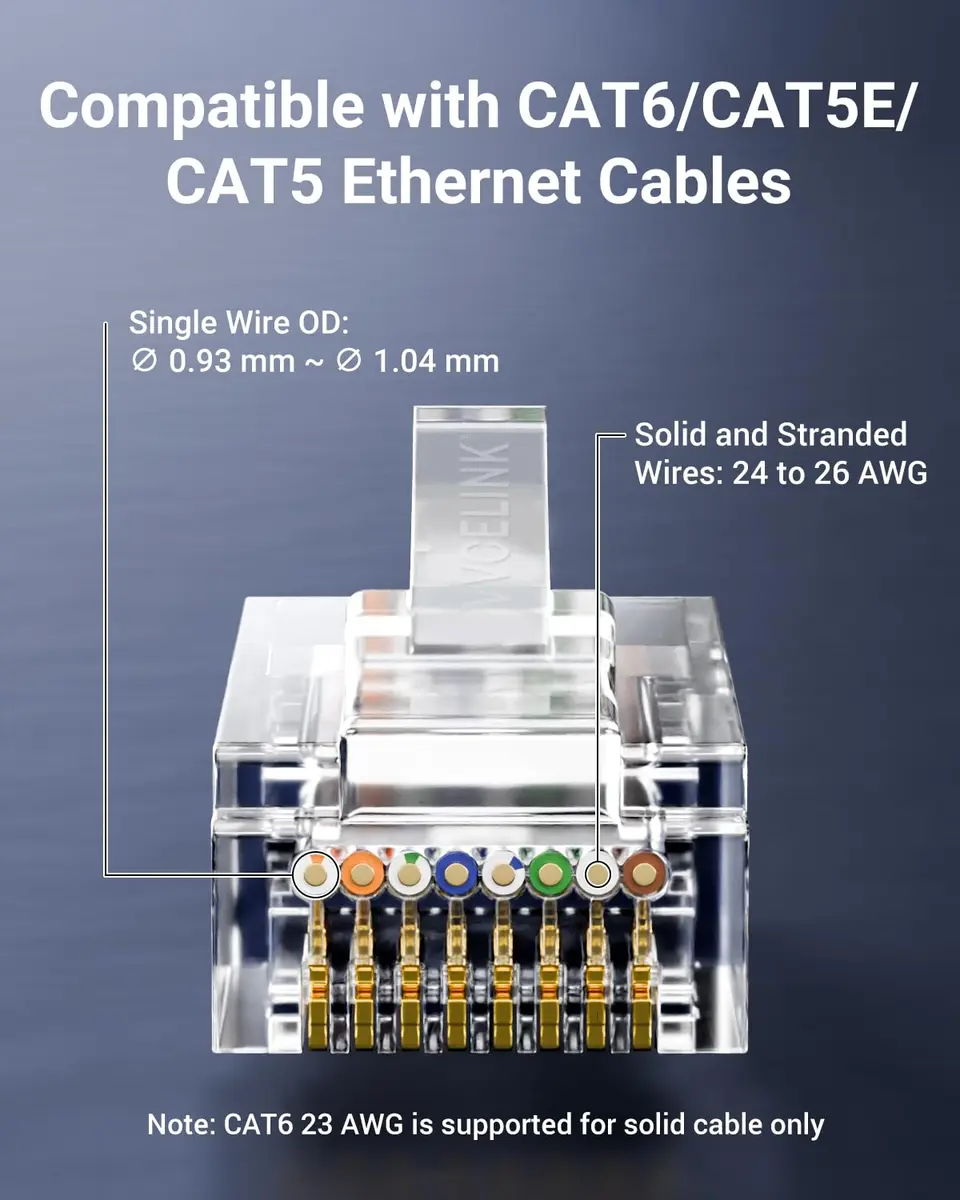

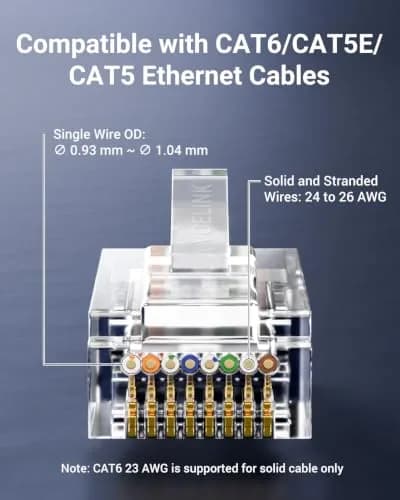

• Cat6 Performance: The UTP RJ45 pass thru connectors support 24 to 26 AWG solid or stranded cables with outer diameter 0.93 mm to 1.04 mm, CAT6 23 AWG is supported for solid cable only. Suitable for devices with standard RJ45 ports such as PC, Hub, Router, Switch, etc

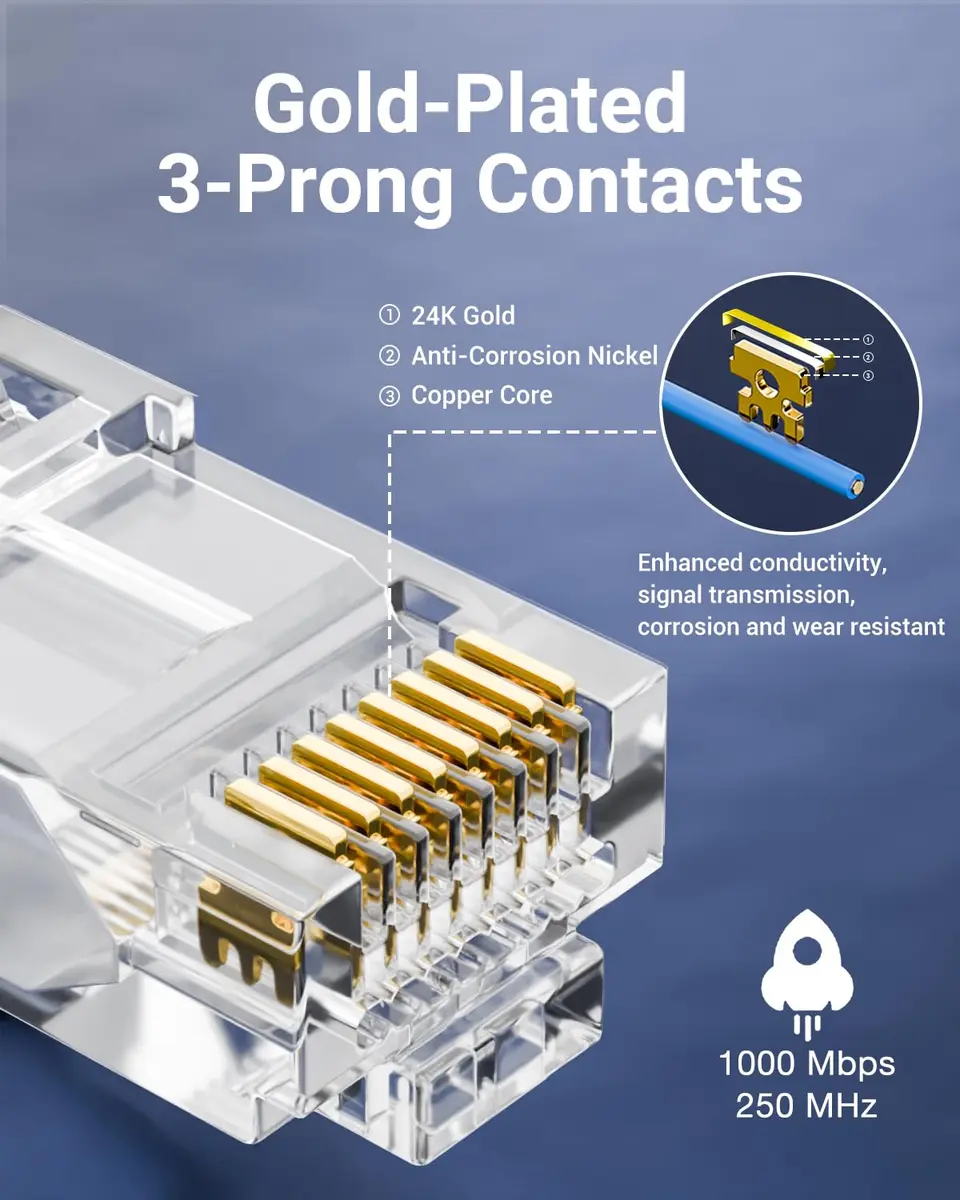

• High Quality: The contacts are made of Phosphor Bronze with gold-plated, anti-oxidational and durable. 3-Prong contact blades can more accurately pierce the wire than 2-prong blades, ensure more stable and high data transfer speed. The transmission speed can up to 10Gbps (Cable length limit to 35m-55m), 1000 Mbps Cable length can up to 100m
• Pass-Through Design: Easy to use, allows the wires to pass through the connectors, so the twists in each pair can be pulled closed to the contacts than conventional plugs. And you can check the wire sequence a second time, avoiding wire sequence errors
• DIY Your Cat6 Cables Safely: You can make category 6 cables in preferred lengths quickly and easily by using VCE RJ45 ends. Our cat6 connectors with UL Listed are flame retardant, and safer to use in computer rooms, offices, and homes. Note: you need an end pass-thru crimper (sold separately) to install these plugs

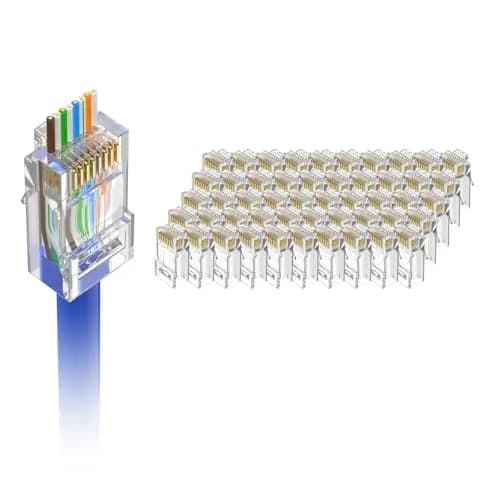

• CUSTOMER FIRST: You will get 50 x Cat6 pass-through unshielded plugs + 1 x operating instruction. We always prioritize our customer experience. If you have any problems or advice about our products, please don't hesitate to contact us. We will do our best to resolve your issue

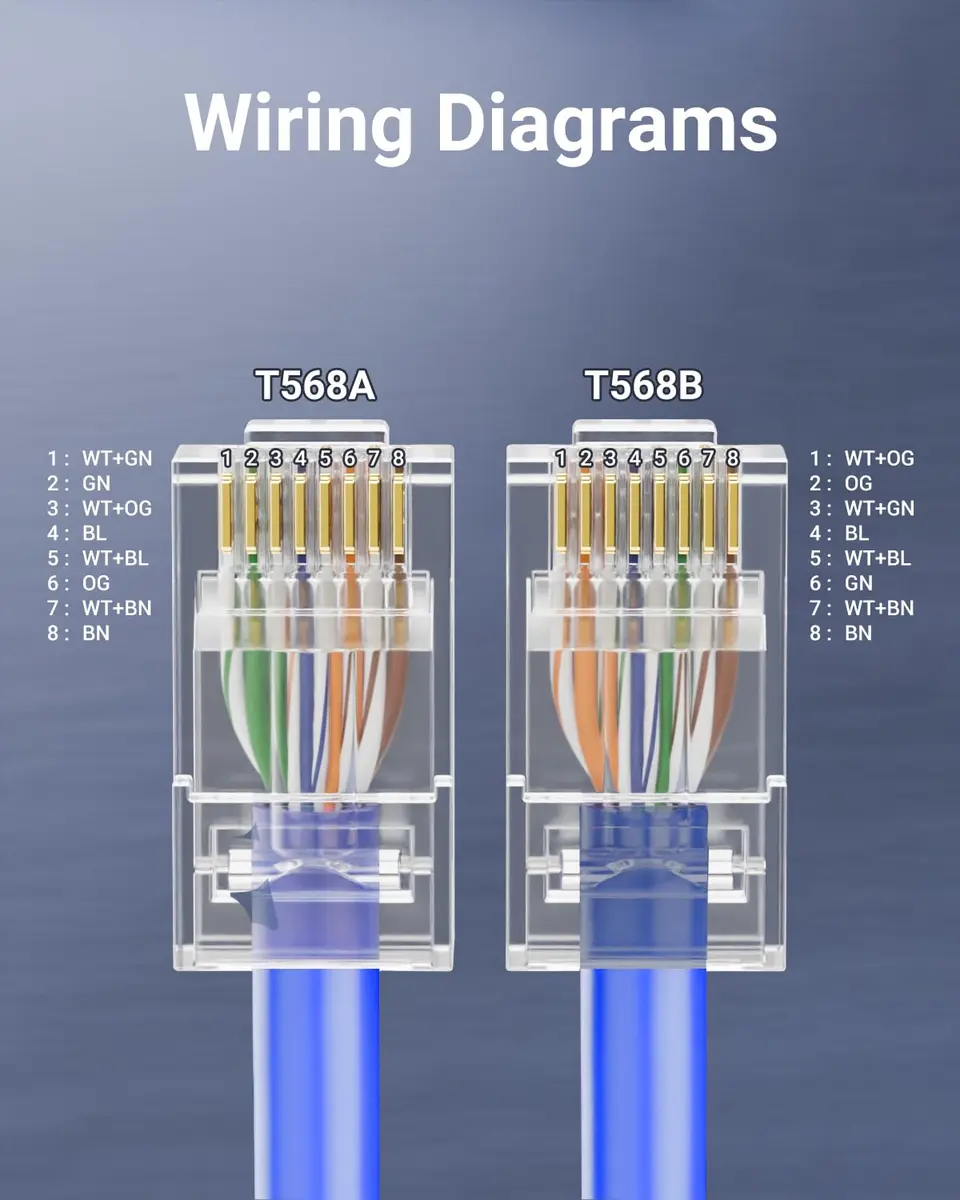

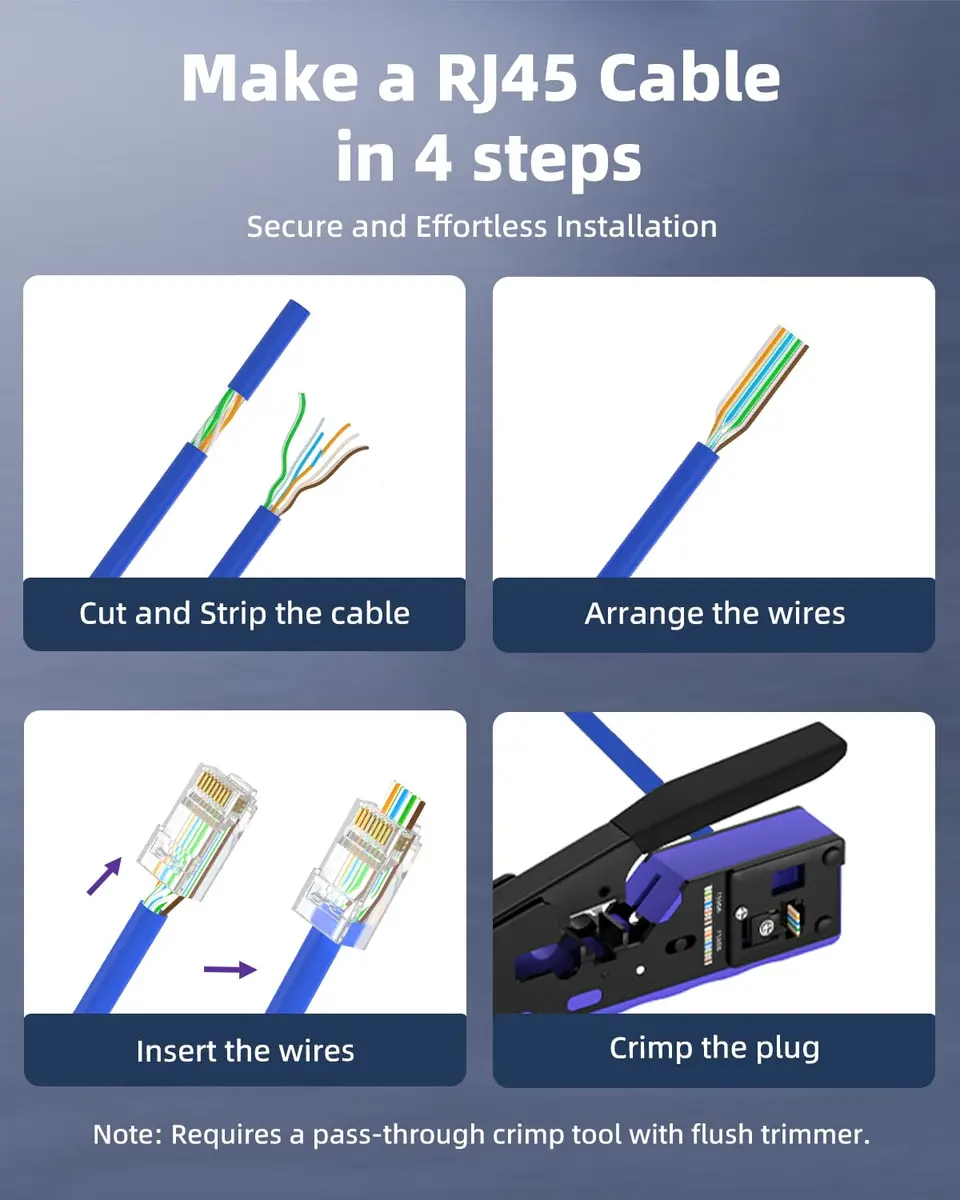

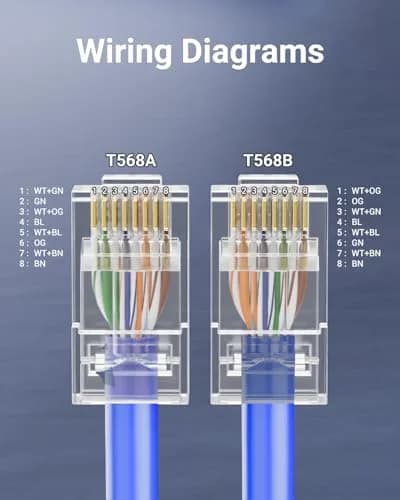

• Prepare the Cable — Strip about 1 inch of the outer jacket from your Cat6 cable. Untwist each pair of wires and arrange them in the correct sequence (T568B or T568A) according to your network standard.
• Insert Wires — Carefully feed the arranged wires through the VCE pass-through connector. Ensure each wire goes into its corresponding channel and passes through the front of the connector to the other side.
• Crimp and Trim — Using a compatible pass-thru crimping tool, insert the connector into the tool's slot. Crimp firmly to secure the wires and simultaneously trim the excess wire ends protruding from the front.
• Test the Connection — After crimping, inspect the connection. Use a network cable tester to verify that all 8 wires are correctly terminated and that there are no shorts or open circuits before plugging into your devices.
