How to choose uxcell AXK1226 thrust needle roller bearings for Indian industrial applications?

Select uxcell AXK1226 bearings for applications requiring high axial load capacity within minimal radial space, common in Indian manufacturing and robotics. Ensure the shaft surface is hardened to at least 58-64 HRC if not using the included washers. For environments with high dust or humidity, consider sealed bearings or a strict relubrication schedule with NLGI Grade 2 lithium grease to prevent wear.

Can a needle roller bearing be installed directly on a machine shaft without an inner ring?

Yes, many needle roller assemblies, including those designed for industrial use, can utilize a hardened machine shaft directly as the inner raceway. This saves critical radial space. However, the shaft surface must be precision-ground, polished, and induction-hardened to at least 58–64 HRC to prevent rapid mechanical wear and ensure bearing longevity.

What is the difference between static and dynamic load capacity for these bearings?

Static load capacity (28.6kN) refers to the maximum load the bearing can withstand without permanent deformation when stationary. Dynamic load capacity (9.86kN) is the load under which the bearing can operate continuously with a calculated fatigue life. For heavy-duty industrial applications, both are critical for ensuring operational safety and bearing longevity.

Are these bearings suitable for high-speed applications in India?

These uxcell AXK1226 bearings have a limiting speed of 13000 RPM with oil lubrication. For applications exceeding this speed or operating in high-dust, humid Indian conditions, ensure proper lubrication and consider sealed variants or alternative bearing types designed for extreme environments to maintain performance and prevent premature failure.

How to buy original uxcell AXK1226 thrust needle roller bearings in India?

Purchase original uxcell AXK1226 thrust needle roller bearings from authorized US retailers and authorized brand partners exclusively through crowcrowcrow. We import them per order, ensuring they are factory-sealed and include all customs duties and GST. Delivery is via ExpressBox tracked service, providing a reliable supply chain for your industrial needs.

uxcell AXK1226 Thrust Needle Roller Bearings with Washers 12mm Bore 26mm OD 2mm Width 10pcs

Name: uxcell AXK1226 Thrust Needle Roller Bearings with Washers 12mm Bore 26mm OD 2mm Width 10pcs | High Stiffness in Minimum Axial Space
Brand: uxcell
SKU: zuv2672
Price: 1748.00 INR
Availability: InStock

About this item

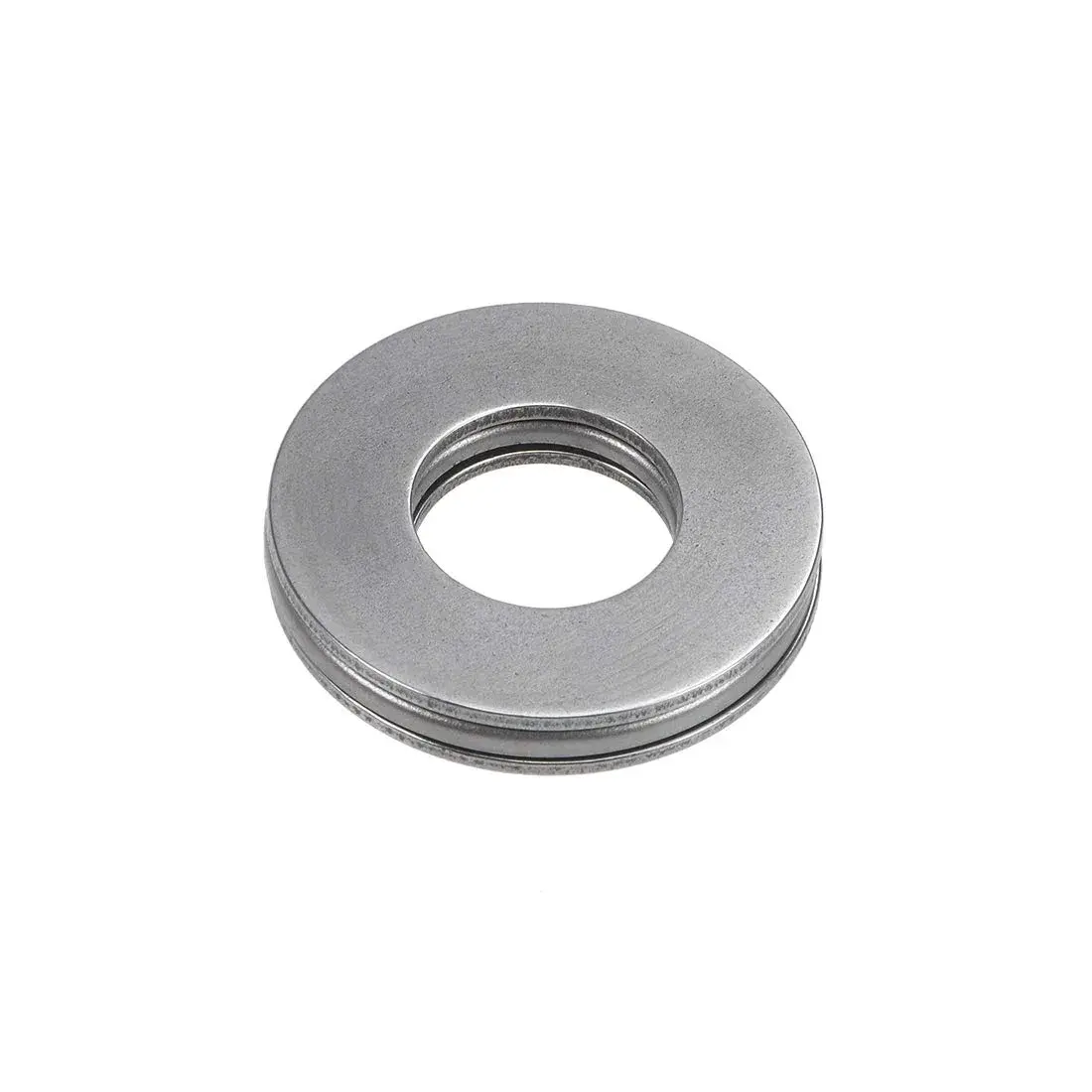

uxcell AXK1226 Thrust Needle Roller Bearings are engineered for high stiffness within a minimal axial space, making them ideal for applications with heavy axial loads and limited radial clearance. These bearings feature a smaller cross-section than standard thrust bearings, accommodating peak loads effectively. The package includes 20 washers made of hardened spring steel, which can serve as raceways when adjacent machine components are unsuitable. This ensures reliable performance in demanding industrial environments.

Constructed with durable chromium steel rollers (GCr15) and a ST13 steel cage, these bearings are built for heat tolerance and longevity. They offer a static load capacity of 28.6kN and a dynamic load capacity of 9.86kN, with a limiting speed of 13000RPM when lubricated with oil. The included washers (AS1226) have polished faces for use as raceways. This set provides 10 bearings and 20 washers, ensuring you have the necessary components for installation.

These bearings are crucial components in various industrial applications, including agricultural machinery, conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers. By importing these specialized components, you ensure your machinery operates with precision and reliability, outperforming standard local alternatives in critical load-bearing scenarios.

Key Features

MODLE — Bearing Model: AXK1226 (I.D.=12mm, O.D.=26mm, Thickness=2mm); Washer Model: AS1226
MATERIAL — Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
FEATURES — Needle Roller Thrust Bearings can accommodate axial loads in one direction only
WASHER — Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
CAPABILITY — 28.6kN Static Load Capacity, 9.86kN Dynamic Load Capacity, 13000RPM Maximum Rotational Speed

Why choose this product

Engineered for Extreme Loads

These uxcell thrust needle roller bearings are precision-engineered to handle significant axial loads with exceptional stiffness, a critical factor in heavy-duty industrial machinery. Unlike generic bearings, their specialized design ensures longevity and performance under peak stress. The chromium steel rollers and hardened spring steel washers provide superior durability and heat resistance, outperforming standard steel components in high-temperature or high-stress environments. This imported solution guarantees reliable operation for your critical applications, ensuring your equipment runs smoothly and efficiently, even under the most demanding conditions.

Ideal for Compact Industrial Designs

These bearings are perfect for engineers and mechanics working with compact industrial equipment, robotics, or automotive transmissions where space is at a premium. Their minimal axial space requirement and high stiffness make them superior to bulkier ball bearings. However, if your application requires continuous high-speed rotation with minimal lubrication or if you need bearings that can handle combined radial and axial loads simultaneously, consider specialized deep-groove ball bearings or angular contact ball bearings instead.

How to use

Ensure the machine shaft is precision-ground, polished, and induction-hardened to at least 58–64 HRC if running directly on the shaft. Alternatively, ensure the housing is prepared to accept the bearing and washers. — Prepare the Shaft and Housing
Place one hardened spring steel washer (AS1226) on each side of the bearing (AXK1226). If using the shaft as a raceway, ensure the shaft is correctly positioned. If using housing raceways, ensure they are clean and prepared. — Install Bearings and Washers
Carefully press the bearing and washer assembly into the designated housing or onto the shaft. Ensure proper alignment to prevent binding. Apply a suitable oil lubricant before initial operation for speeds up to 13000 RPM. — Mount the Bearing Assembly
Check for smooth rotation under load. For continuous operation, maintain adequate oil lubrication. In dusty or humid Indian conditions, adhere to a strict relubrication schedule to prevent wear and ensure bearing longevity. — Verify Operation and Lubrication

Example scenarios

Typical situations where uxcell AXK1226 Thrust Needle Roller Bearings with Washers 12mm Bore 26mm OD 2mm Width 10pcs | High Stiffness in Minimum Axial Space helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A robotics manufacturer in Bengaluru needs compact bearings for a new articulated arm with limited radial clearance.

How this product helps

The uxcell AXK1226 bearings provide the necessary high stiffness and axial load capacity within a minimal axial space, fitting precisely into the arm's design. The included washers simplify installation, ensuring reliable operation for smooth, precise robotic movements.

Scenario 2

Illustrative example

Where it helps

An agricultural machinery workshop in Punjab requires durable bearings for a conveying system operating in dusty conditions.

How this product helps

These bearings, with their hardened chromium steel rollers and steel cage, offer good durability. For dusty environments, it's recommended to use oil lubrication and establish a strict relubrication schedule or consider sealed variants to prevent premature wear and ensure consistent operation.

Specifications

Composition

Roller Material	Chromium Steel (GCr15)
Cage Material	ST13 Steel
Washer Material	65Mn Spring Steel

Usage

Application	Heavy axial loads, limited radial space, industrial machinery, robotics, conveying equipment, elevators, rolling mills, ship rudder shafts, aggregate crushers
Load Capacity (Static)	28.6kN
Load Capacity (Dynamic)	9.86kN
Limiting Speed (Oil Lubrication)	13000 RPM
Lubricant Type	Oil
Cost per use	10 bearings at ₹1,748 — ₹175 per bearing
Shelf life after opening	Not applicable (durable item)
Reapplication math	Not applicable (durable item)
Contraindications	Not suitable for combined radial and axial loads simultaneously; requires oil lubrication for optimal speed.
Allergens / common irritants

How we compare

Feature	uxcell AXK1226 Thrust	Others
Load Capacity (Static)	28.6kN	Typically 15-25kN for comparable local bearings
Load Capacity (Dynamic)	9.86kN	Typically 5-8kN for comparable local bearings
Space Efficiency	Minimal axial space, smaller cross-section	Often requires larger radial space for similar load capacity
Material Quality	Chromium steel rollers, hardened spring steel washers	Varies; may use lower-grade steel or less durable cages
Cost per bearing (10-pack)	₹175 per bearing	₹150 - ₹300 per bearing, depending on brand and specs

SKU	zuv2672
Brand	uxcell
Bearing Model	AXK1226
Washer Model	AS1226

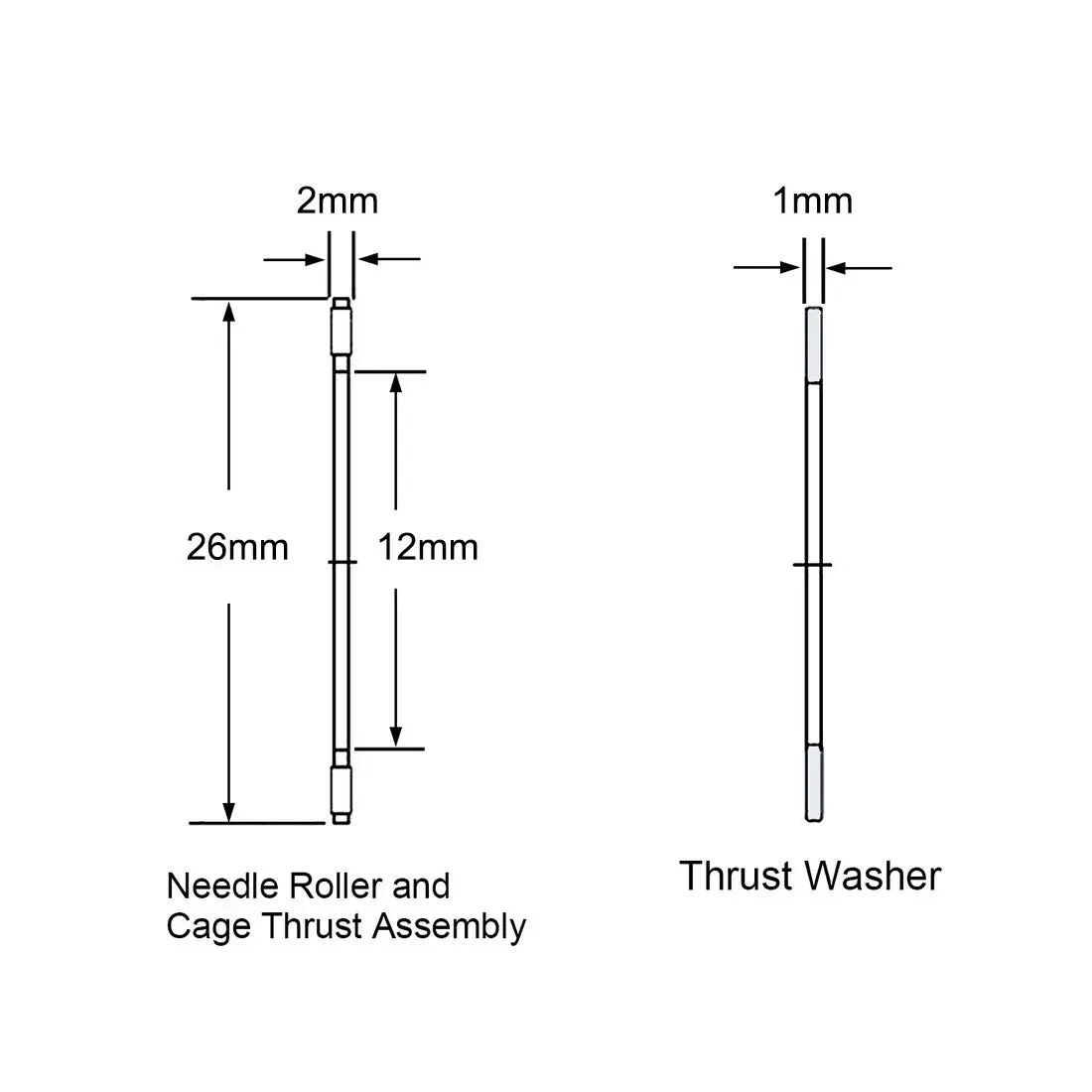

Bore Diameter	12mm (0.47 inches)
Outside Diameter	26mm (1.02 inches)
Bearing Thickness	2mm (0.08 inches)
Washer Thickness	1mm (0.04 inches)

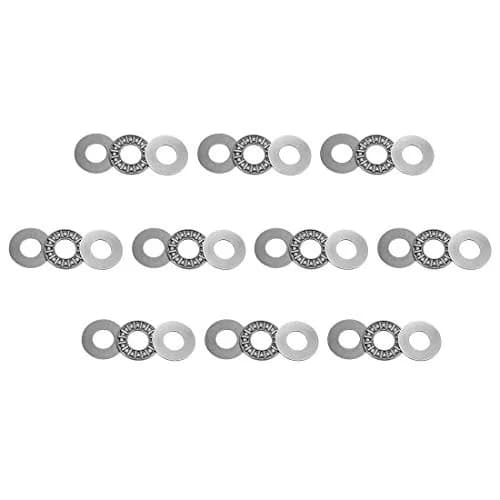

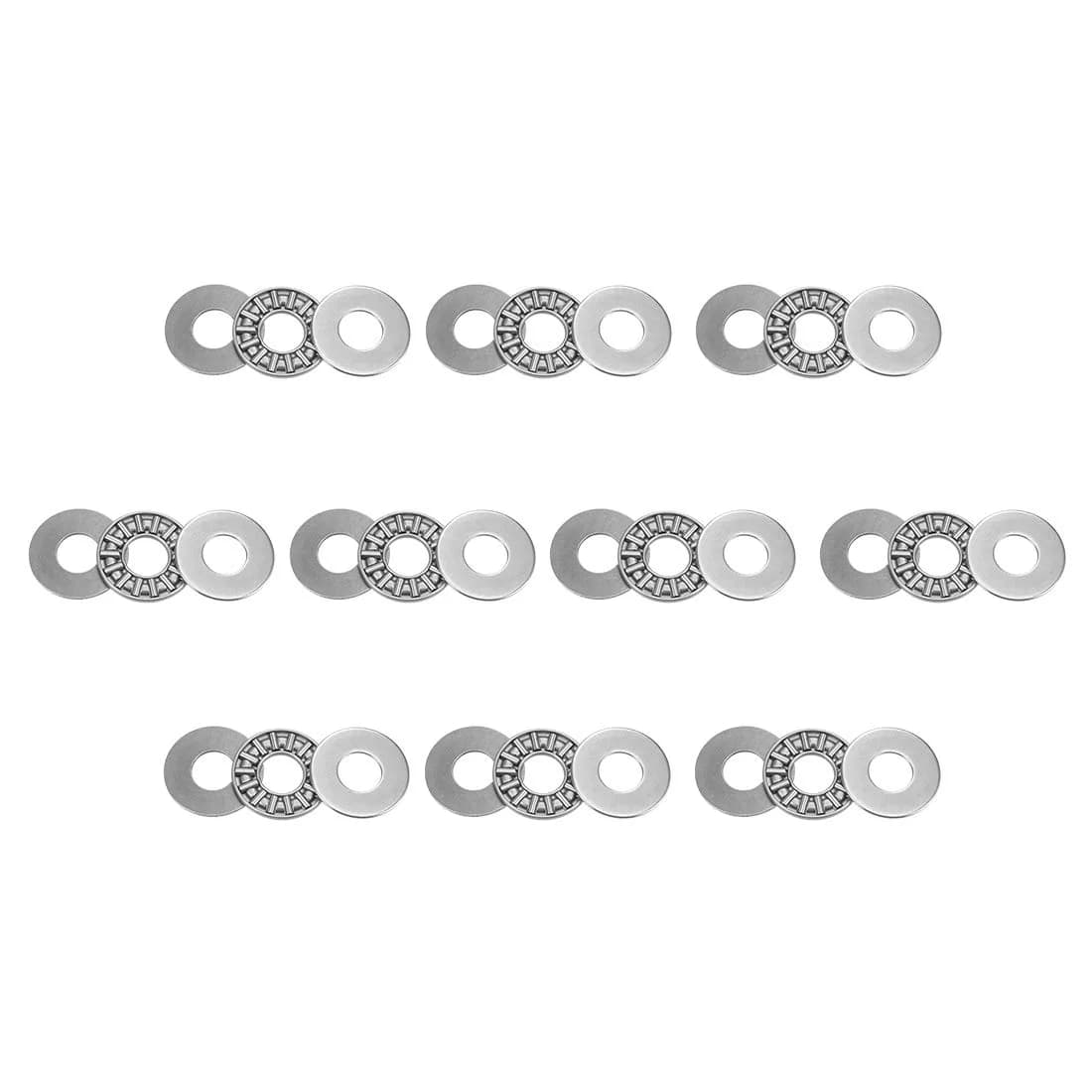

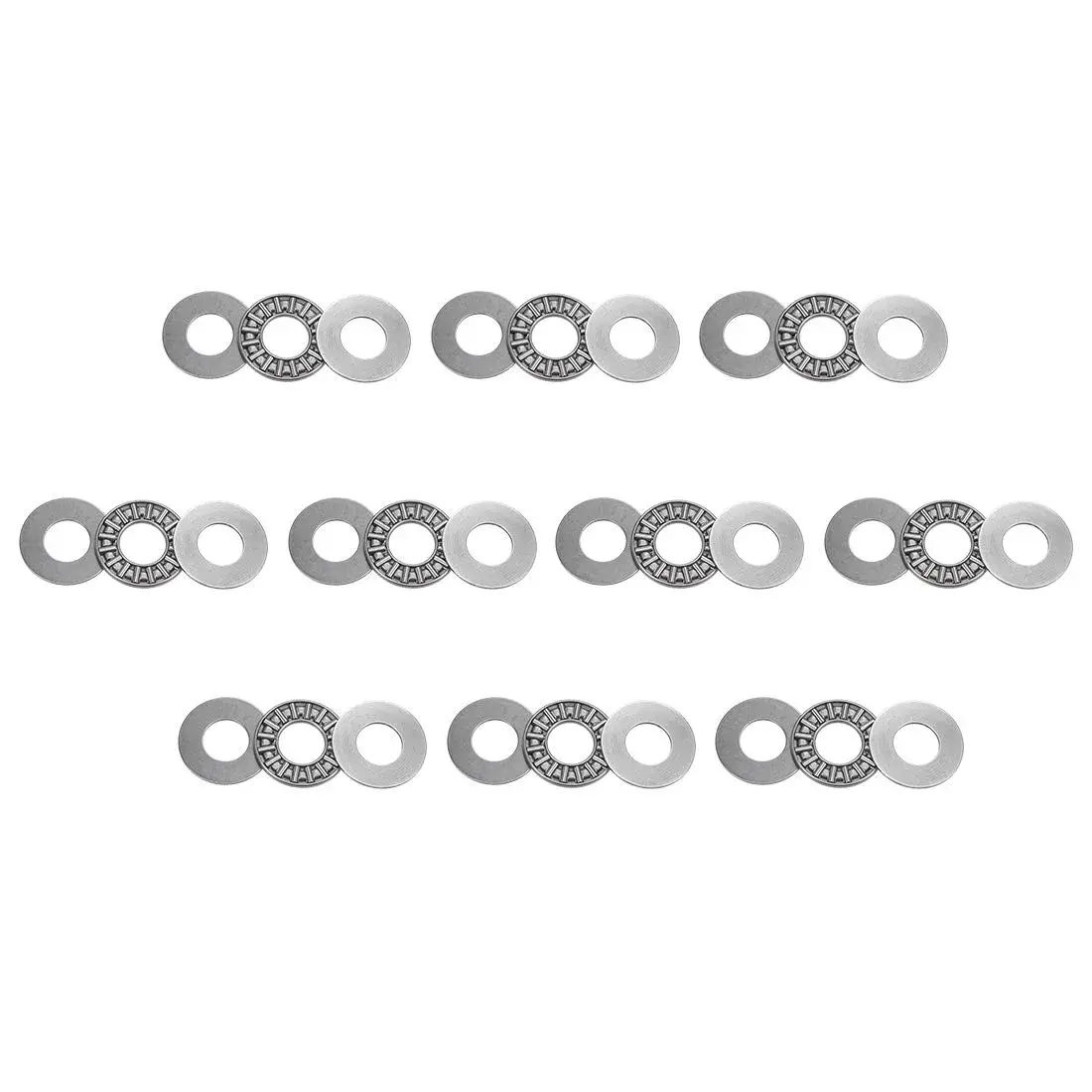

Package Contents	10 x Bearings, 20 x Washers

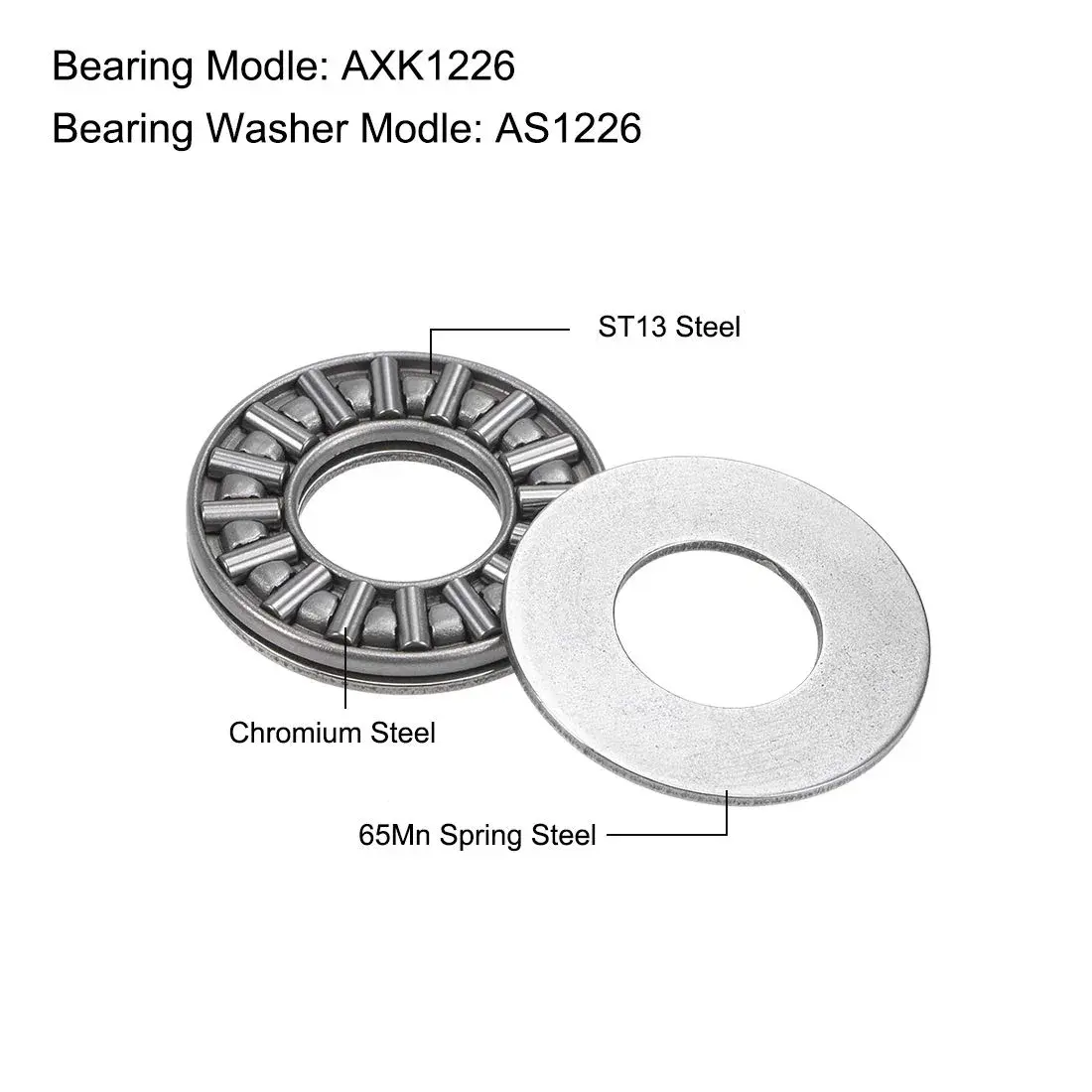

Material	Chromium Steel (GCr15) rollers, ST13 Steel cage, 65Mn Spring Steel washers
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
