Will this Thermalright AXP90 X36 CPU cooler fit my processor?

Yes, this cooler is designed for broad compatibility. It supports Intel sockets LGA1700, LGA1200, LGA1151, LGA1150, and LGA1851, as well as AMD sockets AM4 and AM5. Always confirm your specific CPU socket type against these listed specifications before purchase to ensure a proper fit for your build.

How quiet is the Thermalright AXP90 X36 CPU cooler?

The cooler features a TL-9015 slim PWM fan that operates at a maximum noise level of ≤22.4 DBA. This is considered very quiet, making it suitable for users who prioritize a silent or near-silent computing environment, even under moderate load.

What is the TDP rating for this low-profile CPU cooler?

The Thermalright AXP90 X36 has a heat dissipation power consumption of 95W. This rating indicates it can effectively cool CPUs with a thermal design power up to 95W, making it suitable for many mainstream and some higher-performance processors in compact builds.

Can I use this cooler in a very small ITX case?

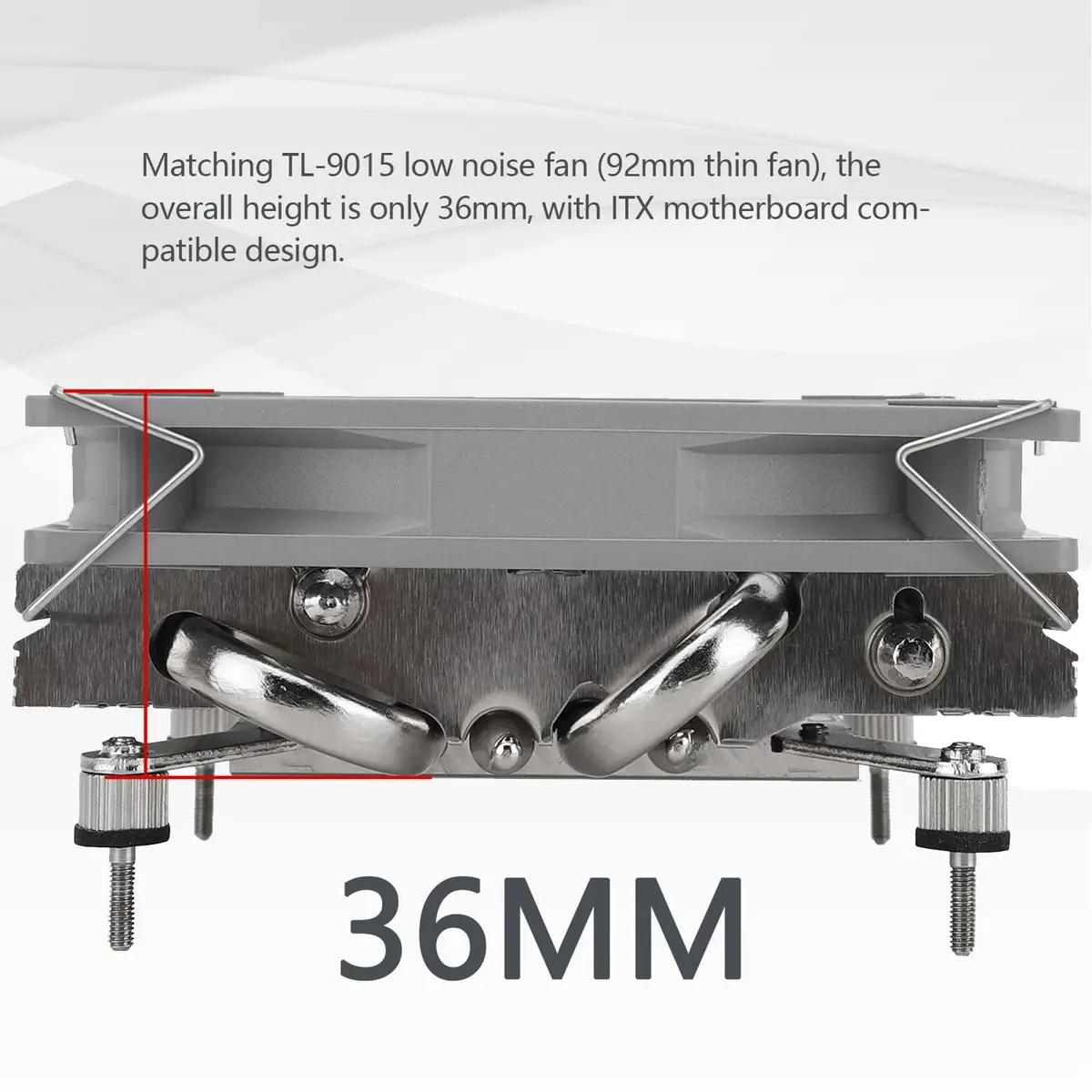

Absolutely. The AXP90 X36 is specifically designed as a low-profile cooler with a height of only 36mm. This makes it an excellent choice for ultra-compact ITX cases where vertical space is extremely limited, ensuring it fits without interfering with other components.

Does this cooler come with thermal paste?

Yes, the package includes TF7 silicone grease, a high-performance thermal compound. This ensures optimal heat transfer between your CPU and the cooler's base for maximum cooling efficiency right out of the box.

How to buy an original Thermalright AXP90 X36 CPU cooler in India?

Purchase this original Thermalright AXP90 X36 CPU cooler from authorized US retailers and authorized brand partners exclusively imported for you by CrowCrowCrow. It comes factory-sealed with all customs duties and GST included in the price. Delivery is via ExpressBox tracked shipping to your Indian pincode.

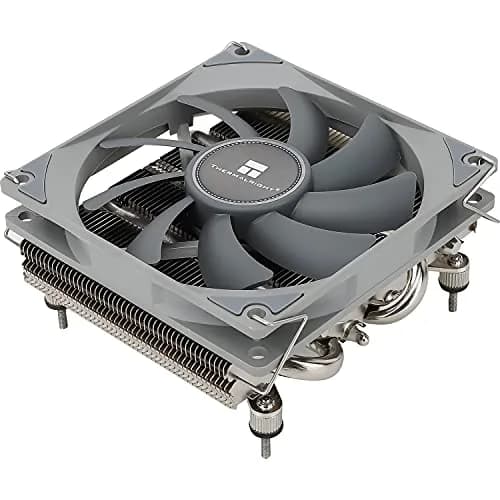

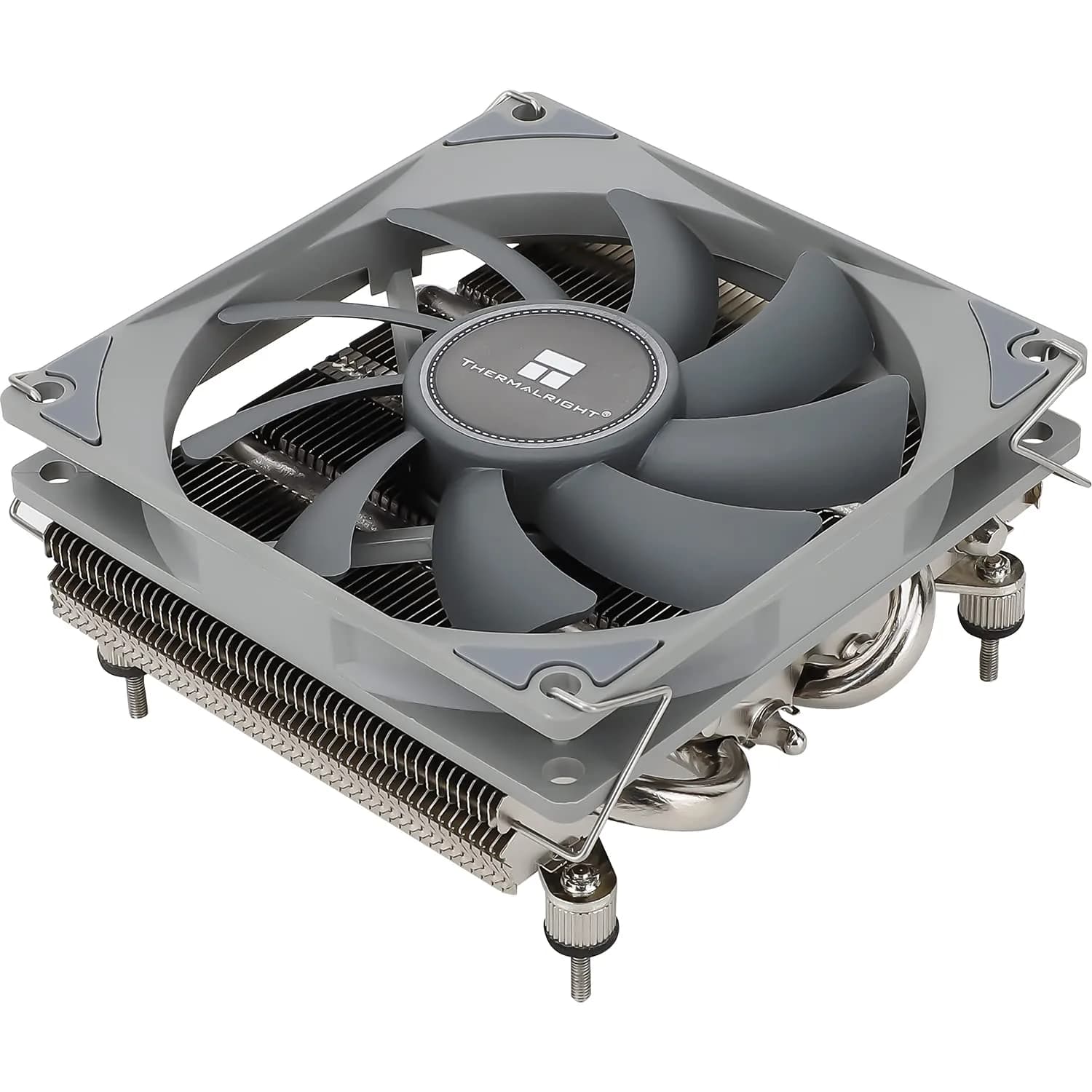

Thermalright AXP90 X36 Low Profile ITX CPU Cooler 36mm | AMD AM4 AM5 Intel LGA1700 1200 115X

Name: Thermalright AXP90 X36 Low Profile ITX CPU Cooler 36mm Height | Compatible with AMD AM4 AM5 Intel LGA1700 1200 115X
Brand: Thermalright
SKU: byh9844
Price: 3629.00 INR
Availability: InStock

About this item

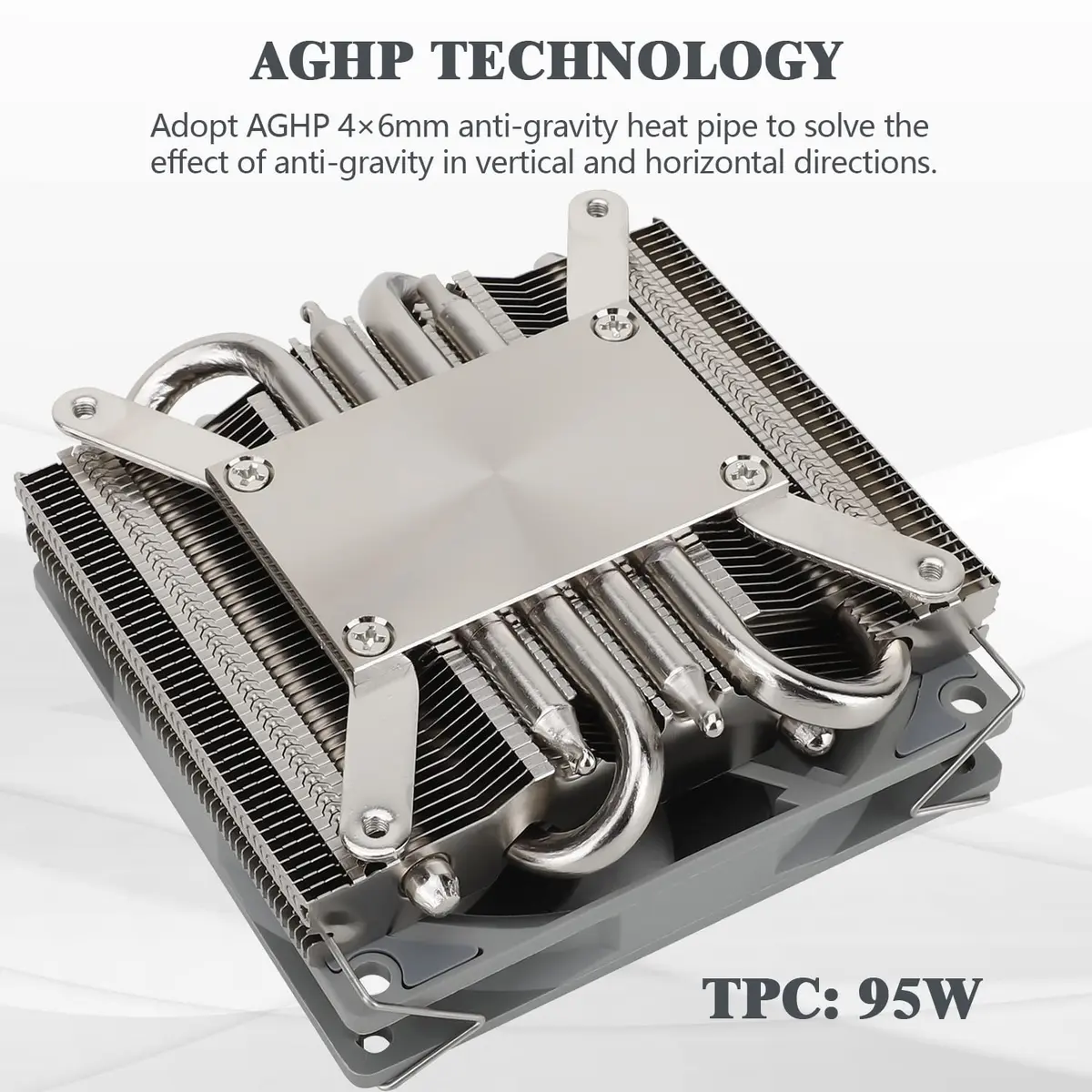

The Thermalright AXP90 X36 CPU cooler is engineered for compact ITX builds, standing just 36mm tall. Its all-metal platform, nickel-plated copper construction, and 4x6mm AGHP heatpipes provide excellent heat dissipation up to 95W TDP. This cooler is designed for broad compatibility, supporting Intel LGA1700/1200/1151/1150/1851 and AMD AM4/AM5 sockets, making it a versatile choice for many modern processors.

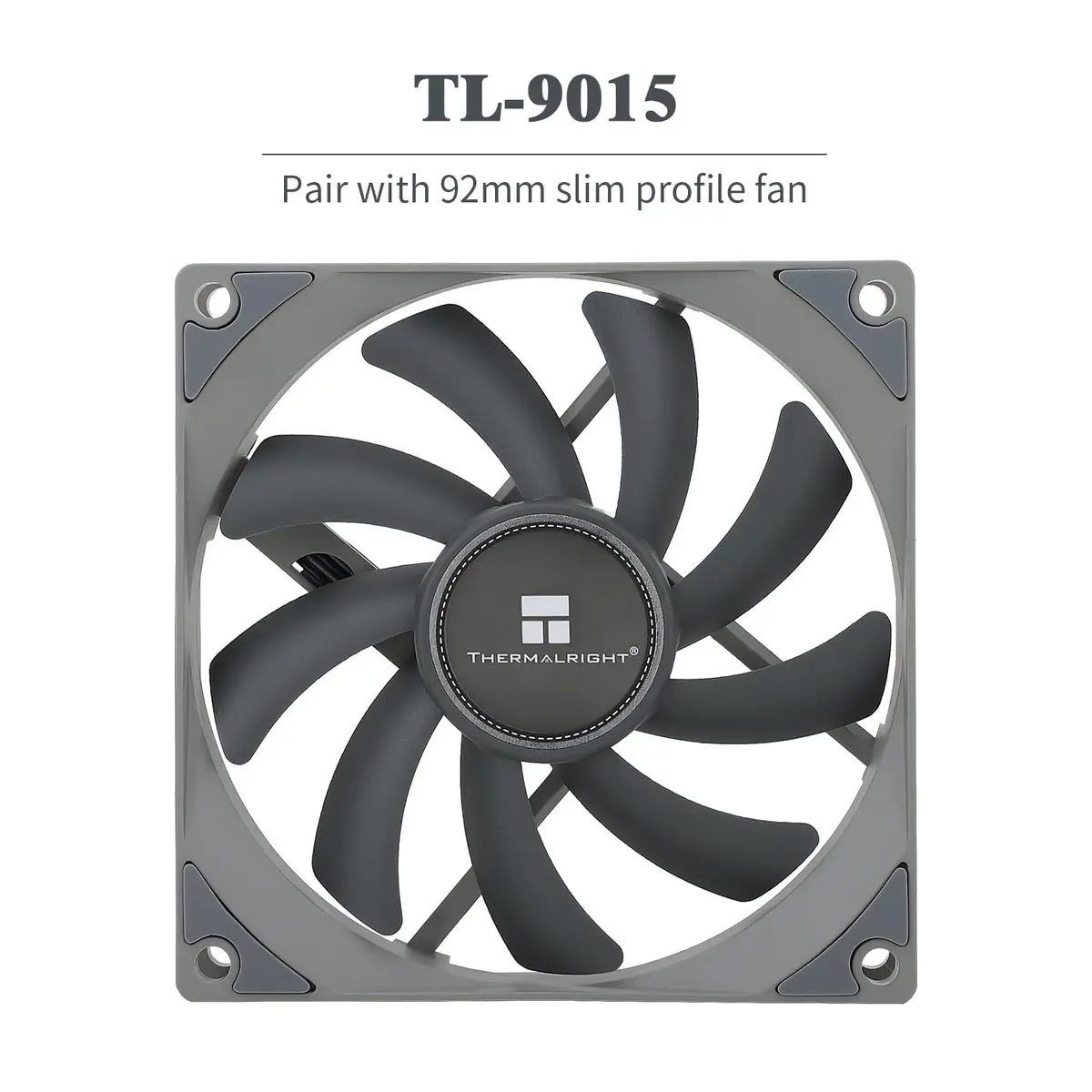

Featuring a TL-9015 slim PWM fan, the AXP90 X36 operates quietly at ≤22.4 DBA while delivering 42.58 CFM of airflow. The S-hydraulic bearing ensures durability and smooth operation. Its secondary reflow soldering process and corrosion-resistant nickel plating enhance longevity, ensuring reliable performance even in demanding environments. This cooler is ideal for small form factor PCs where space is at a premium.

Imported directly from authorized US retailers, this Thermalright cooler offers superior cooling performance for your compact PC. All customs duties and GST are pre-paid, with delivery via ExpressBox tracked shipping. Ensure your build stays cool and performs optimally with this high-quality, space-saving CPU cooler.

Key Features

Compact, premium-quality low-profile CPU cooler (36mm total height)
Good adaptability, all metal platform, with back plate fastener, secondary reflow soldering process
Nickel plating process, corrosion resistance, acid and alkali resistance, low thermal resistance
4×6mm AGHP Heatpipes, Noise≤22.4DBA, Voltage 12V, Current 0.2A (MAX)
Support for Intel: 115X/1200; AMD: AM4/AM5

Why choose this product

Engineered for Compact Builds

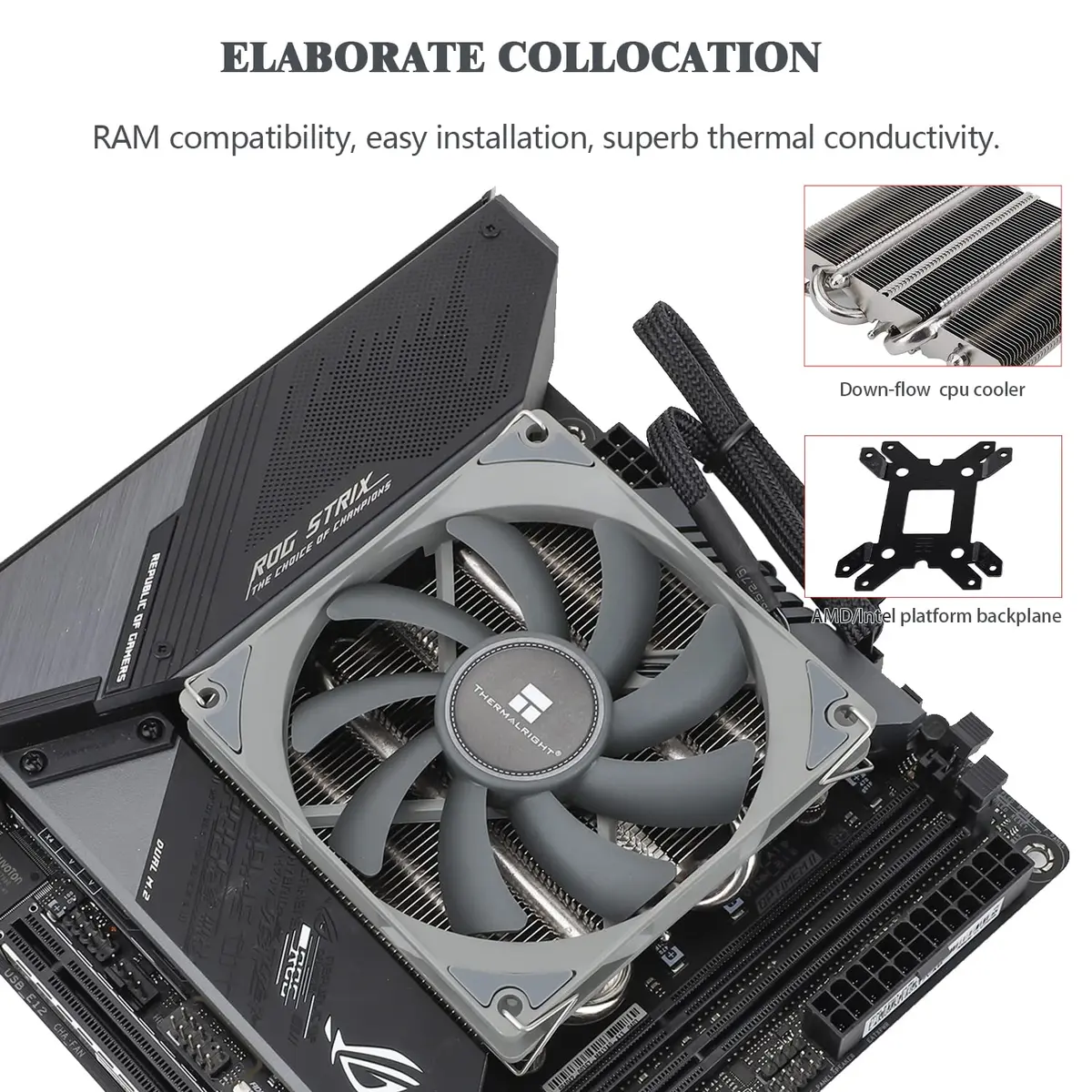

The Thermalright AXP90 X36 is specifically designed for small form factor PCs, where space is a critical constraint. Its 36mm height allows it to fit into the tightest ITX cases, often clearing RAM slots and other motherboard components that would block larger coolers. The robust construction, featuring nickel-plated copper and AGHP heatpipes, ensures efficient heat dissipation up to 95W TDP, vital for maintaining performance in confined spaces. This cooler is imported from authorized US retailers, guaranteeing authenticity and quality for your high-performance compact system.

Who It's For & Who Should Skip

This cooler is perfect for builders of small form factor (SFF) and ITX PCs who need maximum cooling performance within a minimal height profile. It's ideal for users with Intel LGA1700/1200/115X or AMD AM4/AM5 CPUs who prioritize a quiet, efficient, and space-saving solution. Skip this cooler if you are building a standard ATX or larger case that can accommodate taller tower coolers or AIO liquid coolers, as those may offer higher TDP capacities or more advanced cooling solutions for extreme overclocking.

How to use

Prepare Mounting Hardware — Select the correct backplate and mounting brackets for your CPU socket (Intel or AMD) from the provided hardware. Ensure all screws and standoffs are correctly identified for your platform.
Apply Thermal Paste — Apply a small amount of the included TF7 thermal paste to the center of your CPU's integrated heat spreader (IHS). A pea-sized amount is usually sufficient for even coverage.
Mount the Cooler — Carefully align the cooler with the CPU and mounting brackets. Secure it evenly using the provided screws, tightening them in a cross pattern to ensure consistent pressure and optimal contact.
Connect Fan Header — Plug the TL-9015 fan's 4-pin PWM connector into the CPU_FAN header on your motherboard. This allows the motherboard to control fan speed automatically based on CPU temperature.

Example scenarios

Typical situations where Thermalright AXP90 X36 Low Profile ITX CPU Cooler 36mm Height | Compatible with AMD AM4 AM5 Intel LGA1700 1200 115X helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building a compact ITX gaming PC for a small apartment in Delhi.

How this product helps

The 36mm height of the AXP90 X36 ensures it fits within the tight chassis dimensions, allowing for powerful cooling without sacrificing space. This enables sustained gaming performance even in high ambient temperatures.

Scenario 2

Illustrative example

Where it helps

Need a quiet CPU cooler for a home office PC in Bangalore.

How this product helps

With a noise level of ≤22.4 DBA, this cooler keeps the system quiet during work tasks. Its 95W TDP rating is sufficient for most office CPUs, ensuring reliable operation without distracting fan noise.

Technical specifications

Setup & usage

TDP Rating	95W
Fan Speed	2700±10% RPM
Airflow	42.58 CFM (MAX)
Noise Level	≤22.4 DBA
Voltage	12V DC
Current	0.2A (MAX)
Power Connector	4-Pin PWM
Cost per use	This cooler is a durable component, not a consumable. Its lifespan is measured in years of reliable operation.
Shelf life after opening	N/A (Durable component)
Reapplication math	N/A (Durable component)
Contraindications	Not suitable for extreme overclocking beyond 95W TDP; may not fit cases with very limited vertical clearance beyond 36mm.
Allergens / common irritants	None

How we compare

Feature	Thermalright AXP90 X36	Others
Profile Height	36mm (Ultra-low profile for ITX)	Varies; many local options are taller tower coolers (60mm+)
Heatpipes	4x6mm AGHP Heatpipes	Typically 2-4 heatpipes, varying materials
TDP Rating	95W	Varies widely, often 65W-120W for comparable sizes
Fan Type	Slim PWM Fan (≤22.4 DBA, 2700 RPM)	Varies; some may be DC fans or louder
Socket Support	Intel LGA1700/1200/115X, AMD AM4/AM5	Varies; confirm specific socket compatibility

SKU	byh9844
GTIN	0742346951874
Brand	Thermalright
Model Number	AXP90-X36

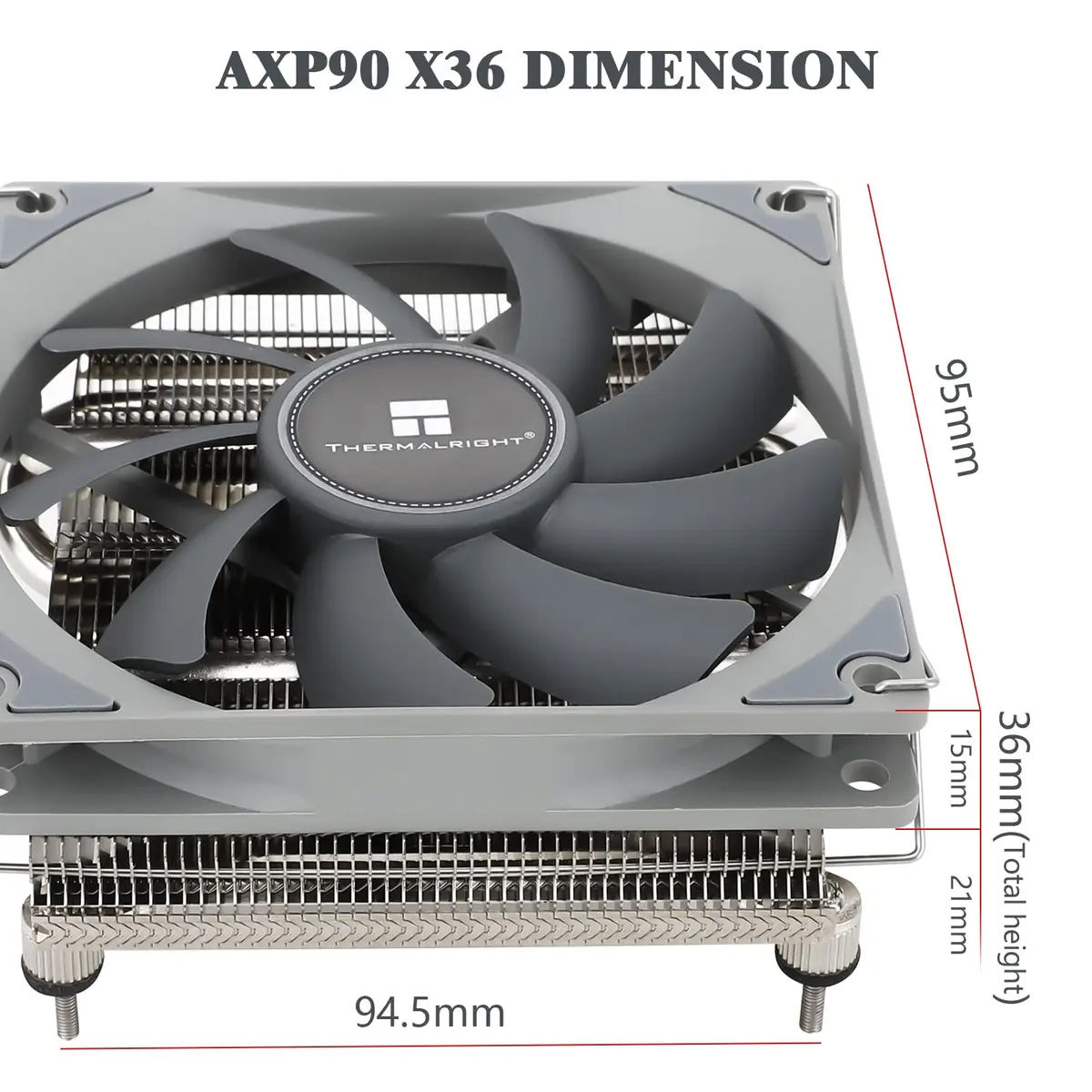

Height	36mm (1.42 inches)
Weight	408g (0.46 kg)
Material	Copper, Aluminum

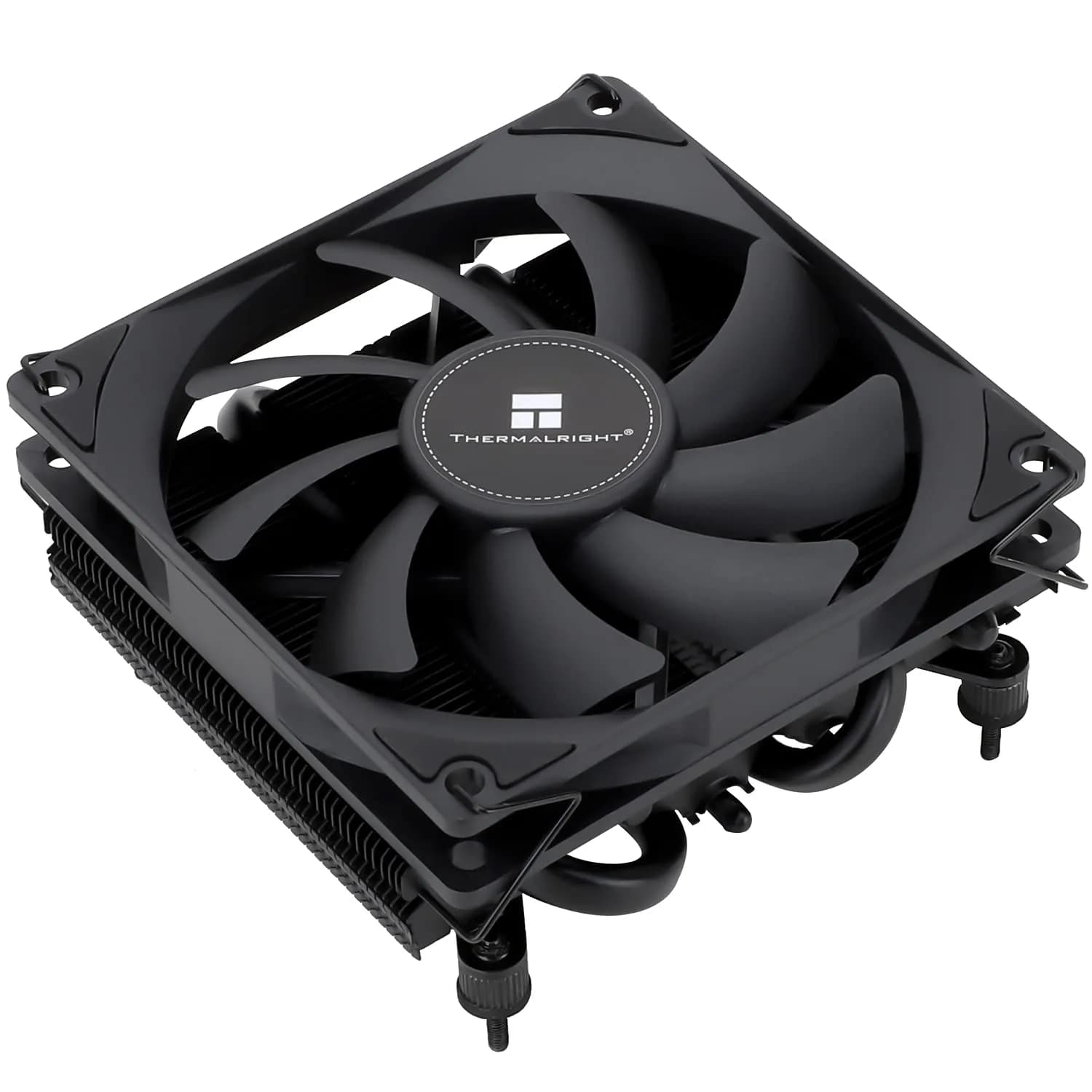

Color	Silver/Black
Socket Compatibility	Intel: LGA1700/1200/1151/1150/1851; AMD: AM4/AM5
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
