Thermalright Peerless Assassin 120 SE ARGB White CPU Air Cooler | 6 Heat Pipes, Dual 120mm PWM Fans, LGA1700/AM5 Compatible

• Brand Overview — Thermalright is a Taiwan brand with more than 20 years of development. It has a certain popularity in the domestic and foreign markets and has a pivotal influence in the player market. We have been focusing on the research and development of computer accessories. R & D product lines include: CPU air-cooled radiator, case fan, thermal silicone pad, thermal silicone grease, CPU fan controller, anti falling off mounting bracket, support mounting bracket and other commodities

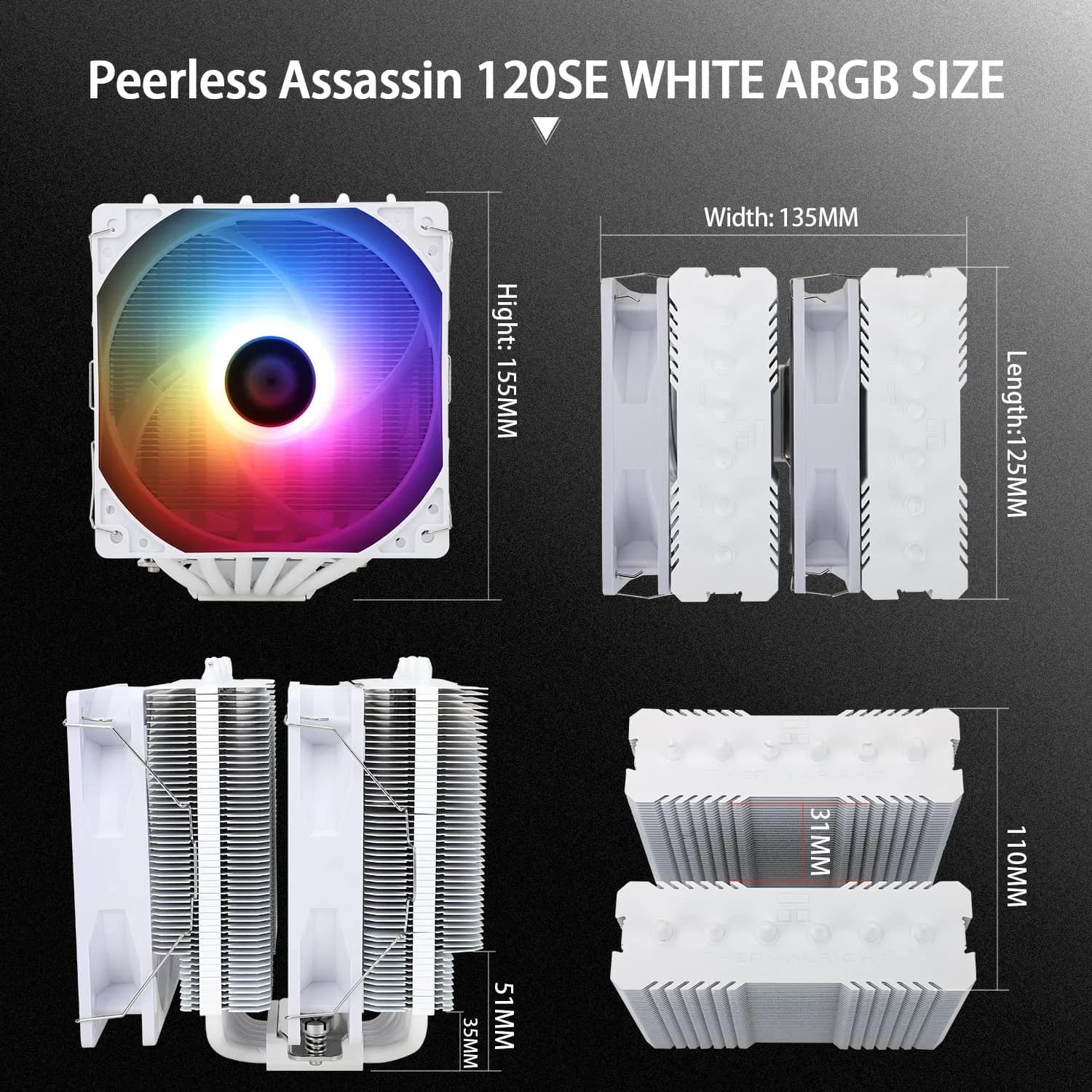

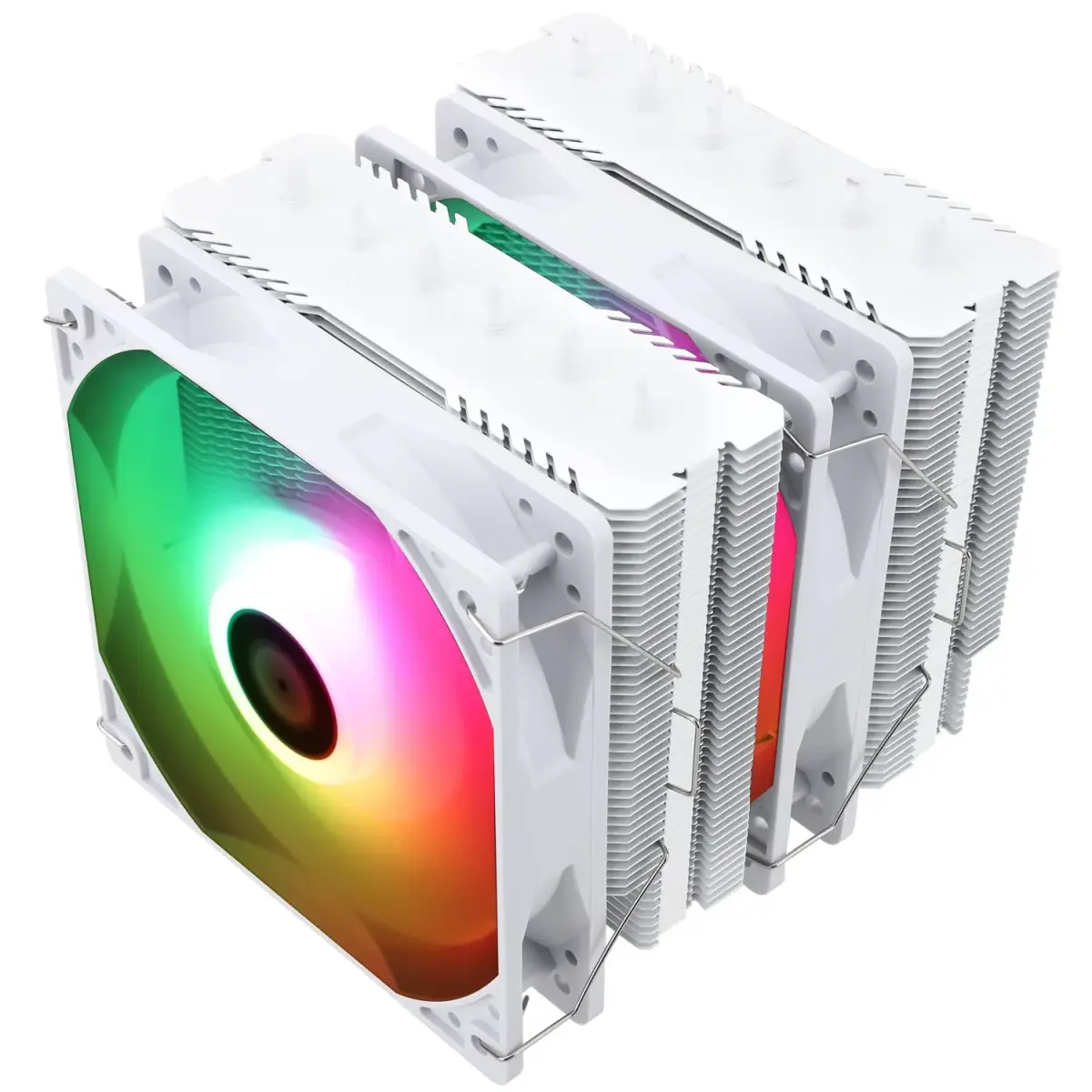

• Product specification — Thermalright PA120 SE ARGB White; CPU Cooler dimensions: 125(L)x135(W)x155(H)mm (4.92x5.31x6.1 inch); heat sink material: aluminum, CPU cooler is equipped with metal fasteners of Intel & AMD platform to achieve better installation, double tower cooling is stronger

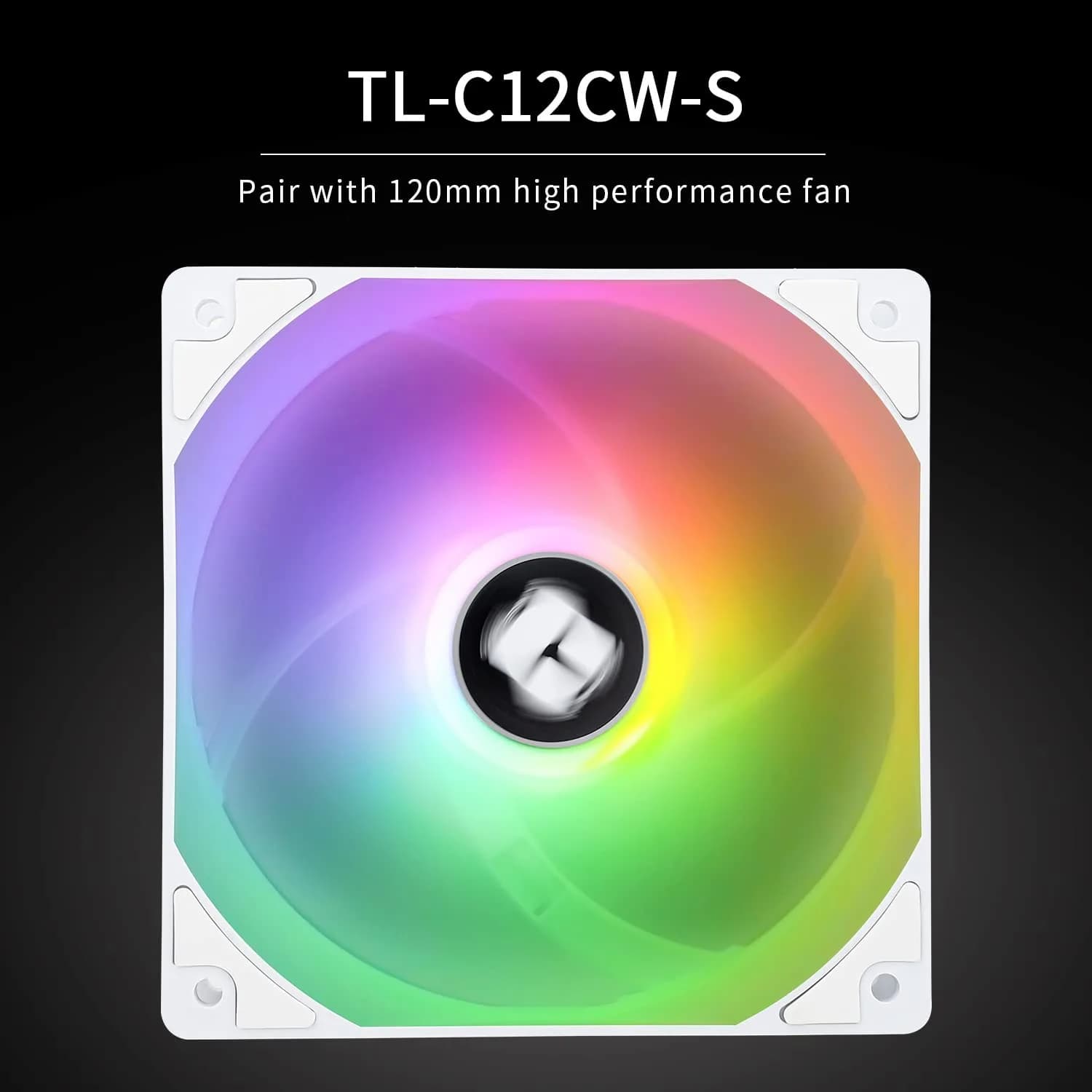

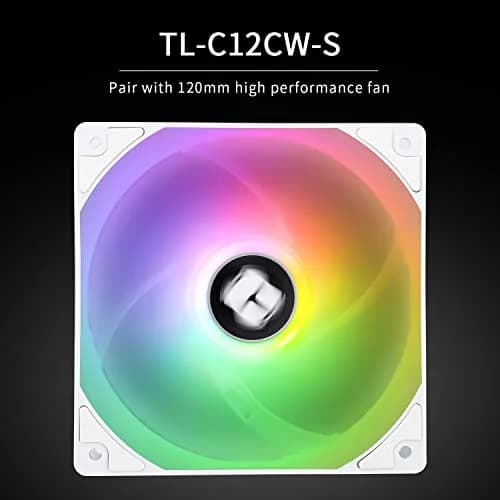

• 2 PWM Fans — Model:TL-C12C-S; Colorful and gorgeous ARGB light effects; Standard size PWM fan:120x120x25mm (4.72x4.72x0.98 inches); Product weight:0.97kg(2.1lb); fan speed (RPM):1550rpm±10%; power port: 4pin; Voltage:12V; Air flow:66.17CFM(MAX); Noise Level≤25.6dB(A), leave room for memory-chip(RAM), so that installation of ice cooler cpu is unrestricted

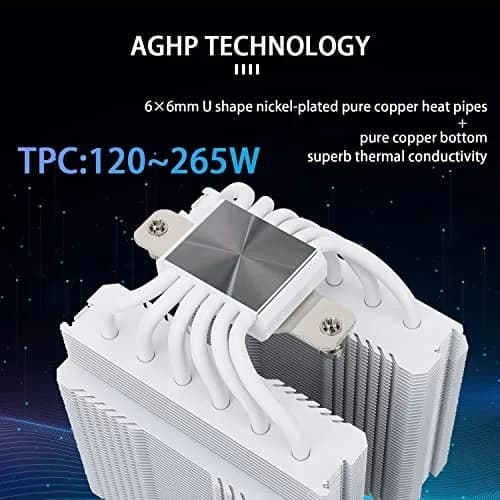

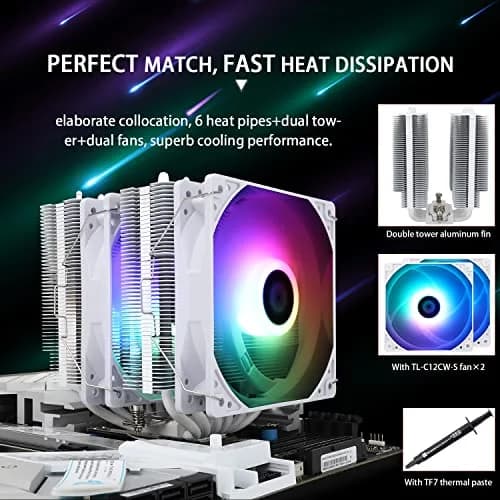

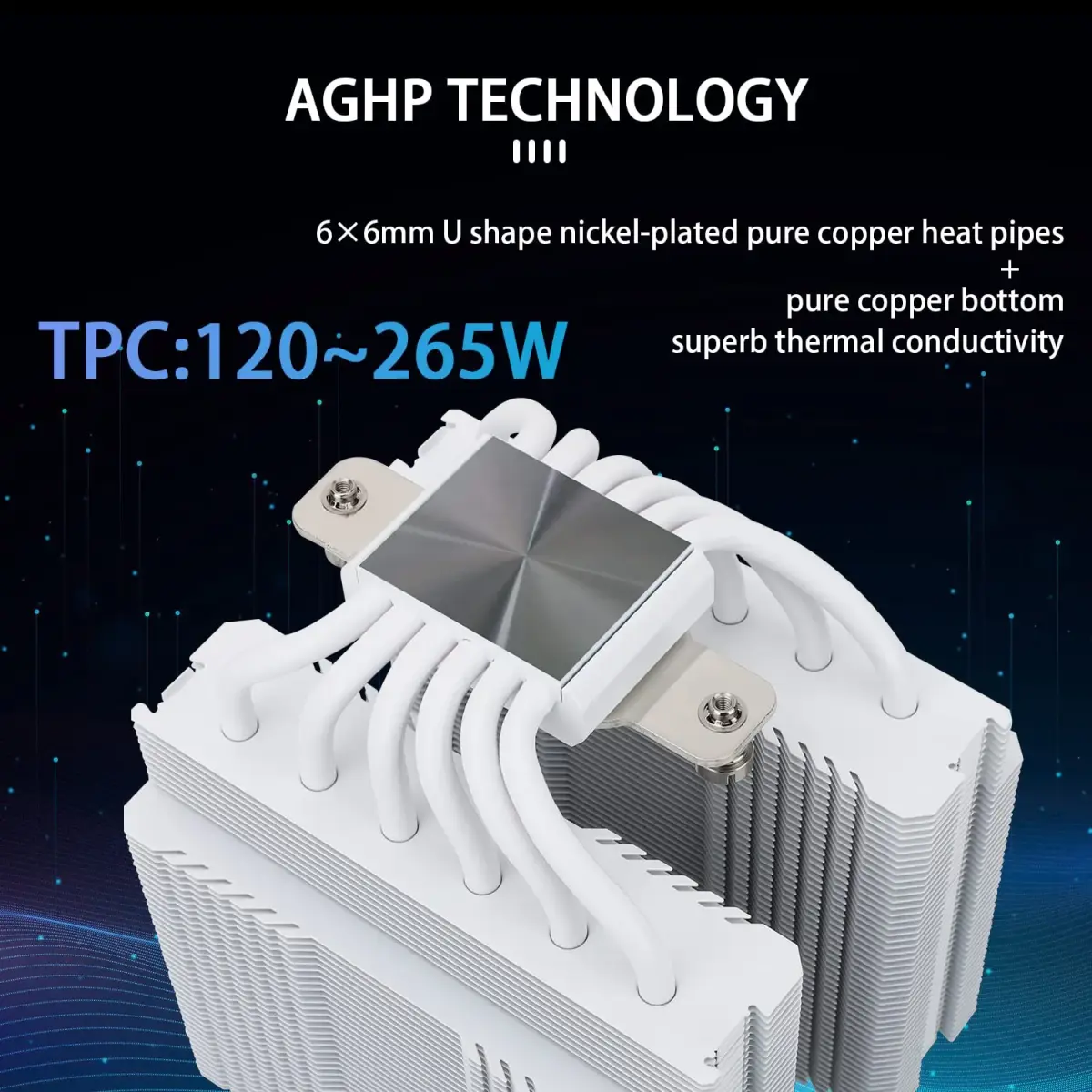

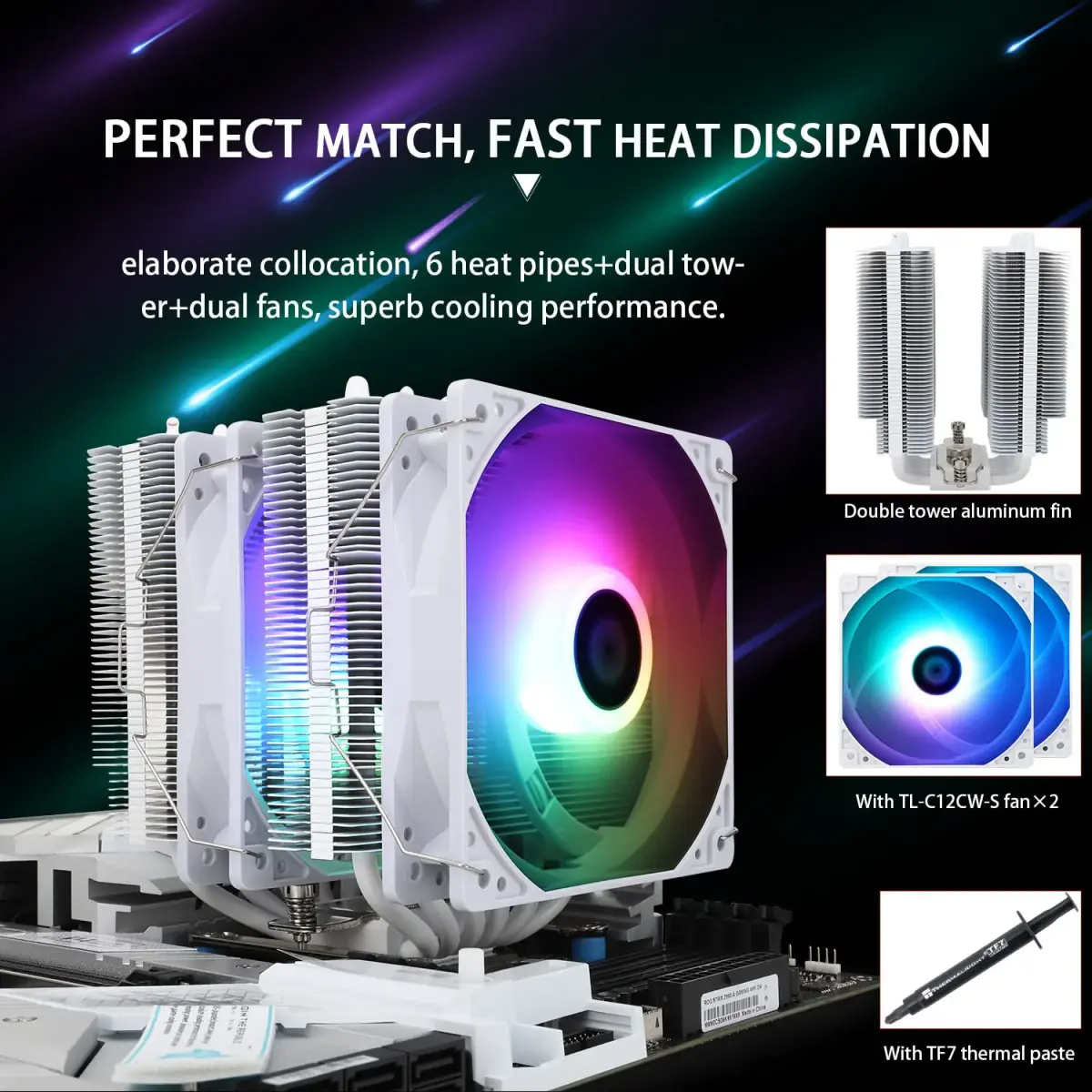

• AGHP technique — 6×6mm heat pipes apply AGHP technique, Solve the Inverse gravity effect caused by vertical / horizontal orientation, cpu cooler TDP is 120 to 265W. 6 pure copper sintered heat pipes & PWM fan & Pure copper base&Full electroplating reflow welding process, When CPU cooler works, match with ultra-silent airflow fans, aim to extreme CPU cooling performance

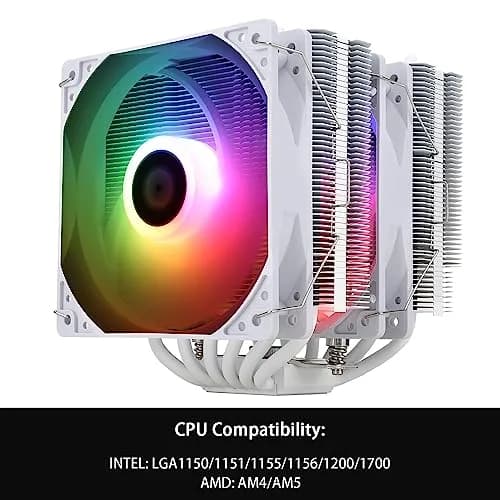

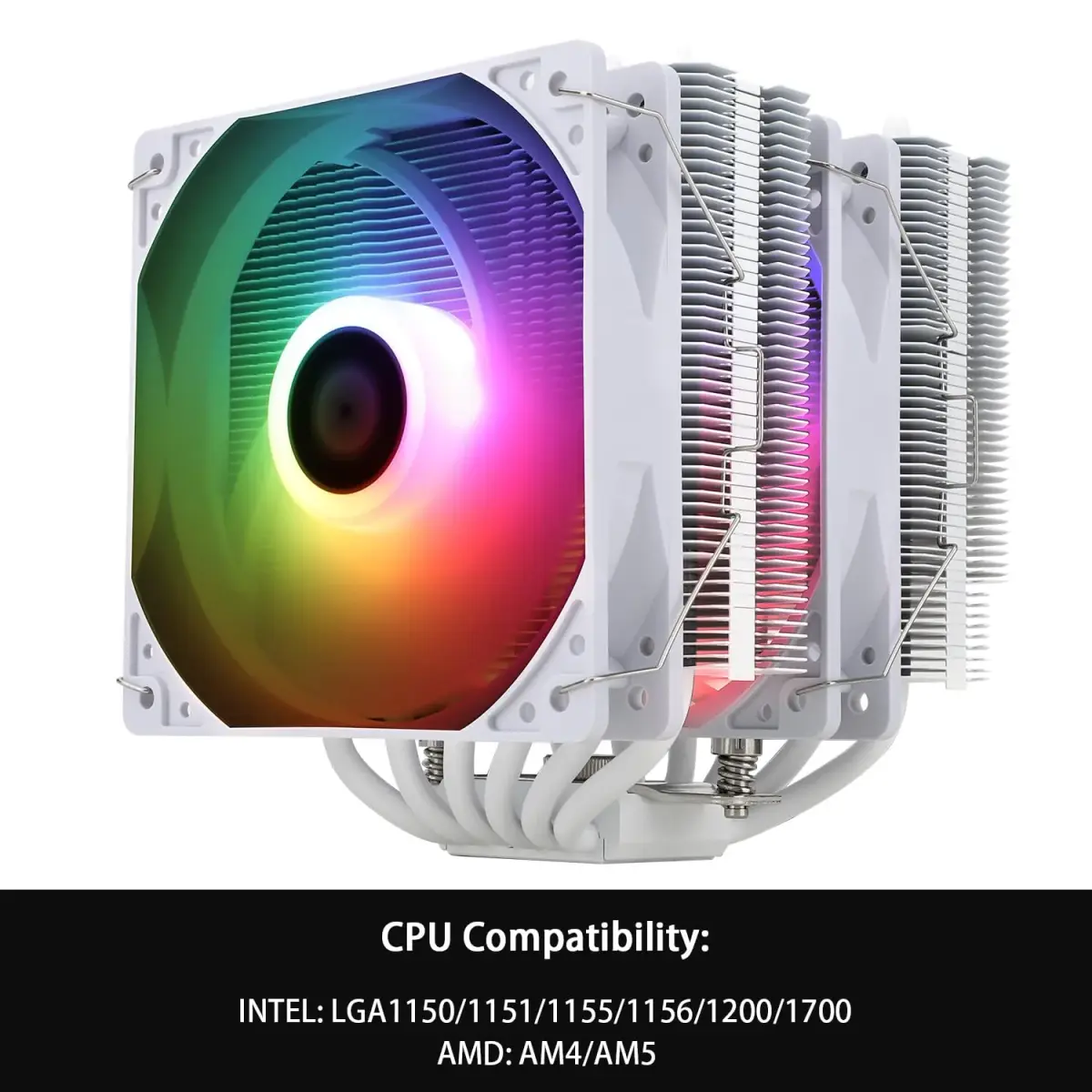

• Compatibility — The CPU cooler Socket supports: Intel:115X/1200/1700/17XX AMD:AM4;AM5; For different CPU socket platforms, corresponding mounting plate or fastener parts are provided

• Prepare Mounting Hardware — Identify the correct mounting brackets and fasteners for your CPU socket (Intel or AMD) from the accessory box. Attach the appropriate backplate and support brackets to your motherboard, ensuring they are securely fastened.
• Apply Thermal Paste and Mount Heatsink — Apply a small amount of the included TF7 thermal grease to the center of your CPU's integrated heat spreader. Carefully align the heatsink with the mounting brackets and secure it firmly using the provided screws, ensuring even pressure.
• Attach Fans and Connect Cables — Clip the two TL-C12CW-S PWM fans onto the heatsink fins. Connect the 4-pin PWM fan cables to the CPU_FAN header on your motherboard. Connect the ARGB cables to the appropriate headers on your motherboard for lighting control.
• Final Check and Boot Up — Ensure all connections are secure and the cooler is firmly mounted. Double-check that RAM modules do not interfere with the cooler. Boot up your system and monitor CPU temperatures in the BIOS or using monitoring software.
