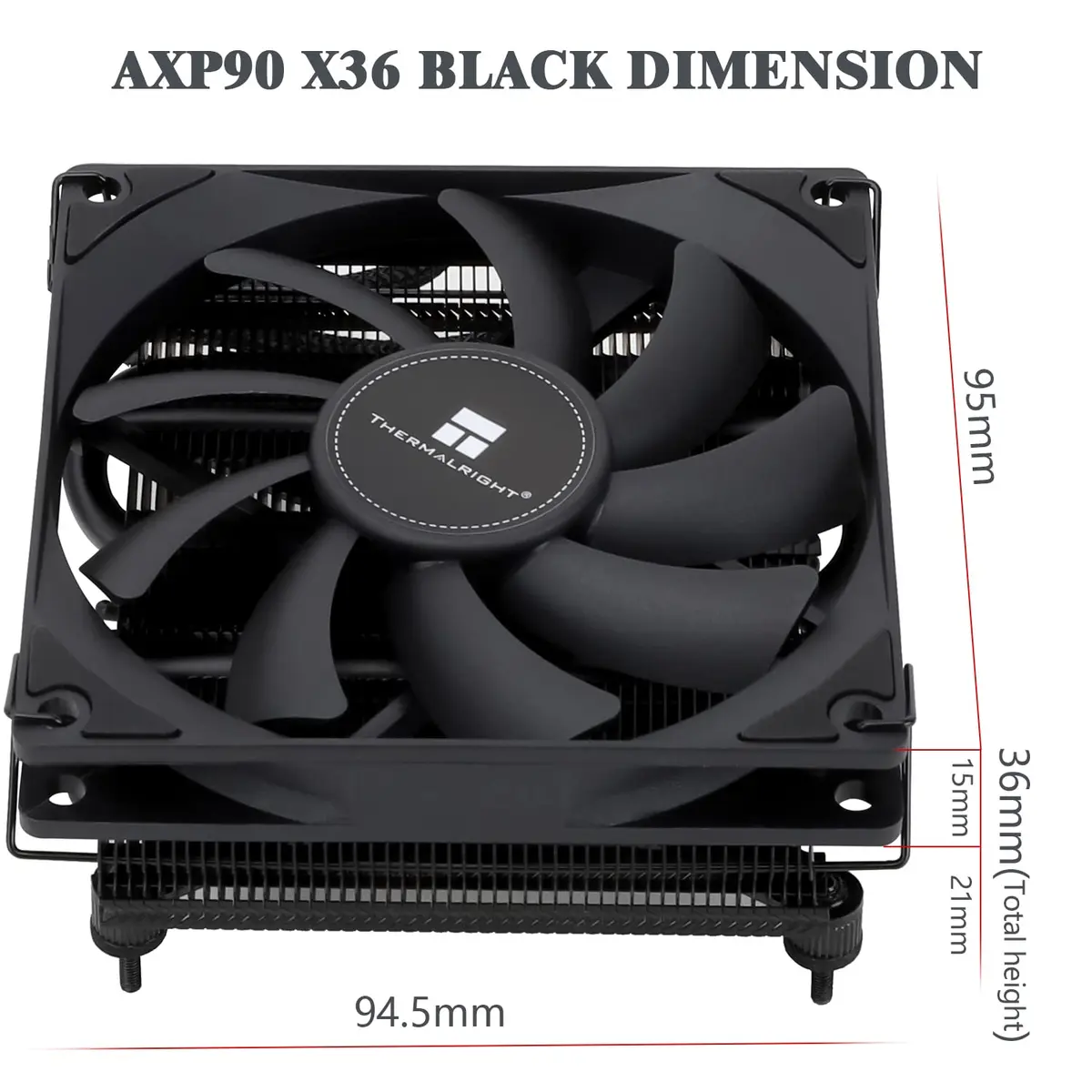

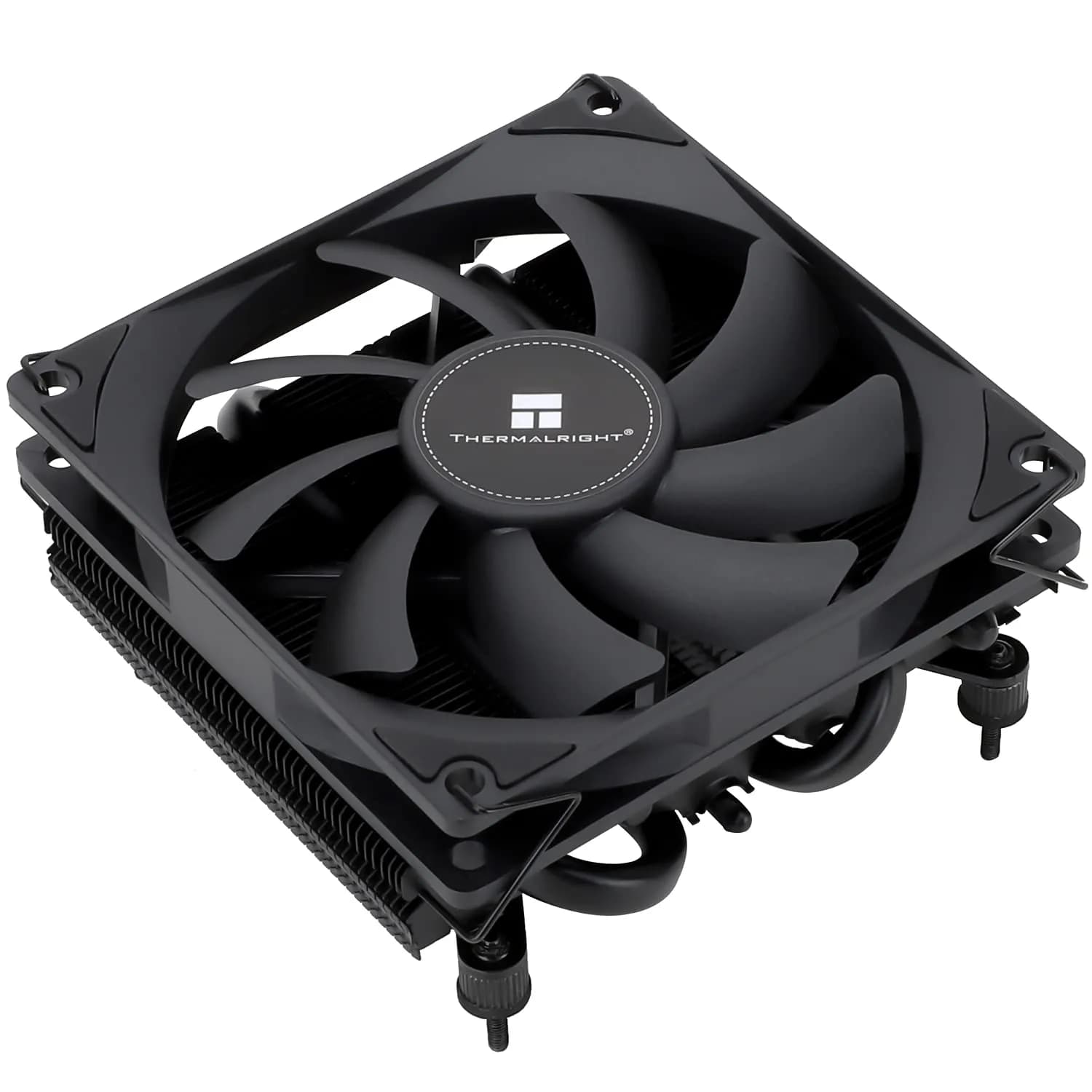

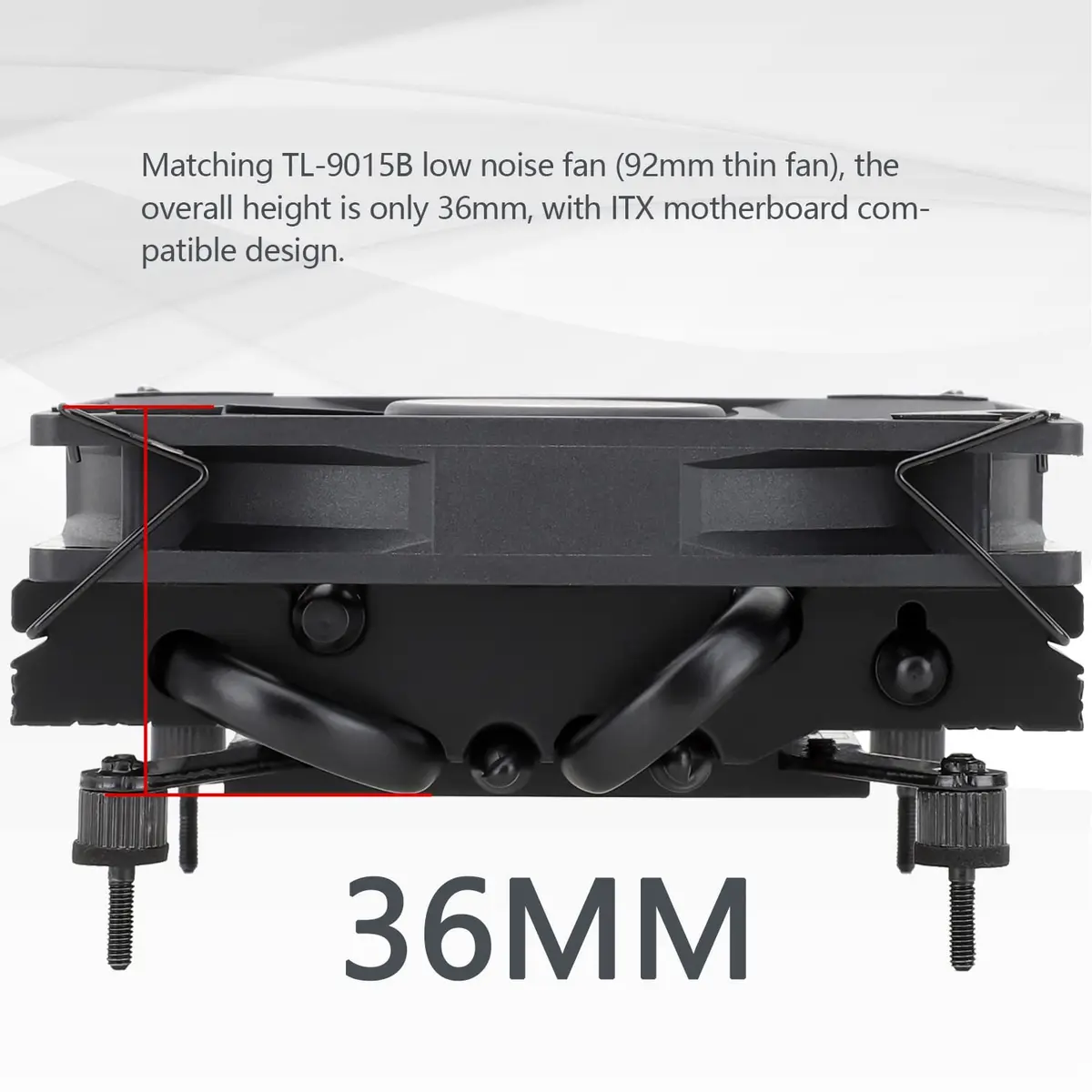

Thermalright AXP90 X36 Black Low Profile CPU Cooler 36mm Height | Compatible with Intel LGA1700/1200/115X & AMD AM4/AM5

• Compact, premium-quality low-profile CPU cooler (36mm total height)
• Good adaptability, all metal platform, with back plate fastener, secondary reflow soldering process
• Support for Intel: 115X/1200; AMD: AM4

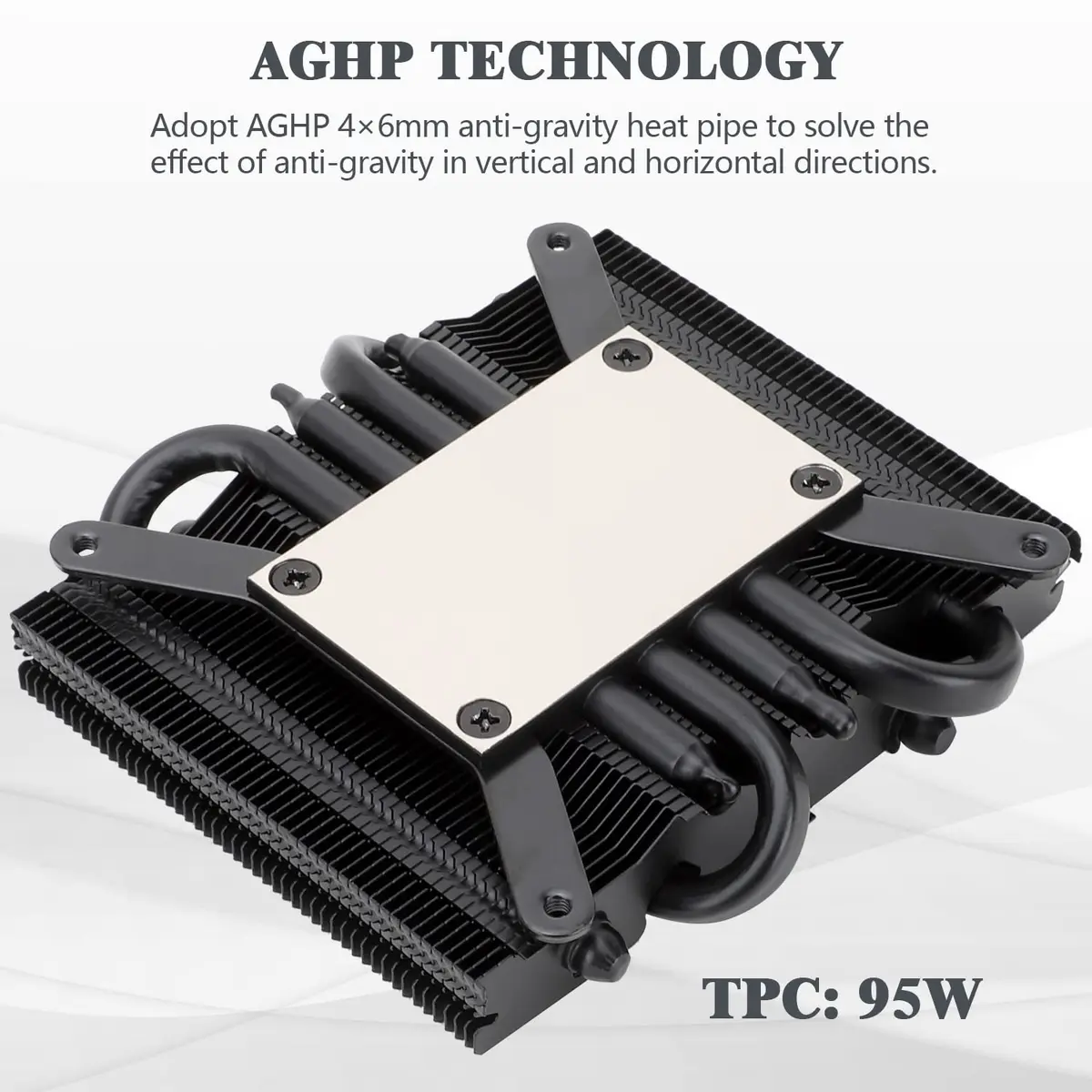

• 4×6mm Heatpipes, Noise≤22.4DBA, Voltage 12V, Current 0.2A (MAX)
• Trusted Thermalright CPU cooler quality

• Prepare Mounting Hardware — Identify the correct mounting brackets for your CPU socket (Intel LGA1700/1200/115X or AMD AM4/AM5) and install the appropriate backplate behind the motherboard. Ensure all screws are snug but not overtightened.
• Apply Thermal Paste — Apply a small amount of the included TF7 thermal paste (pea-sized dot or thin line) to the center of your CPU's integrated heat spreader (IHS). Avoid excessive application.
• Mount the Cooler — Carefully align the cooler's base with the CPU and mounting brackets. Secure the cooler using the provided screws, tightening them in a diagonal pattern to ensure even pressure distribution. Connect the 4-pin PWM fan cable to the CPU_FAN header on your motherboard.
• Final Checks and Boot — Ensure the fan cable is securely connected and no other components obstruct the fan. Boot your system and monitor CPU temperatures in the BIOS or using monitoring software to confirm proper installation and operation.
