What is the difference between a solid-core and split-core current switch?

A solid-core current switch requires the monitored conductor to be threaded through a closed window during installation, making it compact and economical for new wiring. A split-core version opens so it can be clamped around an existing conductor without disconnecting the circuit, which is convenient for retrofits on live panels. These mxuteuk switches are solid-core panel mount types.

Can this current switch trigger a downstream contactor or PLC input?

Yes, these mxuteuk push button switches provide a dry-contact output (normally open or normally closed) that changes state when the button is pressed. Check the listed contact rating (5A @ 250VAC) and match it to the control voltage and current of your PLC input or contactor coil circuit for safe and effective integration.

How to choose the right push button switch for industrial use in India?

Consider the required contact configuration (NO/NC), momentary vs. latching action, voltage and current ratings for both the switch and the LED, and the ambient operating temperature. For India, ensure the 250VAC rating is compatible with local control circuits and that the 16mm panel mount size fits your control panel design. These mxuteuk switches offer a versatile 1NO 1NC SPDT setup.

What are the benefits of using a momentary push button switch with an LED?

Momentary push button switches provide temporary circuit activation only while pressed, ideal for safety controls or specific functions. The integrated LED offers visual confirmation of the switch's state or power to the control circuit, enhancing operational clarity and safety in industrial panels. This pack includes five switches with LEDs in different colors for easy identification.

Are these mxuteuk push button switches suitable for 220V AC circuits in India?

Yes, these switches are rated for up to 250VAC and 5A, making them suitable for use in standard Indian 220V/230V AC control circuits. The LED operates on a separate 12V DC supply. Always ensure installation is performed by a qualified electrician to comply with local electrical codes and safety standards.

How to buy an original mxuteuk push button switch in India?

Purchase original mxuteuk push button switches from crowcrowcrow, sourced directly from authorized US retailers and brand partners. Each unit is factory-sealed and imported per order, with all customs duties and GST included in the listed price. Delivery is via ExpressBox tracked shipping to your Indian pincode.

mxuteuk 16mm Momentary Push Button Switch with LED Light, 1NO 1NC SPDT, 5 Color Pack

Name: mxuteuk 16mm Momentary Push Button Switch with LED Light, 1NO 1NC SPDT, 5 Color Pack | Industrial Control Component
Brand: mxuteuk
SKU: kmq8351
Price: 1957.00 INR
Availability: InStock

About this item

The mxuteuk 16mm momentary push button switches, imported for India, provide essential control for industrial applications. Each pack includes five switches with 1 Normally Open (NO) and 1 Normally Closed (NC) SPDT configuration, featuring a 12V DC LED in Red, Yellow, Green, Blue, and White. These switches are designed for momentary action – push to activate, release to deactivate – making them suitable for controlling electromagnetic starters, contactors, and relays.

Engineered for durability, these switches operate within an ambient temperature range of -25°C to +55°C and are rated for 5A at 250VAC. The copper contacts ensure reliable conductivity. The 16mm mounting hole size and panel mount design allow for easy integration into existing control panels. They are ideal for projects requiring precise momentary control, such as automation systems or custom control interfaces.

For Indian users, these switches offer a reliable component for building or repairing control systems. All customs duties and GST are included in the price, and delivery is handled via ExpressBox for tracked transit. While these are standard industrial components, ensure your local electrical codes and panel integration requirements are met by a qualified electrician.

Key Features

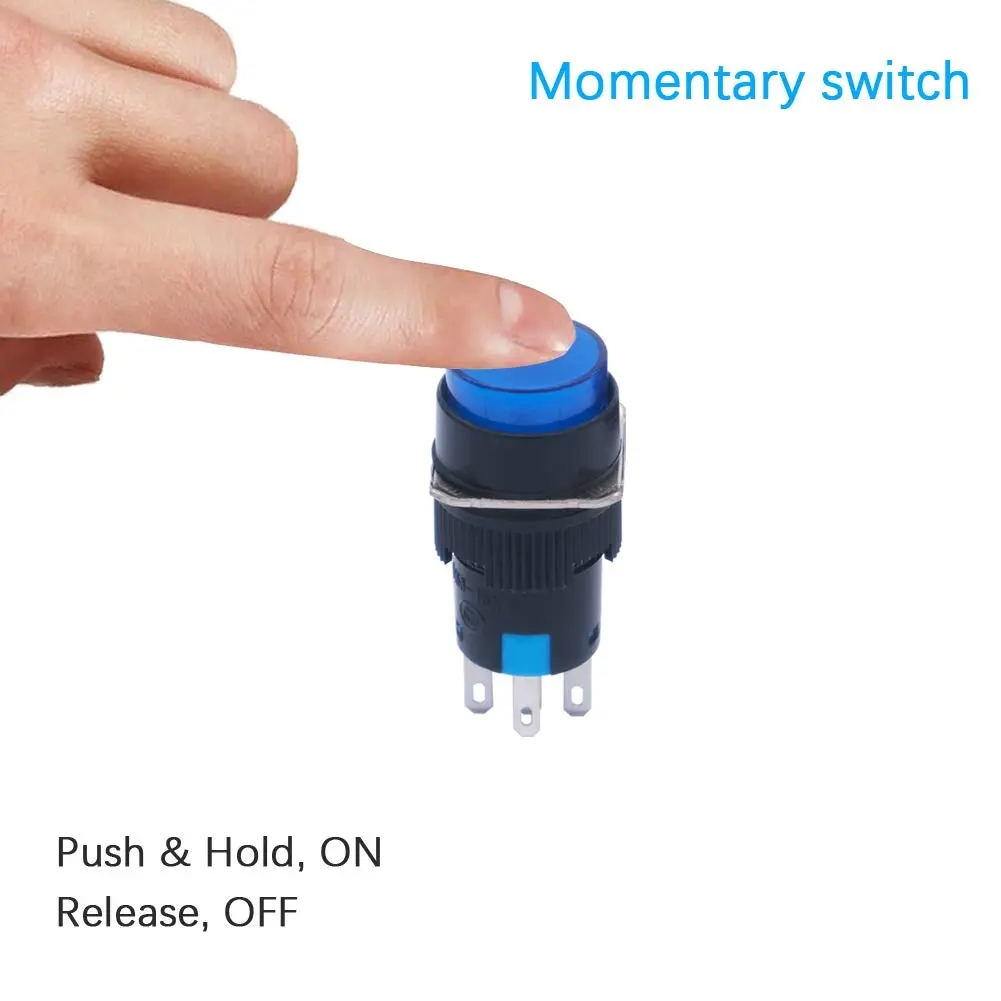

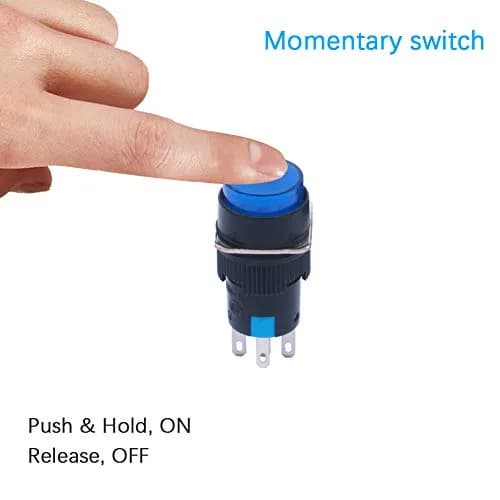

Momentary switch:Push & Hold, ON; Release, OFF；Contact Configuration: 1NO1NC；

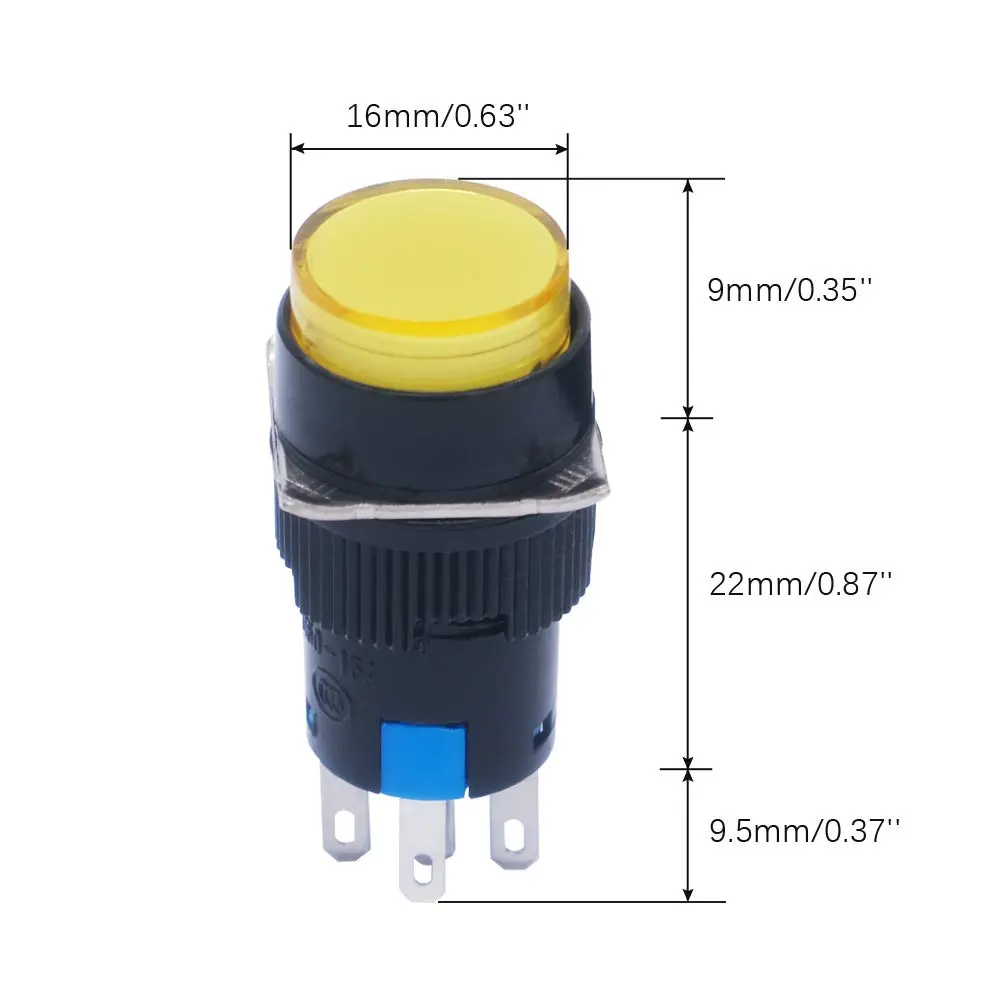

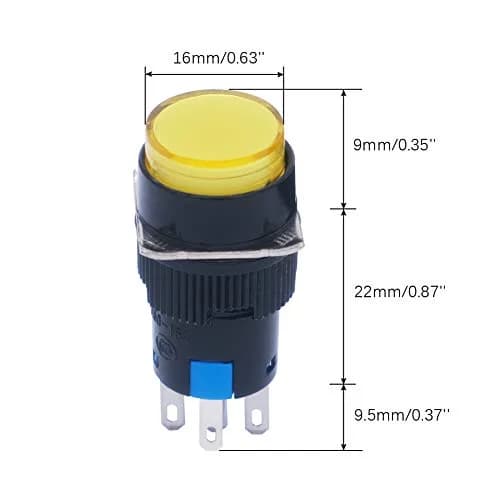

Mounting Hole Size : Φ16mm/0.63''；
LED voltage: 12V DC; Working Voltage: 5A / 250VAC;
Ambient Temperature: -25°C to + 55°C

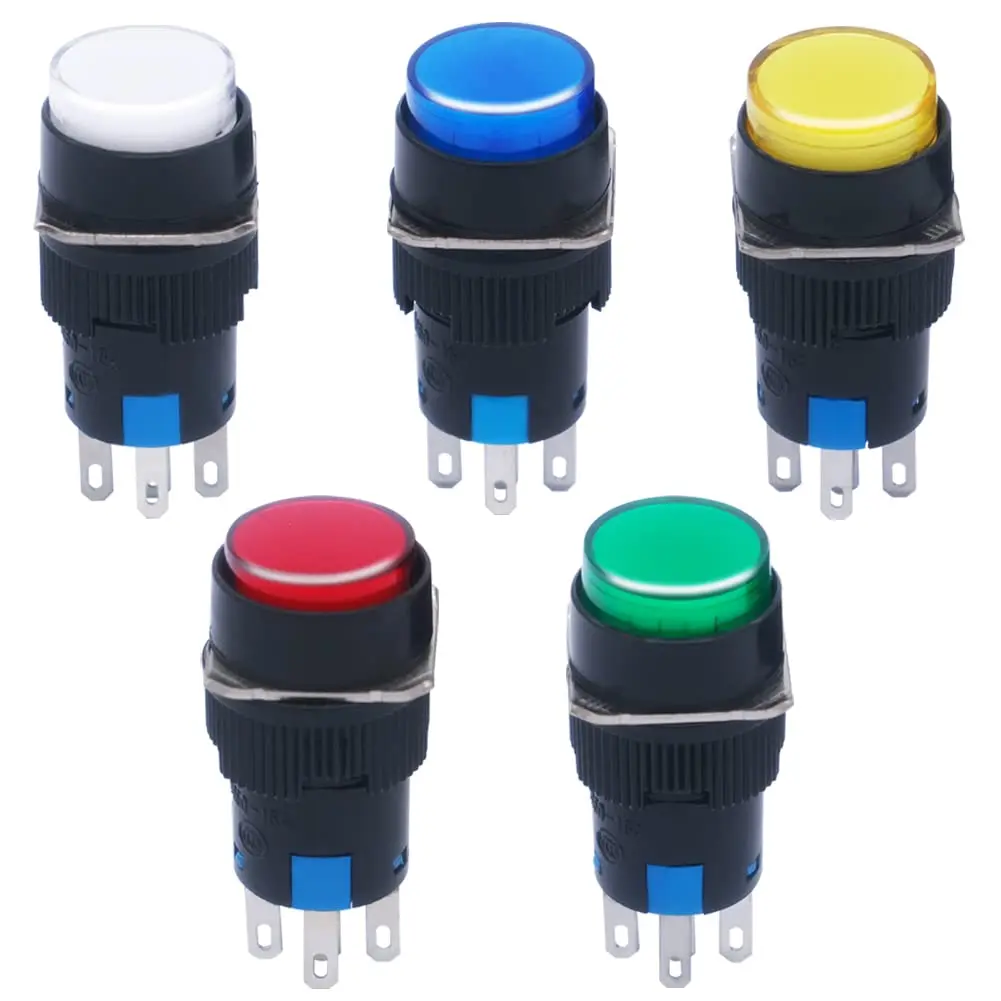

Package Content: 5pcs x Push Button Switch(Red + Yellow + Green + Blue + White)

Why choose this product

Reliable Industrial Control Components

These mxuteuk momentary push button switches are engineered for consistent performance in demanding industrial environments. Featuring 1NO 1NC SPDT contacts and a 12V DC LED indicator, they provide clear visual feedback and precise control for electromagnetic starters, contactors, and relays. The copper contacts ensure durability and conductivity, while the panel-mount design with a 16mm hole size allows for straightforward installation. Operating reliably between -25°C and +55°C, these switches are a dependable choice for automation projects and control panel builds where momentary action is required.

Ideal for Control Panels, Who Should Consider Alternatives

These switches are perfect for engineers and hobbyists building or repairing industrial control panels, automation systems, or custom electronic projects requiring momentary ON/OFF functionality with visual LED feedback. They are well-suited for 12V DC LED indicators and 250VAC/5A circuits. Individuals needing continuous ON/OFF latching switches, switches for high-voltage AC mains power control (beyond 250VAC), or those requiring specific safety certifications like UL or CE should explore alternative products. Also, if your project requires switches for low-voltage DC power control without LED indication, simpler non-LED momentary switches may be more appropriate.

How to use

Drill a 16mm diameter hole in your control panel or enclosure where the switch will be mounted. Ensure the surface is clean and free of debris for a secure fit. — Prepare Mounting Hole
Insert the switch body through the 16mm hole. Secure it from the back using the provided nut and washer, tightening firmly to ensure it remains stable during operation. — Mount the Switch
Connect your control circuit wires to the appropriate terminals: 12V DC to the LED terminals for illumination, and the NO/NC/Common terminals for the momentary switch function according to your circuit diagram. — Wire the Terminals
Apply power to the LED circuit (12V DC) and test the switch's momentary action by pressing and releasing it. Verify that the LED illuminates and the NO/NC contacts switch states as expected. — Test the Functionality

Example scenarios

Typical situations where mxuteuk 16mm Momentary Push Button Switch with LED Light helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building a custom control panel for a small automation project in a factory in Pune, needing momentary switches with status indication.

How this product helps

This 5-pack of mxuteuk switches provides the necessary 1NO 1NC SPDT momentary action and 12V DC LED feedback in multiple colors for clear status indication. The 16mm panel mount size ensures easy integration, and the 5A/250VAC rating is suitable for control circuits.

Scenario 2

Illustrative example

Where it helps

Replacing worn-out momentary push buttons on an existing industrial machine in a workshop in Coimbatore, requiring easy retrofitting.

How this product helps

The 16mm panel mount size and standard SPDT configuration of these mxuteuk switches allow for straightforward replacement. The integrated LED provides an upgrade for status indication, and the pack of five ensures spares are available for other components or future repairs.

Specifications

Usage

Application	Industrial control circuits, electromagnetic starters, contactors, relays
Control Method	Touch / Push Button
Cost per use	5 switches at ₹1,957 — ₹391 per switch
Shelf life after opening	12 months (category default for electronic components)
Reapplication math	N/A (durables)
Contraindications	Not for direct mains power switching beyond 250VAC/5A; not for continuous ON/OFF latching applications.
Allergens / common irritants	N/A

How we compare

Feature	mxuteuk 16mm Momentary	Others
Contact Configuration	1 NO + 1 NC (SPDT)	Varies by brand; often single NO or NC, some SPDT available
LED Illumination	Integrated 12V DC LED in 5 colors	Often requires separate indicator light or is not included
Momentary Action	Standard momentary ON/OFF	Available, but latching types are also common
Voltage/Current Rating	5A @ 250VAC	Typically 5A-10A @ 250VAC, check specific models
Cost per switch (5-pack)	₹391 per switch	₹100 - ₹300 per switch, depending on features and brand

SKU	kmq8351
Brand	mxuteuk
Model Number	CB16AY-11D-DC12V
Product Type	Momentary Push Button Switch
Mounting Hole Size	16mm (0.63")
Mounting Type	Panel Mount
Actuator Type	Push Button
Material	Copper
Color Options	Red, Yellow, Green, Blue, White (5-piece pack)
Operating Voltage (LED)	12V DC
Working Voltage (Switch)	5A / 250VAC
Ambient Temperature Range	-25°C to +55°C
Circuit Type	SPDT (1NO 1NC)
Control Type	Momentary ON/OFF
Contact Rating	5A @ 250VAC
Item Package Quantity	5 pieces
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
