Control Your Circuits with Confidence

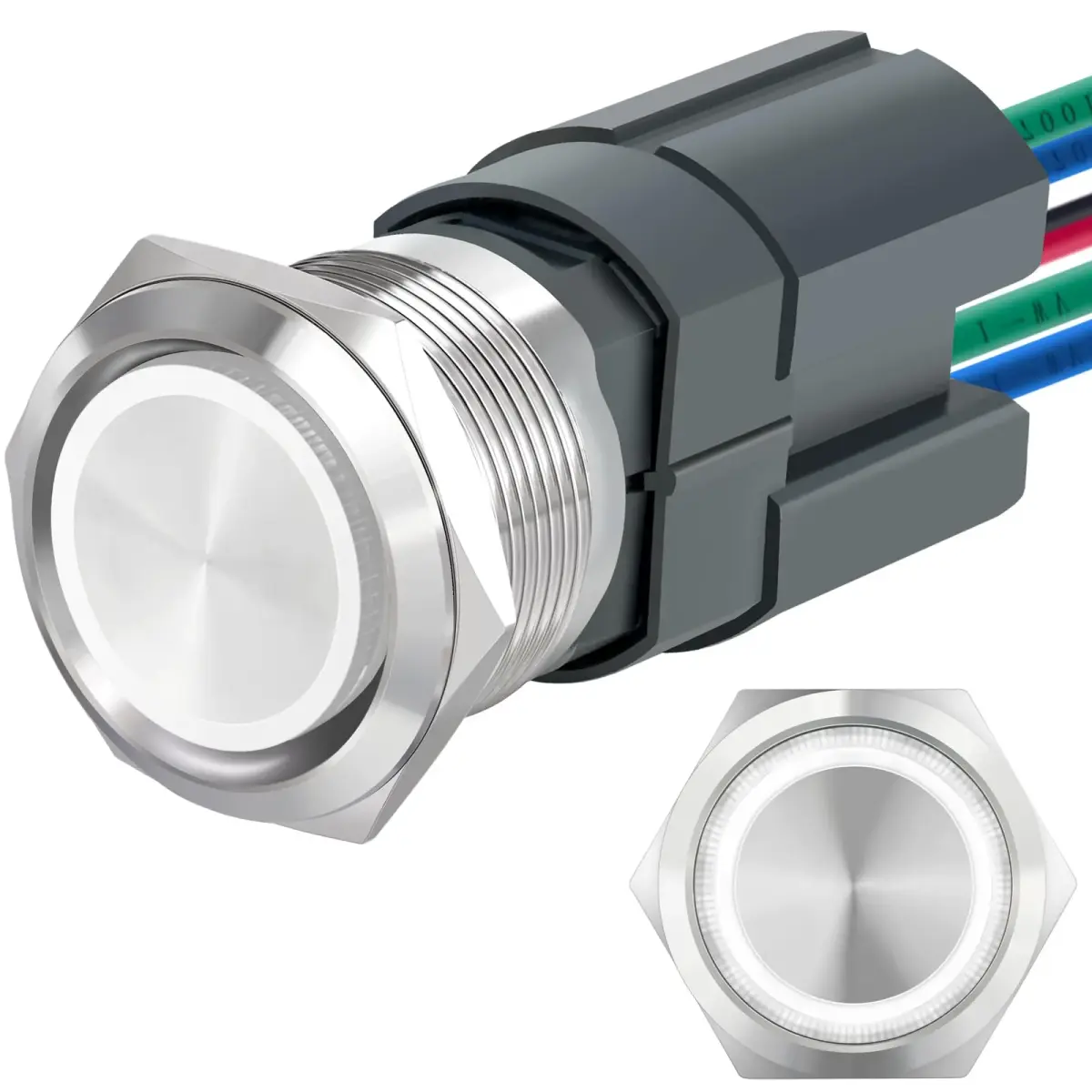

The ZJWZJH 22mm latching push button switch offers robust performance for demanding applications. With a 15A resistive load capacity and 24V white LED illumination, it provides clear visual feedback. Its IP67 waterproof and IK10 impact-resistant rating, combined with a 304 stainless steel enclosure, ensures durability in harsh Indian industrial or automotive environments. The DPST 2NO contacts and included pre-wired socket simplify installation, making it a reliable choice for control systems.

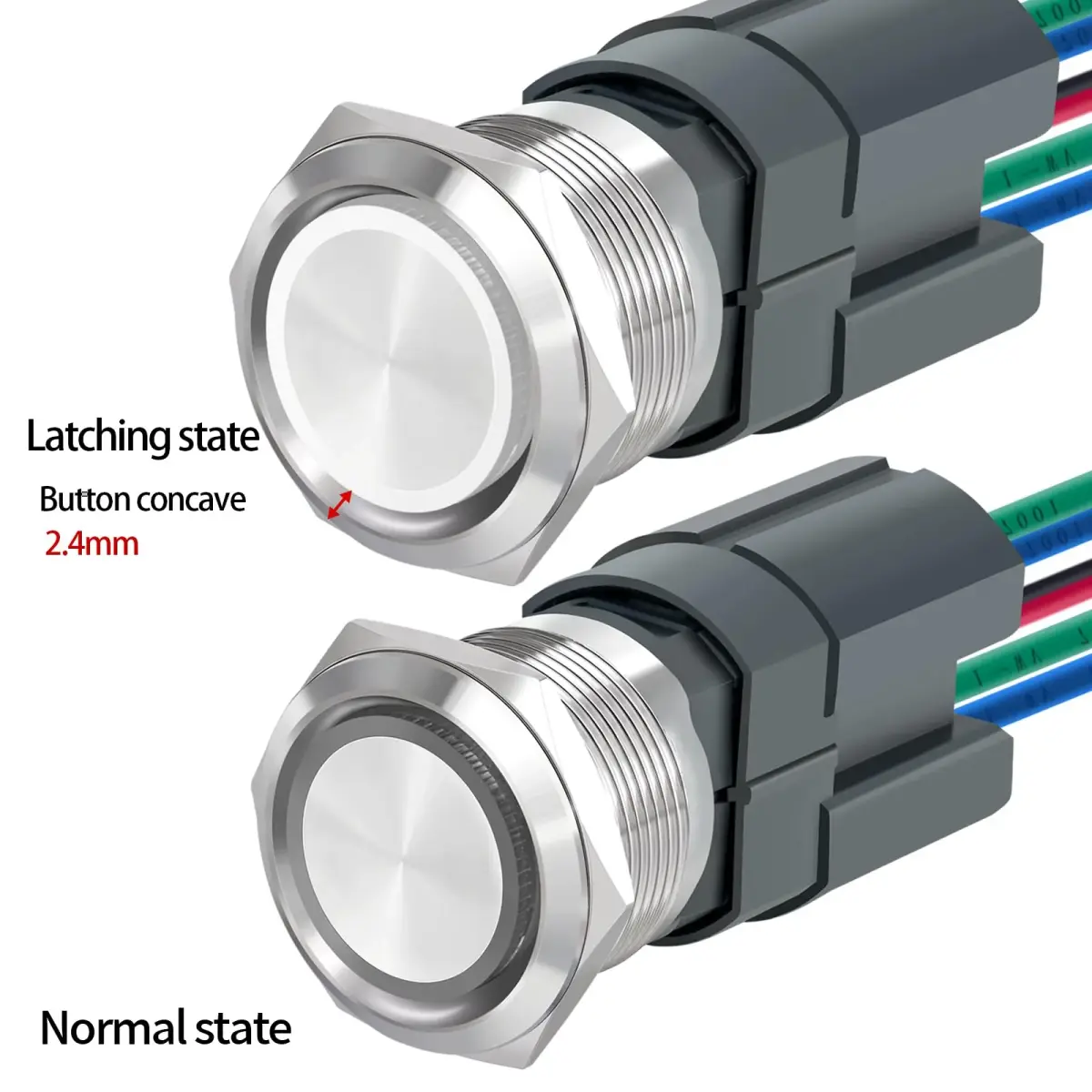

This switch is designed for latching operation: one press turns it ON, and a second press turns it OFF. The silver alloy contacts offer a long mechanical life of 1,000,000 cycles. It's suitable for circuits requiring up to 15A, with a rated insulation voltage of 250VAC and operating voltage of 24V DC/AC. The included wire connector eliminates the need for soldering, simplifying setup for DIY projects or professional installations.
Imported for Indian customers, this switch provides a reliable alternative to local options for applications like electromagnetic starters, relays, PC power controls, and custom dashboards. All customs duties and GST are included in the displayed price. Delivery is handled via ExpressBox, arriving within 14-16 days.
Robust Industrial Performance

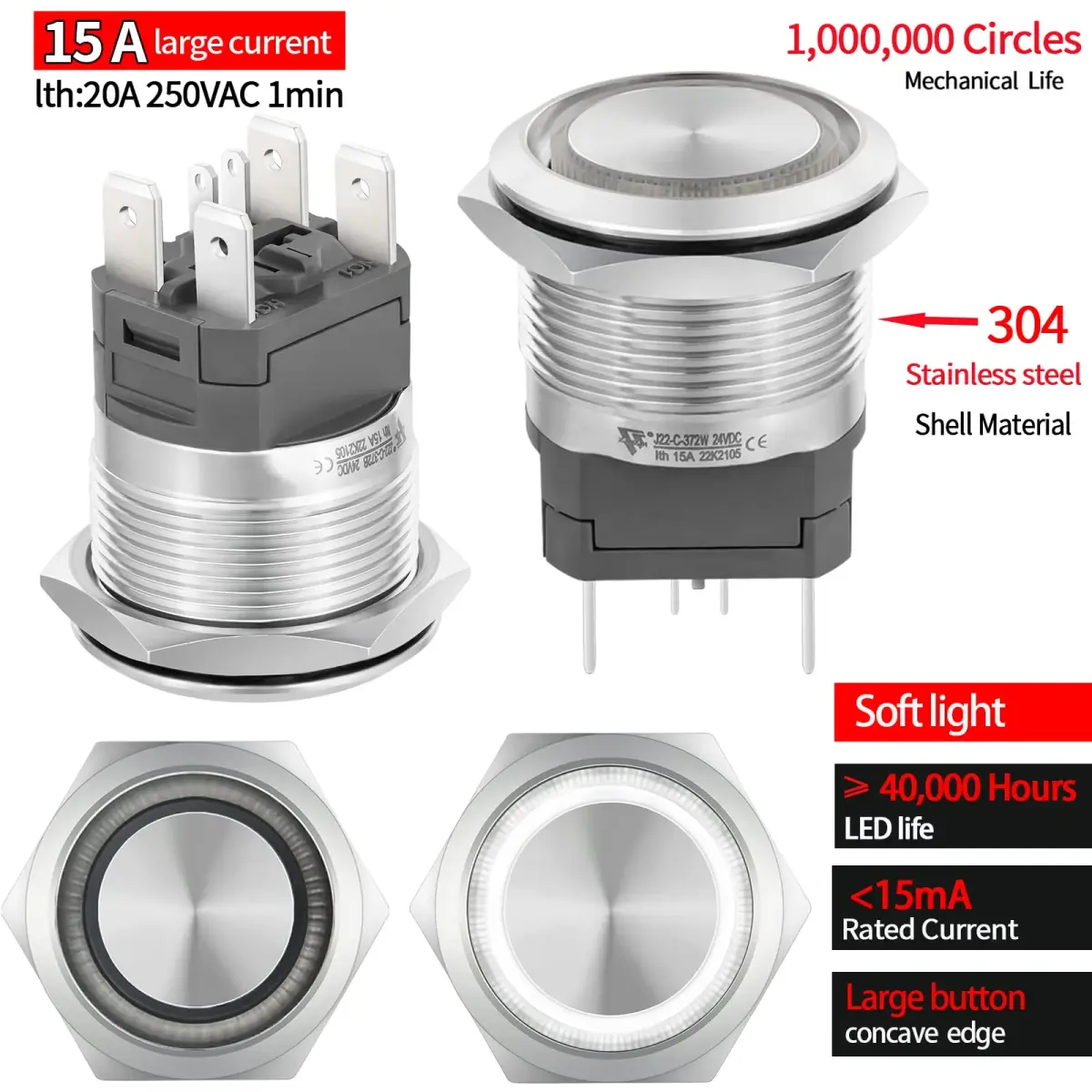

This ZJWZJH push button switch is built for reliability. Its 15A heavy-duty rating, DPST 2NO silver alloy contacts, and 1,000,000-cycle mechanical life ensure consistent performance. The 304 stainless steel construction and IP67 waterproofing make it resistant to dust, rain, and temporary submersion, ideal for challenging Indian industrial environments or outdoor applications. The 24V white LED provides clear status indication. Sourced from authorized US retailers and authorized brand partners, it offers a dependable alternative to local components.
Ideal for DIY & Professional Projects

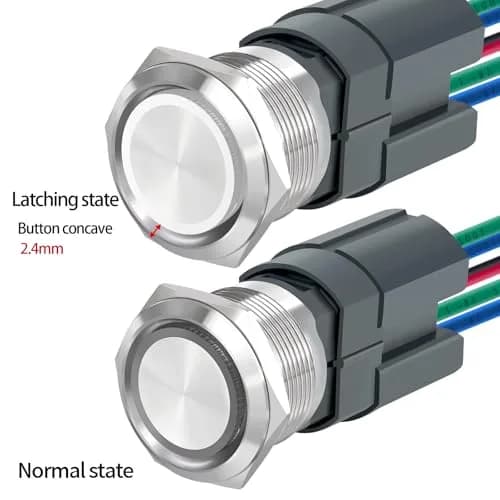

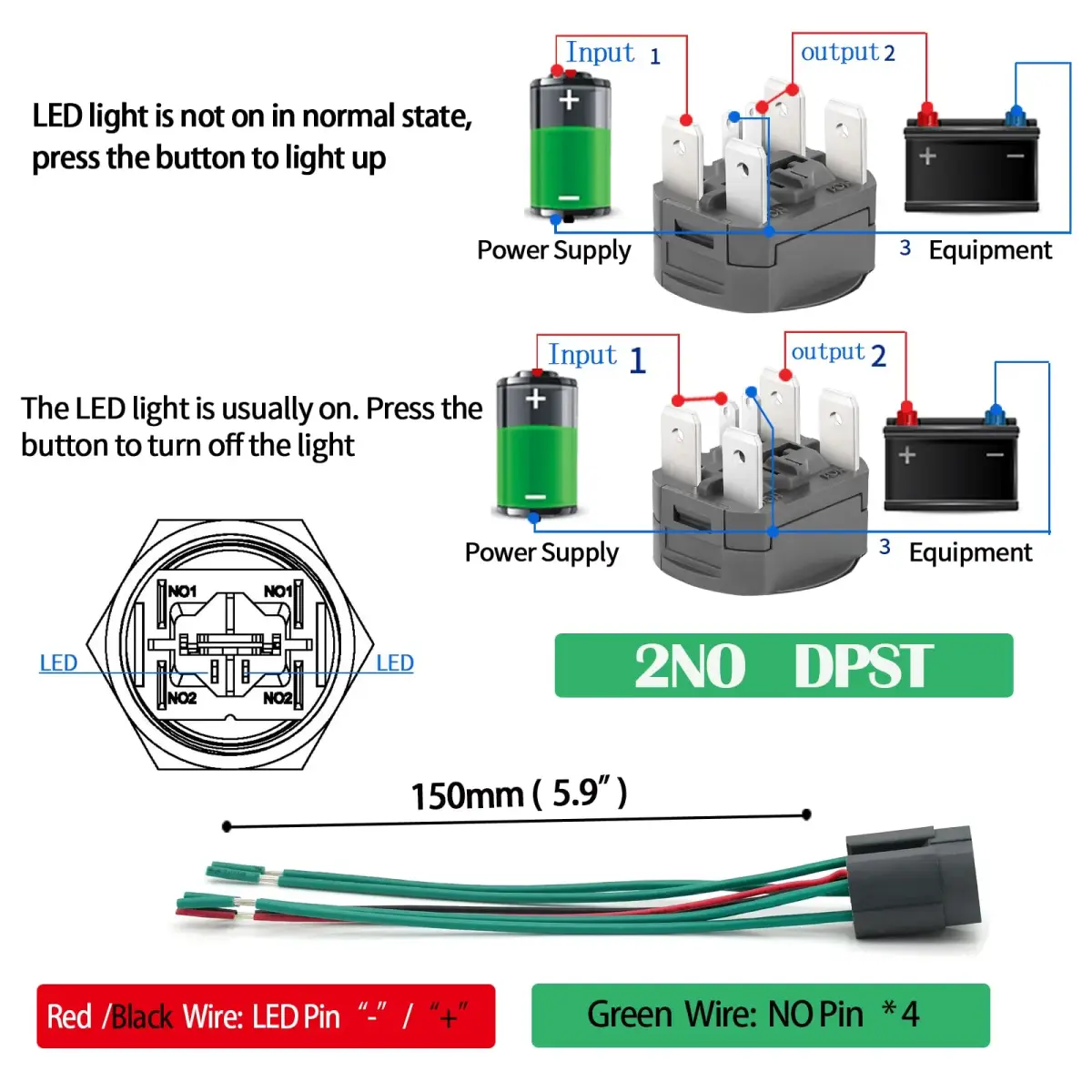

This switch is perfect for anyone needing a durable, easy-to-install control component. Its latching function (push ON, push OFF) is straightforward. The included pre-wired socket means no soldering is required, saving time and effort for PC power modifications, custom dashboards, marine installations, or industrial control panels. While suitable for many applications, avoid using it for inductive loads exceeding 4A or submerging it underwater. For high-power inductive circuits, consider specialized relays.
Typical situations where ZJWZJH 22mm Latching Push Button Switch 15A 24V White LED | UL Listed Waterproof Stainless Steel helps — illustrative scenarios, not customer reviews.
An Indian workshop needs a reliable ON/OFF switch for a custom machine tool, exposed to dust and occasional water splashes.
The ZJWZJH 15A latching switch's IP67 rating and stainless steel build protect against dust and splashes. Its 15A capacity handles machine tool power, and the LED confirms operation. Easy installation via socket saves setup time.
A hobbyist in India is building a custom PC with unique power controls and wants a durable, visually appealing switch.
This switch's 22mm size fits standard PC case openings. The 24V white LED adds a custom aesthetic, and the latching function provides a clear ON/OFF state. The included socket simplifies wiring within the PC build.

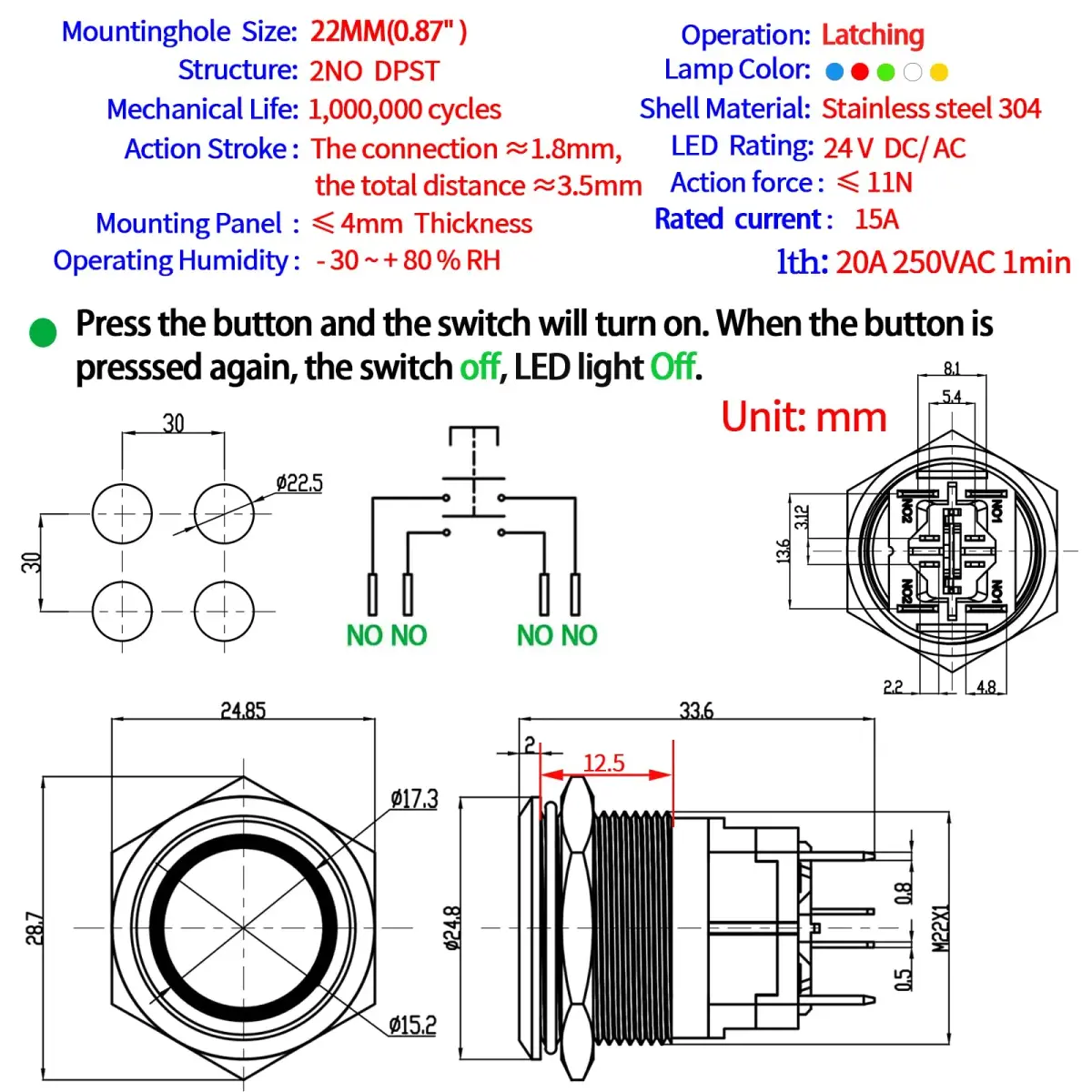

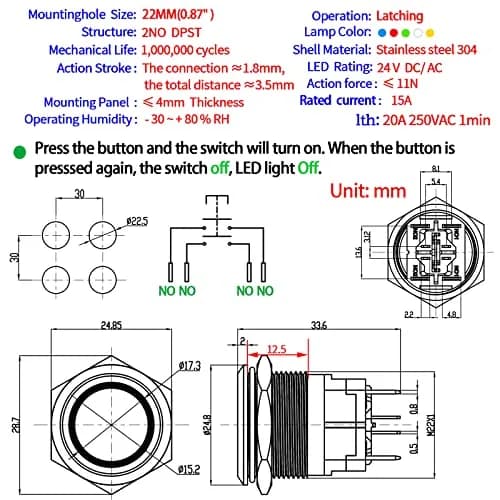

| Switch Type | Latching Push Button |
| Operation Mode | Push ON, Push OFF |
| Heating Current | 15A |
| Rated Insulation Voltage | 250V AC |
| Rated Voltage | 24V DC/AC |
| Rated Current (Resistive Load) | 15A |
| Rated Current (Inductive Load) | 4A |
| Mechanical Life | 1,000,000 cycles |
| Action Stroke | 1.1mm (connection), 3.5mm (total distance) |
| Action Force | 4~8N |
| Applications | Electromagnetic starter, relay, Doorbell, Horn Button Switch, PC Power Switch, marine, automotive, industrial panels |
| Cost per use | 1,000,000 cycles at ₹2,990 — ₹0.0030 per cycle |
| Shelf life after opening | 12 months |
| Contraindications | Do not submerge underwater; avoid inductive loads above 4A to prevent overheating. |
| Allergens / common irritants | None specified |
| Feature | ZJWZJH 22mm Latching | Others |
|---|---|---|
| Switch Type | Latching Push Button (DPST 2NO), 24V White LED | Typically momentary or basic latching switches, often without LED or specific load ratings. Varies by brand. |
| Current Rating | 15A resistive, 4A inductive | Local options may offer 10A or 16A, but inductive load ratings are often not specified or lower. |

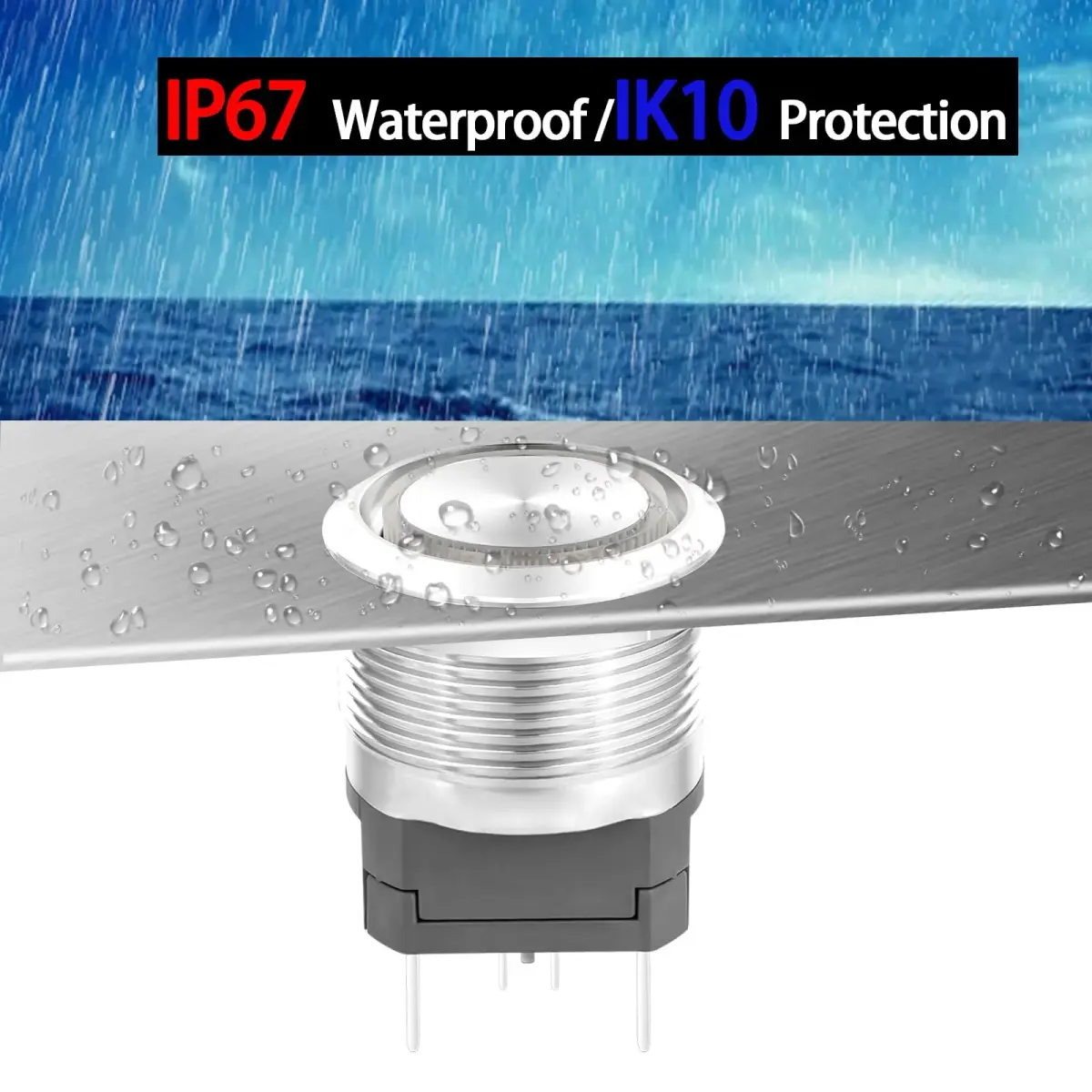

| Durability & Protection | IP67 Waterproof, 304 Stainless Steel, IK10 impact resistance | Many local switches are not waterproof or use plastic enclosures, offering lower protection against dust and moisture. |
| Certifications | UL Listed, CE, CCC | Local switches may have BIS certification, but UL listing is uncommon for comparable components. |
| Installation Convenience | Includes pre-wired socket, no soldering needed | Often requires direct soldering to terminals, increasing installation complexity and time. |
| SKU | cbz3088 |
| GTIN | 0761312010544 |
| Brand | ZJWZJH |
| Model Number | J22-C-372WDS |
| Mounting Hole Size | 22mm (7/8") |
| Head Diameter | 24.9mm (0.98") |
| Total Length | 33.6mm (1.32") |
| Material | 304 Stainless Steel (Shell), 316 Stainless Steel (Button Head) |
| Color | Silver (Switch), White (LED) |
| Shape | Round Flat Head |
| Protection Level | IP67, IK10 |
| Mounting Panel Thickness | ≤9mm |
| Nut Torque | 5~14 N.m |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
About ZJWZJH
ZJWZJH specializes in industrial electrical components, offering durable and reliable switches and controls for demanding applications.
