How to buy an original ZJWZJH 22mm Latching Push Button Switch in India?

Purchase directly from crowcrowcrow.com to ensure you receive an original, factory-sealed ZJWZJH 22mm latching push button switch. We import directly from authorized US retailers and authorized brand partners, include all customs duties and GST in the price, and provide an ExpressBox tracked delivery to your Indian pincode.

What is the difference between latching and momentary push buttons?

A latching push button switch stays in its last position after being pressed; push once for ON, push again for OFF. A momentary switch only stays active while the button is held down. This ZJWZJH switch is latching, ideal for controlling power states.

Can this 24V switch be used with Indian 230V AC mains?

No, this switch is rated for 24V DC/AC operation and 250VAC insulation voltage. It is not designed to directly switch 230V AC mains power. Use it for low-voltage control circuits, such as activating relays or PLCs, that are powered by a compatible 24V supply.

Is the ZJWZJH switch suitable for outdoor use in India?

Yes, the switch has an IP67 waterproof rating and is constructed from durable 304 stainless steel, making it resistant to dust, rain, and temporary immersion. This ensures reliable performance in India's varied climate conditions, though it should not be submerged underwater.

What is the current rating for this push button switch?

The switch has a heating current rating of 15A for resistive loads and 4A for inductive loads. It is UL Listed for 20 Amp 250V AC. Ensure your circuit's current does not exceed 15A to prevent overheating and burnout.

Does the switch come with wires or require soldering?

This switch comes with a convenient pre-wired socket plug, eliminating the need for soldering. The included wires are thick 1.5mm² for the main switch function, capable of withstanding 15A, and 0.3mm² for the LED connections, simplifying installation.

What applications is this 22mm push button switch best suited for?

It is widely used for electromagnetic starters, relays, doorbells, horn buttons, PC power switches, car dashboards, boats, and general circuit control where a latching ON/OFF function is required for low-voltage systems.

ZJWZJH 22mm Latching Push Button Switch Green LED

Name: ZJWZJH 22mm Latching Push Button Switch 25mm (0.98") | UL Listed 15A Waterproof Green LED
Brand: ZJWZJH
SKU: txa0495
Price: 2359.00 INR
Availability: InStock

About this item

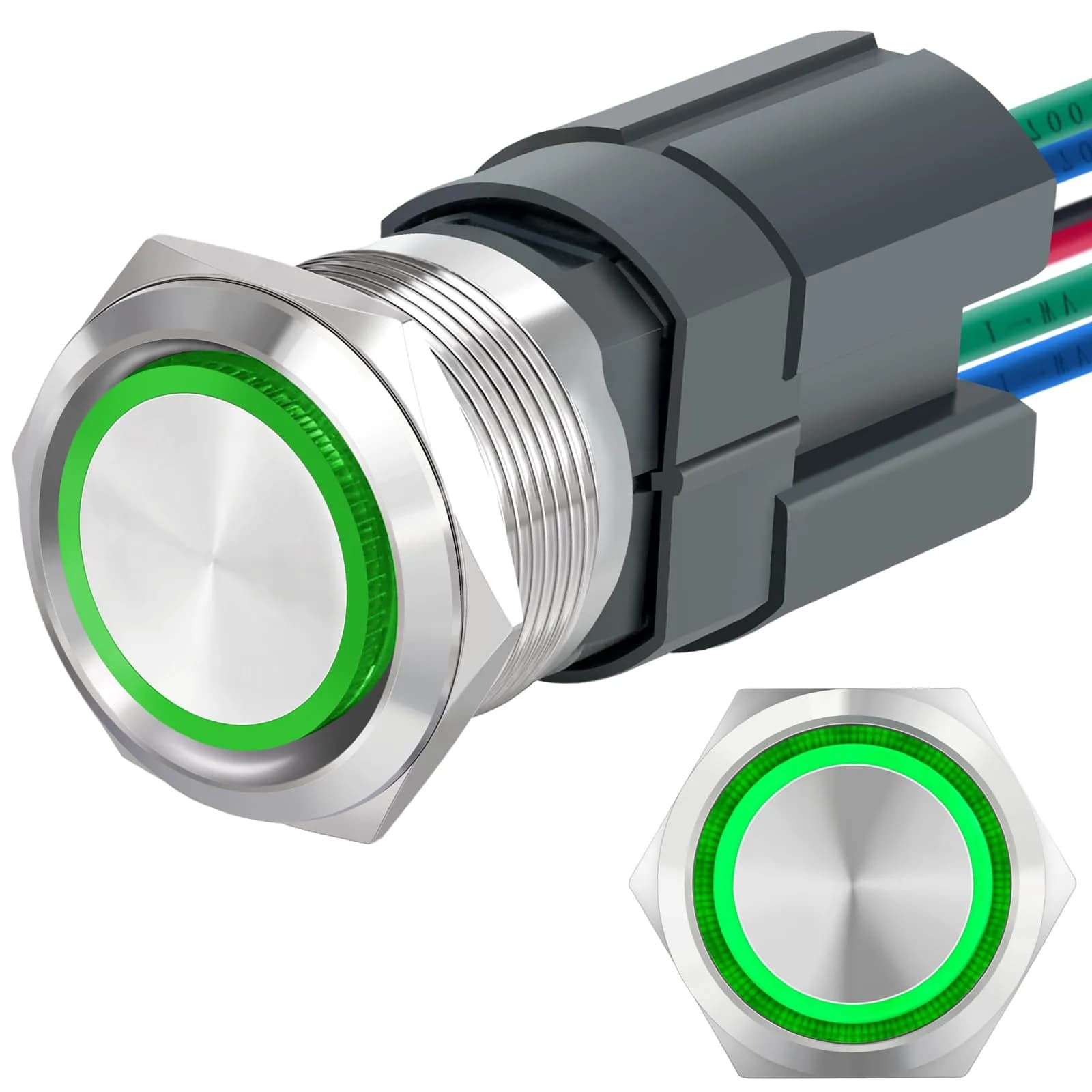

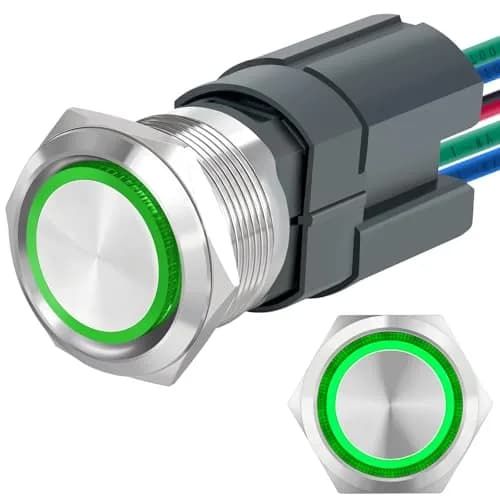

The ZJWZJH 22mm latching push button switch offers robust performance for various applications. Featuring a DPST 2NO configuration and a 15A resistive load rating, it's built for reliability. The 24V green LED provides clear status indication, while the IP67 waterproof and IK10 impact-resistant stainless steel construction ensures durability in demanding Indian environments.

This switch is designed for ease of use, coming with a pre-wired socket that eliminates the need for soldering. Its latching mechanism means a single push turns it on, and another push turns it off. The 2NO contacts and silver alloy construction contribute to a mechanical life of 1,000,000 cycles, making it a long-lasting component for your projects.

Perfect for integrating into industrial control panels, PC power systems, car dashboards, or marine applications, this switch is a versatile choice. It is UL, CE, and CCC listed, providing assurance of quality and safety. All customs duties and GST are included in the displayed price, with delivery via ExpressBox tracked shipping.

Key Features

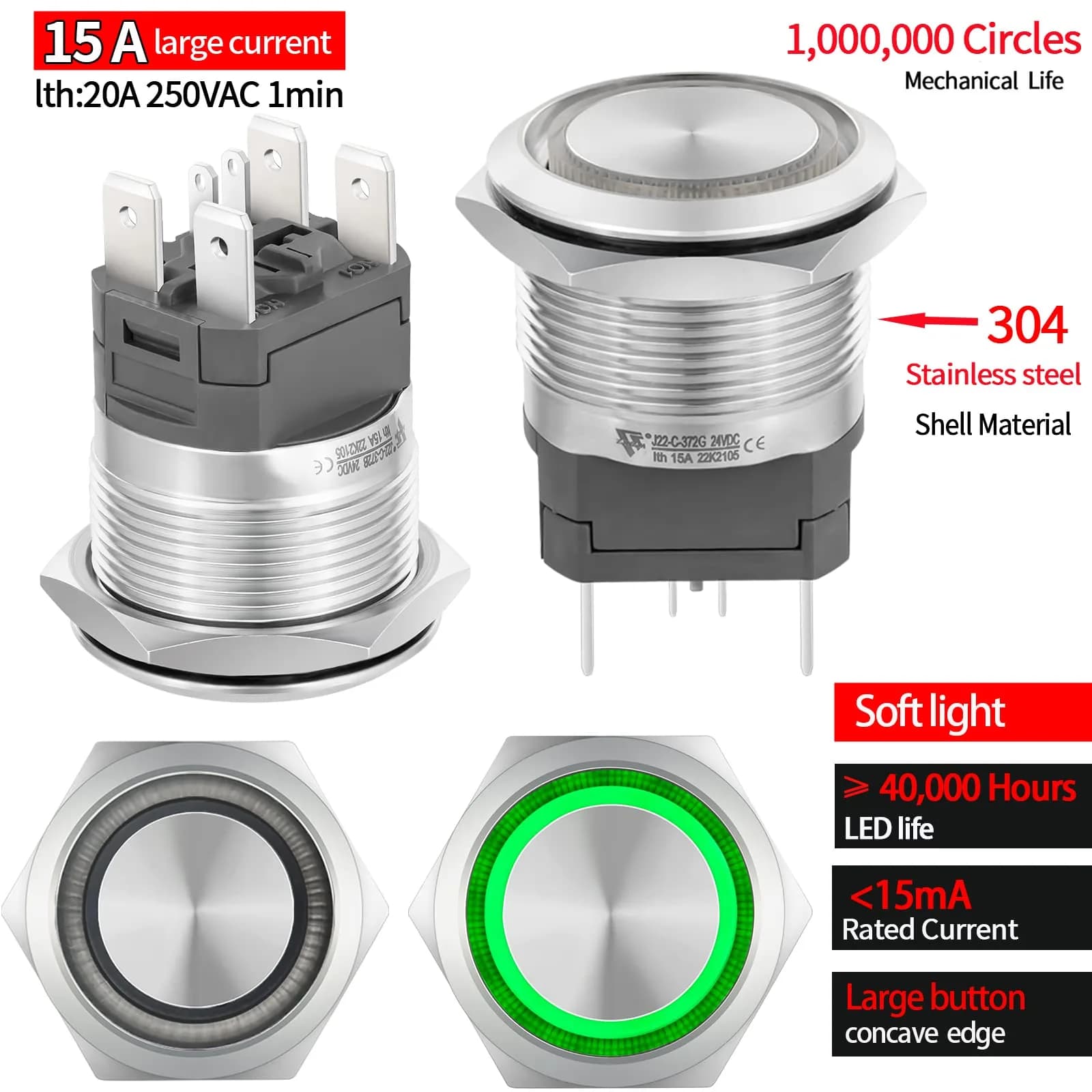

UL Listed & 15-20A Heavy Duty — Latching push button switch is UL Listed, CE and CCC Listed. Current Rating:20 Amp 250V AC,Operating Current: 15 Amp. Latching operation: push once to latch ON, push again to release OFF.

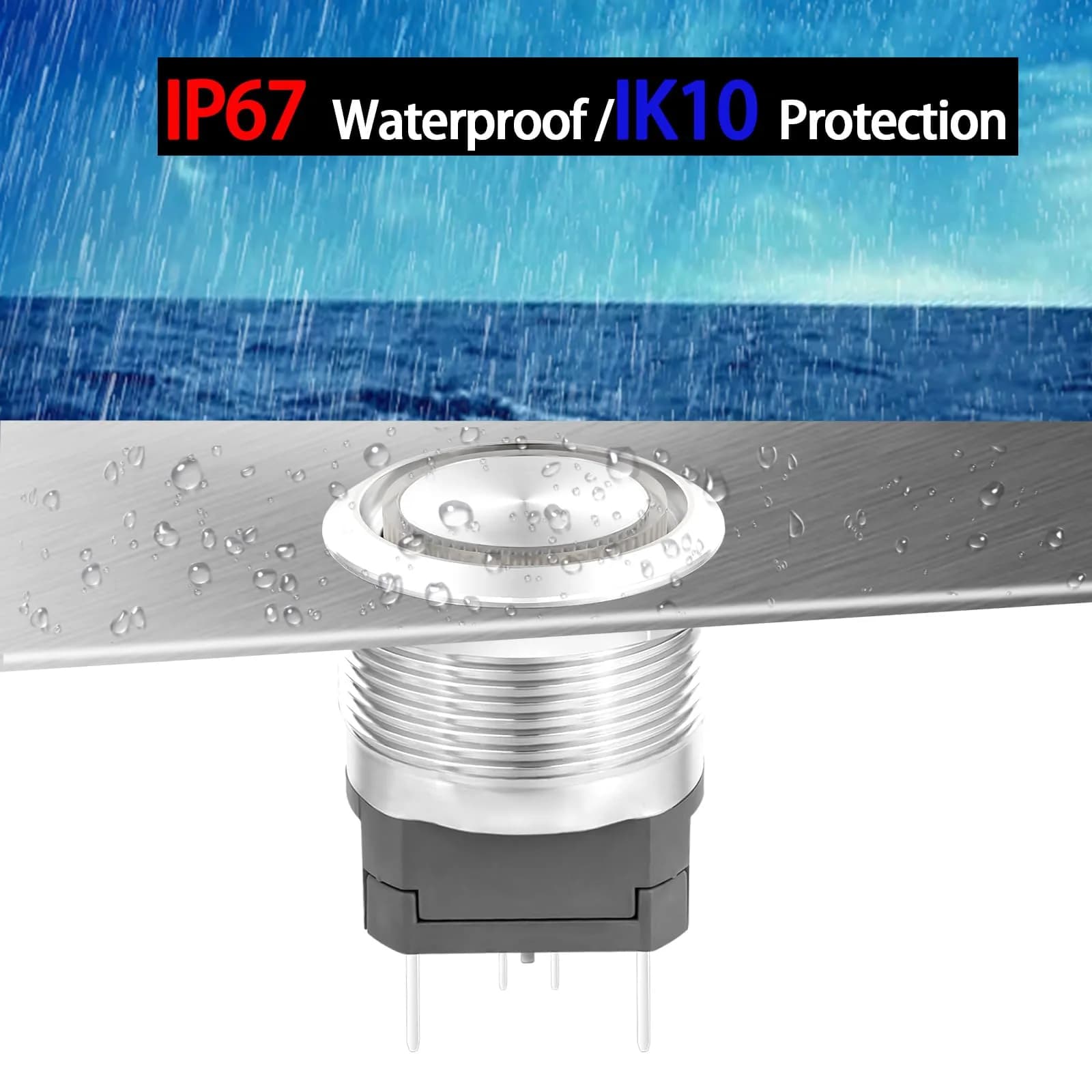

IP67 Waterproof & 304 Stainless Steel — IP67 rated for outdoor panels, resists dust, rain, and temporary immersion. Shell: Stainless Steel 304; Button head: Stainless Steel 316 (higher corrosion resistance), durable for harsh environments.
24V Bright Green LED & DPST 2NO — 24V DC/AC Green LED ring light Unique toothed circular transparent cover for brighter more eye-catching light. DPST 2NO (2 Normally Open) contacts, silver alloy contacts. mechanical lifes 1,000,000 cycles.
22mm Easy Mount & Pre-wired Socket — Fits 7/8" (22mm) mounting hole. Comes with wire socket plug, no soldering needed.
Wide Use & Package — Perfect for PC power, marine switch, car dashboard, boat, industrial panel. Package includes: 1x 22mm push button switch, 1x wire socket plug.

Why choose this product

Robust Performance for Indian Conditions

This ZJWZJH switch is engineered for durability, featuring an IP67 waterproof rating and a robust stainless steel build. It withstands dust, rain, and temporary submersion, making it ideal for use in India's varied climate, from humid coastal regions to dusty industrial sites. The 24V green LED ensures clear visibility. Unlike generic switches, its construction ensures longevity and consistent performance, backed by UL, CE, and CCC listings.

Ideal for DIY Projects & Industrial Use

This switch is perfect for hobbyists and professionals alike. Its latching ON/OFF function and pre-wired socket simplify installation for PC power, car dashboards, marine applications, or industrial control panels. If you need a reliable, easy-to-install switch for a 24V DC or AC circuit with a 15A resistive load, this is a strong choice. Those requiring continuous AC inductive load switching above 4A or a non-latching momentary action should consider alternative models.

How to use

Ensure a clean 22mm (7/8") diameter mounting hole is available on your panel, with a maximum thickness of 9mm. The stainless steel construction ensures durability in various environments. — Prepare Mounting Hole

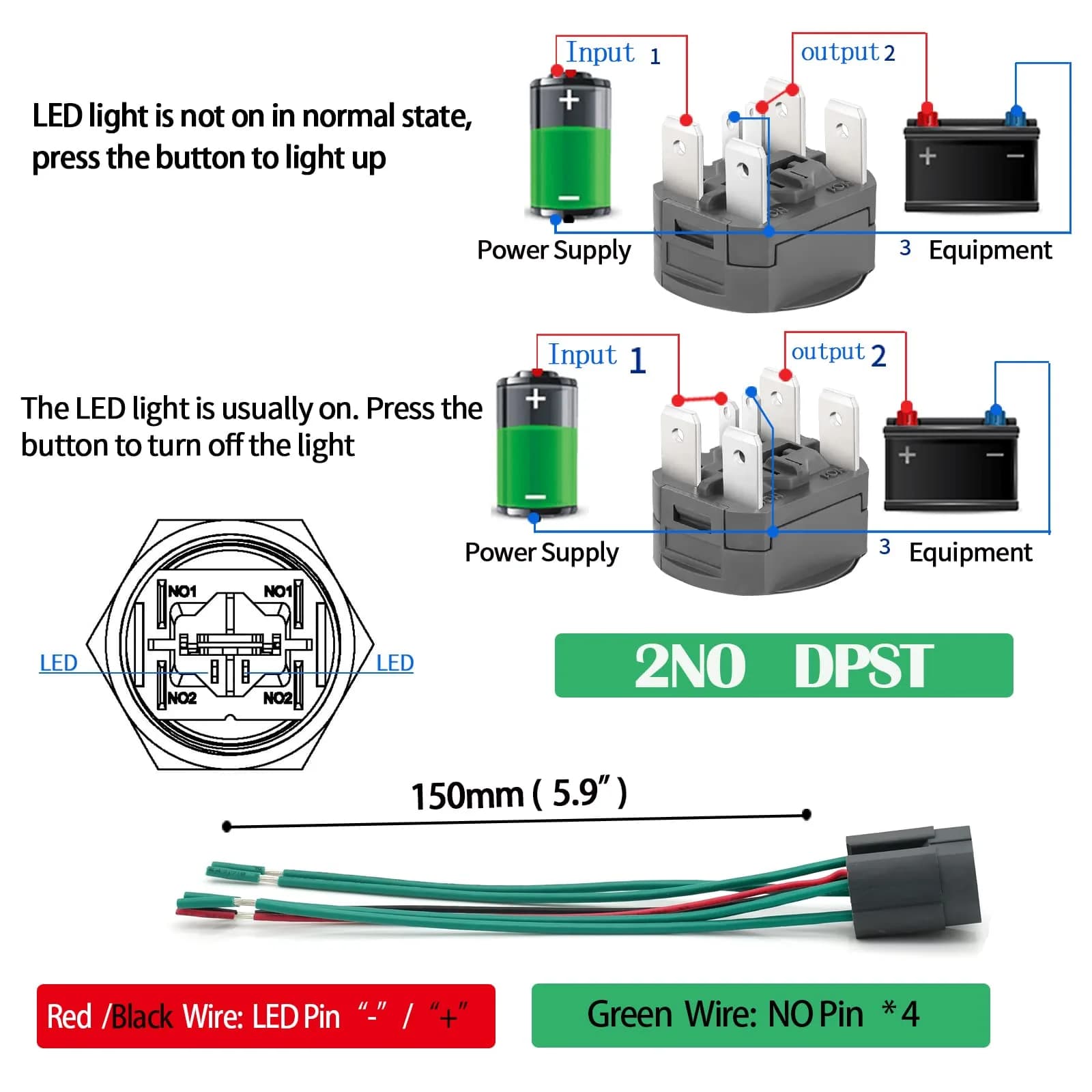

Utilize the included pre-wired socket plug. Connect the 1.5mm² green wires to your load circuit (normally open contacts) and the 0.3mm² red (LED +) and black (LED -) wires to your 24V DC/AC power source for the LED indicator. — Connect Wires
Insert the switch body through the prepared panel hole. Secure it from the back using the provided nut, tightening to 5-14 N.m torque. Ensure the rubber O-ring creates a proper seal for IP67 waterproofing. — Mount the Switch

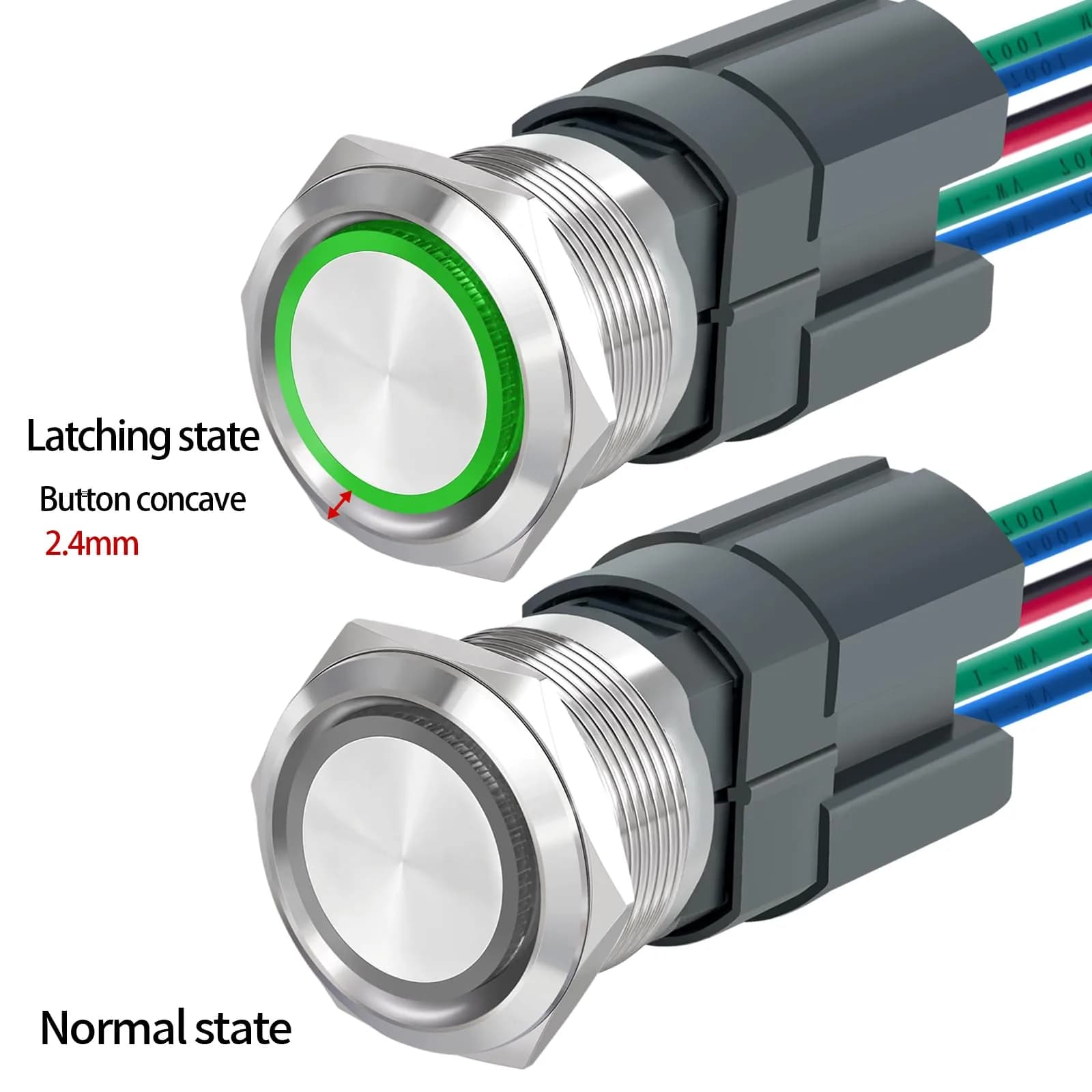

Push the button once to activate the circuit (ON state, LED illuminates). Push again to deactivate the circuit (OFF state, LED turns off). Verify the switch functions correctly for your intended application. — Operate and Test

Example scenarios

Typical situations where ZJWZJH 22mm Latching Push Button Switch 25mm (0.98") | UL Listed 15A Waterproof Green LED helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Automotive enthusiast building a custom dashboard for a car or boat in India.

How this product helps

This IP67 waterproof, 22mm stainless steel switch with a bright green LED is perfect for adding custom controls like auxiliary lights or power outlets. The pre-wired socket simplifies installation, and its robust build withstands vibrations and weather.

Scenario 2

Illustrative example

Where it helps

Industrial control panel upgrade requiring a reliable ON/OFF switch for a 24V system.

How this product helps

The UL, CE, CCC listed ZJWZJH switch offers a 15A resistive load capacity and a 1,000,000-cycle lifespan. Its latching function and easy-to-install socket make it suitable for replacing older switches or integrating into new control panels for machinery or automation.

Specifications

Composition

Switch Combination	DPST 2NO (2 Normally Open)
Contact Material	Silver Alloy
LED Rating	24V DC/AC
Wire Connector Gauge	1.5mm² (Green NO), 0.3mm² (Red LED+, Black LED-)

Usage

Switch Type	Latching Push Button
Operation Mode	Push ON, Push OFF
Heating Current	15A
Rated Insulation Voltage	250VAC
Rated Voltage	24V DC/AC
Rated Current (Resistive Load)	15A
Rated Current (Inductive Load)	4A
Mechanical Lifespan	1,000,000 cycles
Cost per use	1,000,000 cycles at ₹2,359 — ₹0.0024 per cycle
Shelf life after opening

How we compare

Feature	ZJWZJH 22mm Latching	Others
Authenticity & Certification	UL, CE, CCC listed; sourced from authorized US retailers and authorized brand partners for guaranteed authenticity.	Local switches may lack comprehensive certifications; authenticity can vary by brand and seller.
Waterproof & Durability	IP67 waterproof, IK10 impact-resistant, 304 Stainless Steel construction for harsh environments.	Many local switches offer basic splash resistance but often lack IP67 rating or robust stainless steel builds.
Current & Load Handling	15A resistive load, 4A inductive load, 24V DC/AC operation with 250VAC insulation.	Local alternatives may have lower current ratings or less defined inductive load handling, typically priced ₹100-₹400.
Ease of Installation	Includes pre-wired socket, eliminating soldering for quick setup.	Many local switches require direct soldering to terminals, increasing installation complexity and time.
Cost per Cycle

SKU	txa0495
GTIN	0761312010513
Brand	ZJWZJH
Model Number	J22-C-372GDS

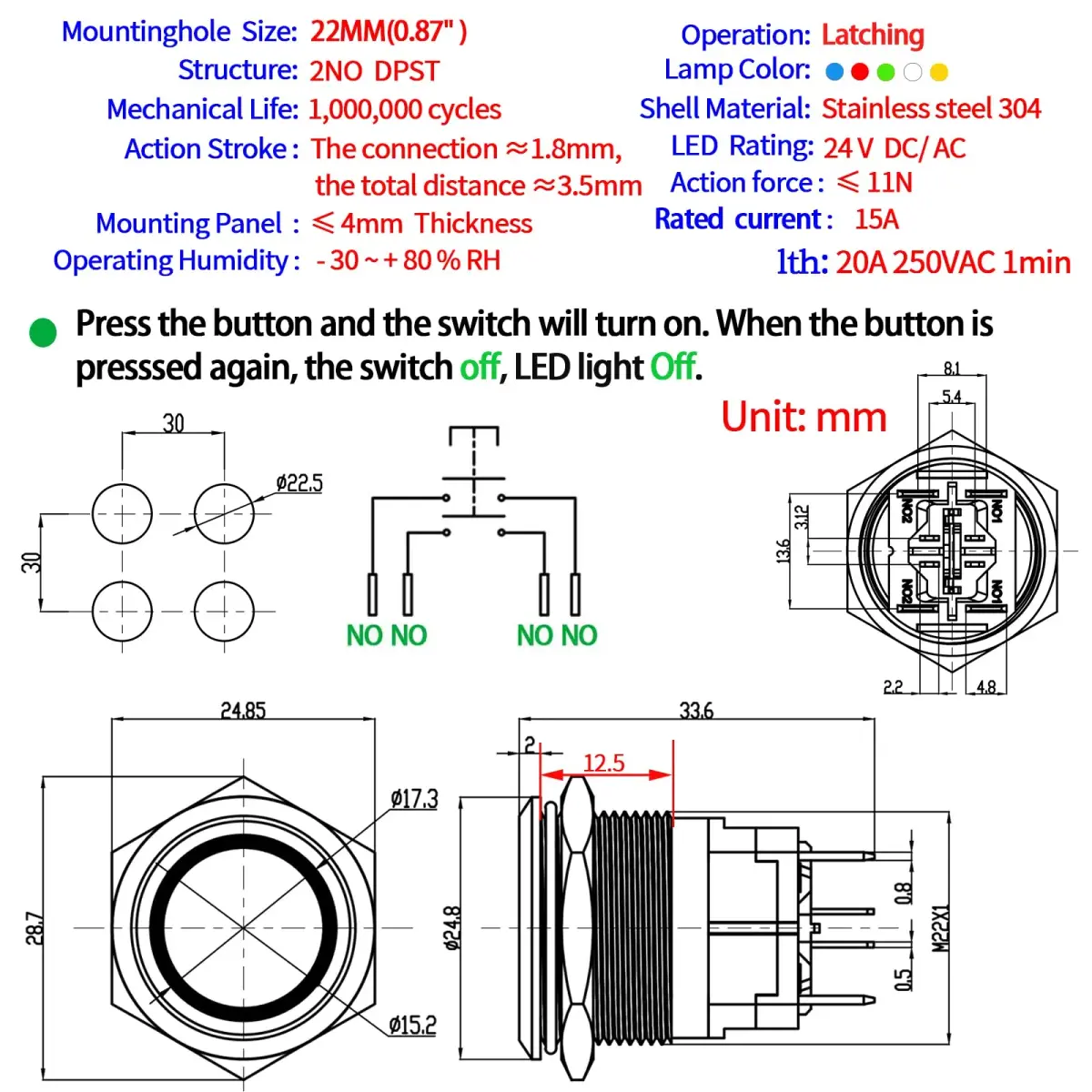

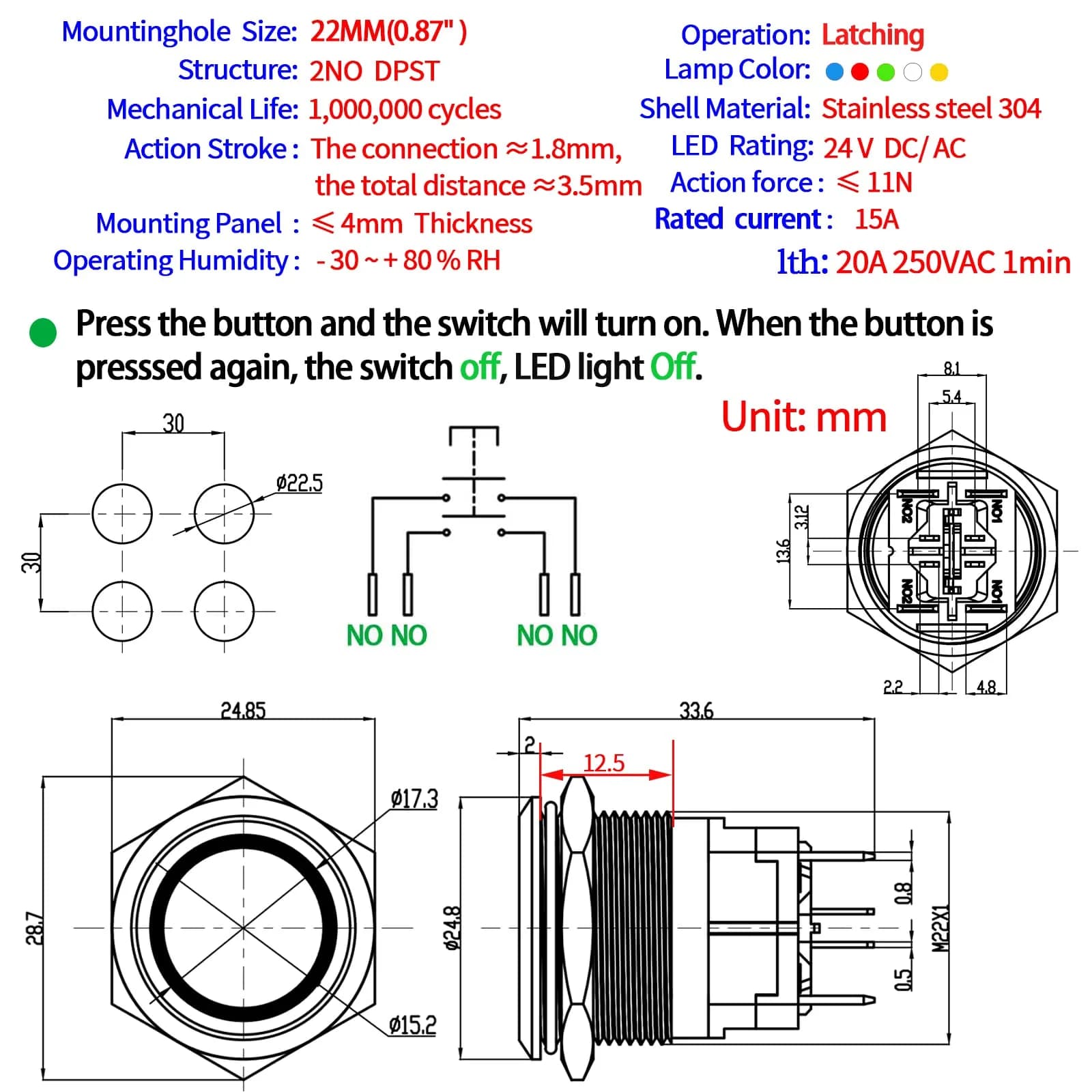

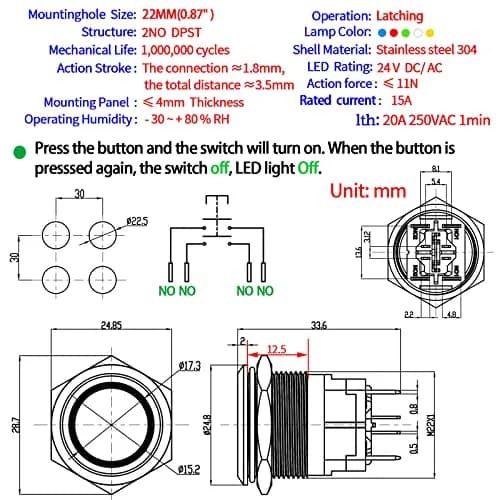

Head Diameter	24.9mm (0.98")
Mounting Hole Size	22mm (7/8")
Total Length	33.6mm (1.32")
Mounting Panel Thickness	≤9mm
Enclosure Material	304 Stainless Steel
Button Head Material	316 Stainless Steel
Head Shape	Flat
Color	Green LED
Protection Level	IP67, IK10
Action Stroke	Connection: 1.1mm, Total Distance: 3.5mm
Action Force	4~8N
Nut Torque	5~14N.m
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
