How to buy an original ZJWZJH 22mm Latching Push Button Switch in India?

Purchase directly from crowcrowcrow.com to ensure you receive an authentic, factory-sealed ZJWZJH switch, sourced from authorized US retailers and brand partners. All customs duties and GST are included in the listed INR price, and your order is shipped via ExpressBox with tracking for peace of mind.

What is the difference between solid-core and split-core current switches?

A solid-core current switch requires the monitored conductor to be threaded through a closed window during installation, making it compact and economical for new wiring. A split-core version opens so it can be clamped around an existing conductor without disconnecting the circuit, which is convenient for retrofits on live panels.

Can this electronic switch trigger a downstream contactor or PLC input?

Yes, this ZJWZJH switch provides DPST 2NO (2 Normally Open) dry-contact outputs. When the current threshold is met, these contacts change state. Ensure the contact rating (15A/24V) matches your control voltage and current requirements for the PLC input or contactor coil.

Is this ZJWZJH switch compatible with Indian electrical systems?

This switch is rated for 24V DC/AC and up to 250V AC insulation voltage, making it compatible with standard Indian control circuits. It is designed for 15A resistive loads. Always ensure your specific application's voltage and current requirements align with the switch's specifications, and installation is performed by a qualified electrician.

What does UL Listed mean for this push button switch?

UL Listed certification indicates that the product has been tested by Underwriters Laboratories and meets applicable safety standards for its intended use. This ZJWZJH switch is also CE and CCC listed, providing assurance of quality and safety for industrial and electronic applications.

How do I install the ZJWZJH 22mm push button switch?

The switch fits a standard 22mm mounting hole and comes with a pre-wired socket plug, eliminating the need for soldering. Simply connect the wires to your circuit according to the DPST 2NO configuration and secure the switch with the included nut and washer. Ensure the panel thickness does not exceed 9mm.

What is the IP67 rating and what does it mean for this switch?

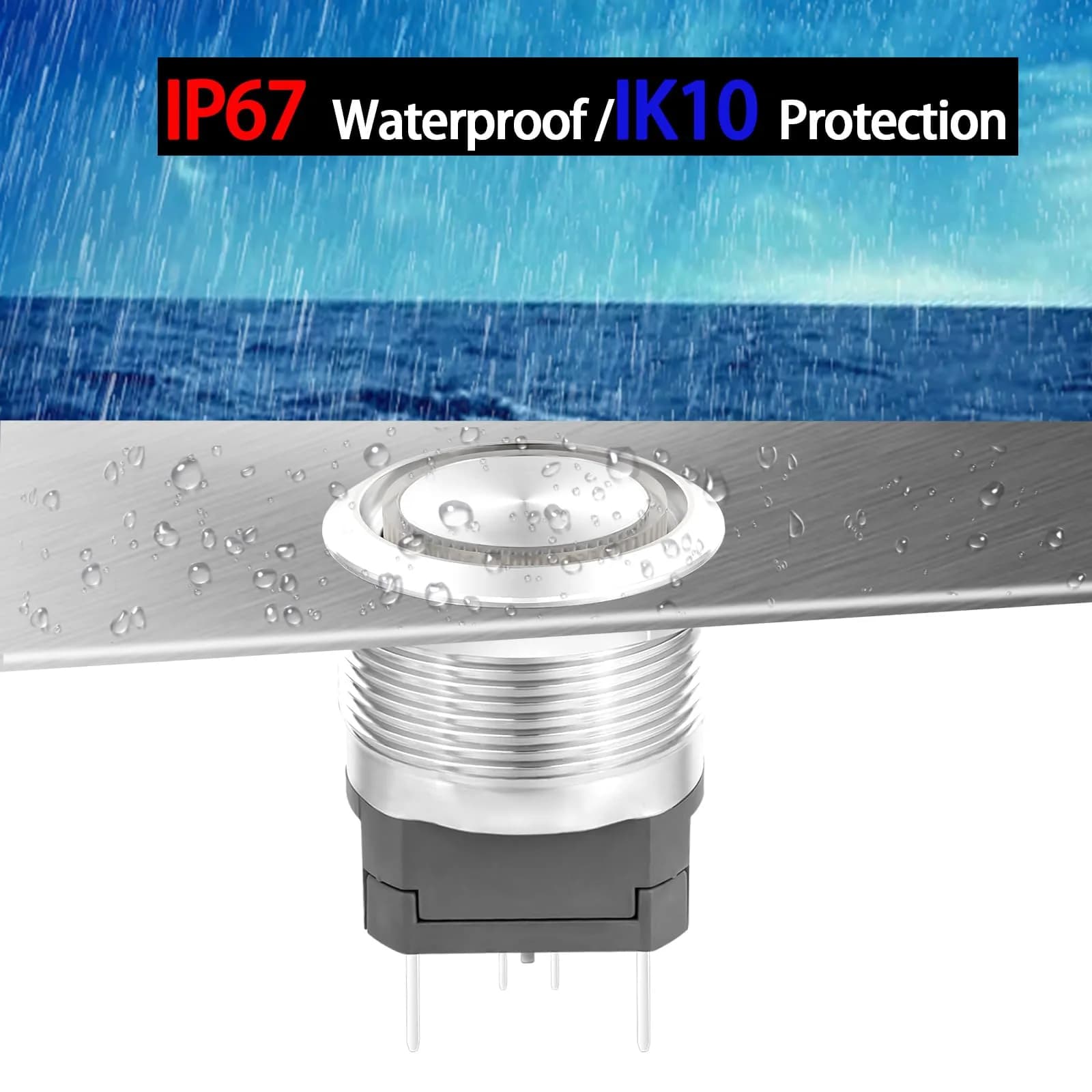

The IP67 rating signifies that the switch is protected against dust ingress and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it suitable for outdoor panels or environments with high humidity, but it should not be submerged continuously.

ZJWZJH Blue Electronic Switch | UL Listed 15A 24V Latching Push Button

Name: ZJWZJH 22mm Latching Push Button Switch 15A 24V Blue LED | UL Listed, IP67 Waterproof, Stainless Steel
Brand: ZJWZJH
SKU: kqa7079
Price: 2394.00 INR
Availability: InStock

About this item

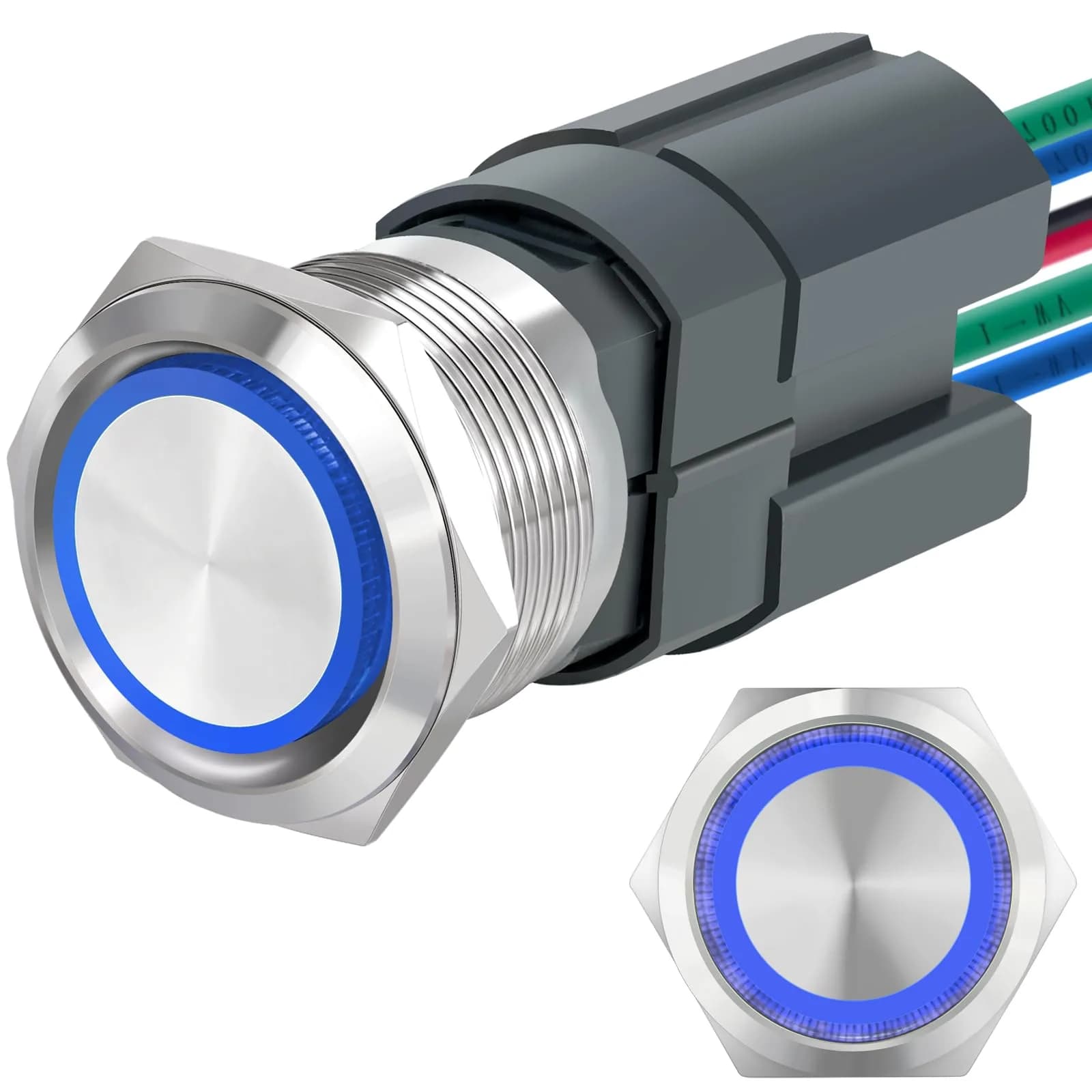

The ZJWZJH 22mm latching push button switch provides robust control for demanding applications. Its IP67 waterproof rating and 304 stainless steel construction ensure durability in harsh Indian industrial environments. This switch features a bright blue 24V LED indicator and a convenient pre-wired socket, eliminating the need for soldering. It's UL, CE, and CCC listed, guaranteeing safety and performance for your projects.

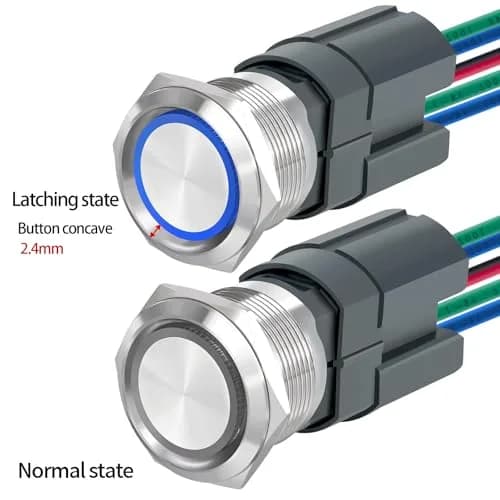

Designed for reliability, this switch handles up to 15A resistive load (4A inductive load) at 24V. The latching mechanism means a single push turns it ON, and another push turns it OFF. The included wire socket simplifies installation, making it suitable for DIY projects or professional panel builds. Its flat head design and 22mm mounting hole ensure a clean integration into various control systems.

This switch is perfect for electromagnetic starters, relays, doorbells, PC power buttons, and other circuit control needs. While IP67 rated for dust and temporary immersion, avoid submerging it. Ensure your circuit current does not exceed 15A to prevent overheating. Imported from authorized US retailers, it offers superior build quality compared to many local alternatives.

Key Features

UL Listed & 15-20A Heavy Duty — Latching push button switch is UL Listed, CE and CCC Listed. Current Rating:20 Amp 250V AC,Operating Current: 15 Amp. Latching operation: push once to latch ON, push again to release OFF.

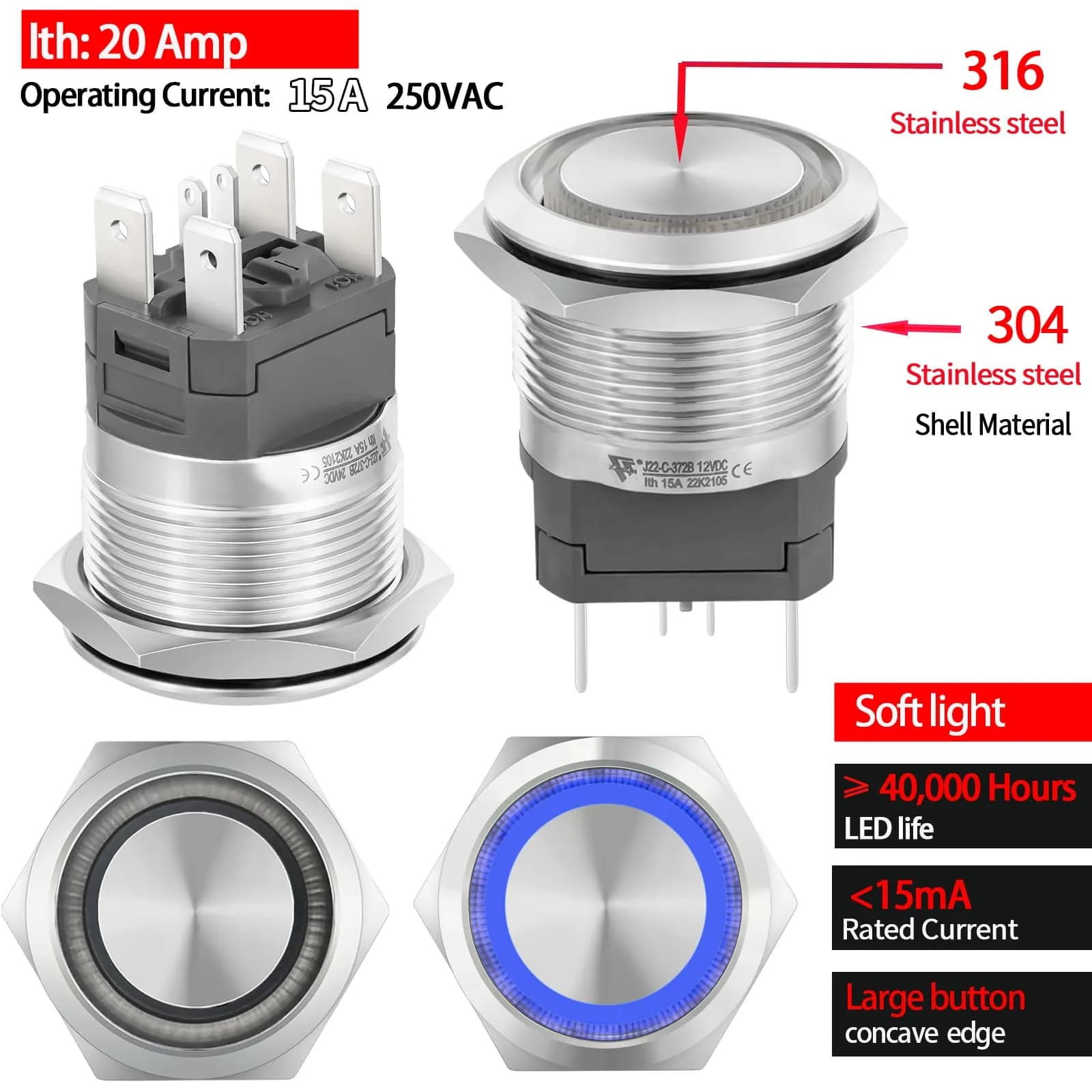

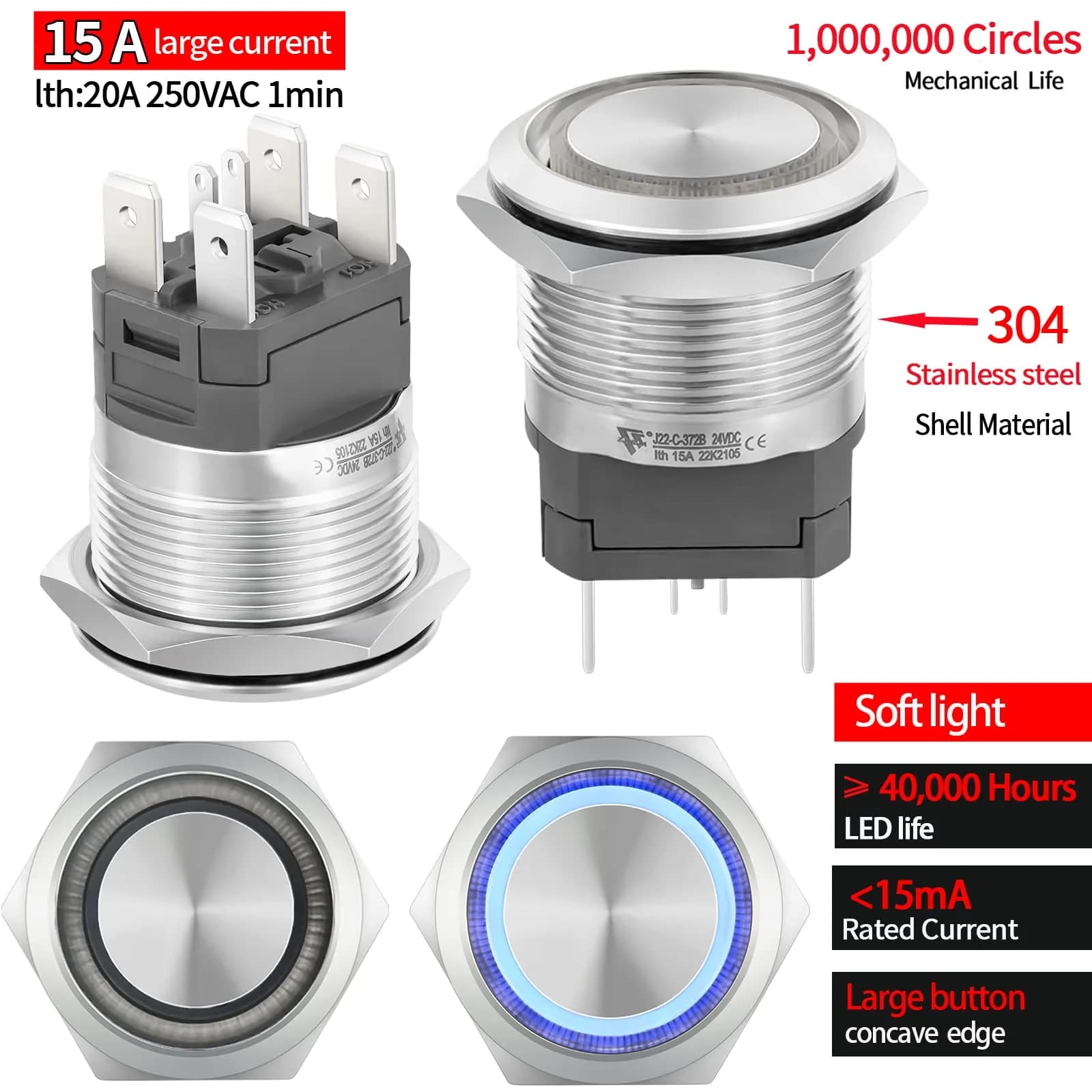

IP67 Waterproof & 304 Stainless Steel — IP67 rated for outdoor panels, resists dust, rain, and temporary immersion. Shell: Stainless Steel 304; Button head: Stainless Steel 316 (higher corrosion resistance), durable for harsh environments.
24V Bright Blue LED & DPST 2NO — 24V DC/AC Blue LED ring light Unique toothed circular transparent cover for brighter more eye-catching light. DPST 2NO (2 Normally Open) contacts, silver alloy contacts. mechanical lifes 1,000,000 cycles.

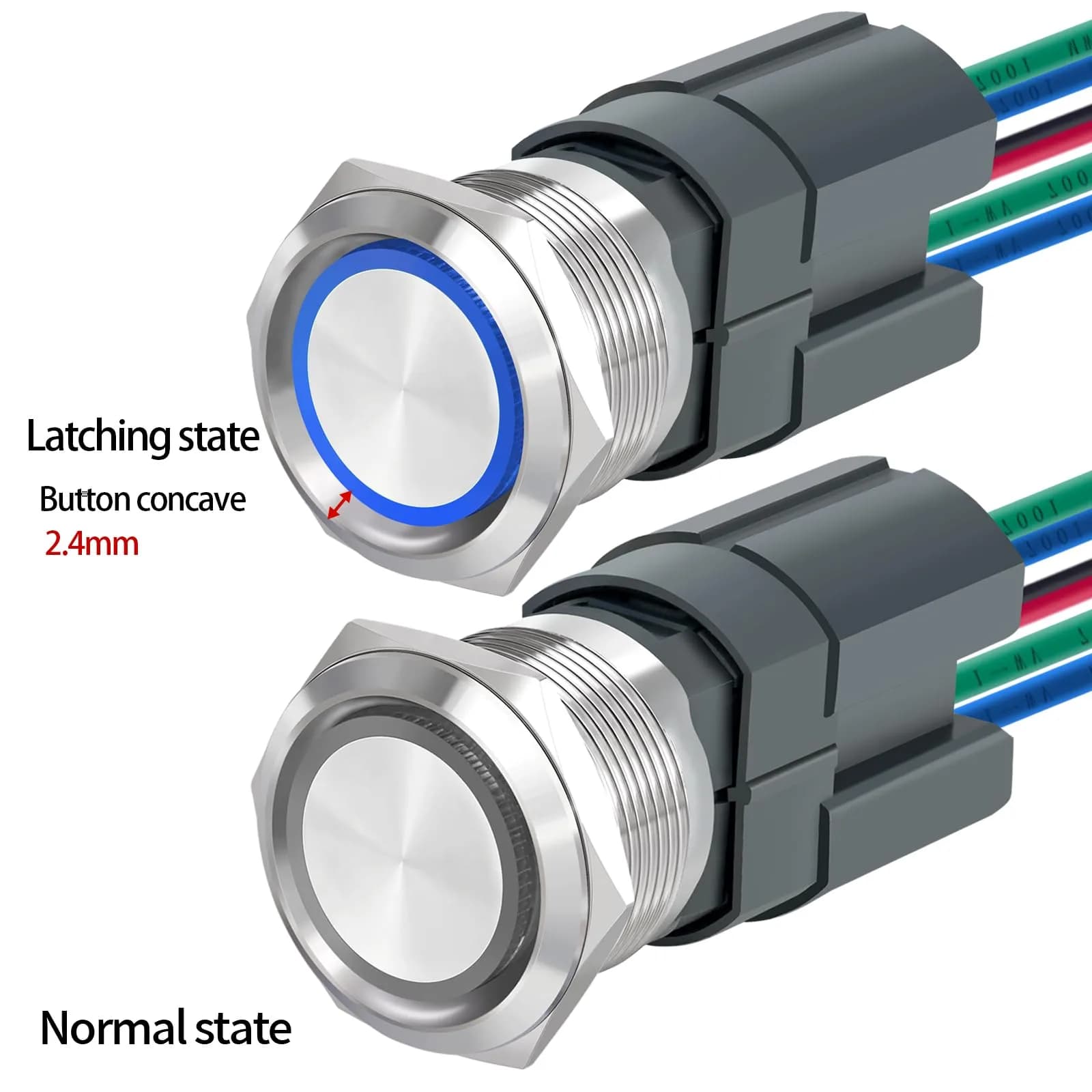

22mm Easy Mount & Pre-wired Socket — Fits 7/8" (22mm) mounting hole. Comes with wire socket plug, no soldering needed.
Wide Use & Package — Perfect for PC power, marine switch, car dashboard, boat, industrial panel. Package includes: 1x 22mm push button switch, 1x wire socket plug.

Why choose this product

Engineered for Durability and Performance

This ZJWZJH switch is built to last with high-quality stainless steel and an IP67 rating, ensuring it withstands harsh conditions. Its 15A/24V capacity and DPST 2NO configuration offer reliable performance for critical circuits. Unlike some local options that may compromise on materials or sealing, this switch provides certified safety (UL, CE, CCC) and a robust mechanical lifespan of 1,000,000 cycles, making it a dependable choice for long-term industrial or automotive projects.

Ideal for Industrial & DIY Projects

This switch is perfect for anyone needing a reliable ON/OFF control. Use it for PC power supplies, custom dashboards, marine applications, or industrial automation. Its easy-mount 22mm design and pre-wired socket simplify installation, even for those without extensive electrical experience. However, if your application requires continuous submersion or operates on voltages significantly higher than 24V or loads exceeding 15A resistive, consider a switch specifically rated for those conditions.

How to use

Drill a 22mm (7/8 inch) diameter hole in your panel. Ensure the panel thickness does not exceed 9mm for a secure fit. — Prepare Mounting Hole

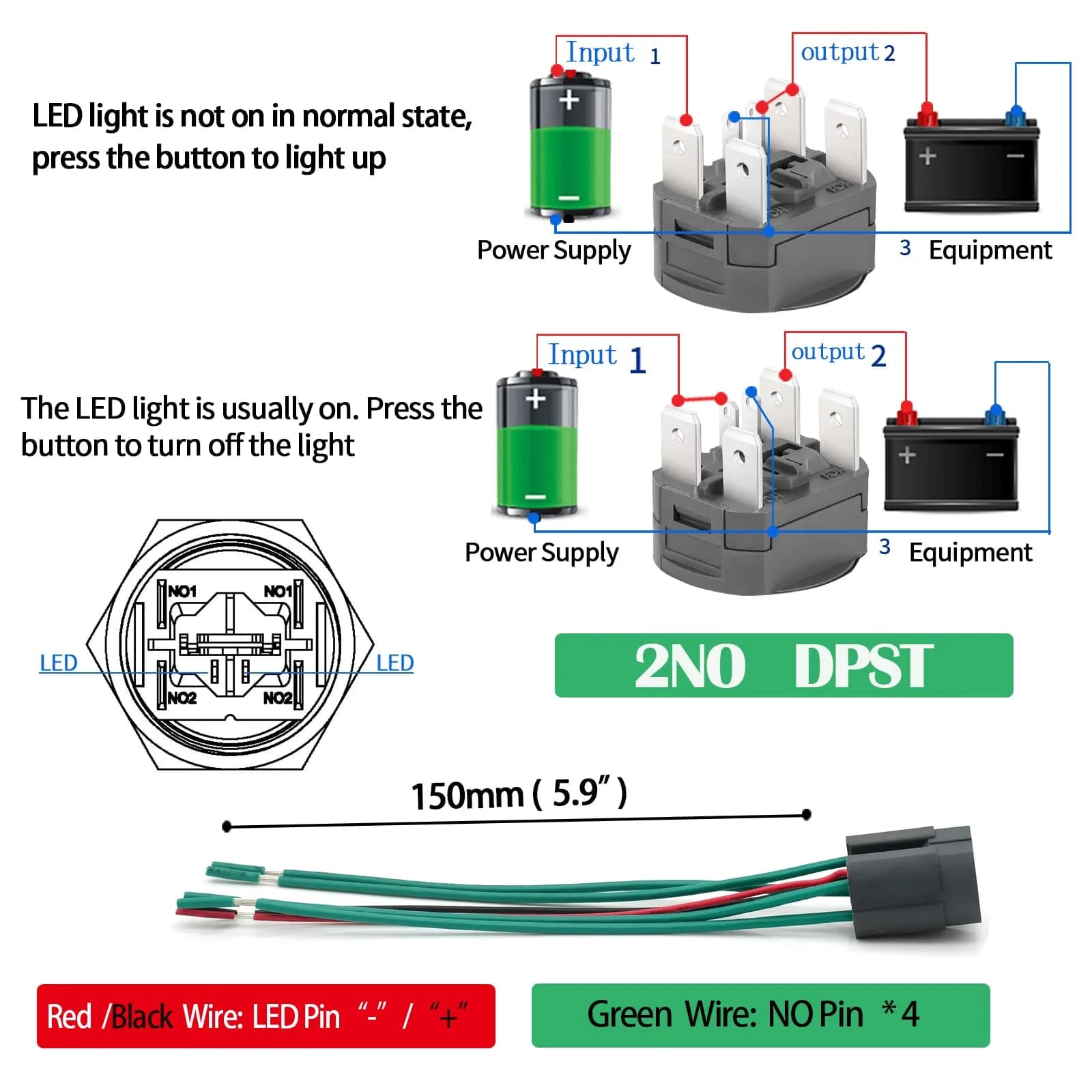

Use the included pre-wired socket plug. Connect the wires to your circuit according to the DPST 2NO configuration (push ON, push OFF). Ensure the voltage is 24V DC/AC and current does not exceed 15A resistive or 4A inductive. — Connect Wiring
Insert the switch body through the panel hole. Secure it from the back using the provided nut and washer, tightening to 5-14 N.m torque. — Mount the Switch
Press the button once to turn the connected device ON (LED should illuminate). Press again to turn it OFF. Verify the blue LED indicator functions correctly. — Test Operation

Example scenarios

Typical situations where ZJWZJH 22mm Latching Push Button Switch 15A 24V Blue LED | UL Listed helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

An industrial workshop in Chennai needs a reliable ON/OFF switch for a new machine control panel that operates in high humidity and dust.

How this product helps

The ZJWZJH 22mm switch's IP67 rating and stainless steel build ensure it withstands dust and temporary moisture, preventing corrosion and ensuring consistent operation in challenging Indian industrial environments.

Scenario 2

Illustrative example

Where it helps

A DIY enthusiast in Delhi wants to add a custom ON/OFF button with a blue LED indicator to a PC build or car dashboard.

How this product helps

This switch's 22mm standard mounting, pre-wired socket, and 24V blue LED make installation straightforward without soldering, offering a professional look and reliable function for custom projects.

Specifications

Composition

Switch Combination	DPST 2NO (2 Normally Open)
Contact Material	Silver Alloy
Rated Insulation Voltage	250 VAC
Rated Voltage (DC)	24V DC
Rated Current (Resistive Load)	15A
Rated Current (Inductive Load)	4A
LED Rating	15mA, AC/DC 24V

Usage

Switch Type	Latching Push Button
Operation Mode	Push ON, Push OFF
Action Stroke	Connection: 1.1mm, Total: 3.5mm
Action Force	4-8 N
Protection Level	IP67, IK10
Mechanical Lifespan	1,000,000 cycles
Cost per use	1 switch at 1,000,000 cycles: ₹0.0024 per cycle

How we compare

Feature	ZJWZJH 22mm Latching	Others
Construction Material	304 Stainless Steel shell, 316 Stainless Steel button head for superior corrosion resistance.	Varies by brand; often plastic or lower-grade metal, potentially less resistant to humidity and dust.
Waterproofing	IP67 rated for dust protection and temporary immersion.	Typically IP54 or lower, offering basic splash resistance but not full dust or immersion protection.
Certifications	UL Listed, CE, CCC certified for safety and quality assurance.	May have basic ISI or BIS marks, but often lacks comprehensive international safety certifications like UL.
Included Accessories	Comes with a pre-wired socket plug for easy, solder-free installation.	Often requires separate purchase of connectors or direct soldering to terminals.
Cost per cycle (estimated)	1,000,000 cycles at ₹0.0024 per cycle

SKU	kqa7079
GTIN	0761312010537
Brand	ZJWZJH
Model Number	J22-C-372BDS

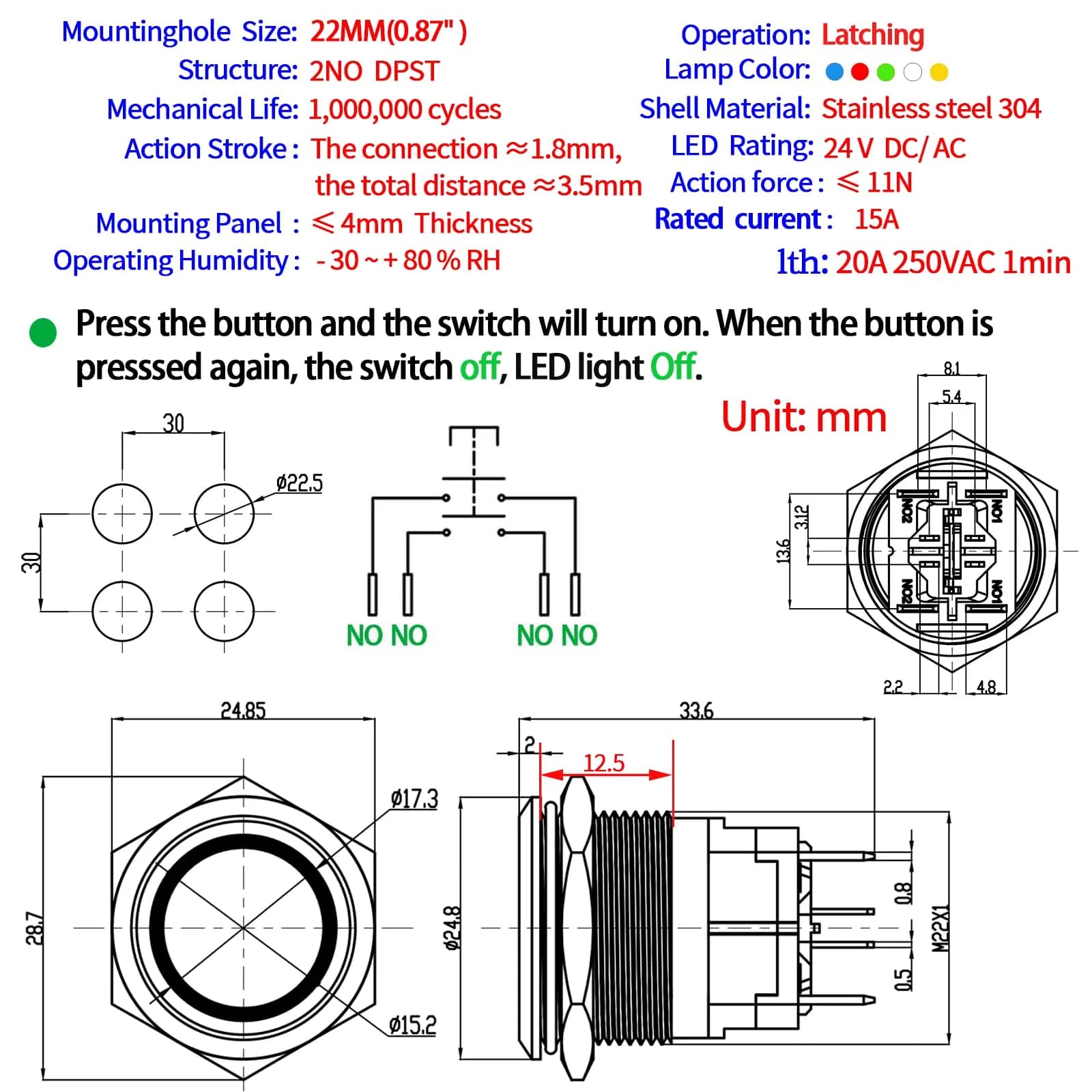

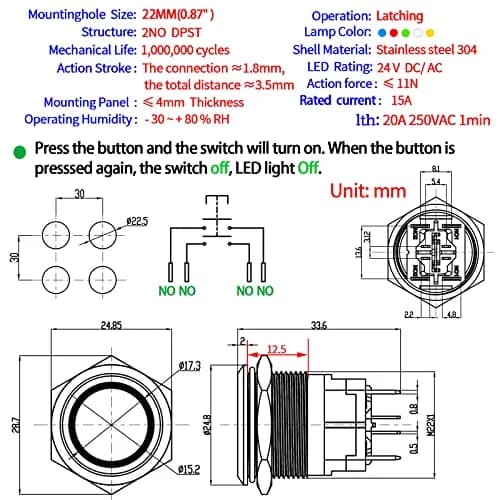

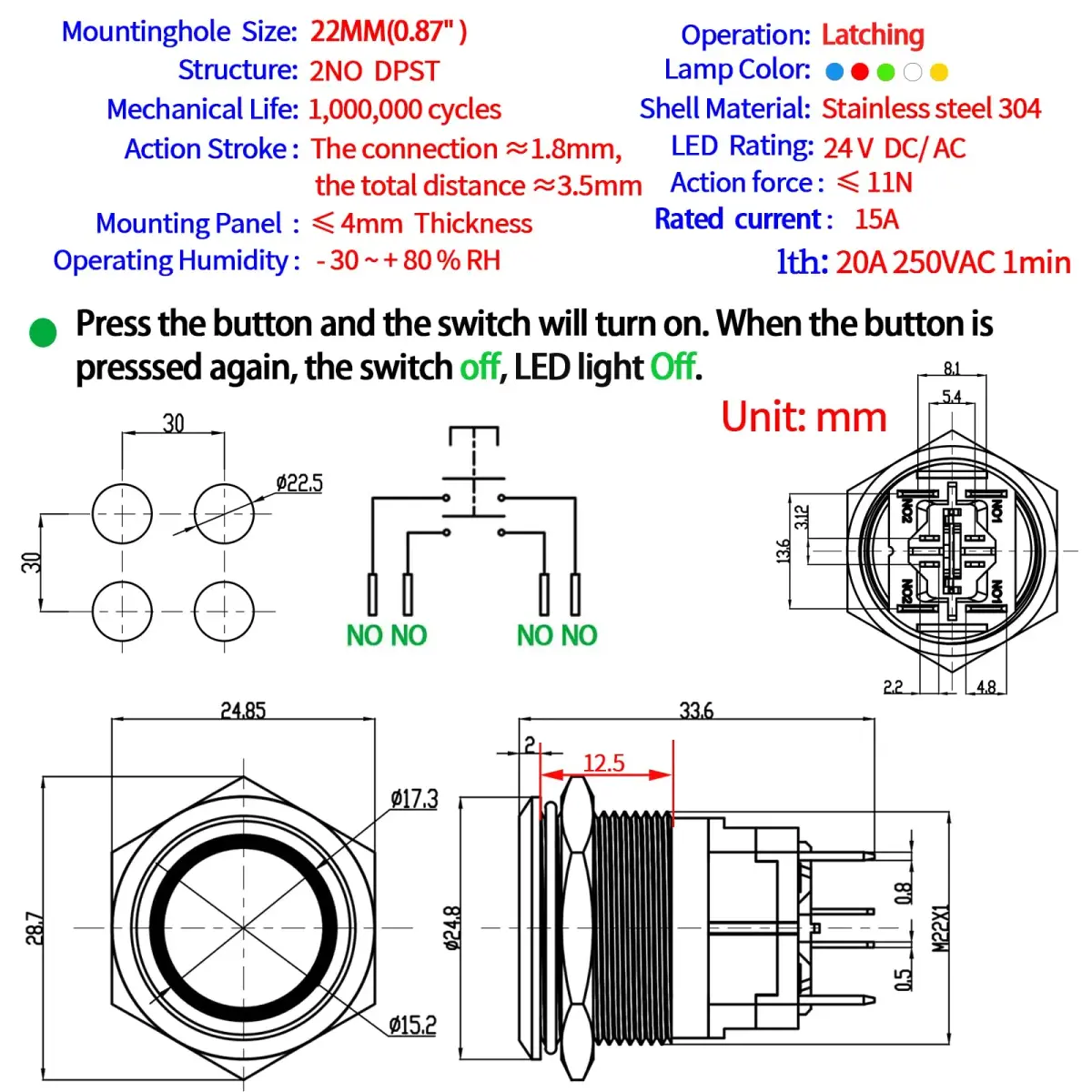

Head Diameter	24.9 mm (0.98")
Mounting Hole Size	22 mm (7/8")
Depth with Contacts	33.6 mm (1.32")
Material (Shell)	304 Stainless Steel
Material (Button Head)	316 Stainless Steel
Color	Blue LED
Shape	Round Flat Head
Mounting Panel Thickness	≤ 9 mm
Weight	0.082 kg (0.18 lb)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
