| SKU | jdp4965 |
| GTIN | 4255933904239 |
| Brand | HangTon |
| Model Number | WS24 |
| Product Type | 3 Pin Aviation Circular Connector Set (Male Plug + Female Socket) |
| Panel Hole Cutout Diameter | 24 mm |
| Cable Outer Diameter | 12.4 mm max |
| Coupling Type | Threaded |
| Shell Material | Zinc alloy with chrome plating |
| Insert Material | Thermoplastic PPS (max 260℃) |
| Contact Material | Brass with gold plating |
| Termination | Solder |
| Mating Cycles | >500 times |
| Temperature Range | -40℃ to +85℃ |
| Package Includes | 1x TQ Male plug with PVC sleeve, 1x Female socket, 1x Dustproof Cap, 4x screws |
| Item Weight | 0.1 kg (100 g) |
| Item Dimensions | Approx. 8 x 8 x 5 cm |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
This item:
HangTon WS24 3 Pin Aviation Circular Connector Male Plug Female Panel Socket 24mm Panel Cutout Diameter | Secure Threaded Coupling, 500V 25A Power Electrical
3,607
This item
HangTon WS24 3 Pin Aviation Circular Connector Male Plug Female Panel Socket 24mm Panel Cutout Diameter | Secure Threaded Coupling, 500V 25A Power Electrical
3,607
Total price:
12,673
You save 5,844 (32%) Extra3 items selected
3 items
12,673You save 5,844 (32%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Secure Power for Demanding Indian Environments

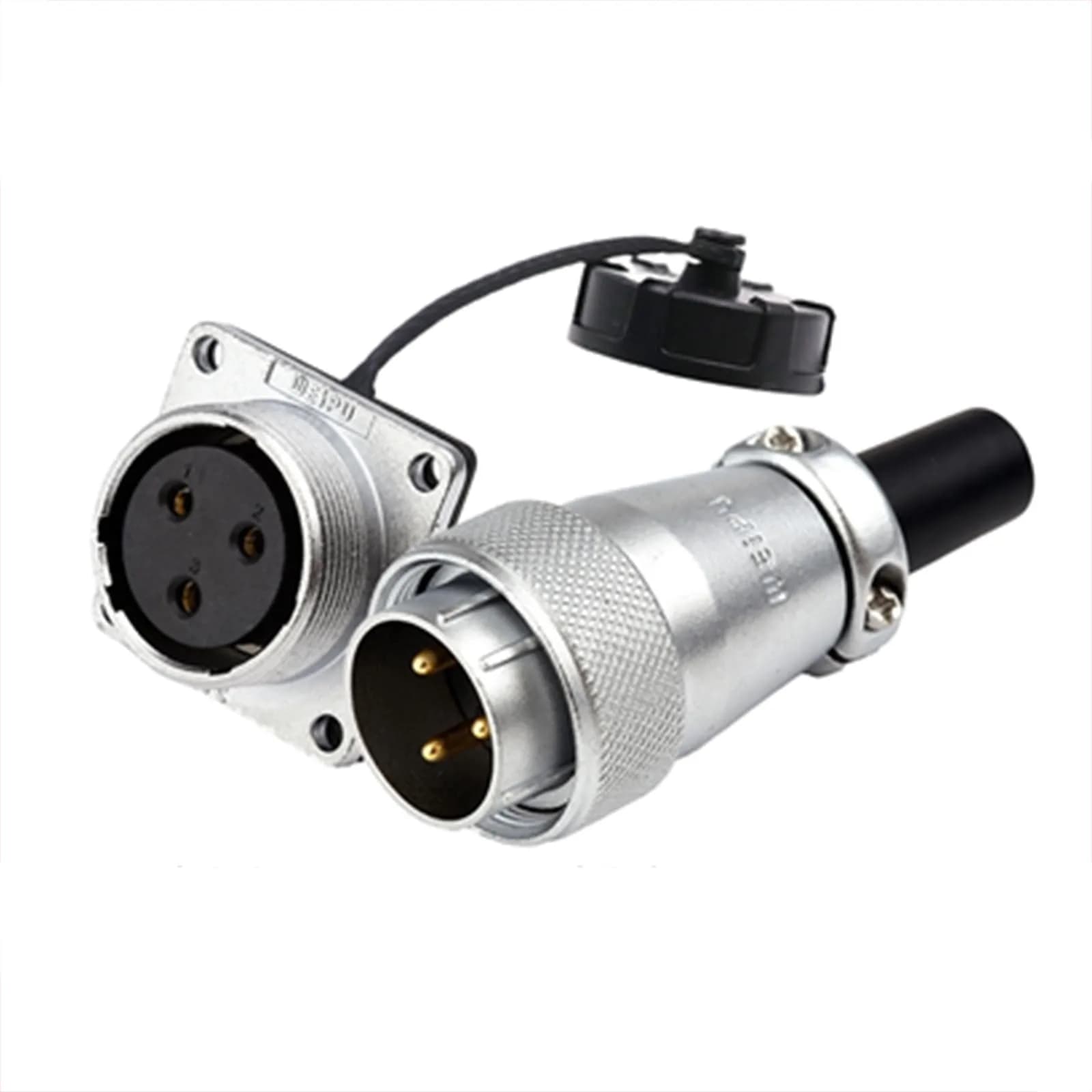

The HangTon WS24 3-pin aviation circular connector set provides a robust and reliable solution for power distribution in demanding environments. Featuring a 24mm panel cutout diameter and a 12.4mm max cable outer diameter, this connector set ensures a secure threaded connection suitable for applications up to 500V and 25A. Its construction includes a durable zinc alloy shell with chrome plating and gold-plated brass contacts, offering excellent corrosion and oxidation resistance for a long service life.
Designed for harsh conditions, the WS24 connector boasts a thermoplastic PPS insert (max temp 260℃) and a mating cycle of over 500 times. The solder termination type and included dustproof cap ensure easy assembly and reliable performance. This connector is well-suited for a wide range of industrial applications, including portable power stations, industrial machines, solar generators, automotive, LED lighting systems, and more, providing a safe and dependable connection.
Imported for Indian customers, this connector set offers superior durability compared to many local alternatives. It ensures a secure and quick connection, essential for industrial equipment and outdoor electrical tools. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping, arriving within 12-14 days.
Engineered for Industrial Reliability
This HangTon WS24 aviation connector is built for demanding industrial use. Its robust zinc alloy shell with chrome plating and gold-plated brass contacts resist corrosion and oxidation, ensuring a long service life. With a secure threaded coupling and solder termination, it provides a reliable connection for up to 500V and 25A, exceeding 500 mating cycles. Unlike generic connectors, its construction is designed to withstand harsh environments, dust, and vibration, making it ideal for critical power distribution in machinery, solar setups, and outdoor electrical equipment.
Ideal for Indian Industrial & Outdoor Setups
This connector is perfect for Indian industrial automation, solar power installations, and outdoor electrical tools where reliability is paramount. Its 24mm panel cutout and 12.4mm max cable diameter fit common setups. While local connectors might suffice for light use, this heavy-duty option offers superior protection against dust, moisture, and vibration, crucial for humid Indian climates. It's best for applications needing high current (25A) and voltage (500V) with a secure, long-lasting connection. Skip if only low-power, indoor signal transmission is needed or if a simpler push-pull mechanism is preferred.
Typical situations where HangTon WS24 3 Pin Aviation Circular Connector Male Plug Female Panel Socket 24mm Panel Cutout Diameter | Secure Threaded Coupling helps — illustrative scenarios, not customer reviews.
Setting up a portable solar power station for a remote Indian campsite.
This 3-pin aviation connector provides a secure, high-capacity link (500V/25A) for connecting solar panels to the power station, ensuring reliable energy transfer even in dusty outdoor conditions. Its threaded coupling prevents accidental disconnection during use.
Integrating a new industrial automation machine in a humid factory environment.
The HangTon WS24's corrosion-resistant zinc alloy shell and gold-plated contacts are vital for maintaining connection integrity in humid Indian factories. It reliably handles power transmission for machinery, resisting dust and vibration for continuous operation.
| Contact Diameter | Φ2.5 mm |
| Resistance | 1 mΩ |
| Wire Size Compatibility | 11-18 AWG or smaller than 4 mm² |
| Rated Voltage | AC 500V |
| Rated Current | 25A |
| Power Handling | Suitable for high-power electrical connections |
| Application Environments | Harsh industrial, indoor/outdoor, dust-proof, explosion-proof, deformation-proof |
| Typical Uses | Industrial power supply, automotive portable power, medical devices, communications, automatic equipment, LED lighting, solar power stations, security cameras, machines equipment |
| Cost per unit | This set includes 1 male plug and 1 female socket. ₹3,607 per set |
| Shelf life after opening | Not applicable (durable product) |
| Contraindications | Not suitable for low-voltage signal transmission where high-precision connectors are required; not for use in extremely corrosive chemical environments beyond standard industrial conditions. |
| Allergens / common irritants |
| Feature | HangTon WS24 3 | Others |
|---|---|---|
| Pin Count & Current Rating | 3 Pin, 25A AC 500V | Local 3-pin connectors often rated lower, typically 10-15A, with variable voltage support. |
| Coupling Mechanism | Secure Threaded Coupling | Many local options use simpler push-pull or basic friction fit, less secure against vibration. |
| Shell Material & Durability | Zinc alloy with chrome plating, gold-plated brass contacts | Local connectors may use plastic or lower-grade metal, offering less corrosion and oxidation resistance. |
| Environmental Resistance | Designed for harsh industrial, dust-proof, corrosion-resistant | Local connectors may lack specific ratings for dust ingress or corrosion, impacting longevity in humid Indian conditions. |
| Cost per Set | 1 Set (Male Plug + Female Socket) — ₹3,607 per set | Local 3-pin sets can range from ₹800 - ₹1500, depending on brand and build quality. |
About HangTon
HangTon specializes in high-quality aviation and industrial circular connectors, known for robust construction and reliable performance in demanding electrical applications.
