Secure Your Connections in Any Environment
The HangTon HE29 22-pin circular connector provides a safe and reliable connection for demanding applications, including automotive, marine, and industrial machinery. Its IP68 waterproof rating and threaded coupling ensure watertight integrity for indoor and outdoor use, protecting against solids and liquids. This connector is designed for robust performance in harsh environments.
Featuring gold-plated brass contacts and a thermoplastic PPS insert, this connector offers excellent durability with a mating cycle of over 500 times. The shell is made of thermoplastic Nylon66 with V-0 fire resistance. It supports a cable outer diameter range of 12-15mm and is rated for 250V and 5A, making it suitable for power and data transmission in challenging conditions.
Imported for Indian customers, this connector offers superior reliability compared to many local alternatives. All customs duties and GST are included in the price. Delivered via ExpressBox tracked shipping, ensuring timely arrival for your critical projects.
Engineered for Extreme Environments
The HangTon HE29 connector is built to withstand harsh conditions, offering IP68 waterproofing and a wide operating temperature range (-40 to +100℃). Its robust construction with Nylon66 shell and PPS insert ensures reliability in humid Indian climates, marine applications, and industrial settings where dust and moisture are prevalent. This imported connector provides a higher standard of durability and performance than many generic alternatives.
Ideal for Industrial & Automotive Power
This 22-pin connector is perfect for applications requiring secure power and data transmission. It's suitable for automotive machinery, marine equipment, outdoor LED lighting, solar energy systems, and control boxes. While it offers a reliable connection, users with extremely high-frequency signal needs or those requiring specific connector certifications beyond IP68 might consider specialized industrial-grade alternatives.
Typical situations where HangTon HE29 22 Pin Waterproof Circular Connector Male Cable Plug with Panel Mount Socket helps — illustrative scenarios, not customer reviews.
An Indian automotive workshop needs reliable connectors for diagnostic equipment that can withstand dust and occasional water splashes during vehicle maintenance.
The HangTon HE29's IP68 rating and robust threaded coupling ensure a secure, watertight connection, protecting sensitive electronics from workshop contaminants and splashes. Its 22 pins allow for complex data and power transmission for diagnostic tools.
A solar energy installer in a coastal Indian region requires connectors for outdoor panels that can endure high humidity, salt spray, and frequent weather changes.
With its corrosion-resistant gold-plated contacts and durable Nylon66 shell, the HE29 connector is built to withstand humid, corrosive environments. The IP68 rating guarantees protection against moisture ingress, ensuring long-term performance for solar power systems.
| Contact Material | Brass with Gold Plating |
| Shell Material | Thermoplastic Nylon66 |
| Insert Material | Thermoplastic PPS |
| Wire Size | ≤0.785mm² or 18AWG |
| Contact Diameter | Φ1mm |
| Resistance | 5mΩ |
| Application | Automotive, Marine, Industrial Machinery, Outdoor Power Devices, Medical Devices, Communications, LED Lighting, Solar Energy Systems, Security Cameras, Control Boxes |
| Cost per use | This is a durable component, not a consumable. Cost-per-use is not applicable. |
| Shelf life after opening | N/A (Durable component) |
| Reapplication math | N/A (Durable component) |
| Contraindications | Not suitable for applications requiring specific certifications beyond IP68, or for extremely high-frequency signal transmission without further analysis. |
| Allergens / common irritants | Contains Brass (Nickel alloy) and Gold plating. Not suitable for individuals with severe metal allergies. |
| Feature | HangTon HE29 22 | Others |
|---|---|---|
| Waterproofing | IP68 rated for complete protection against solids and liquids. | Many local connectors offer basic splash resistance (IP54-IP65), but lack full submersion capability. |
| Contact Material | Brass with Gold Plating for superior conductivity and corrosion resistance. | Often use tin-plated brass or copper alloys, which may corrode faster in humid Indian environments. |
| Shell Material & Fire Resistance | Thermoplastic Nylon66 with V-0 fire resistance for enhanced safety. | May use standard plastics with lower fire resistance ratings, posing a higher risk in demanding applications. |
| Mating Cycles | Rated for over 500 mating cycles, ensuring long-term reliability. | Typically rated for fewer cycles (e.g., 100-300), leading to wear and potential connection failure over time. |
| Cost per Unit | Imported quality with all duties included — ₹10,805 per connector. | Local connectors may have a lower upfront cost, ranging from ₹500-₹1500 for comparable 22-pin IP68 rated models. |
| SKU | jdb2043 |
| GTIN | 4841644245428 |
| Brand | HangTon Connect |
| Model | HE29 |
| Pin Count | 22 Pin |
| Rated Voltage | 250V AC |
| Rated Current | 5A |
| IP Rating | IP68 |
| Coupling Type | Threaded Coupling |

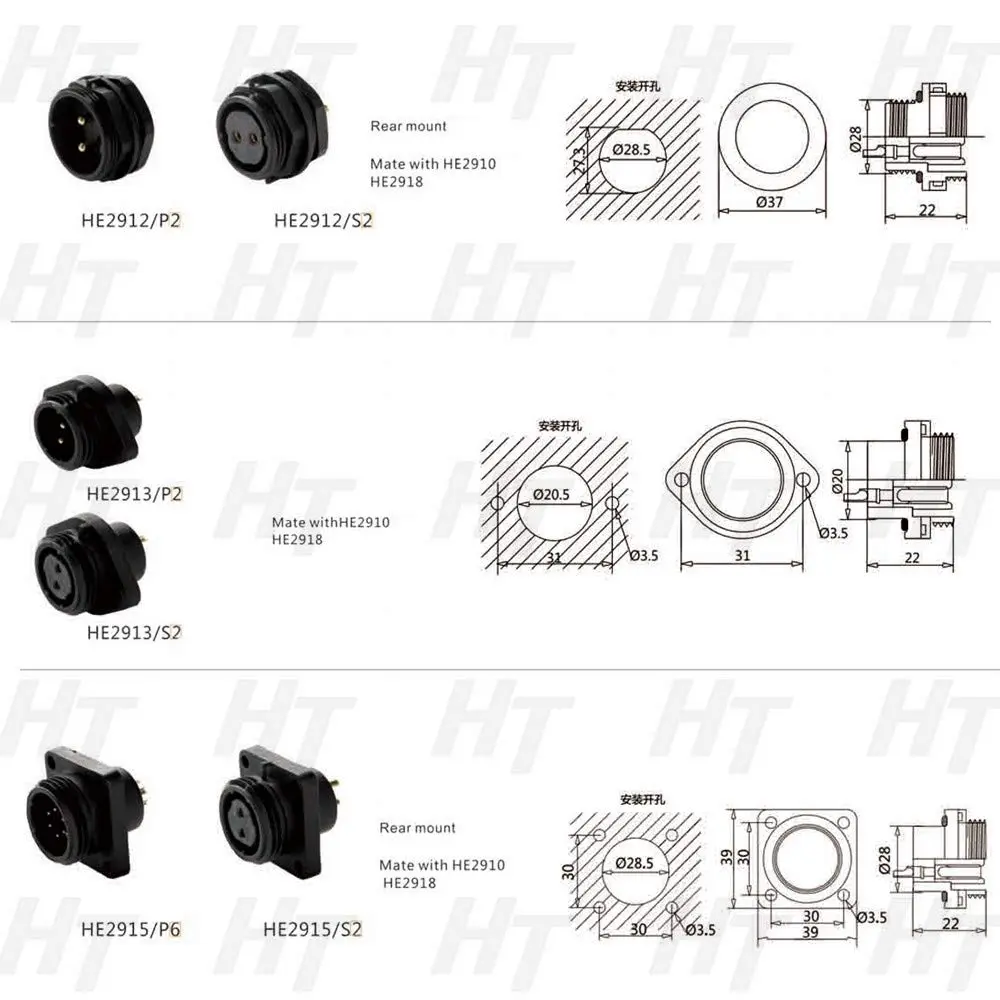

| Panel Cutout Diameter | 29mm |
| Cable Outer Diameter Range | 12-15mm |
| Shell Material | Thermoplastic Nylon66, Fire Resistance: V-0 |
| Insert Material | Thermoplastic PPS (max temperature 260℃) |
| Contact Material | Brass with Gold Plating |
| Termination | Solder |
| Mating Cycle | >500 times |
| Temperature Range | -40℃ to +100℃ |
| Humidity | +40℃ 95±3% |
| Vibration Resistance | 10-500Hz, acceleration 100m/s² |
| Shock Resistance | 40-80 times/min, acceleration 250m/s² |

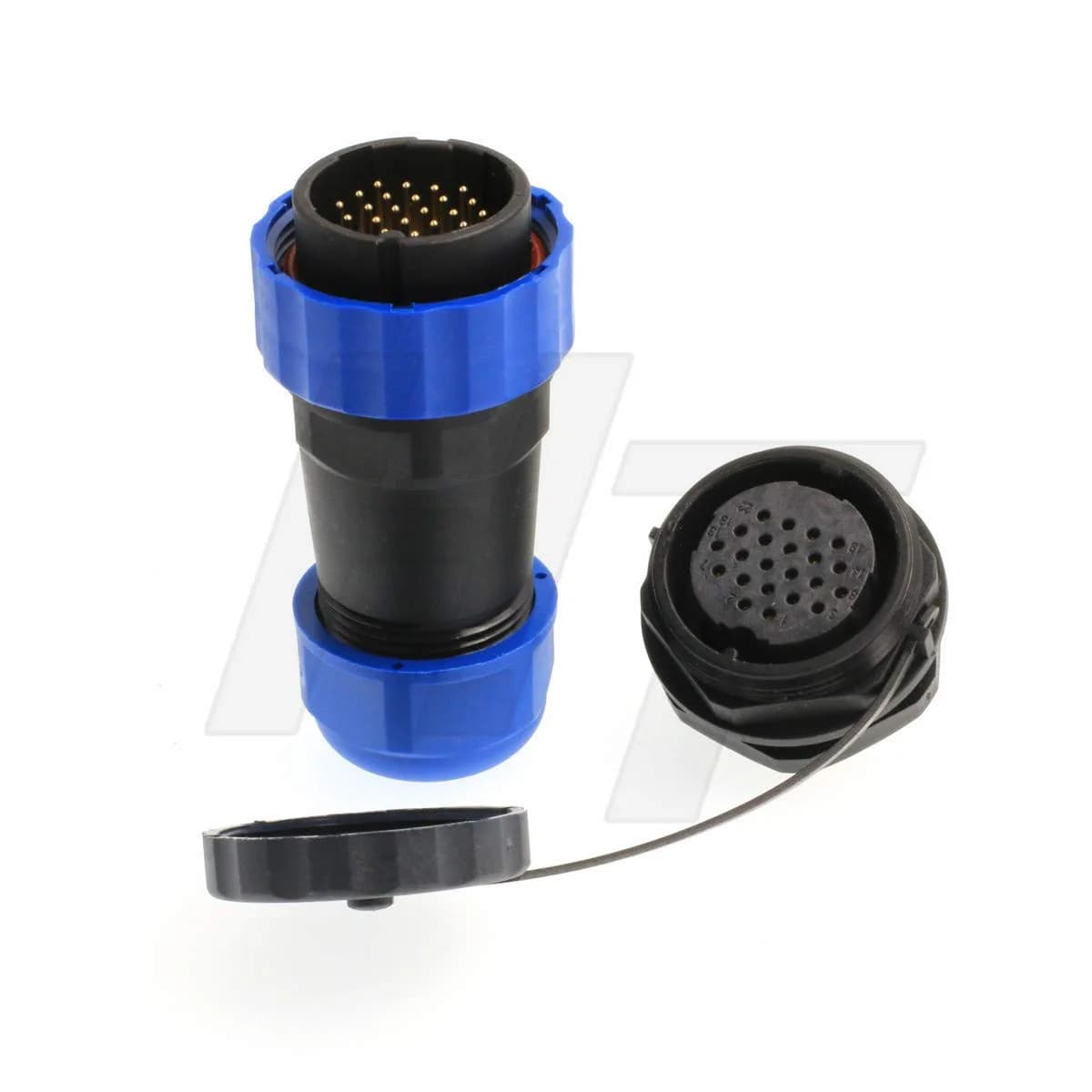

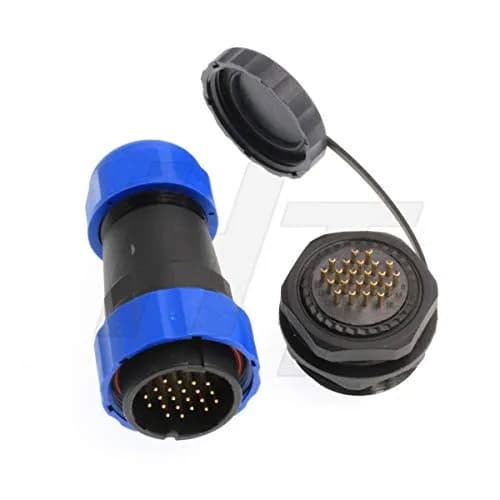

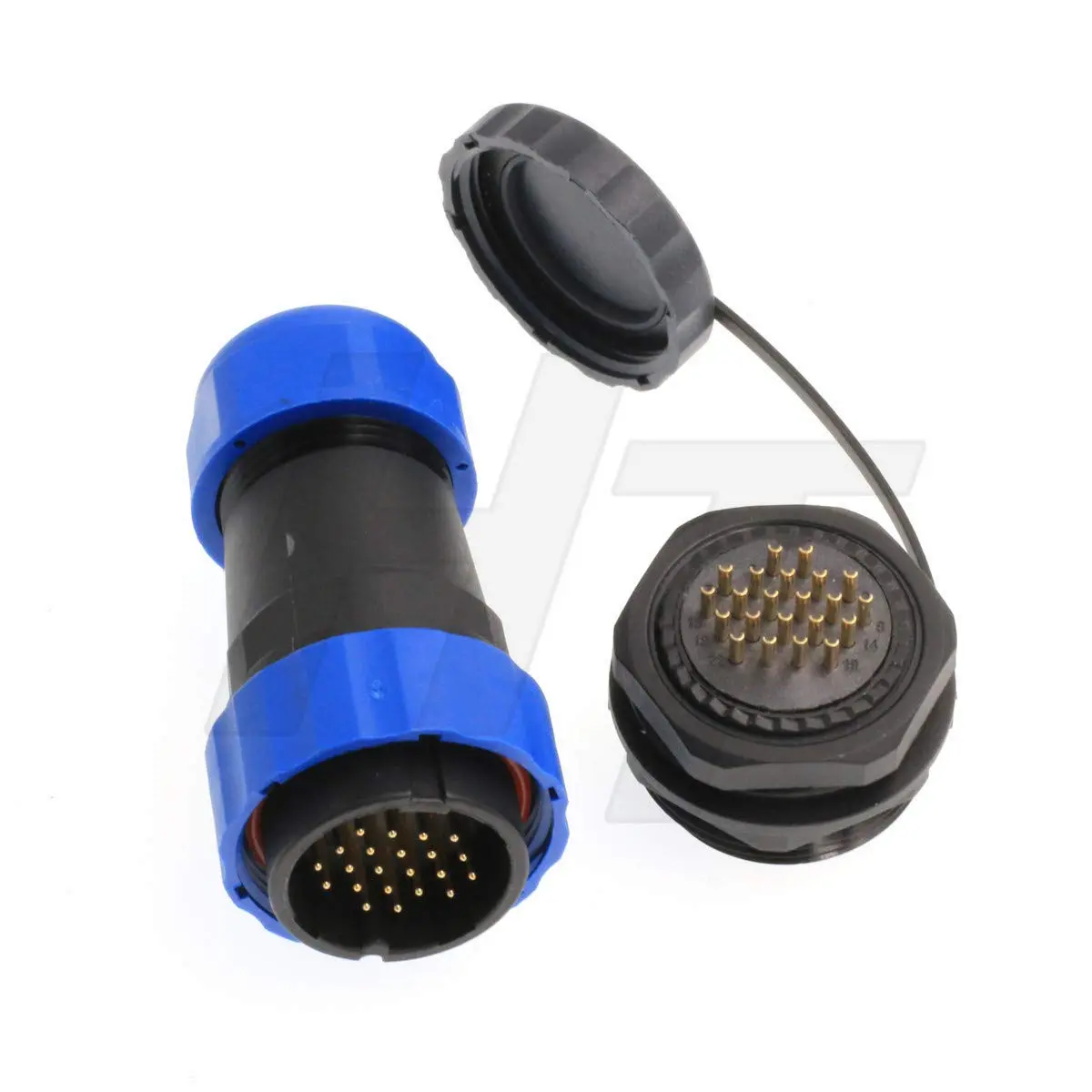

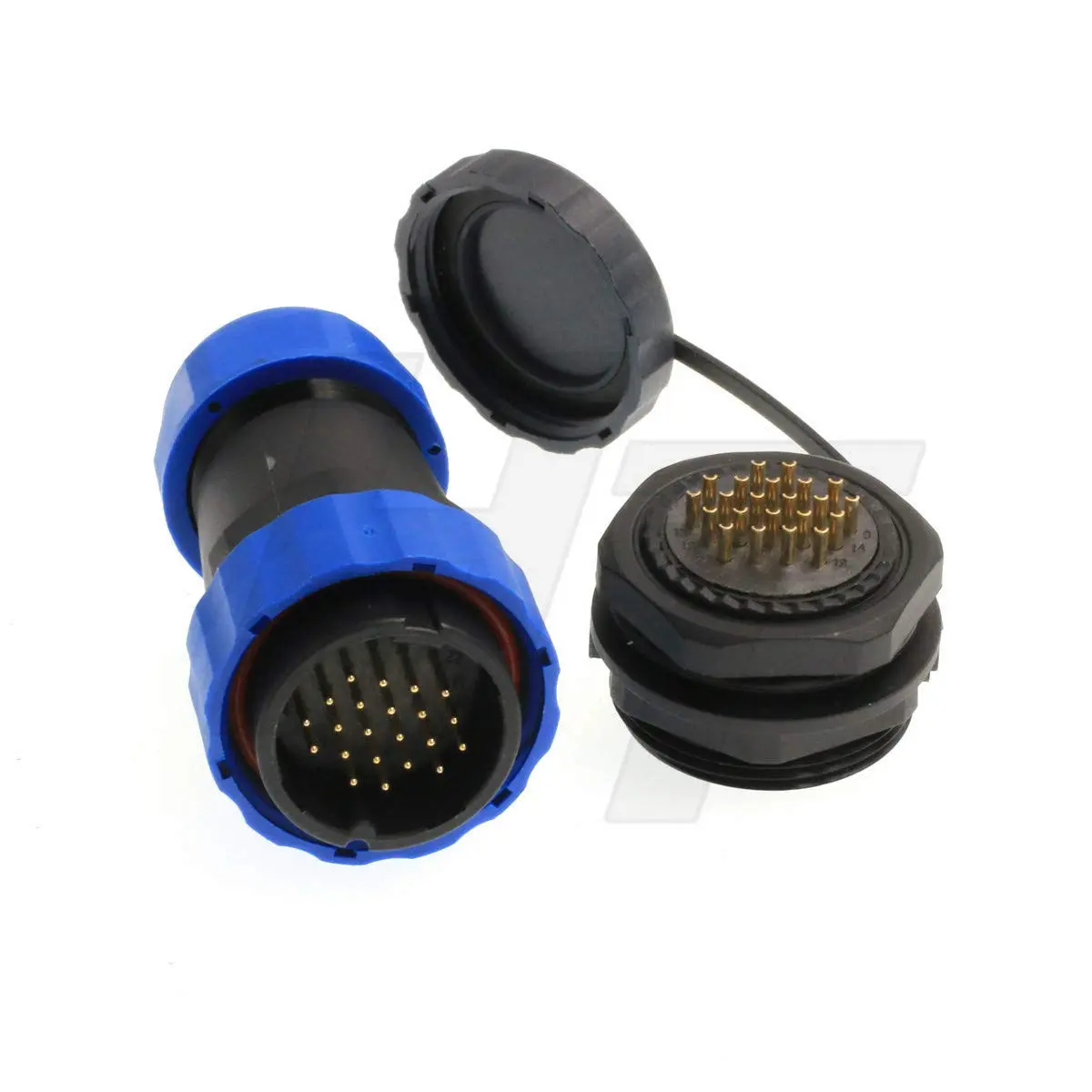

| Package Includes | 1 x Cable Plug (Male Pins), 1 x Chassis Socket, 1 x Waterproof/Dustproof Cap |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
About HangTon Connect
HangTon Connect specializes in high-quality circular connectors, providing reliable solutions for industrial, automotive, and marine applications.
Compliance & Legal
No product-specific compliance warnings identified. Standard imported-goods terms apply: customs duties & GST paid; for personal use in India; follow the manufacturer's usage instructions on the packaging.
