Secure High-Voltage Power in Any Environment
The HangTon HE29 24-pin circular connector ensures a safe and reliable connection in harsh environments, ideal for automotive, industrial, and marine applications. Its IP68 waterproof rating and threaded coupling make it suitable for outdoor use, including solar energy systems and security cameras. Imported from authorized US retailers, all customs duties and GST are included in the price.
This connector boasts a thermoplastic nylon66 shell with V-0 fire resistance and thermoplastic PPS insert material capable of withstanding up to 260℃. The brass contacts are gold-plated for superior conductivity and durability, supporting over 500 mating cycles. It is designed for a panel cutout diameter of 29mm and accommodates cable outer diameters from 12-15mm, with a rated voltage of AC 250V/5A.
Compared to local alternatives, this connector offers certified IP68 sealing and high-voltage capability, crucial for reliable operation in India's varied climate. It comes as a package including a cable plug with male pins, a chassis socket, and a waterproof/dustproof cap, ensuring a complete and secure installation for your critical equipment.
Engineered for Extreme Environments
This HangTon HE29 connector is built to withstand harsh conditions, featuring a thermoplastic nylon66 shell with V-0 fire resistance and a high-temperature PPS insert. Its IP68 rating ensures protection against dust and water immersion, making it ideal for outdoor applications like solar energy systems and marine equipment. The gold-plated brass contacts guarantee reliable conductivity and longevity, surpassing typical connectors in durability and performance for critical industrial and automotive uses.
Ideal for Industrial & Automotive Use
This 24-pin connector is perfect for applications requiring secure, high-voltage power and data transmission. It's well-suited for Indian industrial settings, control boxes, and automotive devices. Consider this connector if you need a robust, waterproof solution for outdoor equipment, marine electronics, or high-vibration environments. Skip if you require a simpler, low-voltage connector or a different coupling mechanism like push-pull.
Typical situations where HangTon HE29 24 Pin Circular Connector helps — illustrative scenarios, not customer reviews.
An Indian manufacturing plant needs to connect high-voltage power to automated machinery operating in a dusty, humid environment.
The HangTon HE29 24-pin connector's IP68 rating and threaded coupling ensure a secure, waterproof connection that resists dust ingress and vibration, maintaining operational reliability.
A solar energy system installer in a coastal Indian region requires a reliable, waterproof connector for outdoor panel connections.
This connector's gold-plated brass contacts and durable nylon66 shell offer excellent corrosion resistance and over 500 mating cycles, ideal for long-term outdoor exposure and high-voltage power transmission.
| Mating Cycle | >500 times |
| Temperature Range | -40℃ to +100℃ |
| Humidity | +40℃ 95±3% |
| Vibration Resistance | 10-500Hz, acceleration 100m/s² |
| Shock Resistance | 40-80 times/min, acceleration 250m/s² |

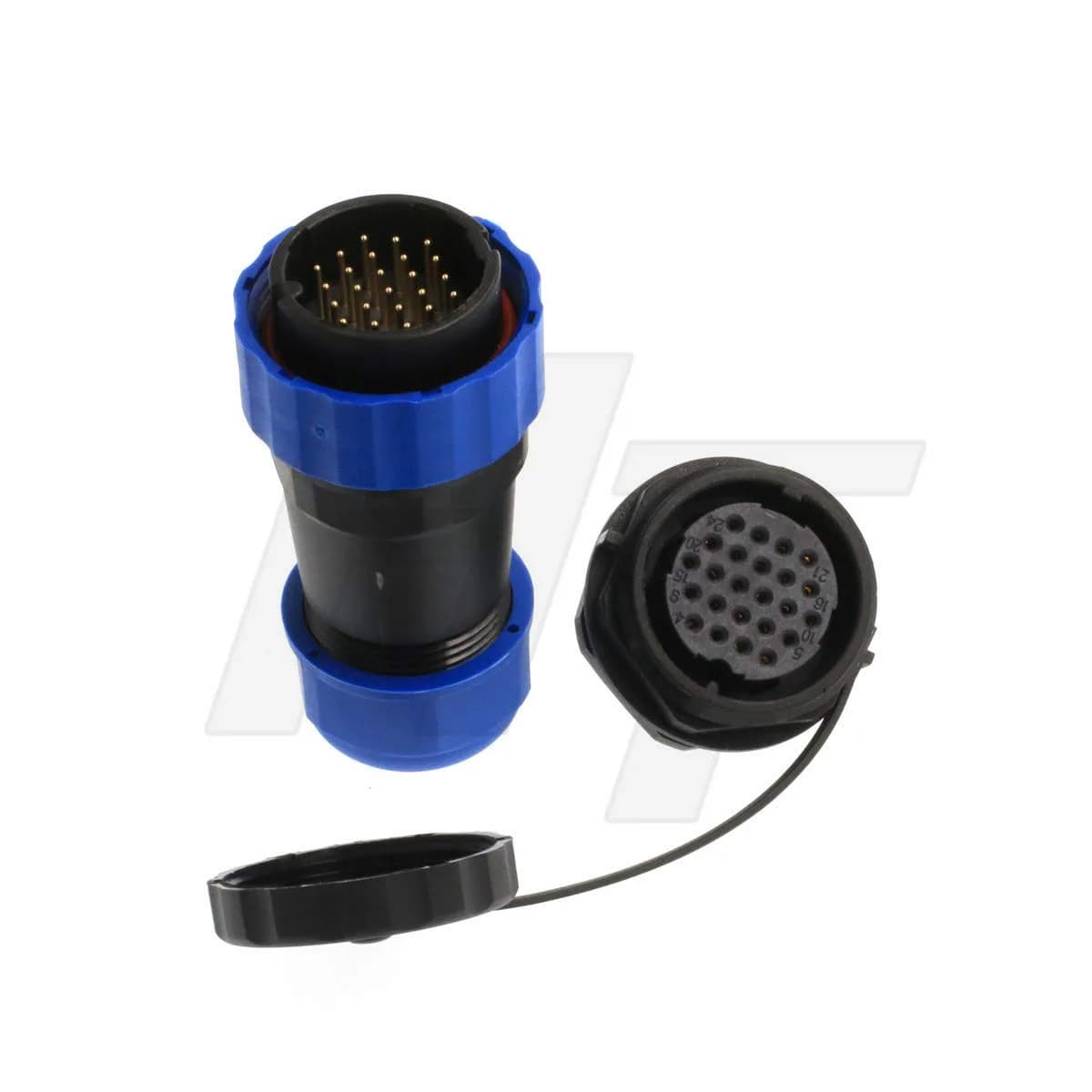

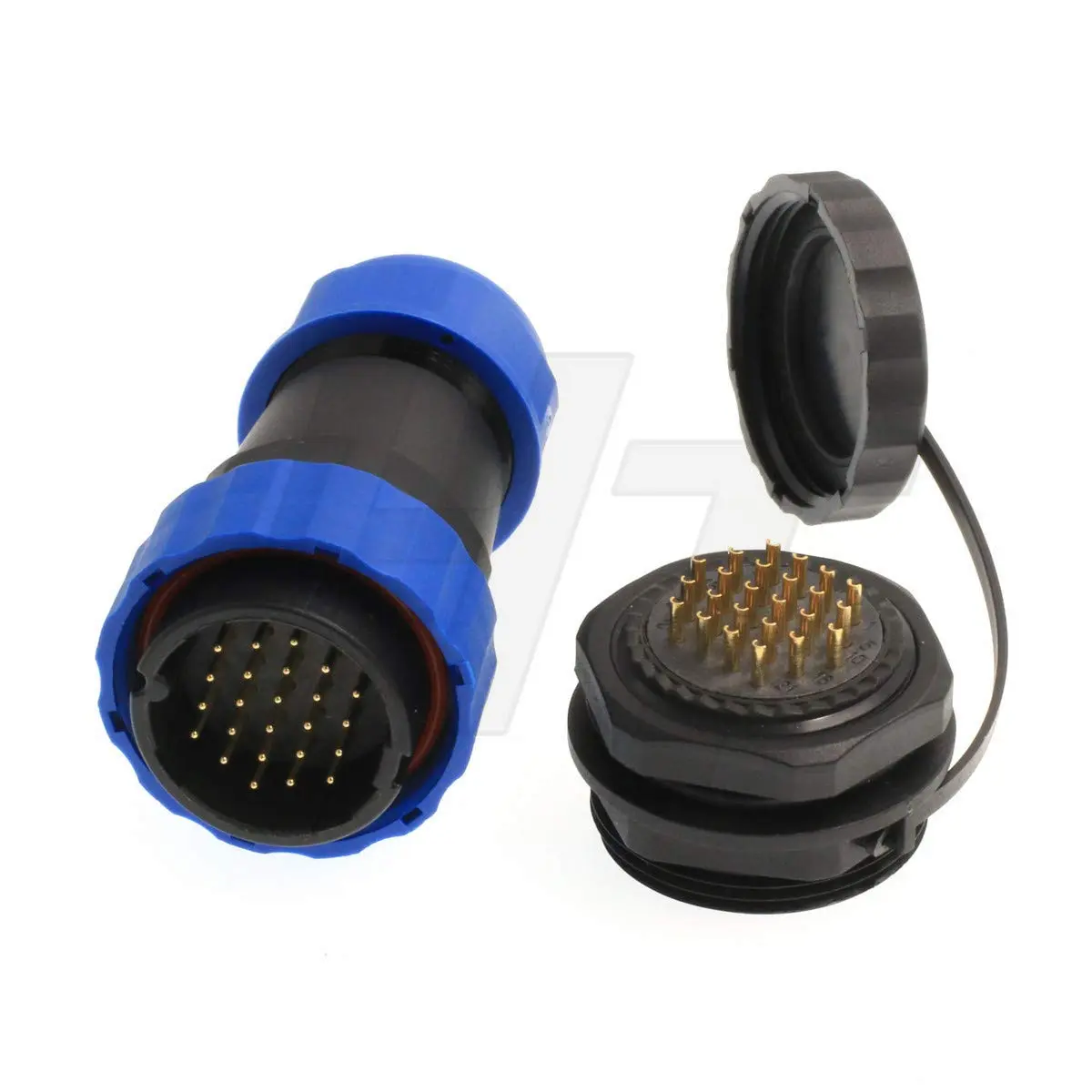

| Package Includes | 1 x Cable Plug with Male Pins, 1 x Chassis Socket, 1 x Waterproof / Dustproof Cap |
| Feature | HangTon HE29 24 | Others |
|---|---|---|
| Waterproof Rating | IP68 (Submersible) | IP67 or lower (splash-resistant) |
| Voltage/Current Rating | AC 250V / 5A | Typically AC 125V / 3A |
| Contact Material | Brass with Gold Plating | Brass or Copper alloy (no plating) |
| Shell Material | Thermoplastic Nylon66 (V-0 Fire Resistance) | Standard Plastic or Aluminum |
| Cost per Pin | ₹467 per pin | ₹50-₹150 per pin (approx.) |
| SKU | hfb2866 |
| GTIN | 6299136361206 |
| Brand | HangTon Connect |
| Model | HE29 |
| Pin Count | 24 Pin |

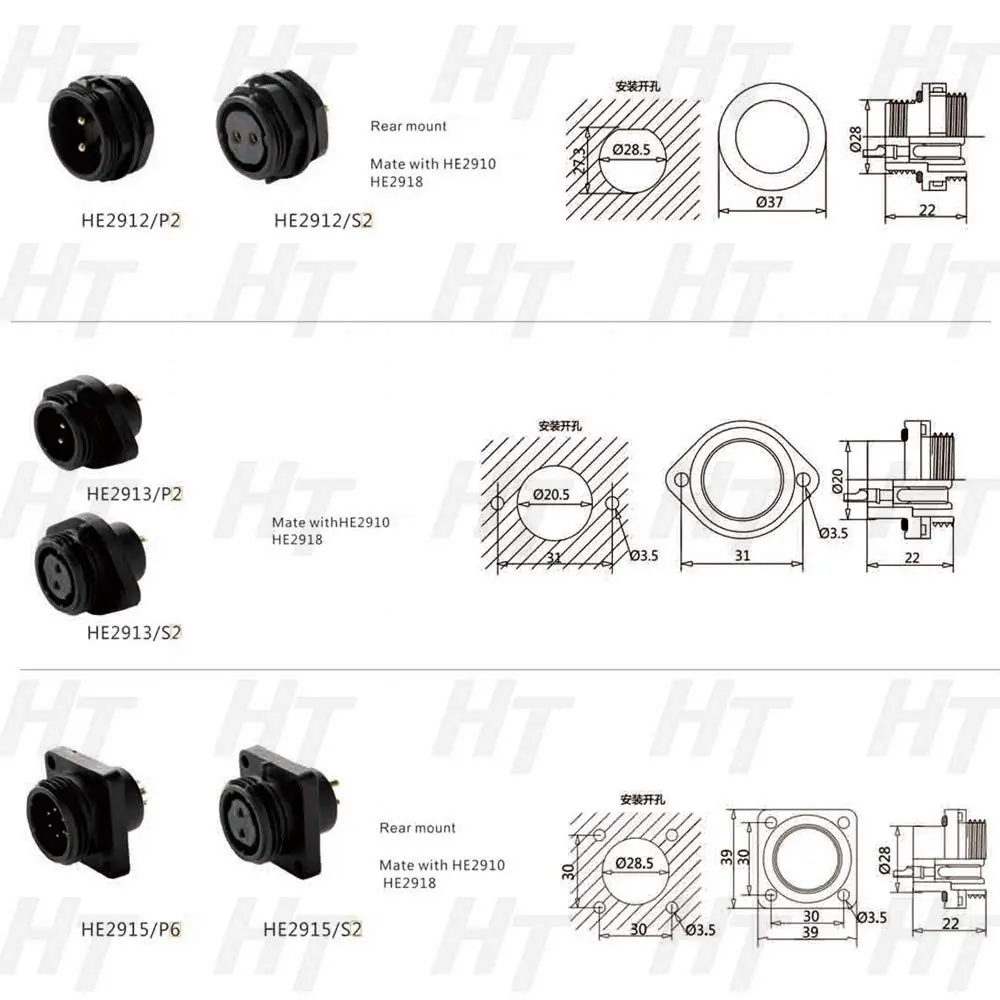

| Panel Cutout Diameter | 29mm |
| Cable Outer Diameter Range | 12-15mm |
| Coupling Type | Threaded Coupling |
| Shell Material | Thermoplastic Nylon66 (Fire Resistance: V-0) |
| Insert Material | Thermoplastic PPS (Max Temp: 260℃) |
| Contact Material | Brass with Gold Plating |
| Termination | Solder |
| IP Rating | IP68 |
| Rated Voltage | AC 250V |
| Rated Current | 5A |
| Resistance | 5mΩ |
| Wire Size | ≤0.785mm² or 18AWG |
| Contact Diameter | Φ1mm |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
