What is the primary function of uxcell F8-16M thrust ball bearings?

These uxcell F8-16M thrust ball bearings are designed to support pure axial loads and axially locate a shaft in one direction only. They are not intended for radial loads. Their separable components facilitate easy installation and maintenance, making them suitable for low-speed applications.

Can thrust ball bearings support radial loads?

Standard thrust ball bearings, like the uxcell F8-16M, are designed exclusively to sustain pure axial loads and should not be subjected to any radial loads. For combined radial and axial loading, angular contact ball bearings or tapered roller bearings are required.

How do I distinguish between the shaft washer and housing washer during assembly?

In a single-direction thrust ball bearing, the shaft washer has a slightly smaller bore diameter that fits tightly onto the rotating shaft, whereas the housing washer features a larger bore clearance to avoid shaft contact while resting against the stationary housing.

What is the material composition of these thrust ball bearings?

The uxcell F8-16M thrust ball bearings feature GCr15 chrome steel for both the shaft/housing washers and the bearing balls, providing high hardness and wear resistance. The cage is made of stamping steel.

What are the typical applications for these thrust ball bearings in India?

These bearings are suitable for low-speed applications such as oven turntables, jacks, pumps, rotating applications, machine tools, and automobiles. Their robust construction makes them a reliable choice for various industrial and DIY projects in India.

How do I buy original uxcell F8-16M thrust ball bearings in India?

You can buy original uxcell F8-16M thrust ball bearings from crowcrowcrow.com, sourced directly from authorized US retailers and authorized brand partners. They are factory-sealed, imported per-order, with all customs duties and GST included. Delivery is via ExpressBox tracked shipping.

uxcell F8-16M Thrust Ball Bearings 8mm x 16mm x 5mm

Name: uxcell F8-16M Thrust Ball Bearings 8mm x 16mm x 5mm Chrome Steel Single Direction (2-Pack)
Brand: uxcell
SKU: qwq0273
Price: 1221.00 INR
Availability: InStock

About this item

uxcell F8-16M Thrust Ball Bearings (2-Pack) are engineered for precise axial load support in single-direction applications. Imported from authorized US retailers, these bearings feature GCr15 chrome steel construction for superior hardness and wear resistance, ensuring durability in demanding industrial settings. The separable design facilitates easy installation and maintenance, making them a reliable choice for Indian workshops and manufacturing units.

These bearings are specifically designed to handle axial loads and axially locate a shaft in one direction only, with a dynamic load rating of 1.6kN and static load rating of 1.255kN. The chrome steel balls and GCr15 shaft/housing washers provide high, uniform hardness and excellent wear resistance. Suitable for low-speed operations up to 5000rpm with grease lubrication, they are ideal for applications such as oven turntables, jacks, pumps, and machine tools.

While these bearings are built for robust performance, they are not designed for radial loads. For applications in India's diverse climate, proper lubrication and cleanliness are key to longevity. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping to your pincode.

Key Features

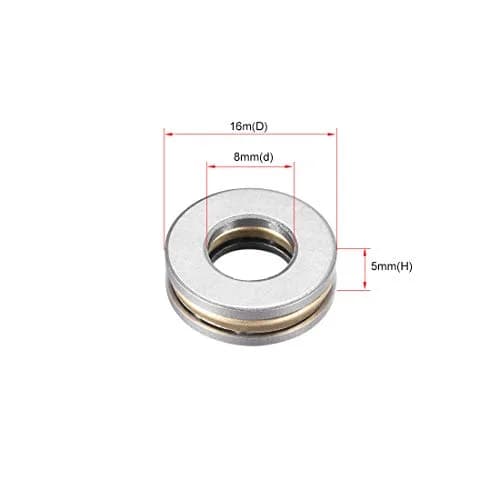

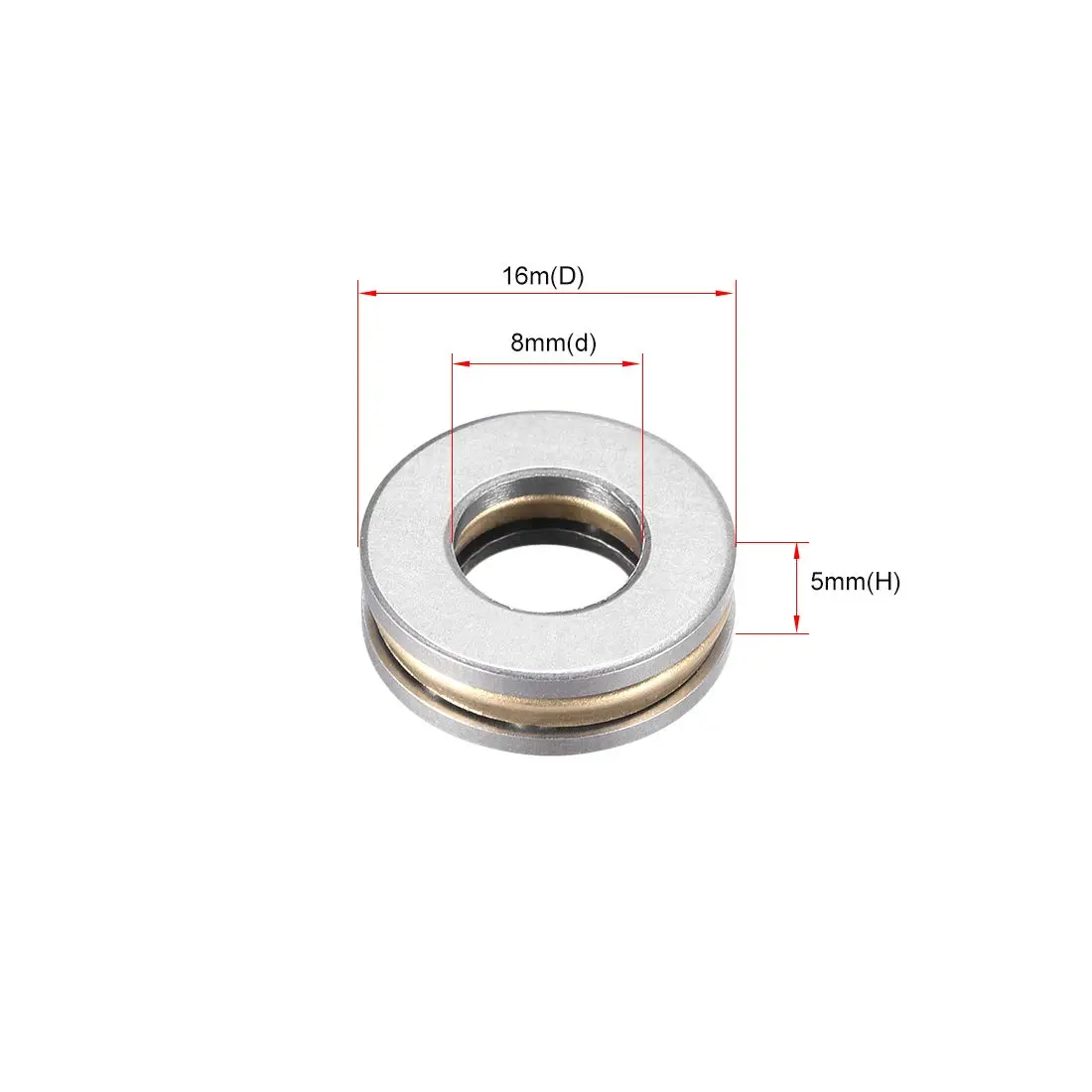

SIZE — Bore Diameter=8mm, Outer Diameter=16mm, Thickness=5mm
MATERIAL — Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Brass cage
CAPABILITY — Dynamic Load Rating (Cr): 2.5kN; Static Load Rating (Cor): 3.0kN; Limiting Speed (Grease): 4000rpm, designed for low speed operation and axial loads only
APPLICATION — Can be used for oven turntable, jack, pump, rotating applications, machine tools, automobiles, ect.
FEATURES — The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time

Why choose this product

Engineered for Axial Loads

These uxcell thrust ball bearings are specifically designed to handle pure axial loads, ensuring your machinery's shaft is accurately located in one direction. Unlike general-purpose bearings, their construction prioritizes resistance to forces pushing along the shaft's axis. The GCr15 chrome steel material provides exceptional hardness and wear resistance, crucial for maintaining performance in industrial applications. Imported directly from authorized US retailers, these bearings offer a reliable alternative to local options, ensuring consistent quality and specifications for your critical components.

Ideal for Specific Applications, Not All

These bearings excel in low-speed applications like oven turntables, jacks, and pumps where only axial forces are present. They are not suitable for radial loads or high-speed operations. If your project involves significant side-loads or high RPMs, consider angular contact ball bearings or roller bearings instead. For extremely high-speed or heavy radial loads, these thrust bearings would not be the appropriate choice.

How to use

Identify Shaft and Housing — Determine which component will rotate (shaft) and which will remain stationary (housing). Ensure the shaft diameter matches the bearing's 8mm inner bore, and the housing bore accommodates the 16mm outer diameter.

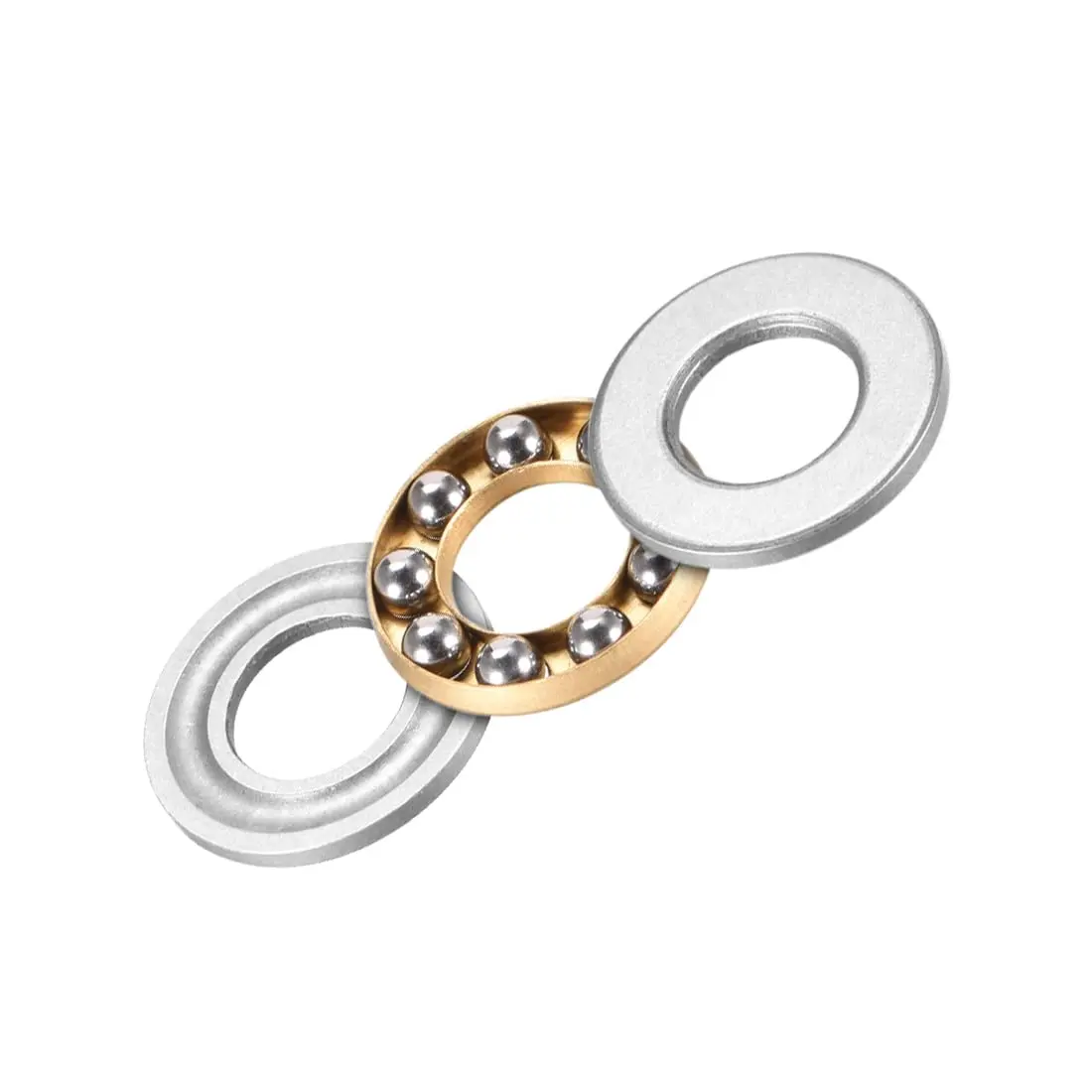

Separate Bearing Components — Carefully separate the shaft washer, housing washer, and the ball and cage assembly. Note that the shaft washer has a tighter fit for the shaft, while the housing washer has clearance for the stationary part.
Mount Washers and Balls — Place the shaft washer onto the shaft, then position the ball and cage assembly. Finally, place the housing washer against the stationary housing, ensuring all components are correctly aligned for axial load transfer.
Lubricate and Test — Apply a suitable grease lubricant to the bearing components before final assembly. Ensure the bearing rotates smoothly and is properly seated, supporting only axial loads without any radial play.

Example scenarios

Typical situations where uxcell F8-16M Thrust Ball Bearings 8mm x 16mm x 5mm Chrome Steel Single Direction (2-Pack) helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A DIY enthusiast in Pune needs to build a custom rotating display stand for a product showcase.

How this product helps

The uxcell F8-16M thrust ball bearings provide the necessary axial support for the rotating platform. Their separable design simplifies integration into the custom stand, and the chrome steel construction ensures durability for continuous operation during exhibitions.

Scenario 2

Illustrative example

Where it helps

A small workshop in Delhi requires replacement bearings for a low-speed industrial pump that experiences significant axial thrust.

How this product helps

These 2-piece packs of uxcell bearings offer a cost-effective solution. The GCr15 chrome steel ensures wear resistance, and the 1.6kN dynamic load rating is sufficient for typical pump applications, maintaining operational efficiency and reducing downtime.

Specifications

Composition

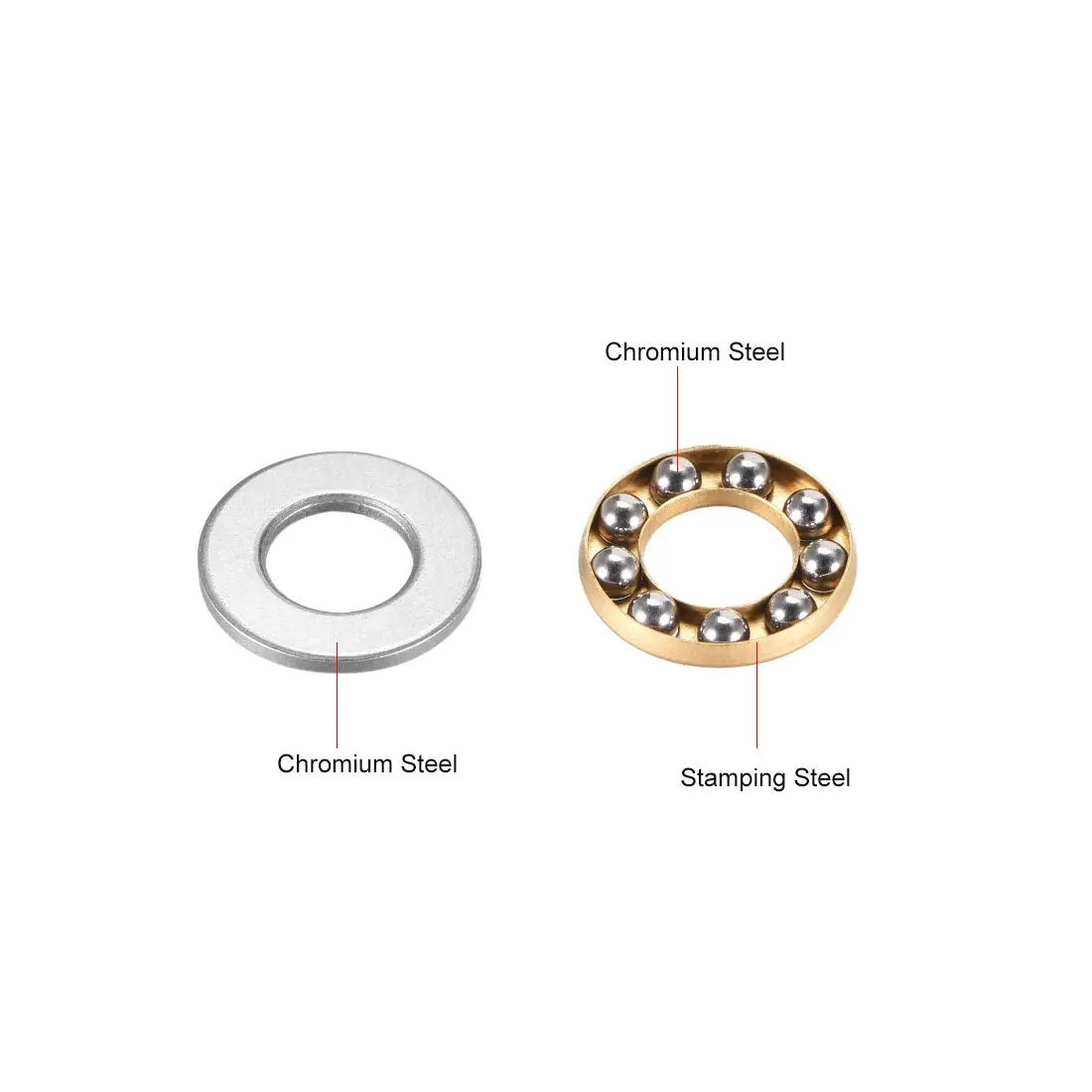

Shaft/Housing Washer Material	GCr15 Chrome Steel
Bearing Ball Material	GCr15 Chrome Steel
Cage Material	Stamping Steel

Usage

Application Type	Single Direction Axial Load
Dynamic Load Rating (Cr)	1.6kN
Static Load Rating (Cor)	1.255kN
Limiting Speed (Grease)	5000rpm
Limiting Speed (Oil)	7000rpm
Accuracy Class	P0
Lubricant Type	Grease
Cost per use	2 bearings at ₹1,221 — ₹611 per bearing
Shelf life after opening	12 months
Reapplication math	N/A for mechanical parts
Contraindications

How we compare

Feature	uxcell F8-16M Thrust	Others
Load Capacity	Axial Load Only (Cr: 1.6kN, Cor: 1.255kN)	Axial Load Only (varies by brand, typically 1.5-2.0kN Cr)
Material	GCr15 Chrome Steel Balls/Washers, Stamping Steel Cage	Often GCr15 or similar steel, cage material varies (steel/brass/polymer)
Speed Rating (Grease)	Up to 5000rpm	Typically 4000-6000rpm for similar bearings
Cost per Bearing (2-Pack)	₹611 per bearing	₹150-300 per bearing (approx. ₹300-600 for a 2-pack)
Authenticity & Sourcing	Imported from authorized US retailers, factory-sealed	Varies by local supplier; authenticity can be a concern

SKU	qwq0273
Brand	uxcell
Model	F8-16M
Inner Diameter (Bore)	8mm (0.315 inches)
Outer Diameter	16mm (0.63 inches)
Thickness	5mm (0.197 inches)
Material	Chrome Steel (GCr15) with Stamping Steel Cage
Number of Pack	2 Pcs
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
