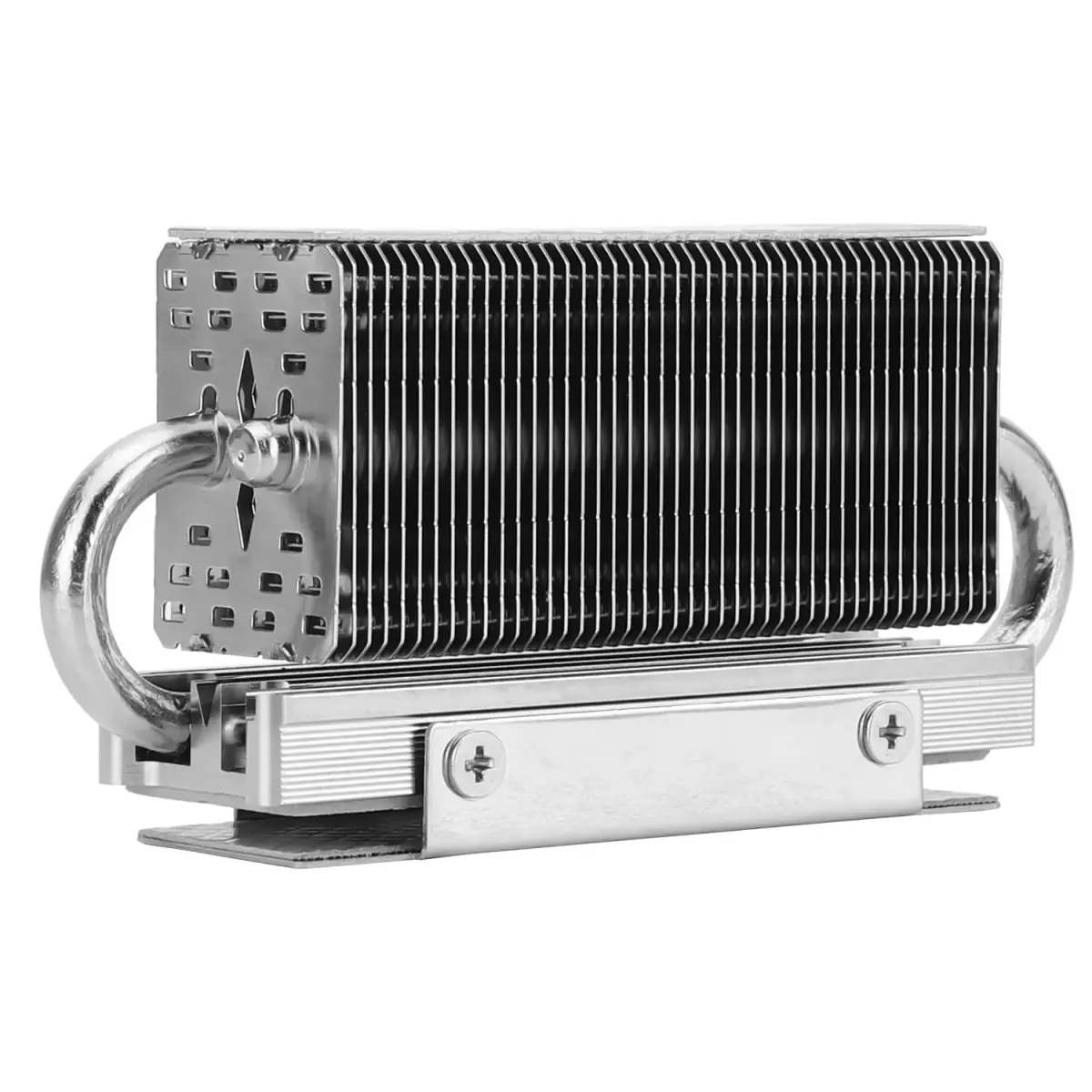

Thermalright HR10 2280 SSD Cooler | Double-Sided Heatsink with 4 Copper Heat Pipes & Thermal Pads

• Advanced technology — Second generation gasket with heat dissipation up to 14.8w / m.k, Double tube double lamination welding technology, pure aluminum electroplating passive fin group, pure aluminum electroplating base, aluminum alloy decorative top cover + stainless steel fixed bottom surface, 60000mm² Heat dissipation area, bring you the ultimate heat dissipation experience.

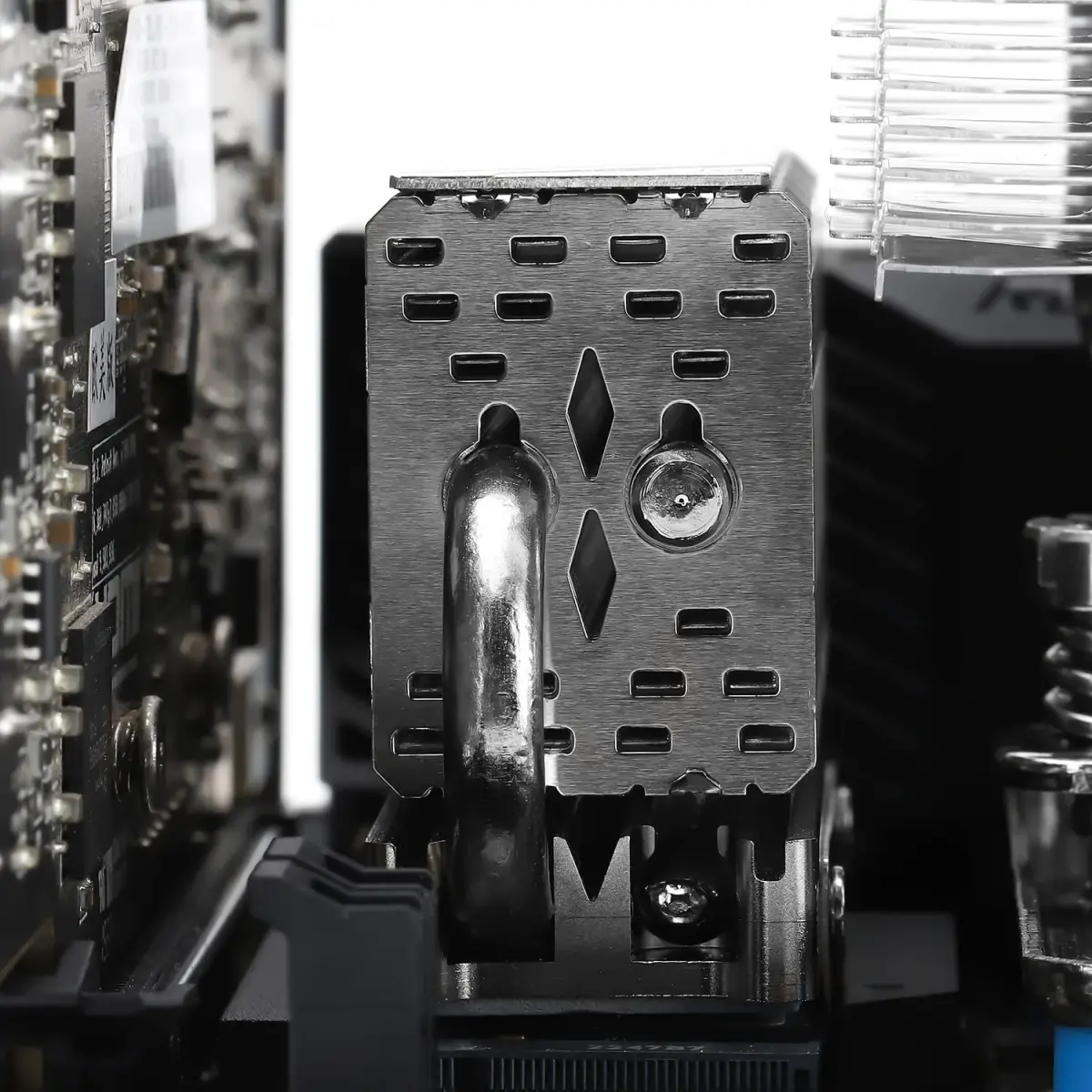

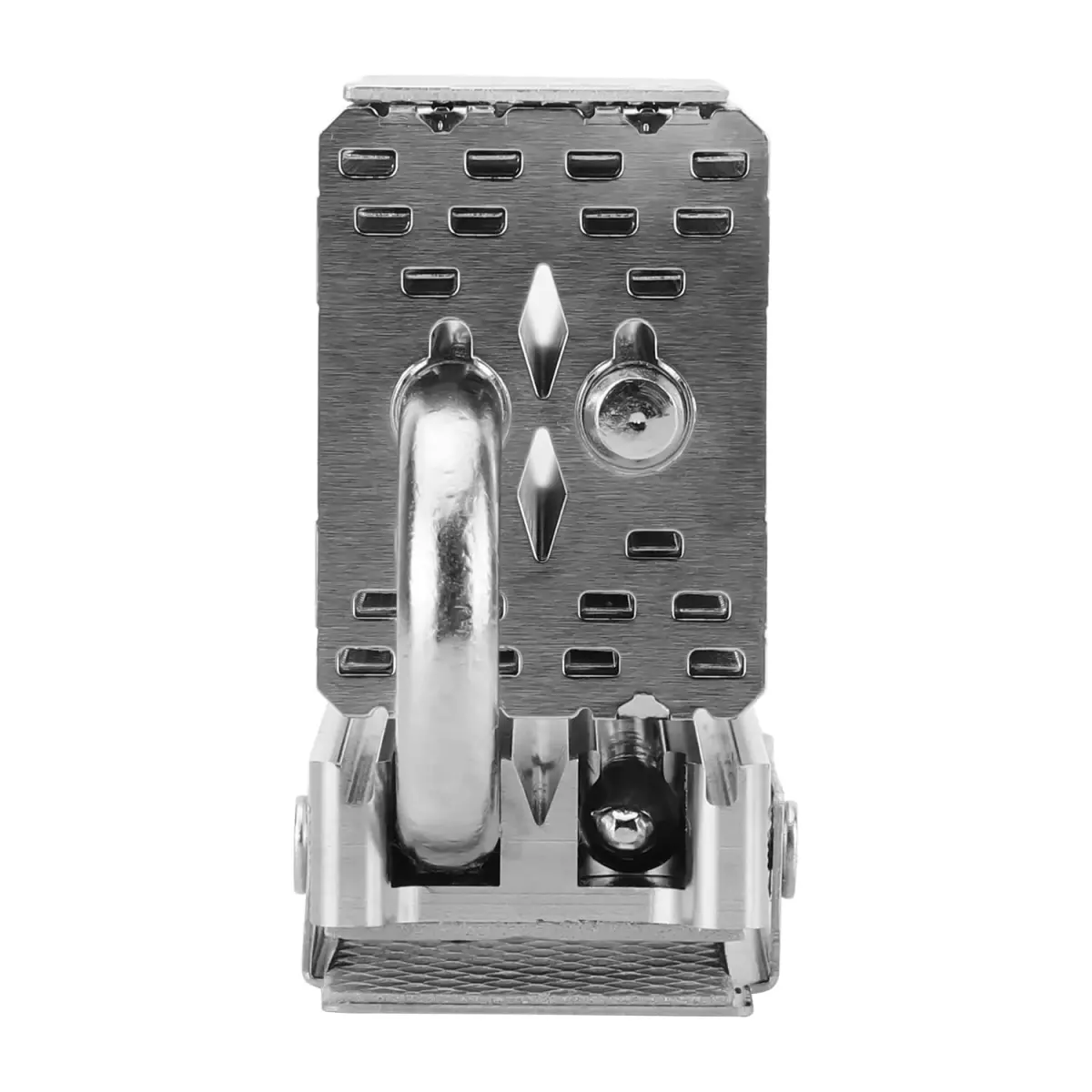

• SSD Heatsink with Heat Pipe — Equipped with 5mm×2 pure copper heat pipe, the heat pipe of AGHP 3 generation technology adopts double-tube double-lamination welding technology, which can improve the conduction efficiency of a single heat pipe,The heat produced by M.2 2280 SSD will be absorbed by the heat pipe and effectively conducted to both the upper and bottom heatsink.
• Specifications — Size：90.3*23.7*43.8mm;Body material：Copper Heatpipe +aluminum Fins；Color：silver；2×5mm AGHP generation 3 reverse gravity heat pipe；Pure aluminum electroplating base；Carry 14.8w/m.k double-sided second-generation Odyssey silicone pad；60000mm² heat dissipation area；Thickness=5mm gap aluminum fins
• eatsink more classic. Easy to Install and Operate With double-sided clip design, suitable for M.2 2280 series SSD of various heights, stable installation, better protection of your M.2 SSD
• Unique Nano Thermal Pad — Advancing Gene thermal pad is made from Nano Silicon Grease Material, with good thermal conductivity ability. Soft enough and good ductility, compatible with uneven surfaces of the M.2 SSD. Low viscosity, with no damage to the SSD warranty label.

• Prepare the SSD and Heatsink — Carefully remove your M.2 2280 NVMe SSD from its packaging. Gently peel off the protective films from both sides of the included 14.8w/m.k thermal pads and apply them to the SSD's controller and memory chips.
• Position the Heatsink — Align the heatsink's clip mechanism over the M.2 SSD, ensuring the thermal pads make full contact with the SSD's components. The double-sided design allows for versatile positioning.
• Secure the Heatsink — Gently press down on the heatsink until the clips securely engage with the SSD's edges. Ensure a snug fit without applying excessive force to avoid damaging the SSD or heatsink.

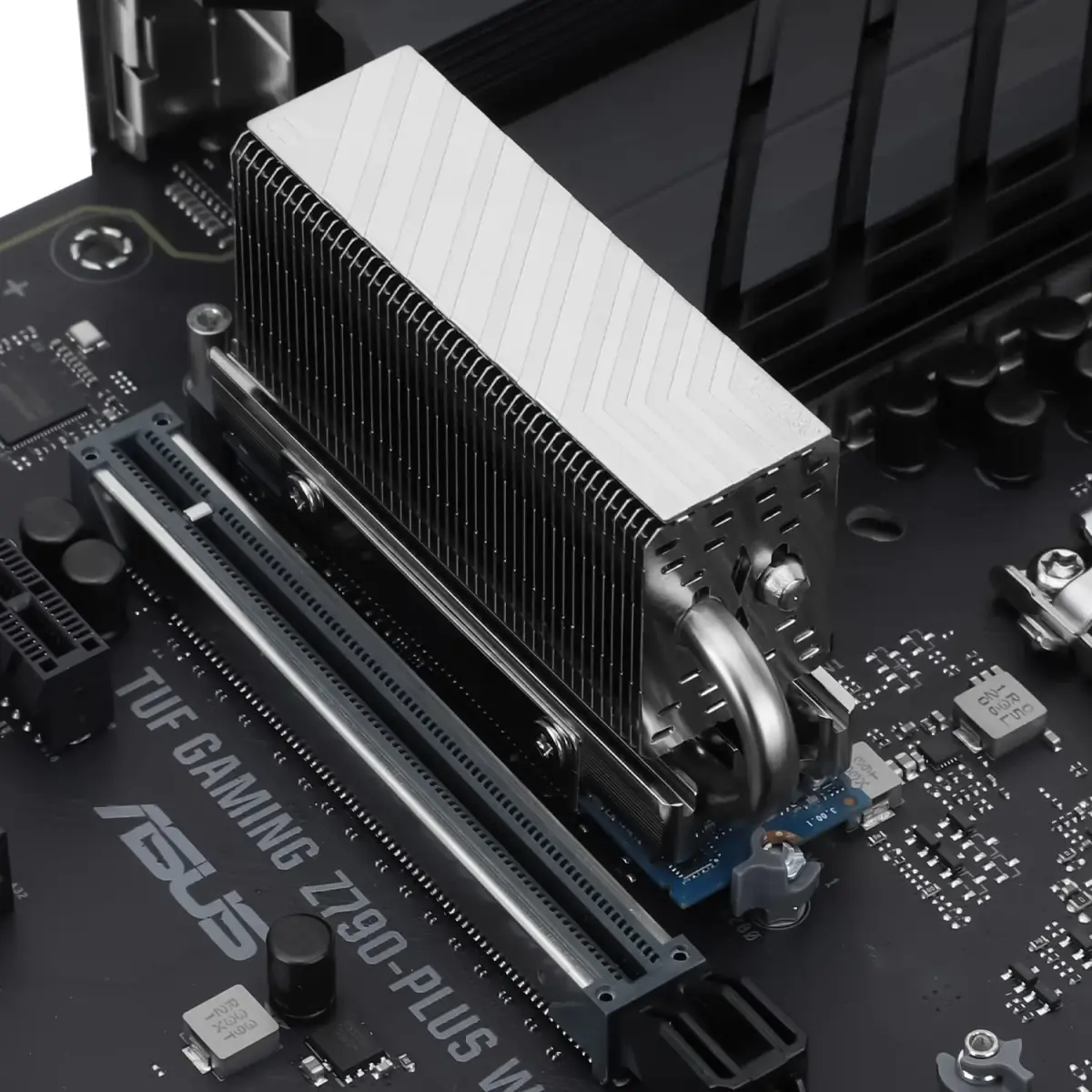

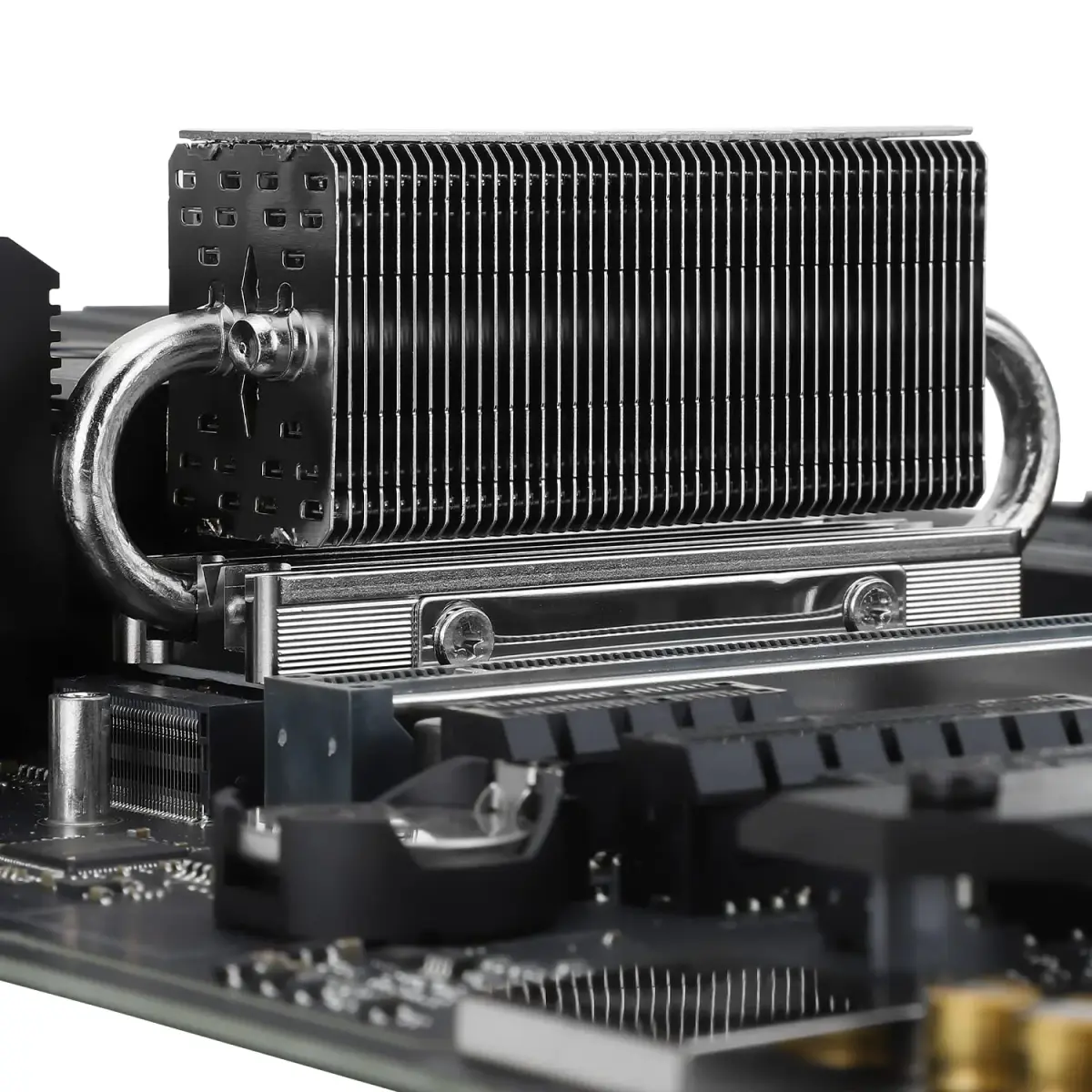

• Install SSD into Motherboard — Carefully insert the M.2 SSD with the attached heatsink into the appropriate M.2 slot on your motherboard. Secure it with the motherboard's M.2 screw or retention clip.
