Thermalright Assassin X120 Refined SE ARGB CPU Air Cooler 120mm (4.72 inches) | 4 Heat Pipes, PWM Fan, 148mm Height

• Brand Overview — Thermalright is a Taiwan brand with more than 20 years of development. It has a certain popularity in the domestic and foreign markets and has a pivotal influence in the player market. We have been focusing on the research and development of computer accessories. R & D product lines include: CPU air-cooled radiator, case fan, thermal silicone pad, thermal silicone grease, CPU fan controller, anti falling off mounting bracket, support mounting bracket and other commodities

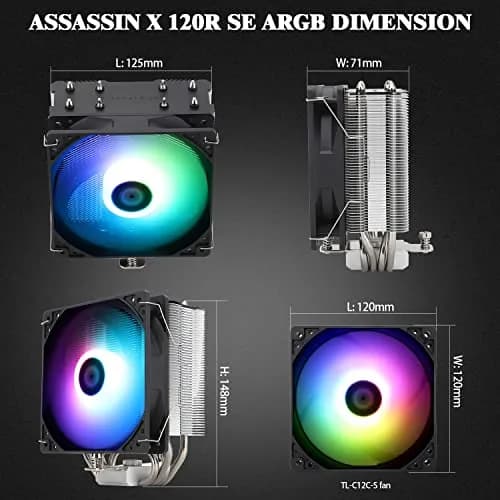

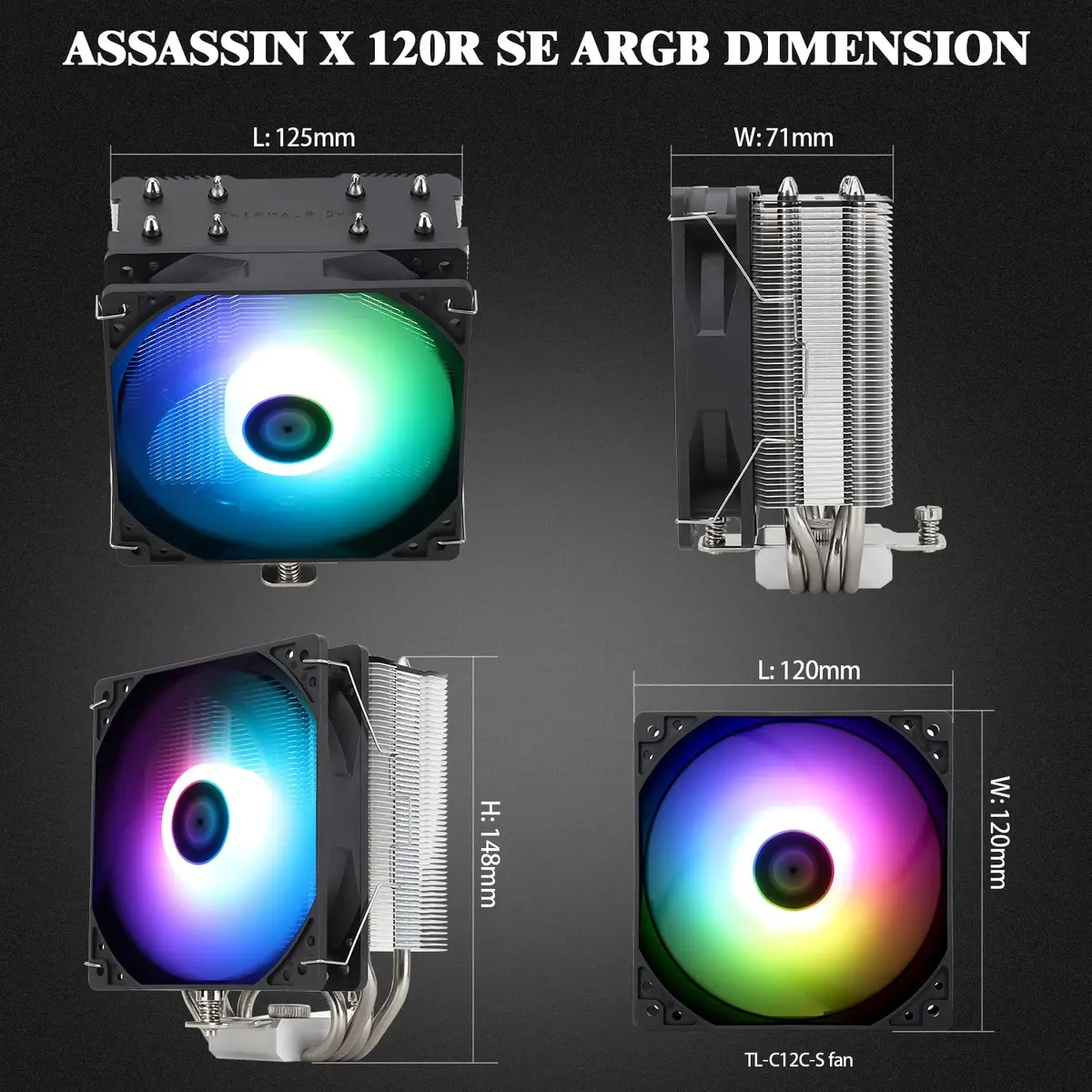

• Product specification — Thermalright AX120 SE ARGB; CPU Cooler dimensions: 120(L)x71(W)x148(H)mm (4.92x2.8x 5.83 inch); Product weight:0.63kg(1.39lb); heat sink material: aluminum, CPU cooler is equipped with metal fasteners of Intel & AMD platform to achieve better installation
• PWM Fans — MOdel:TL-C12C-S; Colorful and gorgeous ARGB light effects; Standard size PWM fan:120x120x25mm (4.72x4.72x0.98 inches); fan speed (RPM):1550rpm±10%; power port: 4pin; Voltage:12V; Air flow:66.17CFM(MAX); Noise Level≤25.6dB(A), the fan pairs efficient cool with low-noise-level, providing you an environment with both efficient cool and true quietness

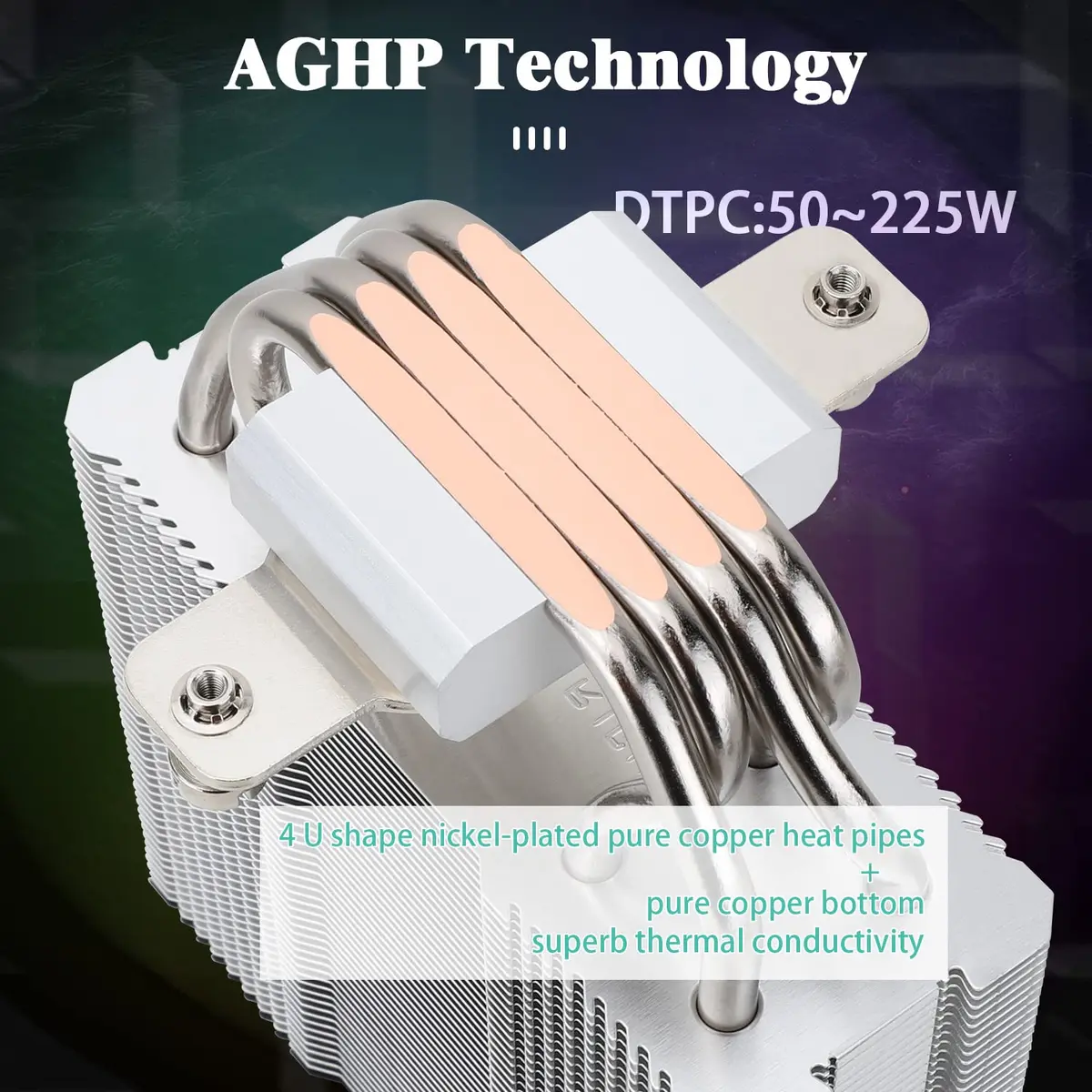

• AGHP technique — 4×6mm heat pipes apply AGHP technique, Solve the Inverse gravity effect caused by vertical / horizontal orientation, cpu cooler TDP is 125 to 225W. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators. UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you. The height is 148mm, Suitable for medium-sized computer case

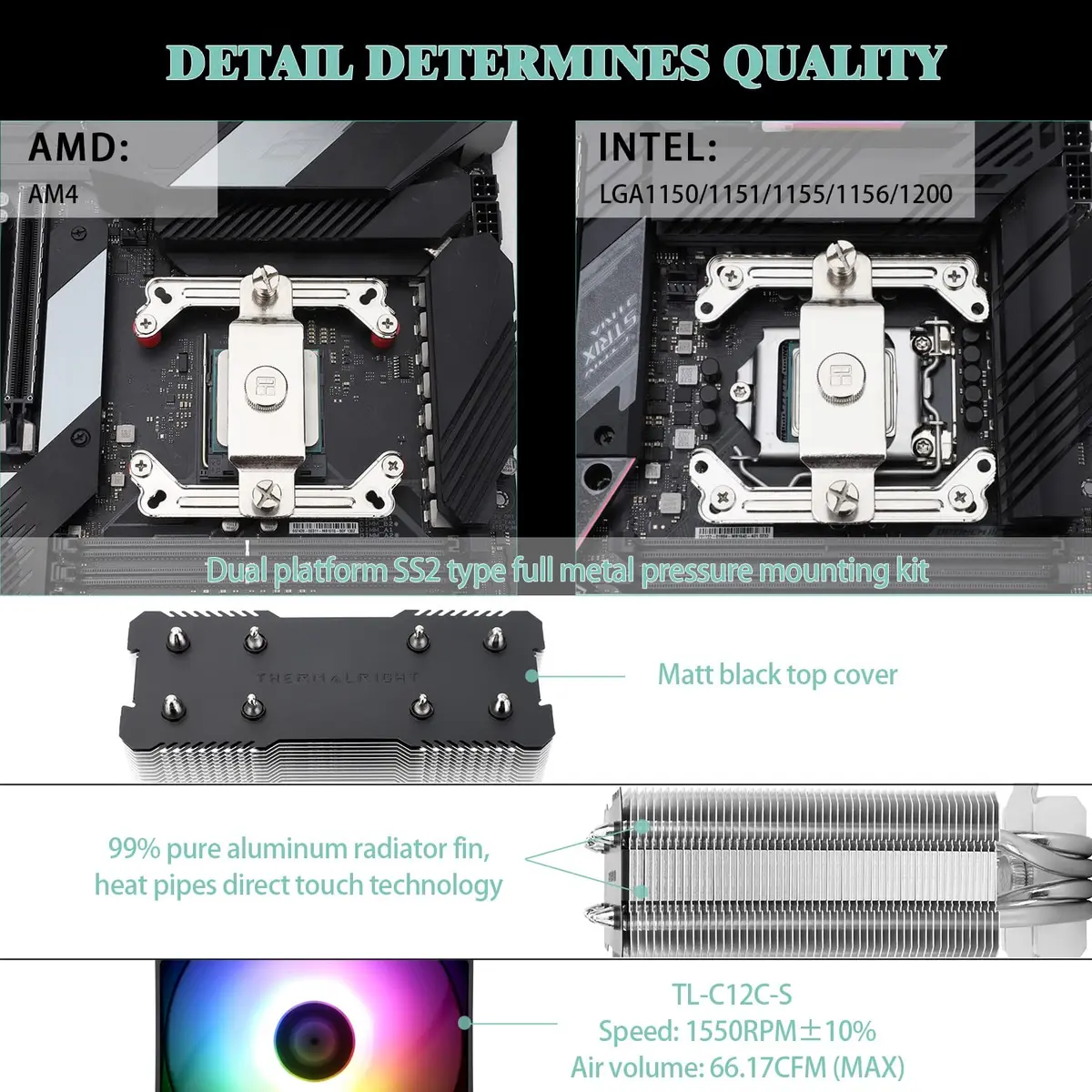

• Compatibility — The CPU cooler Socket supports: Intel:1150/1151/1155/1851/1200/1700/17XX AMD:AM4/AM5; For different CPU socket platforms, corresponding mounting plate or fastener parts are provided

• Prepare Mounting Hardware — Identify the correct mounting brackets and backplate for your CPU socket (Intel or AMD). Attach the necessary fasteners and nuts to the cooler's heatsink as per the manual's diagram.
• Apply Thermal Paste and Mount Cooler — Apply a small amount of the included thermal paste to the center of your CPU. Carefully align the cooler with the CPU socket and secure it using the prepared mounting hardware.
• Connect Fan and ARGB Cables — Connect the 4-pin PWM fan cable to the CPU_FAN header on your motherboard. Connect the ARGB cable to a compatible ARGB header on your motherboard for lighting effects.
• Final Check and Boot — Ensure all cables are securely connected and the cooler is firmly mounted. Boot up your system and check CPU temperatures in the BIOS or monitoring software.
