| SKU | fsu4698 |
| GTIN | 00065030886390 |
| Brand | StarTech.com |
| Model Number | PEX8M2E2 |
| Color | Red |
| Form Factor | Dual M.2 NVMe |
| Interface | PCIe 3.0 x8/x16 |
| Supported M.2 SSD Sizes | 2242, 2260, 2280 mm |
| Supported SSD Types | PCIe 3.0 NVMe and AHCI M.2 NGFF |
| Simultaneous Drive Access | Yes |
| Software RAID Support | RAID 0, 1, SPAN, JBOD |
| Backward Compatibility | PCIe 1.0, 2.0 |
| Operating System Support | Windows, Linux, macOS |

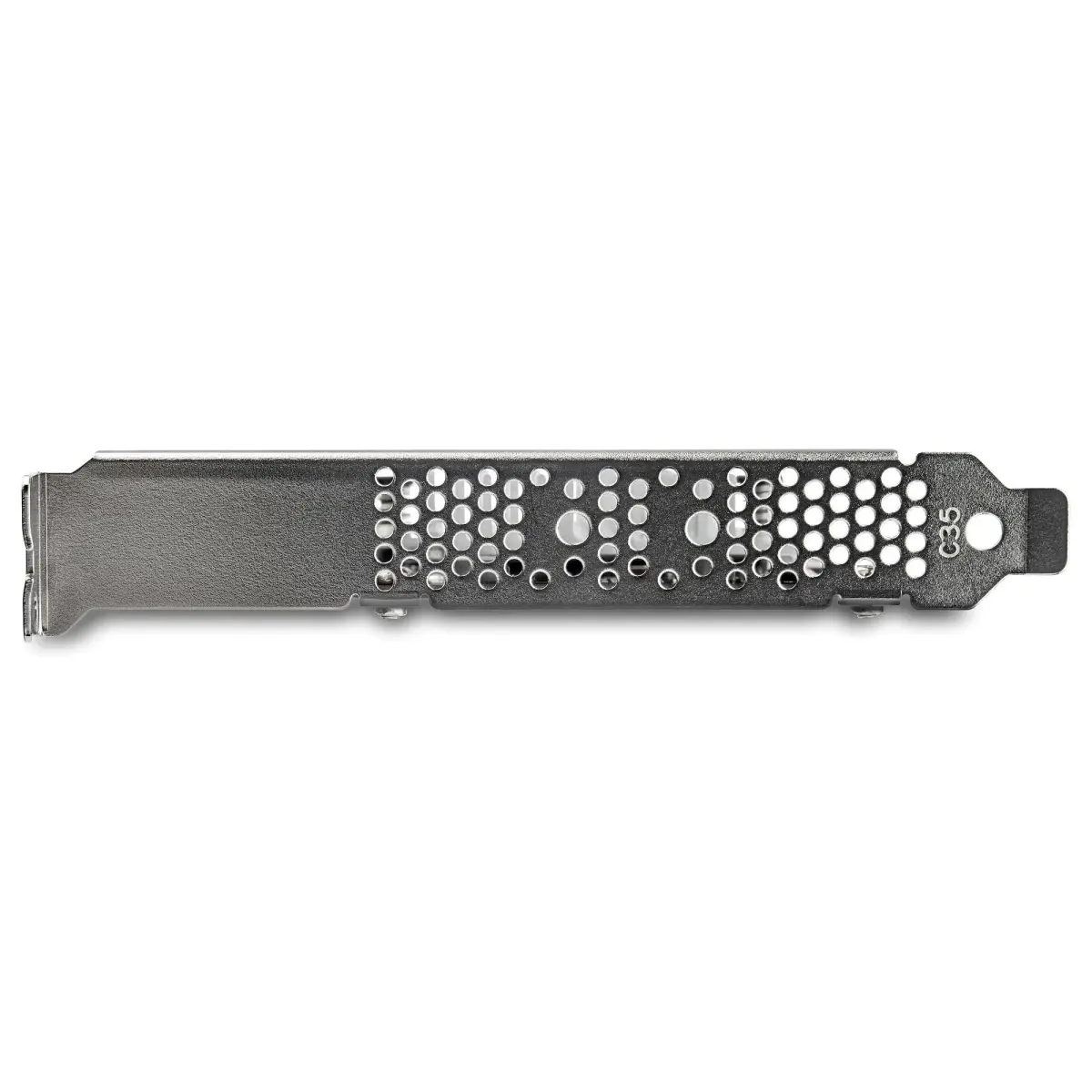

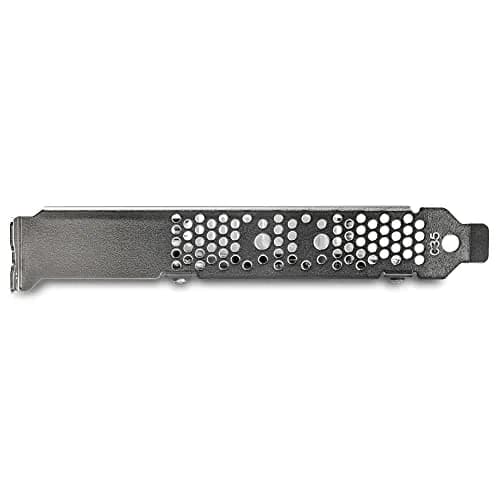

| Included Brackets | Full-profile (pre-installed), Low-profile (vented) |
| Weight | 0.19 lbs (0.09 kg) |
| Dimensions (L x W x H) | 6.3 in x 0.6 in x 2.7 in (16 cm x 1.5 cm x 6.9 cm) |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
This item:
StarTech.com Dual M.2 PCIe SSD Adapter x8/x16 NVMe/AHCI PCIe 3.0 (PEX8M2E2) | 2x M.2 NVMe SSDs, 2242/2260/2280, No bifurcation required, Software RAID 0/1/span/JBOD, Up to 3GB/s, Mac and PC
22,357
This item
StarTech.com Dual M.2 PCIe SSD Adapter x8/x16 NVMe/AHCI PCIe 3.0 (PEX8M2E2) | 2x M.2 NVMe SSDs, 2242/2260/2280, No bifurcation required, Software RAID 0/1/span/JBOD, Up to 3GB/s, Mac and PC
22,357
Total price:
28,663
You save 8,424 (23%) Extra3 items selected
3 items
28,663You save 8,424 (23%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Supercharge Your Workstation Storage
StarTech.com Dual M.2 PCIe SSD Adapter (PEX8M2E2) allows you to install two high-performance PCIe 3.0 M.2 SSDs (NVMe and AHCI) into an x8 or larger PCIe slot. This adapter significantly boosts your system's storage capacity and data transfer rates, enhancing overall performance for workstations and servers. It supports individual drive access or software RAID configurations without requiring PCIe bifurcation, ensuring broad compatibility with both new and legacy systems.
The adapter supports common M.2 SSD sizes (2242, 2260, 2280mm) and is backward compatible with PCIe 1.0 and 2.0 motherboards. It has been extensively tested for compatibility with popular NVMe SSDs like Samsung 970 evo and 950 Pro. The included vented brackets improve airflow, helping to prevent drive throttling and maintain optimal reliability.
For Indian professionals seeking to upgrade their systems, this adapter offers a cost-effective way to leverage the speed of M.2 NVMe SSDs. All customs duties and GST are included in the listed price, with delivery via ExpressBox tracked shipping. Enjoy enhanced data transfer speeds and storage capabilities for your demanding computing tasks.
Unlock Peak SSD Performance
This StarTech.com adapter is engineered to harness the full potential of PCIe 3.0 M.2 NVMe and AHCI SSDs. Unlike basic adapters, it uses a high-speed ASM2824 switch to enable simultaneous access to two drives or robust software RAID configurations. This means faster boot times, quicker application loading, and significantly reduced data transfer times for large files, crucial for professionals working with demanding datasets. It's designed to integrate seamlessly into your existing system, providing a substantial upgrade without requiring complex motherboard modifications.
Ideal for Professionals, Skip for Basic Users
This adapter is perfect for content creators, data analysts, video editors, and IT professionals who need to maximize storage speed and capacity in their workstations or servers. It's ideal if you're upgrading to NVMe SSDs or need to build a high-speed RAID array. However, if you only need to add a single M.2 SSD for basic storage or boot drive purposes and your system already has a dedicated M.2 slot, this dual-drive PCIe adapter might be overkill. For users with only USB flash drives or SATA SSDs, this PCIe M.2 adapter is not compatible.
Typical situations where StarTech.com Dual M.2 PCIe SSD Adapter x8/x16 NVMe/AHCI PCIe 3.0 (PEX8M2E2) | 2x M.2 NVMe SSDs helps — illustrative scenarios, not customer reviews.
A video editor in Mumbai needs to speed up project rendering and file transfers on their workstation.
Installing two high-speed NVMe SSDs using this adapter can reduce render times significantly. With speeds up to 3GB/s, large video files load and save much faster, improving workflow efficiency. Software RAID can further enhance performance or provide redundancy for critical project data.
A data analyst in Bangalore requires a reliable way to expand storage for large datasets on a server with limited M.2 slots.
This adapter allows adding two M.2 SSDs to a standard PCIe slot, bypassing motherboard limitations. It supports both NVMe and AHCI drives, offering flexibility. The included vented brackets ensure drives run cool under heavy load, maintaining data integrity and consistent performance for intensive data processing tasks.
| Installation | Insert into an x8 or larger PCIe slot on motherboard. Install M.2 SSDs into the adapter slots. Connect to OS for drive recognition or RAID configuration. |
| Max Transfer Speed (Single Drive) | Up to 3 GB/s (NVMe), 2.8 GB/s (AHCI) |
| Max Transfer Speed (Per Drive in RAID 0) | Up to 2.4 GB/s |
| Warranty | 2 Year Manufacturer Warranty |
| Feature | StarTech.com Dual M.2 | Others |
|---|---|---|
| SSD Support | Dual PCIe 3.0 NVMe/AHCI M.2 SSDs (2242/2260/2280mm) | Varies by brand; some support only NVMe, others only SATA M.2; may have fewer M.2 size options. |
| Interface Speed | Up to 3 GB/s (single NVMe), 2.4 GB/s (per drive RAID 0) | Speeds vary widely; many basic adapters offer only PCIe 2.0 speeds (up to 1 GB/s) or limited NVMe support. |
| RAID Functionality | Software RAID 0, 1, SPAN, JBOD supported | Often lacks dedicated RAID support or relies on motherboard bifurcation, which is not universally available. |
| Compatibility | PCIe 1.0/2.0/3.0 x8/x16 slots, Windows/Linux/macOS, no bifurcation needed | May require specific PCIe slot configurations (bifurcation) or have limited OS support, especially for older systems. |
| Cooling & Brackets | Vented brackets included for improved airflow and heat dissipation |
