How do I buy an original U.S. Solid motorized ball valve in India?

Purchase directly from crowcrowcrow.com to ensure you receive an original, factory-sealed U.S. Solid product. We import exclusively from authorized US retailers and brand partners, including all customs duties and GST in the listed price. Your order is shipped via ExpressBox with tracking for a transparent import experience.

What is the thread type and size for this U.S. Solid ball valve?

This U.S. Solid ball valve features a 3/4 inch connection size with G-thread (also known as BSPP or parallel pipe thread). It is important to verify if your existing pipework uses G-thread or NPT (National Pipe Tapered) and use appropriate adapters if necessary for a secure connection.

Can this motorized ball valve be used for drinking water lines in India?

No, this motorized ball valve cannot be used for drinking water lines. It has a lead content of approximately 3.05% and is not certified for potable water applications. It is designed for industrial or non-potable fluid control systems.

What is the voltage requirement and power consumption of this valve?

The valve operates on a wide voltage range of 9-24V AC/DC. It consumes a maximum of 5W, but after reaching its fully open or closed position, the energy output drops to a negligible level, preventing overheating and ensuring efficient operation.

How does the manual override function work on this motorized valve?

The manual override allows you to adjust the valve's position (open or closed) even when the power supply is interrupted or if you need to set it manually. This feature provides essential control and flexibility during installation, maintenance, or power outages.

What is the maximum pressure and temperature this valve can handle?

This brass ball valve can handle a maximum pressure of 1.0 MPa (approximately 10 bar or 145 PSI). The flow medium temperature range is from 0°C to 100°C, making it suitable for various industrial fluid applications within these limits.

Is this valve suitable for corrosive liquids or sewage?

No, this valve is not suitable for strong acids, strong bases, sewage, industrial gas, or media with many impurities. It is designed for cleaner fluids like water, air, and oil within specified temperature and pressure ranges.

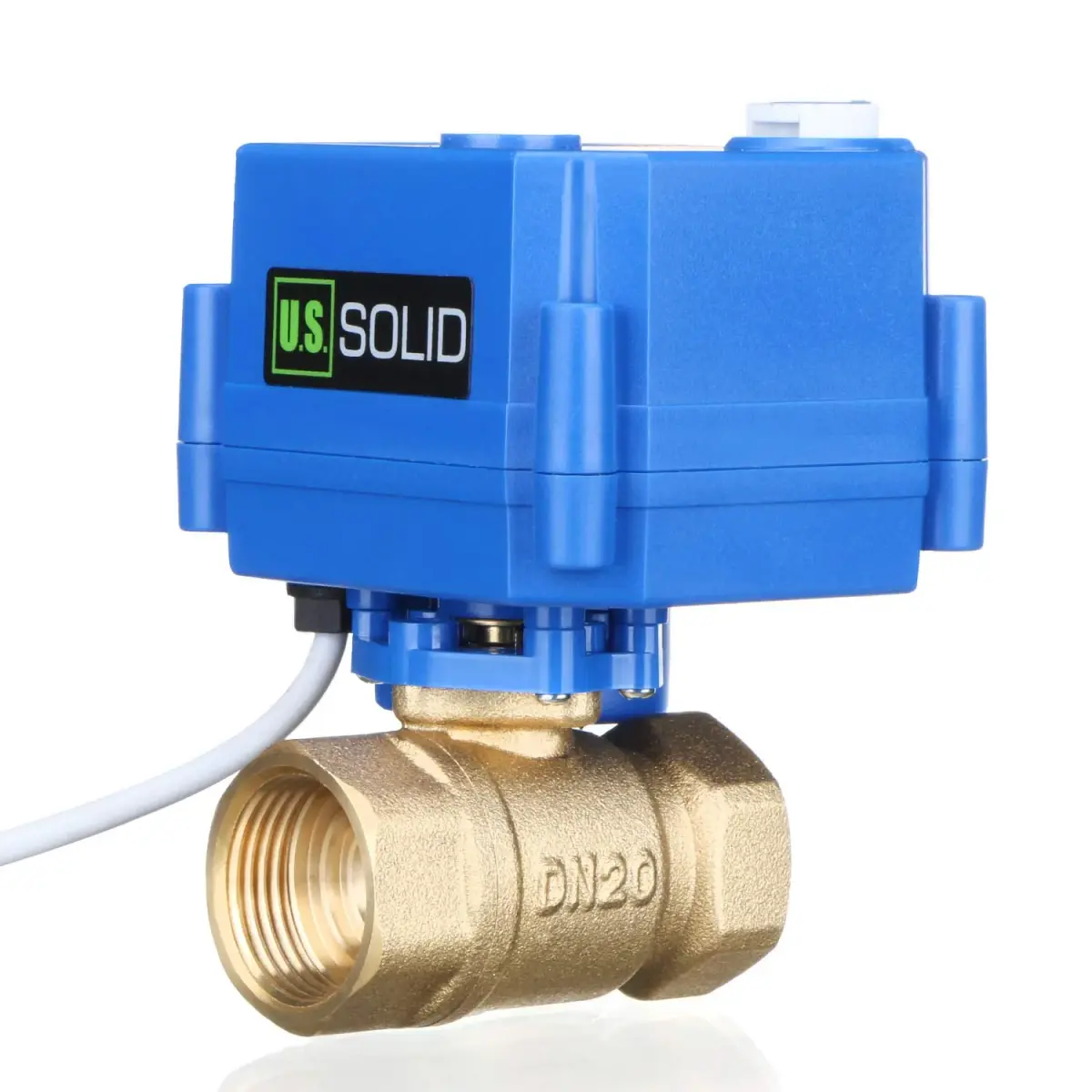

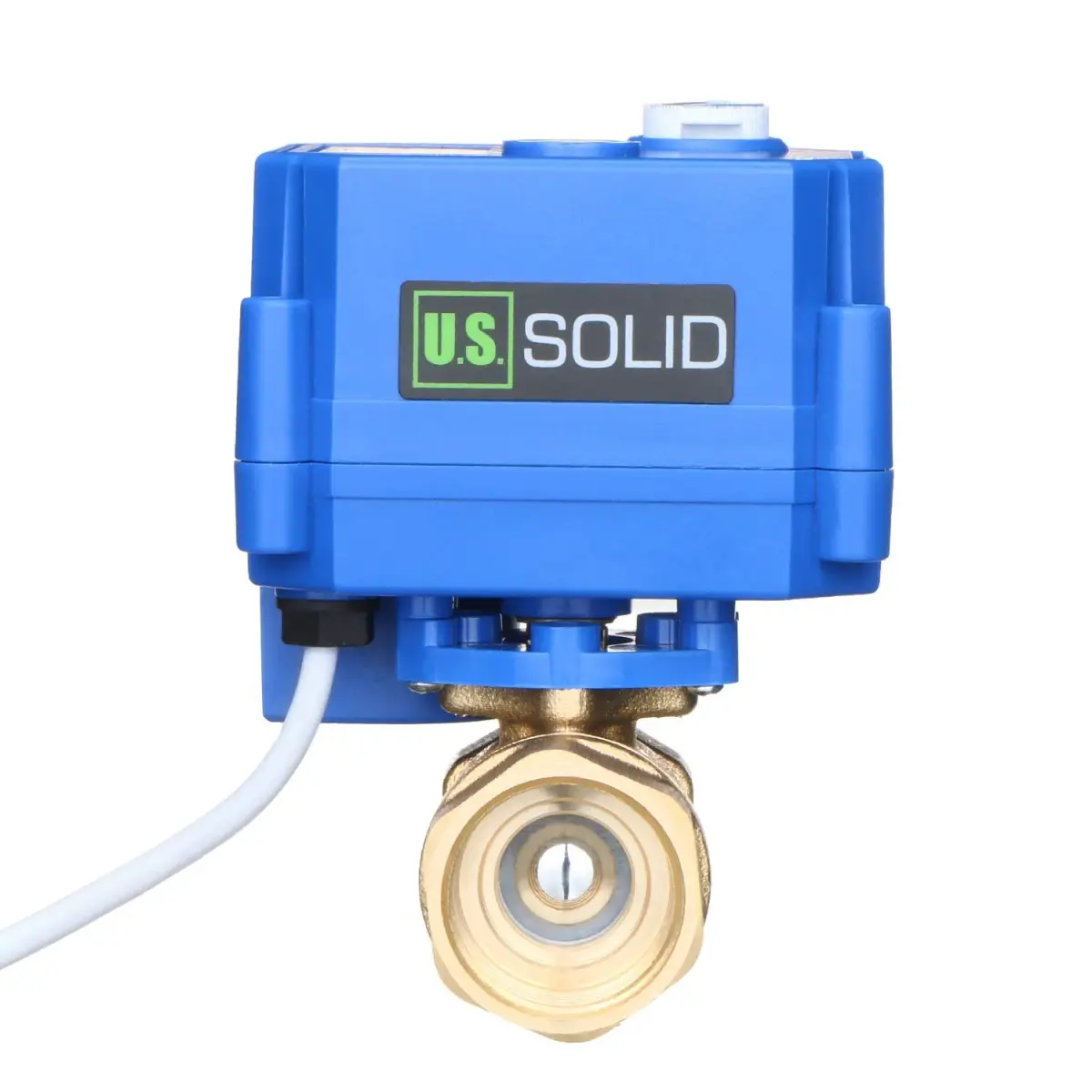

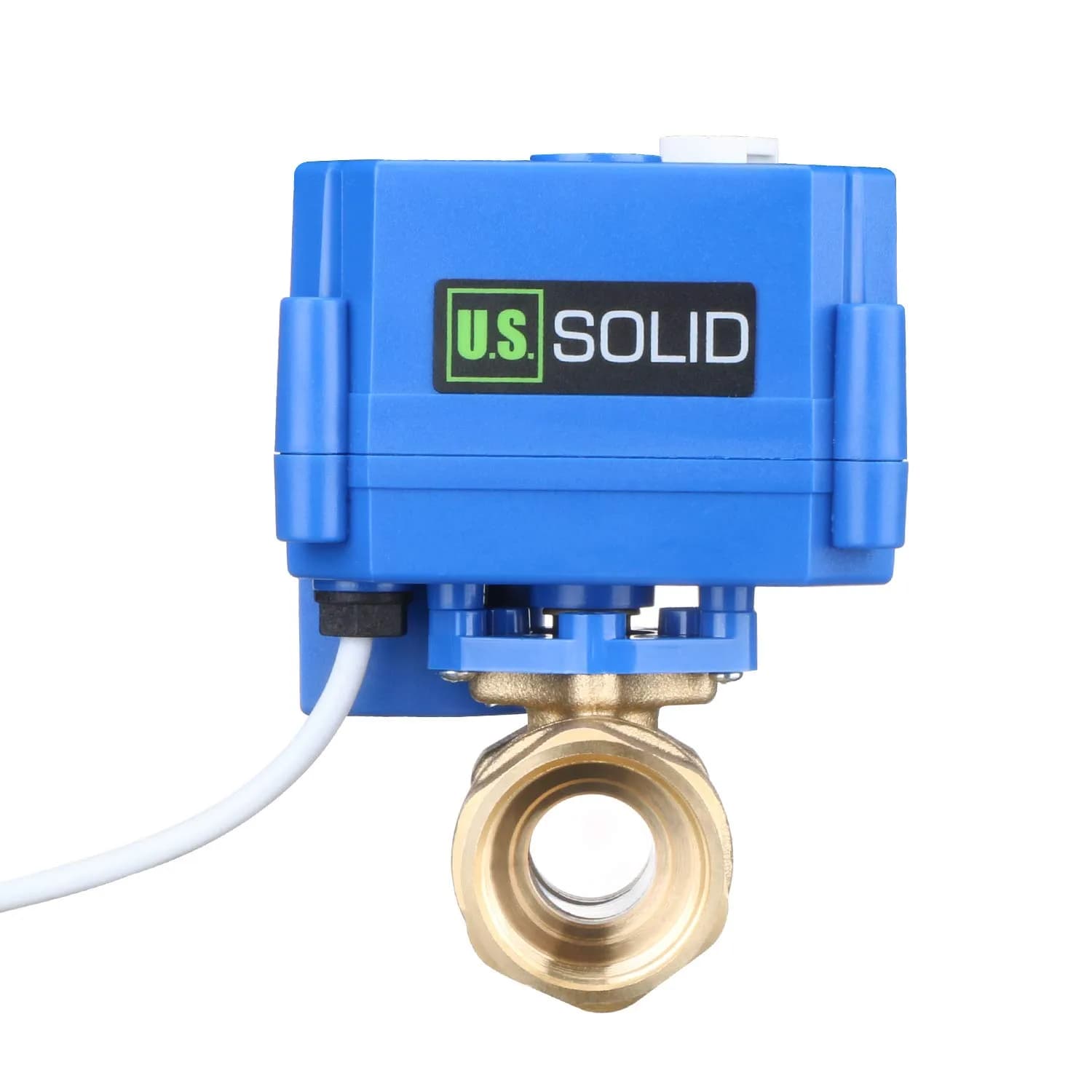

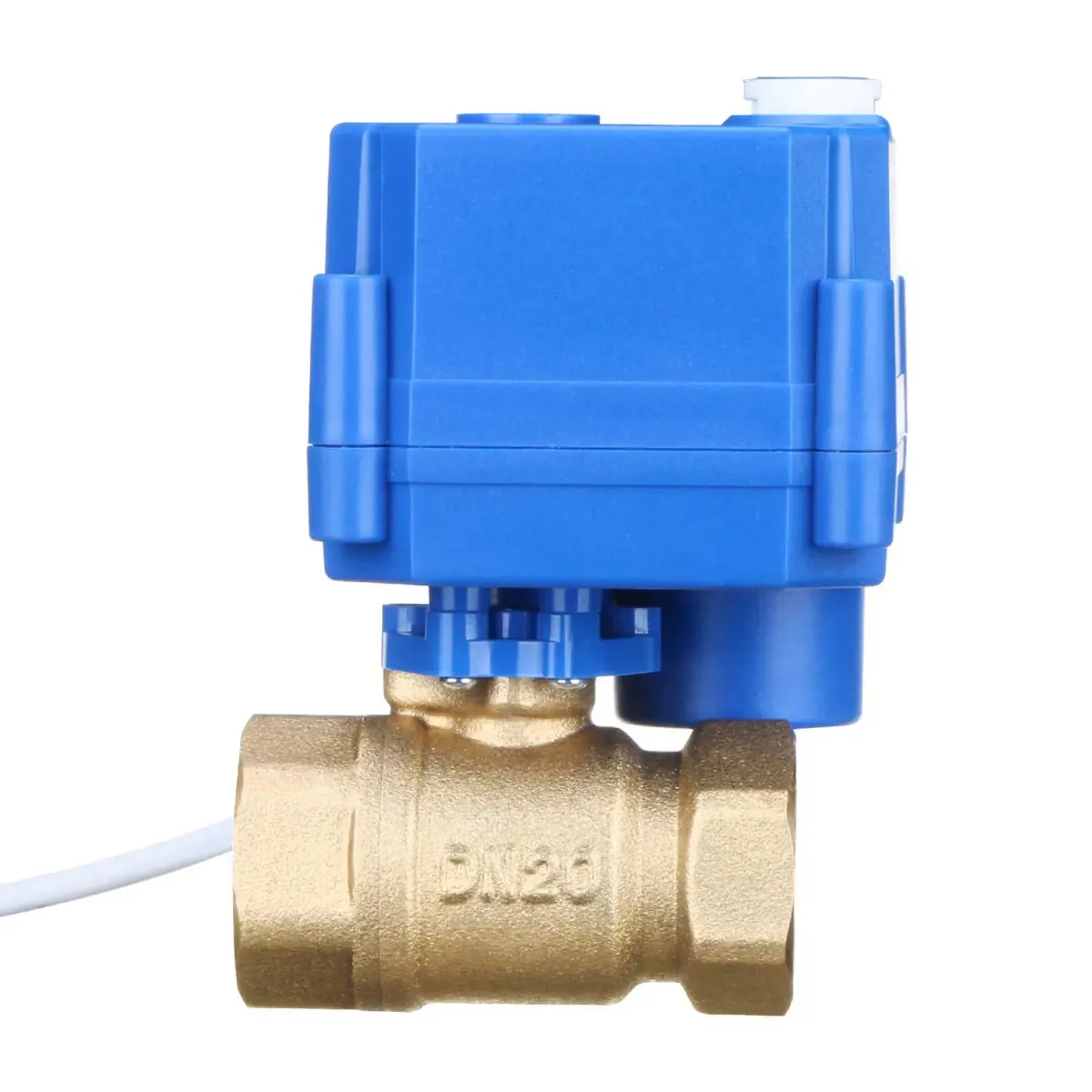

U.S. Solid Motorized Ball Valve 3/4" Brass | 24V Valve

Name: U.S. Solid Motorized Ball Valve 3/4" Brass Standard Port 9-24V AC/DC | Auto Return & Manual Function
Brand: U.S. Solid
SKU: hnu3052
Price: 6333.00 INR
Availability: InStock

About this item

The U.S. Solid motorized ball valve provides reliable automated fluid control for your projects. This 3/4" brass valve operates on 9-24V AC/DC, featuring an auto-return function that closes the valve when power is interrupted. Its standard port design and IP65 housing ensure durability. Imported directly for Indian customers, all customs duties and GST are included in the price, with tracked delivery via ExpressBox.

With a quick 6-8 second open/close time and a low energy consumption after reaching its limit switch, this valve prevents overheating. The visible position indicator and manual override function offer flexibility for operation and maintenance. It's suitable for water, air, and oil within specified temperature and pressure limits, but not for corrosive media or drinking water due to lead content.

For industrial automation or complex DIY setups in India, this motorized valve offers a robust solution. Compare its brass construction and 1.0 MPa pressure rating against local alternatives. Ensure your pipework uses G-thread connections or budget for adapters. Delivered to your doorstep with clear pricing and tracked shipping.

Key Features

9V-24V AC/DC- Works effectively over entire voltage range, this motorized ball valve will open or close valve in 6approximately 8 seconds

Why choose this product

Precision Automation for Your Projects

This U.S. Solid motorized ball valve brings automated control to your fluid systems. Its brass construction ensures durability for water, air, and oil lines, while the 9-24V AC/DC operation and 6-8 second actuation time offer responsive performance. The auto-return feature with a manual override provides essential safety and operational flexibility, preventing overheating and allowing manual adjustments. Imported directly, it bypasses typical import complexities for Indian buyers.

Who It's For vs. Who Should Skip It

Ideal for DIY enthusiasts, automation projects, and industrial applications needing reliable on/off fluid control for water, air, or oil. Perfect for systems requiring automated shut-off or remote operation. Skip if you need a valve for strong acids, bases, sewage, industrial gas, or drinking water due to lead content and material limitations. Also, ensure your pipework uses G-thread connections or be prepared to use adapters.

How to use

Connect the valve's two wires to a 9-24V AC/DC power source. Ensure the power supply is compatible with the valve's voltage range and can provide sufficient current. Verify polarity if applicable for DC power. — Connect Power Supply
For automatic operation, wire the valve to a control system or switch that provides power to open and removes power to close. The valve will open when power is applied and automatically return to the closed position when power is interrupted. — Wire for Operation

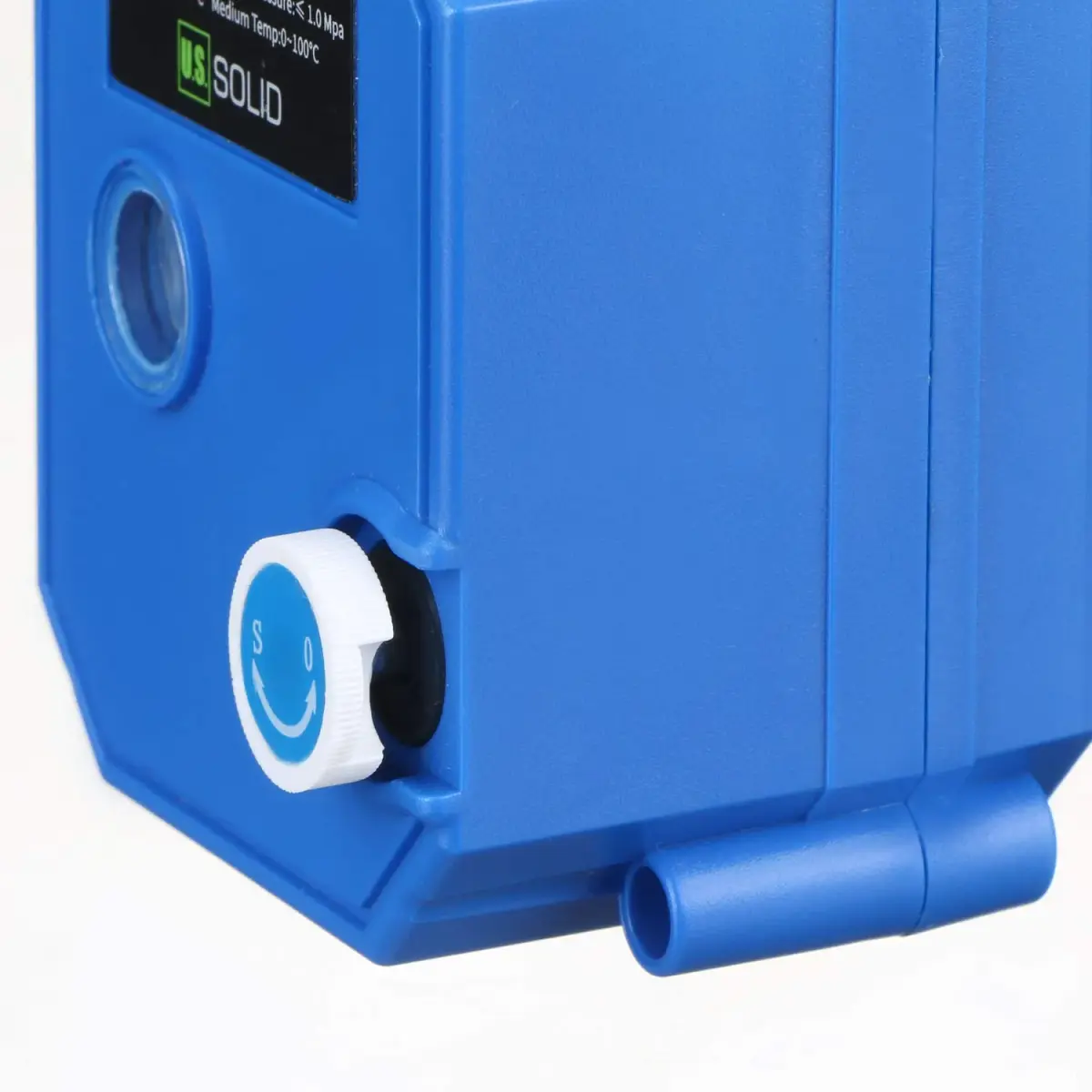

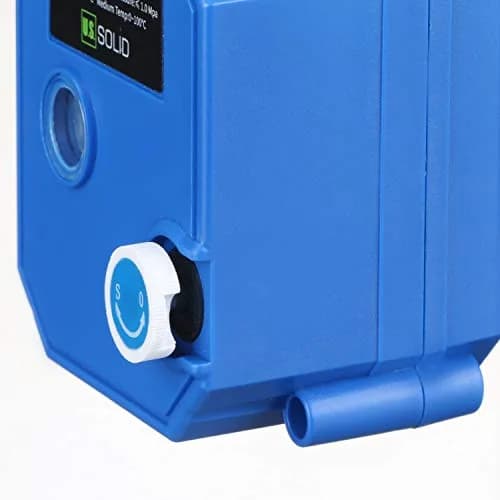

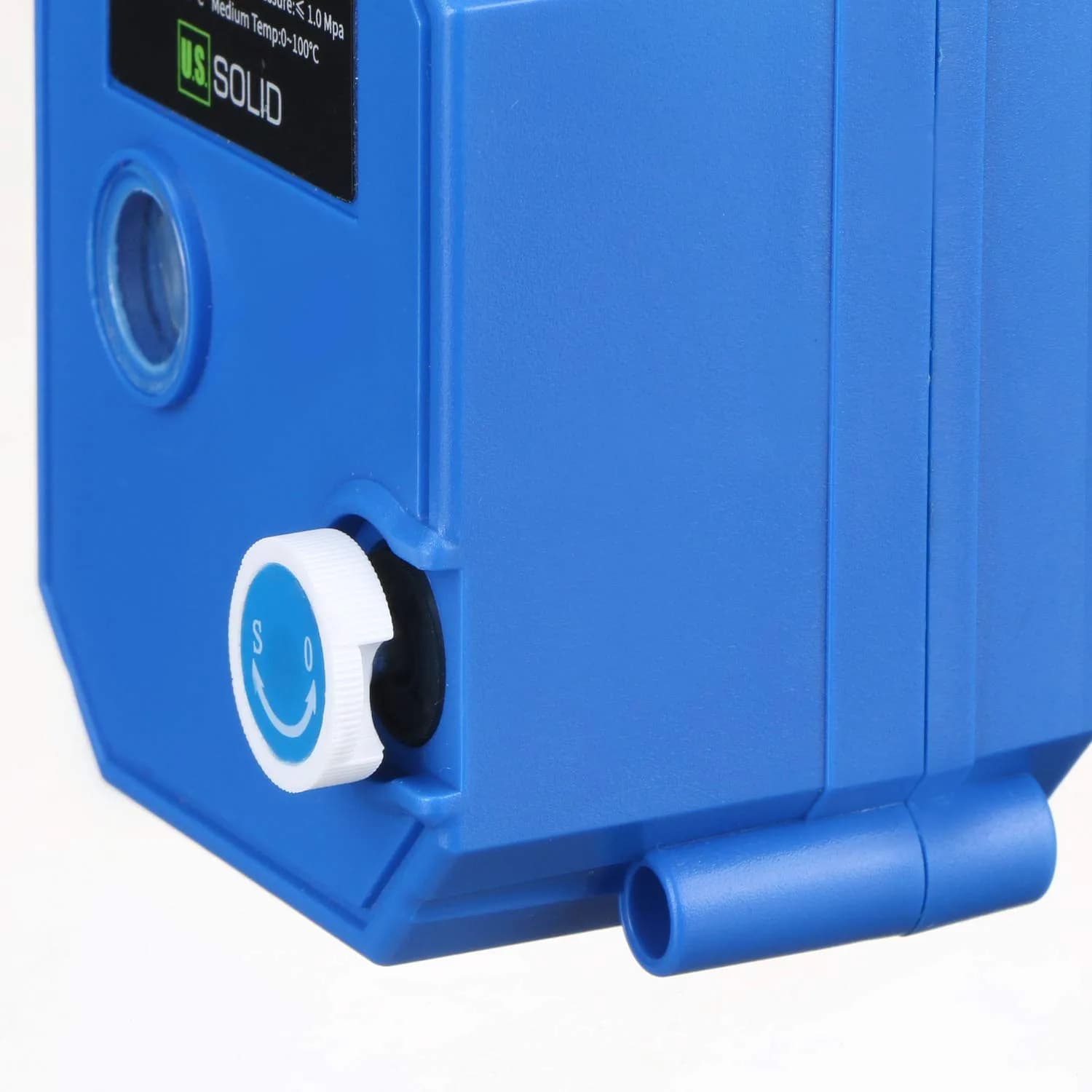

If manual adjustment is needed, locate the manual override mechanism (often a slot or lever on the actuator). Use this to open or close the valve when power is off, ensuring safe operation during maintenance or setup. — Utilize Manual Override

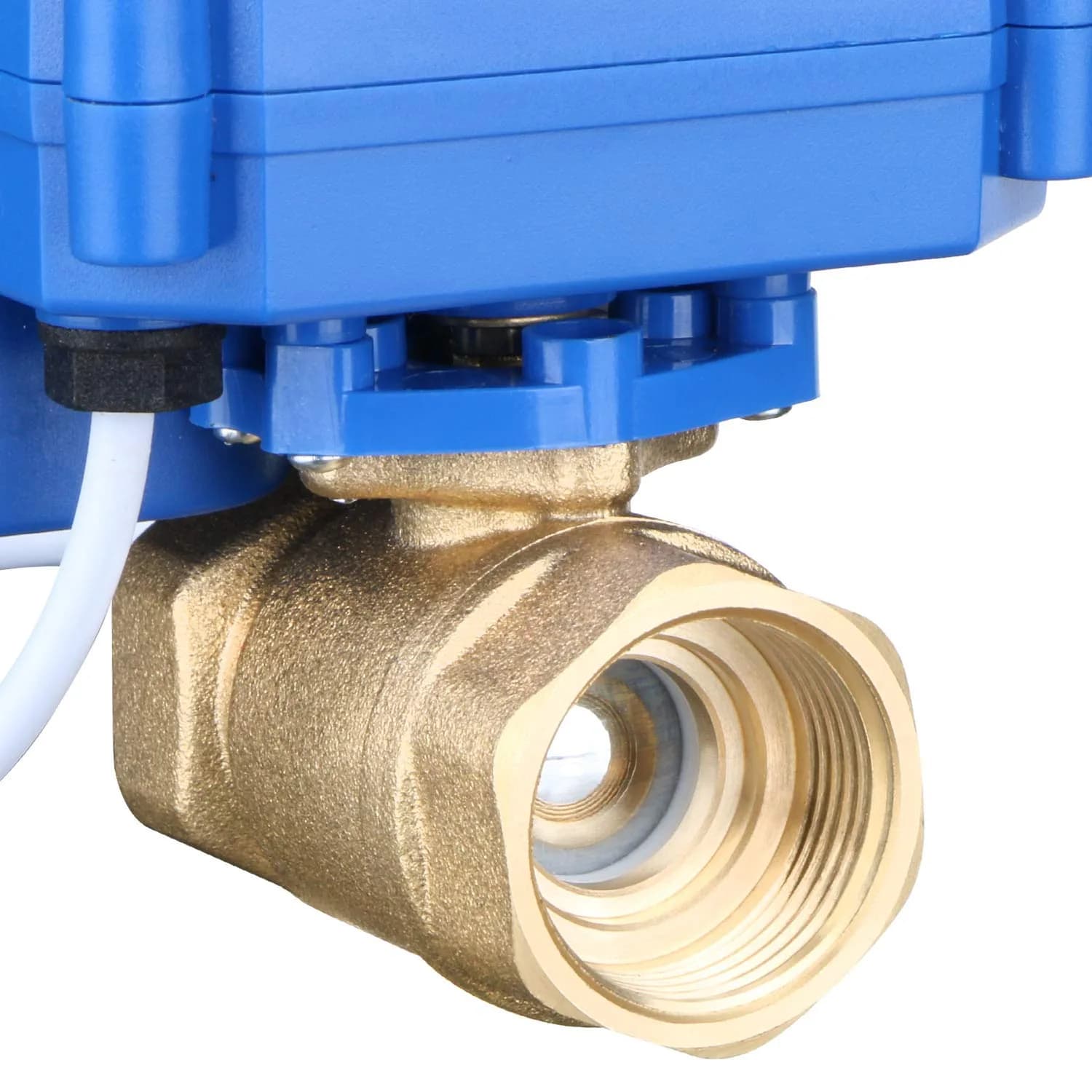

Ensure your pipework uses G-thread connections matching the 3/4" valve size. If using NPT or BSPT, use appropriate thread adapters. Install the valve in the desired fluid line, ensuring it's oriented correctly for flow direction. — Install in Line

Example scenarios

Typical situations where U.S. Solid Motorized Ball Valve 3/4" Brass Standard Port 9-24V AC/DC | Auto Return & Manual Function helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Automating a water flow system for a small hydroponics setup in a humid Indian climate.

How this product helps

This motorized valve allows precise, timed water delivery. Its 9-24V AC/DC operation is compatible with common automation controllers. The brass construction and IP65 rating handle humidity, while the auto-return ensures safety if power fails.

Scenario 2

Illustrative example

Where it helps

Needing a reliable shut-off for an air compressor line that requires manual override for maintenance.

How this product helps

The 3/4" brass valve provides a secure seal for air. Its manual override function is critical for safely isolating the compressor during servicing, and the 1.0 MPa pressure rating is sufficient for most workshop applications.

Specifications & installation

Specifications

Lead Content

~3.05%

Installation & usage

Closing/Opening Time	6-8 seconds
Actuation Type	Motorized with Auto-Return & Manual Override
Usage Instructions	Connect to 9-24V AC/DC power. Valve opens when powered, closes when power is interrupted. Manual override available. Not for drinking water, strong acids/bases, sewage, or impure industrial gas.
Suitable Media	Water, air, oil (within temperature/pressure limits)
Not Suitable For	Strong acids, strong bases, sewage, industrial gas, drinking water
Cost per use	1 valve at ₹6,333 — ₹6,333 per valve (based on 80,000-100,000 cycle life)
Shelf life after opening	12 months (category default for mechanical components)
Contraindications	Not for potable water lines due to lead content. Not for corrosive or impure media.
Allergens / common irritants	Lead

How we compare

Feature	U.S. Solid Motorized	Others
Automation & Control	Motorized with auto-return (9-24V AC/DC) and manual override. Opens/closes in 6-8 seconds. IP65 rated.	Manual lever operation common; motorized options may be available but often lack manual override or have slower actuation. Voltage compatibility varies.
Body Material & Seal	Brass body, PTFE ball seat, Silicone rubber seal. Max 1.0 MPa pressure.	Local valves may offer brass or stainless steel; seal materials vary (EPDM, NBR). Pressure ratings differ by model and brand.
Thread Type & Size	3/4" G-thread (BSPP).	Local plumbing often uses BSPT (tapered) or NPT threads. Size matching in inches is crucial; adapters may be needed.
Cost per Unit	1 valve at ₹6,333 — ₹6,333 per valve (based on 80,000-100,000 cycle life)	Manual brass ball valves can range from ₹500-1500. Motorized local options are less common and can be significantly more expensive, often ₹3000+.
Certifications & Suitability

SKU	hnu3052
GTIN	0888107094470
Brand	U.S. Solid

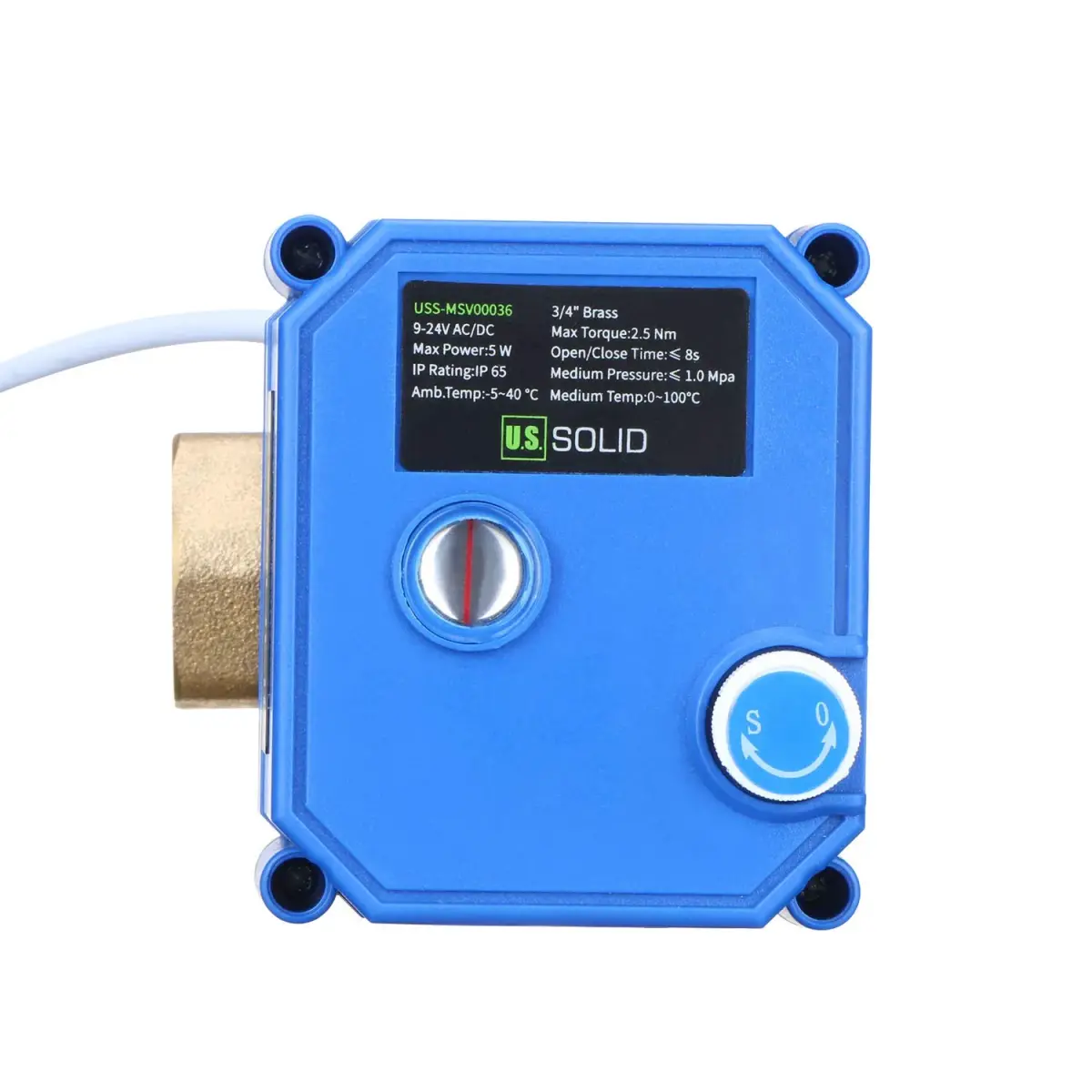

Model Number	USS-MSV00036
Material	Brass
Ball Seat Material	PTFE
Seal Material	Silicone Rubber
Color	Brass
Port Type	Standard
Number of Ports	2
Connection Type	Threaded (G-thread)
Inlet/Outlet Size	3/4 inch
Voltage	9-24V AC/DC
Max Power	5W
Max Torque	2.5 N m
Max Pressure	1.0 MPa (10 bar)
Flow Medium Temperature Range	0 °C to 100 °C
Ambient Temperature Range	-5 °C to 40 °C
Housing Rating	IP65
Life Expectation	80,000-100,000 cycles
Item Weight	0.4 kg (0.88 lb)
Item Dimensions	9 cm x 9 cm x 11.5 cm (3.5" x 3.5" x 4.5")
Package Weight	0.49 kg (1.08 lb)
Package Dimensions	8.9 cm x 11.8 cm x 9.3 cm (3.5" x 4.6" x 3.7")
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
