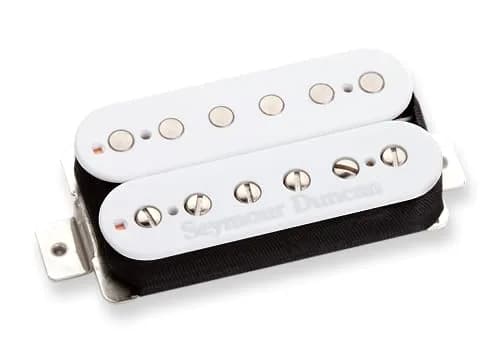

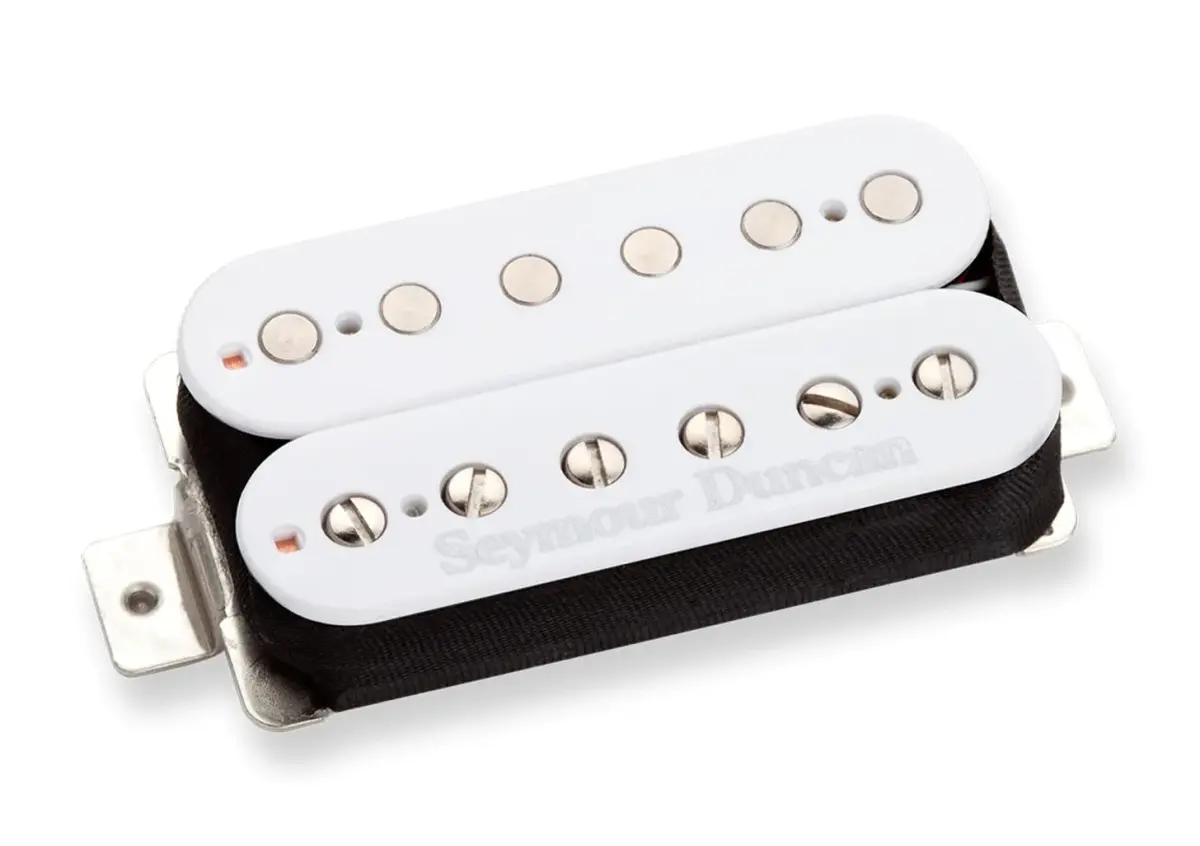

Seymour Duncan SH-4 JB Model Humbucker Pickup, White, 6-String | High Output Bridge Pickup

• The JB Model humbucker is our most popular pickup of all time. Blues, country, fusion, punk, hard rock, grunge, thrash; the JB has always sounded just right, even as new genres emerged around it. The low end is full and powerful, the highs are crisp and detailed and there’s an upper-midrange bump that adds crunch and chunk to heavy chords but translates to a singing, vocal-like quality when you play single notes or solos.
• Meanwhile the hot output pushes your amp just that little bit harder for more sustain and harmonics. Use it with a 500k volume pot for great high-end cut, or try a 250k pot to sweeten and soften the tone for smoother styles. It pairs particularly well with the Jazz or ’59 neck pickups, and some players even like to use a JB in the neck position for an extra-fat solo tone.
• Use it with a 500k volume pot for great high-end cut, or try a 250k pot to sweeten and soften the tone for smoother styles. It pairs particularly well with the Jazz or ’59 neck pickups, and some players even like to use a JB in the neck position for an extra-fat solo tone.
• Hand built in our Santa Barbara, CA factory, the JB Model uses an Alnico 5 bar magnet, nickel silver bottom plate, 4-conductor lead wire for multiple wiring options like series, parallel and split coil, and is vacuum wax potted for squeal-free performance. Available in standard humbucker and Trembucker spacing for 6-String, as well as passive mount 7-String options.
• DCR Bridge: 16.60, Magnet: Alnico 5, 4c Shielded Cable

• Prepare for Installation — Ensure your guitar is suitable for a standard humbucker bridge pickup. Gather necessary tools: soldering iron, solder, wire strippers, screwdrivers, and a wiring diagram for your chosen configuration (series, parallel, or split coil).
• Remove Old Pickup — Carefully unscrew the old pickup. Desolder its wires from the volume pot and any other connections. Note the wire colors and their corresponding solder points for reference.
• Solder New Pickup — Following your chosen wiring diagram, solder the 4-conductor wires of the Seymour Duncan SH-4 JB Model pickup to the appropriate points on your volume pot and any other controls. Ensure clean, secure solder joints.
• Mount and Test — Mount the new pickup in the bridge position. Reassemble your guitar and test all pickup positions and controls. Adjust pickup height for optimal tone and output, typically closer to the strings for more output and sustain.

Typical situations where Seymour Duncan SH-4 JB Model Humbucker Pickup helps — illustrative scenarios, not customer reviews.
