How do I know if two bevel gears will mesh properly?

To mesh correctly, both gears must share the exact same module (1M in this case) and pressure angle, and be designed for the same shaft intersection angle (90 degrees). These PGFUN gears have a 1:1 ratio and 20 teeth, ensuring they mesh precisely with identical gears.

What is the difference between straight and spiral bevel gears?

Straight bevel gears, like these PGFUN units, have straight teeth cut along the cone axis, suitable for moderate speeds and intermittent industrial drives. Spiral bevel gears feature curved teeth that engage gradually, offering quieter operation and higher torque transmission at higher RPMs.

Can I use these PGFUN gears for high-speed applications?

These gears are made from #45 steel and are suitable for moderate industrial speeds and mechanical transmission. For very high-speed or high-torque applications, consider specialized industrial-grade gears designed for such demands. Always ensure proper lubrication for optimal performance and longevity.

How to choose the correct bevel gear size for my machine?

Ensure the module (1M), number of teeth (20), shaft hole diameter (10mm), and shaft angle (90 degrees) match your machine's requirements. These PGFUN gears are specifically designed for these specifications. Always replace gears in sets for consistent performance.

Are these PGFUN gears suitable for use in India?

Yes, these PGFUN bevel gears are imported for India. All customs duties and GST are included in the price, and delivery is tracked via ExpressBox. They are suitable for various industrial applications across India, provided the specifications match your machinery's needs.

How to buy original PGFUN bevel gears in India?

Purchase original PGFUN bevel gears from CrowCrowCrow. We source directly from authorized US retailers and brand partners, ensuring factory-sealed products imported per-order. All duties and GST are included, with tracked delivery via ExpressBox.

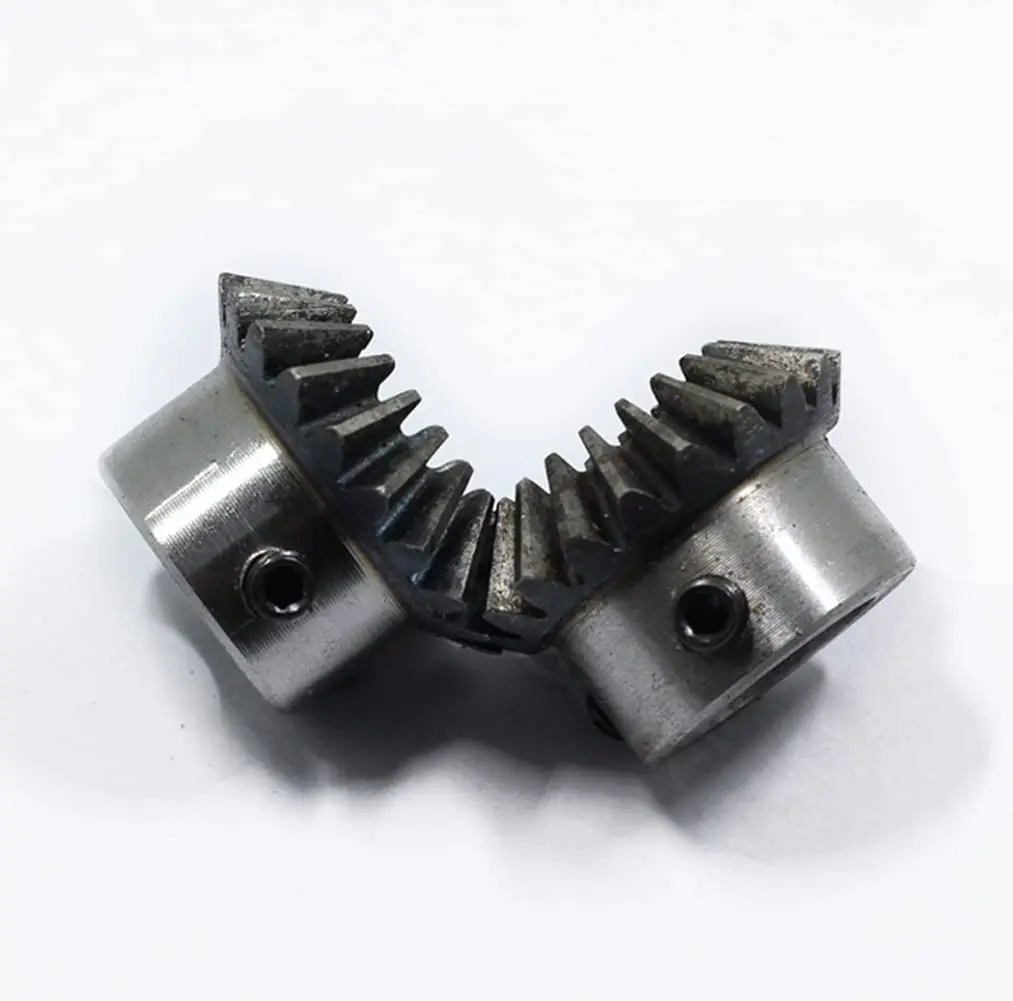

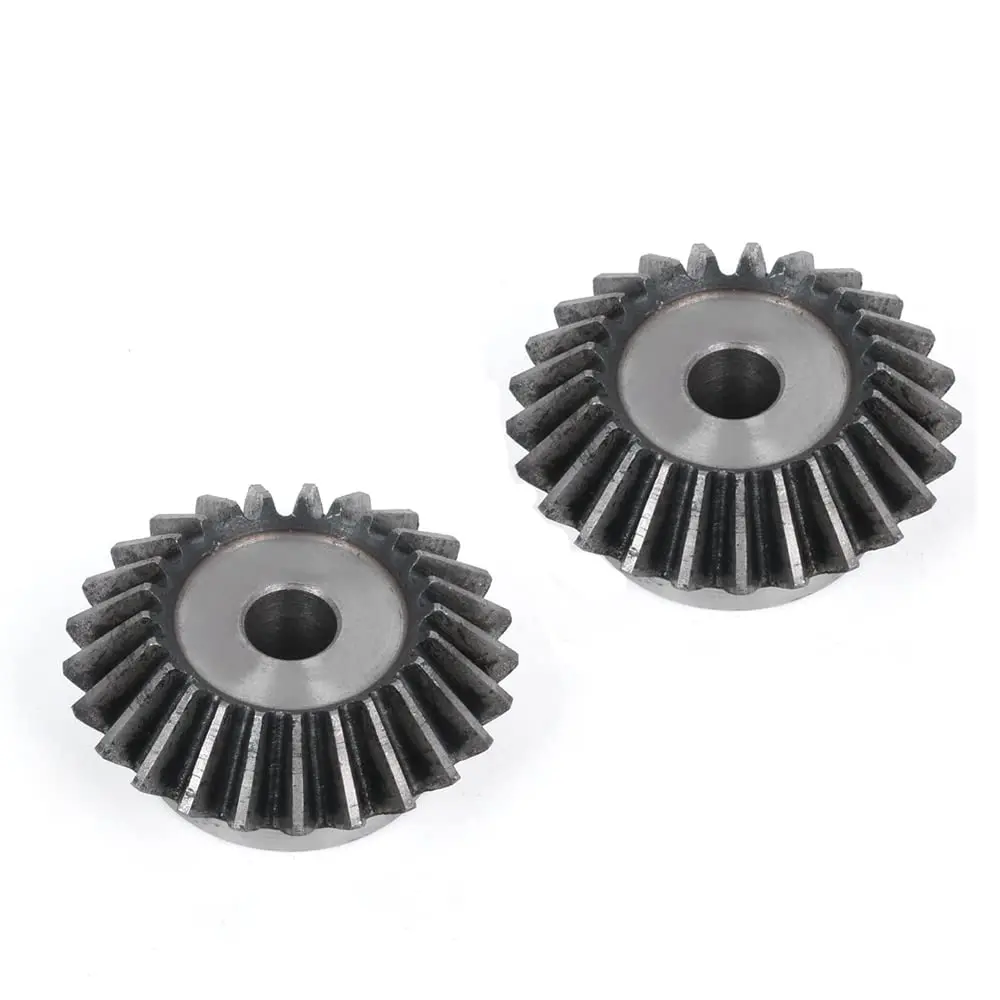

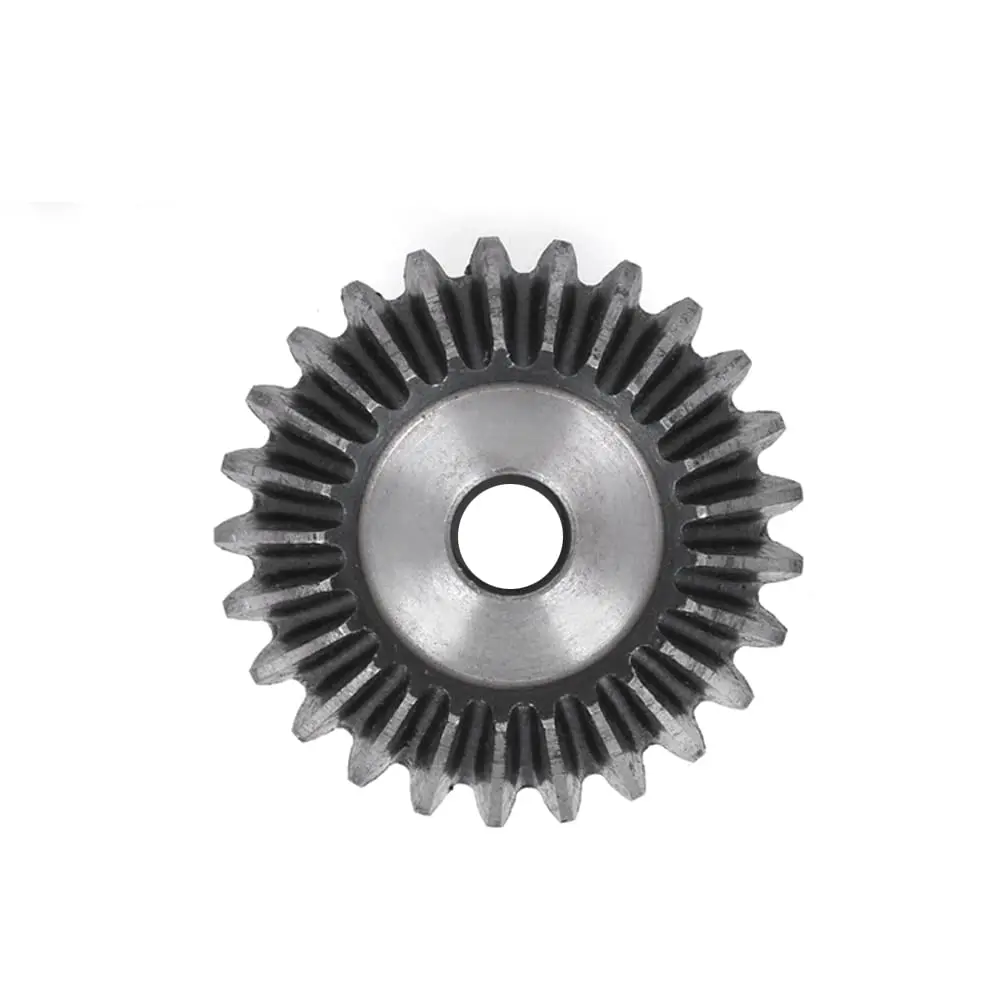

PGFUN 2 Pcs 1:1 Bevel Gear Set (10mm Shaft Hole) | 1 Module 20 Teeth Steering Gear

Name: PGFUN 2 Pcs 1 Module 20 Teeth 10mm Shaft Hole Bevel Gear Set | 1:1 Ratio 90 Degree Steering Gear
Brand: PGFUN
SKU: ehk7243
Price: 2447.00 INR
Availability: InStock

About this item

PGFUN's 2-piece bevel gear set offers a precise 1:1 ratio and 90-degree steering angle, featuring a 10mm shaft hole and 1 Module with 20 teeth. Crafted from robust #45 steel, these gears ensure high wear resistance and durability for demanding industrial applications like CNC machines, agricultural equipment, and automotive systems. Imported for India, this set provides a reliable steering drive solution.

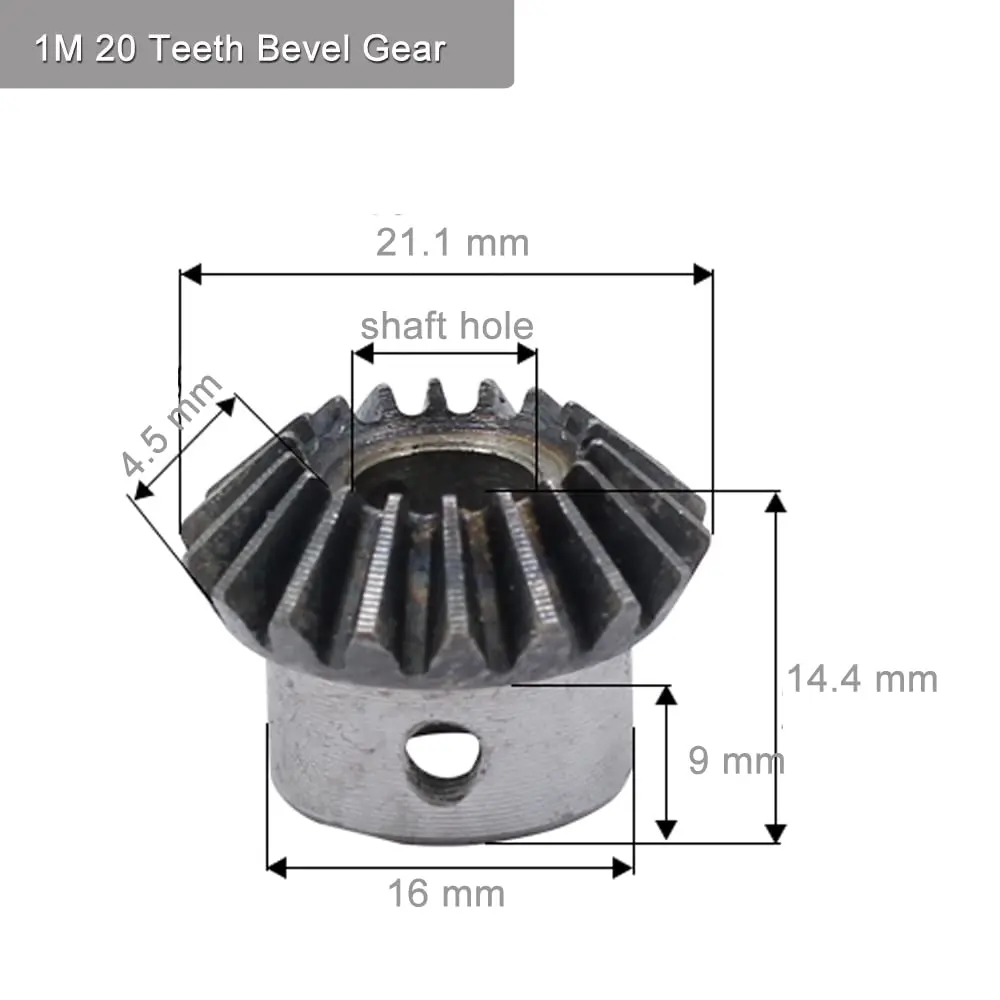

The #45 steel construction guarantees strength and longevity, crucial for consistent performance in mechanical transmission. Each gear measures Φ21.1 x 14.4 mm and includes an M5 fixing hole for secure installation. For optimal smooth operation and to prevent premature wear, it is essential to replace bevel gears in sets of two or more, ensuring they match in scale and ratio.

Compared to generic local alternatives, these imported gears offer verified specifications and material quality for critical steering functions. All customs duties and GST are included in the price, with tracked delivery via ExpressBox. Expect your order within 12-14 days.

Key Features

Multi Sizes Bevel Gears to Choose from: 1M, 1.5M, 2M/ 5mm, 6mm, 8mm shaft hole, the key specs for this gear- 1:1 ratio,1 module, 20 teeth, 10mm shaft hole, M5 fixing hole, 90 degrees steering angle.
Widely applied in agricultural equipment, textile machinery, printing machinery, mechanical transmission, automotive and other industries that needs steering drive.
The bevel gear is made of 45# steel features high wear-resistance, strong and durable.
Note: 1 bevel gear only match 1 same scale gear, so 1 set （2 or more gears) should be replaced together for smoothly drive.
Overall Size:Φ 21.1 x 14.4 mm mm

Why choose this product

Engineered for Precision Steering

These PGFUN bevel gears are engineered with a 1:1 ratio and 1 Module, featuring 20 teeth and a 10mm shaft hole for precise 90-degree power transmission. Crafted from #45 steel, they offer superior wear resistance and durability compared to many locally available gears. Their consistent specifications ensure smooth operation in demanding applications like CNC machinery and automotive systems, providing a reliable upgrade for your mechanical drives.

Who It's For vs. Who Should Skip

Ideal for engineers, mechanics, and hobbyists working with CNC machines, agricultural equipment, or automotive systems needing precise 90-degree steering. If you require gears for high-speed, high-torque applications beyond moderate industrial use, or need metric pitch sizes other than 1 Module, consider specialized industrial suppliers. Ensure your existing system uses 1 Module gears with 20 teeth and a 10mm shaft hole for direct compatibility.

How to use

Verify Compatibility — Confirm your machine requires 1 Module, 20 teeth, a 10mm shaft hole, and a 90-degree steering angle with a 1:1 ratio. Ensure the #45 steel material meets your application's load requirements.
Prepare for Installation — Clean the shaft and the gear's 10mm bore. If replacing existing gears, remove them carefully. Ensure you have the necessary tools, including an M5 screw for the fixing hole.
Mount the Gears — Slide the gears onto their respective shafts, ensuring proper alignment for the 90-degree angle. Secure each gear using an M5 screw through the side fixing hole. It is recommended to replace gears in sets for optimal performance.

Example scenarios

Typical situations where PGFUN 2 Pcs 1 Module 20 Teeth 10mm Shaft Hole Bevel Gear Set | 1:1 Ratio 90 Degree Steering Gear helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A small-scale manufacturer in Coimbatore needs to upgrade a CNC machine's steering drive.

How this product helps

This PGFUN 2-piece bevel gear set provides the exact 1:1 ratio, 1 Module, 20 teeth, and 10mm shaft hole required for precise 90-degree steering. The #45 steel ensures durability for consistent production runs, imported with all duties paid.

Scenario 2

Illustrative example

Where it helps

A mechanic in Delhi is repairing an older automotive system requiring specific steering gear dimensions.

How this product helps

The PGFUN gears offer verified 10mm shaft holes and M5 fixing points, ensuring a secure fit. Their #45 steel construction provides the necessary strength for automotive applications, imported with clear pricing and tracked delivery.

Specifications

Usage

Application	CNC, agricultural, textile, printing, automotive, mechanical transmission
Usage Note	Replace in sets (2 or more) for smooth drive and consistent performance.
Cost per unit	2 gears at ₹2,447 — ₹1,224 per gear

How we compare

Feature	PGFUN 2 Pcs	Others
Material	#45 Steel, high wear-resistance	Varies; often lower grade steel or aluminum, may lack wear resistance
Module & Teeth	Precisely 1 Module, 20 Teeth	Module and tooth count may vary; less precise matching
Shaft Hole & Fixing	10mm bore with M5 fixing hole	Bore size may differ; fixing methods can be less secure
Ratio & Angle	Exact 1:1 Ratio, 90 Degree	Ratio and angle may be less precise, affecting drive smoothness
Cost per gear	2 gears at ₹2,447 — ₹1,224 per gear	Local gears may range from ₹300-₹800 per gear depending on specs and brand

SKU	ehk7243
GTIN	0774491728698
Brand	PGFUN
Model Number	TYXC-0011_1_20_10
Material	#45 Steel
Module	1M
Number of Teeth	20

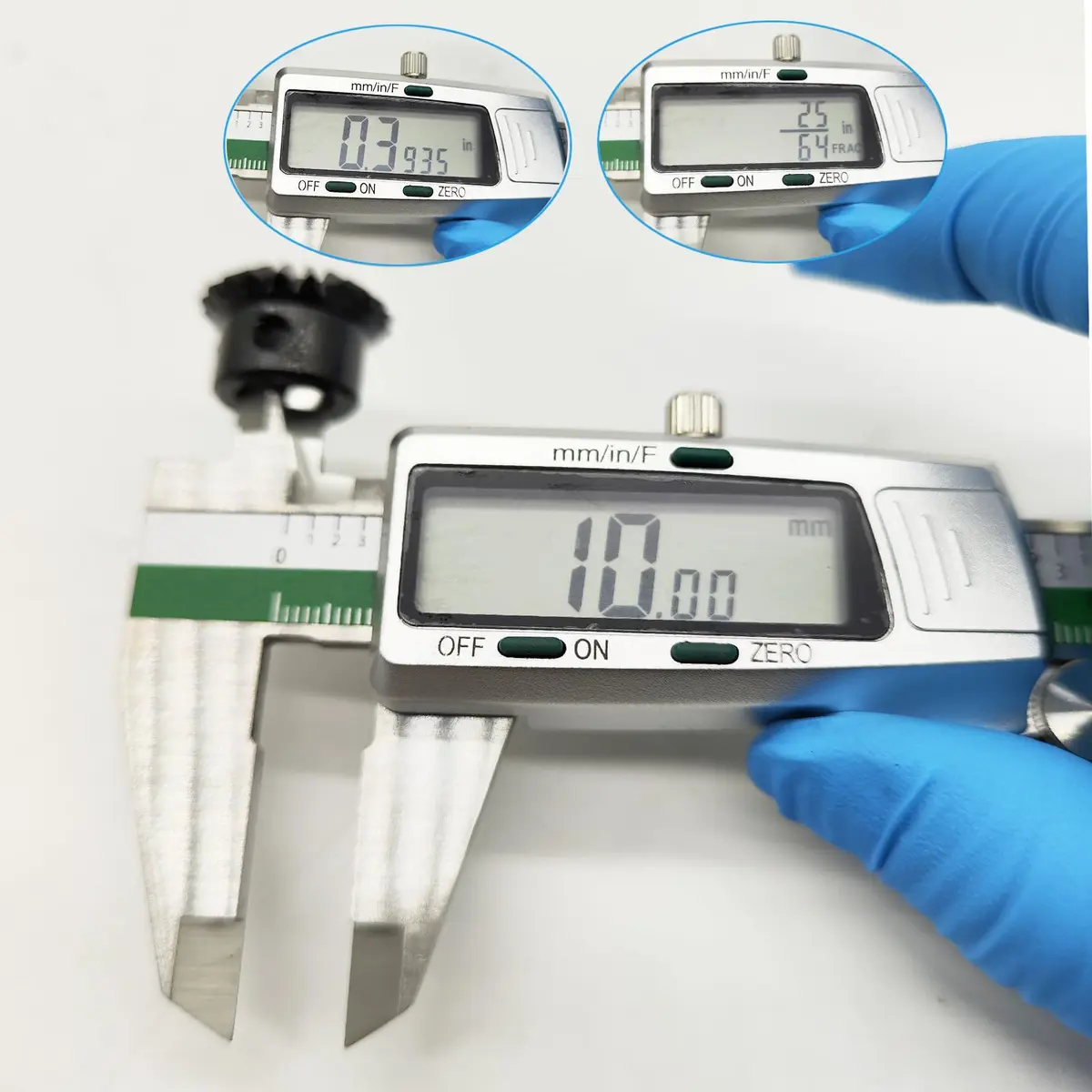

Shaft Hole Diameter	10 mm (0.39 inches)
Fixed Way	M5 screw side fixed
Steering Angle	90 Degrees
Ratio	1:1
Overall Size	Φ21.1 x 14.4 mm (0.83 x 0.57 inches)
Package Includes	2 Bevel Gears
Item Package Weight	0.1 lbs (0.045 kg)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners

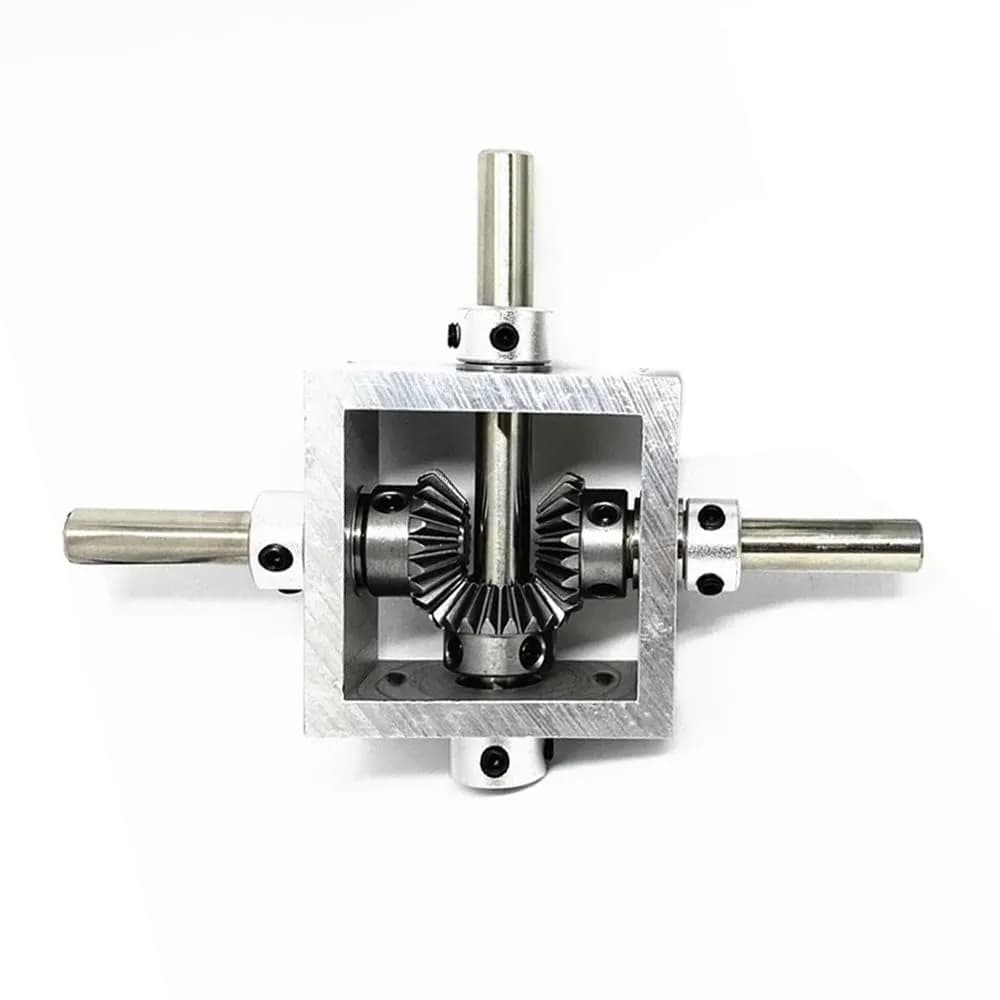

Attributes	Current PGFUN 2 Pcs 1 Module 20 Teeth 10mm Shaft Hole Bevel Gear Set \| 1:1 Ratio 90 Degree Steering GearBuy Now	PGFUN 1:1 Right Angle Bevel Gearbox 1 Module 20 Teeth 6mm Shaft \| Simple DIY Mechanical Steering Gear DeviceBuy Now	Quartet Clear Round Rare Earth Magnets 1/2" Diameter, 6 Pack \| Strong Hold for Glass WhiteboardsBuy Now	uxcell MR126-2RS Deep Groove Ball Bearings 6mm x 12mm x 4mm \| Double Sealed Chrome Steel (10 Pcs)Buy Now	SmartSign "Notice - This Area Is Under 24 Hour Video Surveillance" Sign \| 17.8 cm x 25.4 cm (7" x 10") Aluminum \| Durable & LaminatedBuy Now	HARFINGTON M2 PVC Flat Washers 2mm ID x 5mm OD x 0.3mm Thick \| 300-Piece Pack for Sealing & Gasket ApplicationsBuy Now	Acuteye Synthetic Filter Paper Stickers 20mm Diameter 0.25 Micron 64pcs \| For Mushroom Cultivation & Lab FiltrationBuy Now
