| SKU | cap9609 |
| GTIN | 0771077589452 |
| Brand | PGFUN |
| Model Number | TYXC-0010-1-2_6 |
| Material | Aluminum Alloy & #45 Steel |
| Shaft Diameter | 6 mm |
| Module | 1 |
| Number of Teeth | 20 |
| Gear Ratio | 1:1 |
| Angle | 90° Right Angle |

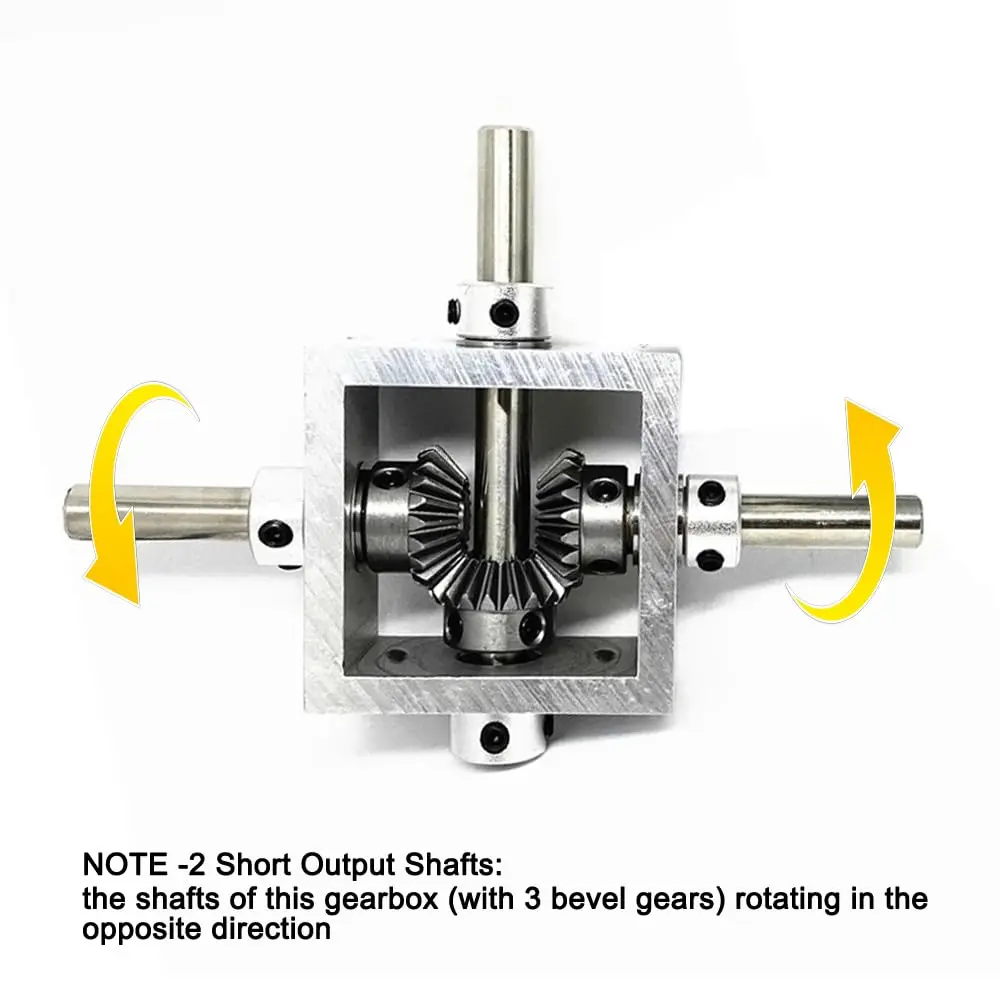

| Output Shafts | 2 (forward and reverse, opposite directions) |
| Mounting Holes | 2 x M4 fixing holes at the side |
| Overall Dimensions | 105 x 75 x 25 mm (approx. 4.13 x 2.95 x 0.98 inches) |
| Item Package Weight | 0.2 kg (approx. 0.44 lbs) |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
This item:
PGFUN 1:1 Right Angle Bevel Gearbox 1 Module 20 Teeth 6mm Shaft | Simple DIY Mechanical Steering Gear Device
7,591
This item
PGFUN 1:1 Right Angle Bevel Gearbox 1 Module 20 Teeth 6mm Shaft | Simple DIY Mechanical Steering Gear Device
7,591
Total price:
13,510
You save 5,885 (30%) Extra3 items selected
3 items
13,510You save 5,885 (30%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Build Your DIY Project with Precision

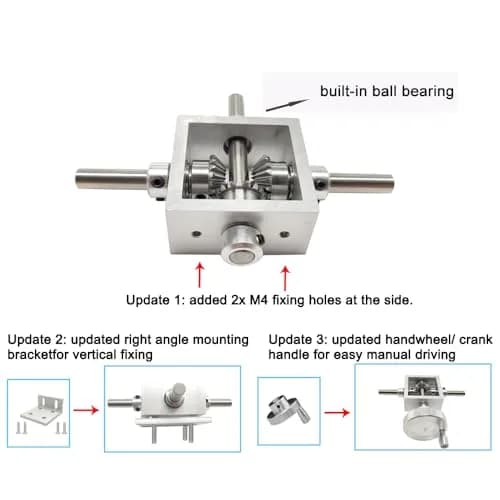

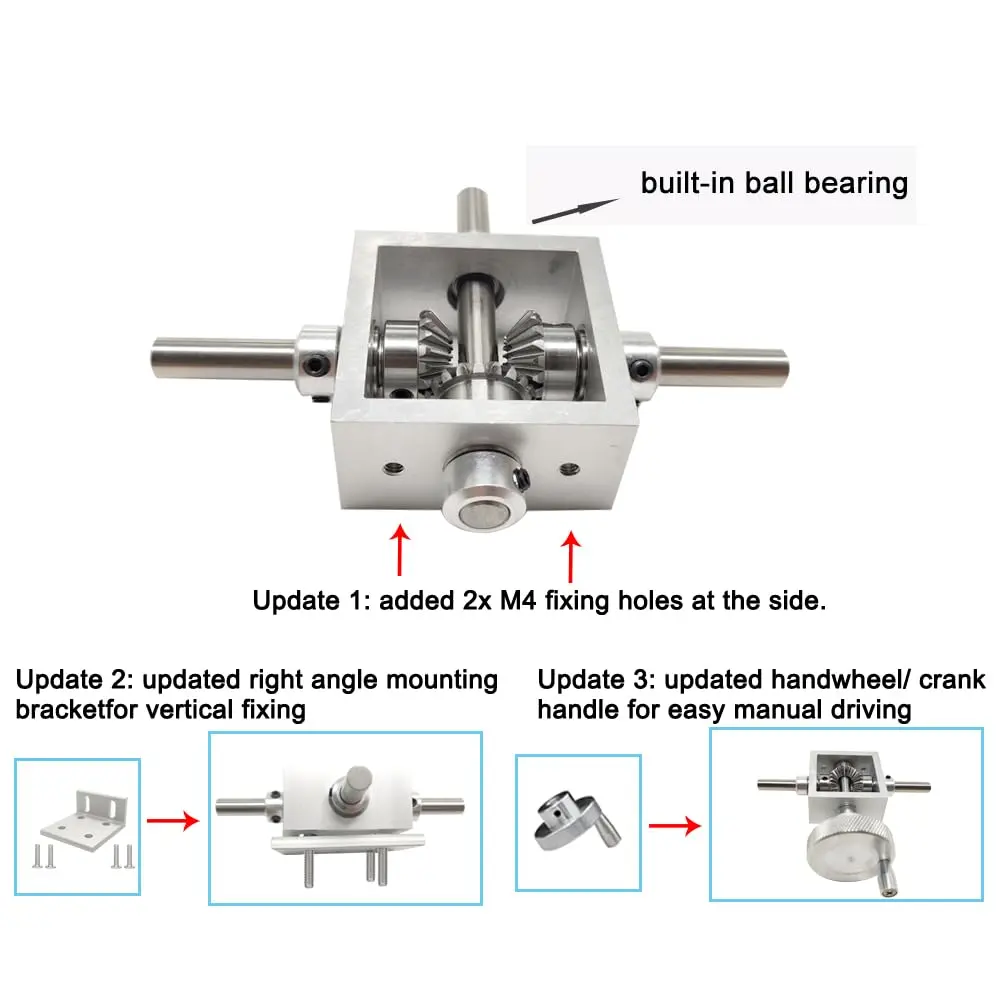

The PGFUN 1:1 Right Angle Bevel Gearbox offers a simple solution for DIY mechanical projects requiring a 90-degree drive. With a 1 module, 20-tooth configuration and a 6mm shaft, it's designed for basic steering applications. This gearbox is constructed from durable aluminum alloy and #45 steel, ensuring reliability for light-duty tasks. Motor drive can be achieved using coupling or belt pulley gears, and recent updates include added M4 fixing holes, an improved mounting bracket, and a handwheel for manual operation.
This unit provides a 1:1 gear ratio, meaning the input and output shafts rotate at the same speed. It's important to note that this is a simple steering gear and is not intended for high-torque or high-speed CNC applications. For such demanding tasks, industrial-grade gearboxes with higher specifications would be necessary. This PGFUN model is best suited for hobbyist projects, educational models, or light automation where precise high-speed control is not a primary requirement.
Imported directly from authorized US retailers and authorized brand partners, this PGFUN gearbox ensures you receive an authentic product. All customs duties and GST are included in the listed INR price, with no extra charges at delivery. Your order is shipped via ExpressBox tracked service, providing clear visibility from dispatch to your Indian pincode within 12-14 days.
Precision 1:1 Ratio for DIY Projects
This PGFUN gearbox delivers a consistent 1:1 ratio, ensuring that the output shaft rotates at the same speed as the input shaft. This predictable performance is crucial for simple DIY mechanical applications like steering systems or basic robotic movements. Its right-angle design allows for efficient power transmission in compact spaces, making it a versatile component for hobbyists and educators looking to build functional prototypes without complex engineering.
Who It's For vs. Who Should Skip It
Ideal for hobbyists, students, and makers working on light-duty DIY projects, educational models, or simple steering mechanisms. If you need to drive high-torque machinery, high-speed CNC equipment, or require precise industrial-grade power transmission, this simple steering gear is not suitable. For those applications, consider heavy-duty gearboxes with higher load capacities and specialized materials.
Typical situations where PGFUN 1:1 Right Angle Bevel Gearbox 1 Module 20 Teeth 6mm Shaft | Simple DIY Mechanical Steering Gear Device helps — illustrative scenarios, not customer reviews.
Building a simple robotic arm for a school project.
This PGFUN gearbox provides the necessary 90-degree angle and 1:1 ratio to control arm movement precisely for basic articulation, without needing high torque.
Creating a custom steering mechanism for a small DIY vehicle.
The right-angle drive and 6mm shaft allow for easy integration into a compact steering system, enabling manual control via the included handwheel for simple directional changes.
| Application Type | Simple DIY Mechanical, Steering Gear |

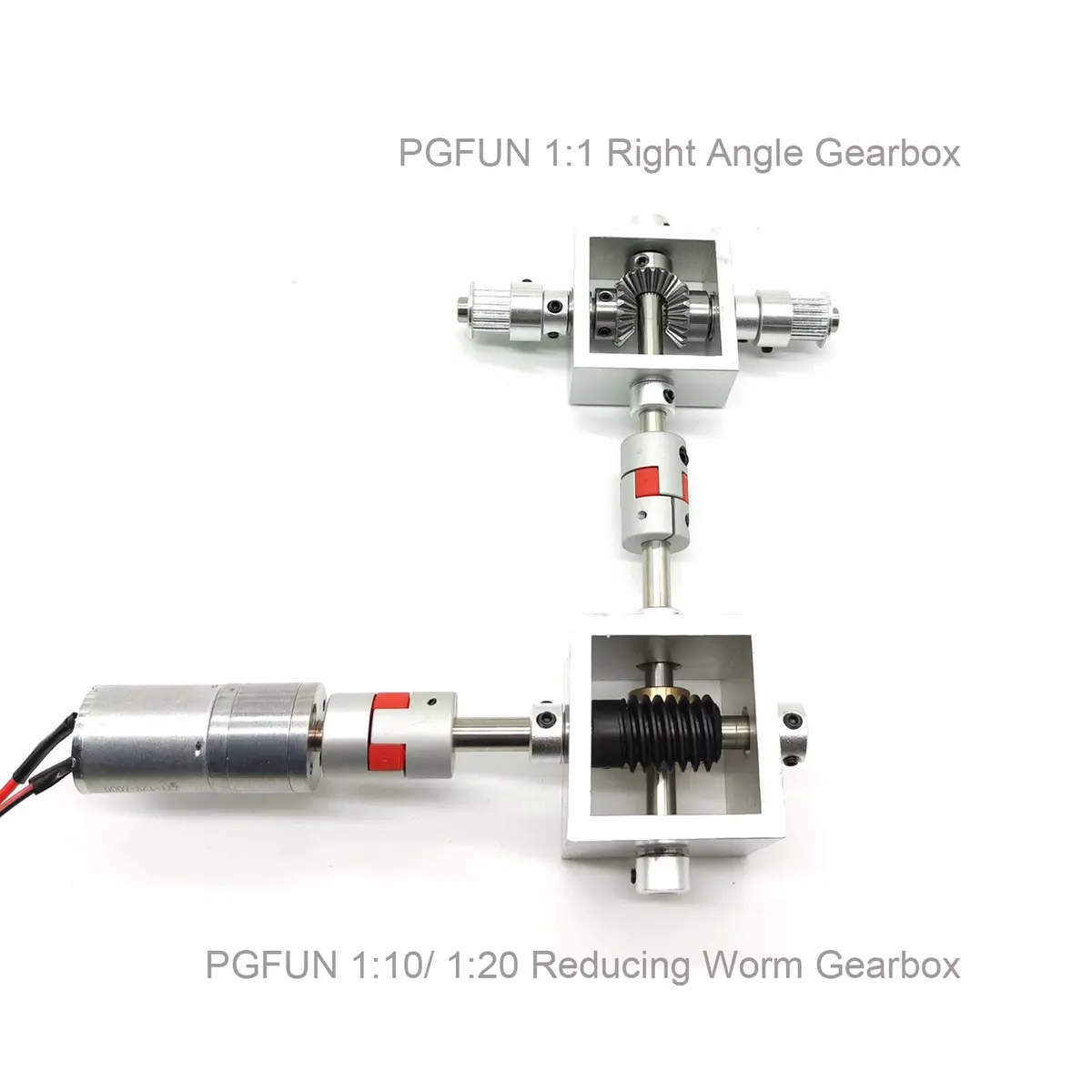

| Motor Drive Realization | Via coupling and belt pulley gear |
| Maximum Load | Not suitable for high torque applications |
| Maximum Speed | Not suitable for high rotating speed CNC applications |
| Included Accessories | Handwheel/crank handle |
| Feature | PGFUN 1:1 Right | Others |
|---|---|---|
| Gear Ratio & Angle | 1:1 Right Angle (90°) | Varies by brand; 1:1 ratio common, 90° angle widely available. |
| Module & Teeth | 1 Module, 20 Teeth | Module size varies; 20 teeth common for 1 module gears. |
| Shaft Diameter | 6 mm | Commonly 6mm or 8mm; metric shafts standard. |
| Material | Aluminum Alloy & #45 Steel | Often steel or cast iron; aluminum alloys also used. |
| Application Suitability | Simple DIY, light steering, basic models | Varies; some offer higher torque/speed ratings. |
About PGFUN
PGFUN specializes in mechanical components for DIY and hobbyist applications, offering gears and related parts for simple automation and educational projects.
Compliance & Legal
No product-specific compliance warnings identified. Standard imported-goods terms apply: customs duties & GST paid; for personal use in India; follow the manufacturer's usage instructions on the packaging.
