How do I calibrate a new 1X/10X oscilloscope probe to my instrument?

Connect the probe to the oscilloscope's calibration terminal (typically 1kHz square wave output), set the switch to 10X, and adjust the probe's trimmer capacitor using the non-conductive tuning tool until the displayed square wave exhibits flat tops with no overshoot or undershoot.

Are third-party BNC oscilloscope probes compatible across different scope brands?

Standard passive probes featuring universal BNC connectors are interchangeable across standard 1MΩ input oscilloscopes, provided the probe's compensation range matches the scope channel's input capacitance.

What is the maximum voltage this Goupchn oscilloscope probe can handle?

The Goupchn MCX-B probe can handle a maximum input voltage of 200Vp-p in 1X mode and 600Vp-p in 10X mode, ensuring safe operation for a range of electronic testing scenarios.

How do I ensure a reliable ground connection with this oscilloscope probe?

Connect the included alligator clip securely to a known ground point on your circuit under test. This ensures a stable reference for accurate signal readings and prevents measurement errors.

Can I use this oscilloscope probe for high-frequency signals in India?

This probe has a bandwidth of 60MHz, making it suitable for many common electronic signals encountered in India's tech and repair sectors. For signals significantly above 60MHz, a higher bandwidth probe would be necessary.

How to choose a voltage probe for precision measuring in India?

When choosing a voltage probe for precision measuring in India, consider the required bandwidth (60MHz here), attenuation ratio (1X/10X), input impedance, maximum voltage rating, and connector type. Ensure it's compatible with your oscilloscope and suitable for your specific measurement needs.

Is this Goupchn oscilloscope probe safe for general use?

Yes, the Goupchn MCX-B probe is designed for safe operation within its specified voltage limits (up to 600Vp-p in 10X mode). Always ensure proper grounding and avoid exceeding the maximum input voltage to prevent damage or safety hazards.

Goupchn MCX Oscilloscope Probe 60MHz 1X 10X

Name: Goupchn MCX Oscilloscope Probe 60MHz 1X 10X with Alligator Clip, 120cm (47.2in)
Brand: Goupchn
SKU: mtu3087
Price: 9315.00 INR
Availability: InStock

About this item

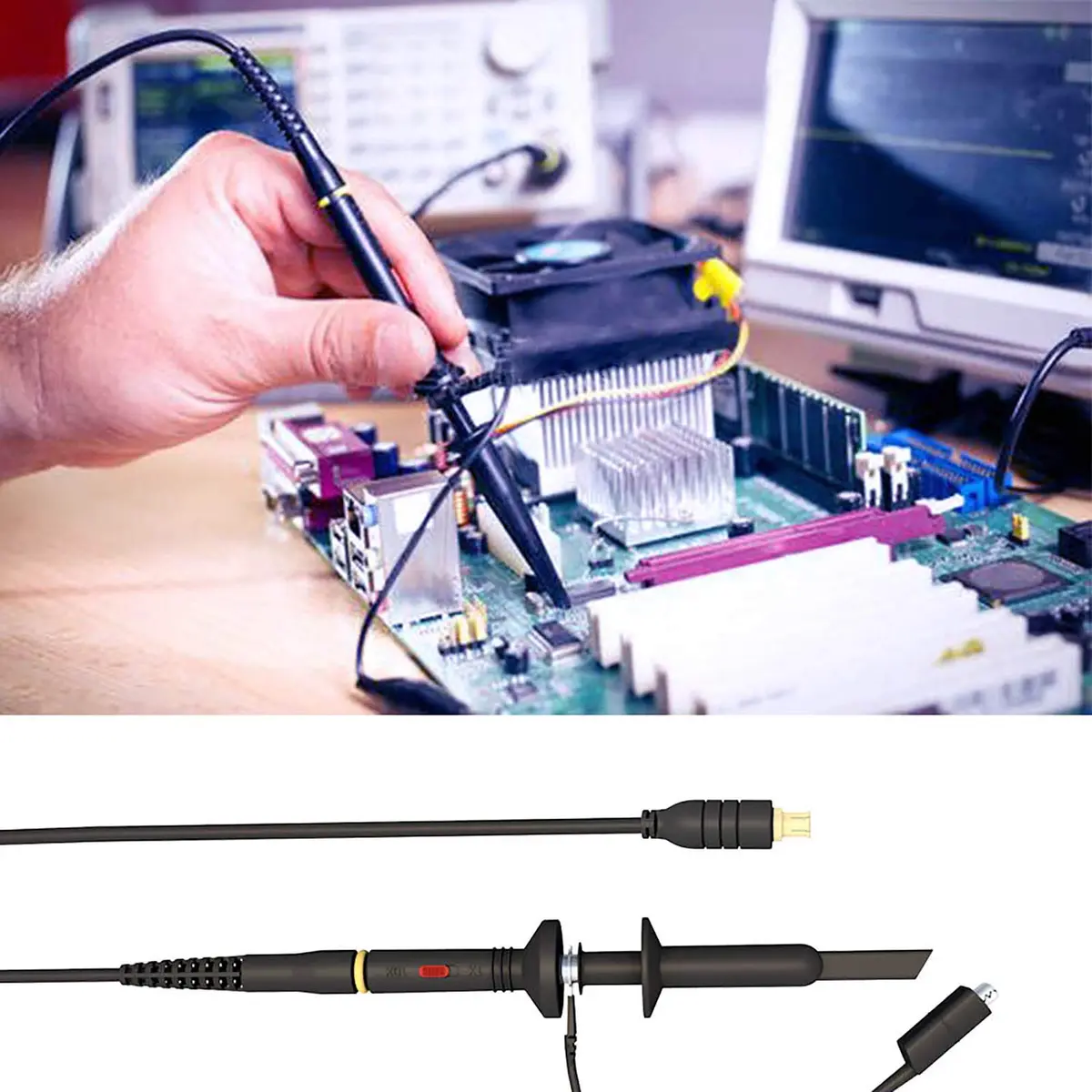

The Goupchn MCX-B oscilloscope probe is designed for accurate signal testing with a 60MHz bandwidth and switchable 1X/10X attenuation. It connects your circuit under test to your oscilloscope, featuring a 120cm (47.2in) cable and a reliable alligator clip for grounding. This probe is imported from authorized US retailers and authorized brand partners, ensuring authenticity and quality for Indian engineers and hobbyists.

With an input resistance of 1MΩ (1X) and 10MΩ (10X), and a maximum input voltage of 600Vp-p (10X), this probe is suitable for a wide range of electronic measurements. The compensation range of 15~45pF allows for fine-tuning to match your oscilloscope's input capacitance, ensuring accurate waveform readings. The durable construction includes a removable hook tip and marker rings for easy channel identification.

This Goupchn probe offers a cost-effective solution for essential oscilloscope testing needs in India. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping. For precise measurements in your lab or workshop, trust this imported probe for reliable performance.

Key Features

Oscilloscope Probes are electrical component which connect the circuit under test and oscilloscope input. Superior materials and advanced technology enhance the feeling and the structure. The smooth surface is easy to use.

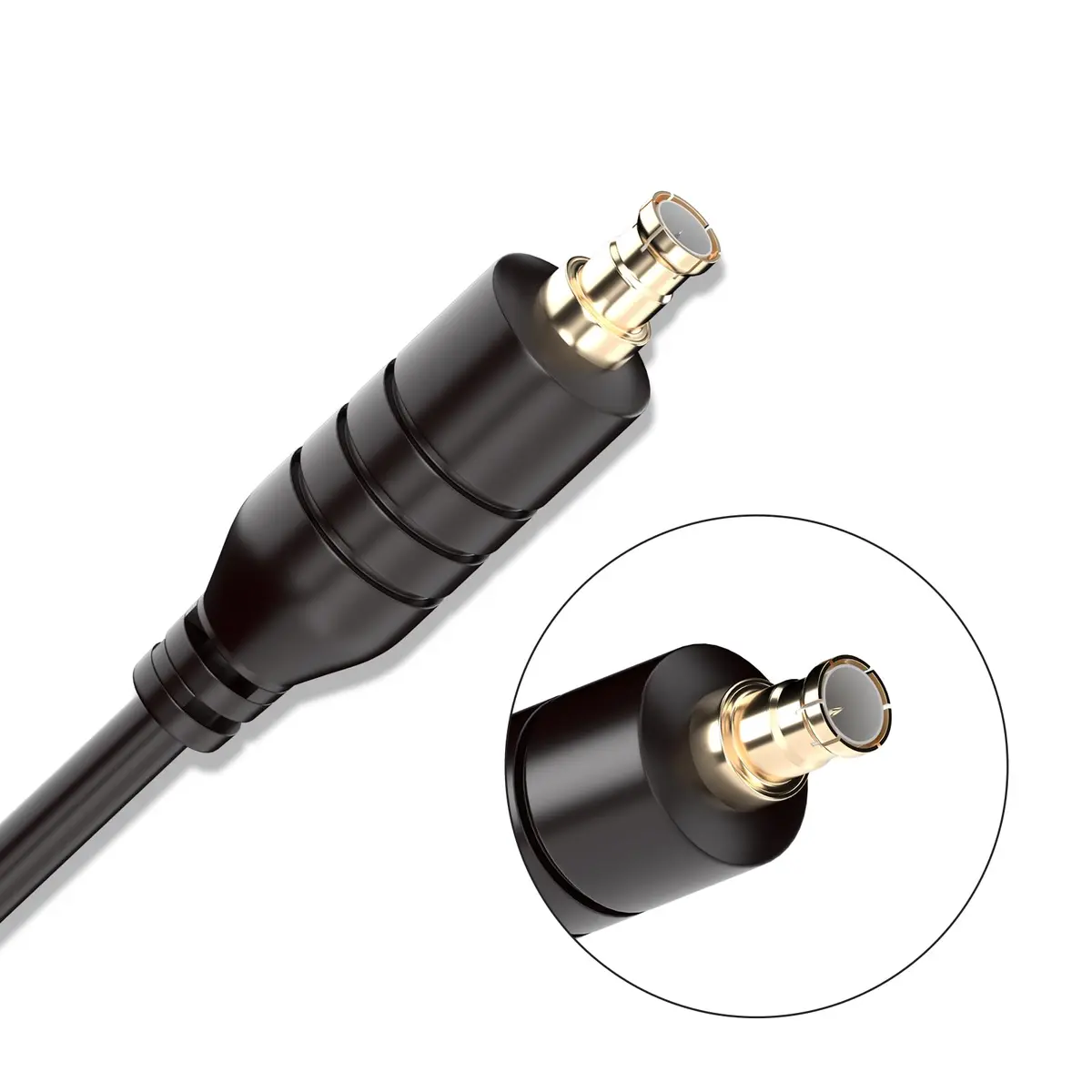

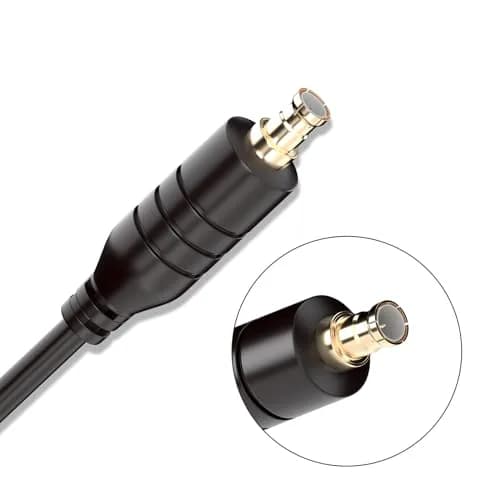

MCX oscilloscope probe has compact size. Multiple functions are combined in one. It is convenient to use. The MCX probe is firmly connected to the cable and will not fall off after repeated use.

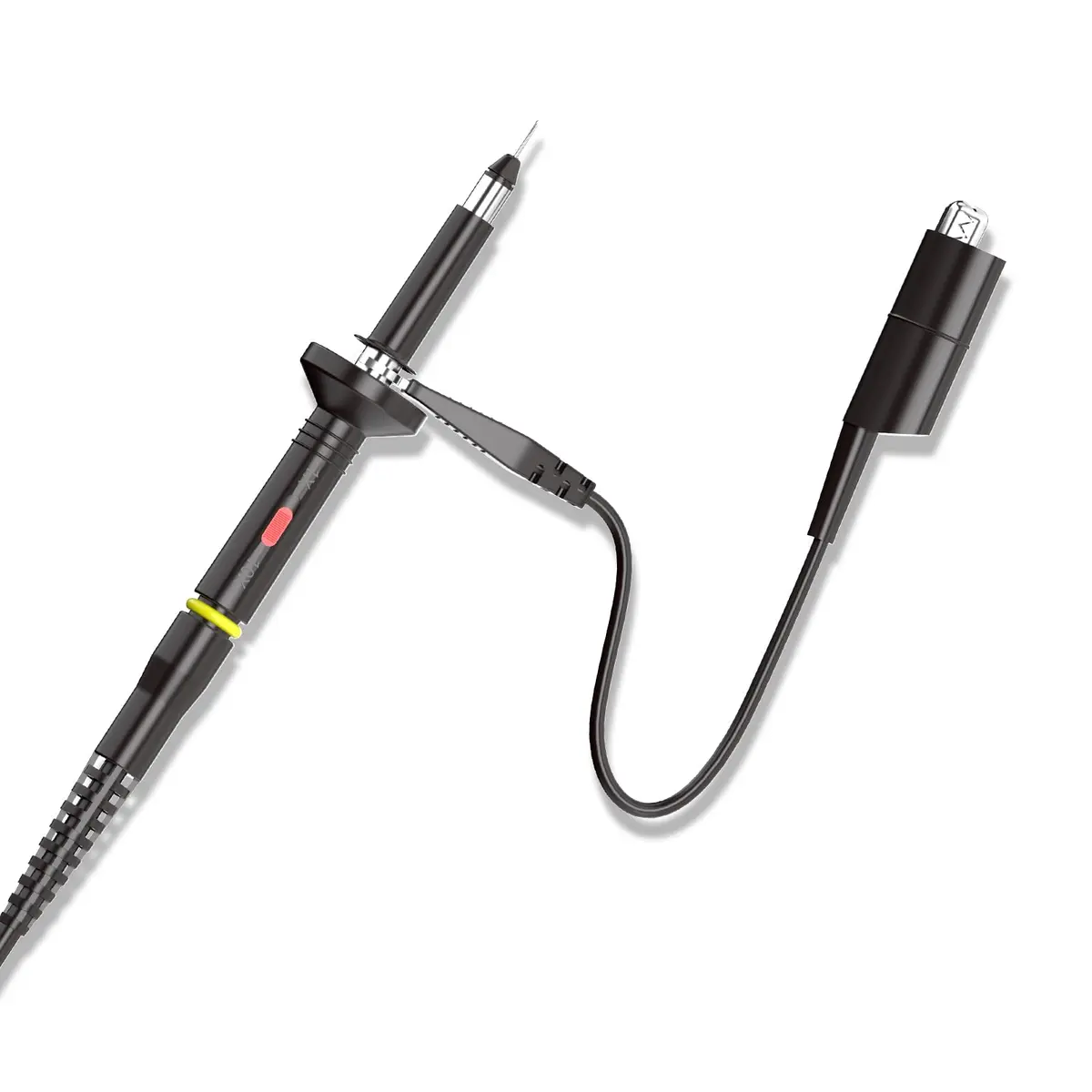

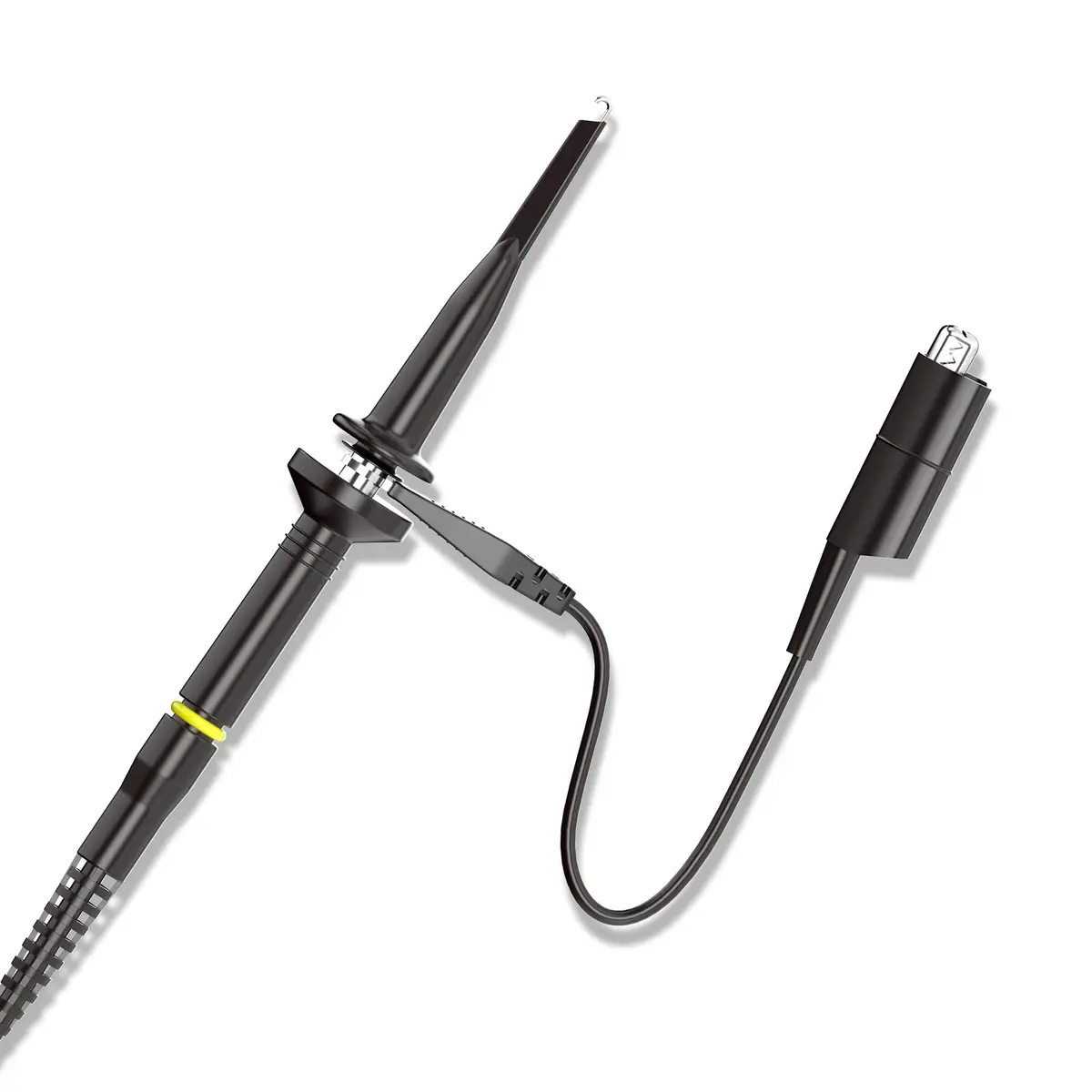

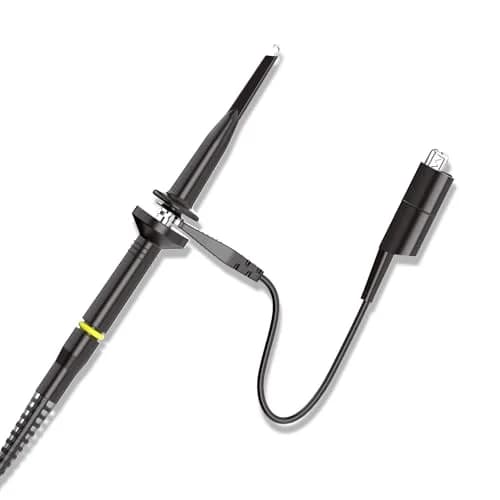

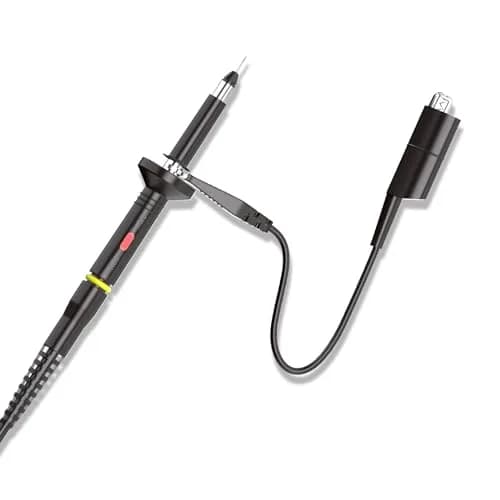

Oscilloscope probe attenuation can be adjusted with a 1X or 10X sliding switch. The grounding crocodile clip reliably grounds the probe stage for safe operation and correct signal reading.

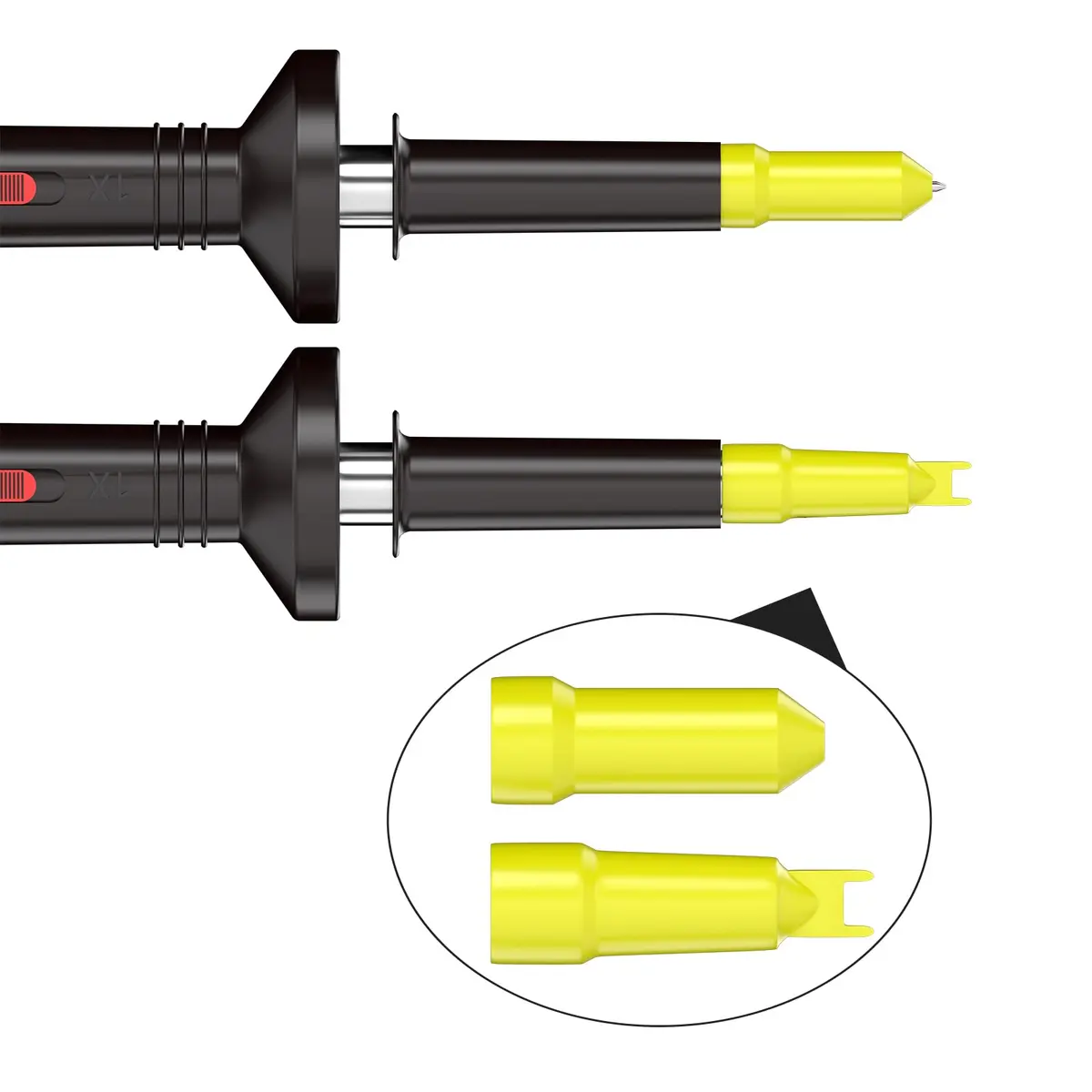

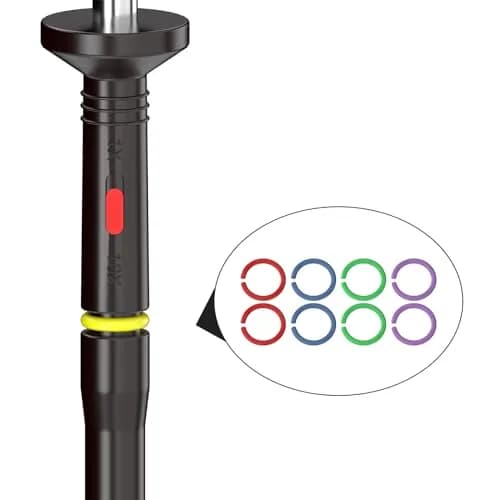

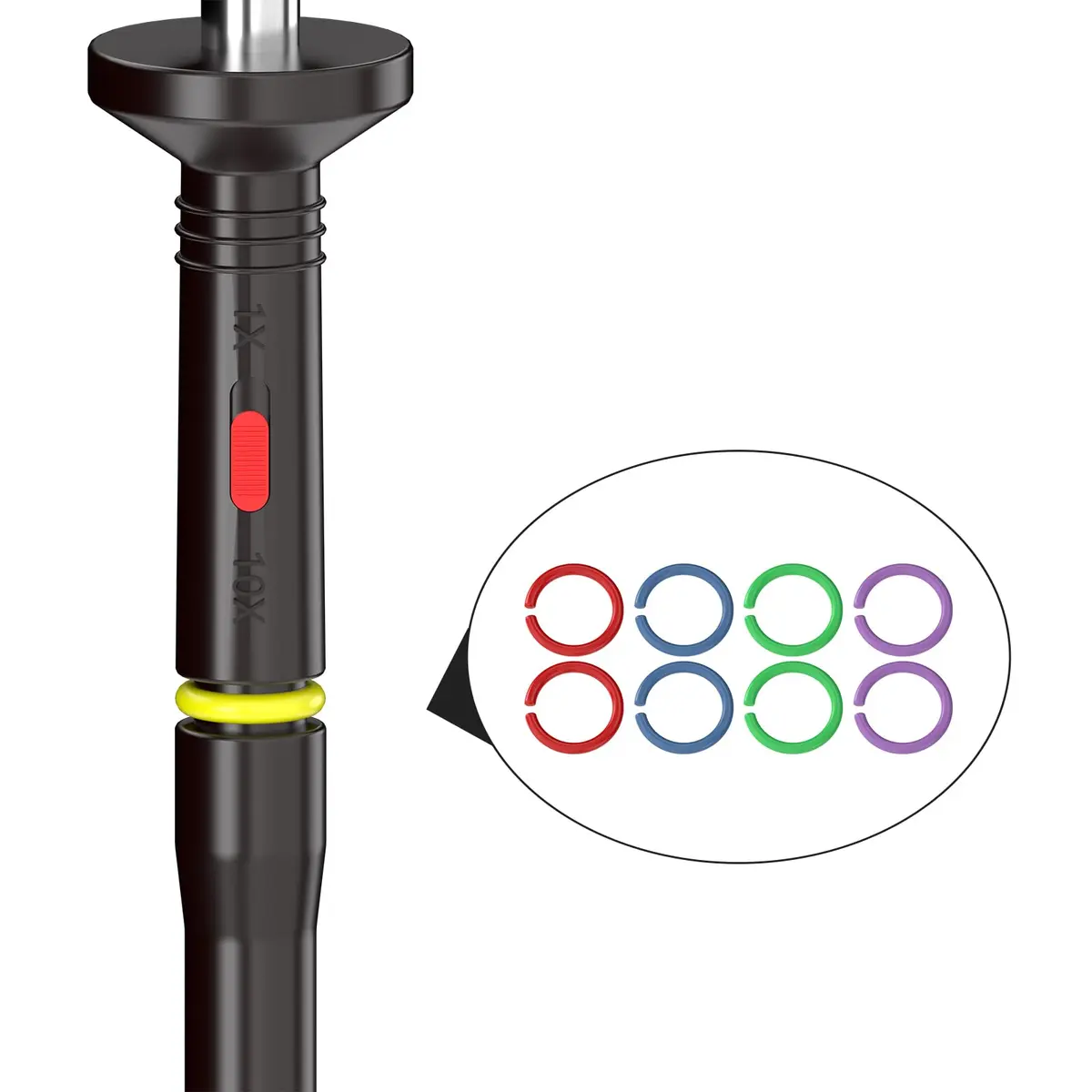

The tip of the removable hook is protected by a plastic case. The positioning sleeve ensures the stability and reliability of the tip exposed at the test point. 4 colors identification rings compatible with most oscilloscope probe sizes for easy channel differentiation.

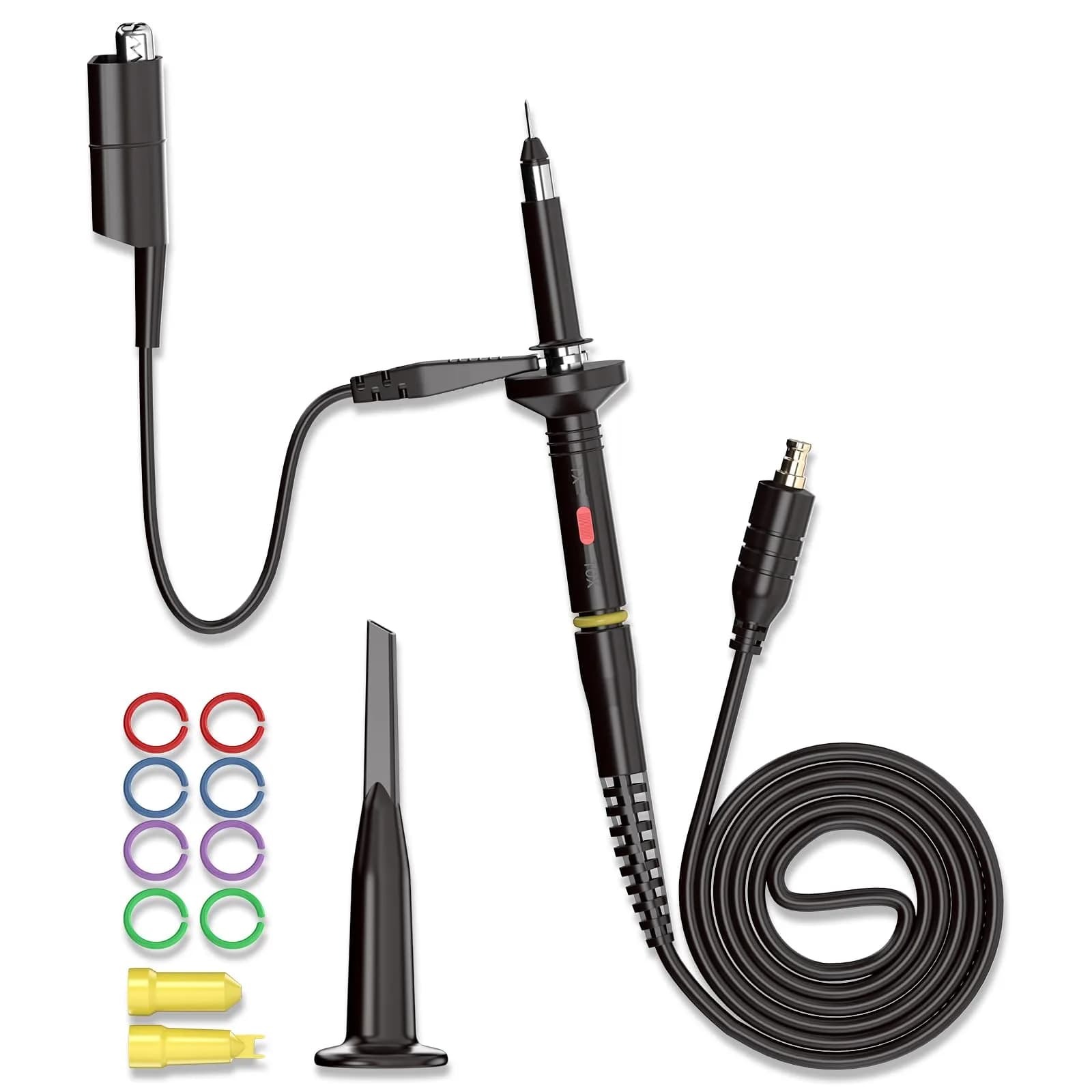

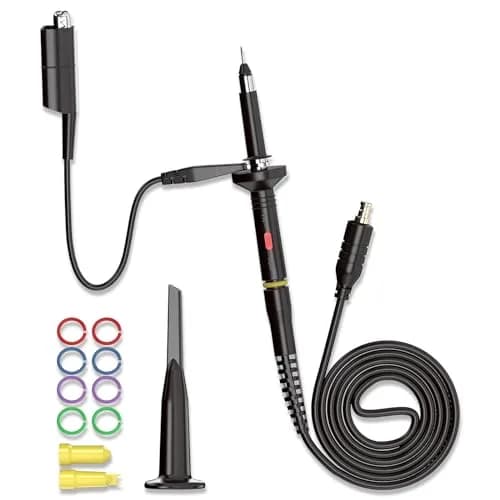

Package includes: 1 x probe, 8 x marker rings, 2 x insulated protection caps, 1 x probe hook, 1 x user manual.

Why choose this product

Precision Measurement for Indian Electronics

This Goupchn MCX oscilloscope probe provides essential 60MHz bandwidth and 1X/10X attenuation, crucial for accurate signal analysis in India's dynamic electronics landscape. Its robust construction, including a secure alligator clip and protective hook tip, ensures reliable performance for hobbyists, students, and repair technicians. Imported from authorized US retailers, it offers a dependable alternative to local options, backed by clear specifications for input resistance and capacitance, ensuring you get the precise readings needed for your projects.

Who It's For vs. Who Should Skip It

Ideal for electronics hobbyists, students in engineering programs, and repair technicians working with oscilloscopes up to 60MHz. It's perfect for general-purpose signal tracing and diagnostics. Skip if you require probes with bandwidths exceeding 60MHz, specialized features like active differential measurement, or if your work involves extremely high-frequency signals beyond this probe's specifications.

How to use

Connect Probe to Oscilloscope — Insert the probe's BNC connector into a standard oscilloscope input channel. Select the desired attenuation (1X or 10X) using the switch on the probe body.
Connect Ground Clip — Attach the alligator clip securely to a known ground point on the circuit you are testing. This is crucial for obtaining accurate waveform readings and preventing damage.
Test Signal and Compensate — Place the probe tip on the test point. If using 10X, connect to the oscilloscope's calibration output (1kHz square wave) and adjust the probe's compensation trimmer until the square wave has flat tops.

Example scenarios

Typical situations where Goupchn MCX Oscilloscope Probe 60MHz 1X 10X with Alligator Clip helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

An electronics hobbyist in Bangalore needs to test signals on a DIY project board.

How this product helps

This Goupchn probe connects easily to their oscilloscope, allowing detailed signal analysis up to 60MHz with 1X/10X attenuation for various voltage levels. The included accessories ensure stable connections for accurate readings.

Scenario 2

Illustrative example

Where it helps

A student in an Indian engineering college needs a reliable probe for lab assignments.

How this product helps

The probe's standard BNC connector and clear 1X/10X settings make it compatible with common lab oscilloscopes. Marker rings help manage multiple channels, and the durable build withstands frequent use in academic settings.

Specifications

Usage

Attenuation Setting	Select 1X for low voltage signals, 10X for higher voltage signals and increased input impedance.
Grounding	Connect the alligator clip to a reliable ground point on the circuit under test.
Compensation	Adjust the compensation trimmer capacitor using the provided tool to match your oscilloscope's input capacitance for accurate square wave response.
Maximum Input Voltage	Ensure signal voltage does not exceed 200Vp-p for 1X setting or 600Vp-p for 10X setting.
Operating Temperature	0~50℃

How we compare

Feature	Goupchn MCX Oscilloscope	Others
Bandwidth	60MHz	Varies (often 20-100MHz)
Attenuation	1X / 10X Switchable	Often fixed 10X or switchable
Input Resistance	1MΩ (1X) / 10MΩ (10X)	Typically 1MΩ (1X) / 10MΩ (10X)
Max Input Voltage (10X)	600Vp-p	Varies (often 300-600Vp-p)
Included Accessories	Alligator clip, marker rings, caps, hook	Varies, often basic clip

SKU	mtu3087
GTIN	0750153365500
Brand	Goupchn
Model Number	MCX-B
Bandwidth	60MHz
Rise Time	5.8ns
Attenuation Ratio	1X & 10X
Input Resistance	1X:1MΩ±2%, 10X:10MΩ±2%
Input Capacitance	1X:70pF~120pF, 10X:14pF~18pF
Maximum Input Voltage (Vp-p)	1X:200Vp-p, 10X:600Vp-p
Compensation Range	15~45pF
Probe Length	120±2cm (47.2±0.8in)
Item Weight	70g (0.15lb)
Operation Environment	0~50℃, 0~80%RH
Storage Environment	-20~60℃, 0~90%RH
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
