How do I calibrate a new 1X/10X oscilloscope probe to my instrument?

Connect the probe to the oscilloscope's calibration terminal (typically 1kHz square wave output), set the switch to 10X, and adjust the probe's trimmer capacitor using the non-conductive tuning tool until the displayed square wave exhibits flat tops with no overshoot or undershoot.

Are third-party BNC oscilloscope probes compatible across different scope brands?

Standard passive probes featuring universal BNC connectors are interchangeable across standard 1MΩ input oscilloscopes, provided the probe's compensation range matches the scope channel's input capacitance.

What is the maximum voltage this Goupchn oscilloscope probe can handle?

The Goupchn P4100 probe can withstand a maximum operating voltage of 2000V (Vp-p), making it suitable for high-voltage measurements.

What is the bandwidth of the Goupchn P4100 oscilloscope probe?

The Goupchn P4100 oscilloscope probe has a bandwidth of 100 MHz, allowing for accurate measurement of signals within this frequency range.

What accessories are included with the Goupchn P4100 probe?

The package includes the probe, 8 marker rings for channel identification, a ground spring, 2 IC test protection caps, an adjustment tool, and a user manual.

How to choose a high voltage oscilloscope probe for India?

For India, choose a high voltage probe like the Goupchn P4100 with a suitable bandwidth (e.g., 100MHz) and maximum voltage rating (e.g., 2000V). Ensure it has a standard BNC interface for compatibility with common oscilloscopes and comes with essential accessories for safe, accurate measurements.

Is this Goupchn oscilloscope probe safe for general use?

Yes, the Goupchn P4100 probe is designed for safe operation when used within its specified voltage limits (2000Vp-p) and connected to grounded oscilloscope inputs. Always use the included ground clip for reliable grounding.

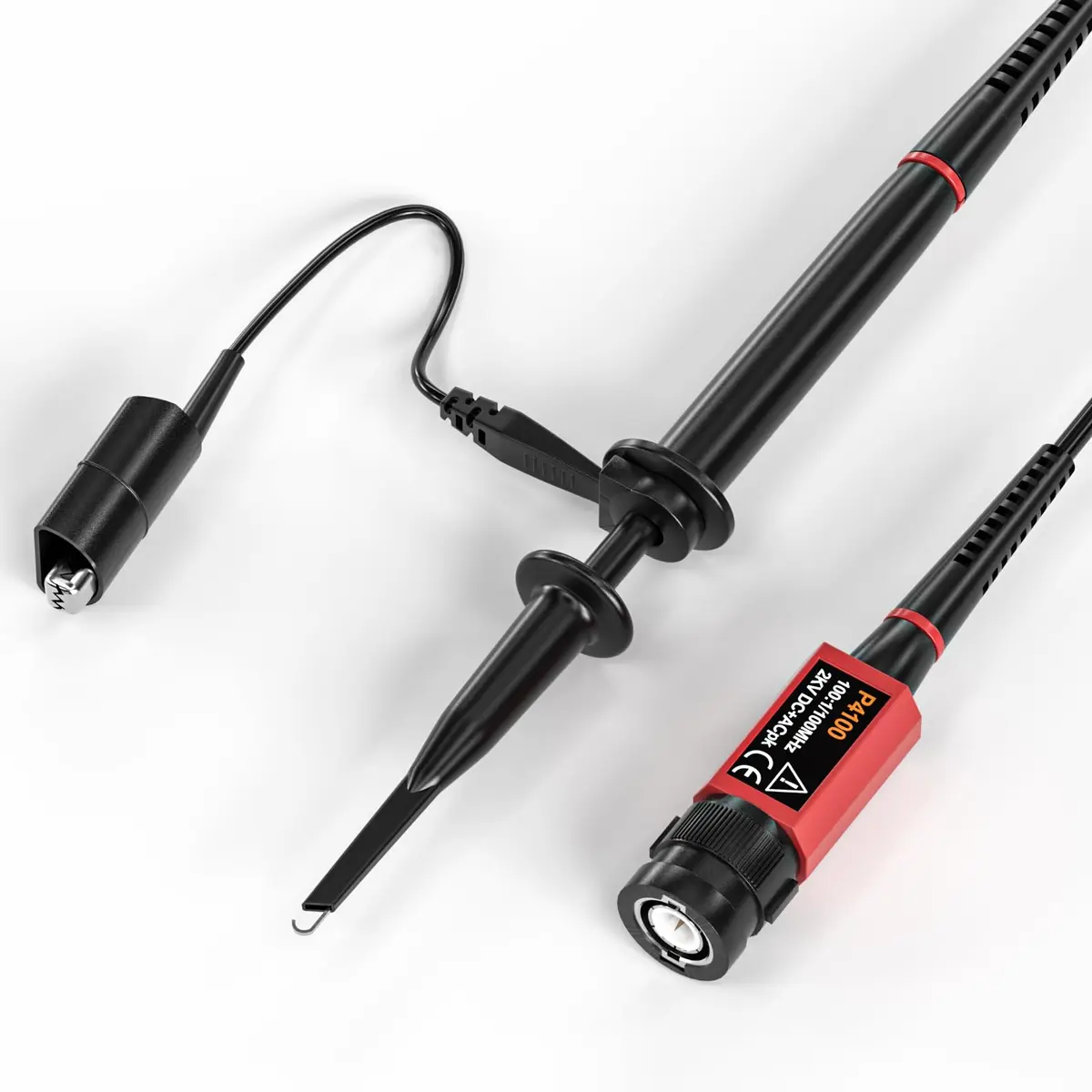

Goupchn P4100 Oscilloscope Probe 100MHz 2KV 100:1 | BNC High Voltage Test Lead Kit

Name: Goupchn P4100 High Voltage Oscilloscope Probe 100MHz 2KV 100:1 Attenuation | 1.2m Cable & Accessory Kit
Brand: Goupchn
SKU: jxu4733
Price: 11314.00 INR
Availability: InStock

About this item

The Goupchn P4100 High Voltage Oscilloscope Probe is engineered for precise electrical testing in India. With a 100MHz bandwidth and a maximum operating voltage of 2000V, it provides reliable signal readings for oscilloscopes featuring standard BNC interfaces. This probe is sourced from authorized US retailers and authorized brand partners, ensuring authenticity and quality for your critical measurements.

This probe utilizes a 100:1 attenuation ratio, offering an input resistance of 100 megohms and an input capacitance of 6 pF, with a compensation range of 10-35 pF. Its 3.5 ns rise time ensures accurate capture of fast signals. The 1.2-meter cable provides ample reach for connecting to your test points, and the included accessory kit enhances usability and channel differentiation.

For Indian engineers and technicians, this Goupchn probe offers a robust solution for detailed circuit analysis. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping. The included accessory kit, featuring marker rings and IC test caps, ensures you have everything needed for accurate and safe measurements.

Key Features

Oscilloscope Probes are electrical component which connect the circuit under test and oscilloscope input. Superior materials and advanced technology enhance the feeling and the structure. The smooth surface is easy to use.
High voltage probe can withstand 2000V. The grounding crocodile clip reliably grounds the probe stage for safe operation and correct signal reading.

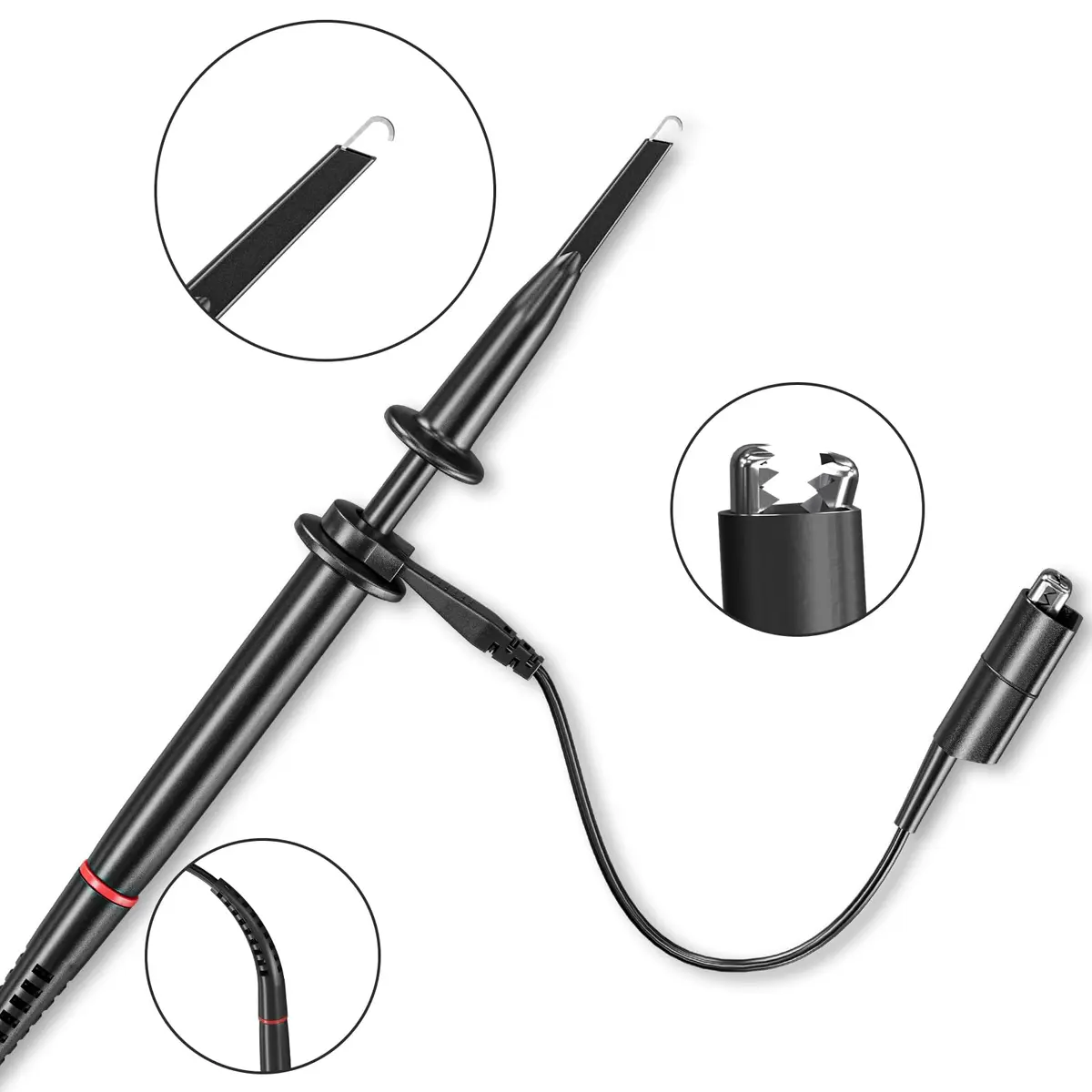

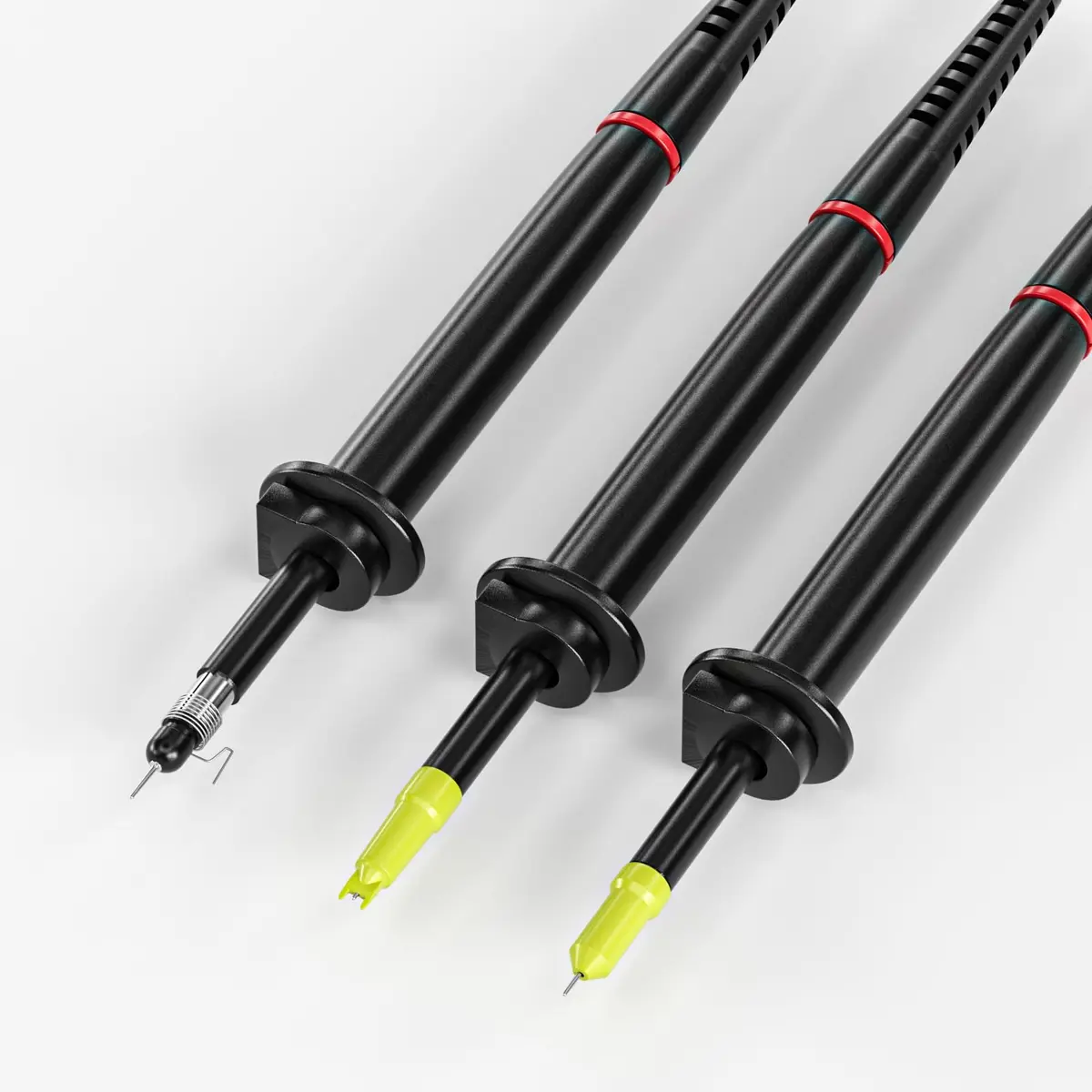

The tip of the removable hook is protected by a plastic case. The positioning sleeve ensures the stability and reliability of the tip exposed at the test point. 4 colors identification rings compatible with most oscilloscope probe sizes for easy channel differentiation.
High voltage oscilloscope probe is compatible with the BNC interface, digital oscilloscopes, virtual oscilloscopes, handheld oscilloscopes and more.

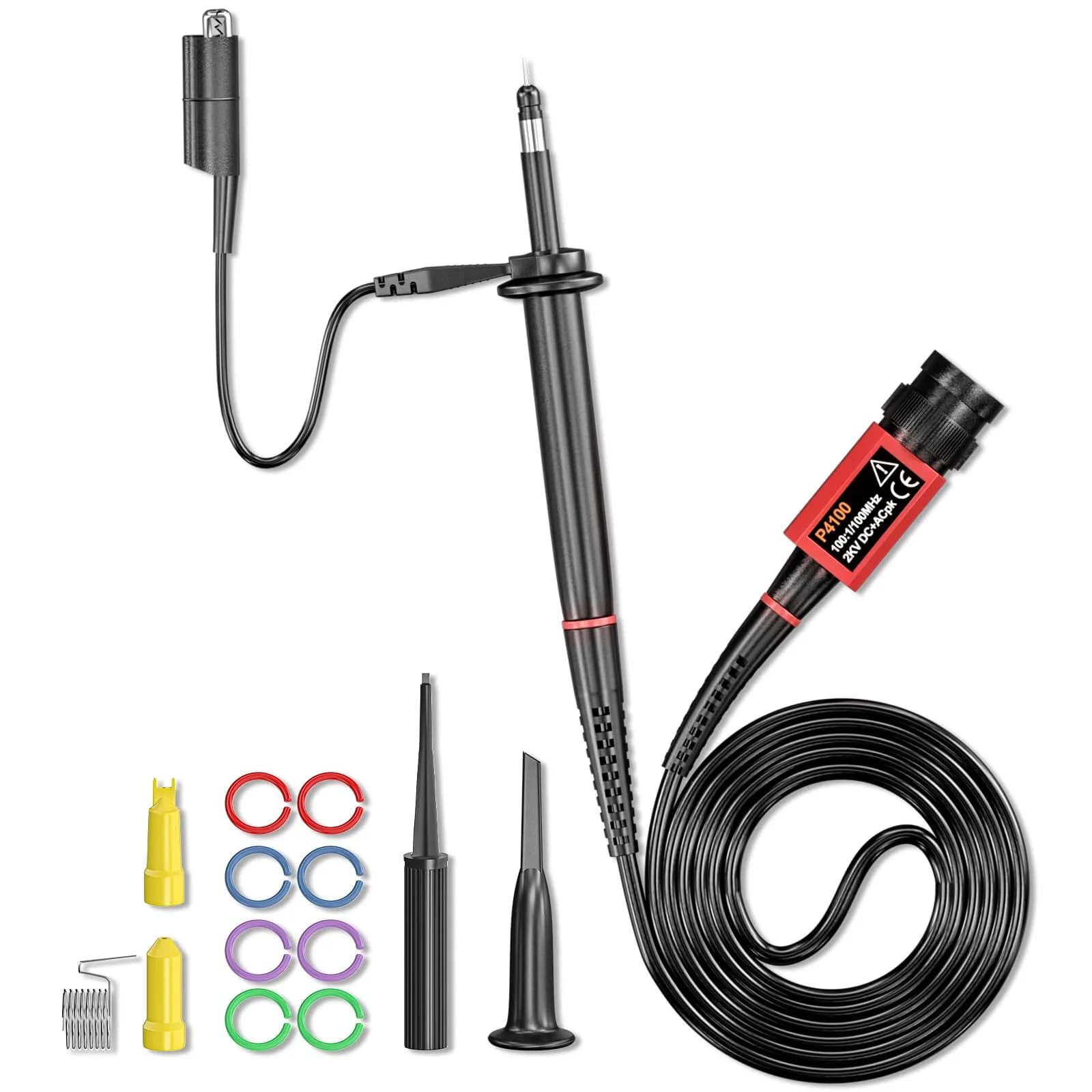

Package includes: 1 x probe, 8 x marker rings, 1 x ground spring, 2 x ic test protection caps, 1 x adjustment tool, 1 x user manual.

Why choose this product

Precision Measurement for Indian Engineers

The Goupchn P4100 probe delivers the precision Indian engineers need for accurate circuit analysis. Its high voltage capability and broad bandwidth make it suitable for diverse applications, from educational labs to professional repair work. Sourced from authorized US retailers and authorized brand partners, this probe ensures you receive a genuine, high-quality tool for your critical tasks. Unlike generic alternatives, it offers a reliable 100:1 attenuation and a 2000V maximum operating voltage, backed by a comprehensive accessory kit for enhanced usability and safety.

Ideal for Lab & Field Use

This probe is best suited for electronics engineers, technicians, and students working with oscilloscopes in India. Its robust construction and included accessories make it ideal for both benchtop lab work and field service. Those requiring specialized active differential probes for extremely high-frequency or floating measurements might need to consider alternative probe types, as this is a passive high-voltage probe designed for standard grounded measurements.

How to use

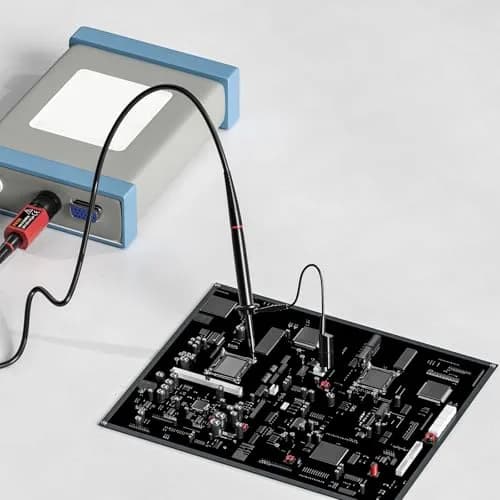

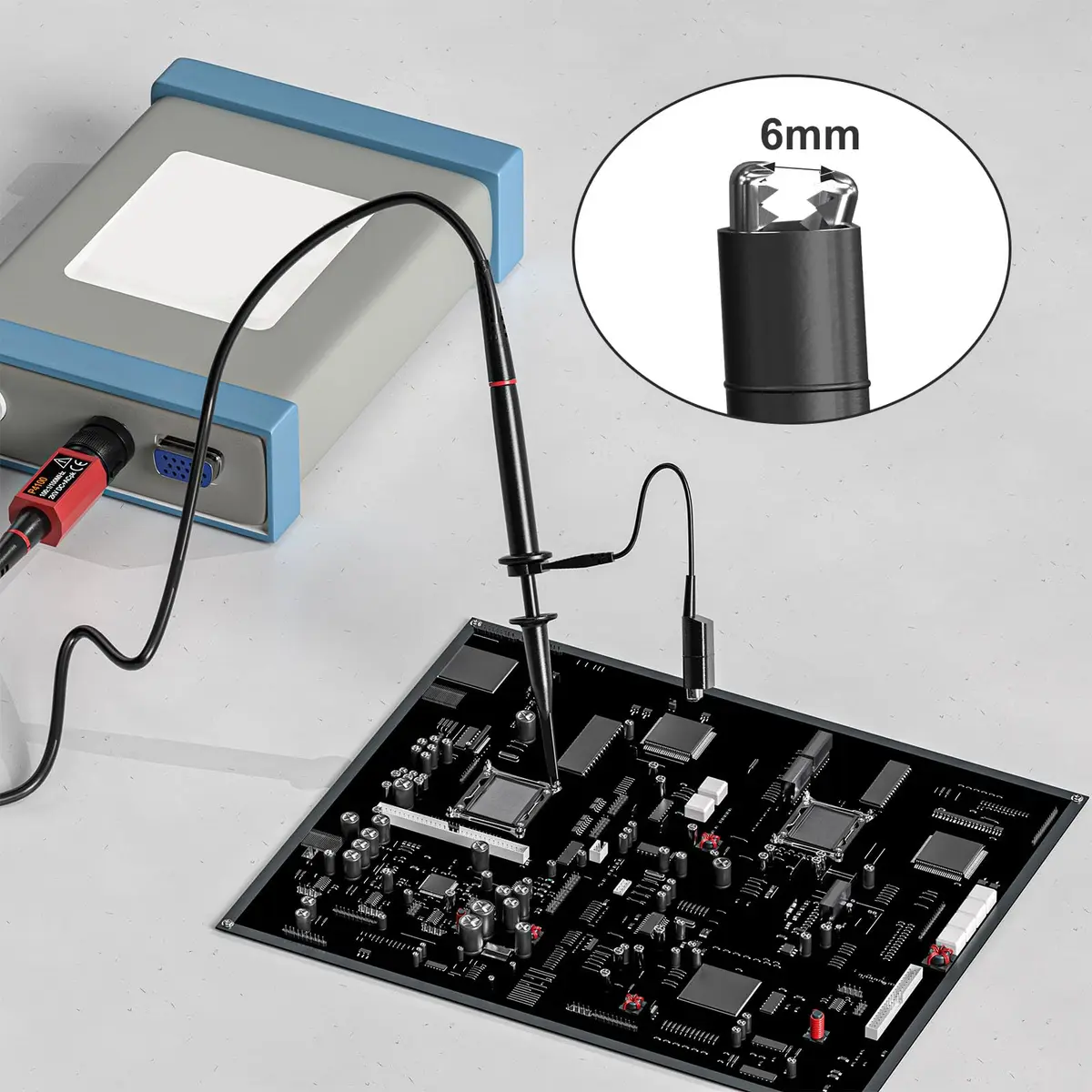

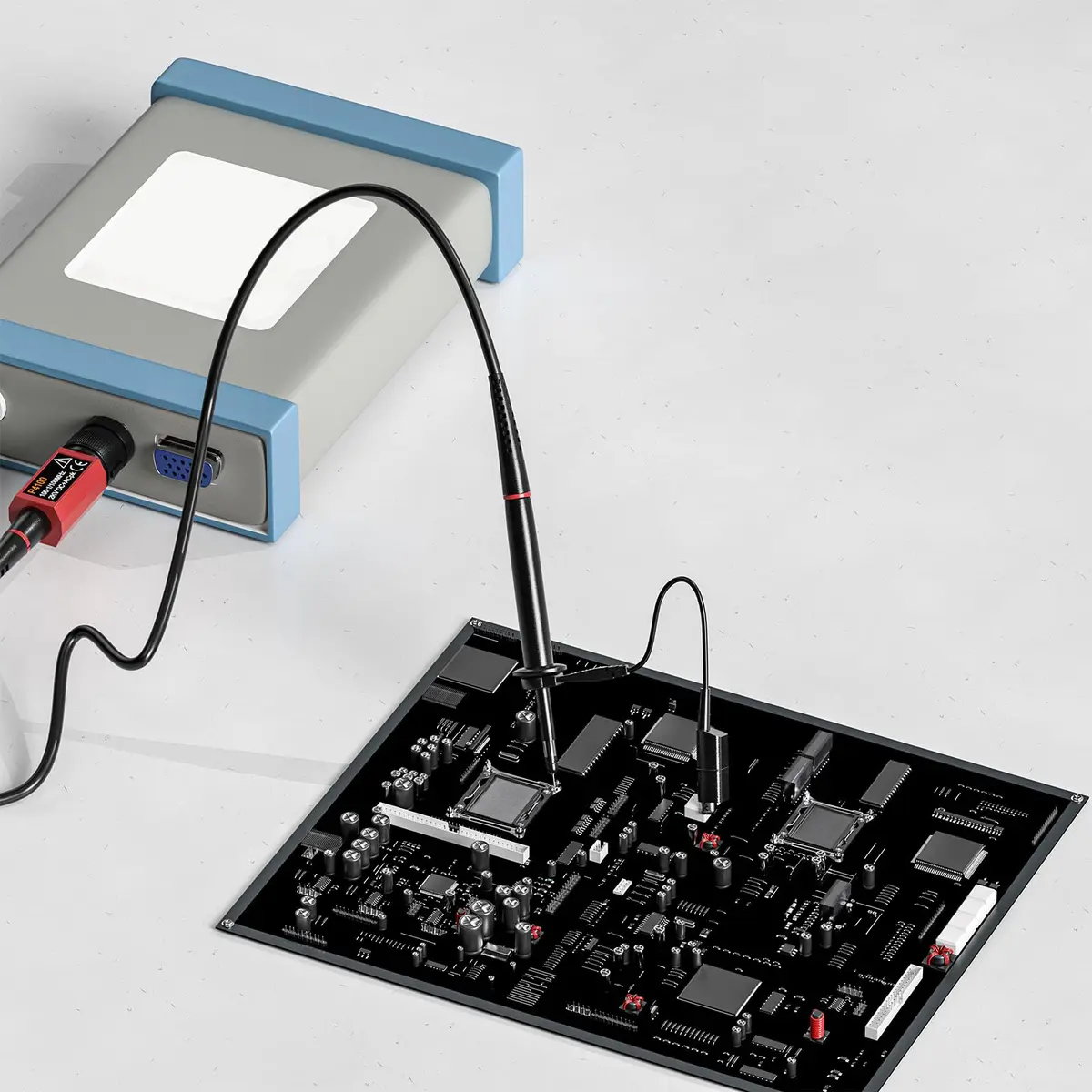

Connect Probe to Oscilloscope — Insert the probe's BNC connector firmly into a standard oscilloscope input channel. Ensure the probe's attenuation switch is set to the desired ratio (e.g., 100:1 for high voltage).
Connect Ground Clip — Attach the ground spring clip securely to a known ground point on the circuit under test. This is crucial for signal integrity and safety, especially when measuring high voltages.

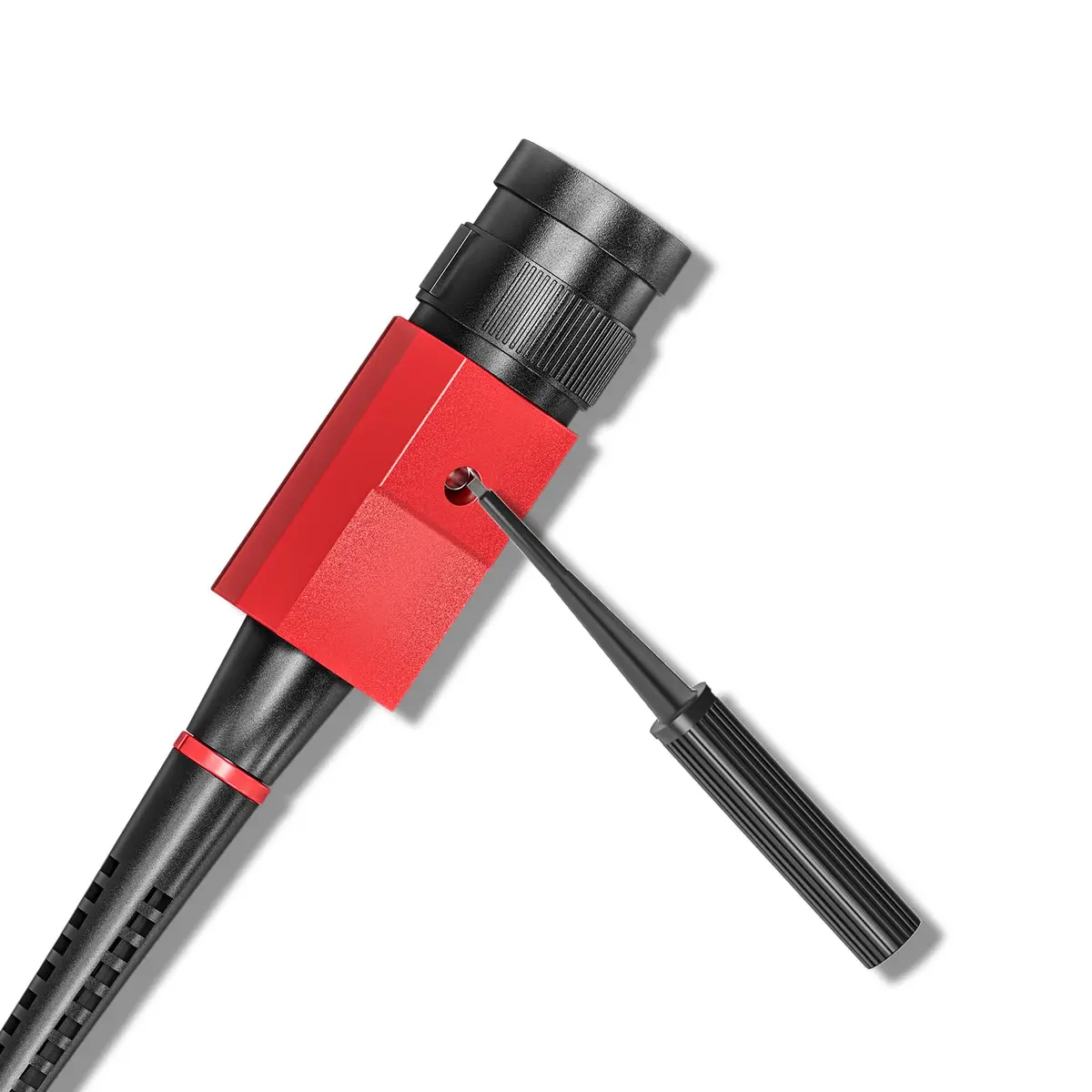

Engage Test Point & Calibrate — Use the probe tip to contact the test point. For accurate readings, connect the probe to the oscilloscope's calibration output (1kHz square wave) and adjust the probe's compensation trimmer until the square wave appears flat.

Example scenarios

Typical situations where Goupchn P4100 High Voltage Oscilloscope Probe 100MHz 2KV 100:1 Attenuation | 1.2m Cable & Accessory Kit helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

An electronics engineering student in Bangalore needs to analyze power supply ripple on a 12V DC-DC converter.

How this product helps

The Goupchn P4100 probe's 100MHz bandwidth and 2000V rating allow safe and accurate measurement of the switching waveforms and ripple, even if unexpected voltage spikes occur.

Scenario 2

Illustrative example

Where it helps

A repair technician in Delhi is troubleshooting a high-voltage inverter circuit for an appliance.

How this product helps

The probe's 2000V maximum operating voltage and 100:1 attenuation are critical for safely measuring high-voltage signals without damaging the probe or oscilloscope, ensuring accurate diagnostics.

Specifications

Composition

Attenuation Ratio	100:1
Input Resistance	100 megohms
Input Capacitance	6 pF
Compensation Range	10 - 35 pF
Bandwidth	100 MHz
Rise Time	3.5 ns
Maximum Operating Voltage	2000 V (Vp-p)
Grounding	Crocodile clip

Usage

Compatibility	Standard BNC interface, digital oscilloscopes, virtual oscilloscopes, handheld oscilloscopes
Included Accessories	1 x probe, 8 x marker rings, 1 x ground spring, 2 x IC test protection caps, 1 x adjustment tool, 1 x user manual
Cost per use	This probe is a durable tool, not a consumable. Cost-per-use is minimal over its lifespan.
Shelf life after opening	Not applicable (durable electronic component)
Reapplication math

How we compare

Feature	Goupchn P4100 High	Others
Bandwidth	100 MHz	Varies by brand (commonly 20MHz-100MHz)
Max Voltage	2000 Vp-p	Varies by brand (often 400V-600V for standard probes)
Attenuation	100:1	Commonly 10:1 or 100:1
Input Resistance	100 MΩ	Typically 1 MΩ (for 10:1) or 10 MΩ (for 100:1)
Included Accessories	Full kit: rings, ground spring, IC caps, tool, manual	Often basic: probe, ground clip, few rings

SKU	jxu4733
GTIN	0750153364909
Brand	Goupchn
Model Number	P4100
Part Number	P4100
Style	X100 100MHz 2KV 1PCS
Item Type Keyword	oscilloscope-probes
Material	Plastic, Metal

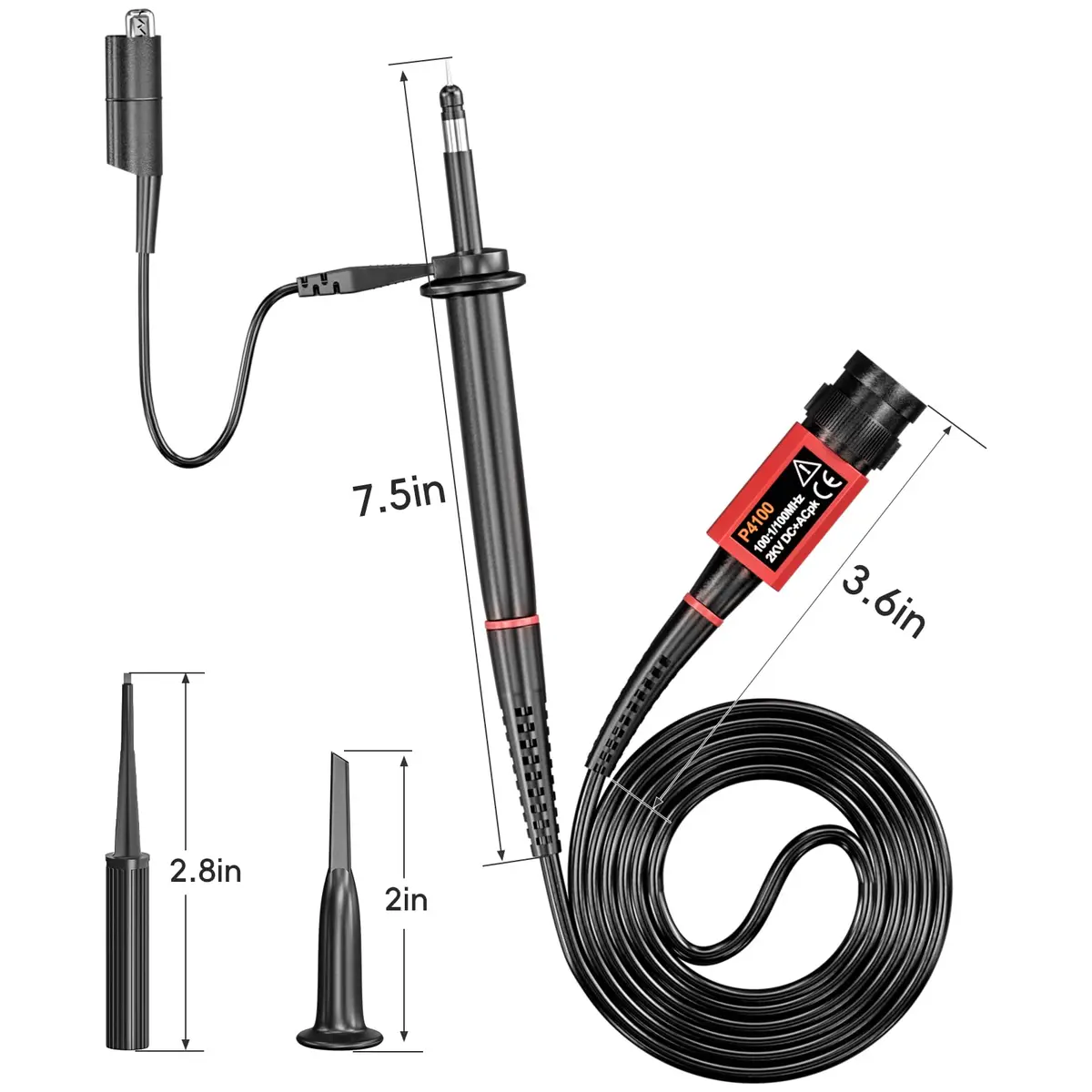

Cable Length	1.2 meters (3.94 ft)
Weight	100 grams (0.22 lb)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
