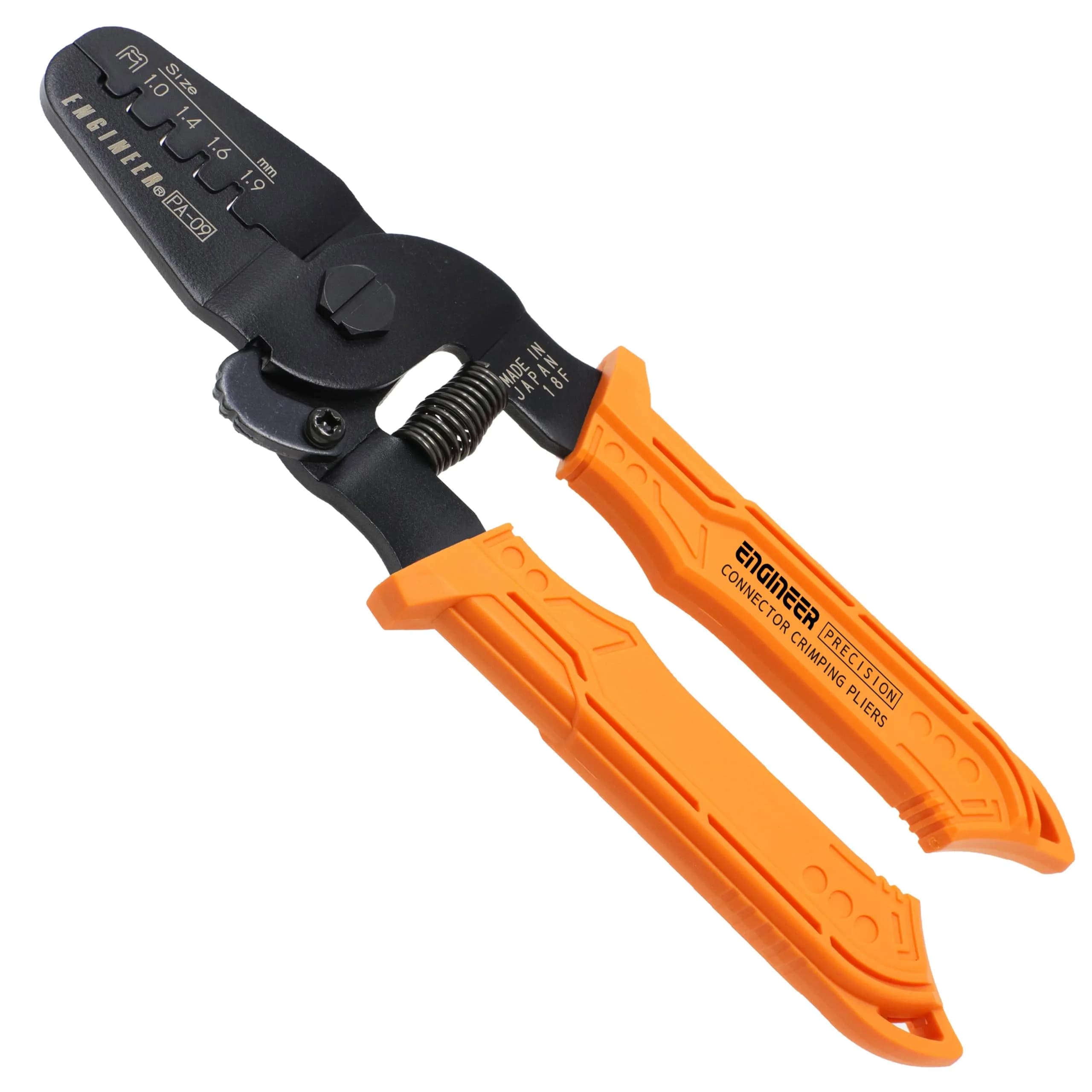

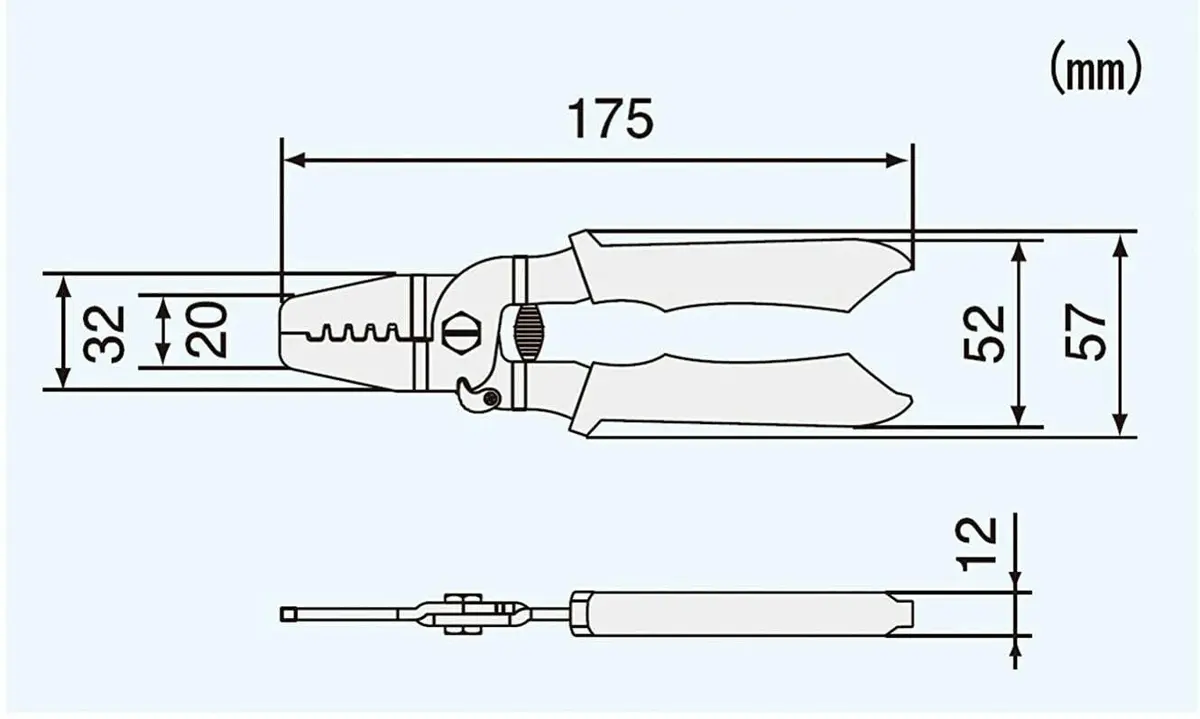

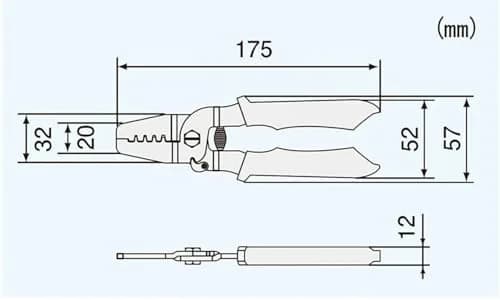

ENGINEER PA-09 Micro Connector Crimping Pliers 175mm (6.89 inches) | Precision Tool for AWG #32-20 Wires

• Crimp AWG #32 to #20 wires in micro open-barrel connectors across 100 different terminals such as MOLEX, TE (Tyco), JST, HRS, etc. D-Sub connector contact can be also crimped.
• Ideal for 1.25mm pitch to 2.5mm pitch micro connector pins (narrow pitch) or D-sub connectors

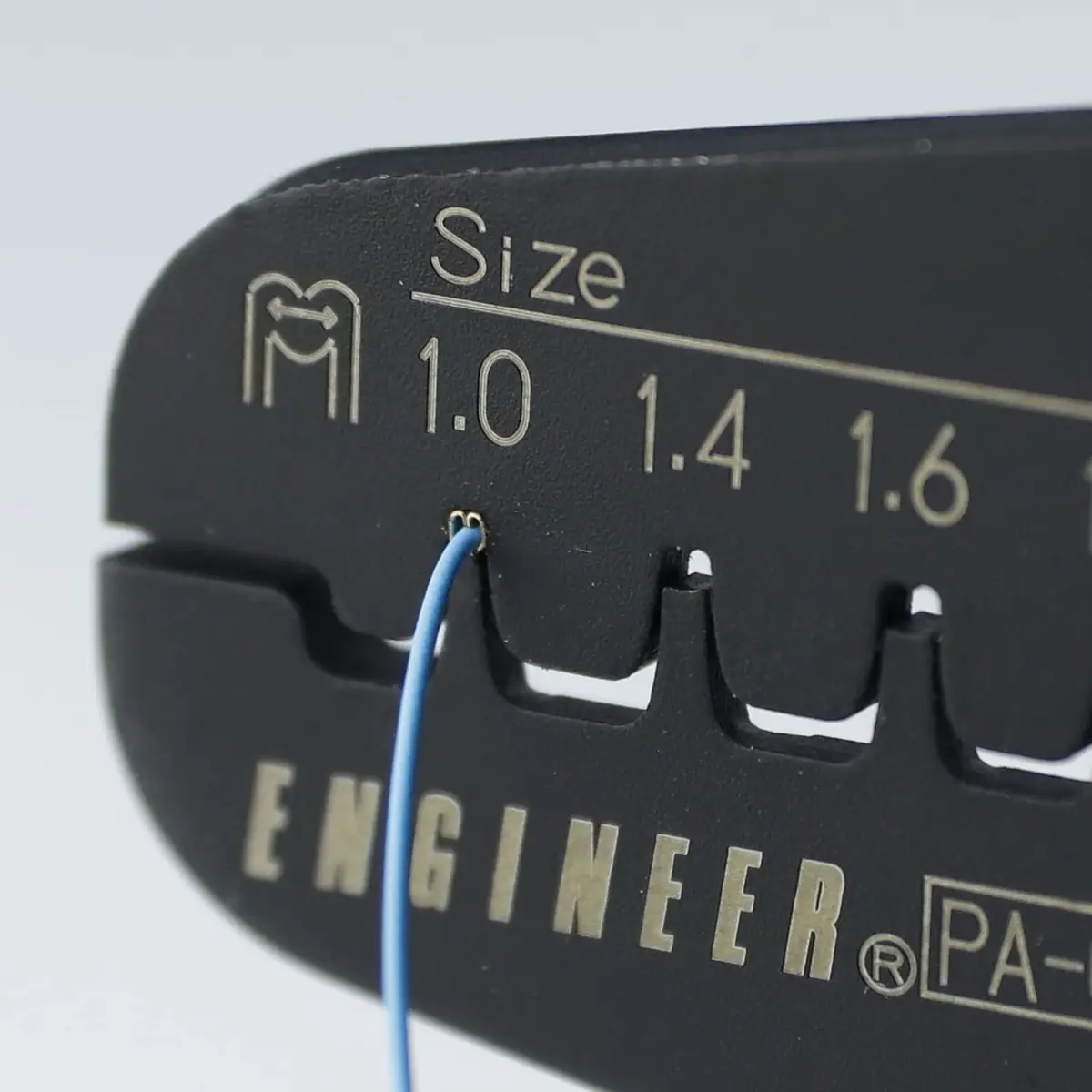

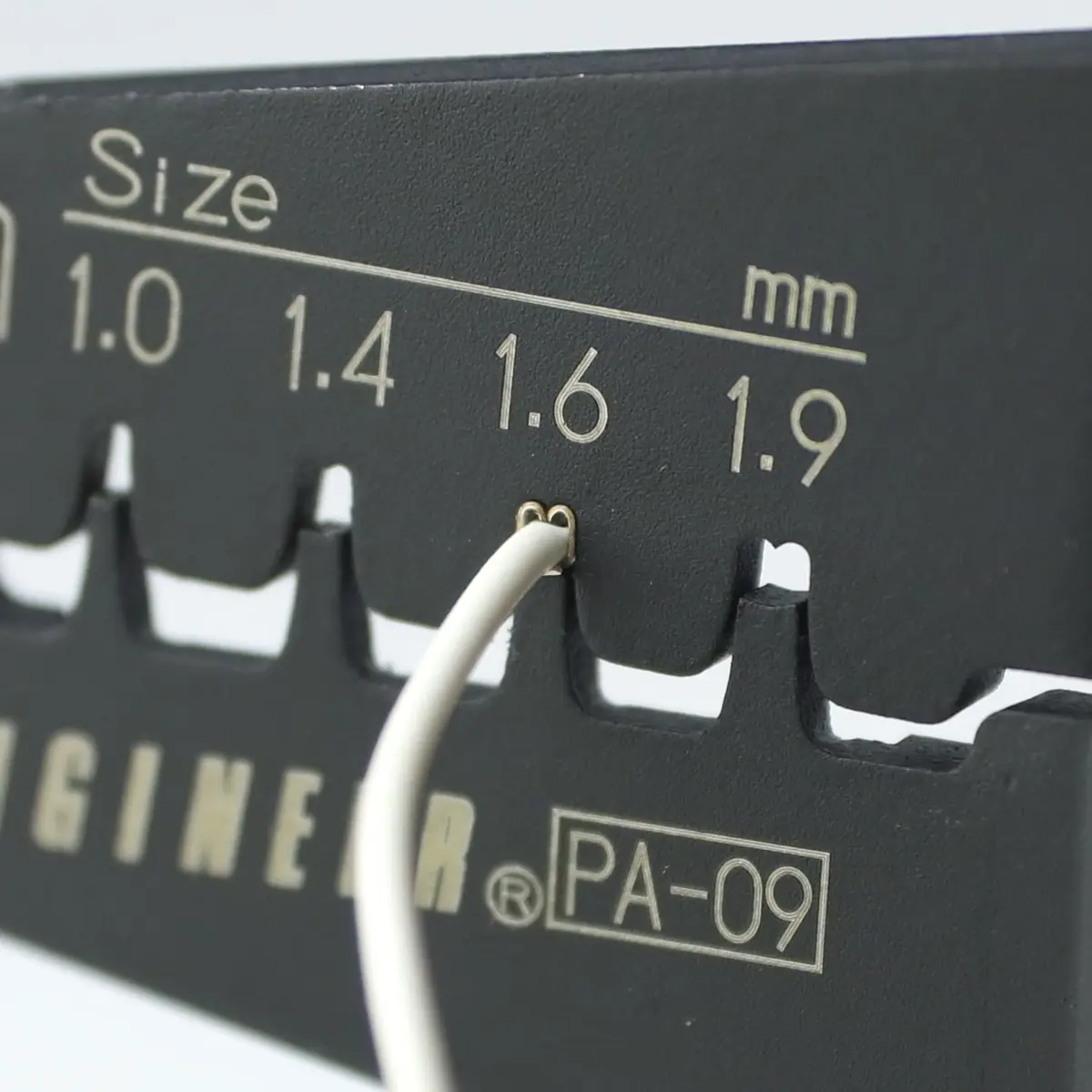

• 4 different crimping die widths: 1.0mm, 1.4mm, 1.6mm & 1.9mm
• Made in Japan: S55C High Carbon Steel. Oil resistant Thermoplastic Rubber (TPR) Handles
• Original joint screw prevents the joint from being loose and offers you easy maintenance. Equipped with locking latch and coiled spring.

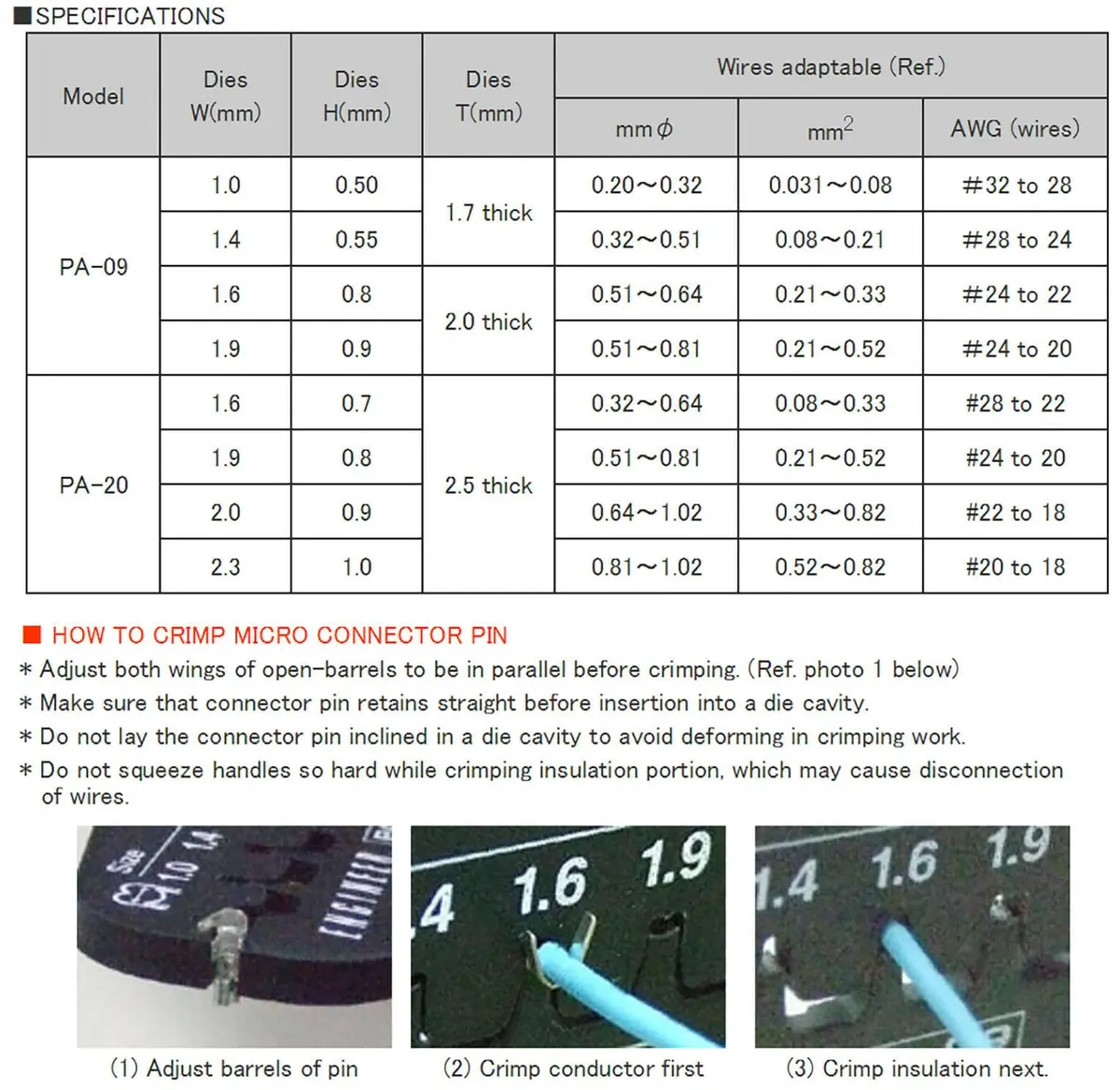

• Select the Correct Die Width — Identify the pitch of your micro connector (1.25mm to 2.5mm) and the wire gauge (AWG #32-20). Choose the appropriate die width (1.0mm, 1.4mm, 1.6mm, or 1.9mm) on the PA-09 that best matches your terminal and wire size for optimal crimping.
• Prepare Wire and Terminal — Strip the wire insulation to the appropriate length, ensuring not to nick the conductor. Insert the stripped wire into the terminal barrel, ensuring it is seated correctly. Position the terminal and wire within the selected die jaws of the crimping tool.
• Perform the Crimp — Close the PA-09 handles firmly until the ratcheting mechanism completes the cycle. This ensures a full, secure crimp. Release the handles to open the jaws. Inspect the crimp for proper seating and conductor insulation coverage.
• Maintain and Store — Periodically check the joint screw for tightness and adjust if necessary. Engage the locking latch for storage. Keep the tool clean and store it in a dry environment to prevent rust and ensure longevity.
