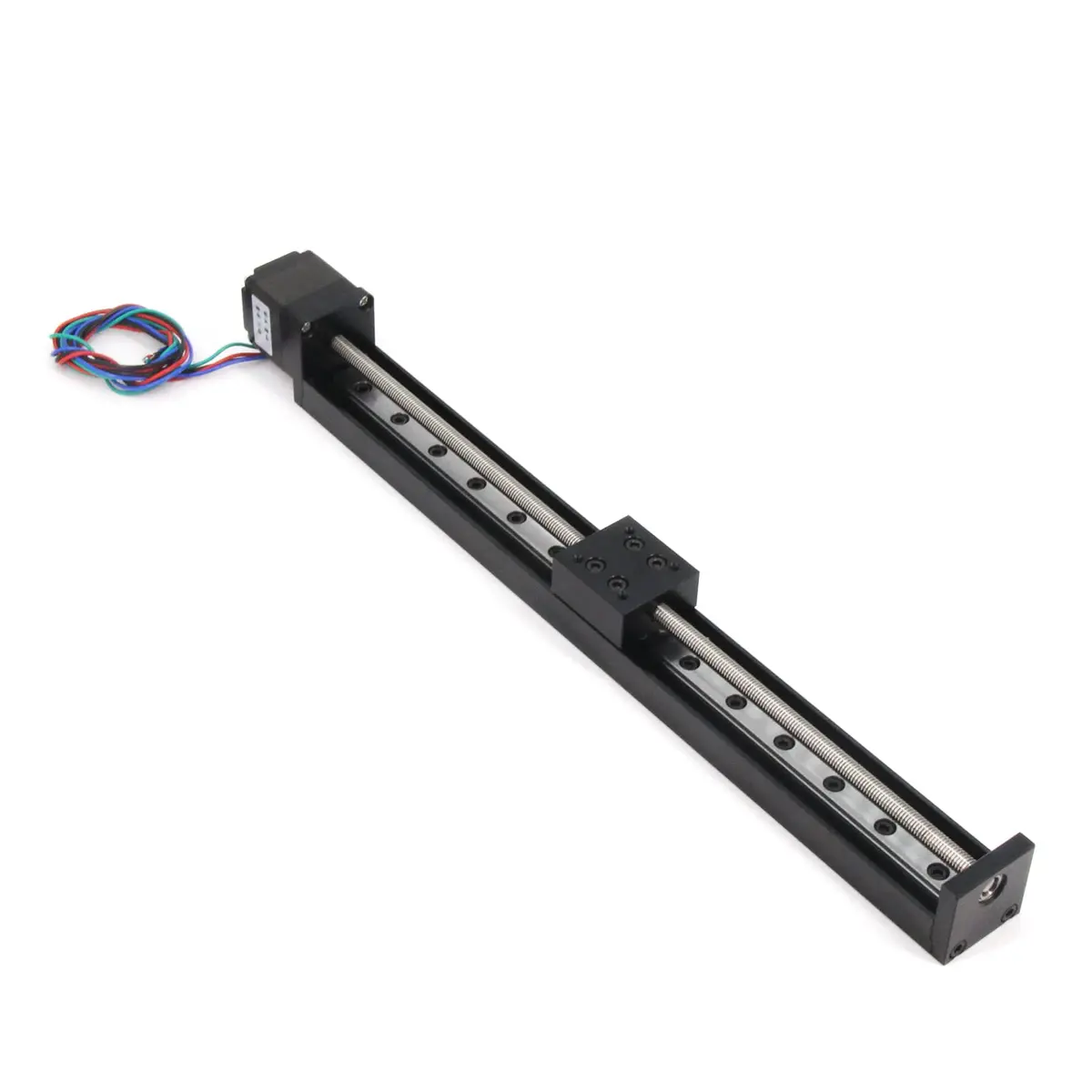

Befenybay 250mm Linear Rail Guide T6x1 with NEMA11 Stepper Motor (250mm Effective Travel)

• Load — Horizontal maximum load capacity: 2.5kg; Vertical maximum load capacity: 1kg
• Accuracy — Repeat positioning accuracy of ± 0.05mm
• Speed — Speed: 0-120mm/min

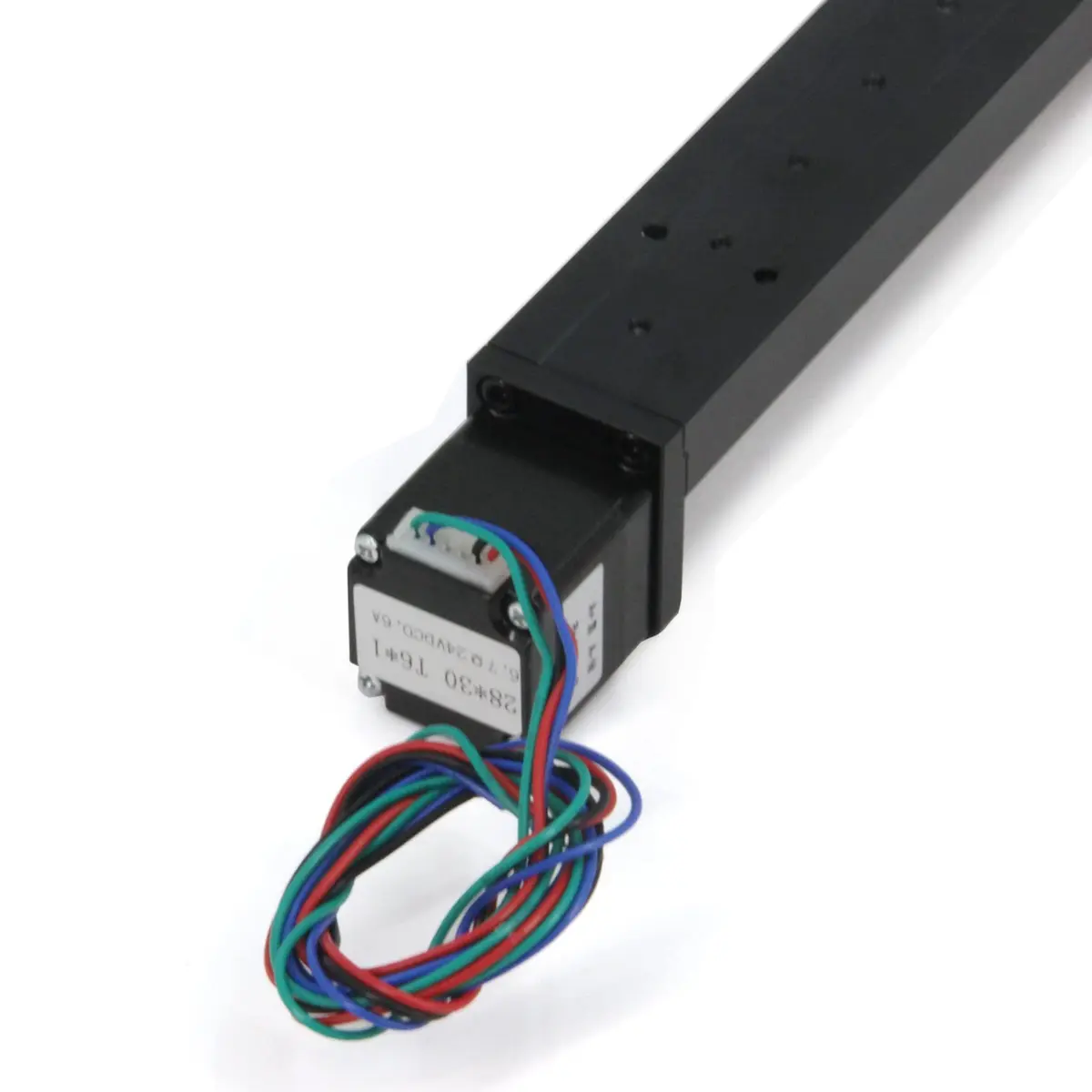

• Motor — Motor size:28*28*30mm,Motor voltage:DC 24V,Current: 0.5A,Step angle:1.8 degrees
• Effective Travel — 250mm Effective Travel,T6x1:diameter 6mm and lead 1mm pitch 1mm ( The lead screw moves 1mm in one turn)

• Mount the Linear Stage — Securely mount the Befenybay linear stage actuator to your machine's frame using the pre-drilled holes on the aluminum base. Ensure it is level and aligned with your intended axis of motion for optimal performance and accuracy.

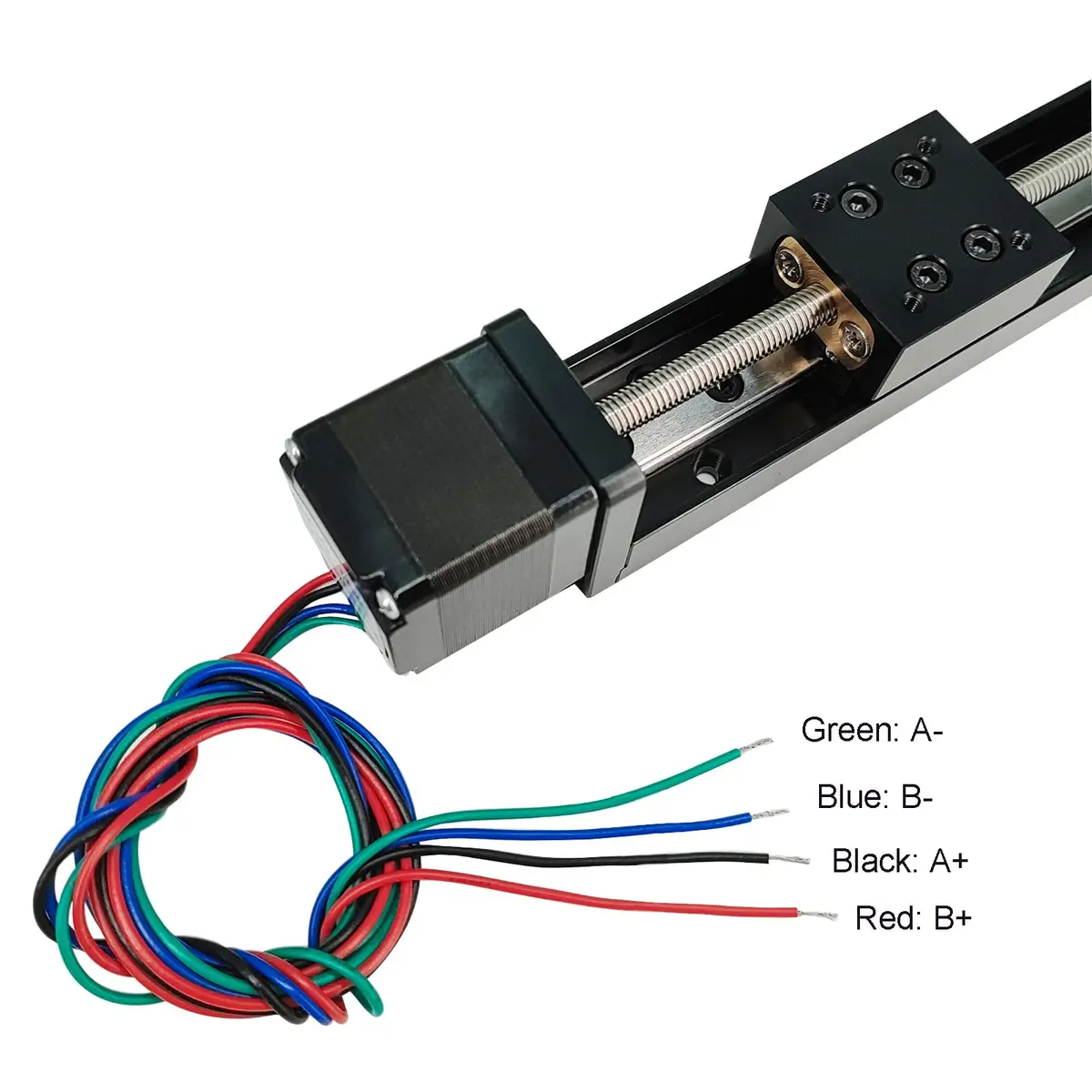

• Connect the Stepper Motor — Wire the NEMA11 stepper motor to your stepper motor driver. Connect Black to A+, Green to A-, Red to B+, and Blue to B-. Ensure your driver is compatible with DC 24V and 0.5A, and that the wiring order is correct for your driver's configuration.
• Integrate with Controller — Connect the stepper motor driver to your CNC controller or 3D printer mainboard. Configure the driver settings and motor steps per revolution (1.8 degrees) in your machine's firmware or control software to match the T6x1 lead screw's 1mm pitch for accurate movement.
• Test and Calibrate — Perform a test run at low speed (e.g., 10-20mm/min) to verify smooth motion and correct direction. Calibrate the steps per mm in your software to match the lead screw's 1mm pitch, ensuring precise positioning and movement across the 250mm effective travel.
