How to choose a planetary gear stepper motor for my project?

Select based on voltage (4-6V here), required stroke (61mm), slider width for accuracy (12mm here), and screw pitch (3mm here). Match these specifications to your project's needs for precise linear motion control.

Is this Acxico stepper motor suitable for 3D printers in India?

Yes, these motors can be used for DIY 3D printer builds requiring precise linear movement. Ensure the voltage (4-6V) and stroke (61mm) match your printer's design. Imported for Indian makers, they offer a cost-effective solution.

What is the difference between this and a standard stepper motor?

This motor features a planetary gear reducer, which provides a stable deceleration ratio for smoother, more precise linear movement compared to standard stepper motors without gearboxes.

Can I add more carriage blocks to the linear screw slider?

The package includes 2 pcs. While additional blocks of the same series can sometimes be fitted, it's best to ensure compatibility with the exact rail series for optimal performance and to avoid issues.

How to use Acxico planetary gear stepper motor?

Connect the 4 wires to a compatible stepper motor driver and microcontroller, ensuring correct phase sequencing for the 2-phase motor. Program the driver to control the motor's steps for precise linear positioning of the slider.

Are these motors good for high torque applications?

No, these motors are optimized for precision and controlled linear movement rather than high torque. For projects requiring significant force, consider higher-voltage, direct-drive stepper motors or industrial-grade actuators.

How to buy an original Acxico planetary gear stepper motor in India?

Purchase from authorized US retailers and authorized brand partners, imported per-order. All customs duties and GST are included, with ExpressBox tracked delivery. Ensure the product is factory-sealed for authenticity.

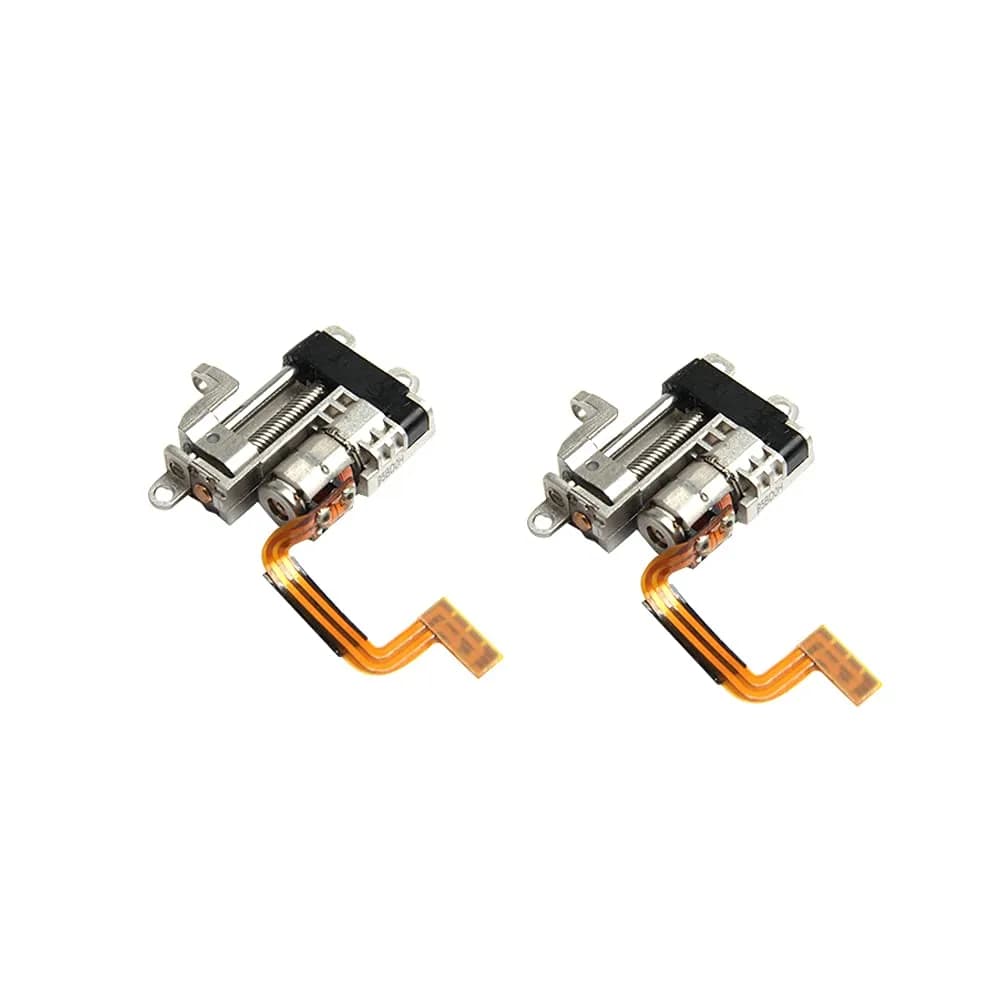

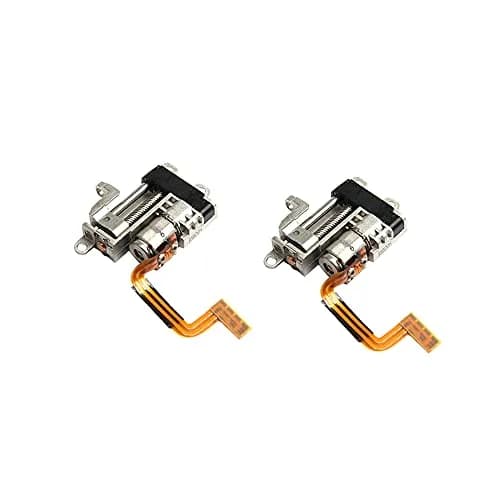

Acxico 3V 2-Pack Planetary Gear Stepper Motor Linear Screw Slider

Name: Acxico 3V Planetary Gear Stepper Motor Linear Screw Slider 2-Pack | Precision Motion Control
Brand: Acxico
SKU: aap8035
Price: 1611.00 INR
Availability: InStock

About this item

Acxico 2-piece set of miniature 5mm planetary gear stepper motors with linear screw sliders. Features a 2-phase, 4-wire design with a 4-6V driving voltage. The metal gear reducer drives a precision diagonal bar for linear slider movement. Includes a 73mm screw length with a 3mm diameter and a 12mm slider width for improved accuracy. Offers a 61mm slide stroke and an 18° step angle. Ideal for DIY automation, robotics, and precision positioning applications.

These motors are designed for applications requiring precise linear actuation. The planetary gear reducer provides a stable deceleration ratio, ensuring smooth and controlled movement of the metal slider. The robust metal bracket and widened 12mm slider enhance accuracy and reduce shaking compared to previous designs. Each motor operates within a 4-6V range, making them suitable for various low-voltage electronic projects.

Imported directly for Indian makers, these Acxico stepper motors offer a cost-effective solution for custom automation builds. While local alternatives may exist, this imported set provides specific planetary gear reduction for enhanced precision. All customs duties and GST are included in the price. Delivery is handled via ExpressBox tracked shipping, arriving within 12-14 days.

Key Features

The brand-new bulk miniature two-phase four wire 5mm stepping motor with planetary reducer, which is decelerated by metal gear, and then drives the precision diagonal bar to push the metal slider up and down. The bracket is basically made of metal.
Motor type: 2-phase 4-wire；Driving voltage: 4-6V；Screw length: 73mm；Screw diameter: 3mm；Slider Width: 12mm (to reduce shaking improve accuracy, the original 10mm now increased to 12mm).
Slide stroke: 61mm；Screw pitch: 3mm；Step angle: 18 °；Stages Size: 90 * 30mm.
Package includes:2 pcs Mini 5mm 2-phase 4-wire 3V 5V Planetary Gear Stepper Motor linear Screw Slider
We are very grateful to all customers for their suggestions to improve sales, if you are not satisfied, please contact us to find the best solution

Why choose this product

Precision Control for DIY Automation

This Acxico 2-pack offers precise linear motion control essential for custom automation projects. The planetary gear system decelerates the stepper motor, driving a precision diagonal bar to move the slider smoothly. With a 61mm stroke and a 12mm wide slider for improved accuracy, these motors are ideal for robotics, 3D printers, or any application needing controlled linear movement. Imported for Indian makers, they provide a reliable component for your next build.

Ideal for Hobbyists, Skip if High Torque Needed

Perfect for hobbyists and students building small-scale automation, CNC prototypes, or educational robotics. The 4-6V operation is easy to integrate with common microcontrollers. Skip this if your project requires high torque or heavy load-bearing capacity, as the planetary gear reduction is optimized for precision over raw power. For industrial-grade linear actuators, consider specialized, higher-voltage systems.

How to use

Connect Motor Wires — Identify the 4 wires for the 2-phase motor. Connect them to a compatible stepper motor driver (e.g., A4988, DRV8825) ensuring correct phase sequencing for bidirectional control.
Integrate with Microcontroller — Connect the stepper motor driver to your microcontroller (like Arduino or Raspberry Pi). Ensure the driving voltage of 4-6V is supplied correctly to the motor via the driver.
Program for Linear Motion — Write code to send step and direction signals to the motor driver. Program the sequence to achieve the desired linear extension or retraction of the slider along its 61mm stroke.

Example scenarios

Typical situations where Acxico 3V Planetary Gear Stepper Motor Linear Screw Slider 2-Pack | Precision Motion Control helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A hobbyist in Bangalore needs precise linear movement for a DIY CNC plotter.

How this product helps

This Acxico 2-pack provides the necessary precision with its planetary gear reduction and 12mm slider width, ensuring smooth operation for detailed plotting tasks. Operates on low voltage, easily integrated with microcontrollers.

Scenario 2

Illustrative example

Where it helps

A student in Delhi is building a small robotic arm requiring controlled linear extension.

How this product helps

The 61mm slide stroke and 3V-5V operation make these motors ideal for compact robotic projects. The metal construction ensures reliability for educational use, and the 2-pack offers value for prototyping.

Specifications

Usage

Application	DIY automation, robotics, 3D printers, precision positioning
Cost per use	2 pcs at ₹1,611 — ₹806 per piece
Shelf life after opening	12 months
Reapplication math	N/A
Contraindications	High torque applications, heavy load bearing
Allergens / common irritants	N/A

How we compare

Feature	Acxico 3V Planetary	Others
Gear Reduction System	Planetary gear reducer for smooth, precise linear motion	Varies by brand; some offer direct drive, others simpler gearboxes
Slider Accuracy	12mm slider width reduces shaking for improved accuracy	Typically 10mm slider width; accuracy may vary
Voltage Compatibility	4-6V driving voltage, suitable for low-power electronics	Often 5-12V or higher; may require different power supplies
Cost per piece	2 pcs at ₹1,611 — ₹806 per piece	Local 2-piece sets typically range from ₹800-₹1500, depending on specs
Construction	Metal bracket and gear components for durability	May use plastic components in some budget models

Attributes	Current Acxico 3V Planetary Gear Stepper Motor Linear Screw Slider 2-Pack \| Precision Motion ControlBuy Now	Quartet Clear Round Rare Earth Magnets 1/2" Diameter, 6 Pack \| Strong Hold for Glass WhiteboardsBuy Now	uxcell MR126-2RS Deep Groove Ball Bearings 6mm x 12mm x 4mm \| Double Sealed Chrome Steel (10 Pcs)Buy Now	HARFINGTON M2 PVC Flat Washers 2mm ID x 5mm OD x 0.3mm Thick \| 300-Piece Pack for Sealing & Gasket ApplicationsBuy Now	Tnisesm 10SQ050 Schottky Blocking Diode 50V 40 Pcs \| Rectifier Diode Kit for Solar PanelBuy Now	Beduan Green Urethane Round Belt 12mm OD (0.472 in) x 3m (10 ft) \| High-Performance Drive TransmissionBuy Now	FURWEY 10ML Sterile Vials with Injection Ports, 20 Pack \| Borosilicate Glass for High/Low Temp ResistanceBuy Now
Spec
Price

Acxico 3V Planetary Gear Stepper Motor Linear Screw Slider 2-Pack | Precision Motion Control

Product details

Frequently bought together

Crowcrowcrow: The Only Safe Lane for US-Market Exclusives

Tested and Trusted · Always Original & 100% Imported

About this item

Key Features

Why choose this product

How to use

Example scenarios

Specifications

Usage

How we compare

FAQ, See What Others Asked

Your Order Journey: From Purchase to Doorstep

Customer Reviews

Product Comparison

SKU	aap8035
GTIN	0657835947620
Brand	Acxico
Motor Type	2-phase, 4-wire
Driving Voltage	4-6V
Screw Length	73mm
Screw Diameter	3mm
Slider Width	12mm
Slide Stroke	61mm
Screw Pitch	3mm
Step Angle	18°
Stages Size	90 x 30mm
Material	Metal (bracket and gears)
Package Includes	2 pcs
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
