VCELINK RJ45 Crimp Tool Kit with Punch Down Tool & Tester | 43-Piece Network Cable Installation Set

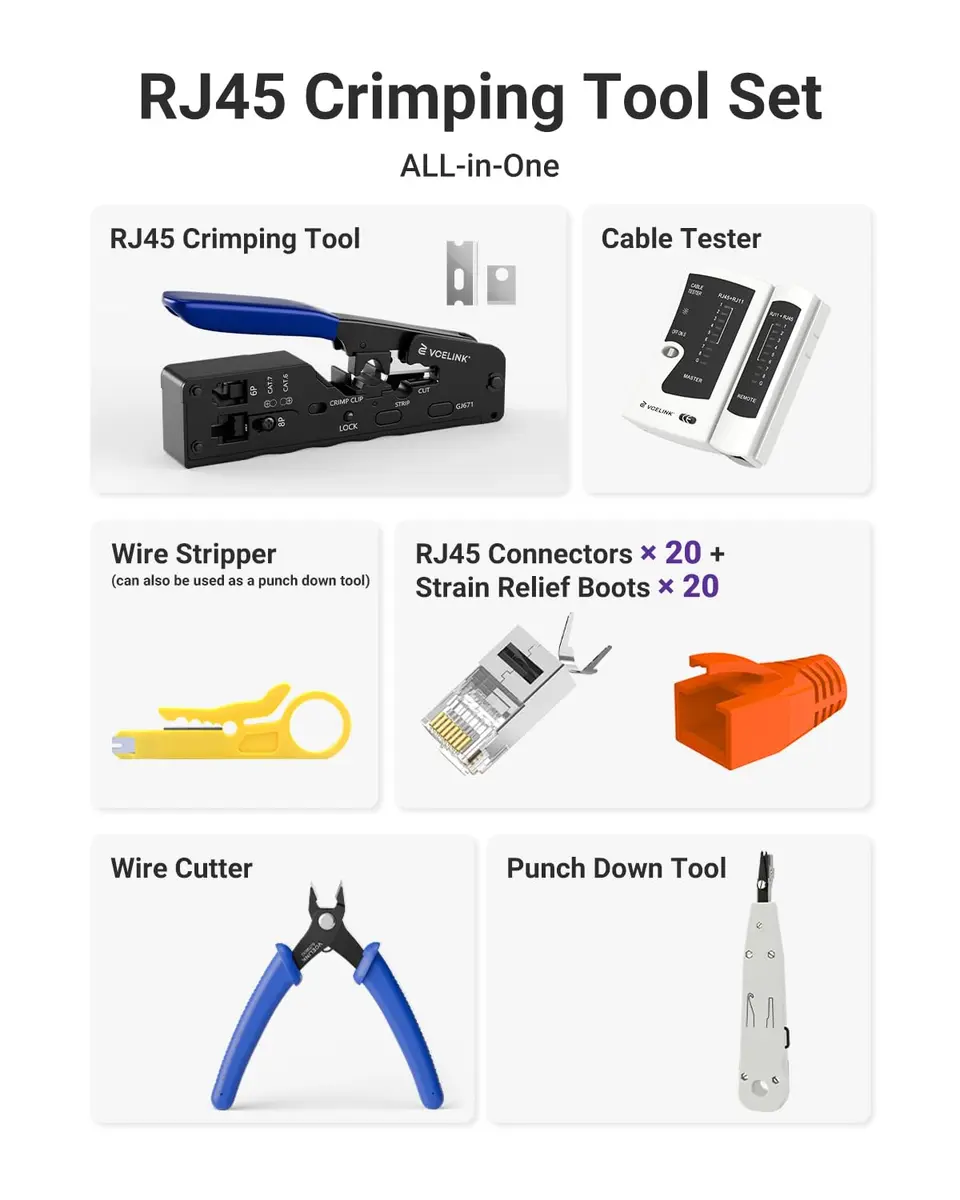

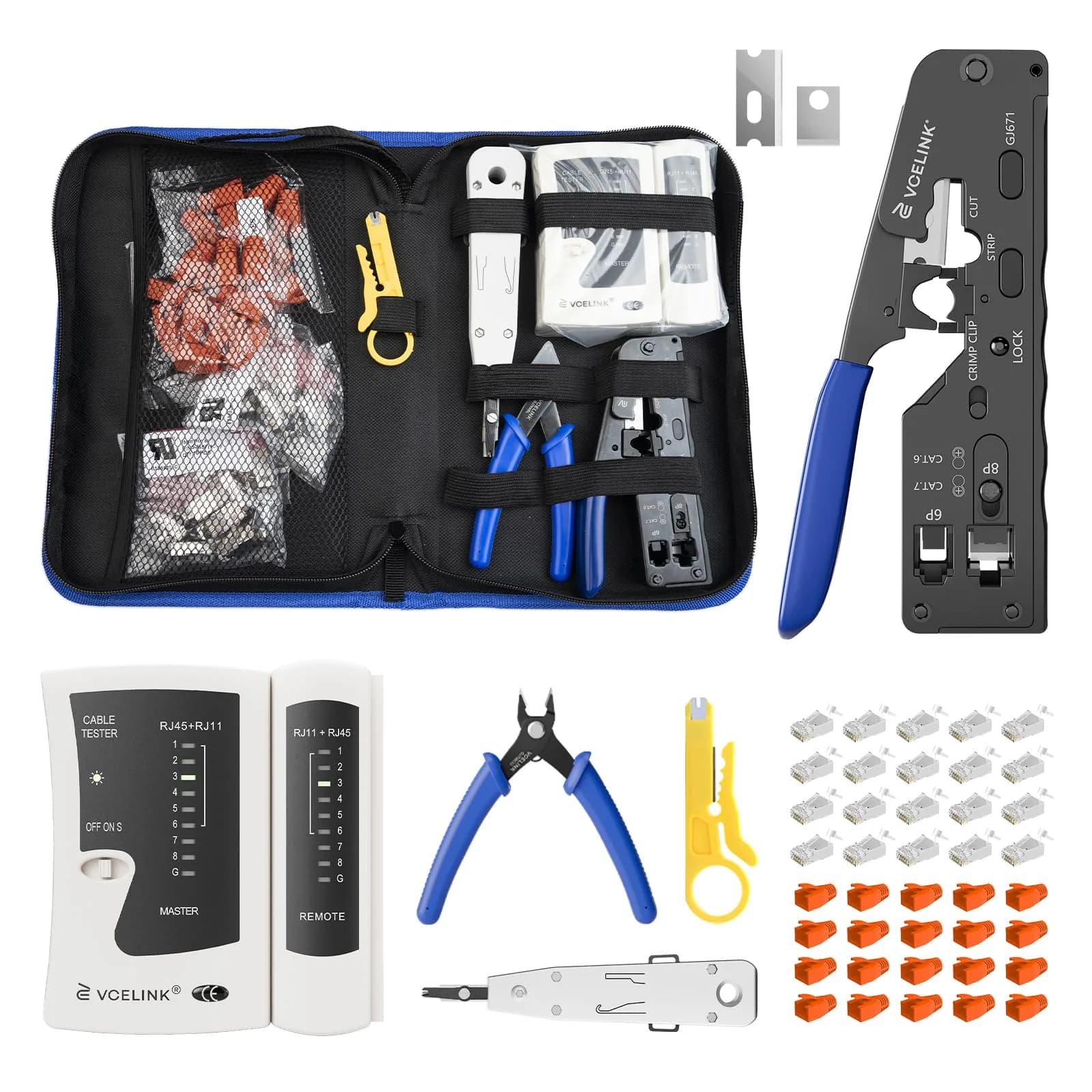

• PRACTICAL NETWORK TOOL KIT : The tool kit contains: 1 x RJ45 crimp tool, 20 x shielded pass through network connectors Cat7/Cat6a, 20 x connector boots, 1 x wire stripper, 1 x wire cutter, 1 x LAN tester, 1 x punch down impact tool, 1 x tool bag with zip

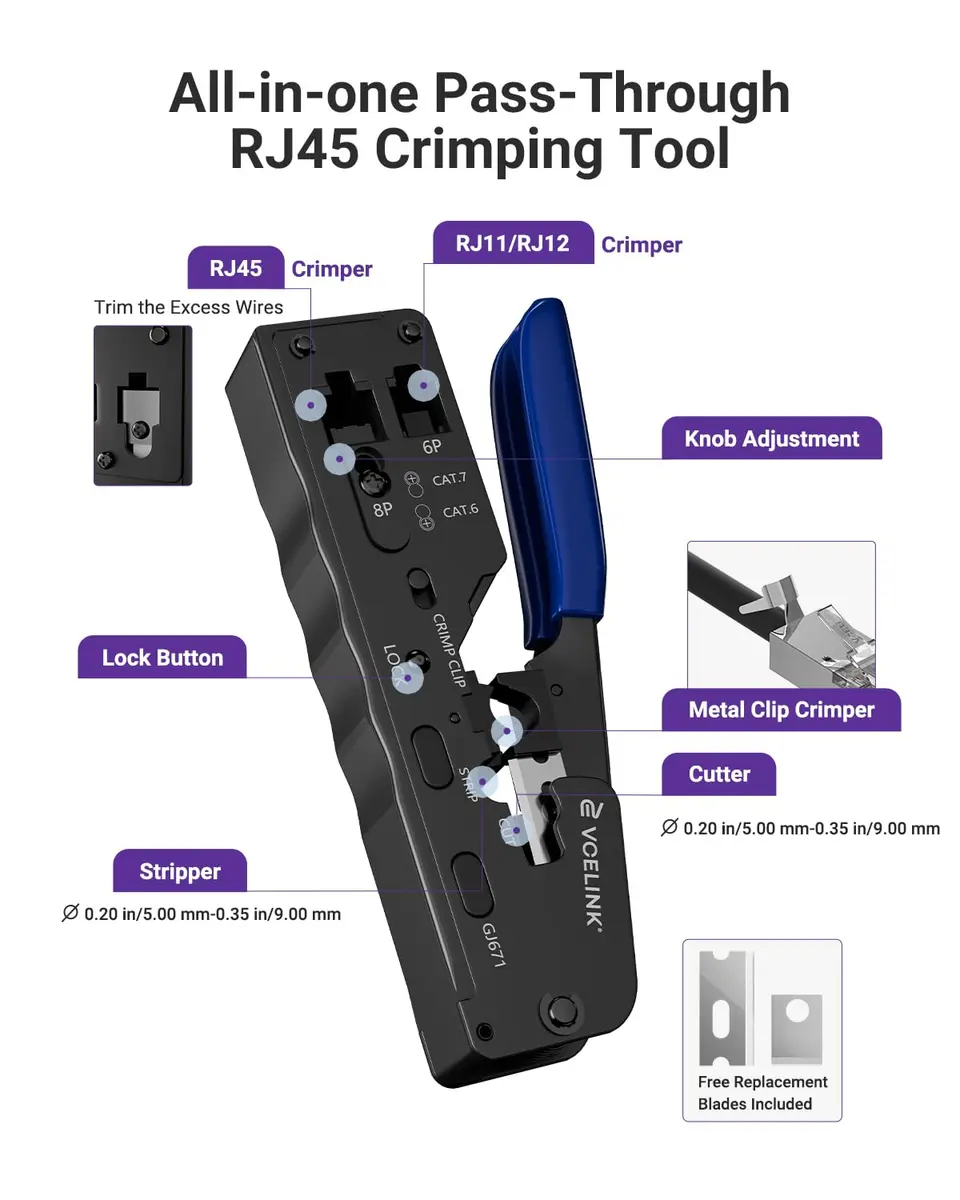

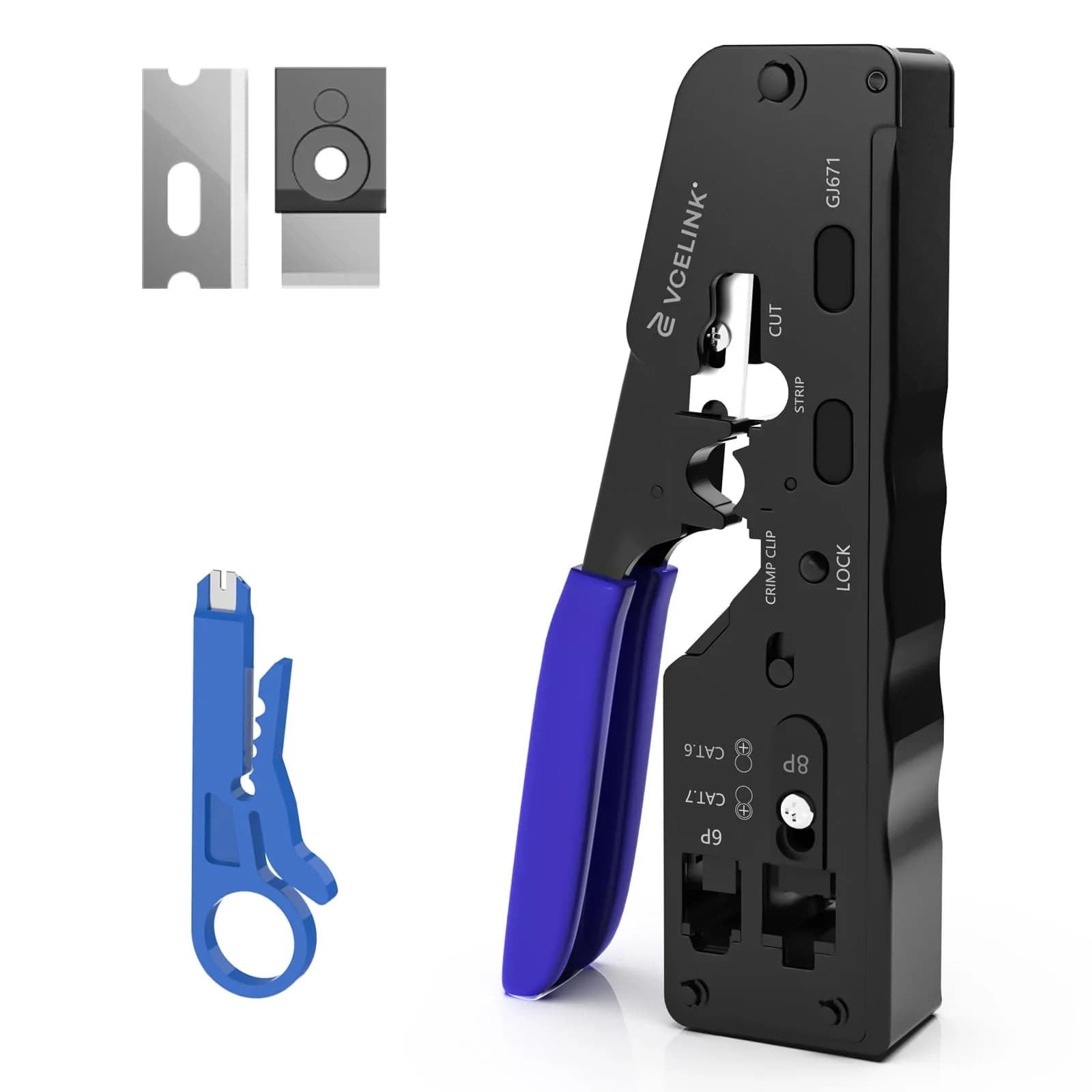

• ALL-IN-ONE PASS-THROUGH RJ45 CRIMPER : The integrated features make crimping, terminating, cutting, and stripping a breeze and meet most connectors' installation requirements. It is more than a one-trick pony

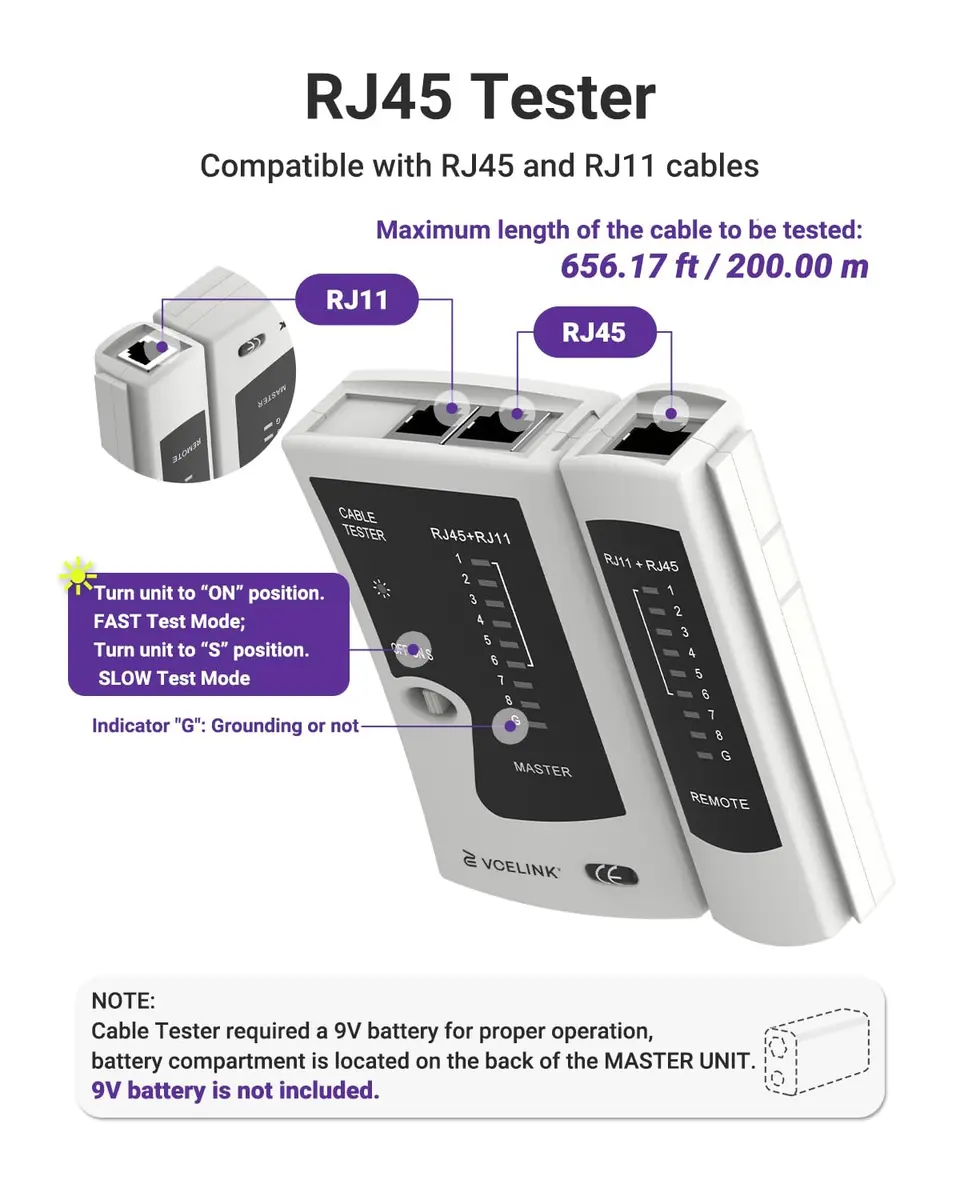

• NETWORK CABLE TESTER : We upgraded cable tester, which is not only more durability, but also the test range can reach up to 300M, the Network Cable Tester for cables with RJ45/RJ11/RJ12 conectors(9V battery not included)

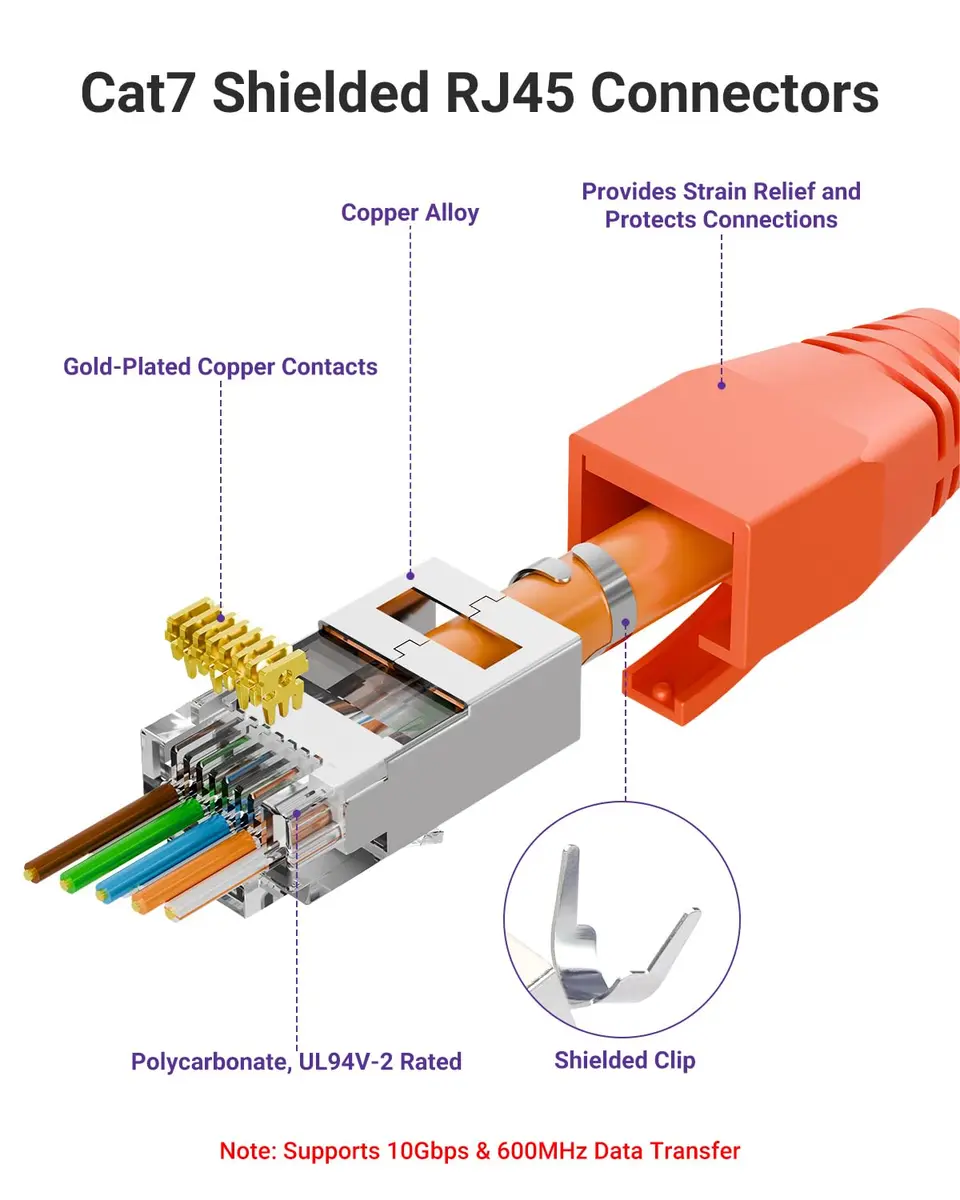

• UL PASS-THROUGH MODULAR PLUGS: Shielded design and Gold-plated contacts reduce interference, ensuring stable data transfer performance at up to 10Gbps. Ideal for high-performance networking in environments such as offices or data centers

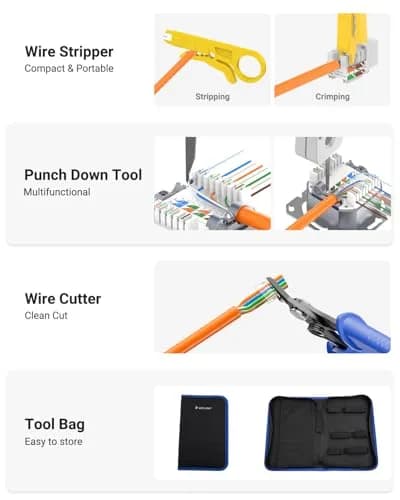

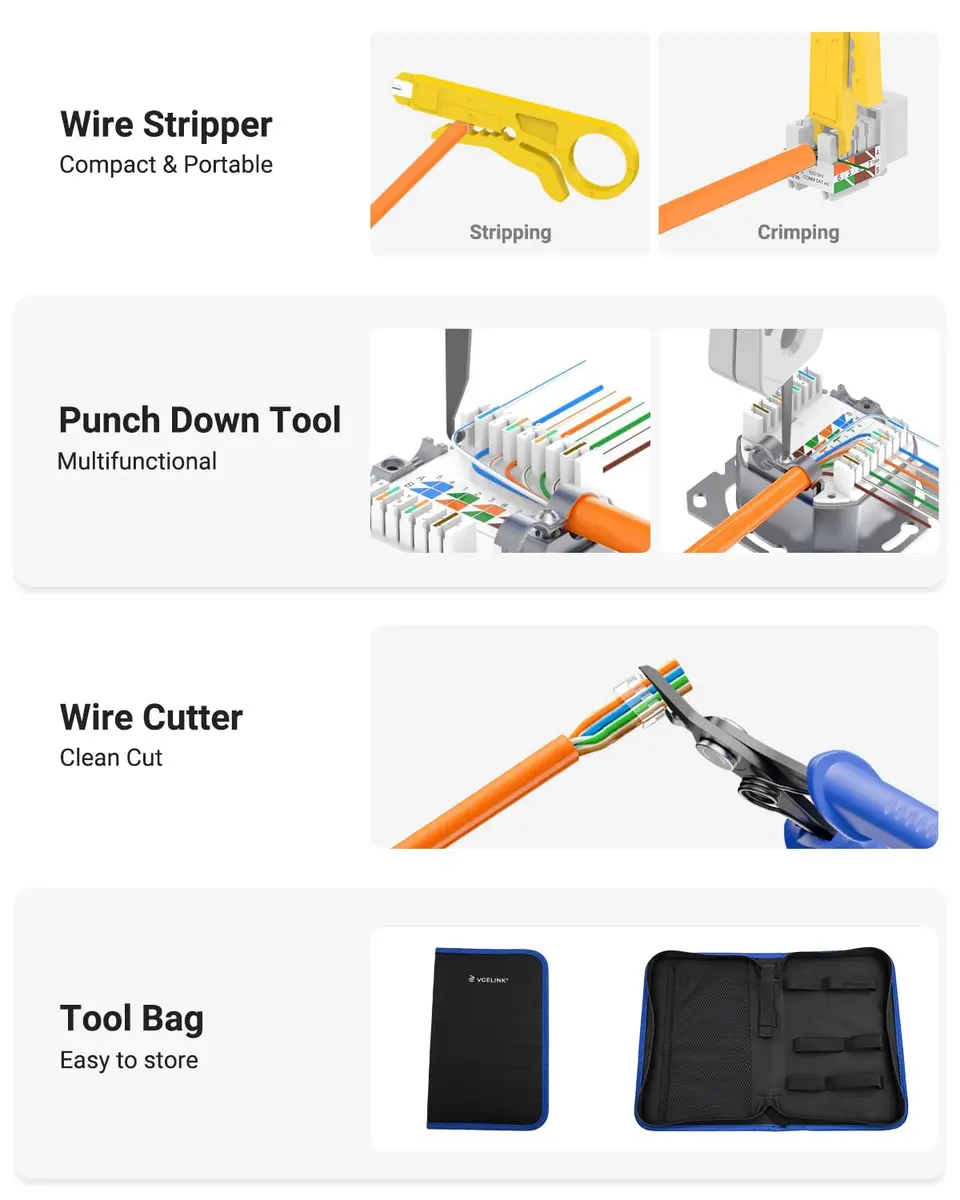

• PUNCHDOWN TOOL WITH REMOVABLE BLADE: Double cutter head design, cut the excess cables while punching down. Precise blades are interchangeable and reversible between 110 and 66 standards

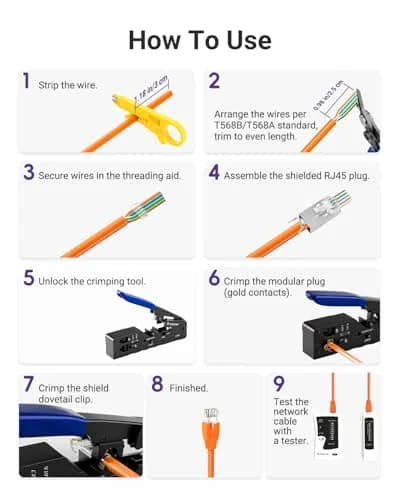

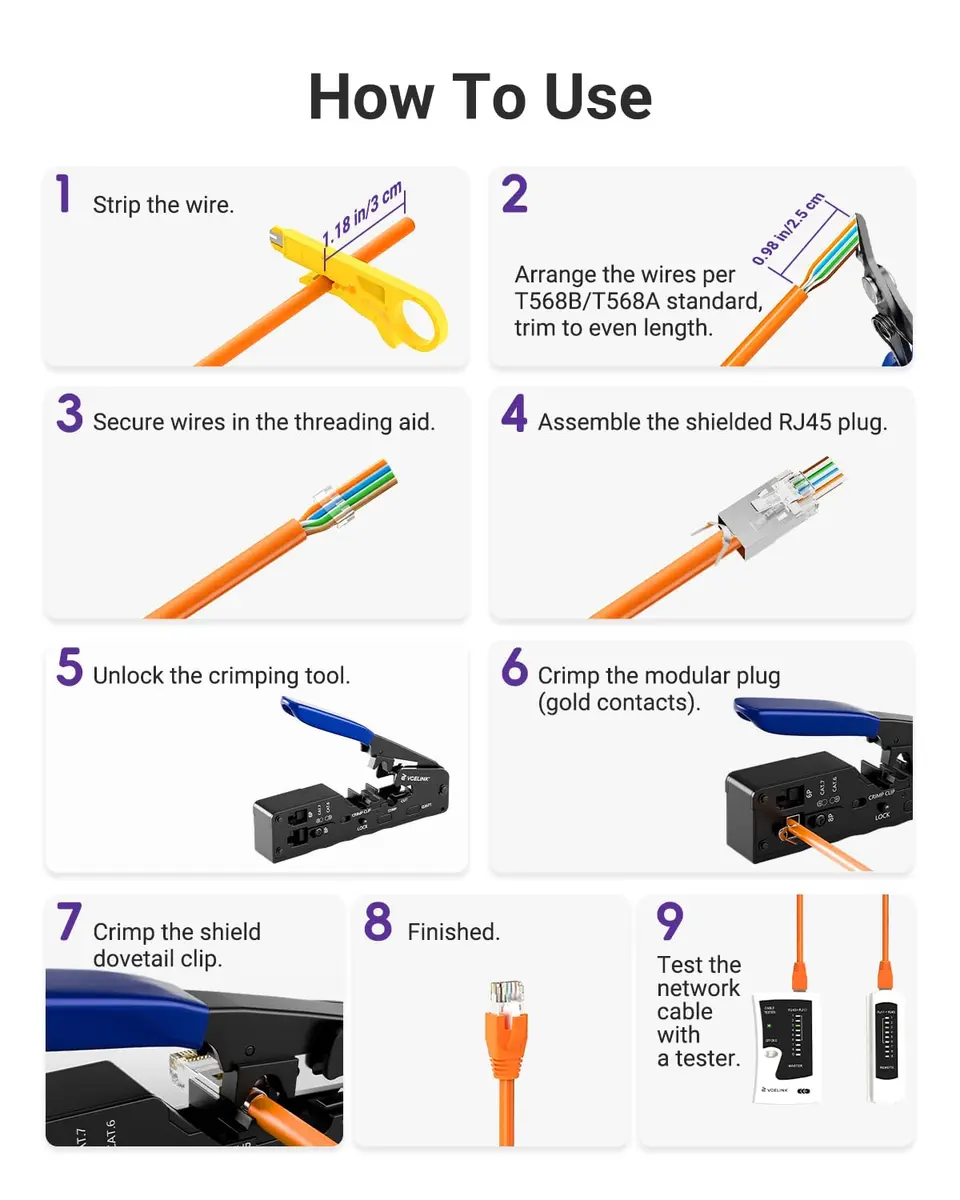

• Prepare the Network Cable — Using the included wire stripper, carefully remove about 1 inch of the outer jacket from the Ethernet cable. Untwist the pairs of wires and arrange them in the correct order according to the T568A or T568B standard. Trim the wires to ensure they are even and straight.
• Insert Wires into RJ45 Connector — Gently insert the arranged wires into the chosen RJ45 connector (Cat7/Cat6a shielded pass-through recommended for this kit). Ensure each wire is fully seated in its channel and extends through the front of the connector. Push the wires firmly into the connector.

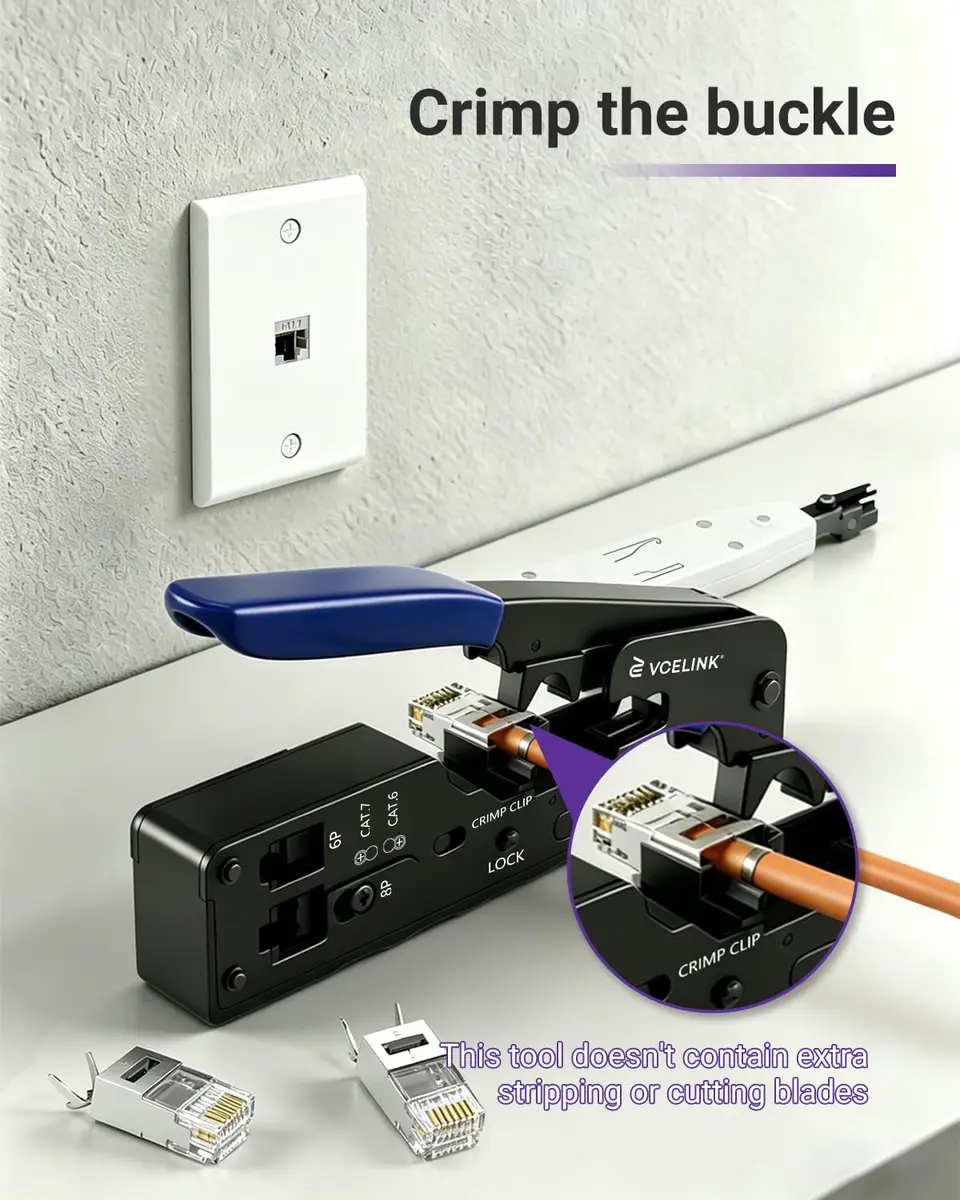

• Crimp the Connector — Place the prepared connector into the RJ45 crimping slot of the VCELINK tool. Squeeze the handles firmly and completely until the ratcheting mechanism releases. This action seats the wires and crimps the connector pins, ensuring a secure connection.
• Test the Cable — Connect both ends of the terminated cable to the included LAN tester. Power on the tester (requires a 9V battery, not included). Verify that all lights illuminate sequentially, indicating correct wiring and continuity for both RJ45 and RJ11/12 connections.
