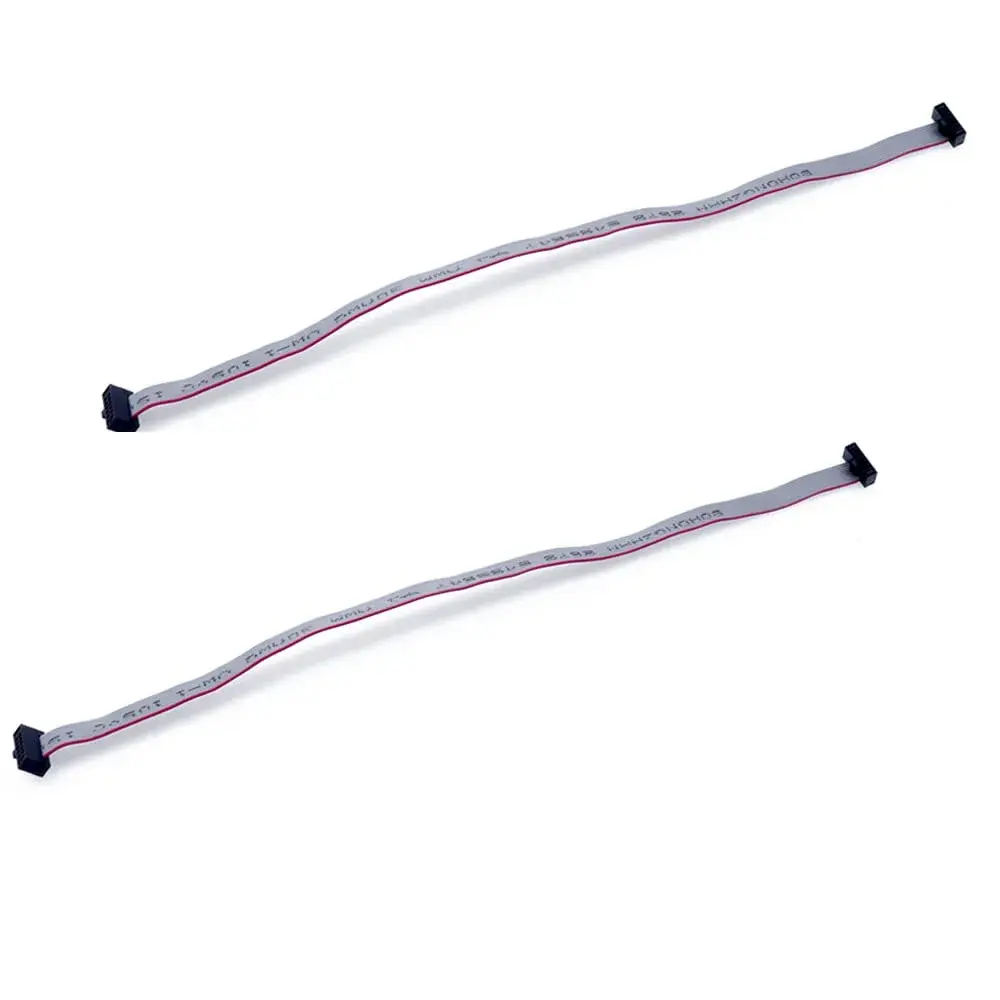

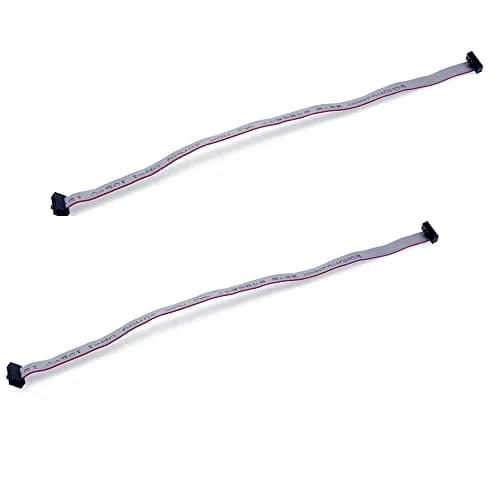

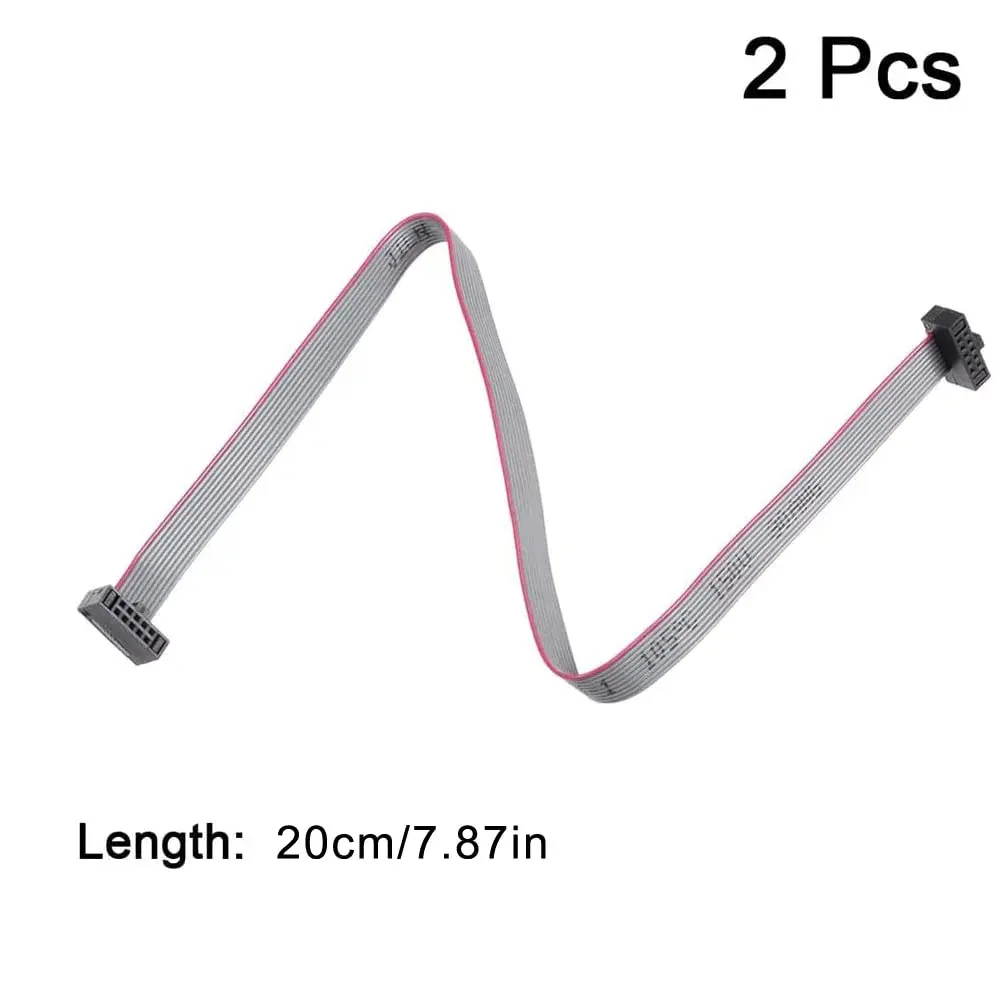

Treedix 1.27mm Pitch IDC Ribbon Cable 200mm (7.87 in) Female to Female, Pack of 2 | JTAG/ISP Connecting SWD Cable

• The information below is per-pack only

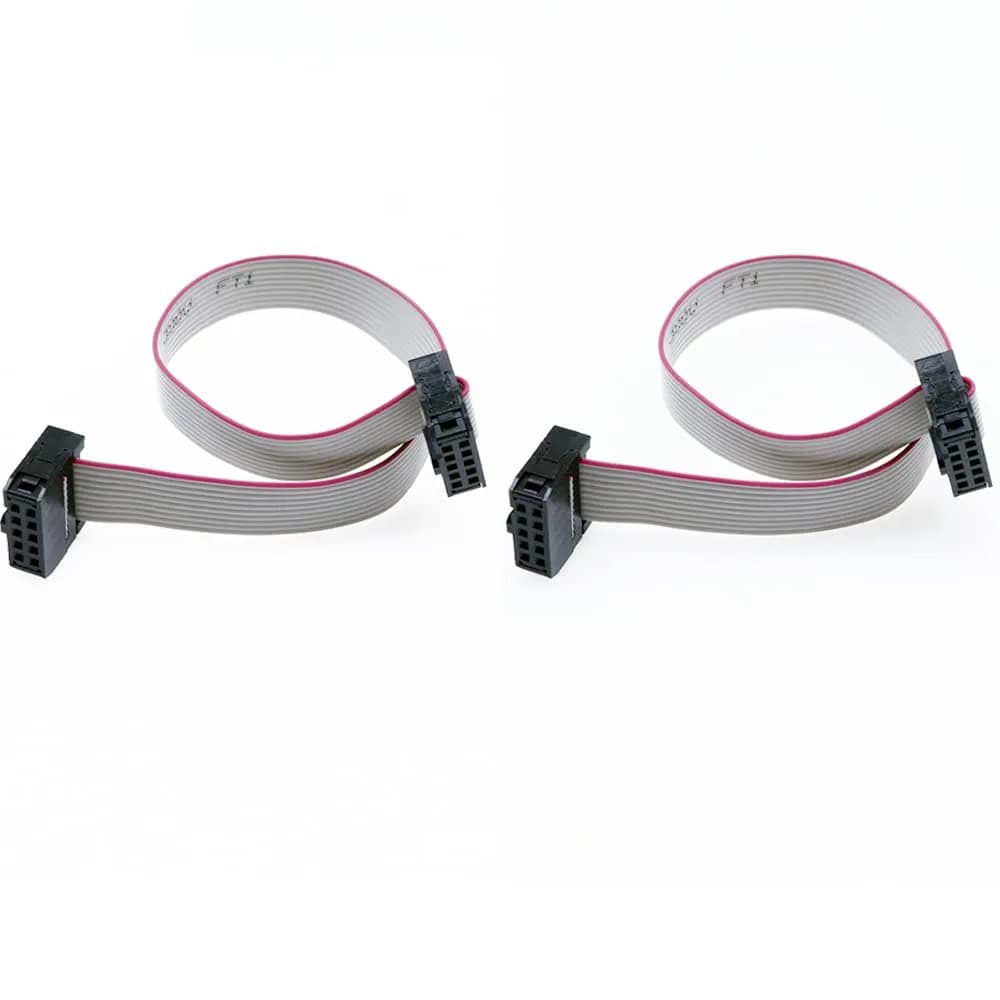

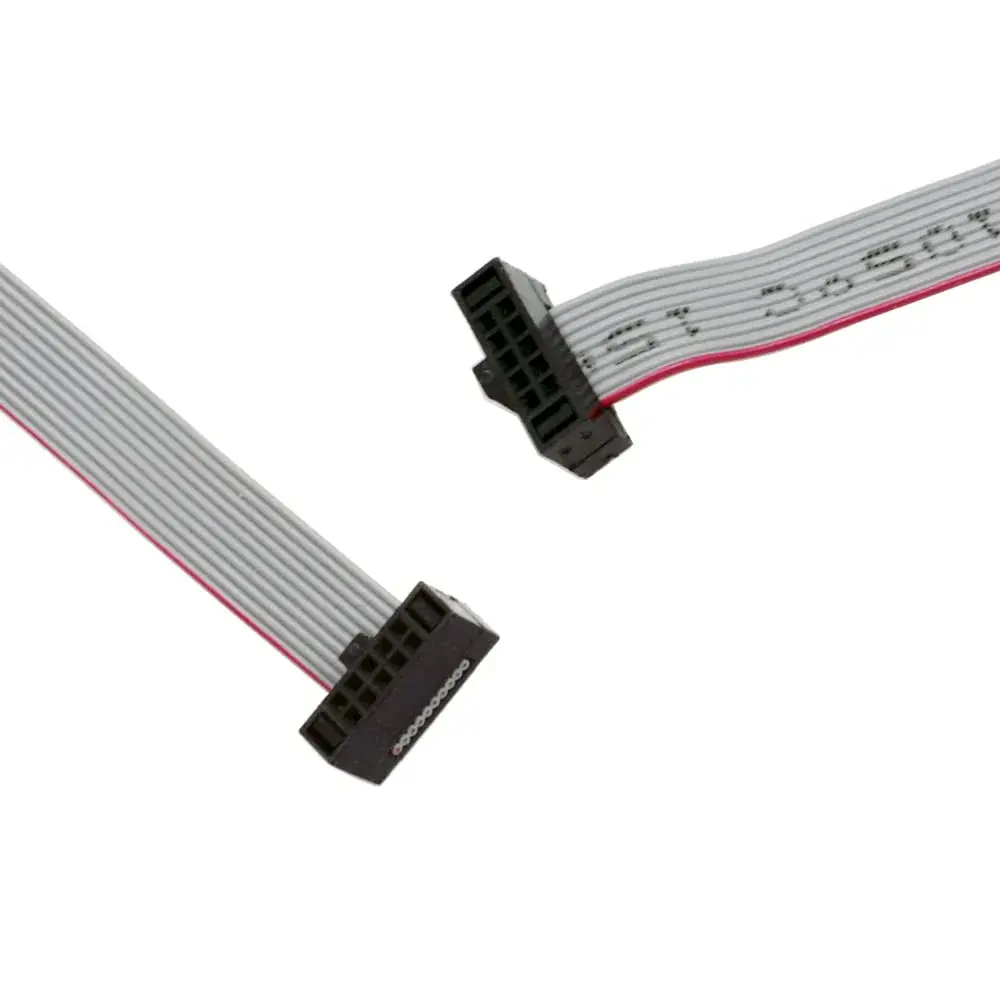

• This is a flat ribbon cable with 10-pin connector, which can be easily inserted directly into the PCB. The ribbon cable saves the space and time of circuit interconnection components.
• Cable length: 200mm/7.87in

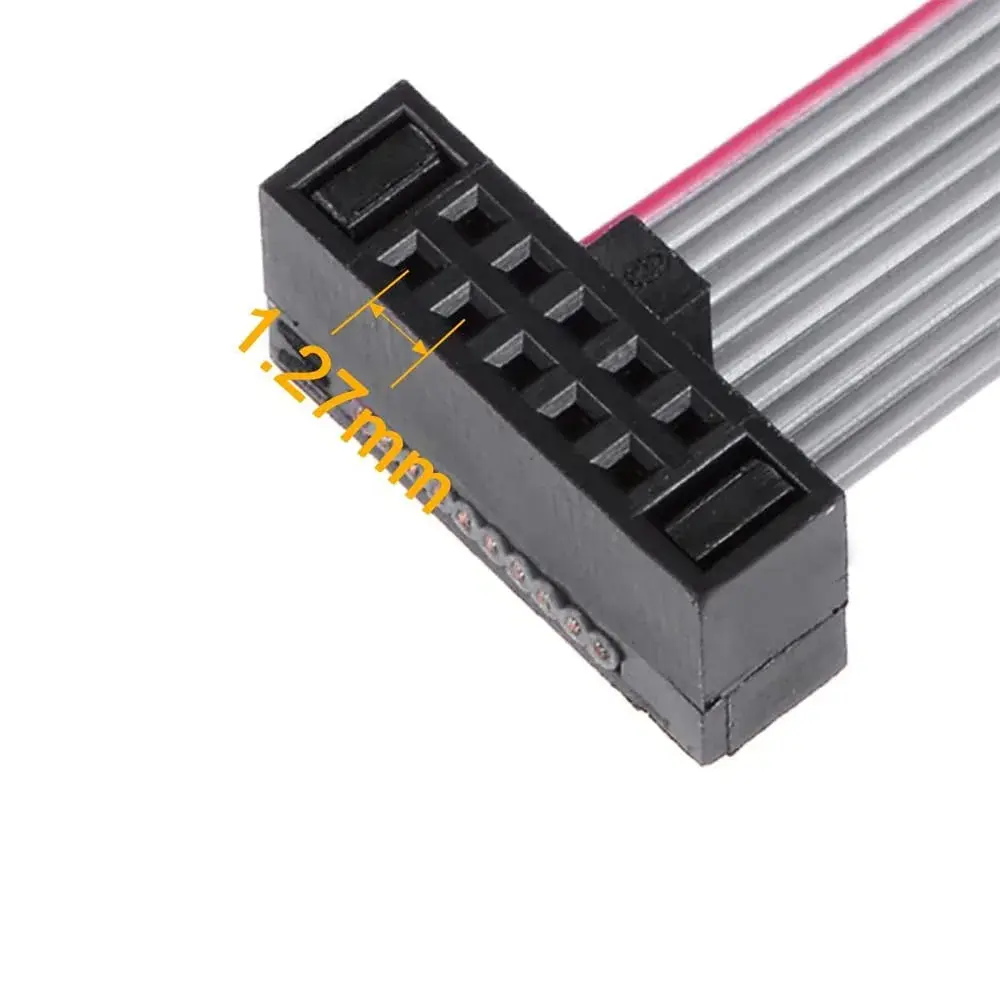

• Pitch: 1.27mm; Connector type: female connector
• The conductor ribbon cable is easy to separate to use standard wire connectors, jacks and pins for clean termination
• Applicable to most Atmel AVR JTAG debuggers, system programmers, Isp downloads, etc., and also suitable for internal wiring of office equipment, audio and video machines

• Identify Connection Points — Locate the 10-pin IDC female connectors on your PCB or target device, ensuring they match the 1.27mm pitch of the Treedix ribbon cable.
• Connect the Cable — Align the female connectors of the ribbon cable with the corresponding male headers on your PCB or device. Ensure a secure and proper seating for reliable electrical contact.
• Separate Conductors (If Needed) — If custom termination is required, carefully separate the individual wires from the ribbon cable. Use standard wire connectors, jacks, or pins for clean and secure connections to other components.
• Perform JTAG/ISP/SWD Connection — Use the connected cable to establish your JTAG, ISP, or SWD interface for debugging, programming, or system control, ensuring all connections are firm before powering on.
