What is the main advantage of a Schottky diode over a standard silicon rectifier diode?

A Schottky diode features a metal-semiconductor junction rather than a standard p-n junction, providing a significantly lower forward voltage drop (typically 0.2V to 0.4V compared to 0.7V) and ultrafast switching recovery times ideal for high-frequency switching and solar reverse-current prevention.

How do I choose between through-hole and surface-mount (SMD) Schottky diodes?

Through-hole variants like DO-41 or DO-201 are ideal for prototyping, breadboards, and manual soldering, whereas SMD versions like SMA, SMB, or TO-220 optimize board space, automated pick-and-place assembly, and dedicated thermal pad heat dissipation.

Is this Tnisesm 20SQ045 diode suitable for solar panel applications in India?

Yes, the Tnisesm 20SQ045 Schottky diode is well-suited for solar panel blocking in India. Its 20A current handling and 45V rating, combined with low forward voltage drop, ensure efficient reverse current prevention, crucial for protecting panels in India's varying environmental conditions.

What is the forward voltage drop for the Tnisesm 20SQ045 diode?

The Tnisesm 20SQ045 Schottky diode offers a low forward voltage drop, typically ranging from 0.2V to 0.4V. This characteristic contributes to its high efficiency and low power loss, making it ideal for sensitive electronic circuits and solar applications.

Can I use these diodes for general rectification purposes?

Yes, these Tnisesm 20SQ045 Schottky diodes are suitable for general rectification tasks. Their low forward voltage drop and high efficiency make them a good choice for power supplies and other circuits where minimizing power loss is important.

Are these diodes RoHS compliant and lead-free?

Yes, the Tnisesm 20SQ045 Schottky diodes are manufactured as lead-free and RoHS compliant electronic components, adhering to international environmental standards for safer usage.

How to buy an original Tnisesm 20SQ045 Schottky Diode in India?

Purchase the Tnisesm 20SQ045 Schottky Diode from crowcrowcrow.com, sourced directly from authorized US retailers and authorized brand partners. They are factory-sealed, imported per-order, with all customs duties and GST included, and delivered via ExpressBox tracked shipping.

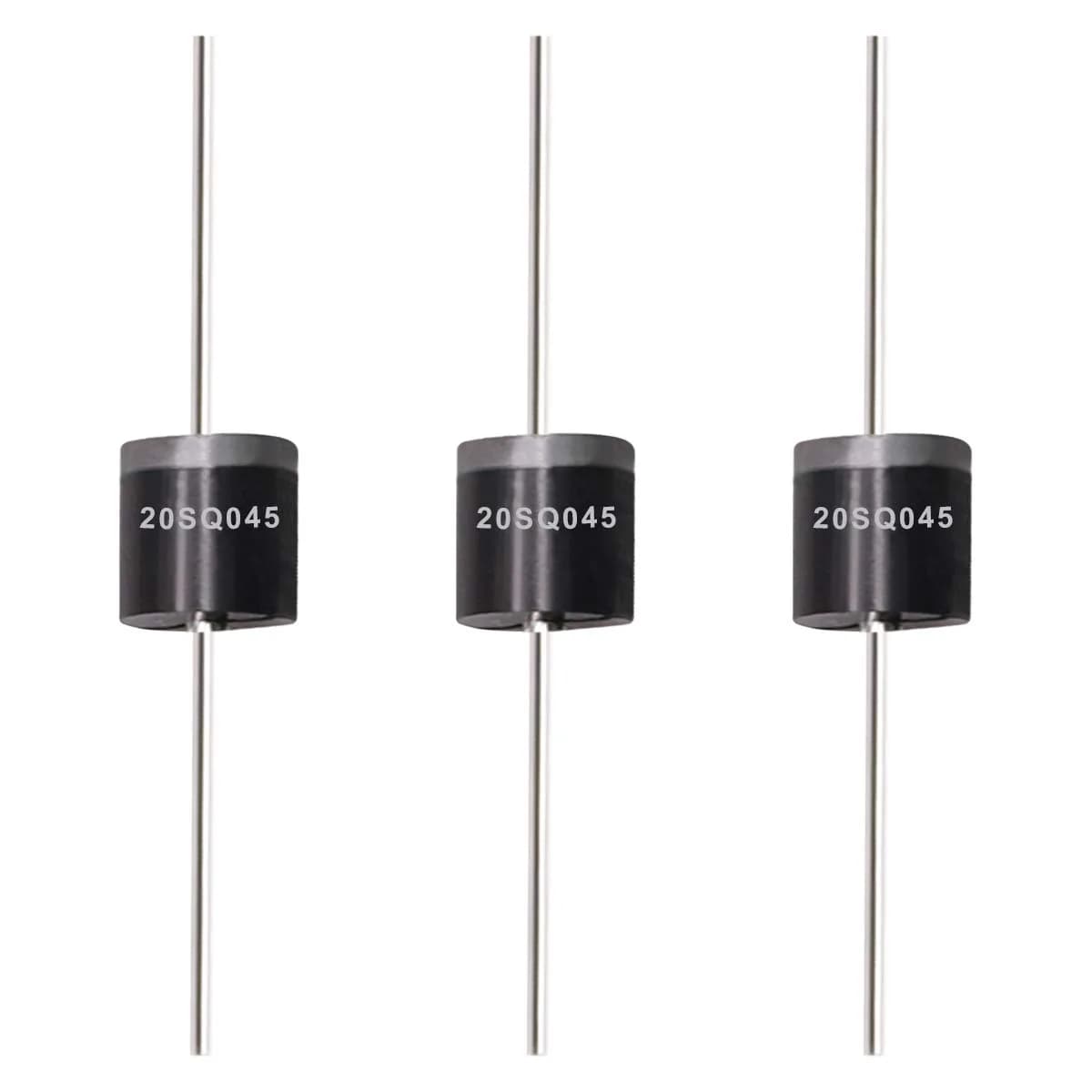

Tnisesm 20SQ045 Schottky Blocking Diode 20A 45V

Name: Tnisesm 20SQ045 Schottky Blocking Diode 20A 45V | Low Leakage & Forward Voltage Drop
Brand: Tnisesm
SKU: rsb1169
Price: 1062.00 INR
Availability: InStock

About this item

Tnisesm 20SQ045 Schottky diodes are engineered for efficient rectification with a low forward voltage drop and minimal power loss. These 20A, 45V diodes are essential for solar panel applications, product development, and electronic maintenance, ensuring reliable performance and high efficiency. Imported directly from authorized US retailers and authorized brand partners, they offer superior quality compared to local alternatives.

Featuring a low leakage current and fast switching characteristics, these diodes are RoHS compliant and lead-free. Their robust design makes them suitable for demanding environments, providing consistent stability and reliability in various electronic circuits. The axial package is convenient for prototyping and PCB assembly.

Each pack contains 20 diodes, offering excellent value for projects requiring multiple components. All customs duties and GST are pre-paid, and delivery is handled via ExpressBox for secure, tracked transit to your Indian pincode. Experience the difference of authentic, high-performance electronic components.

Key Features

Tnisesm 20SQ045 SCHOTTKY BARRIER RECTIFIER Diode
Part Number: 20SQ045; Forward rectified current:20A,Maximum recurrent peak reverse voltage:45V
Lead-Free / RoHS Compliant Electronics Component.
Low leakage and forward voltage drop;Low power loss, high efficiency.

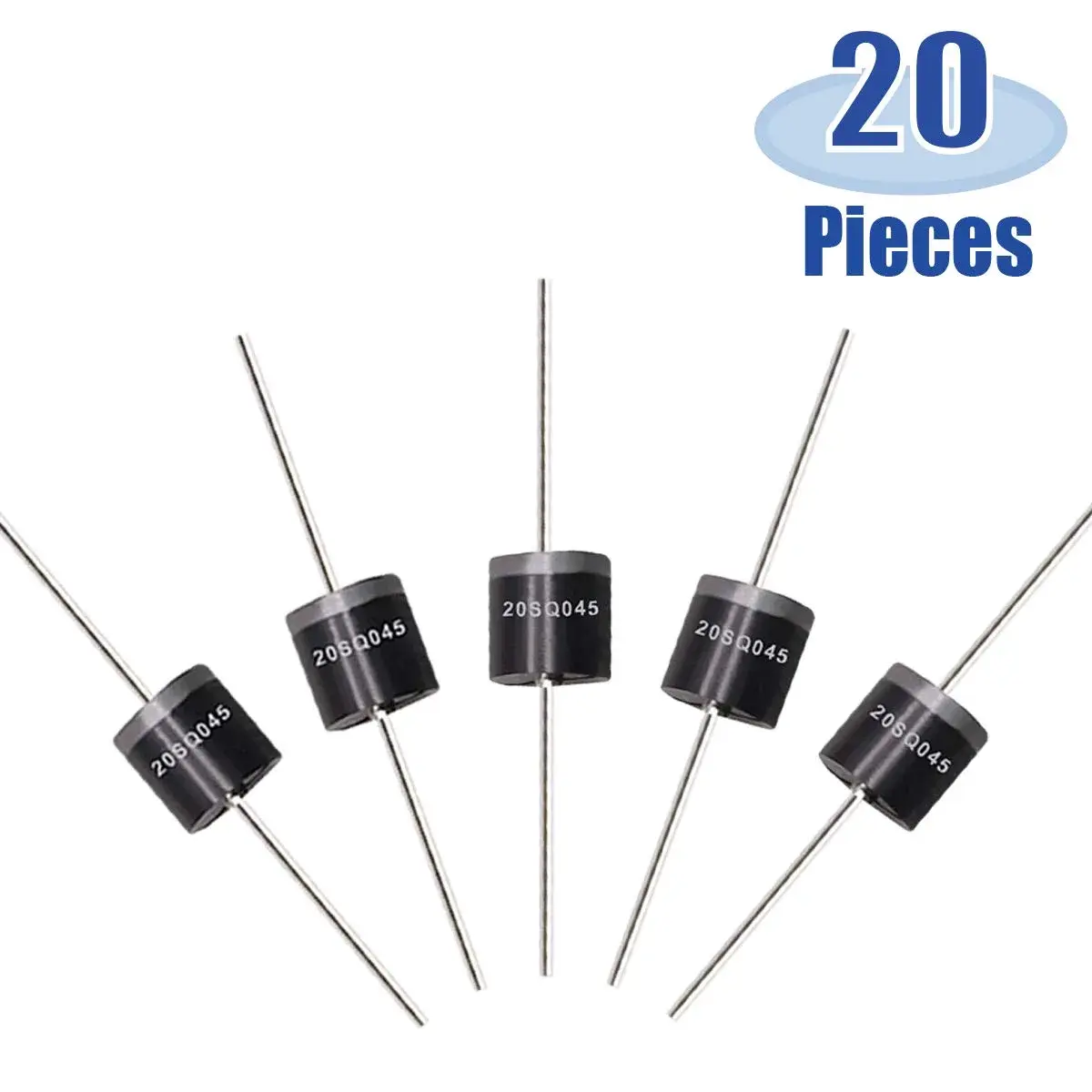

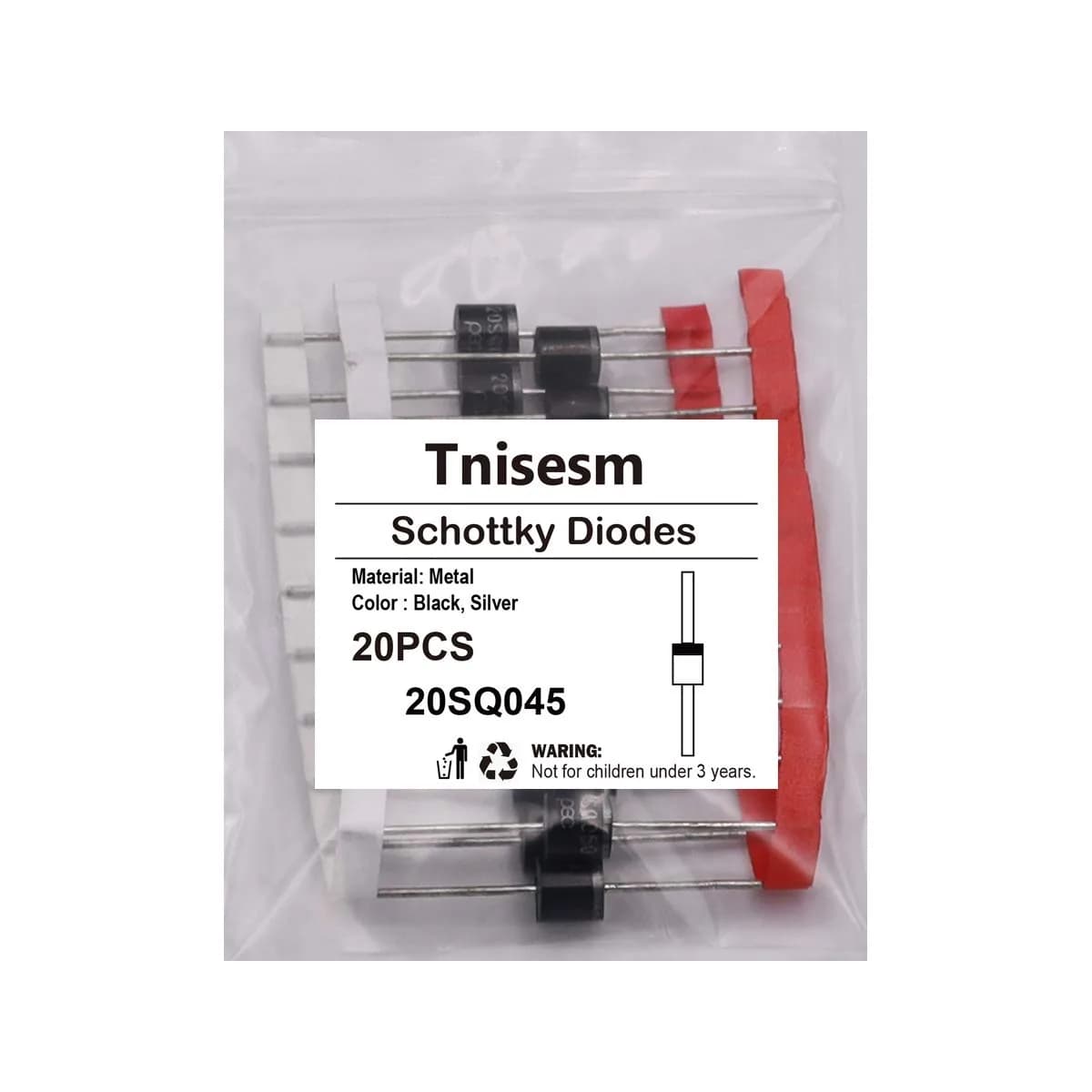

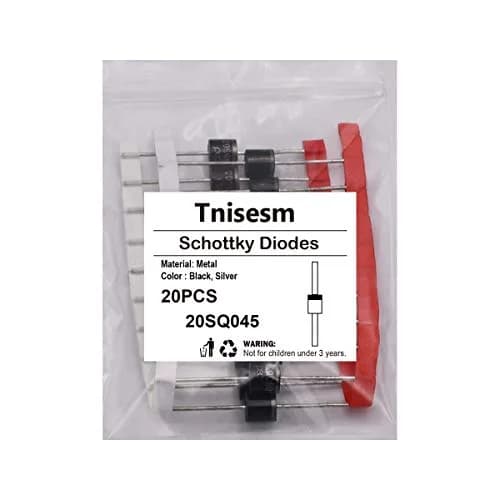

Package Include: 20 Pcs x 20SQ045 Rectifier Diode

Why choose this product

Superior Performance for Solar & Electronics

Tnisesm 20SQ045 Schottky diodes are designed for optimal performance in solar panel blocking and general rectification. Their low forward voltage drop and high current handling capabilities translate to less wasted energy and more efficient power conversion. Unlike generic local diodes, these are sourced from authorized US channels, ensuring consistent quality and reliability tested for stability. This means fewer component failures and a more dependable end product for your projects, whether for development, maintenance, or production.

Ideal for Indian Projects & Who Should Skip

These diodes are perfect for hobbyists, engineers, and technicians in India working on solar power systems, custom power supplies, or electronic repair. Their robust 20A/45V rating and low voltage drop make them versatile. However, if your application requires reverse voltage ratings significantly above 45V or continuous forward currents exceeding 20A, you will need a higher-rated Schottky diode. Individuals needing diodes for extremely high-frequency switching applications might also consider specialized ultra-fast recovery diodes.

How to use

Locate the band on the diode body; this indicates the cathode. Ensure the diode is oriented correctly in your circuit to allow current flow in the desired direction (anode to cathode). — Identify Correct Polarity
For through-hole mounting, bend the leads to fit your breadboard or PCB holes. Ensure leads are clean and free of oxidation for optimal conductivity and soldering. — Prepare for Circuit Integration
Carefully solder the diode into your circuit or insert it into a breadboard, respecting the polarity. Avoid overheating the diode during soldering to maintain its integrity. — Solder or Insert into Circuit
After integration, test your circuit's functionality. Verify that the diode is performing its intended blocking or rectification function under expected load conditions. — Test Circuit Performance

Example scenarios

Typical situations where Tnisesm 20SQ045 Schottky Blocking Diode 20A 45V | Low Leakage & Forward Voltage Drop helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Setting up a small solar charging station for off-grid power in a rural Indian village.

How this product helps

Using these 20A Schottky diodes as blocking diodes in the solar array prevents battery discharge at night, ensuring consistent power availability. The 20-piece pack is cost-effective for multiple panel connections.

Scenario 2

Illustrative example

Where it helps

Developing a custom power supply for a student electronics project in a Bangalore college.

How this product helps

The low forward voltage drop and high efficiency of these diodes minimize heat generation, crucial for compact project enclosures. Their reliable performance ensures stable output for sensitive circuits.

Specifications

Composition

Diode Type	Schottky Barrier Rectifier
Lead-Free	Yes
RoHS Compliant	Yes

Usage

Forward Rectified Current	20A
Maximum Recurrent Peak Reverse Voltage	45V
Forward Voltage Drop	Low
Leakage Current	Low
Power Loss	Low
Efficiency	High
Application	Solar Panel Blocking, Product Development, Maintenance, Production
Package Quantity	20 Pcs
Cost per use	₹53.10 per piece

How we compare

Feature	Tnisesm 20SQ045 Schottky	Others
Forward Voltage Drop	Low (0.2V-0.4V) for high efficiency	Typically higher (0.7V+) for standard silicon rectifiers; varies by brand
Reverse Current Prevention	Excellent, crucial for solar panel protection	Varies significantly; lower-rated diodes may offer less protection
Efficiency & Power Loss	High efficiency due to low voltage drop	Lower efficiency, higher power loss common in standard rectifiers
Cost per piece (20-pack)	₹53.10 per piece	Local 20A/45V Schottky diodes can range from ₹30-₹70 per piece, depending on brand and supplier
Reliability & Testing	Tested for stability, consistency, and reliability	Quality and testing standards vary widely among local suppliers

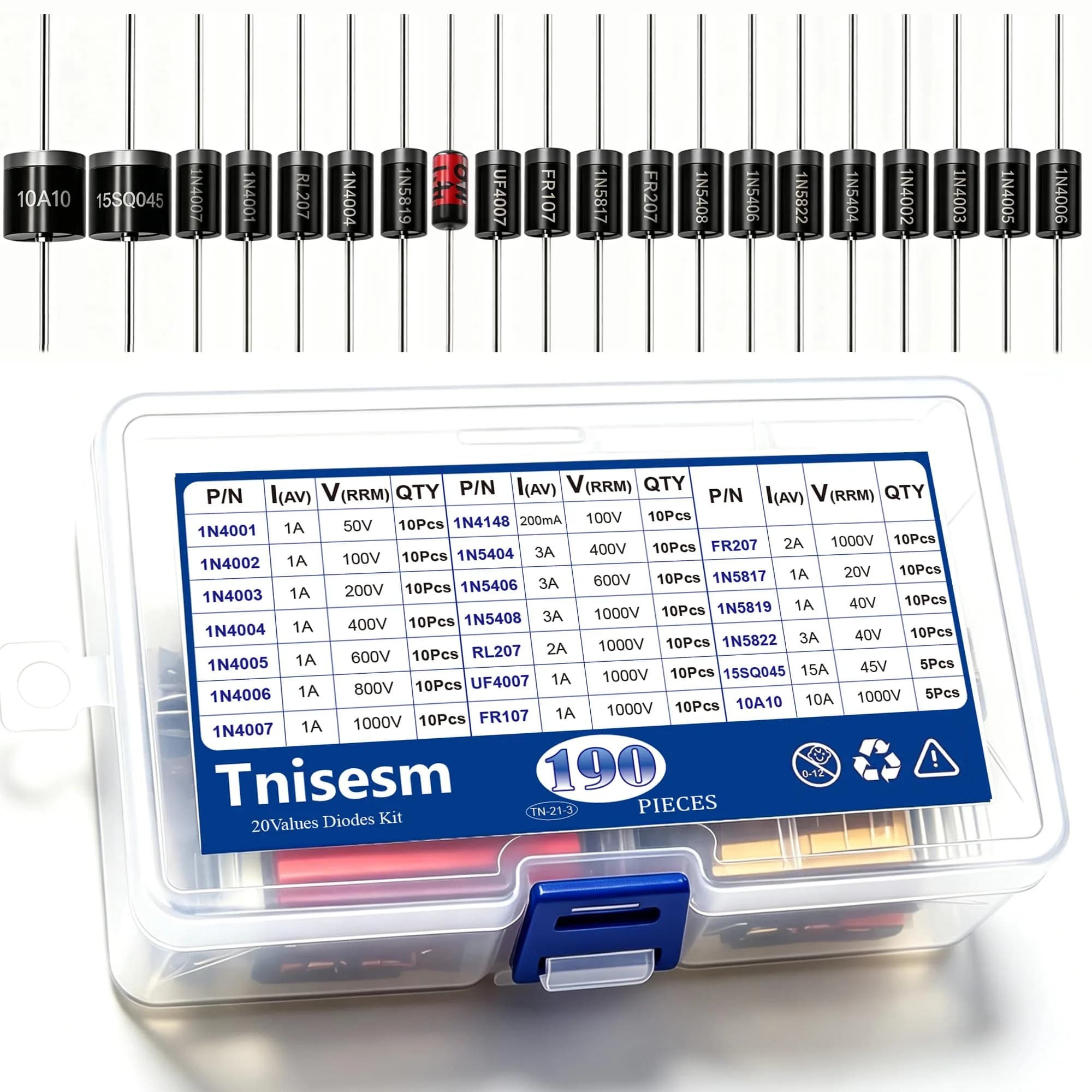

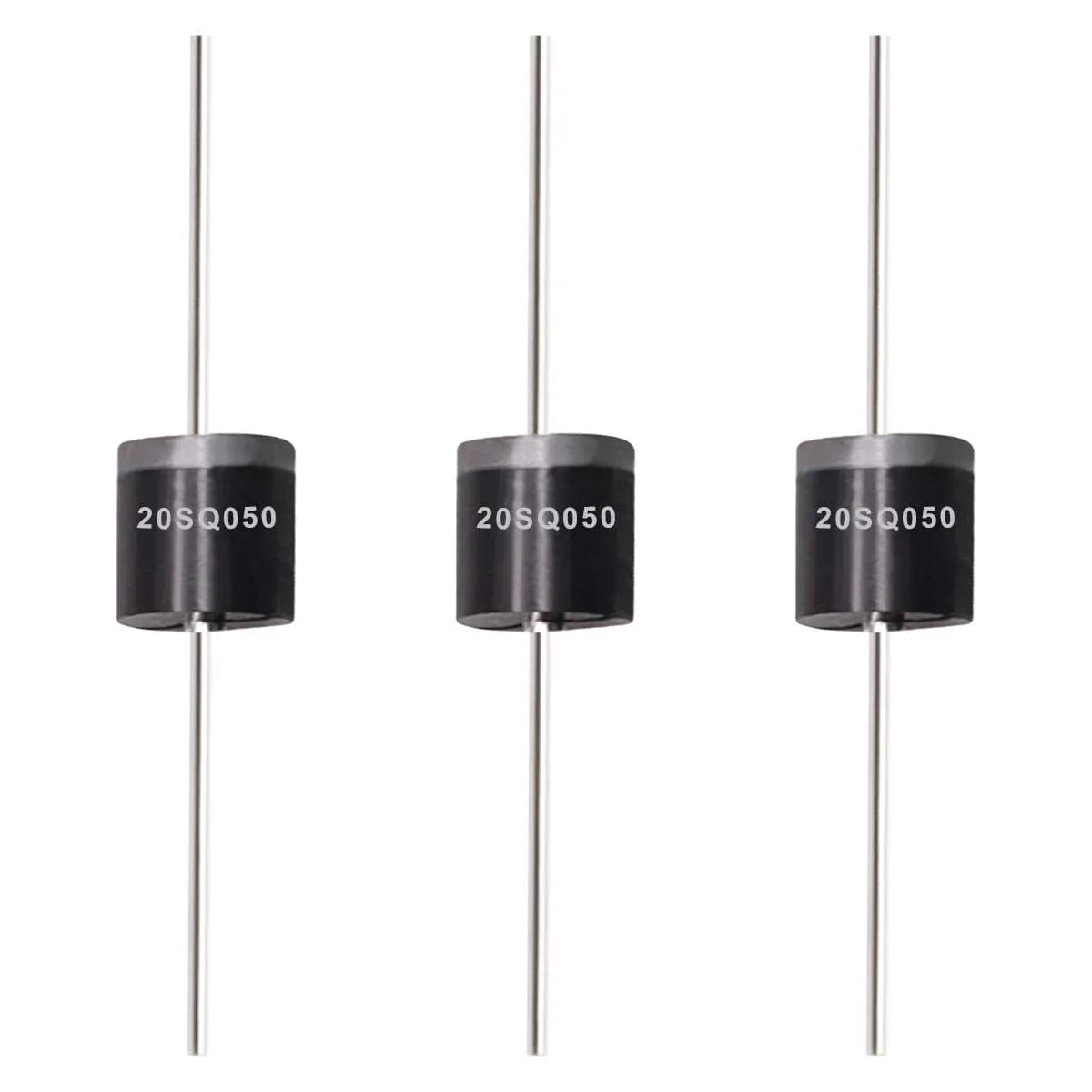

Attributes	Current Tnisesm 20SQ045 Schottky Blocking Diode 20A 45V \| Low Leakage & Forward Voltage DropBuy Now	Tnisesm 20 Values Diodes Kit 190 Pcs \| Rectifier, Schottky, Fast Recovery, Switching Diodes AssortmentBuy Now	Tnisesm 20SQ050 Schottky Blocking Diode 20A 50V \| 20 Pcs Axial Kit for Solar PanelBuy Now	uxcell MR126-2RS Deep Groove Ball Bearings 6mm x 12mm x 4mm \| Double Sealed Chrome Steel (10 Pcs)Buy Now	HARFINGTON M2 PVC Flat Washers 2mm ID x 5mm OD x 0.3mm Thick \| 300-Piece Pack for Sealing & Gasket ApplicationsBuy Now	Tnisesm 10SQ050 Schottky Blocking Diode 50V 40 Pcs \| Rectifier Diode Kit for Solar PanelBuy Now	FURWEY 10ML Sterile Vials with Injection Ports, 20 Pack \| Borosilicate Glass for High/Low Temp ResistanceBuy Now
