How do I connect the Taiss incremental rotary encoder for oscilloscope use?

For direct oscilloscope connection of the AB phase outputs, you will need to add two external pull-up resistors (not included). The encoder's NPN open collector output requires this for proper signal transmission to the oscilloscope. Consult your project's schematic for appropriate resistor values.

What is the difference between this encoder's output and a digital encoder?

This is an incremental encoder with AB phase quadrature output, providing directional and speed information. A digital encoder might refer to a different type of sensor or a fully digital interface. This model's NPN open collector output requires careful connection, potentially with pull-up resistors, to interface with microcontrollers or oscilloscopes.

Can I use this encoder with Arduino for robotics projects?

Yes, this Taiss incremental rotary encoder is suitable for Arduino projects. Connect the A and B phase outputs to digital input pins and the power/ground to your Arduino's power supply (5-24V range). You may need to implement debouncing in your code for precise readings.

What is the maximum speed this encoder can handle?

The Taiss incremental rotary encoder has a maximum mechanical speed of 6300 revolutions per minute (R/min). Ensure your application's rotational speed does not exceed this limit to maintain accurate readings and prevent damage to the encoder.

How to choose the right voltage for this encoder?

This encoder supports a wide DC voltage range from 5V to 24V. Select a voltage within this range that matches your project's power supply. Ensure the voltage is stable and correctly connected to the red (Power +) and black (V0) wires to avoid damaging the unit.

Is this encoder suitable for measuring acceleration?

Yes, by analyzing the changes in rotational speed over time derived from the encoder's pulses, you can calculate and measure acceleration. The 600P/R resolution provides sufficient detail for many acceleration measurement applications in control systems.

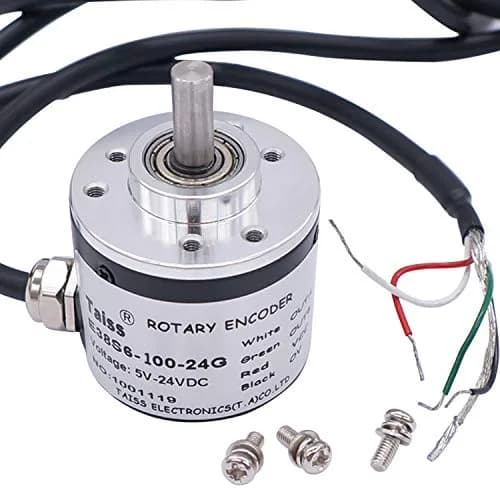

Taiss 100P/R Rotary Encoder | AB Phase, 5-24V, 6mm Shaft | Electronic Component for Arduino & Automation

Name: Taiss AB 2 Phase Incremental Rotary Encoder 100P/R DC 5-24V 6mm Shaft | Electronic Component for Control Systems
Brand: Taiss
SKU: meq5181
Price: 10951.00 INR
Availability: OutOfStock

About this item

Taiss AB 2-phase incremental rotary encoder (100P/R, 6mm shaft) offers precise control for speed, angle, and length. Operates on DC 5-24V, ideal for intelligent control and robotics. Imported from USA, duties included, arrives in 14-16 days.

About the range

The Taiss incremental rotary encoder provides accurate AB 2-phase quadrature output with 600 pulses per revolution. Its wide DC 5-24V power supply makes it versatile for various control systems, including Arduino projects and industrial automation. Measure rotational speed, angle, and acceleration with precision.

Featuring an NPN open collector output, this encoder is designed for integration into intelligent control systems. The 6mm shaft and compact size (38 x 35.5mm) allow for easy mounting. Note that the AB phase outputs require pull-up resistors for direct oscilloscope connection, which are not included.

Imported directly from authorized US retailers, this encoder offers reliable performance for hobbyists and professionals alike. All customs duties and GST are included in the price, with ExpressBox tracked delivery to your Indian pincode.

Key Features

This incremental rotary encoders Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .
Product Name: incremental rotary encoders 600P/R , AB two phases.AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type .
Encoder size ： Encoder size: 38 x 35.5mm/1.49" x 1.39" ；Shaft: 6 x 15mm/0.23" x 0.59"；Axis stopper platform: High 5mm, 20mm；Power source: DC 5-24V；Maximum mechanical speed: 6300 R / min.
Connection: white = A phase, Green = B phase, red = power +, black = V0 ； Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.
Package content：1 x Incremental Rotary Encoder ；Net Weight : 130g;

Why choose this product

Precision Engineering for Control Systems

This Taiss encoder is engineered for accuracy, offering 600 pulses per revolution for detailed rotational feedback. Its wide 5-24V power compatibility ensures seamless integration into diverse electronic projects, from Arduino robots to industrial automation. Unlike generic components, it's sourced from authorized US channels, guaranteeing quality and performance for critical applications where precision is paramount.

Ideal for DIY & Industrial Automation

Perfect for hobbyists building robots or custom control panels, and for professionals needing reliable speed and angle feedback. Skip if you require a built-in pull-up resistor for direct oscilloscope connection, as this model necessitates external resistors for that specific setup. For simpler Arduino integrations, it works directly with compatible microcontrollers.

How to use

Identify Connections — Locate the wires: Red for Power (+), Black for V0 (Ground), White for A phase, and Green for B phase. Ensure your power supply is within the DC 5-24V range.
Connect Power and Ground — Connect the Red wire to your positive DC power source (5-24V) and the Black wire to the ground (V0) of your system. Double-check polarity to prevent damage.
Connect A and B Phase Outputs — Connect the White wire (A phase) and Green wire (B phase) to your microcontroller's digital input pins. For oscilloscope use, connect these phases through external pull-up resistors to your power supply.
Integrate and Test — Program your microcontroller to read the pulse signals from the A and B phases to determine rotation speed and direction. Test the encoder's functionality by rotating the shaft and observing the output.

Example scenarios

Typical situations where Taiss Incremental Rotary Encoder 600P/R DC 5-24V | Optical AB 2-Phase Quadrature Encoder with 6mm Shaft helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building a custom CNC machine for woodworking in a small workshop in Delhi.

How this product helps

This encoder's 600P/R resolution and wide voltage compatibility allow precise control of axis movement and spindle speed, crucial for accurate cuts. The NPN output integrates easily with common microcontrollers for custom control interfaces.

Scenario 2

Illustrative example

Where it helps

Developing a robotics project for a college competition in Bangalore.

How this product helps

The AB phase quadrature output enables accurate directional and speed feedback for robot navigation and motor control. Its compact size and 5-24V power range fit well within typical robot power budgets and chassis constraints.

Technical specifications

Setup & usage

Application	Measure rotational speed, angle, acceleration, length measurement; intelligent control, robotics, automation.
Voltage Requirement	DC 5-24V
Direct Oscilloscope Connection	Requires external pull-up resistors (not included) for AB phase output.
Warranty	1 year quality assurance from manufacturer.

How we compare

Feature	Taiss Incremental Rotary	Others
Resolution	600 Pulses per Revolution (P/R)	Varies by brand; common Indian alternatives offer 100-1000 P/R at ₹300-₹1500.
Output Type	AB 2-Phase Quadrature, NPN Open Collector	Varies; some local encoders may offer push-pull or different output types.
Power Supply	Wide DC 5-24V	Typically 5V DC, some may offer wider ranges.
Shaft Size	6mm Diameter	Commonly 6mm or 8mm shafts available.
Cost per Unit (Estimated)	₹10,951 per unit	₹300 - ₹1500 per unit, depending on brand and specifications.

Attributes	Current Taiss Incremental Rotary Encoder 600P/R DC 5-24V \| Optical AB 2-Phase Quadrature Encoder with 6mm ShaftBuy Now	Quartet Clear Round Rare Earth Magnets 1/2" Diameter, 6 Pack \| Strong Hold for Glass WhiteboardsBuy Now	uxcell MR126-2RS Deep Groove Ball Bearings 6mm x 12mm x 4mm \| Double Sealed Chrome Steel (10 Pcs)Buy Now	ALKOO Sky Blue Stethoscope Carrying Case with Internal Mesh Pockets & Elastic Slots \| Professional Healthcare OrganizerBuy Now	SmartSign "Notice - This Area Is Under 24 Hour Video Surveillance" Sign \| 17.8 cm x 25.4 cm (7" x 10") Aluminum \| Durable & LaminatedBuy Now	HARFINGTON M2 PVC Flat Washers 2mm ID x 5mm OD x 0.3mm Thick \| 300-Piece Pack for Sealing & Gasket ApplicationsBuy Now	Acuteye Synthetic Filter Paper Stickers 20mm Diameter 0.25 Micron 64pcs \| For Mushroom Cultivation & Lab FiltrationBuy Now
Spec
Price

Taiss AB 2 Phase Incremental Rotary Encoder 100P/R DC 5-24V 6mm Shaft | Electronic Component for Control Systems

Product details

Frequently bought together

Crowcrowcrow: The Only Safe Lane for US-Market Exclusives

Tested and Trusted · Always Original & 100% Imported

About this item

Key Features

Why choose this product

How to use

Example scenarios

Technical specifications

Setup & usage

How we compare

FAQ, See What Others Asked

Your Order Journey: From Purchase to Doorstep

Customer Reviews

Product Comparison

SKU	meq5181
Selected option	100P/R
Brand	Taiss
Product Name	Incremental Rotary Encoder
Type	Optical AB 2-Phase Quadrature
Pulses per Revolution (P/R)	600
Output Type	NPN Open Collector
Power Source	DC 5-24V
Shaft Diameter	6mm (0.23")
Shaft Length	15mm (0.59")
Axis Stopper Platform Height	5mm (0.20")
Maximum Mechanical Speed	6300 R/min
Connection	White=A phase, Green=B phase, Red=Power+, Black=V0
Material	Not specified (likely metal/plastic)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
