Unlock Precision Motion for Your Projects

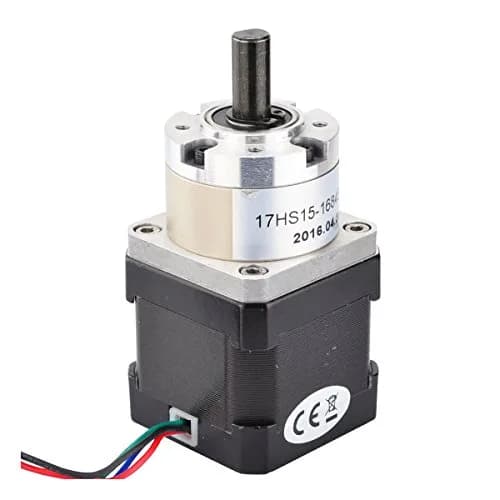

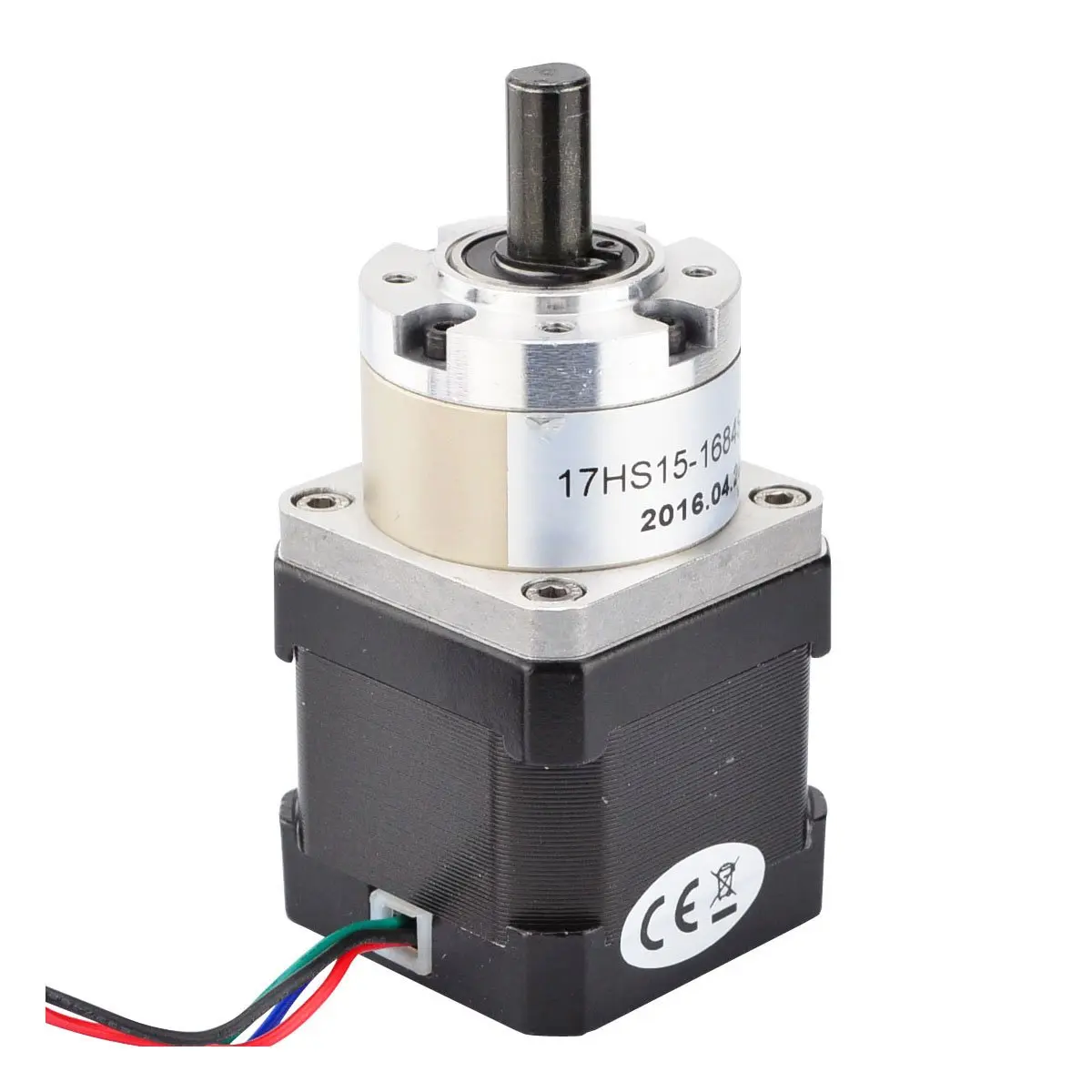

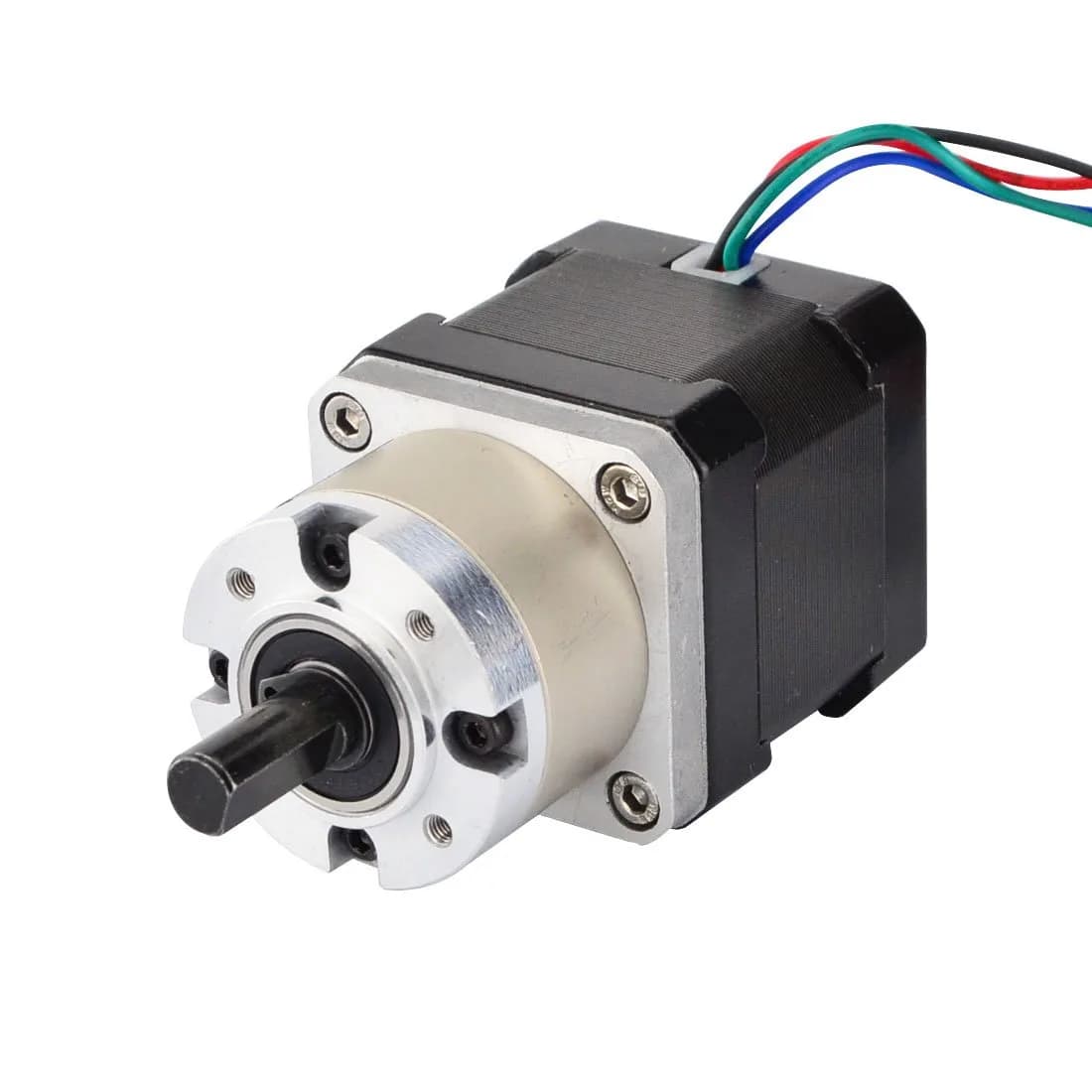

The STEPPERONLINE Nema 17 Stepper Motor with its integrated planetary gearbox provides exceptional torque for applications requiring very low rotation speeds. This motor is a robust solution for DIY CNC machines, robotic projects, and 3D printers where precise control and significant rotational force are essential. It features a 5.18:1 gear ratio, achieving a fine step angle of 0.35° for detailed movements. Imported from authorized US retailers and authorized brand partners, this motor ensures authentic performance for your demanding projects.
Electrical specifications include a bipolar stepper type with 1.68 Nm holding torque and a rated current of 1.68A per phase. The recommended voltage range is 12-24V, with a phase resistance of 1.65 ohms and inductance of 3.2mH±20%. The planetary gearbox offers 90% efficiency and minimal backlash (<=1° at no-load), with maximum permissible torque of 2Nm. Physical dimensions include a 42x42mm frame size, 40mm motor length, and an 8mm shaft diameter with a 15mm D-cut length.
For optimal performance and longevity, always connect this motor to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will cause irreparable damage. This precision-engineered component is imported per order, ensuring you receive a factory-sealed unit with all customs and GST duties pre-paid. Delivery is handled via ExpressBox, providing a tracked journey to your Indian pincode.
Engineered for Precision Motion
This Nema 17 stepper motor is built for applications demanding exact control and substantial torque at low speeds. Its integrated planetary gearbox significantly boosts torque output compared to standard stepper motors, making it perfect for CNC machines requiring precise cuts, robotic arms needing steady movement, and 3D printers for accurate layer deposition. The 0.35° step angle ensures fine-tuned positioning, crucial for intricate designs and smooth operation. Sourced from authorized US retailers and authorized brand partners, this motor guarantees authentic performance and reliability for your critical projects.
Ideal for DIY Projects, Not for Beginners
This motor is best suited for hobbyists and professionals building custom CNC machines, robots, or advanced 3D printers who understand stepper motor control systems. It requires a dedicated stepper motor driver controller for operation; direct connection to a power supply will destroy the motor. If you are new to stepper motors or require a plug-and-play solution without a controller, consider simpler DC motors or kits with integrated drivers. For those needing high torque and precision, this imported motor offers superior performance.
Typical situations where STEPPERONLINE Nema 17 Stepper Motor with 5.18:1 Planetary Gearbox helps — illustrative scenarios, not customer reviews.
A hobbyist in Delhi building a custom CNC router for intricate wood carving.
This motor's high torque and precise 0.35° step angle ensure smooth, accurate cuts even with demanding materials. The planetary gearbox allows for slower, controlled movements essential for detailed work, preventing skipped steps and ensuring clean finishes.
A robotics enthusiast in Bangalore creating an automated robotic arm for a university project.
The motor's robust torque output and low-speed capability are perfect for lifting and manipulating objects with stability. Its reliable performance and precise control enable complex robotic movements and consistent operation for demanding academic or research applications.
| Recommended Voltage | 12-24V |
| Connection | 4-wires: Black(A+), Green(A-), Red(B+), Blue(B-) |
| Cost per unit | 460 g at ₹8,088 — ₹17.58 per gram |
| Warning | Connect to a constant current or chopper drive controller before testing. Direct connection to power supply will destroy the motor. |
| Feature | STEPPERONLINE Nema 17 | Others |
|---|---|---|
| Torque Output | 1.68 Nm holding torque with planetary gearbox | Standard Nema 17 motors typically offer lower torque without a gearbox; geared options vary widely in availability and quality. |
| Gearbox Type | Planetary Gearbox (5.18:1 ratio) | Planetary gearboxes are less common in standard Indian market offerings; availability of specific ratios is limited. |
| Precision | 0.35° step angle for fine control | Standard motors may have larger step angles (e.g., 1.8°); geared options vary. |
| Cost per unit | 460 g at ₹8,088 — ₹17.58 per gram | Geared stepper motors with comparable specs can range from ₹5,000 - ₹15,000+ depending on brand and availability. |
| Availability & Authenticity | Imported per order, factory-sealed, guaranteed authentic | Availability varies; authenticity of non-branded or grey-market imports can be uncertain. |
| SKU | gas9969 |
| GTIN | 0701056542321 |
| Brand | STEPPERONLINE |
| Part Number | 17HS15-1684S-PG5 |
| Motor Type | Bipolar Stepper |
| Frame Size | 42 x 42 mm (1.65 x 1.65 inches) |
| Motor Length | 40 mm (1.57 inches) |
| Gearbox Length | 27.3 mm (1.07 inches) |
| Shaft Diameter | 8 mm (0.31 inches) |
| Shaft Length | 20 mm (0.79 inches) |
| D-cut Length | 15 mm (0.59 inches) |
| Number of Leads | 4 |
| Lead Length | 500 mm (1.64 ft) |
| Weight | 460 g (1.01 lb) |
| Material | Metal |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
