| SKU | esk3114 |
| Brand | STEPPERONLINE |
| Model Number | 5-17HE15-1504S |
| Motor Type | Bipolar Stepper |
| Frame Size | 42 x 42mm |
| Body Length | 38mm |
| Shaft Diameter | 5mm |
| Shaft Length | 23.5mm |
| D-cut Length | 20mm |
| Number of Leads | 4 |
| Lead Length | 1000mm (1m) |
| Weight per Motor | 280g |
| Item Package Weight | 1.52 kg (5 Pack) |
| Material | Metal |
| Color | Black |
This item:
STEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (5 Pack)
6,763
This item
STEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (5 Pack)
6,763
Total price:
11,443
You save 4,578 (29%) Extra3 items selected
3 items
11,443You save 4,578 (29%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Precision Motion Control for Your Projects

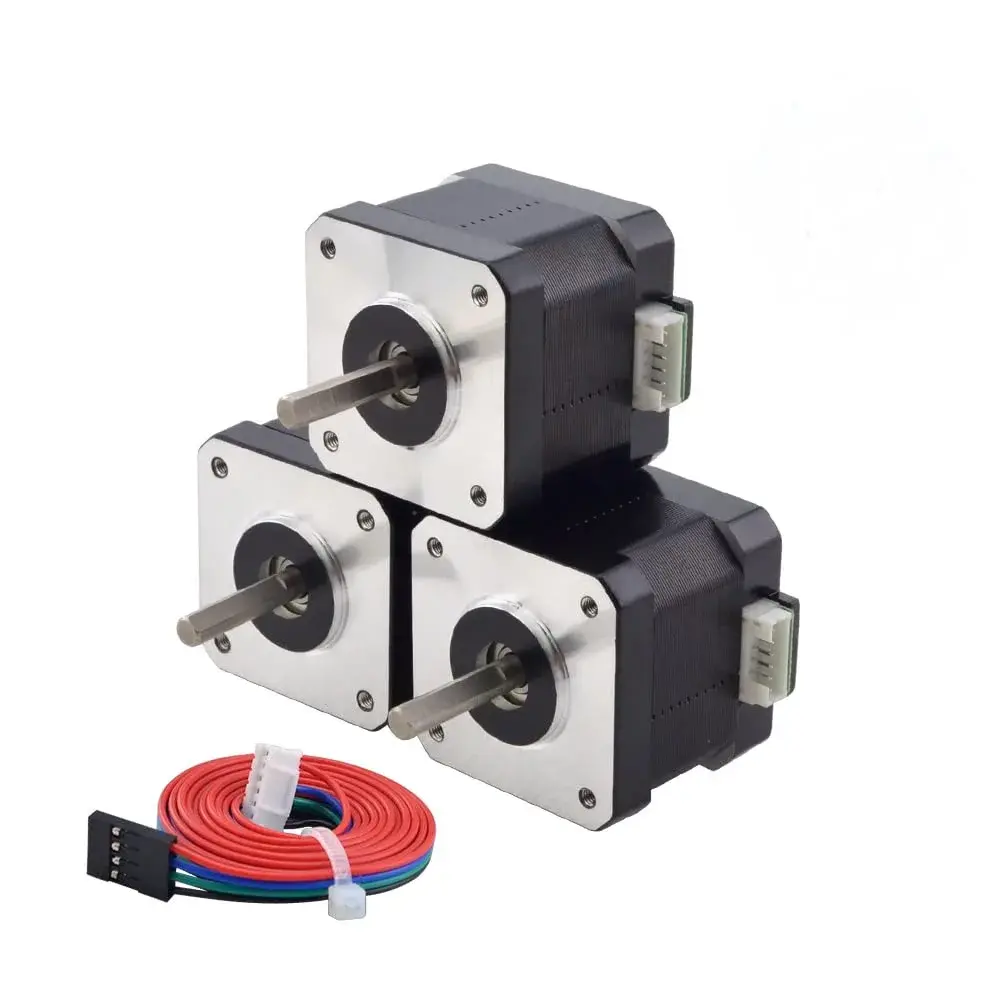

STEPPERONLINE Nema 17 Stepper Motors provide reliable performance for your 3D printing and mechatronics projects. This 5-pack includes motors with a 1.8-degree step angle, 42Ncm holding torque, and 1.5A rated current per phase. Each motor comes with a 1m cable and connector, ready for integration into your systems. Imported for Indian makers, these motors offer a cost-effective solution compared to local alternatives.

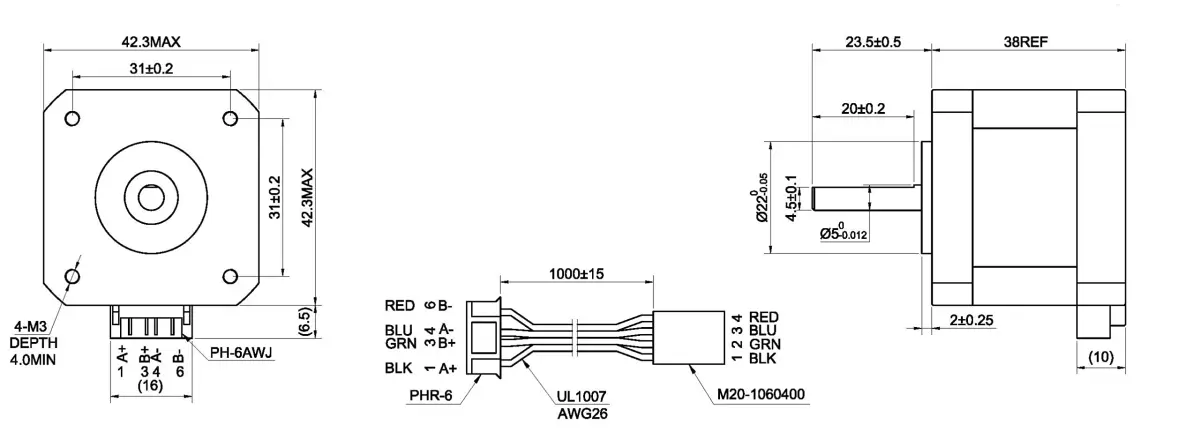

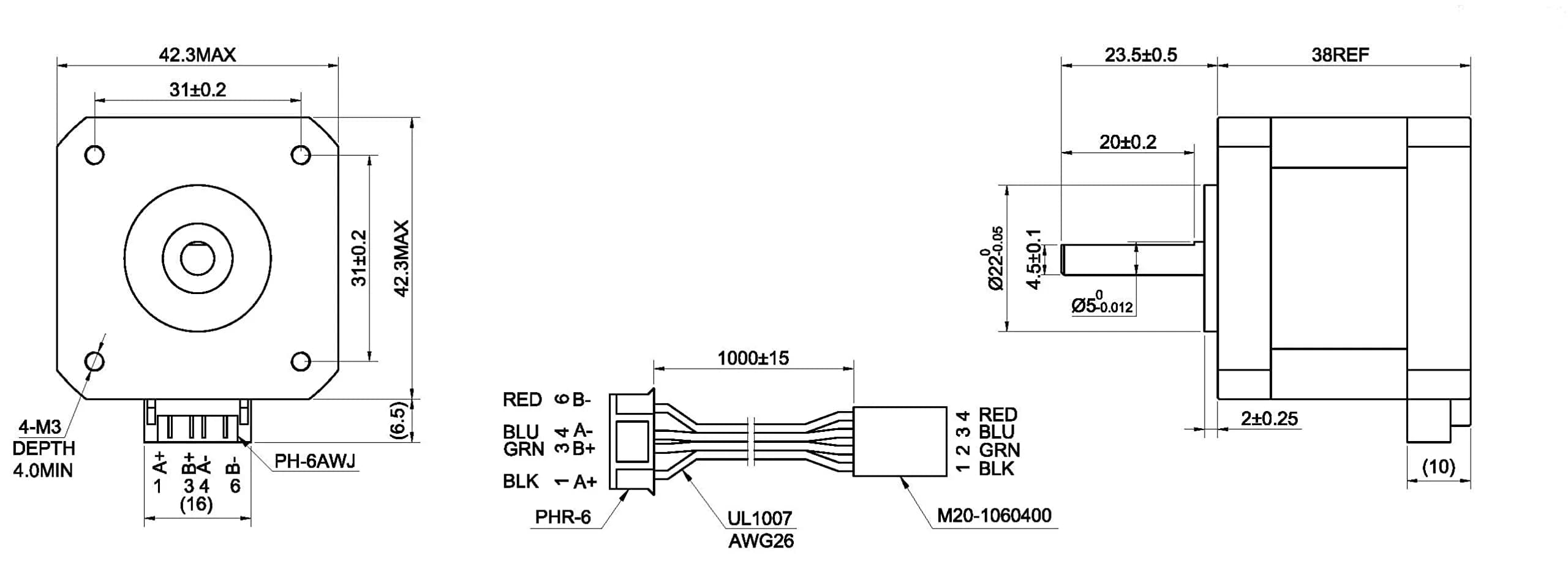

Electrical specifications include 2.3 ohms phase resistance and 4.00mH ± 20% inductance. The physical dimensions are 42x42x38mm with a 5mm shaft diameter and a D-cut length of 20mm for secure mounting. The 1m lead length provides ample reach for most setups. Reviewers note their suitability for projects like conveyor belts and praise their excellent quality and very good performance.
While generally reliable, be aware that some systems may require swapping the middle two wires on the motor connector for optimal performance. Always connect these motors to a constant current or chopper drive controller before testing to prevent damage. This pack of 5 ensures you have spares for multiple projects or replacements.
Engineered for Precision & Durability
These STEPPERONLINE Nema 17 motors are built for consistent performance. Their bipolar design and 1.5A current rating deliver reliable torque for demanding applications. With a 1.8-degree step angle, they ensure smooth, precise movements crucial for high-resolution 3D printing and intricate robotic tasks. The robust construction and included 1m cable with connector simplify integration. Imported directly from authorized US retailers, these motors offer a dependable alternative to local options, ensuring your projects run smoothly without compromise.
Ideal for Makers & Engineers
These motors are perfect for hobbyists building custom 3D printers, CNC machines, or automation projects. They are well-suited for driving conveyor belts, robotic arms, and other motion-controlled systems. While generally excellent, users with specific wiring configurations might need to swap the middle two wires. Ensure you use a constant current controller to avoid motor damage. If you need high-precision motion control for your next build, these motors provide a cost-effective and reliable solution.
Typical situations where STEPPERONLINE Nema 17 Stepper Motor Bipolar 1.5A 42Ncm 42x42x38mm 1.8deg 4 Wires with 1m Cable and Connector (5 Pack) helps — illustrative scenarios, not customer reviews.
Building a custom 3D printer in India, needing reliable motion control for precise layer deposition.
These 5 Nema 17 motors provide the necessary torque and step accuracy for smooth X, Y, and Z axis movement. The included cables simplify wiring, and the 5-pack ensures spares for future upgrades or replacements, offering excellent value for DIY projects.
Developing a small-scale automation project, like a conveyor belt for a mechatronics class, requiring consistent motor speed and positioning.
Reviewers have successfully used these motors for conveyor belts. Their 42Ncm holding torque ensures the belt stays in place when idle, while the 1.8-degree step angle allows for controlled movement, crucial for repeatable automation tasks.
| Application | 3D Printers, CNC Machines, Robotics, Automation |
| Connection | A+: Black, A-: Blue, B+: Green, B-: Red |
| Warning | Connect to constant current/chopper drive controller only. Incorrect wiring may damage motor. |
| Pack Quantity | 5 Motors |
| Feature | STEPPERONLINE Nema 17 | Others |
|---|---|---|
| Holding Torque | 42Ncm | Typically 40-45Ncm for comparable models |
| Rated Current/phase | 1.5A | Often 1.0A - 1.5A for similar specs |
| Step Angle | 1.8 degrees | Standard 1.8 degrees |
| Pack Quantity | 5 Motors | Often sold individually or in packs of 2-4 |
| Price per Motor (approx.) | ₹1,353 per motor | ₹800 - ₹1500 per motor, depending on brand and specs |
About STEPPERONLINE
STEPPERONLINE specializes in stepper motors and related motion control components, providing reliable parts for 3D printing and automation.
Compliance & Legal
No product-specific compliance warnings identified. Standard imported-goods terms apply: customs duties & GST paid; for personal use in India; follow the manufacturer's usage instructions on the packaging.
