Is this STEPPERONLINE Nema 17 stepper motor safe for use in India?

Yes, this motor is safe for use in India when properly wired to a compatible constant current or chopper drive controller. It operates on standard electrical principles and does not have specific voltage requirements that conflict with Indian mains power, as the controller manages the power. Ensure the controller is rated for your local power supply if it's AC-powered.

How do I choose the right stepper motor for my project?

Consider your project's needs: torque, speed, voltage, and motor type. This Nema 17 motor offers 59Ncm torque and is bipolar, suitable for 3D printers and CNC. Match its specifications to your motor driver and mechanical load. For simpler tasks, basic DC motors might suffice, but for precision, stepper motors like this are key.

What is the best way to wire this stepper motor?

Wire the motor to a compatible constant current or chopper drive controller before testing. The standard connection is Black(A+), Green(A-), Red(B+), Blue(B-). Never connect the motor directly to a power supply, as this will cause permanent damage. Always refer to your drive controller's manual for specific wiring diagrams.

Can I use this stepper motor with any electric motor driver?

No, this motor requires a constant current or chopper drive controller specifically designed for bipolar stepper motors. Ensure the controller's voltage and current ratings match the motor's specifications (2.0A rated current, 1.8-degree step angle) for optimal performance and to prevent damage. Generic DC motor drivers are not compatible.

What are the benefits of using a Nema 17 stepper motor?

Nema 17 stepper motors, like this STEPPERONLINE model, provide precise, repeatable movements essential for applications like 3D printing and CNC. They offer high holding torque (59Ncm here) for accurate positioning and are compatible with many standard drivers and mounting systems, making them versatile for automation projects.

How to buy an original STEPPERONLINE Nema 17 Stepper Motor in India?

Purchase this original STEPPERONLINE Nema 17 Stepper Motor through authorized US retailers and authorized brand partners, imported per-order for you. It comes factory-sealed with all customs and GST duties included in the price. Your order is shipped via ExpressBox tracked delivery for peace of mind.

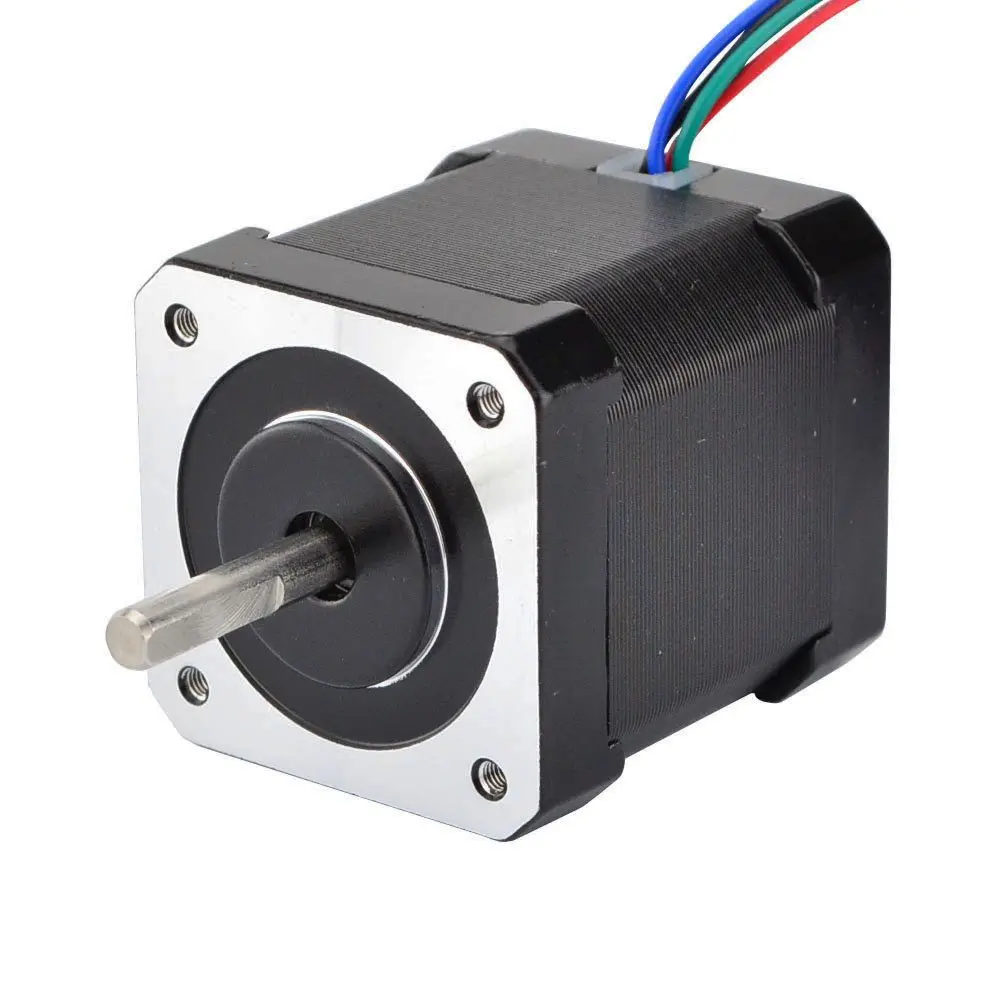

STEPPERONLINE Nema 17 Stepper Motor Bipolar 2A 59Ncm

Name: STEPPERONLINE Nema 17 Stepper Motor Bipolar 2A 59Ncm (2.27kg / 5lb) 48mm Body 4-Lead
Brand: STEPPERONLINE
SKU: xws8372
Price: 3020.00 INR
Availability: InStock

About this item

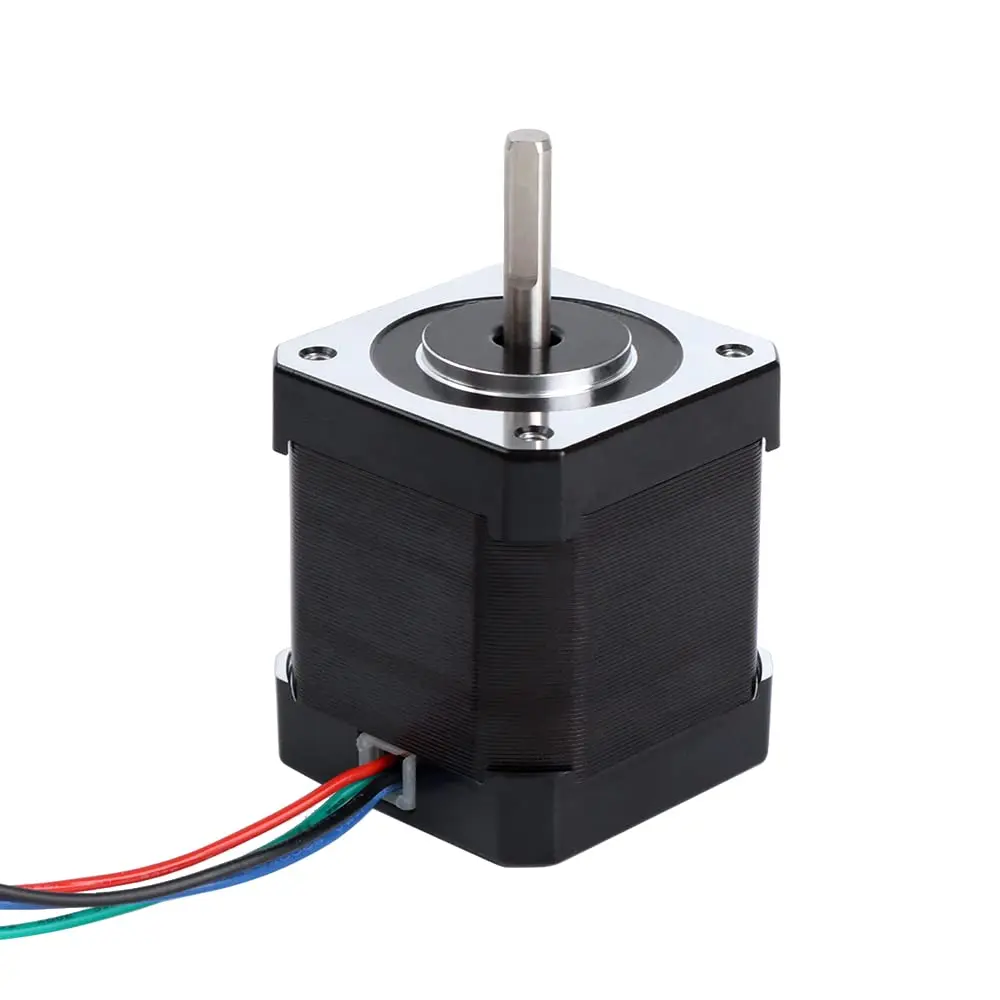

The STEPPERONLINE Nema 17 Stepper Motor is engineered for precision and reliability in demanding applications like 3D printing and CNC. Its bipolar design and 59Ncm holding torque ensure accurate positioning, while the extended 1m cable with a standard connector simplifies integration. This motor is a robust choice for hobbyists and professionals seeking dependable performance.

With a 1.8-degree step angle and rated current of 2.0A per phase, this motor delivers consistent power. The 42x42mm frame size and 48mm body length adhere to NEMA 17 standards, ensuring compatibility with many existing mounts. The included 1-meter lead with a 0.1" pitch connector simplifies wiring, making it a plug-and-play solution for many projects.

While this motor is designed for high-performance applications, it requires a constant current or chopper drive controller for operation. Connecting it directly to a power supply will cause damage. Ensure proper wiring and controller setup for optimal performance and longevity. This imported motor offers a reliable alternative for your automation needs.

Key Features

3D printer motor with high torque
59Ncm(83.6oz.in) holding torque
NEMA 17 bipolar 1.65"x1.65"x1.89" 4-wire

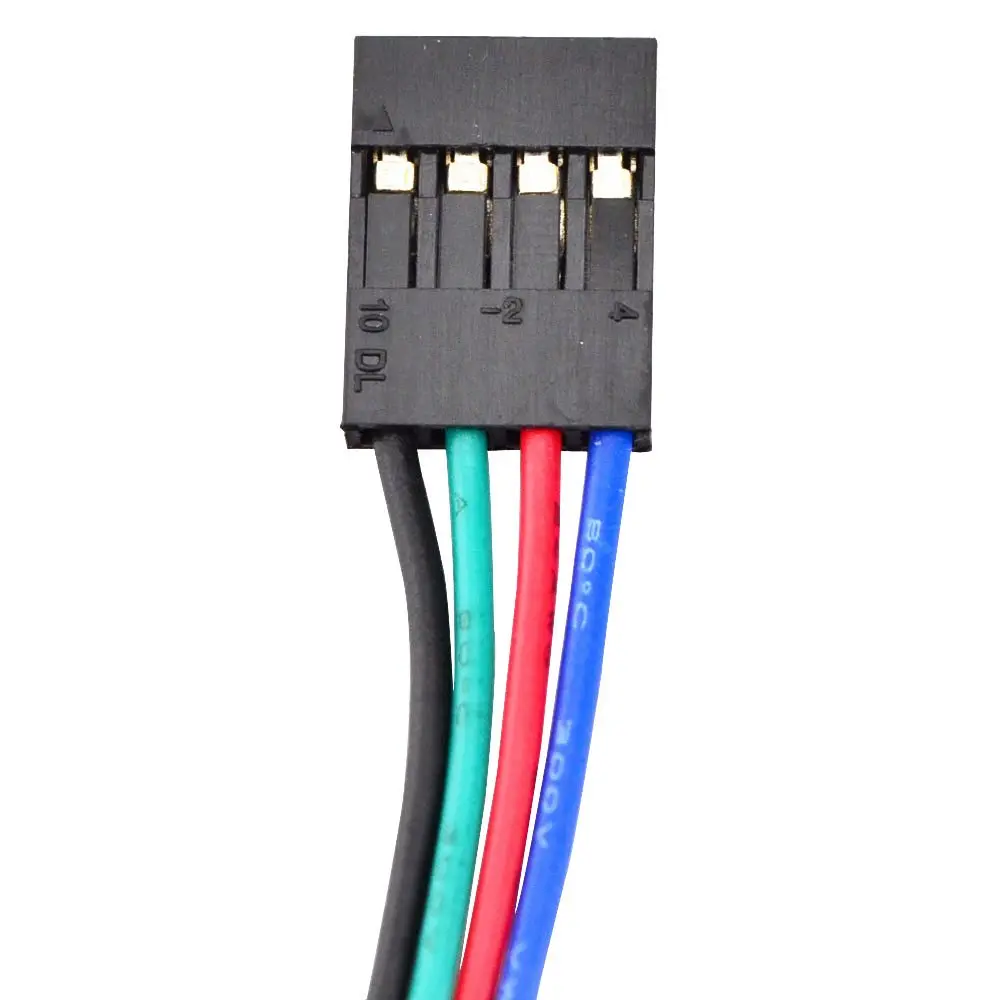

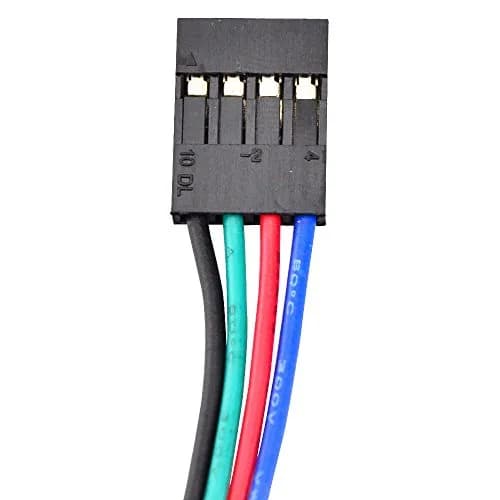

Build with 39.37"( 1m) Cable and 0.1" pitch Connector
Rated current 2.0A & resistance 1.4ohms

Why choose this product

Engineered for Precision and Reliability

This STEPPERONLINE Nema 17 stepper motor is built for demanding tasks. Its robust construction and precise engineering ensure consistent performance for 3D printers, CNC machines, and robotics. The 59Ncm holding torque guarantees accurate positioning, crucial for intricate designs. Imported directly, it offers a dependable alternative for your automation projects, ensuring your builds operate smoothly and efficiently.

Ideal for 3D Printing & CNC

This motor is an excellent choice for users building or upgrading 3D printers and CNC machines. Its NEMA 17 standard, bipolar design, and high torque make it suitable for precise axis control. While it requires a specific drive controller, its reliability and performance are well-regarded by users for detailed work. For simpler DC motor needs, consider basic DC motors available locally.

How to use

Connect Motor to Driver — Wire the motor's four leads (Black A+, Green A-, Red B+, Blue B-) to the corresponding terminals on a compatible bipolar stepper motor driver. Ensure power is disconnected before wiring to prevent damage.
Configure Driver Settings — Set the driver's current limit to match the motor's rated current (2.0A) and configure microstepping for desired resolution. Consult your driver's manual for specific instructions.
Connect Driver to Power & Controller — Connect the driver's power input to an appropriate DC power supply (voltage must match driver requirements) and connect the driver's control signals to your microcontroller or CNC controller.
Test Motor Operation — With all connections verified, power on the system and send step and direction signals from your controller to test motor movement and direction. Adjust settings as needed for optimal performance.

Example scenarios

Typical situations where STEPPERONLINE Nema 17 Stepper Motor Bipolar 2A 59Ncm (2.27kg / 5lb) 48mm Body 4-Lead helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building a custom 3D printer in India requiring precise layer deposition.

How this product helps

This Nema 17 motor's 59Ncm torque and 1.8-degree step angle ensure accurate, repeatable movements for high-quality prints. The included 1m cable simplifies integration into custom frames, offering a reliable alternative to locally sourced motors that may have shorter leads or lower torque.

Scenario 2

Illustrative example

Where it helps

Upgrading a CNC machine for detailed engraving or routing tasks.

How this product helps

The motor's robust construction and consistent performance are vital for CNC precision. Its 2.0A rated current and bipolar design provide ample power for demanding tasks, ensuring smooth operation and clean cuts, unlike some basic motors that may struggle with load.

Specifications & installation

Specifications

Step Angle	1.8 deg.
Holding Torque	59Ncm (83.6oz.in)
Rated Current/phase	2.0A
Phase Resistance	1.4ohms
Inductance	3.0mH+/-20% (1KHz)

Installation & usage

Connection	Black(A+), Green(A-), Red(B+), Blue(B-)
Warning	Connect to a constant current or chopper drive controller before testing. Connecting directly to power supply will destroy the motor.
Voltage Compatibility	Requires specific drive controller voltage (not directly powered)
Cost per use	N/A (Durable component)
Shelf life after opening	N/A (Durable component)
Reapplication math	N/A (Durable component)
Contraindications	Direct connection to power supply will destroy the motor.
Allergens / common irritants

How we compare

Feature	STEPPERONLINE Nema 17	Others
Holding Torque	59Ncm (83.6oz.in)	Typically 40-55Ncm for comparable local Nema 17 motors
Cable & Connector	1m cable with 0.1" pitch connector included	Often sold separately or with shorter cables
Build Quality & Materials	Stainless steel, copper wire, aluminium alloy construction	Varies; may use lower-grade materials
Rated Current	2.0A per phase	Often 1.5A-1.8A for similar local models
Cost per unit	Imported quality — ₹3,020 per motor	Local motors range from ₹1500-₹3000 depending on specs

SKU	xws8372
GTIN	0190657686020
Brand	STEPPERONLINE

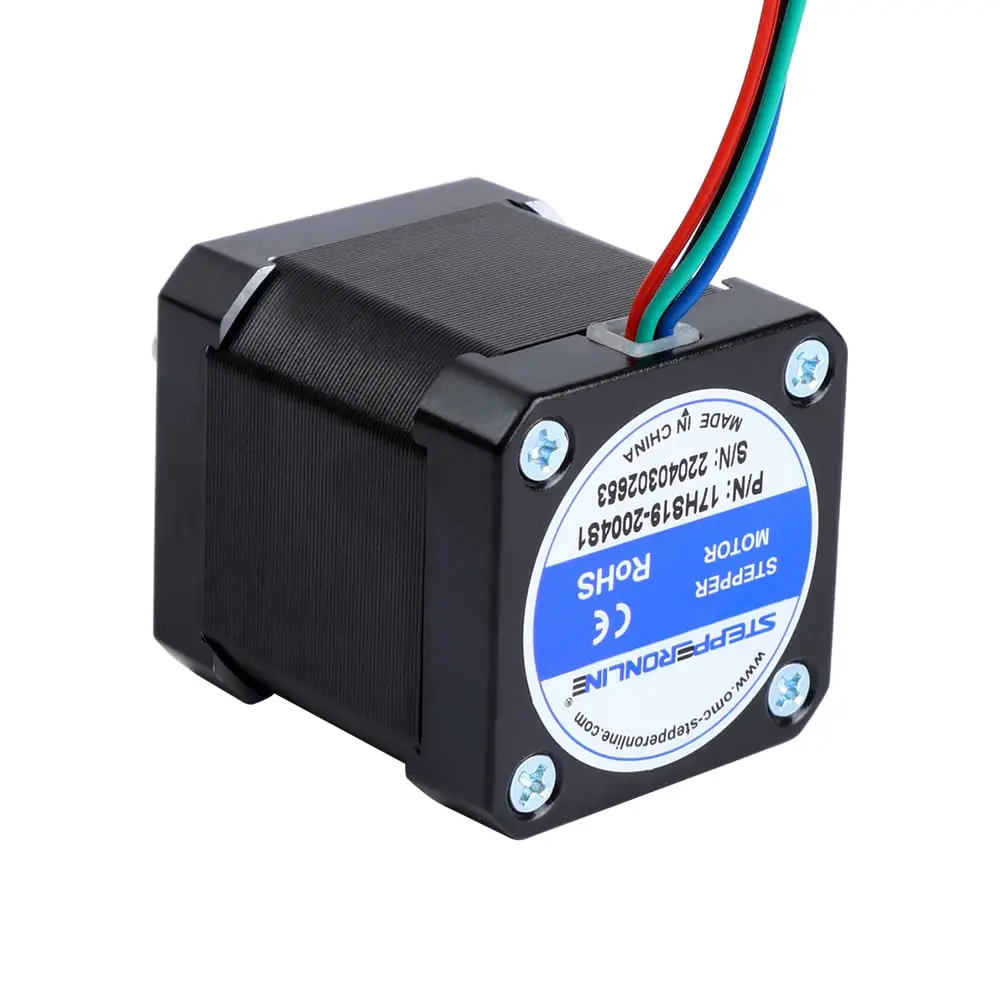

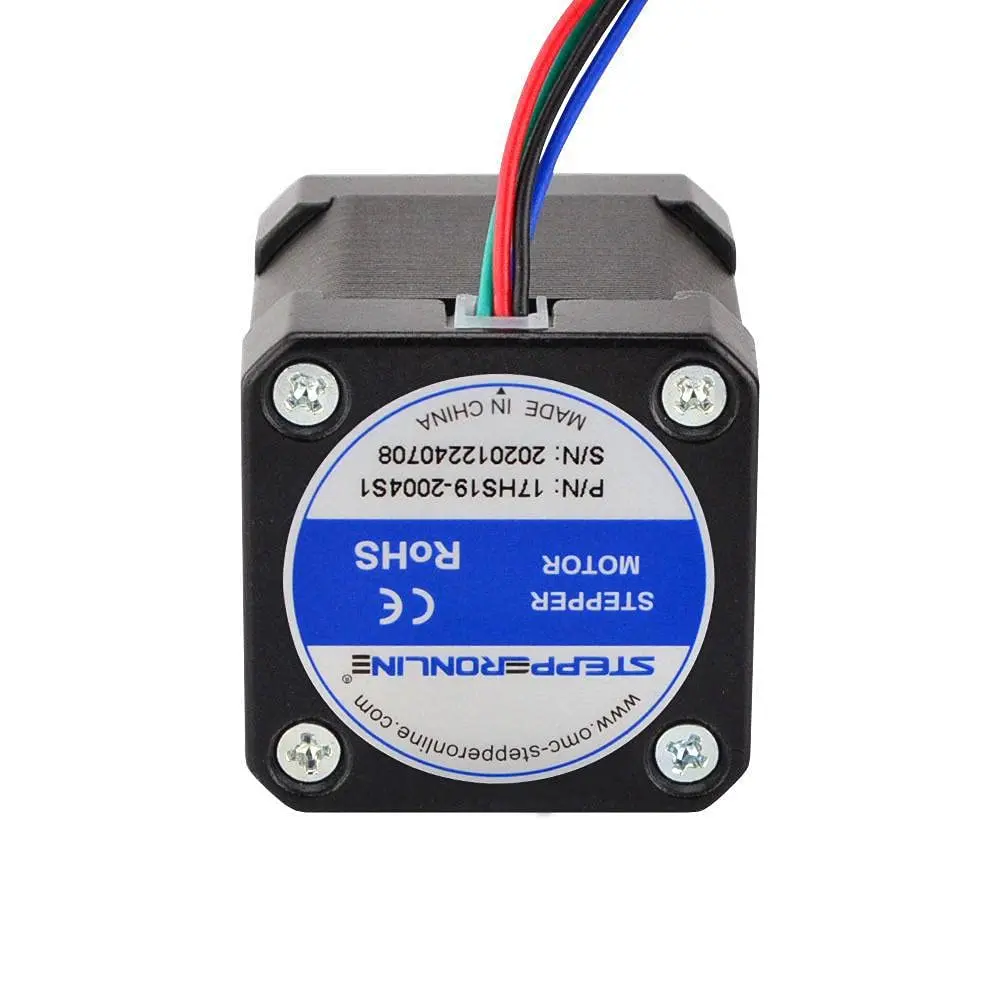

Part Number	17HS19-2004S1
Model Number	17HS19-2004S
Motor Type	Bipolar Stepper

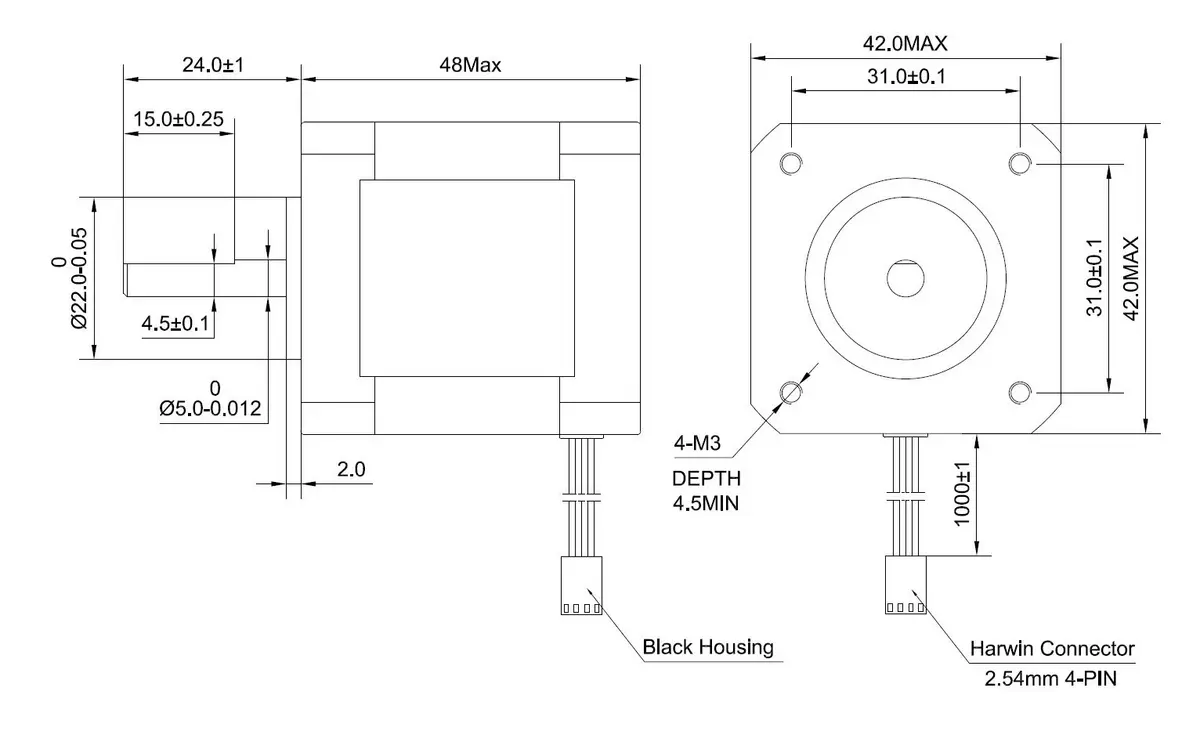

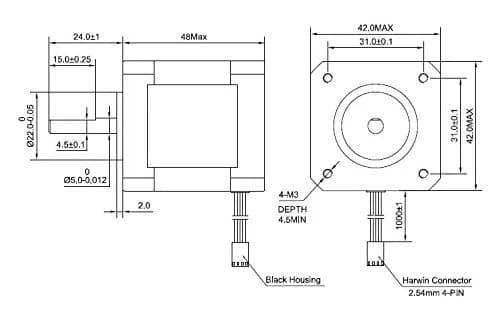

Frame Size	42 x 42mm (1.65" x 1.65")
Body Length	48mm (1.89")
Shaft Diameter	5mm (0.2")
Shaft Length	24mm (0.94")
D-cut Length	15mm (0.59")
Number of Leads	4
Lead Length	1000mm (39.37") with connector
Weight	390g (0.88 lbs)
Material	40% Stainless Steel, 30% Copper Wire, 20% Plastics, 10% Aluminium Alloy
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
