Can a DC PWM motor speed controller be used to regulate brushless DC (BLDC) motors?

Standard DC PWM motor speed controllers are designed for two-wire brushed DC motors where speed varies directly with effective voltage. Brushless DC motors require specialized electronic speed controllers (ESCs) or Hall-sensor motor drivers to manage multi-phase electronic commutation. This DM542T driver is for stepper motors, not BLDC or simple DC motors.

How much current headroom should be planned when choosing a motor controller?

Select a controller whose continuous current rating exceeds the motor's full-load running current by at least 30% to 50%. This DM542T driver offers a peak current up to 4.2A, suitable for motors requiring up to 3.0A RMS. Ensure your motor's requirements fit within these parameters to prevent overheating and ensure longevity.

Is the STEPPERONLINE DM542T driver compatible with Indian power supplies?

The DM542T requires a DC input voltage of 20-50VDC. While it does not connect directly to India's 230V 50Hz AC mains, it is compatible with standard Indian power supplies when used with an appropriate DC power source (e.g., a 36VDC power supply). Ensure your chosen power supply is rated for the motor's current draw.

How to choose a stepper motor driver for CNC machines in India?

For CNC machines in India, select a driver like the DM542T that matches your stepper motor's voltage and current requirements (Nema 17/23, 1.0-4.2A). Consider microstep resolution (1/128 for smoothness), input frequency (up to 200kHz), and protection features. Ensure your power supply is compatible with India's 230V 50Hz grid. Imported drivers offer advanced features often unavailable in local alternatives.

What is the best controller for Nema 17 and 23 stepper motors?

The STEPPERONLINE DM542T is a highly-rated digital stepper motor driver for Nema 17 and 23 motors. It offers advanced DSP control, 1/128 microstepping, and a peak current up to 4.2A, providing precise and smooth motion. Its industrial-grade design includes essential protections and auto-configuration features for reliable performance.

Can I use the DM542T driver with Arduino for stepper motor control?

Yes, the DM542T driver is compatible with Arduino for controlling stepper motors. You will need to connect the Arduino's digital output pins to the driver's PUL (step), DIR (direction), and ENA (enable) signal inputs. Ensure your Arduino's logic voltage (typically 5V) matches the driver's logic voltage selector setting.

What are the side effects of using an incorrect motor driver?

Using an incorrect motor driver can lead to motor damage, overheating, inconsistent performance, or complete failure. Over-current can burn out motor windings or the driver's internal components. Incorrect voltage can damage the driver or motor. This DM542T driver includes over-voltage and over-current protections to mitigate these risks.

What are the benefits of using a digital stepper motor driver?

Digital stepper motor drivers like the DM542T offer higher precision, smoother operation, better torque control, and advanced features such as anti-resonance and microstepping. They can also provide motor auto-identification and protection mechanisms, leading to more reliable and efficient operation compared to older analog drivers.

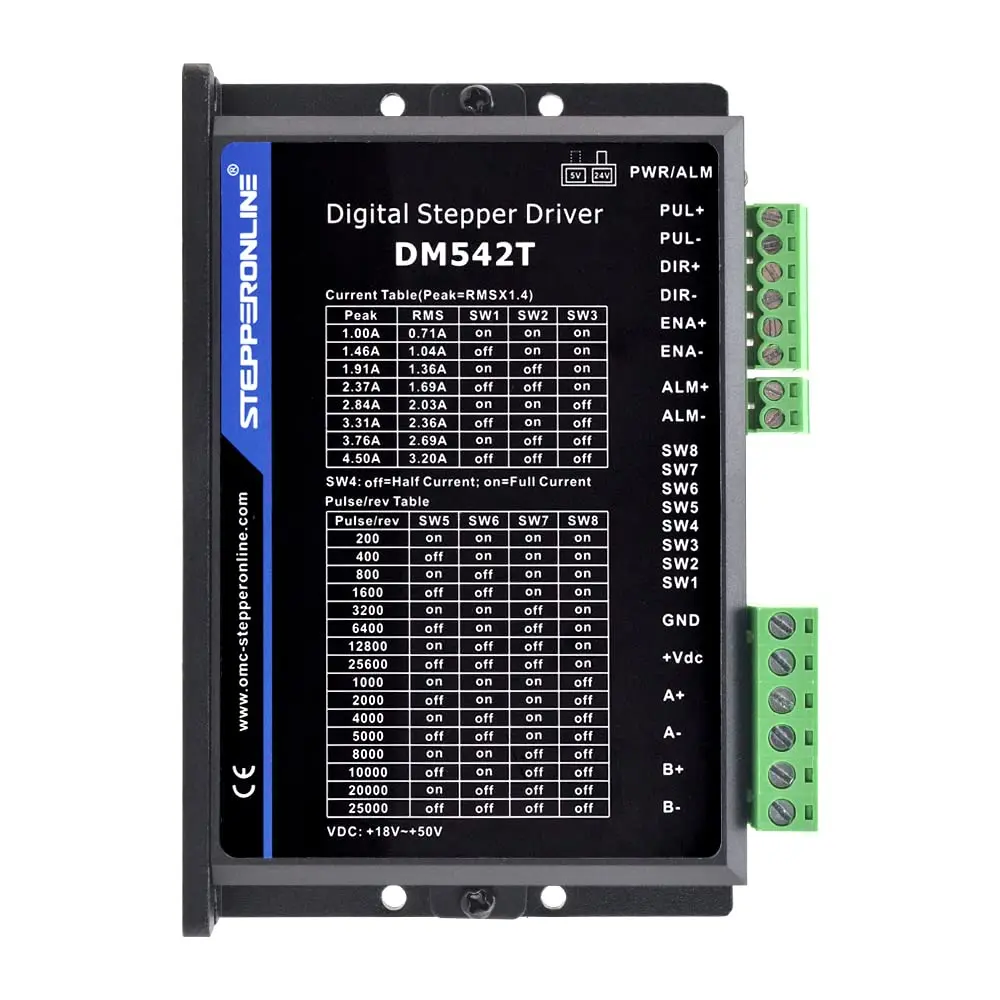

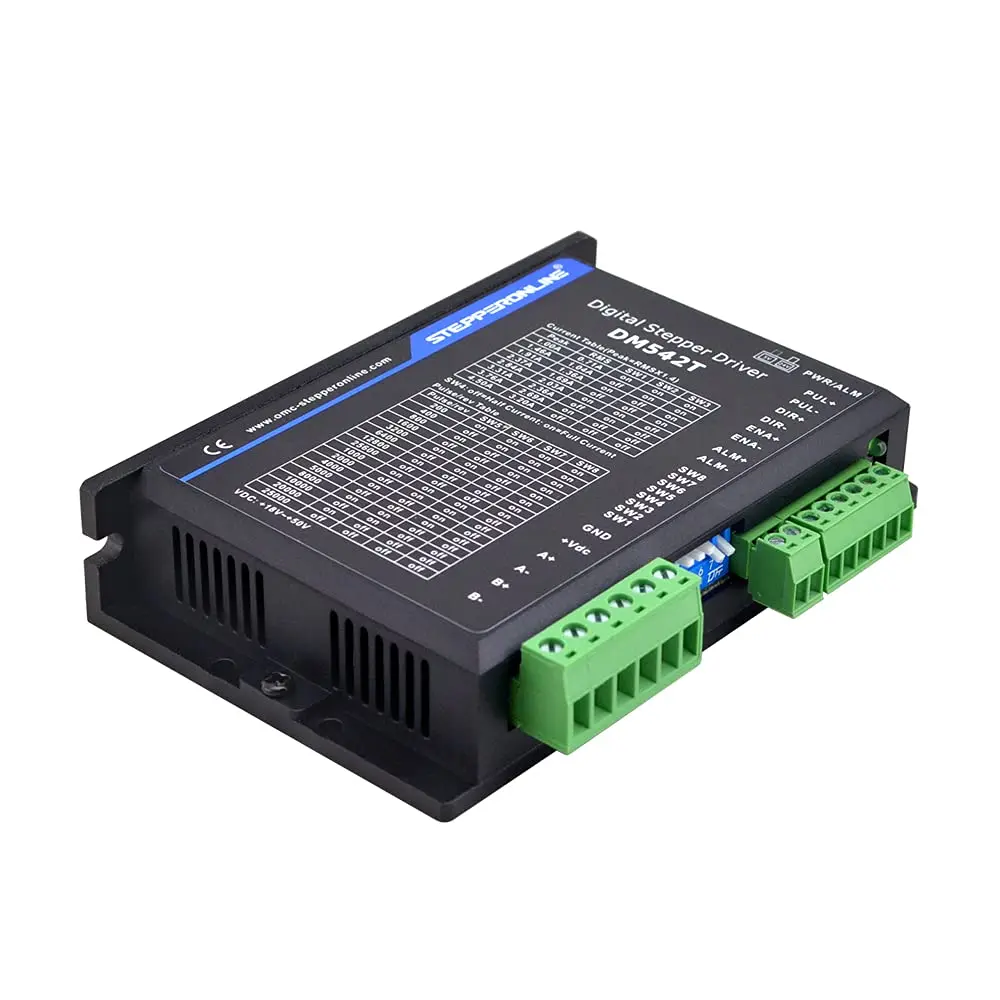

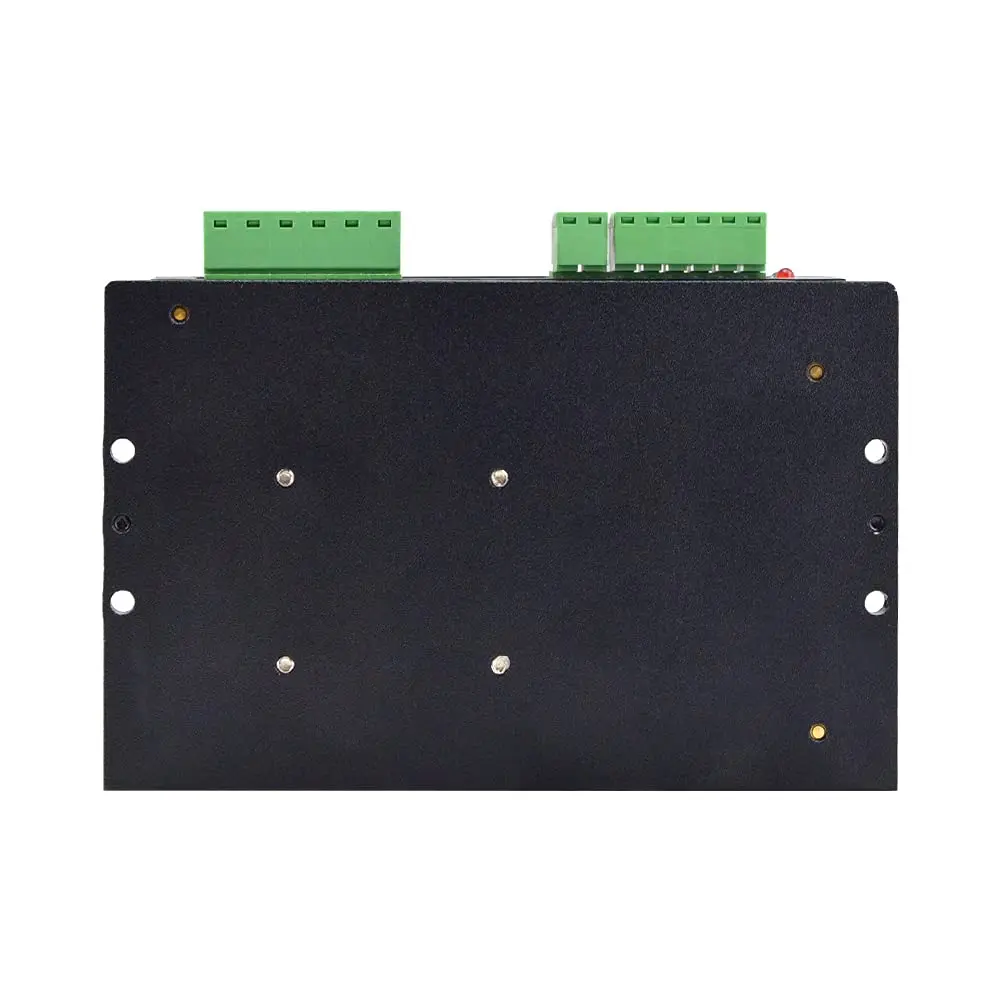

STEPPERONLINE DM542T Stepper Motor Driver 4.2A 50VDC 1/128 Micro-Step

Name: STEPPERONLINE DM542T Digital Stepper Motor Driver 4.2A 50VDC 1/128 Micro-Step for Nema 17 & 23 Motors
Brand: STEPPERONLINE
SKU: sqd5781
Price: 6653.00 INR
Availability: InStock

About this item

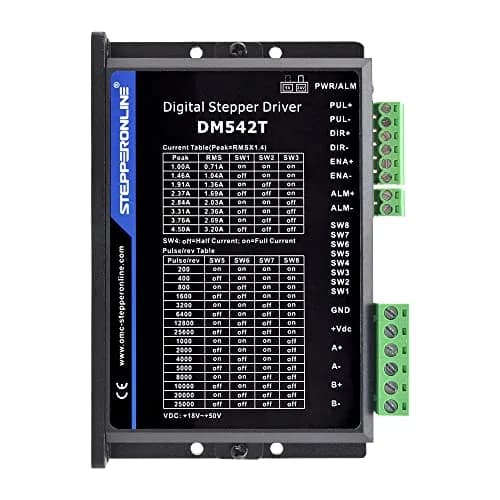

The STEPPERONLINE DM542T is an industrial-grade digital stepper motor driver designed for precise motion control in CNC machines and automation. It features advanced DSP algorithms for optimal performance, motor auto-identification, and 15 selectable microstep resolutions up to 1/128 for smoother operation. With a peak current of 1.0-4.2A and input voltage of 20-50VDC, it provides robust control for Nema 17 and 23 stepper motors.

This driver includes anti-resonance technology to null mid-range instability and a soft-start feature for smooth power-on. It supports TTL compatible and optically isolated pulse inputs up to 200 KHz, along with automatic idle-current reduction. Built-in over-voltage and over-current protections ensure reliable operation and longevity, making it a dependable choice for demanding applications.

Imported directly from authorized US retailers, this driver ensures authentic performance for your Indian projects. All customs duties and GST are pre-paid, with delivery via ExpressBox. For complex industrial setups, ensure compatibility with India's 230V 50Hz grid by using appropriate power supplies.

Key Features

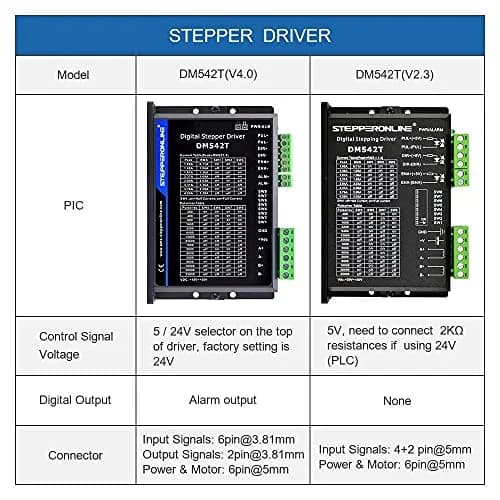

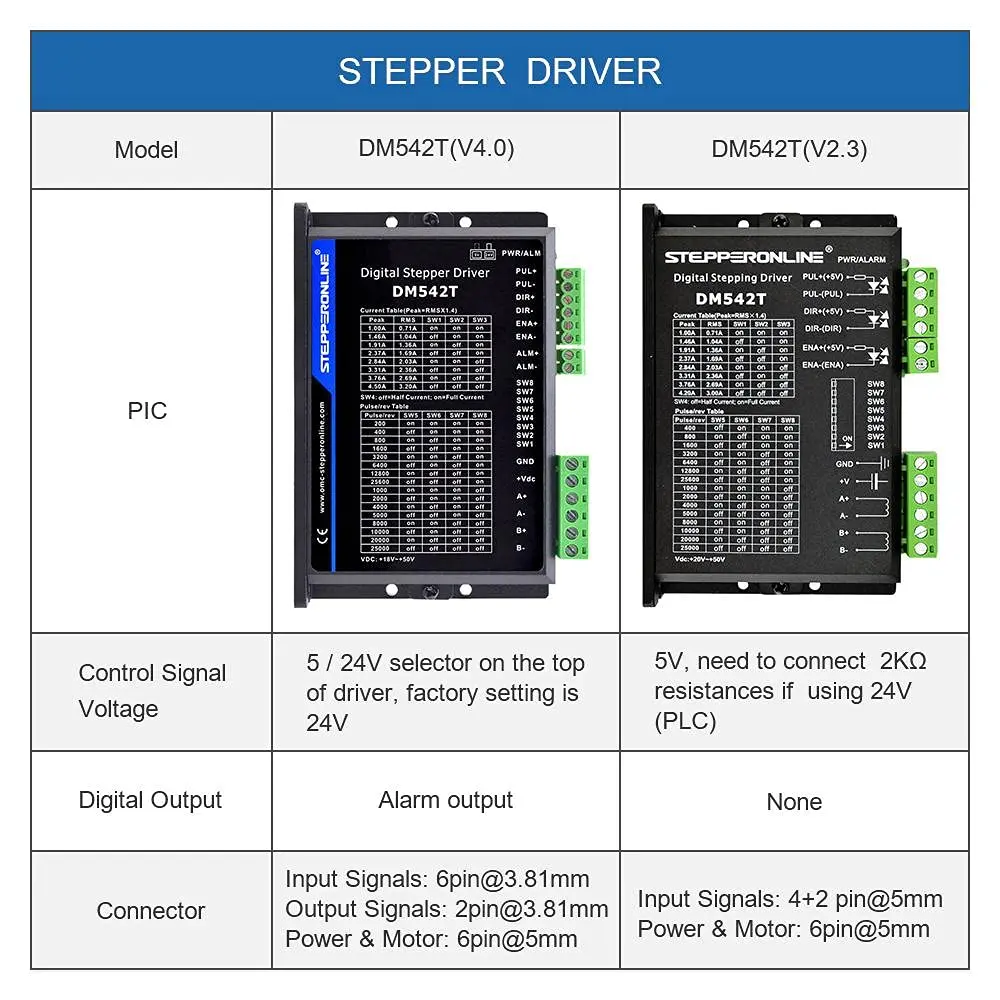

Stepper motor driver DM542T is updated to version V4.0, add 5V/24V logical voltage selector, alarm outputs. Please attention, Factory setting is 24V, if you need to use 5V, switch selector on the top of the driver.
Industrial-grade Stepper Driver, Suit for Nema 17 and 23 Stepper Motor
1.0~4.2A, 20~50VDC, 1/128 Microstep Resolution
Pulse signal: 4-5V when PUL-HIGH, 0-0.5V whenPUL-LOW. The same as DIR and ENA signals
We provided this stepper motor kit with 30 days free replacement or refund, 1 year warranty and whole life customer service from the date of purchasing.

Why choose this product

Advanced DSP Control for Superior Performance

This driver utilizes advanced DSP control algorithms, offering superior precision and stability compared to standard controllers. Its motor auto-identification and parameter auto-configuration ensure optimal performance with various motors without manual tuning. Anti-resonance technology actively reduces mid-range instability, providing smoother torque and quieter operation. The multi-stepping feature allows for higher microstep output from lower resolution step inputs, enhancing overall motor movement smoothness. This level of sophisticated control is crucial for high-precision applications like CNC machining and robotics, ensuring your projects run efficiently and accurately.

Ideal for DIY CNC & Automation Projects in India

This driver is perfect for hobbyists and professionals in India building custom CNC machines, 3D printers, or automation systems. It's designed for Nema 17 and 23 stepper motors, common in these applications. While it operates on 20-50VDC, ensure your power supply is compatible with India's 230V 50Hz mains. It's not recommended for users needing to control AC motors directly or for applications requiring extremely low voltage (below 20VDC) without a suitable power supply. For basic DC motor speed control, simpler controllers may suffice.

How to use

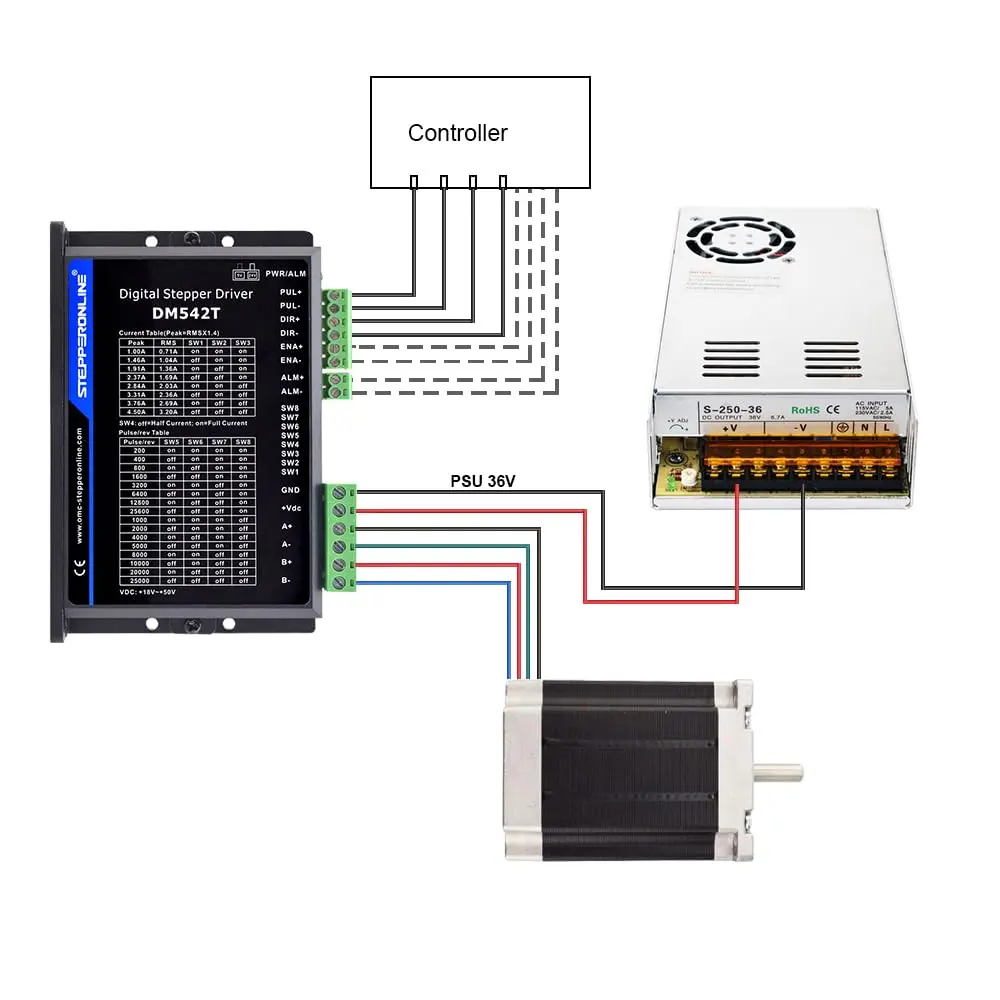

Connect Motor and Power Supply — Wire your Nema 17 or 23 stepper motor to the driver's A+/A-/B+/B- terminals. Connect a DC power supply (20-50VDC, e.g., 36VDC) to the driver's +20-50VDC and GND terminals. Ensure correct polarity.
Set the logic voltage selector on the driver to match your control signal source (5V or 24V). Connect your control signals (PUL, DIR, ENA) from your microcontroller (like Arduino) or CNC controller to the corresponding driver input pins. Ensure signal levels are TTL compatible.

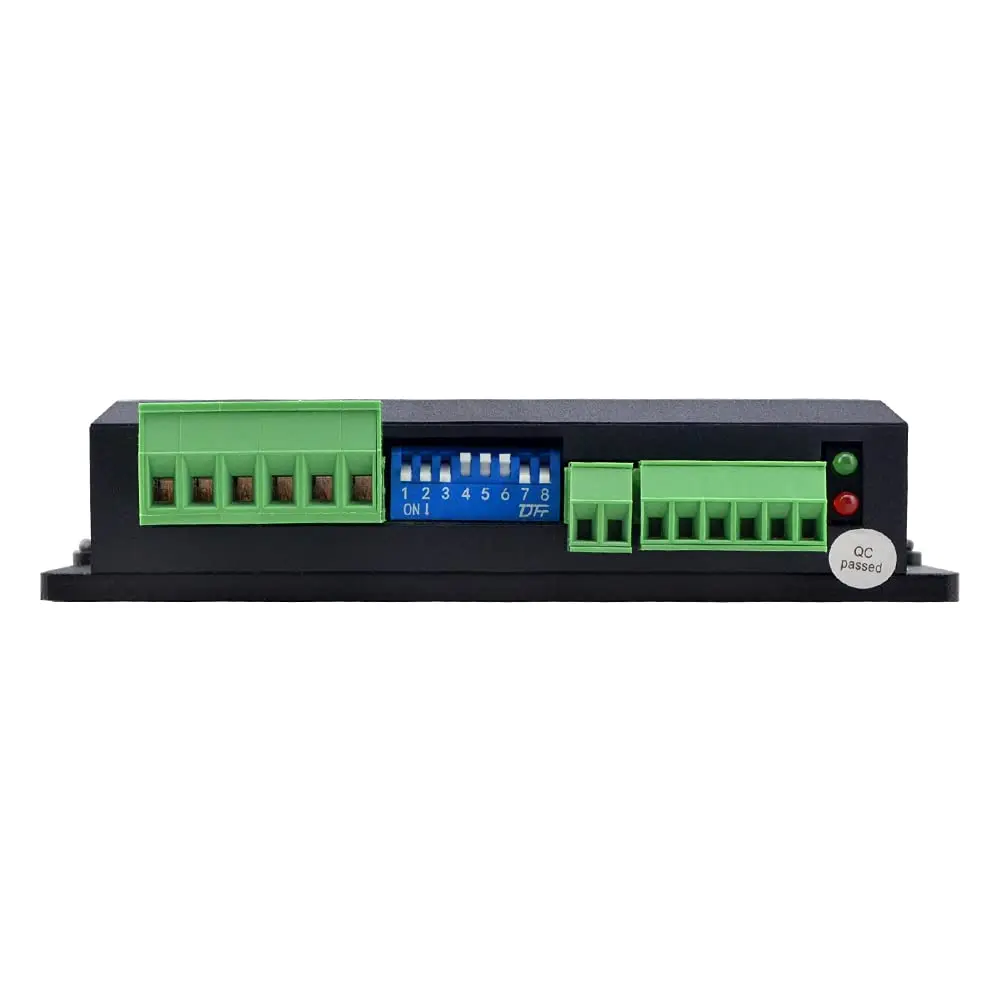

Configure the DIP switches on the driver to select the desired peak output current (1.0-4.2A) and microstep resolution (up to 1/128) based on your motor's specifications and application needs. Refer to the driver manual for specific switch settings.
Power on the system and send step and direction signals from your controller to test motor movement. Monitor for smooth operation, correct direction, and check for any error indicators or excessive heat. Ensure adequate ventilation.

Example scenarios

Typical situations where STEPPERONLINE DM542T Digital Stepper Motor Driver 4.2A 50VDC 1/128 Micro-Step for Nema 17 & 23 Motors helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building a custom CNC router for woodworking in a workshop in Pune.

How this product helps

The DM542T driver provides the precise motion control needed for accurate cuts. Its 1/128 microstepping ensures smooth operation, while the 4.2A peak current is sufficient for Nema 23 motors commonly used in DIY CNCs. Ensure a 36VDC power supply compatible with Indian mains.

Scenario 2

Illustrative example

Where it helps

Automating a small-scale manufacturing process with Nema 17 motors in a factory in Gujarat.

How this product helps

This driver's industrial-grade design, with over-voltage and over-current protections, ensures reliability for continuous operation. Its auto-identification feature simplifies setup, and the high pulse input frequency supports complex automation sequences. Imported for advanced features not readily available in local alternatives.

Technical specifications

Setup & usage

Motor Compatibility	Suitable for 2-phase and 4-phase stepper motors (Nema 17 and 23)
Control Mode	PUL/DIR mode
Cooling	Natural Cooling or Forced cooling
Operating Temperature	-10℃ to 45℃
Protection Features	Over-voltage, over-current, alarm outputs
Environmental Considerations	Avoid dust, oil fog, and corrosive gases

How we compare

Feature	STEPPERONLINE DM542T Digital	Others
Control Technology	Advanced DSP digital control, anti-resonance	Basic analog or simpler digital control, limited features
Microstepping Resolution	Up to 1/128 for ultra-smooth motion	Typically 1/2, 1/4, or 1/8 microsteps
Peak Current Output	Selectable 1.0A to 4.2A	Fixed lower current ratings, less flexibility
Protection Features	Over-voltage, over-current, alarm outputs	Basic or no integrated protection circuits
Cost per Ampere	₹1,584 per amp (peak)	Varies, often higher for comparable specs (e.g., ₹1500-3000 for basic drivers)

SKU	sqd5781
GTIN	0714485410482
Brand	STEPPERONLINE
Model Number	DM542T
Color	Black
Material	Copper
Item Weight	210 g (7.4 oz)

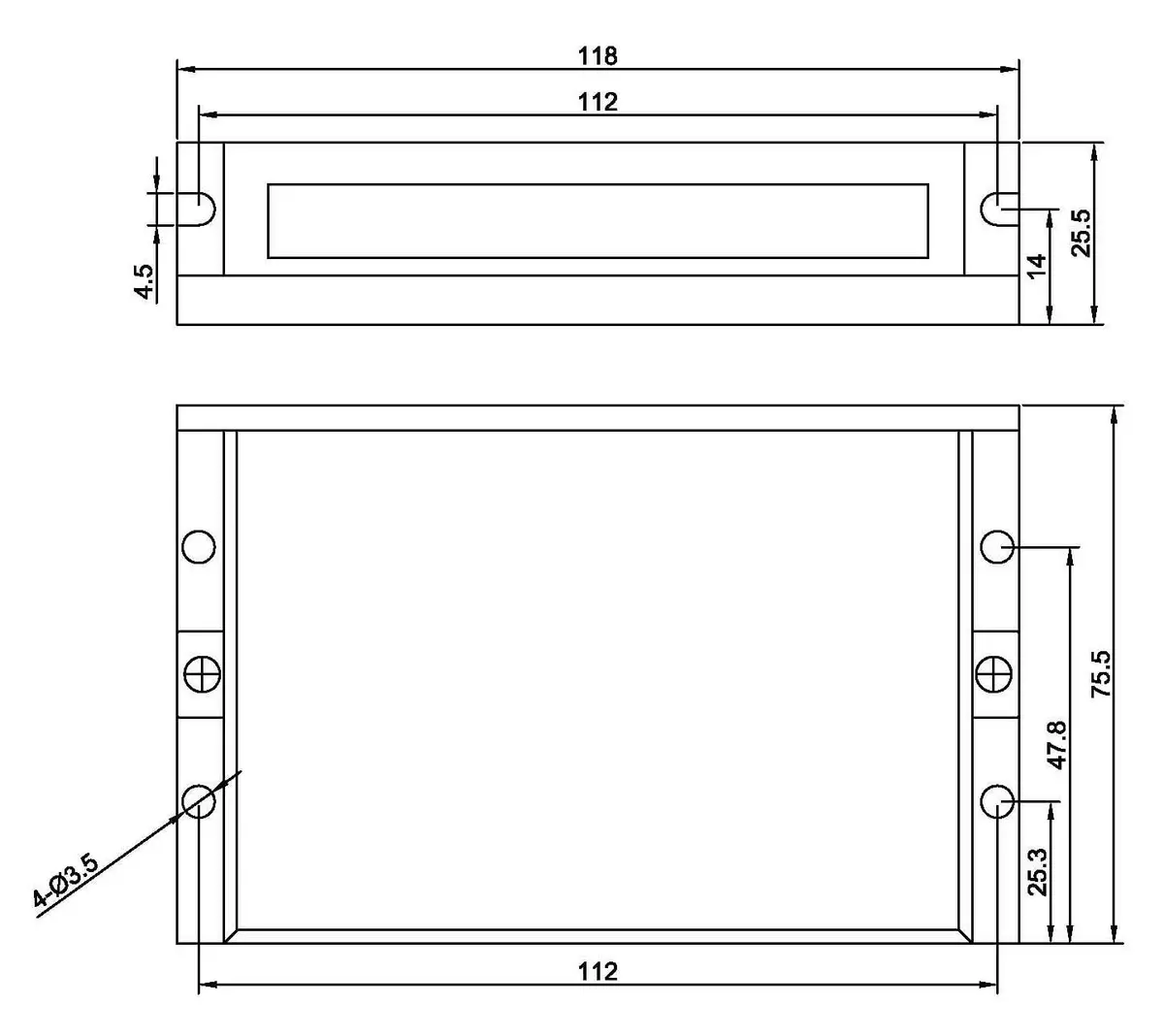

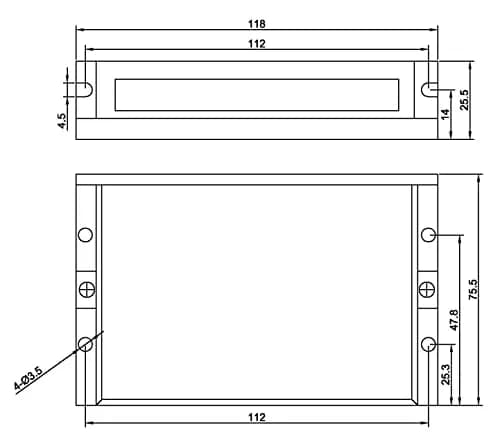

Dimensions (L x W x H)	118 x 75.5 x 25.5 mm (4.64 x 2.97 x 1 inches)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
