| SKU | mnr4904 |
| GTIN | 0687927982994 |
| Brand | Square D |
| Model Number | 9013FHG12J52M1X |
| Product Type | Electromechanical Pressure Switch |
| Application | Control small electrically driven air compressors |
| Controlled Fluid | Air (-22 to 257 °F) |
| Adjustable Range (Rising Pressure) | 70-150 psi |
| Approximate Adjustable Differential | 30 psi |
| Setting (Off at) | 125 psi |
| Destruction Pressure | 220 psi |
| Pressure Actuator | Diaphragm |
| Scale Type | Fixed differential |
| Local Display | Without |
| Contacts Type | 2 NC, snap action, DPST-DB, Form YY |
| Cable Entry Number | 2 x 0.88 in |
| Electrical Connection | Screw-clamp terminals (10 AWG / 5.261 mm²) |
| Fluid Connection Type | 0.25 inch NPSF internal |
| Short Circuit Protection | 20 A by cartridge fuse, type gG |
| Material (Diaphragm) | Nitrile (Buna-N) or equivalent rubber |
| Material (Flange) | Zinc plated steel or equivalent |
| Material (Cover) | Noryl thermoplastic resin or equivalent |
| Operating Position | Any position |
| Motor Power Rating | Up to 3 hp (2.2 kW) at 230V AC, 3-phase |
| Electrical Durability | 100,000 cycles at 10 cyc/mn |
| Mechanical Durability | 300,000 cycles |
| Terminal Block Type | 4 terminals |
| Operating Rate | 10 cyc/mn |
| Rated Insulation Voltage | 575 V (UL 508) |
| Product Weight | 0.42 kg (0.93 lb) |
| Repeat Accuracy | +/- 3 % |
| Country of Origin | Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners |
This item:

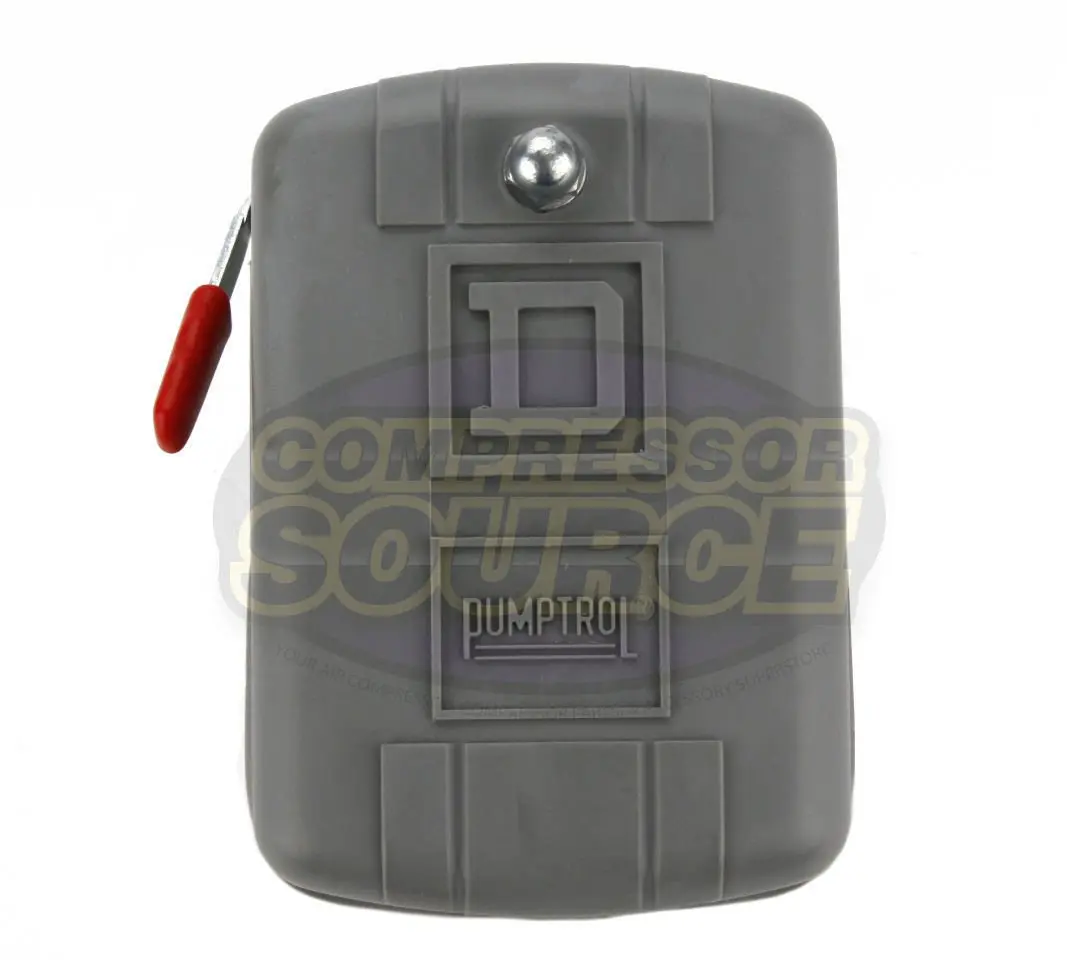

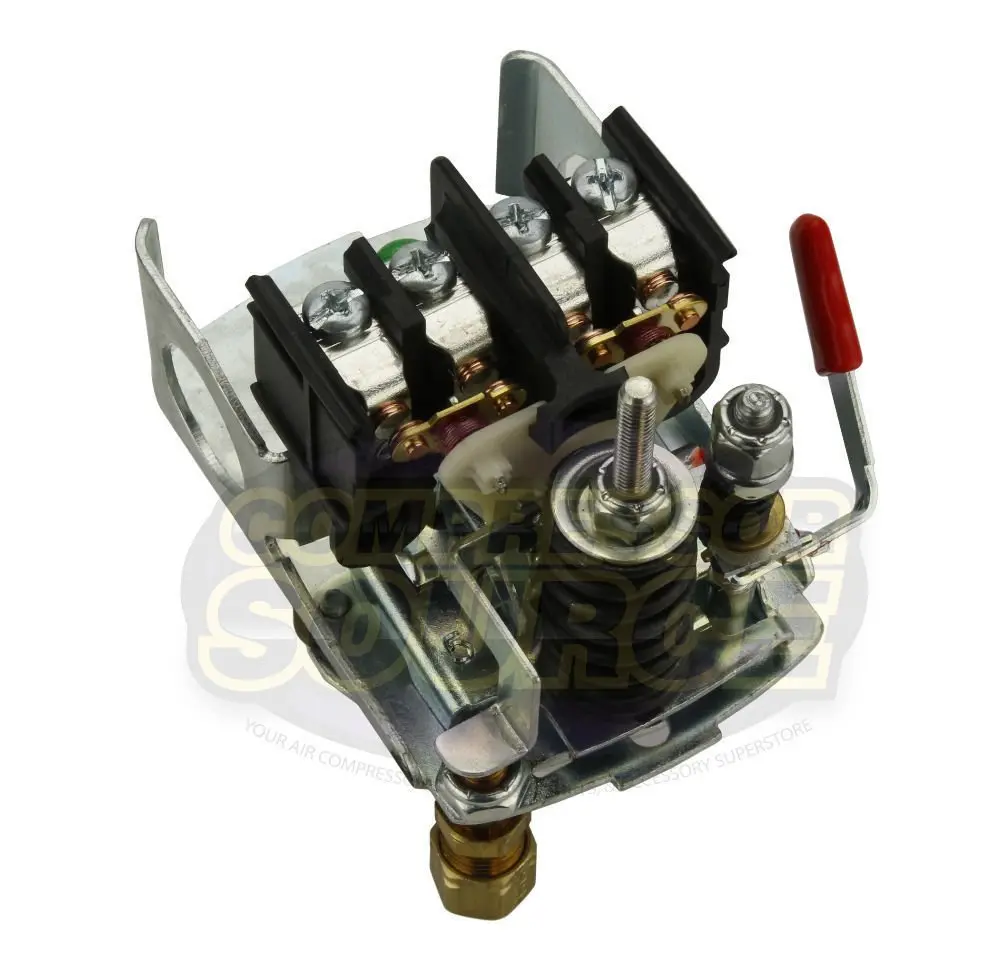

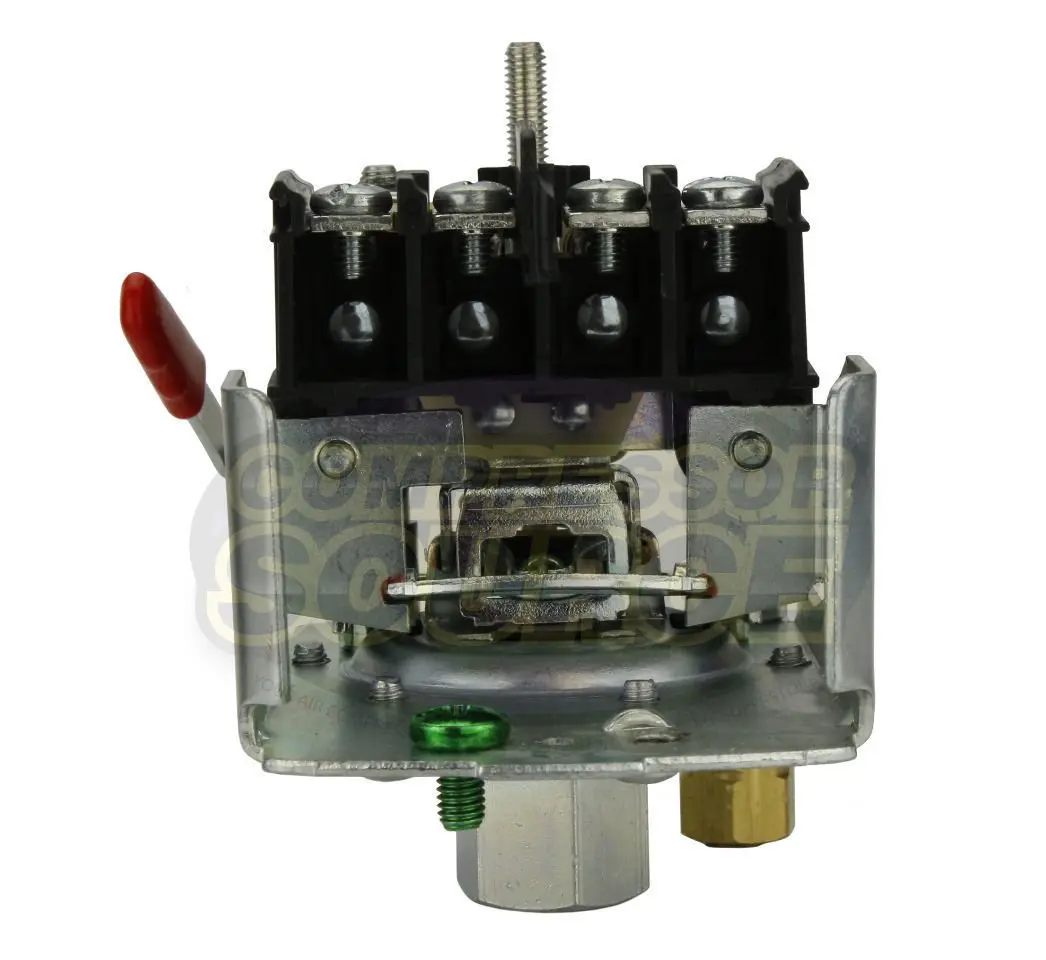

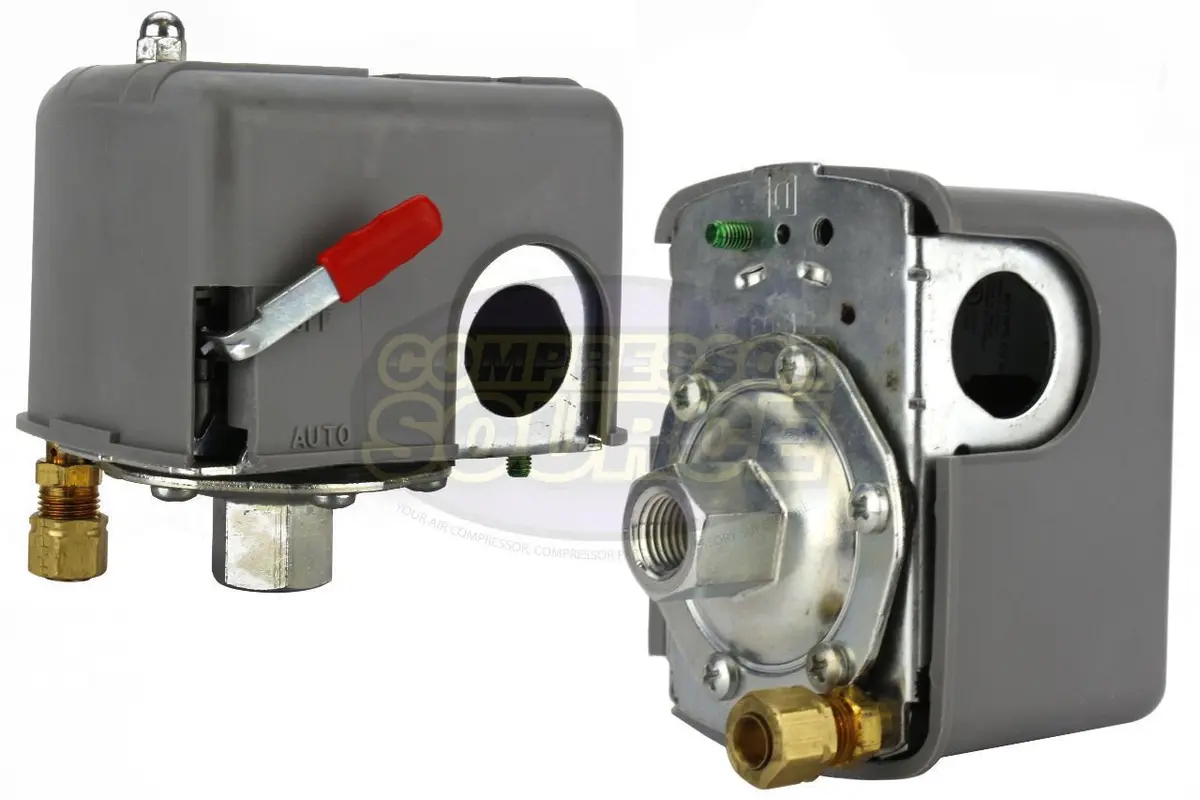

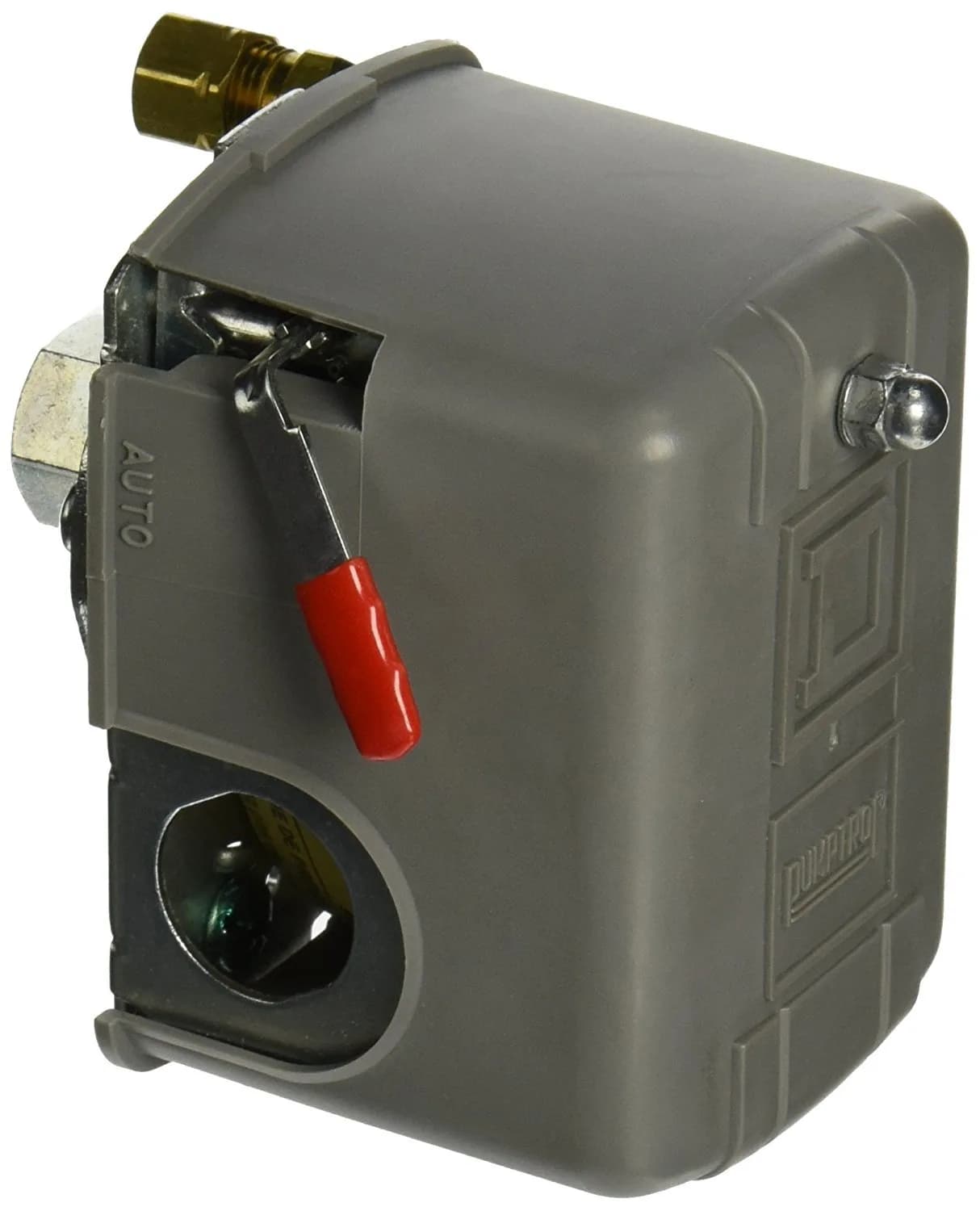

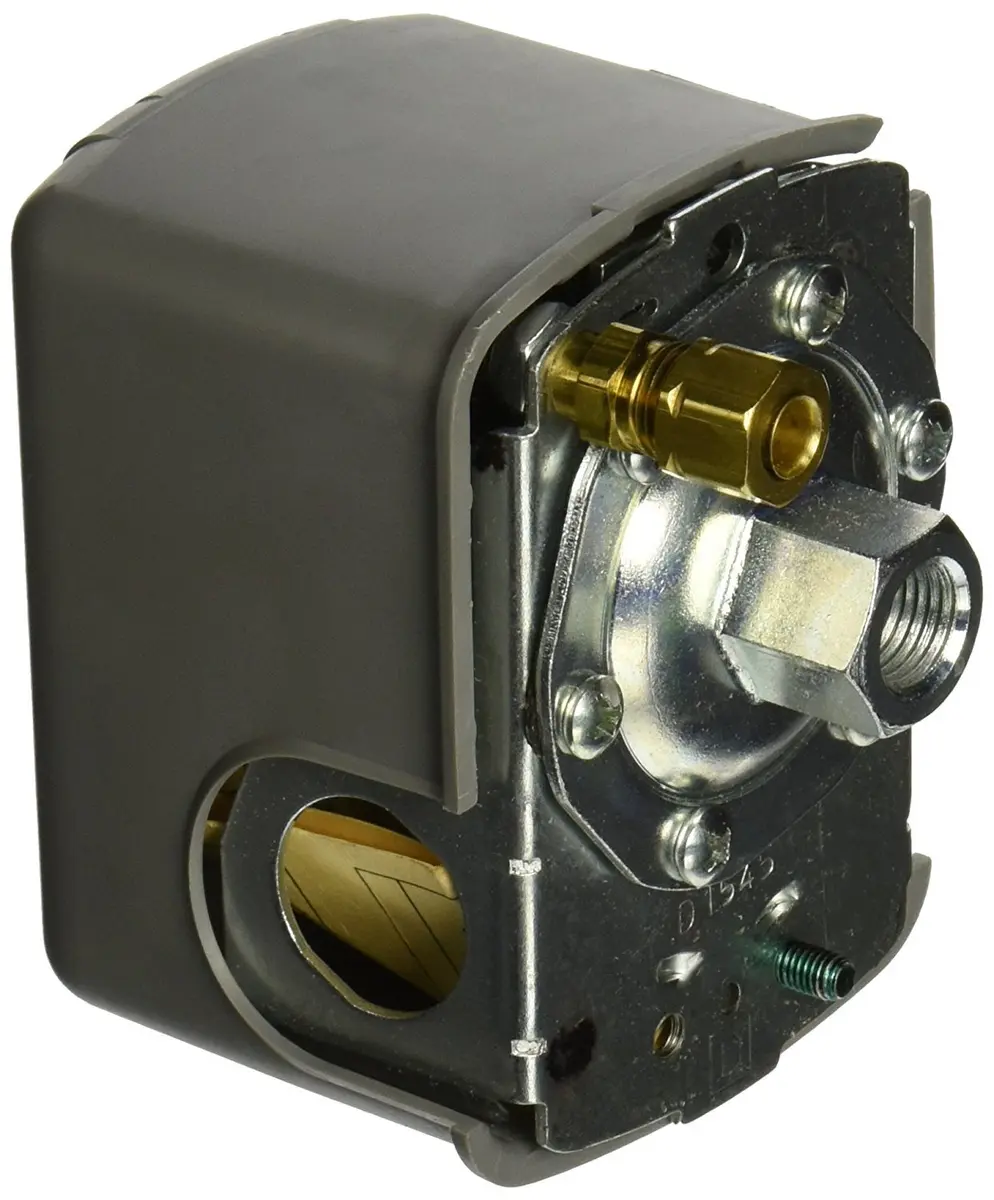

Square D Pumptrol 9013FHG12J52M1X Pressure Switch 95-125 psi | Electromechanical Regulation for Air Compressors
8,923
This item
Square D Pumptrol 9013FHG12J52M1X Pressure Switch 95-125 psi | Electromechanical Regulation for Air Compressors
8,923
Total price:
14,064
You save 11,475 (45%) Extra3 items selected
3 items
14,064You save 11,475 (45%) Extra
Why shop with us
One price. One payment. No surprises.
High risk
Buying Direct
Crowcrowcrow
Safe Lane
Ensure Reliable Air Compressor Control
The Square D Pumptrol 9013FHG12J52M1X pressure switch offers reliable control for small electrically driven air compressors. It operates within an adjustable range of 70-150 psi, with a fixed differential of approximately 30 psi, and is set to turn off at 125 psi. This switch is designed for air applications within a wide temperature range of -22 to 257 °F, ensuring performance in various Indian climates. Its robust construction includes a Nitrile diaphragm and a zinc-plated steel flange, with a durable Noryl thermoplastic resin cover.
Engineered for longevity, this pressure switch boasts 100,000 electrical cycles and 300,000 mechanical cycles. It features 2 NC snap-action contacts (DPST-DB) and screw-clamp terminals compatible with 10 AWG wire. The 0.25 inch NPSF internal fluid connection ensures secure integration into your compressed air system. UL 508 listed, it provides short circuit protection up to 20 A via cartridge fuse.
Imported for Indian customers, this Square D switch ensures consistent performance for your air compressor needs. It is designed for any position mounting and includes an unloader and an on/off lever for user convenience. While local alternatives may offer basic functionality, this genuine Square D component provides verified durability and precise control, backed by international manufacturing standards.
Engineered for Industrial Performance
This Square D Pumptrol pressure switch is built for demanding industrial applications, offering precise electromechanical regulation for air compressors. Its robust design, featuring a Nitrile diaphragm and zinc-plated steel flange, ensures durability and longevity, even in challenging operating conditions. With a proven track record of 100,000 electrical cycles and 300,000 mechanical cycles, it provides reliable performance. The switch operates within a 95-125 psi range, with an adjustable differential of 30 psi, and is UL 508 listed for safety. Imported directly from authorized US retailers and partners, it guarantees authentic quality for your critical systems.
Who It's For vs. Who Should Skip It
Ideal for workshops, small manufacturing units, and industrial settings in India requiring precise control over air compressor pressure. It's perfect for users needing a durable, reliable switch with an integrated unloader and on/off lever for easy operation. Skip if you require a digital display or advanced smart features; this is a purely electromechanical solution. Also, ensure your system's pressure requirements fall within the 70-150 psi adjustable range and that the 0.25 inch NPSF connection is compatible with your existing plumbing.
Typical situations where Square D Pumptrol 9013FHG12J52M1X Pressure Switch 95-125 psi | Electromechanical Regulation for Air Compressors helps — illustrative scenarios, not customer reviews.
A small workshop in Delhi needs a reliable pressure switch for their air compressor that operates consistently in high ambient temperatures.
The Square D Pumptrol switch, rated for -22 to 257 °F, ensures stable operation even during hot Indian summers. Its robust construction and UL 508 listing provide dependable performance for continuous use.
An industrial facility in Pune requires a durable pressure switch with precise control for their pneumatic systems, but local options have short lifespans.
This Square D switch offers 300,000 mechanical cycles and a 0.25" NPSF connection, ensuring long-term reliability and precise pressure regulation. Imported from the USA, it guarantees authentic quality and performance.
| Diaphragm Material | Nitrile (Buna-N) or equivalent rubber |
| Flange Material | Zinc plated steel or equivalent |
| Cover Material | Noryl thermoplastic resin or equivalent |
| Directions | Install vertically or horizontally, ensuring fluid connection is secure. Wire according to UL 508 standards. Adjust pressure settings as needed for compressor operation. |
| Frequency of Use | Designed for continuous operation at up to 10 cycles per minute. |
| Age Range | Not applicable (industrial equipment) |
| Cost per use | Designed for long-term industrial use — ₹8,923 per unit (This is a durable good, cost per use is not applicable for consumables) |
| Shelf life after opening | Not applicable (durable good) |
| Contraindications | Not suitable for use with liquids other than air, or fluids outside the -22 to 257 °F range. Ensure electrical ratings match compressor motor requirements. |
| Allergens / common irritants | Nitrile (Buna-N) rubber may cause reactions in individuals with latex allergies. |
| Feature | Square D Pumptrol | Others |
|---|---|---|
| Brand & Origin | Square D (USA Brand), imported from authorized US retailers | Various Indian brands, typically manufactured locally |
| Pressure Range | Adjustable 70-150 psi, Off at 125 psi | Varies by brand, often 90-120 psi or similar fixed ranges |
| Durability & Cycles | 100,000 electrical / 300,000 mechanical cycles | Typically lower cycle ratings, variable build quality |
| Fluid Connection | 0.25 inch NPSF internal | May use NPT or BSP threads; adapter often needed for compatibility |
| Certifications | UL 508 listed | May have BIS or other local certifications; verification varies |
About Square D
Square D, a Schneider Electric brand, is a globally recognized leader in electrical distribution and control, known for reliable industrial automation components.
Compliance & Legal
No product-specific compliance warnings identified. Standard imported-goods terms apply: customs duties & GST paid; for personal use in India; follow the manufacturer's usage instructions on the packaging.
