What is this KZNANZN 12V DC Linear Actuator Motor?

This is a 12V DC electric linear actuator motor designed for DIY projects, providing an adjustable reciprocating stroke from 12mm to 20mm at speeds up to 150 RPM. It's built with a sturdy aluminum alloy bracket and steel axle, suitable for applications like shale shakers and experimental setups. Imported from authorized US retailers and partners, it ensures authentic performance for your builds.

How do I adjust the stroke length?

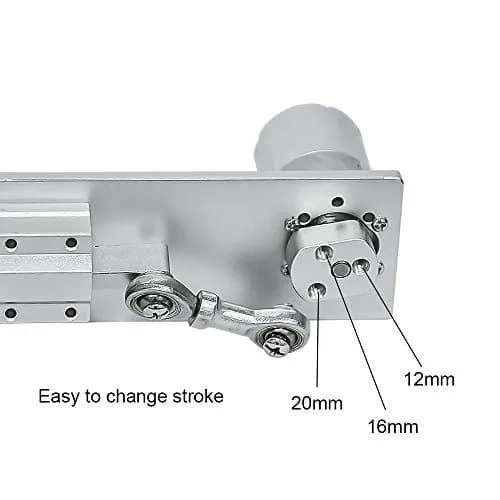

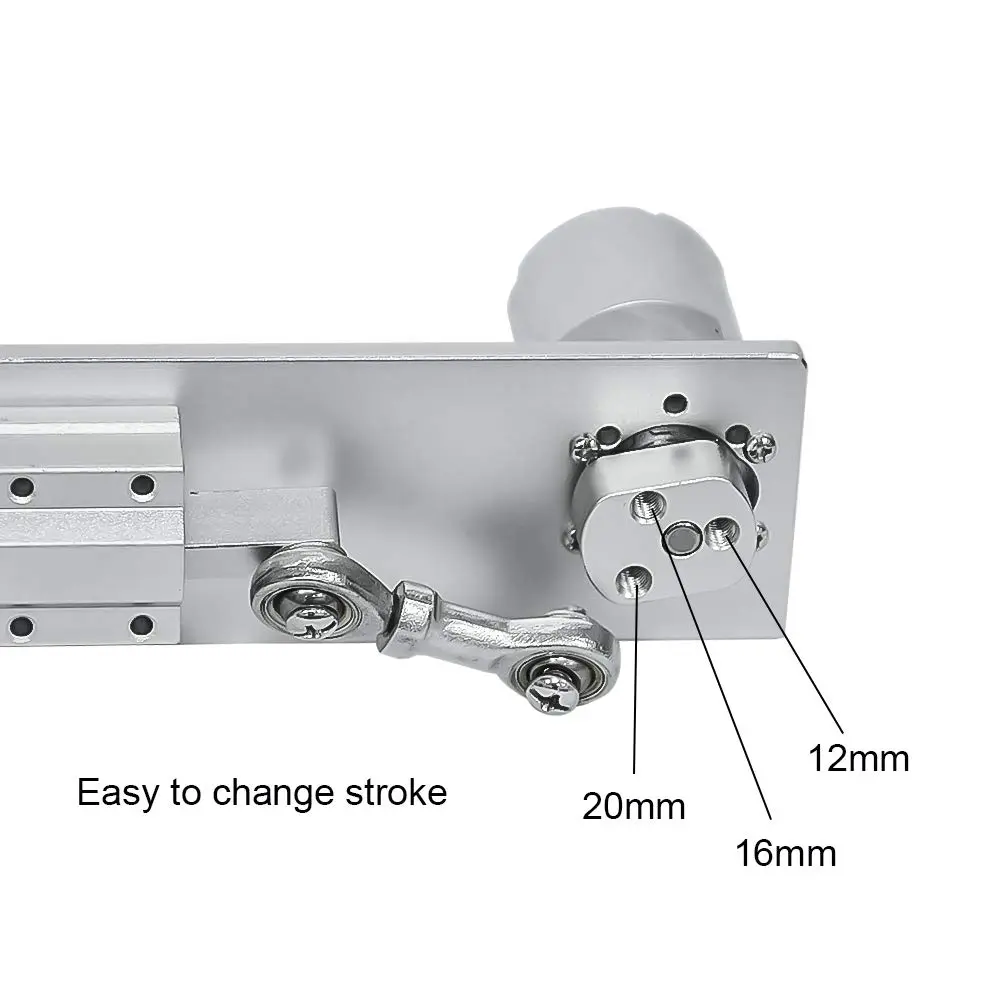

The stroke length can be adjusted between 12mm, 16mm, and 20mm. The 20mm stroke is the default setting. You can adjust it yourself using the provided stroke adjustment spanner, making it versatile for various DIY project requirements.

What are the recommended applications for this linear actuator?

This actuator is widely used for DIY projects and experimental setups, including shale shakers, vibrating screens, incense machines, squirt machines, spraying machines, pellet machines, particle-making experiments, and lifespan lab testing. Its reciprocating motion is ideal for cyclical tasks.

Is this linear actuator suitable for high-load applications?

No, this actuator has limited force at higher speeds (>100rpm). Exceeding the maximum load capacity can break the gearbox. It is designed for specific DIY and experimental applications where precise, controlled motion is needed, not for heavy-duty industrial loads.

How do I maintain the linear actuator?

The steel axle requires regular lubrication with oil or grease to keep the axle temperature below 90 degrees Celsius and ensure proper wetness. This maintenance is crucial for the longevity and performance of the actuator.

Can I control the speed of this linear actuator?

Yes, you can control the speed by adding a PWM DC motor speed controller. This allows for finer adjustments to the motor's speed, which can also help manage noise levels and operational force.

Is this electric motor safe for use in India?

Yes, this 12V DC electric motor is safe for use in India with a compatible 12V DC power supply. All customs duties and GST are included in the price, and it is delivered via ExpressBox tracked shipping within 12-14 days.

KZNANZN 12V DC Linear Actuator Motor 20mm Stroke | Adjustable DIY Reciprocating Cycle Motor

Name: KZNANZN 12V DC Linear Actuator Motor 20mm Stroke | Reciprocating Cycle Motor with Adjustable Stroke
Brand: KZNANZN
SKU: xkk3183
Price: 16094.00 INR
Availability: InStock

About this item

The KZNANZN 12V DC Linear Actuator Motor is engineered for DIY reciprocating cycle applications, offering an adjustable stroke from 12mm to 20mm with a no-load speed of 150 RPM. Its robust aluminum alloy bracket and steel axle ensure durability for tasks like shale shakers, vibrating screens, and laboratory testing. This motor is imported from authorized US retailers and authorized brand partners, ensuring authenticity for your projects.

This motor's output axle speed is non-uniform due to the rotating lump's gravity effect; speed is faster at higher RPMs, leading to increased noise. For precise speed control, a PWM DC motor speed controller can be added. Regular lubrication of the steel axle is crucial to maintain performance and prevent overheating. Please operate within the specified load limits to avoid gearbox damage; clear all barriers before operation.

While local alternatives may offer basic linear motion, this KZNANZN actuator provides specific adjustable stroke functionality and a reliable 12V DC input, suitable for experimental and custom builds. All customs duties and GST are included in the price, with delivery via ExpressBox tracked to your Indian pincode within 12-14 days.

Key Features

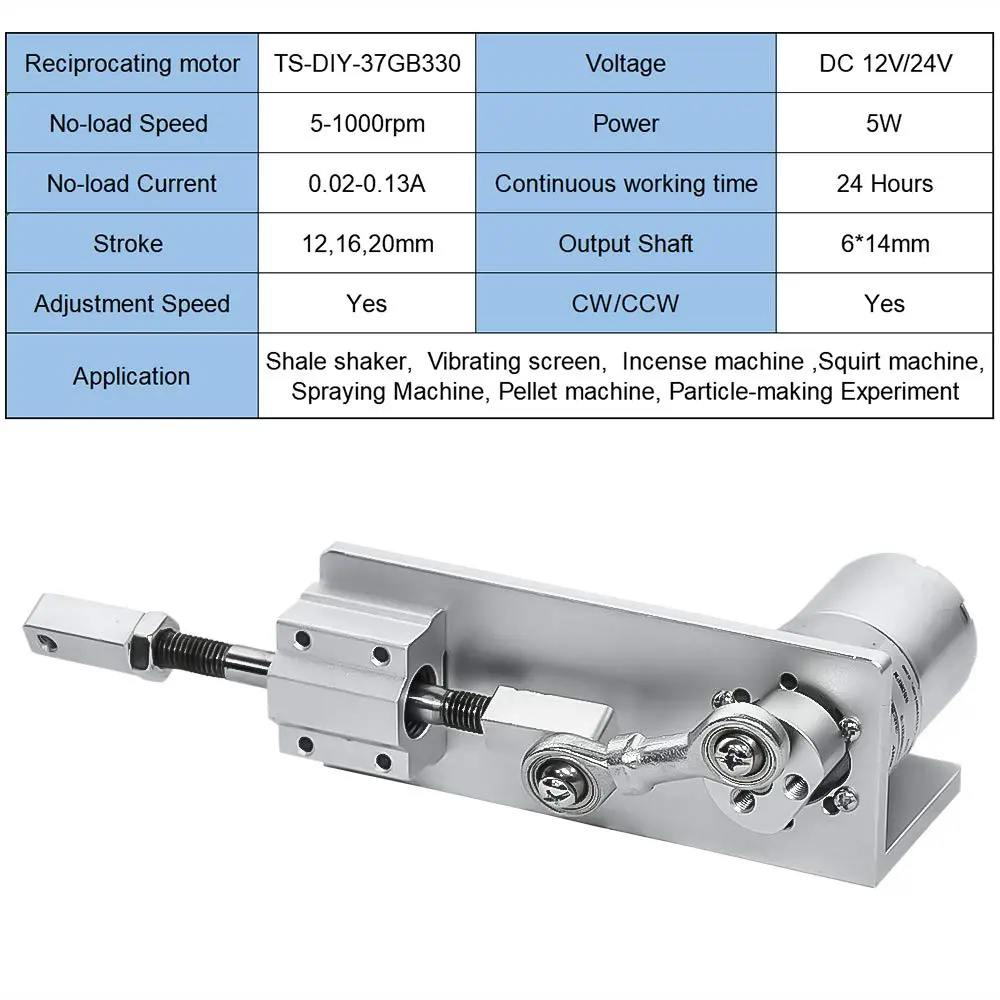

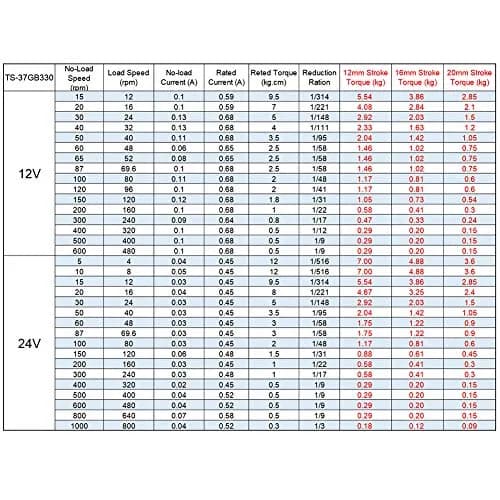

Type: 37GB330 DIY Design Reciprocating Cycle Linear Actuator Motor
Voltage: 12V; No-load Speed: 150RPM; Rated Speed : 120 RPM; Stroke: 12mm 16mm 20mm ( 20mm in default, 12/15mm can be adjusted easily )

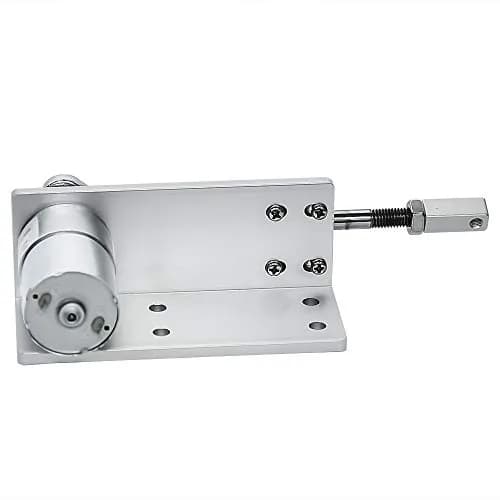

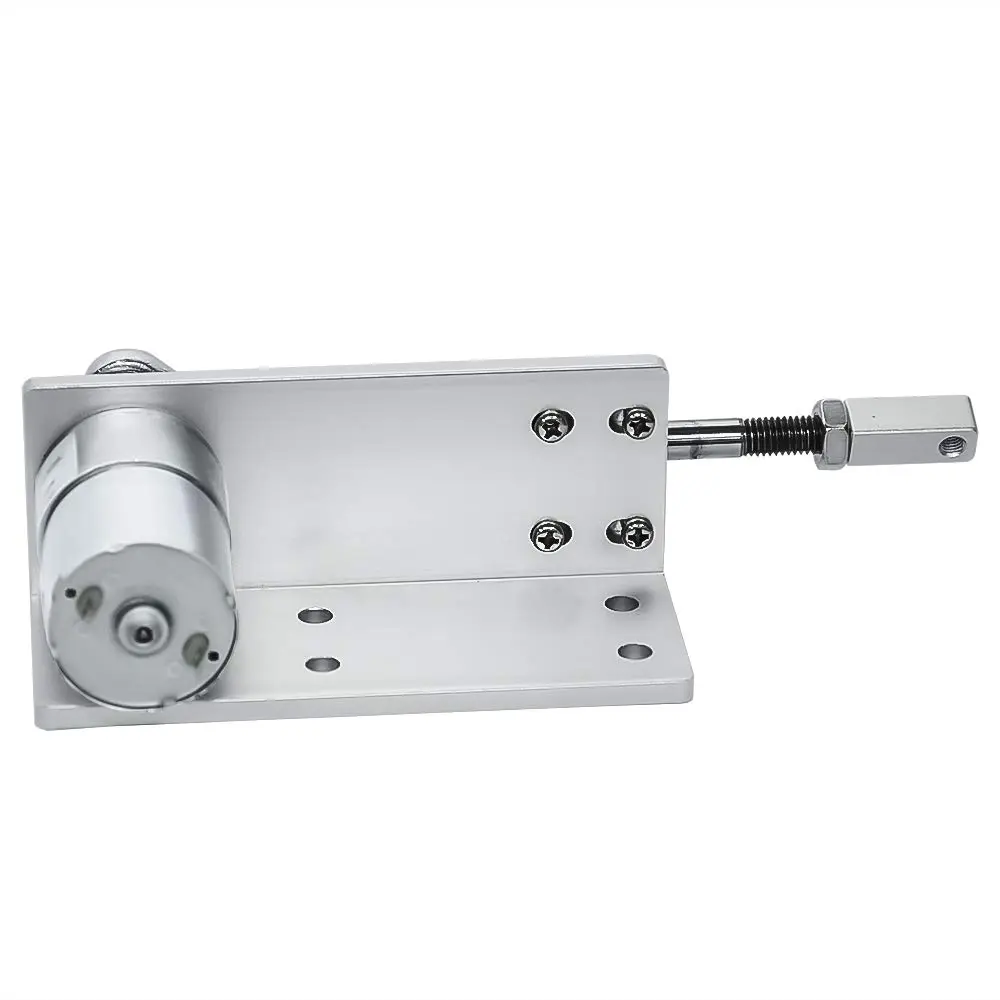

Bracket Made of Aluminum alloy, very sturdy construction inside and outside. The outside shell is well build and has excellent access to mounting screws.
Widely use for Shale shaker, Vibrating screen, Incense machine Squirt machine, Spraying Machine, Pellet machine, Particle-making Experiment, Lifespan lab testing and so on
Package Listing: 1unit x Reciprocating Cycle Linear Actuator Motor

Why choose this product

Engineered for Precision DIY Motion

This KZNANZN linear actuator is designed for creators and engineers needing specific, adjustable reciprocating motion. Unlike generic motors, it offers variable stroke lengths and a clear operational protocol. Its robust construction ensures it can handle the demands of experimental setups and custom machinery, providing a reliable component for your innovative projects. Imported from authorized US retailers and authorized brand partners, it guarantees authentic specifications for your build.

Ideal for Experimental & Custom Builds

This actuator is perfect for users building custom machinery, experimental rigs, or specific automation tasks requiring precise linear movement. It is best suited for those who understand the need for regular lubrication and can manage variable speeds and noise levels. Skip if you require a silent, perfectly uniform speed, or high-load capacity without careful operational management; consider a different motor type if your application demands absolute precision or is sensitive to noise.

How to use

Mount the Actuator Securely — Attach the actuator using its sturdy aluminum alloy bracket to your project base. Ensure all mounting screws are tightened and the actuator is positioned to allow for full stroke movement without obstruction.
Connect Power Supply — Connect a stable 12V DC power source to the actuator's terminals. Ensure the power supply can provide at least 0.68A rated current. For speed control, connect a PWM controller between the power supply and the actuator.
Adjust Stroke and Lubricate — Use the provided spanner to set the desired stroke length (12mm, 16mm, or 20mm). Apply light machine oil or grease to the steel axle regularly to maintain optimal temperature and performance.
Test Operation and Monitor — Clear any barriers around the moving parts. Operate the motor and monitor for noise and smooth movement. Avoid exceeding load limits to prevent gearbox damage. Adjust speed via PWM controller if needed.

Example scenarios

Typical situations where KZNANZN 12V DC Linear Actuator Motor 20mm Stroke | Reciprocating Cycle Motor with Adjustable Stroke helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Building a custom vibrating screen for particle separation in a small workshop.

How this product helps

This KZNANZN actuator provides the necessary reciprocating motion with an adjustable stroke to fine-tune the vibration frequency and amplitude for optimal particle sorting. Its 12V DC operation is easy to integrate with standard power supplies.

Scenario 2

Illustrative example

Where it helps

Developing a prototype for a lifespan lab testing device requiring consistent cyclical movement.

How this product helps

The actuator's adjustable stroke and 150 RPM speed allow for precise control over the testing cycle. Regular lubrication ensures consistent performance over extended test durations, crucial for reliable experimental data.

Specifications

Usage

Applications	Shale shaker, Vibrating screen, Incense machine, Squirt machine, Spraying Machine, Pellet machine, Particle-making Experiment, Lifespan lab testing
Power Requirement	Requires a 12V DC power source (not included)
Speed Control	Can be controlled with a PWM DC motor speed controller
Maintenance	Steel axle requires regular lubrication (oil/grease) to maintain temperature below 90°C and ensure wetness.
Warning	Higher speeds (>100rpm) have reduced force; exceeding maximum load can break gearbox. Clear all barriers before operation. Not for applications requiring uniform speed or quiet operation.

How we compare

Feature	KZNANZN 12V DC	Others
Stroke Adjustment	Adjustable 12mm-20mm with included spanner	Fixed stroke lengths, often requiring separate purchase for different needs
Speed Control	Variable speed (150 RPM no-load), controllable via PWM	Typically fixed speed motors, limited adjustment options
Construction Material	Aluminum alloy bracket, steel axle	Varies; some may use lower-grade steel or plastic components
Application Suitability	DIY, experimental, shale shaker, lab testing	General purpose motors, may lack specific reciprocating features
Cost per Use	N/A (Durable component)	N/A (Durable component)

SKU	xkk3183
GTIN	0663591407780
Brand	KZNANZN
Model Number	1

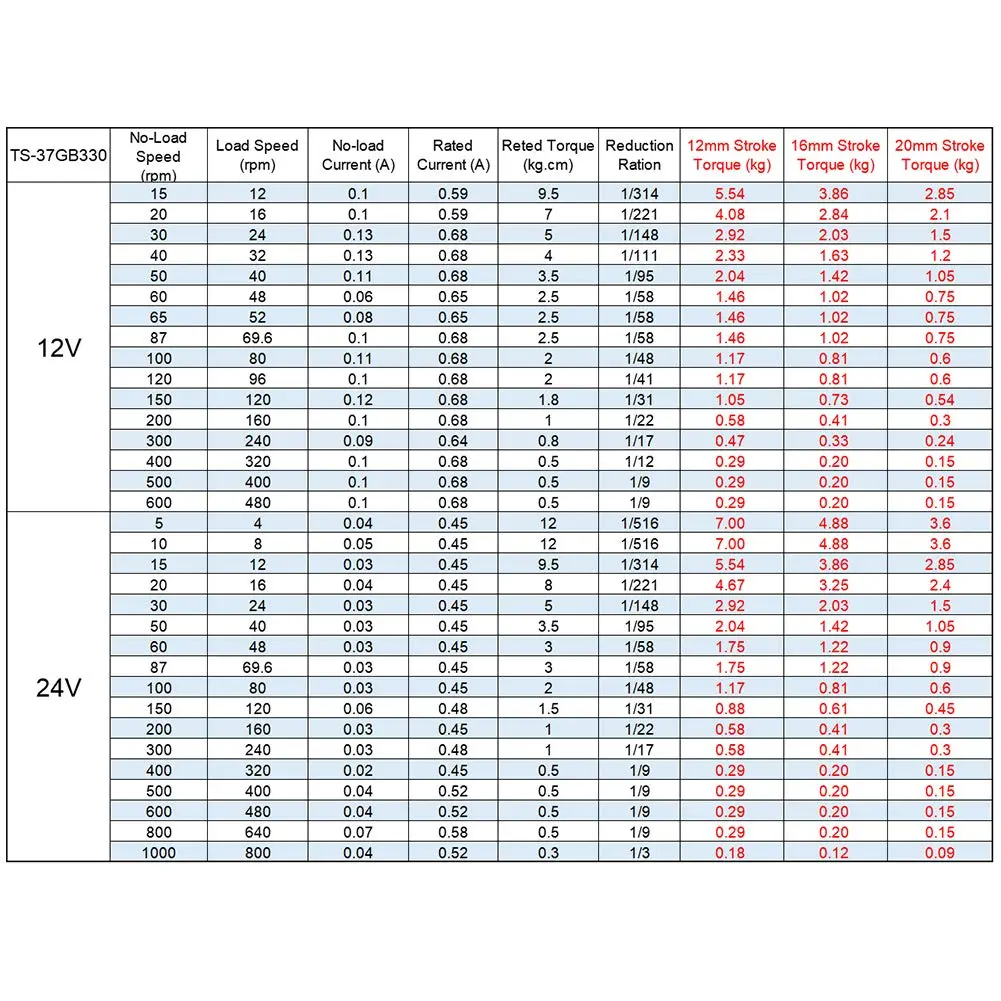

Voltage	DC 12V
No-load Speed	150 RPM
Rated Speed	120 RPM
Rated Current	0.68 A
Stroke Length	Adjustable: 12mm, 16mm, 20mm (20mm default)
Material	Aluminum Alloy Bracket, Steel Axle
Package Weight	0.594 kg (1.31 lb)

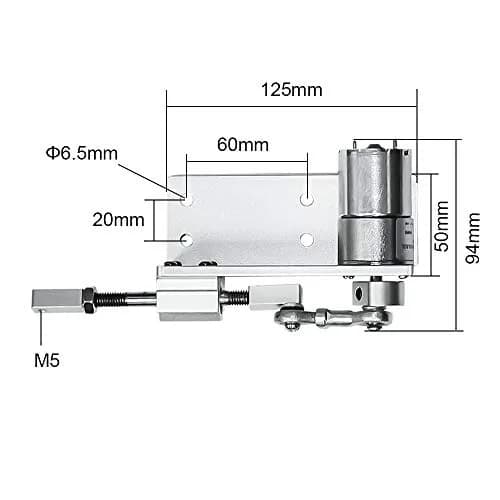

Package Dimensions	21.3 cm x 12.6 cm x 8.6 cm (8.39 in x 4.96 in x 3.39 in)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
