What is the RIVERWELD Bridge Cam Gauge used for?

The RIVERWELD Bridge Cam Gauge is used for precise inspection of welded joints. It measures key parameters like angle of preparation, excess weld metal, depth of undercut, depth of pitting, fillet weld throat size, fillet weld length, and misalignment, ensuring welds meet quality standards.

What is the measuring range of this welding gauge?

This gauge measures up to 50mm (approximately 2 inches) in both metric and inch units. It is designed for common weld inspection tasks where these dimensions are critical.

Is this welding gauge accurate?

Yes, the RIVERWELD Bridge Cam Gauge has a stated measurement accuracy of +/-0.5%, providing reliable readings for critical weld inspections. Its stainless steel construction ensures consistent performance.

Can I use this gauge for digital measurements?

No, this is an analog gauge with clear markings for metric and inch measurements. It does not have a digital display or require batteries, making it a reliable tool in any workshop environment.

How to choose a welding inspection gauge in India?

When choosing a welding inspection gauge in India, consider the material (stainless steel is durable), measurement range (up to 50mm or 2 inches is common), accuracy (+/-0.5% is standard), and whether you need metric, inch, or dual readouts. Ensure the gauge can measure the specific parameters critical for your welds, such as fillet weld size and undercut depth.

How to use the RIVERWELD Bridge Cam Gauge?

Place the gauge base firmly on the welded surface. Use the appropriate edge or scale to measure the desired parameter, such as fillet weld throat size, depth of undercut, or angle of preparation. Read the measurement directly from the engraved scales in either millimeters or inches.

What is the benefit of using a stainless steel welding gauge?

Stainless steel construction provides excellent durability, resistance to corrosion, and a stable, non-magnetic surface for accurate measurements. This ensures the gauge lasts longer and maintains its precision even in demanding welding environments.

How to buy an original RIVERWELD Bridge Cam Gauge in India?

To buy an original RIVERWELD Bridge Cam Gauge in India, purchase from authorized importers like crowcrowcrow. We source directly from authorized US retailers and brand partners, ensuring factory-sealed, authentic products with all customs duties and GST included. Delivery is via ExpressBox tracked shipping.

RIVERWELD Bridge Cam Gauge Welding Inspection | Fillet Weld Throat Size, Depth of Undercut, Angle of Prep

Name: RIVERWELD Bridge Cam Gauge Welding Inspection Depth of Undercut & Fillet Weld Size, 50mm (2 Inch) | Stainless Steel
Brand: RIVERWELD
SKU: vdx2998
Price: 3243.00 INR
Availability: InStock

About this item

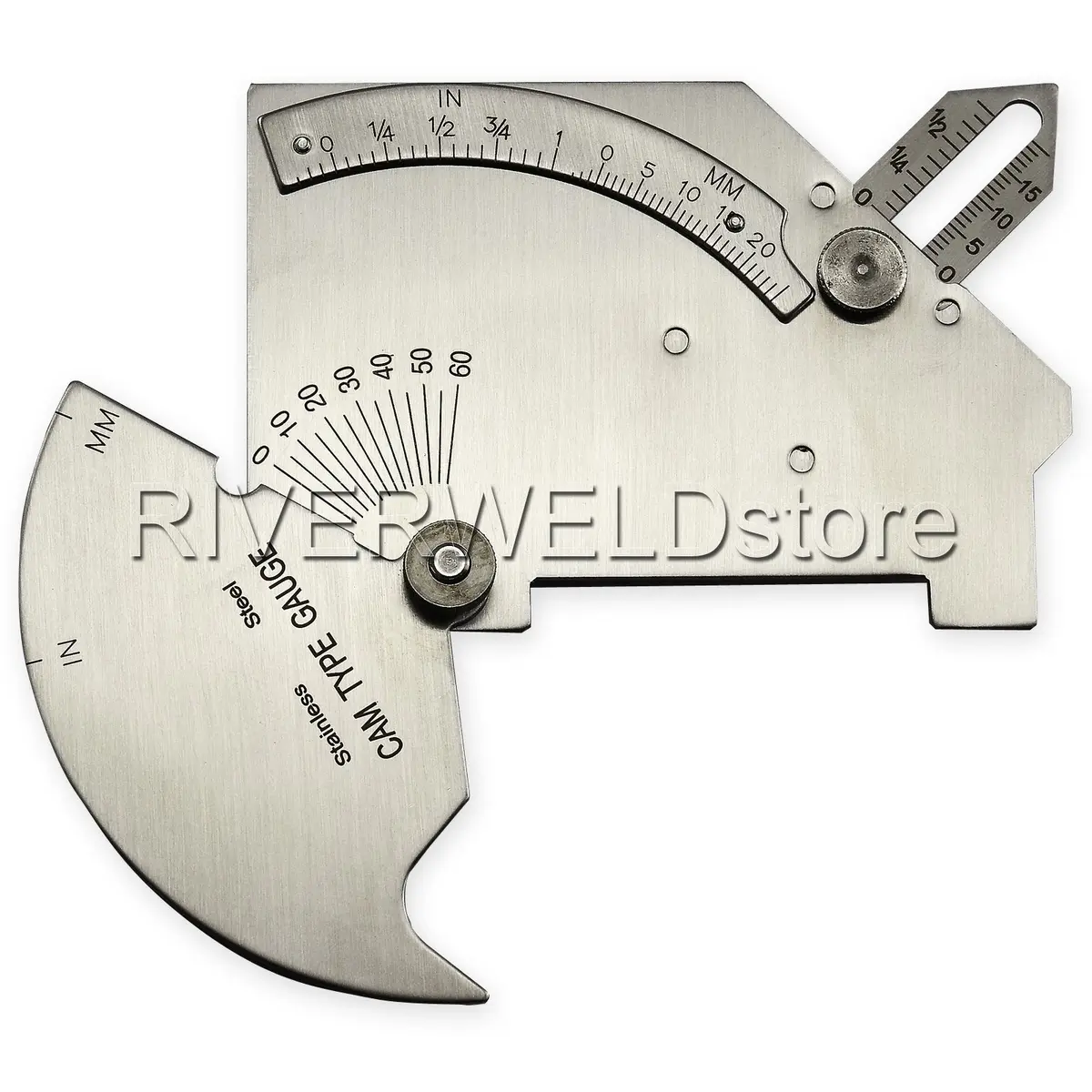

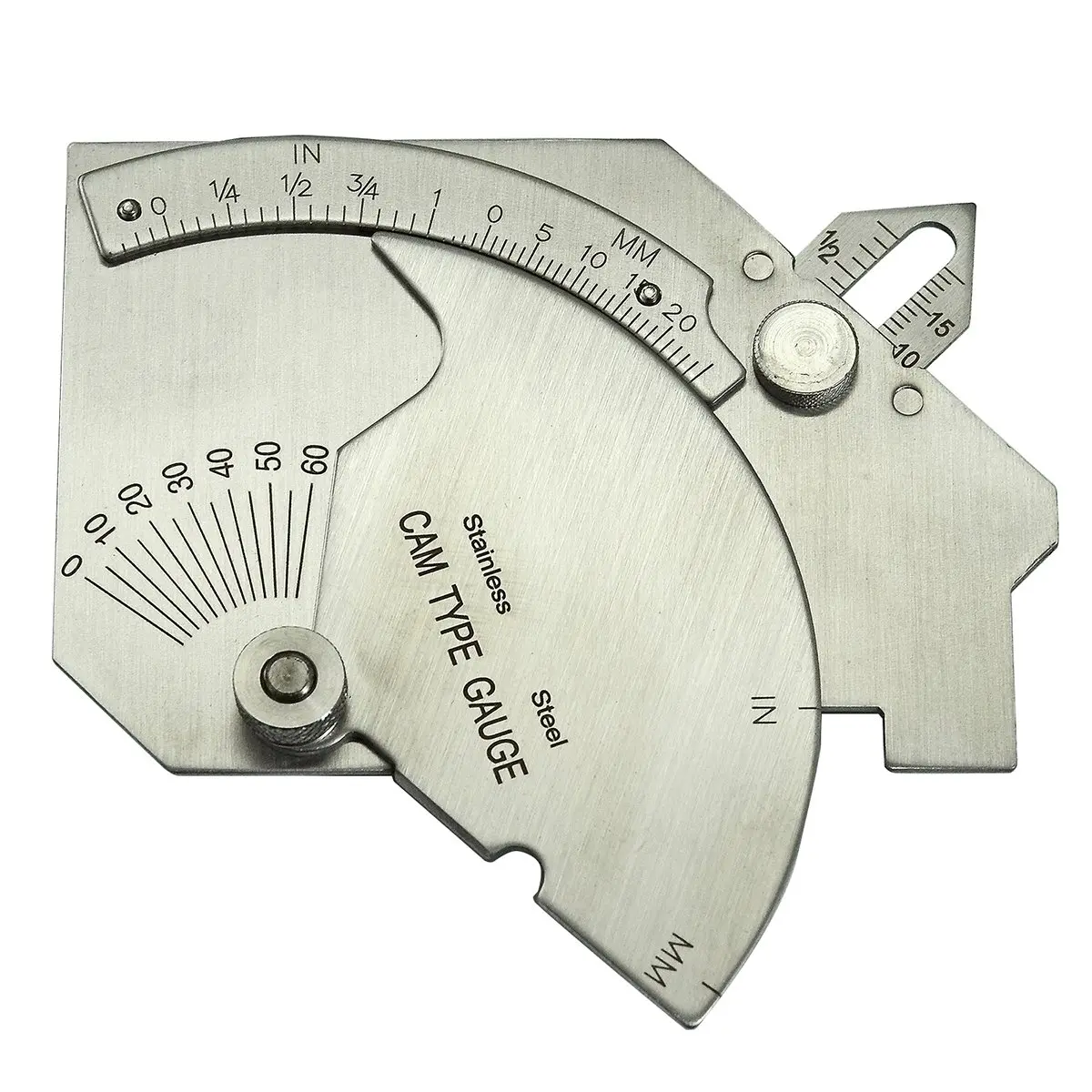

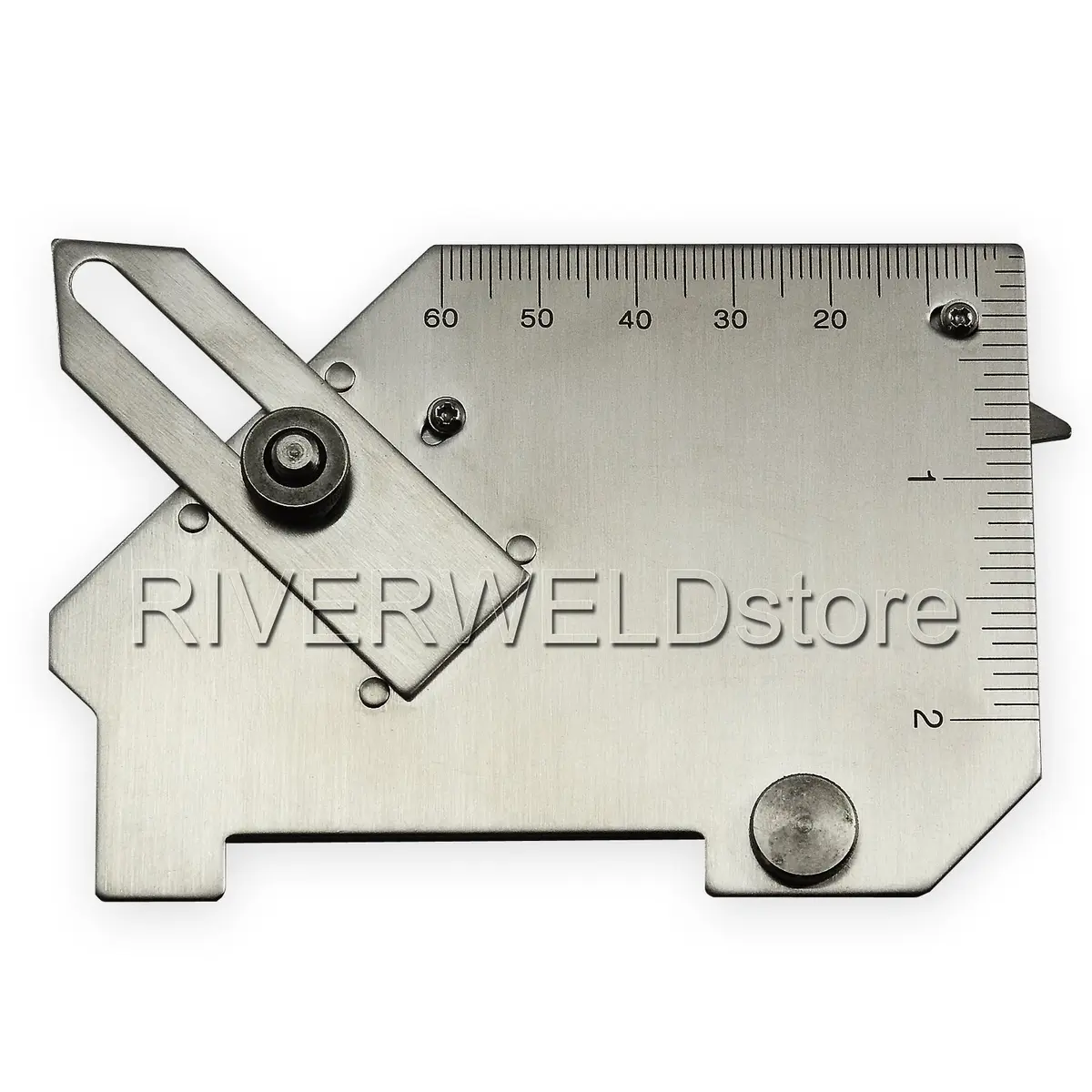

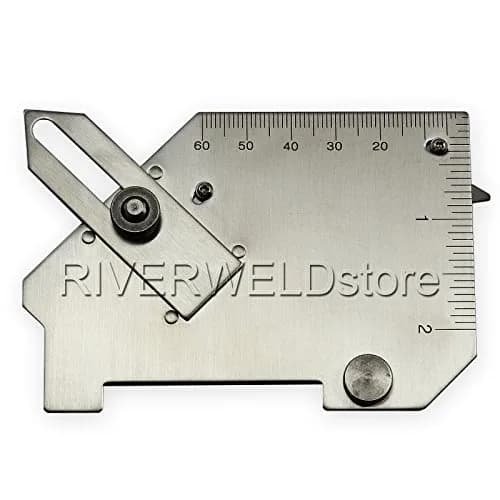

The RIVERWELD Bridge Cam Gauge is an essential tool for welders and inspectors in India, offering precise measurements for critical weld quality parameters. Made from durable stainless steel, this gauge helps ensure welds meet specifications for angle of preparation (0-60°), excess weld metal, depth of undercut, depth of pitting, fillet weld throat size, fillet weld length, and misalignment (high-low). It provides measurements in both metric (up to 50mm) and inch (up to 2 inches) scales, making it versatile for various projects.

This gauge is designed for accuracy, with a measurement accuracy of +/-0.5%. Its robust stainless steel construction ensures longevity even in demanding workshop environments. The clear markings and intuitive design allow for quick and reliable readings, aiding in the consistent production of high-quality welds. It's a practical addition to any welder's toolkit for quality control and compliance checks.

Compared to local alternatives, the RIVERWELD Bridge Cam Gauge offers verified accuracy and durable construction, ensuring reliable performance over time. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping across India. 13-15 days

Key Features

Angle of Preparation, 0° to 60° and Excess Weld Metal (capping size)
Depth of Undercut and Depth of Pitting
Fillet Weld Throat Size and Fillet Weld Length
Misalignment (High-Low)
Made of stainless steel, available in both metric and inch

Why choose this product

Ensuring Weld Integrity with Precision

Weld quality is paramount for structural integrity and safety. The RIVERWELD Bridge Cam Gauge provides the precision needed to verify critical weld parameters, from fillet weld throat size to depth of undercut. Its stainless steel build ensures it withstands workshop conditions, offering reliable measurements project after project. This imported tool brings international standards of accuracy to your Indian projects, ensuring your work meets stringent quality requirements and enhances the overall strength and appearance of your welds.

Who Should Use This Gauge & Who Should Consider Alternatives

This gauge is ideal for professional welders, fabricators, inspectors, and engineers who require accurate measurements of weld geometry. It's perfect for ensuring compliance with welding codes and standards in construction, manufacturing, and repair work. Consider alternatives if your work involves extremely high-precision measurements beyond +/-0.5% accuracy or if you require digital readouts with advanced features like data logging, which this model does not offer. For basic visual weld checks, simpler gauges might suffice, but for critical structural welds, this tool provides essential verification.

How to use

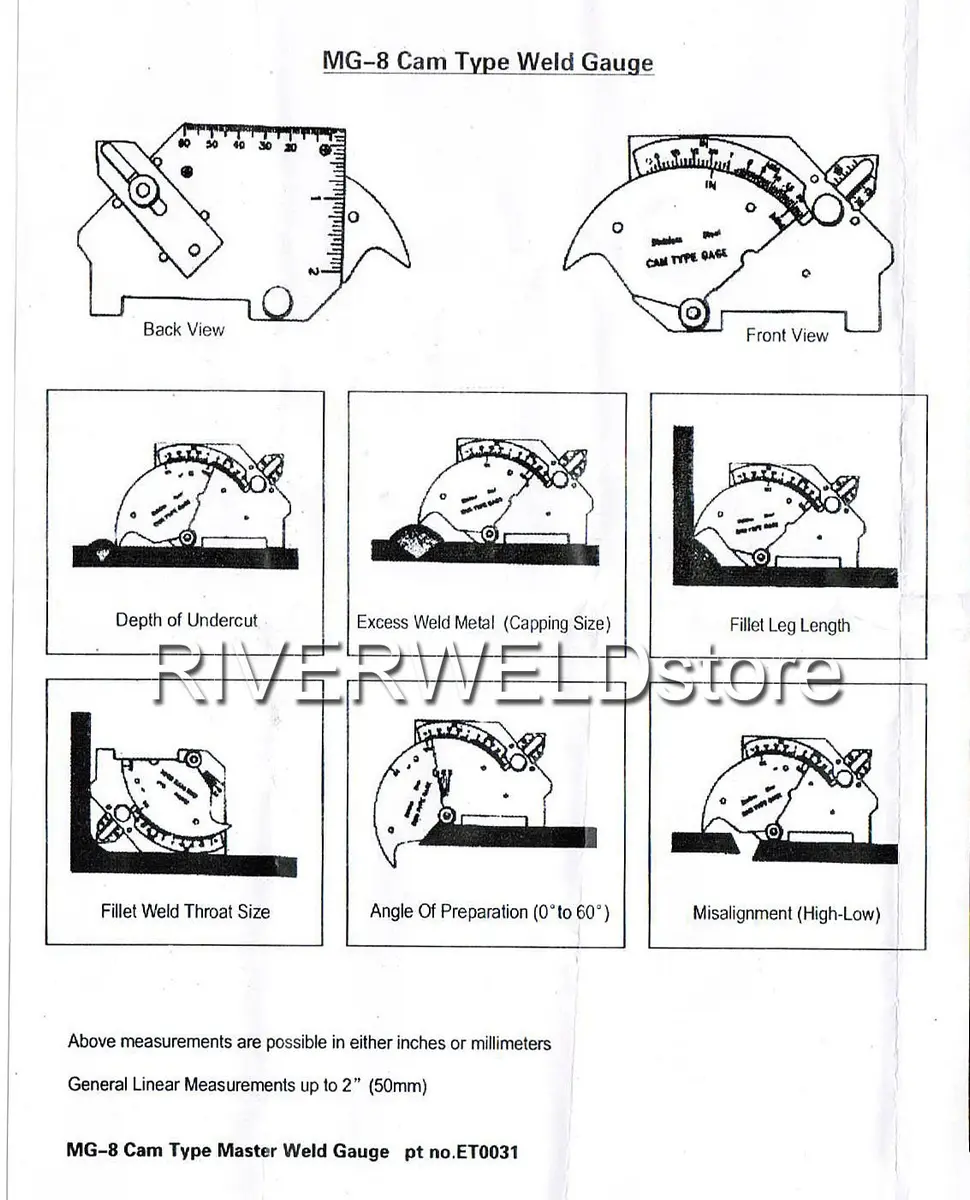

Select Measurement Parameter — Identify the weld feature you need to measure: angle of preparation, excess weld metal, depth of undercut, fillet weld throat size, or misalignment. Choose the corresponding edge or scale on the gauge.
Position the Gauge — Place the base of the gauge firmly on the welded surface. Ensure it sits flat and stable against the weld and the base metal for accurate readings.
Take the Measurement — Align the gauge's measuring edge with the weld feature. Read the measurement directly from the engraved scales, noting whether you are using the metric (up to 50mm) or inch (up to 2 inches) scale.

Example scenarios

Typical situations where RIVERWELD Bridge Cam Gauge Welding Inspection Depth of Undercut & Fillet Weld Size helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A fabrication workshop in Delhi needs to ensure all fillet welds meet structural integrity standards for a new construction project.

How this product helps

Using the RIVERWELD Bridge Cam Gauge, inspectors can quickly verify fillet weld throat size and length, ensuring they meet the required specifications. The dual metric/inch readout accommodates various project drawings, and the durable stainless steel construction withstands daily workshop use.

Scenario 2

Illustrative example

Where it helps

A welding inspector in a coastal region needs to check for undercut depth and pitting on critical pipeline welds, where corrosion resistance is key.

How this product helps

The gauge's stainless steel build resists corrosion in humid environments. Inspectors can accurately measure undercut depth and pitting, crucial for preventing future failures. The clear markings allow for quick checks, ensuring compliance even in challenging field conditions.

Specifications

Composition

Primary Material

Stainless Steel

Usage

Measurement Range	Up to 50mm (2 inches)
Measurement Accuracy	+/-0.5%
Key Measurements	Angle of preparation (0-60°), excess weld metal, depth of undercut, depth of pitting, fillet weld throat size, fillet weld length, misalignment (high-low)
Units	Metric and Inch

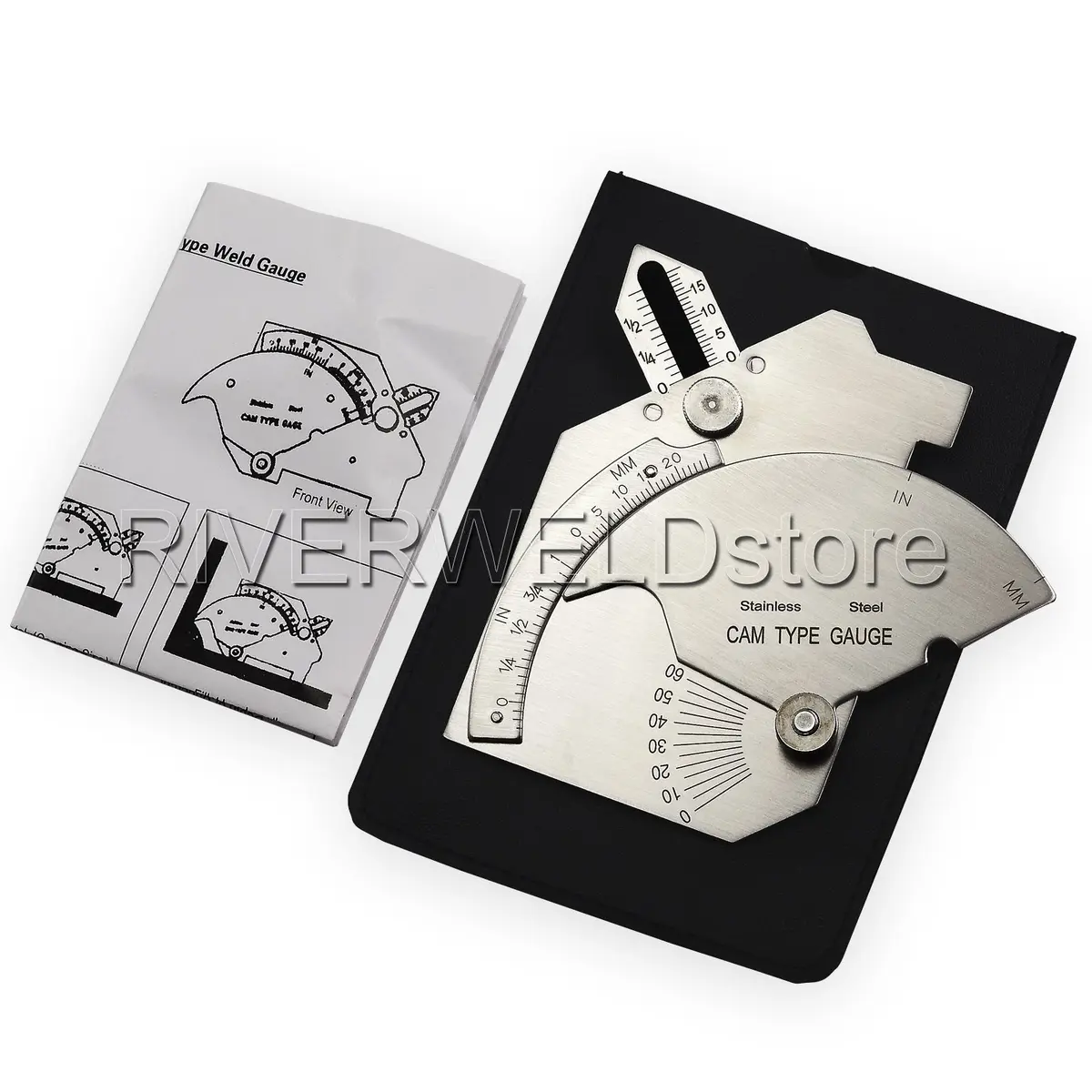

Included Components	MG-8 Bridge Cam Gage Test Ulnar Welding Inspection Gauge
Batteries Required	No
Cost per use	This is a durable tool, not a consumable. Cost per use is negligible over its lifespan.
Shelf life after opening	N/A (Durable tool)
Reapplication math	N/A (Durable tool)
Contraindications	Not suitable for measuring depths beyond 50mm (2 inches) or for non-welding related measurements.
Allergens / common irritants	None

How we compare

Feature	RIVERWELD Bridge Cam	Others
Material	Hardened Stainless Steel	Varies; often plated steel or aluminum, less durable
Measurement Range	Up to 50mm (2 inches)	Typically 0-150mm or 0-200mm, but often less precise at smaller weld features
Accuracy	+/-0.5%	Varies; often +/-1% or less precise for small features
Key Measurements	Angle, excess weld, undercut depth, pitting depth, fillet throat/length, misalignment	May focus on fewer parameters or lack specific weld checks
Units	Metric & Inch	Often metric only, or dual display with less clear markings

SKU	vdx2998
GTIN	0707242477118
Brand	RIVERWELD
Model Number	Bridge Cam
Material	Stainless Steel
Color	Silver
Item Weight	0.11 kg (0.24 lb)
Item Dimensions	7.5 cm (L) x 10.2 cm (W) x 1.6 cm (H)
Package Weight	0.14 kg
Package Dimensions	13.5 cm (L) x 9.5 cm (W) x 1.6 cm (H)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
