How do I connect my guitar to a mixer using the Pyle-Pro PDC22 DI box?

Connect your guitar's 1/4" output to the PDC22's input jack. Then, connect an XLR cable from the PDC22's balanced output to your mixer's microphone input. Use the attenuator switches if your guitar's signal is too hot. The ground lift switch can be engaged to eliminate hum if present.

What is the difference between active and passive direct boxes?

A passive DI box, like the Pyle-Pro PDC22, uses a transformer and requires no external power, making it simple and reliable for most instruments. An active DI box contains a powered preamp and is often used for very low-output passive pickups or when signal boosting is needed. The PDC22 is ideal for standard guitar and bass signals.

Can the Pyle-Pro PDC22 eliminate ground loop hum?

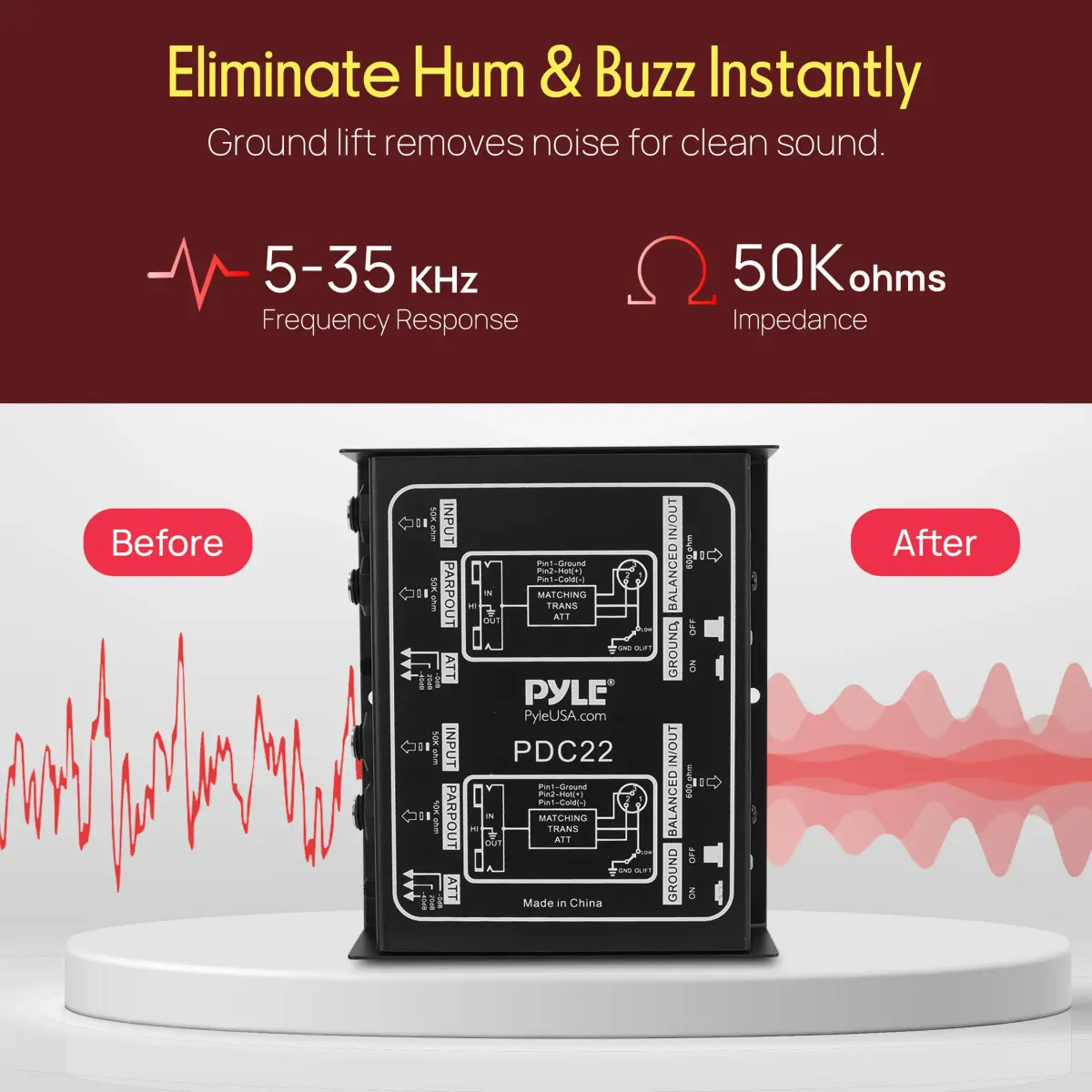

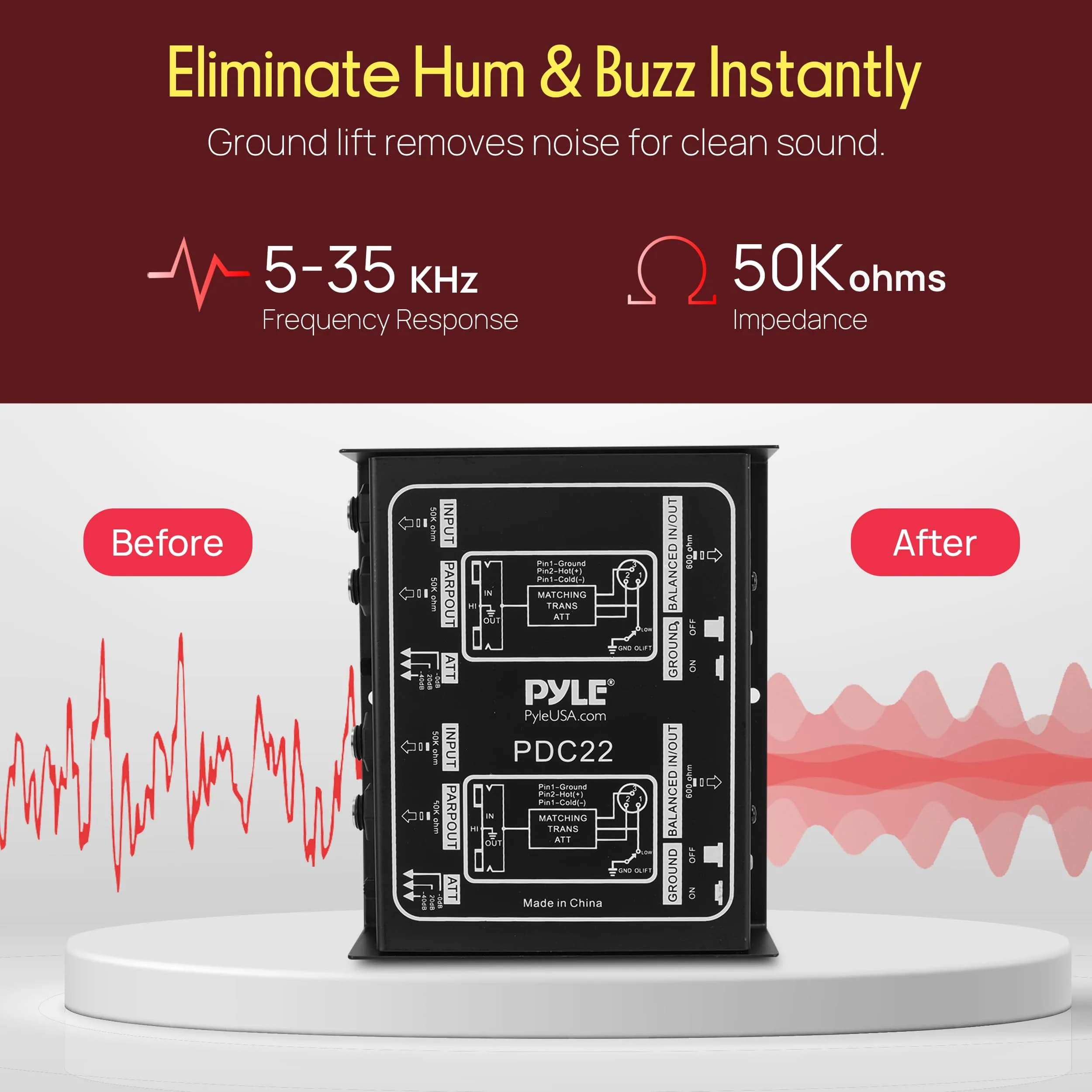

Yes, the Pyle-Pro PDC22 features a switchable ground lift designed specifically to eliminate ground loop hum. If you experience a buzzing noise when connecting your instrument to a mixer or PA system, engaging the ground lift switch on the DI box can often resolve the issue.

What instruments can I connect with the Pyle-Pro PDC22 DI box?

The PDC22 is versatile and can connect electric guitars, bass guitars, keyboards, outboard signal processors, submixers, effects processors, and even line outputs from boom boxes or consumer stereo systems to a main PA or recording mixer.

How do I buy an original Pyle-Pro PDC22 DI box in India?

CrowCrowCrow imports original Pyle-Pro PDC22 DI boxes directly from authorized US retailers and authorized brand partners. Each unit is factory-sealed and imported per order, with all customs duties and GST included in the listed price. Your order is shipped via ExpressBox tracked delivery to your Indian pincode.

Pyle-Pro PDC22 Passive DI Box | Hum Eliminator Guitar Bass Input Attenuator

Name: Pyle-Pro PDC22 Passive DI Box | 1/4 Inch Input to XLR Output Hum Eliminator with Attenuator
Brand: Pyle
SKU: gyd0646
Price: 3926.00 INR
Availability: InStock

About this item

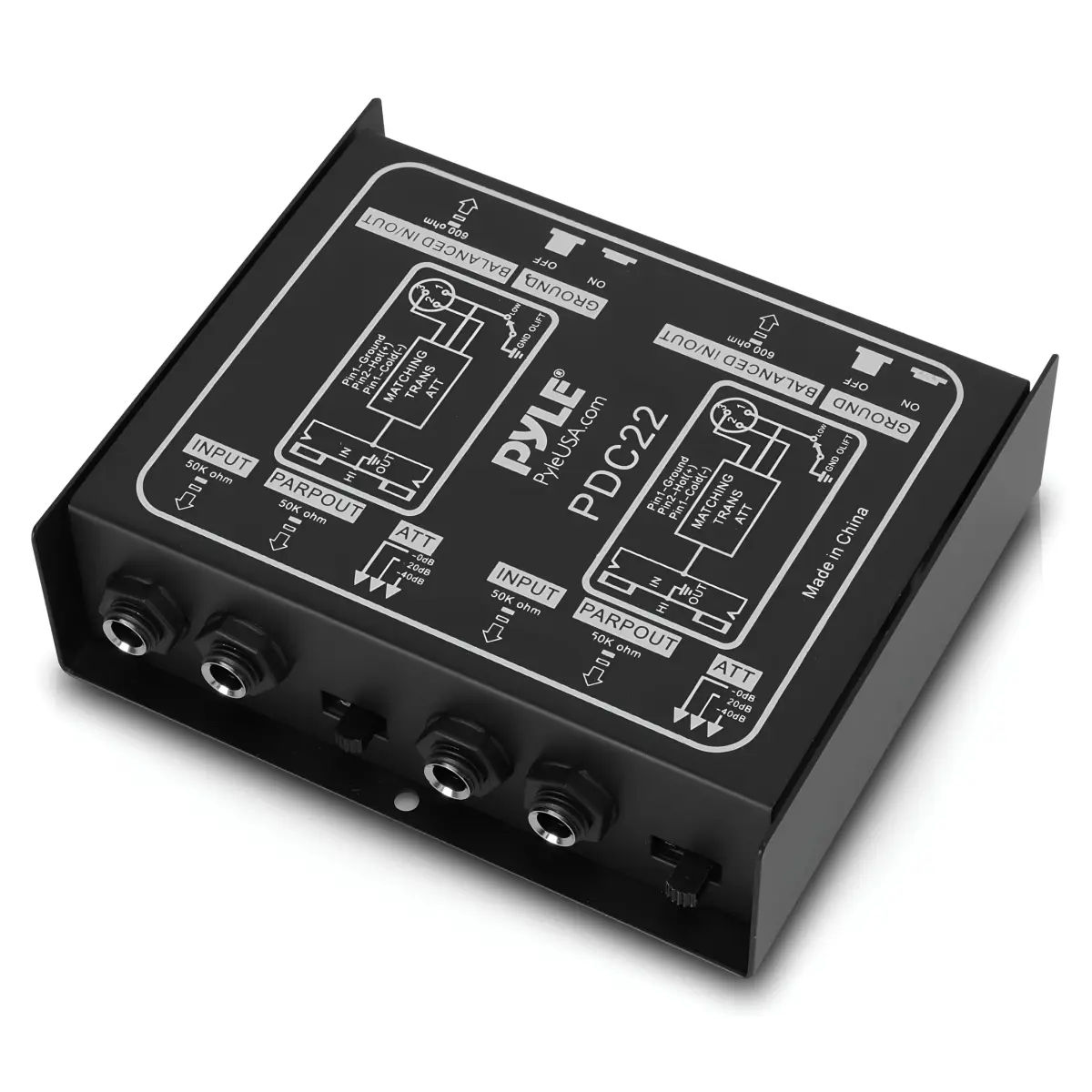

The Pyle-Pro PDC22 passive direct box is essential for musicians seeking pristine audio quality. Its all-steel chassis houses a switchable ground lift and input attenuator (0dB, -20dB, -40dB) to effectively eliminate noise, distortion, and ground loops. This unit seamlessly connects high-impedance, unbalanced instrument signals from guitars, basses, keyboards, and processors to low-impedance, balanced XLR inputs on mixers or PA systems, ensuring a clean signal path.

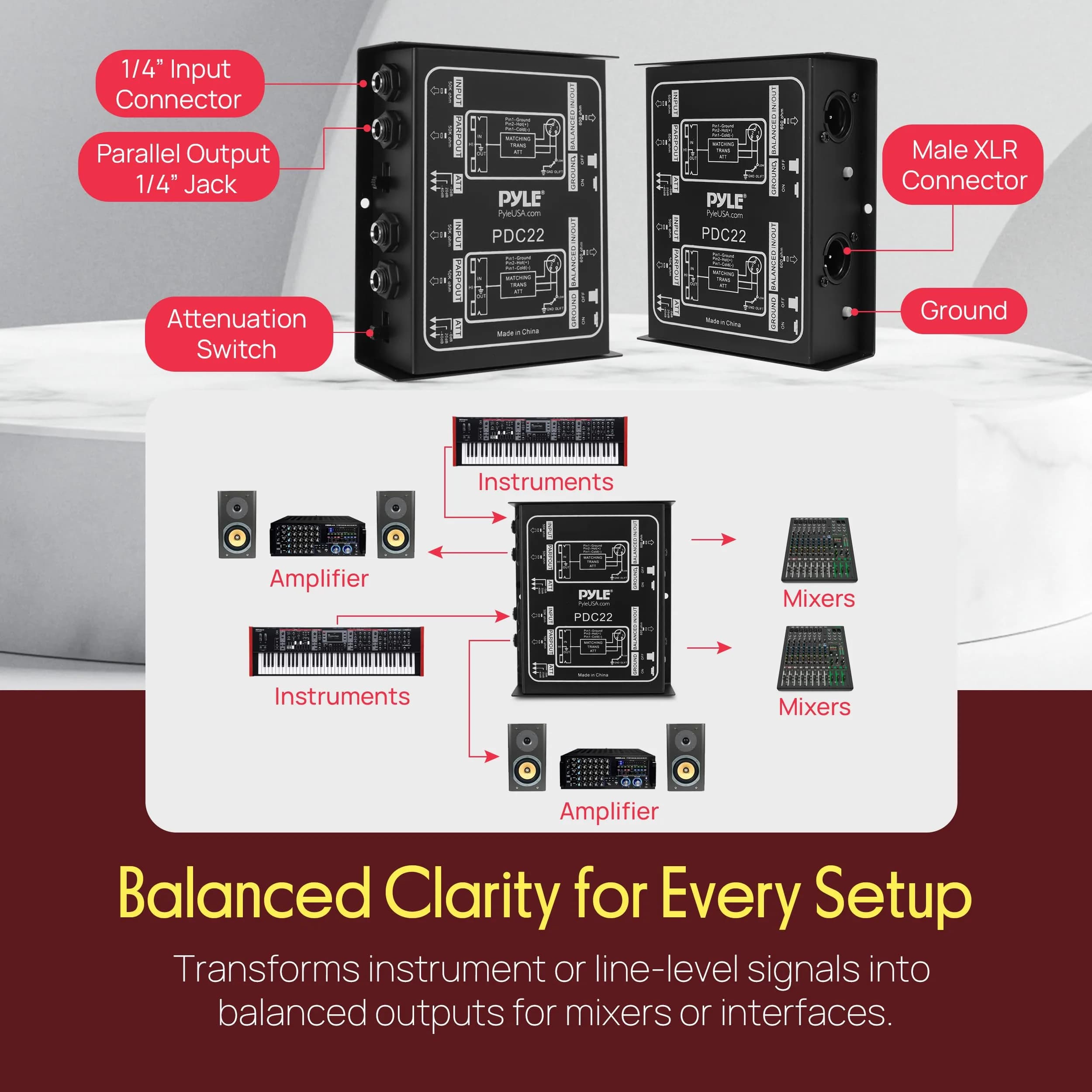

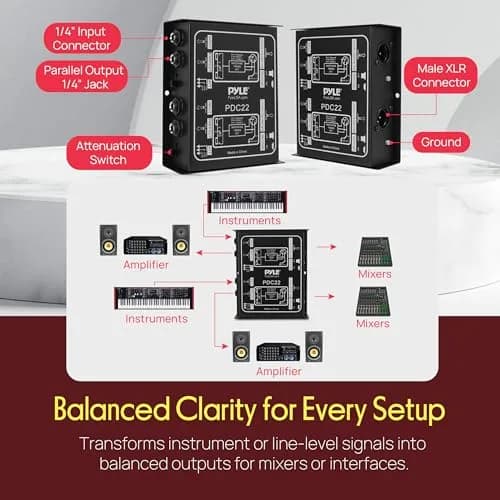

Designed for versatility, the PDC22 acts as an impedance transformer, providing buzz and hum cancellation. It features both unbalanced TS jacks for instrument input and a parallel (link) out, alongside a balanced XLR output. This allows you to send your instrument's signal to the mixer while also feeding a separate amplifier or monitor, making it a convenient tool for both live sound and studio recording applications.

Imported from authorized US retailers and authorized brand partners, the Pyle-Pro PDC22 offers reliable performance and durable construction. All customs duties and GST are included in the listed price, with delivery via ExpressBox tracked shipping. Enjoy a clear, noise-free signal for your performances and recordings.

Key Features

¼ “ DEVICE CONNECTOR: Provides a variety of DI solutions with its ¼ inch device connector and detachable AC power cord for live sound recording applications. It allows you to easily connect keyboards, guitars & outboard signal processors
PROVIDES CLEAN AUDIO: Useful for connecting unbalanced signals from sources submixers, effects processors & keyboards to a main PA or recording mixer. This impedance transformer also has buzz & hum cancellation ability
EASILY CONNECTS INSTRUMENTS: Getting the signal of a musical instrument to the PA system is easier with this direct box. Just connect the electric bass, guitar, keyboard or other processors to the ground lift adapter & enjoy pure & clean audio
VERSATILE DIRECT BOX: Aside from music instruments, the DI unit can also be connected to the line output of a boom box or consumer stereo system if you want to sample old records. The hum eliminator is used for connecting unbalanced devices as well
DURABLE MATERIAL: Made of all steel chassis, this direct injection box is guaranteed to last for a long period of time. Aside from its heavy duty construction, it is also a convenient tool for musicians as it comes with 2 channels

Why choose this product

Pristine Signal Integrity

The Pyle-Pro PDC22 DI box is engineered to preserve your instrument's true tone. Its passive design and high-quality components ensure minimal signal loss and distortion. Unlike basic adapters, it actively cancels hum and ground loops, a common issue with long cable runs or complex stage setups. This means clearer highs, tighter lows, and a more professional sound for your live performances or studio recordings, directly imported for you.

Ideal for Live & Studio

This DI box is perfect for guitarists, bassists, and keyboardists connecting to PA systems or mixers. It's also useful for sampling old records or connecting consumer stereo systems. Skip it if you require active signal boosting or phantom power for very low-output passive pickups; consider a dedicated active DI in those specific scenarios.

How to use

Plug your guitar, bass, keyboard, or other audio source into the 1/4" TS input jack on the Pyle-Pro PDC22 DI box. — Connect Your Instrument
Use an XLR cable to connect the PDC22's balanced XLR output to a microphone input on your mixing console or PA system. — Connect to Mixer/PA
Engage the input attenuator switches (0dB, -20dB, -40dB) as needed to match your instrument's output level and prevent signal clipping. — Adjust Signal Levels
If you hear buzzing or humming, flip the ground lift switch to disconnect the ground and remove the noise. — Eliminate Hum (If Necessary)

Example scenarios

Typical situations where Pyle-Pro PDC22 Passive DI Box | 1/4 Inch Input to XLR Output Hum Eliminator with Attenuator helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

Musicians in humid Indian cities like Mumbai or Chennai often face ground loop hum issues when connecting instruments to PA systems.

How this product helps

The Pyle-Pro PDC22's switchable ground lift and input attenuation actively cancel these hums, ensuring a clean signal for live gigs. Imported directly, all duties are included, with ExpressBox tracking for reliable delivery.

Scenario 2

Illustrative example

Where it helps

Home studio enthusiasts in India need to connect guitars or keyboards to mixers without signal loss or noise over longer cable runs.

How this product helps

This passive DI box converts unbalanced instrument signals to balanced XLR, minimizing noise and distortion. Its durable steel construction ensures it withstands regular use, providing a professional sound for recordings.

Specifications

Composition

Type	Passive DI Box
Input Impedance	50K Ohms (Unbalanced TS Jack)
Output Impedance	600 Ohms (Balanced XLR Jack)
Attenuation Levels	0dB, -20dB, -40dB (Switchable)
Features	Ground Lift Switch, Parallel (Link) Out

Usage

Power Source	Passive (No Battery or Phantom Power Required)
Recommended Use	Connecting instruments (guitar, bass, keyboard) to mixers/PA systems, hum elimination, signal processing
Cost per unit	1 unit at ₹3,926 — ₹3,926 per unit

How we compare

Feature	Pyle-Pro PDC22 Passive	Others
Hum Elimination	Switchable ground lift and input attenuation for active hum cancellation.	Basic adapters may lack dedicated hum cancellation features; some local units offer ground lift at higher price points.
Build Quality	Durable all-steel chassis for stage and studio reliability.	Varies widely; some local options use plastic casings, while higher-end units may offer metal construction.
Input Attenuation	Switchable levels (0dB, -20dB, -40dB) for optimal signal matching.	Often limited or absent on basic local DI boxes; advanced features typically found on premium models.
Passive Operation	No batteries or phantom power required, ensuring plug-and-play simplicity.	Passive models are available, but many local DI boxes are active and require phantom power or batteries.
Cost per unit	1 unit at ₹3,926 — ₹3,926 per unit

SKU	gyd0646
GTIN	00068888904117
Brand	Pyle-Pro
Model	PDC22
Color	Black
Material	Steel Chassis

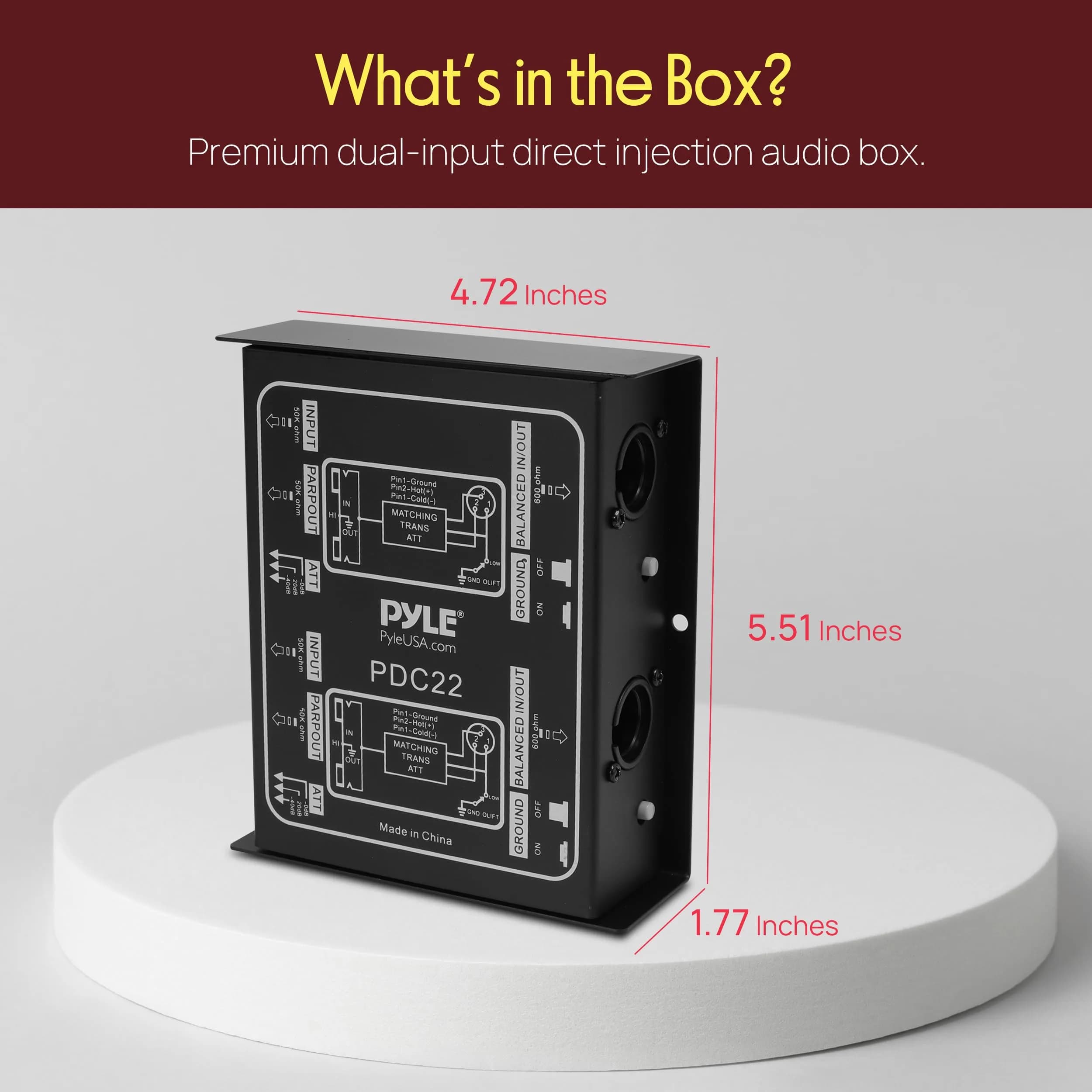

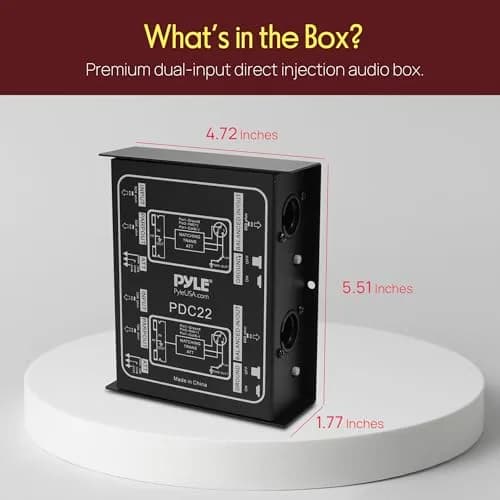

Dimensions (L x W x H)	5.5 x 4.72 x 1.57 inches (14 x 12 x 4 cm)
Weight	0.51 kg (1.12 lbs)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
