What is this QINIZX stepper motor linear rail used for?

This QINIZX 2-phase, 4-wire stepper motor linear rail is designed for DIY projects requiring precise XY axis movement, such as laser engraving machines, measuring equipment, and small CNC builds. It offers a 90mm stroke and operates on DC 5-12V.

Do I need a separate driver board for this stepper motor?

Yes, the stepper motor requires a stepper motor driver board to operate; direct power connection will not cause rotation. You can search for model B09BTWQPTB to find a compatible driver.

What are the main specifications of this linear rail?

It features a 90mm lead screw length, 3.1" effective stroke, 18-degree step angle, and operates on DC 5-12V with 800mA/phase. The stage size is approximately 105 x 15 x 25 mm.

Is this linear rail suitable for high-precision applications?

The default slider may require modification for applications demanding extremely high accuracy. For standard DIY projects, it offers functional precision, but users needing sub-millimeter accuracy out-of-the-box might need to adjust or consider alternative components.

How to buy an original QINIZX stepper motor linear rail in India?

Purchase directly from crowcrowcrow.com to ensure you receive an original QINIZX stepper motor linear rail, sourced from authorized US retailers and brand partners. It is imported per-order, with all customs duties and GST included, and delivered via ExpressBox tracked shipping.

What is the voltage and current rating for this stepper motor?

The stepper motor operates on DC 5-12V with a maximum current of 800mA per phase. The higher the voltage, the greater the force and heat generated, allowing for performance tuning.

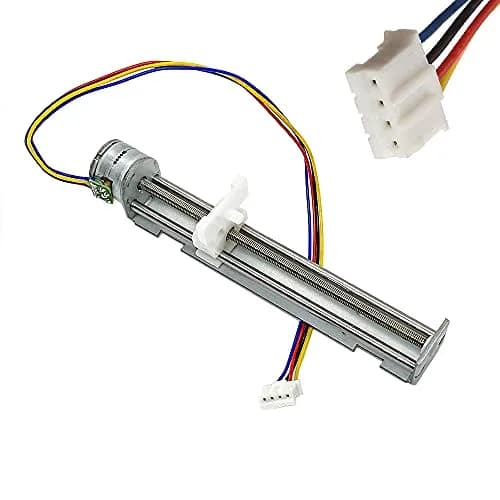

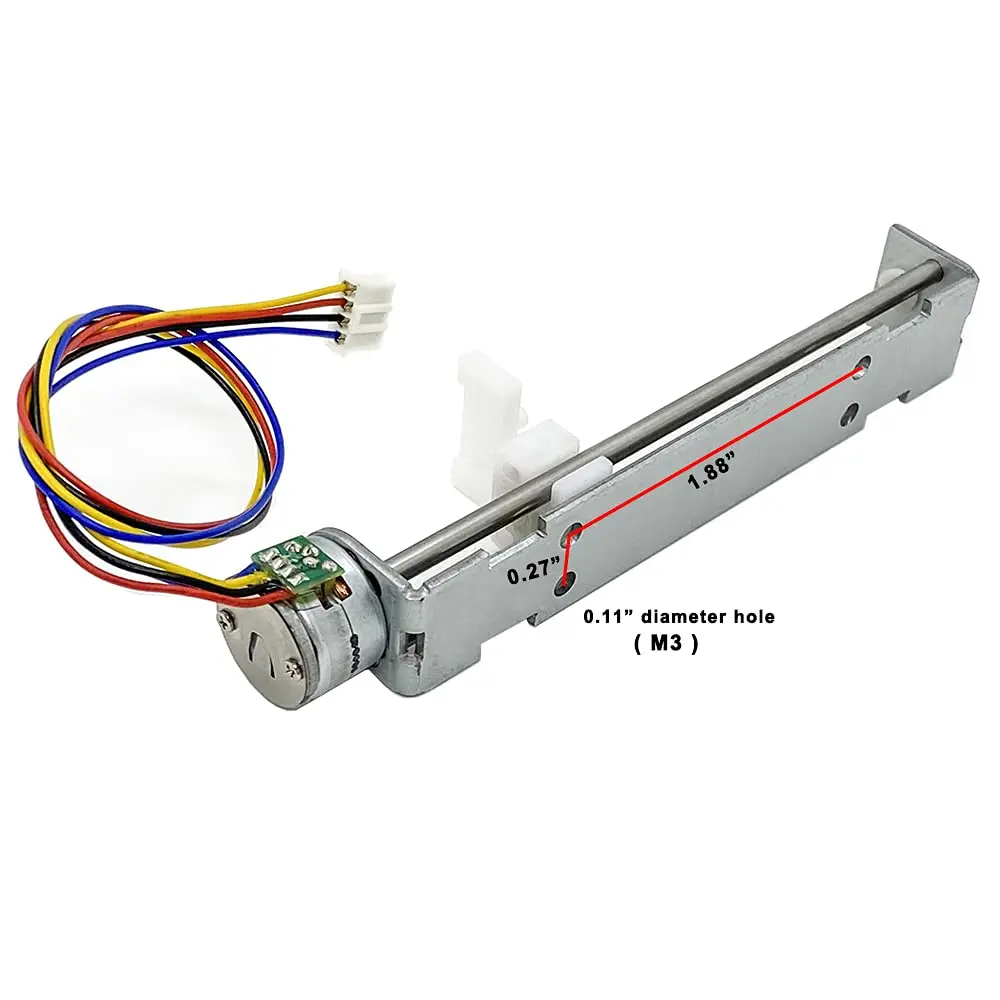

QINIZX Stepper Motor Linear Rail 90mm Stroke | XY Axis Actuator for DIY Projects

Name: QINIZX 2 Phase 4 Wire Stepper Motor Linear Rail 90mm Stroke 18 Degree Step Angle | XY Axis Actuator for DIY Projects
Brand: QINIZX
SKU: upy8844
Price: 3344.00 INR
Availability: InStock

About this item

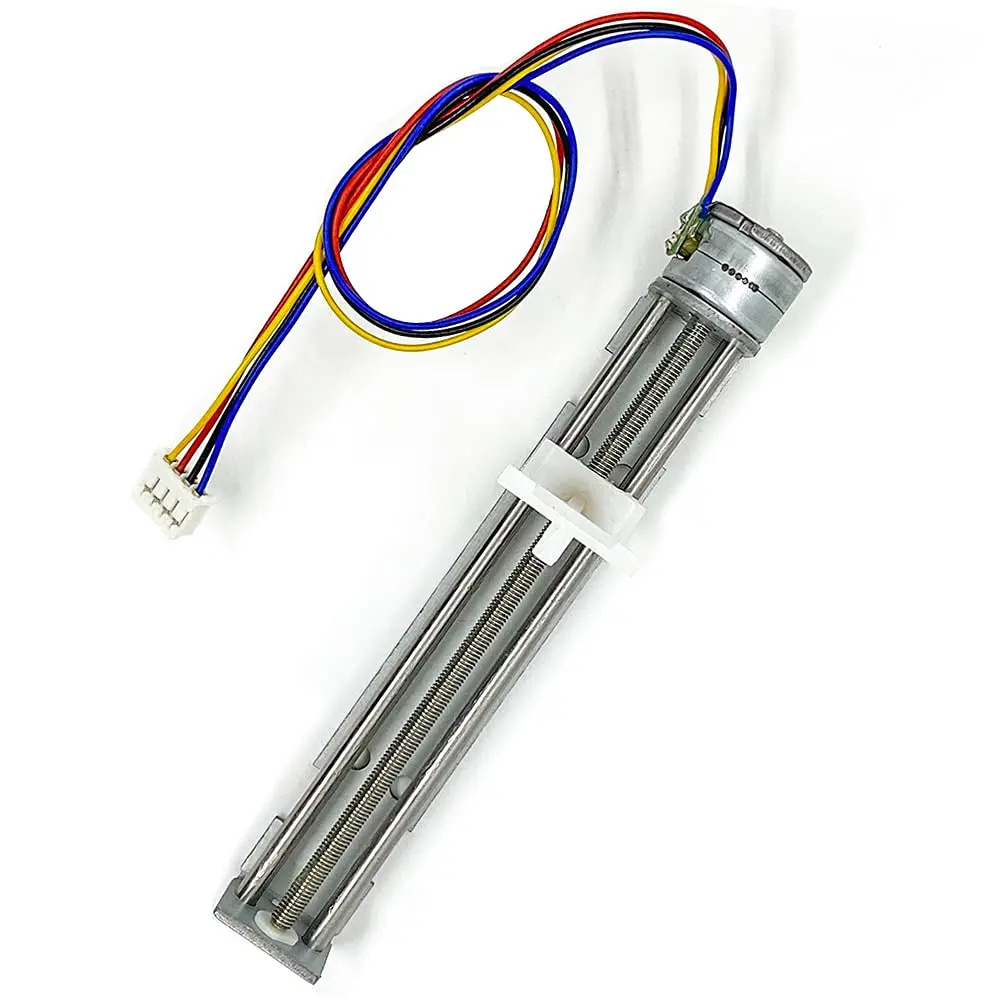

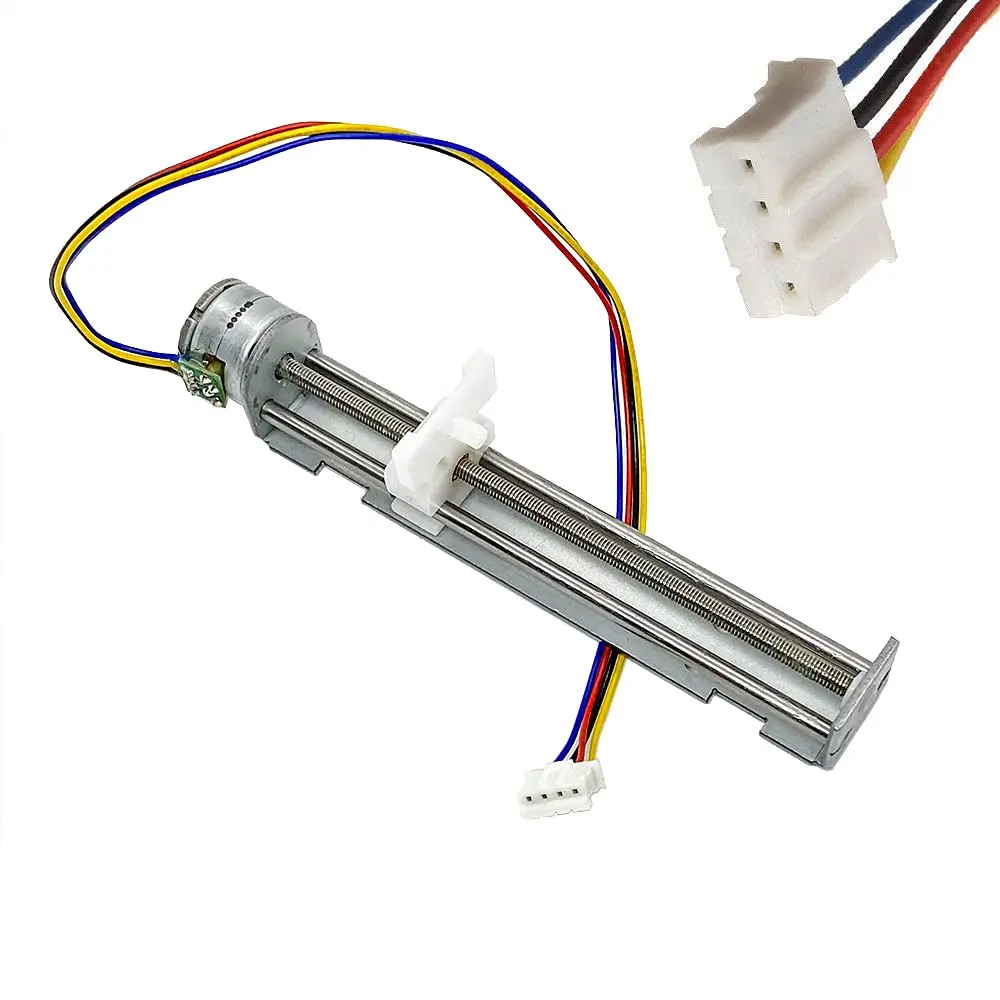

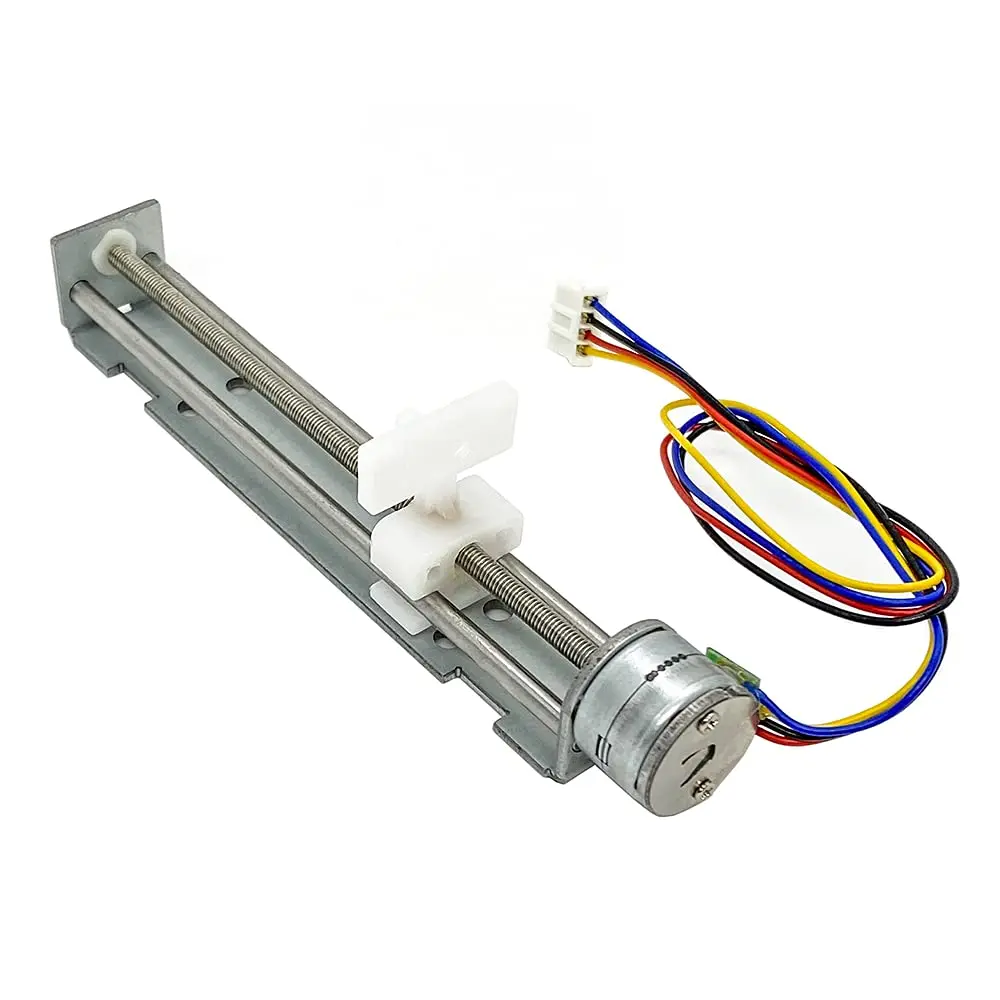

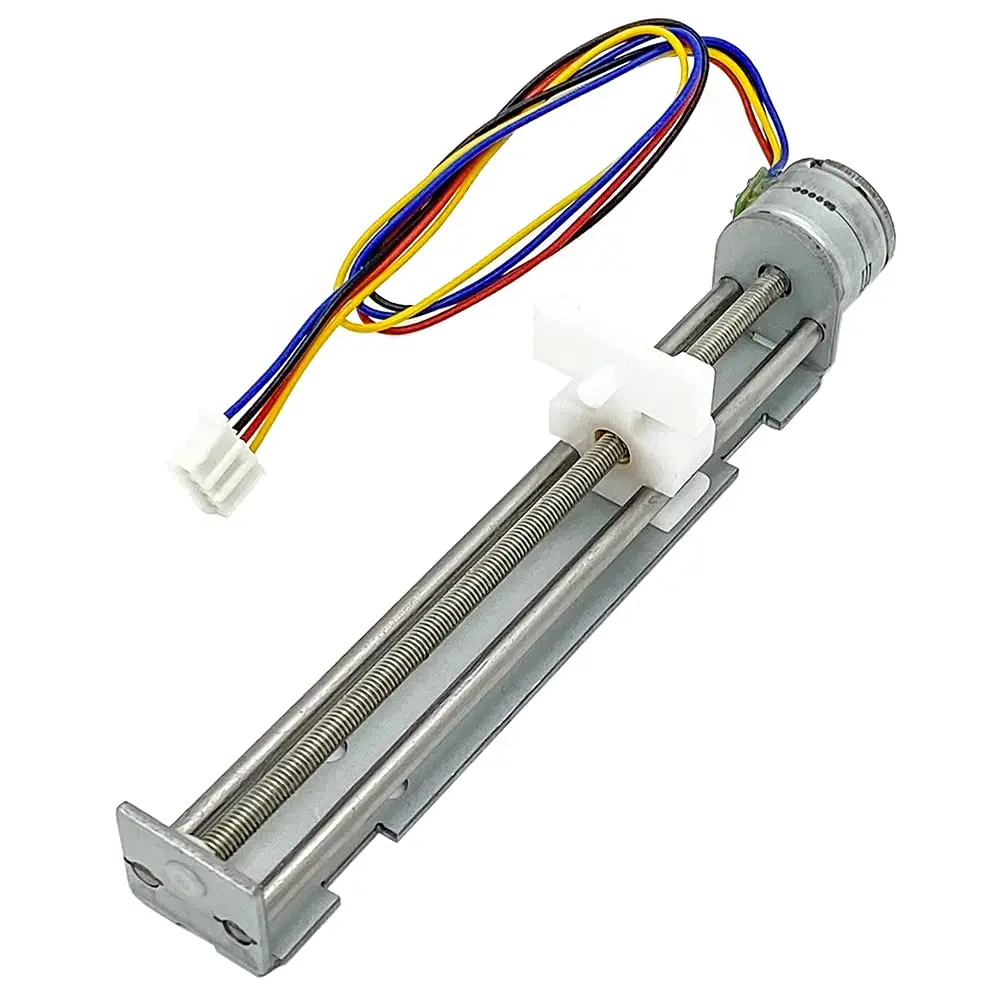

The QINIZX 2-phase, 4-wire stepper motor linear rail provides precise XY axis movement for DIY projects like laser engraving machines. It features a 90mm stroke, 18-degree step angle, and operates on DC 5-12V. The metal body and plastic slider ensure durability, while its compact size makes it suitable for small-scale applications. Requires a separate stepper motor driver board.

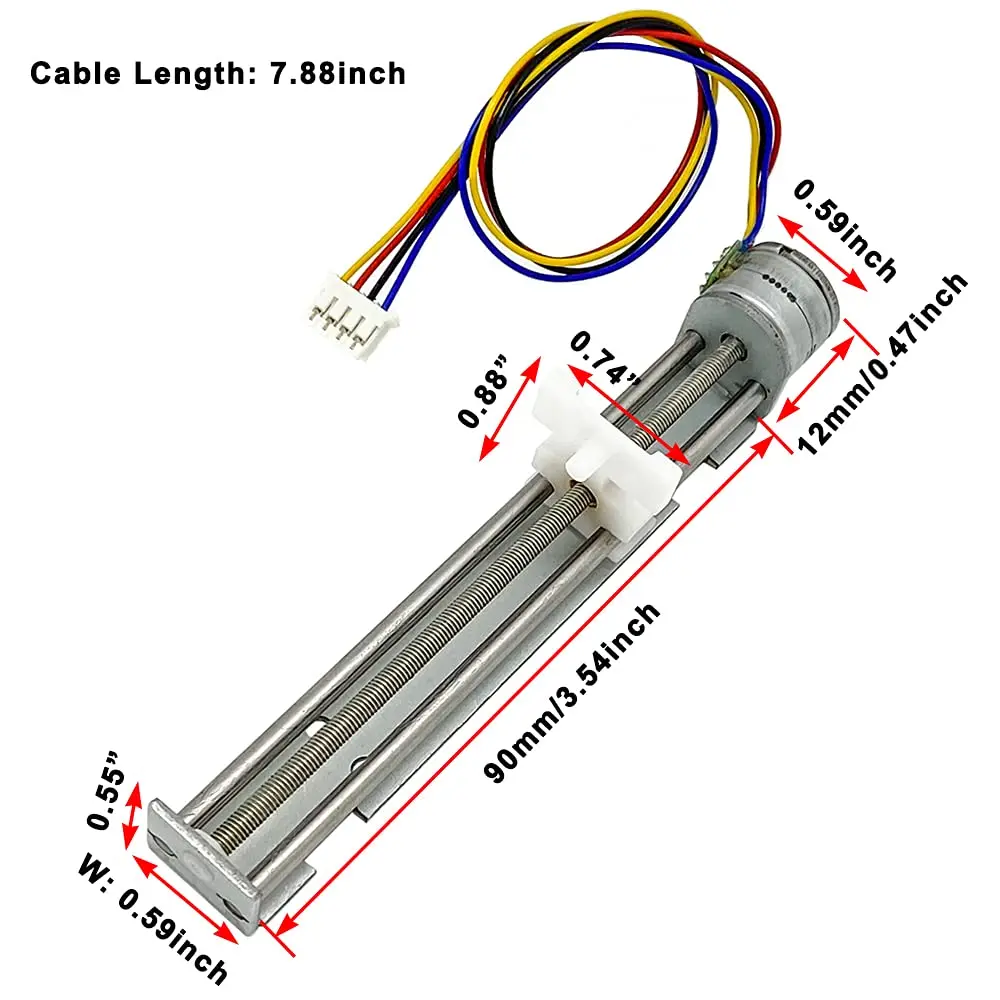

Technical specifications include a lead screw length of 90mm (3.5"), screw diameter of 3mm (0.1"), slider width of 15mm (0.6"), and an effective stroke of 80mm (3.1"). The stage size is 105 x 15 x 25 mm (4.31" x 0.59" x 0.98"). Maximum linear speed is 25mm/s. Wiring is Blue A +, Black A-, Red B +, Yellow B-. Note that direct power connection will not cause rotation; a stepper motor driver board is necessary.

This imported linear rail offers a cost-effective solution for hobbyists and small-scale automation in India. While the default slider may require modification for higher accuracy, it provides a functional base for custom builds. All customs duties and GST are included in the price, with delivery via ExpressBox tracked shipping.

Key Features

Fine Design: This rail and linear block are small and light, especially suitable for small teams. The main body is made of metal, and the slider is plastic, the tool is simple and easy to use, strong and durable.
Technical Data: Drive Voltage: DC 5-12V/ max 800mA (the higher the voltage, the greater the force and the greater the heat); Step Angle: 18 degrees; Phase Resistance: 15.5 Ohms; Screw Shaft Length: 3.5"; Screw Shaft Diameter: 0.1"; Slider Width: 0.6"; Effective Stroke: 3.1"; Stage Size: 4.31" x 0.59" x 0.98".
Note That: This stepping motor direct power is not rotating, it need to stepper motor driver board. Search "B09BTWQPTB" to purchase it. Wiring method: Blue A +, Black A-, Red B +, Yellow B- .
Application: Stepper motor guide linear slide table can be used for DIY small slider projects, measuring equipment, laser printer, etc.
Service: If you have any questions or encounter any problems while using this motor, please contact us proactively. We will reply promptly during working hours and do our best to solve your problem.

Why choose this product

Precision for DIY Automation

This QINIZX linear rail is engineered for hobbyists and small-scale automation, offering the precision needed for DIY laser engravers and measuring equipment. Its 2-phase, 4-wire stepper motor ensures controlled movement, while the 90mm stroke and 80mm effective travel allow for detailed work. Imported directly, it bypasses typical import complexities for Indian buyers, ensuring you receive a functional component for your custom builds. The metal construction provides the durability required for consistent operation in a workshop setting.

Who It's For vs. Who Should Skip

This linear rail is perfect for DIY enthusiasts, makers, and small businesses looking to add precise XY axis control to custom projects like laser engravers or small CNC machines. It's suitable for those comfortable with basic electronics and motor driver integration. However, users requiring extremely high precision out-of-the-box, or those who cannot supply a separate stepper motor driver board (search B09BTWQPTB), should consider alternative solutions. The default slider may also need modification for applications demanding sub-millimeter accuracy.

How to use

Connect Stepper Motor Driver — Wire the stepper motor's 4 wires (Blue A+, Black A-, Red B+, Yellow B-) to a compatible stepper motor driver board (e.g., B09BTWQPTB) according to the driver's specifications and motor wiring diagram.
Connect Driver to Controller — Connect the stepper motor driver board to your microcontroller (like Arduino) or CNC controller. Ensure the voltage supply (DC 5-12V) matches the motor's requirements and the driver's capabilities.
Integrate into DIY Project — Mount the linear rail assembly onto your project structure (e.g., laser engraver frame). Program your controller to send step and direction signals to the driver to achieve desired linear motion along the XY axis.

Example scenarios

Typical situations where QINIZX 2 Phase 4 Wire Stepper Motor Linear Rail 90mm Stroke 18 Degree Step Angle | XY Axis Actuator for DIY Projects helps — illustrative scenarios, not customer reviews.

Scenario 1

Illustrative example

Where it helps

A hobbyist in Bangalore wants to build a custom DIY laser engraver for small acrylic designs.

How this product helps

This QINIZX linear rail provides the necessary XY axis control. Paired with a stepper motor driver and controller, it allows for precise movement of the laser head, enabling detailed engraving on custom projects.

Scenario 2

Illustrative example

Where it helps

A maker in Delhi needs a compact linear actuator for a small-scale automated measuring device.

How this product helps

The QINIZX rail's small size and precise movement are suitable for automated measurement setups. Its metal construction ensures durability for repeated use, and it can be integrated into custom electronic projects requiring linear positioning.

Specifications

Composition

Motor Type	2 Phase 4 Wire Stepper Motor
Step Angle	18 degrees
Current Per Phase	800mA/Phase
Phase Resistance	15.5 Ohms
Drive Voltage	DC 5-12V
Wiring	Blue A +, Black A-, Red B +, Yellow B-

Usage

Application	DIY small slider projects, measuring equipment, laser printers, CNC machines
Drive Voltage Range	DC 5-12V
Maximum Current	800mA/Phase
Maximum Linear Speed	25mm/s
Requires Driver Board	Yes (Search B09BTWQPTB)
Cost per use	N/A (Durable component)
Shelf life after opening	N/A (Durable component)
Reapplication math

How we compare

Feature	QINIZX 2 Phase	Others
Motor Type	2 Phase 4 Wire Stepper Motor	Varies; may include DC motors or different stepper configurations
Stroke Length	90mm Lead Screw, 80mm Effective Stroke	Varies by model; typically 50mm-100mm stroke available
Voltage Compatibility	DC 5-12V	Typically DC 5-24V, check specifications
DIY Project Suitability	Designed for XY axis, laser engravers, measuring equipment	General purpose motors available; specific linear actuators less common
Driver Board Requirement	Requires separate stepper driver board (e.g., B09BTWQPTB)	May be sold bundled with drivers or require specific controller types

SKU	upy8844
GTIN	0723258876868
Brand	QINIZX
Model Number	90mm-Stro-Motor
Material	Metal, Plastic
Color	Silver
Stage Size	105 x 15 x 25 mm (4.31" x 0.59" x 0.98")
Slider Width	15 mm (0.6")
Lead Screw Length	90 mm (3.5")
Lead Screw Diameter	3 mm (0.1")
Effective Stroke	80 mm (3.1")
Screw Pitch	0.5 mm (0.02")
Item Weight	0.068 kg (0.14 lb)
Package Weight	0.068 kg (0.14 lb)
Country of Origin	Not stated by manufacturer — US retail version, sourced from authorized US retailers and authorized brand partners
